Congratulations on your purchase of the SVEN speaker system!
COPYRIGHT
© 2016. SVEN PTE. LTD. Version 1.0 (V 1.0).
This Manual and information contained in it are copyrighted. All rights reserved.
BUYER RECOMMENDATIONS
Shipping and transportation equipment is permitted only in the original container.
Does not require special conditions for realization.
Dispose of in accordance with regulations for the disposal of household and
computer equipment.
APPLICATION
SVEN PS-70BL portable multimedia speaker system is designed for operation with
PC, notebooks and other mobile devices by means of data transfer via Bluetooth
protocol. They can be also used in internet telephony, during video conferences, in
multimedia applica- tions, in interactive games, for speech recognition and foreign
language teaching.
PACKAGE CONTENTS
Speaker system 1 pc
3,5 mm mini-jack to 3,5 mm mini-jack signal cable 1 pc
USB to micro USB power cable 1 pc
Users Manual 1 pc
Warranty card 1 pc
SPECIAL FEATURES
Bluetooth wireless signal transmission
Track switching control possibility
Call acceptance function
Wired/wireless audio signal transmission
Battery peration time up to 7 hours
Radius of operation up to 10 m
CONTENTS
RUS ..............................................................................
UKR ..............................................................................
ENG ..............................................................................
2
7
12
ENG
12
Portable Speaker
System with Bluetooth
SPEAKER SYSTEM DESCRIPTION
a ON/OFF: Power switch ON/OFF
b DC 5V: micro USB port to connect the device to a charger or USB port of a note-
book/PC!
c AUX: 3.5 mm mini-jack for connecting the video signal (phone, MP3 player, etc.)
d : Play/Pause (n Bluetooth mode)
e : Volume level down button (long pressing);
return to the beginning of the track (pressed short in Bluetooth mode);
previous track switch button (double short press in Bluetooth mode)
f LED indicator :
green (when you turn on AC) and red (in battery mode)
g Microphone
h LED modes:
blinks blue shortly Bluetooth mode;
solid blue wired mode (AUX)
i : Volume level up button (long pressing);
next track switch button (pressed short in Bluetooth mode)
j : Answer button on the incoming call. Press again for reset the incoming call

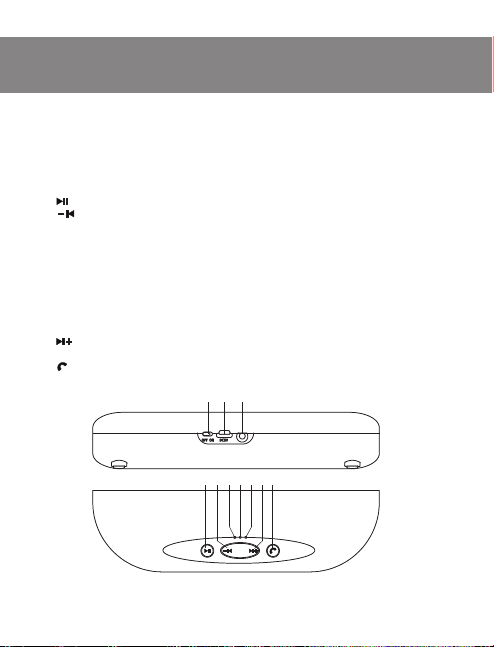

Fig. 1. Speaker system description
ab c
d f j
gh
e i
ENG
13
Users Manual PS-70BL
CONNECTION AND OPERATION
Attention! The built-in battery must be charged completely prior to the
application.
Speaker system battery charging
Connect speaker system to a USB port of PC or USB charger using mini USB to
USB cable (included). During battery charging the indicator f is red.
The b att er y BL-5 C 3.7V 80 0 m Ah is use d i n the spe ake r syst em.
OPERATION MODES
Bluetooth mode
Wireless data transfer via the Bluetooth protocol enables to connect speaker
system to compatible devises. Maximum radius of action of data transfer is 10 m. Such
obstacles as walls or other electronic devices can interfere with the signal transfer.
Turn on the speaker system mode Bluetooth switch a into position ON. The
speaker system automatically activates the “search” mode via Bluetooth. The indi-
cator h will start blinking blue color frequently.
It is necessary to select the search mode of devices with Bluetooth on a signal
source (telephone, notebook, smartphone, etc.). “SVEN PS-70BL” massage will be
displayed on the screen which is to be connected to*.
When connection is successful** there will be a short beep.
The indicator h blinks blue shortly during the data exchange with a device
connected via Bluetooth.
The use in the wired mode (AUX)
Turn on the speaker system, set the switch a in position ON. Then connect the
power signal cable mini-jack to mini-jack (included) to the AUX connector. AUX mode
is activated automatically when you connect the cable to the appropriate connector
on the speakers.
* You might have to enter 0000 code to connect some models of devices via Bluetooth.
** If the item has been already registered in the device list of a source, then the second search
mode activation is not obligatory. Choose the item name SVEN PS-70BL and the “connect”
command on the source.
ENG
14
Portable Speaker
System with Bluetooth
!Speaker system can be used as an external device for amplifying any audio source
with a 3.5 mm output mini-jack. To do this, connect a cable mini USB, plug 3.5 mini-
jack to the audio output.
iPhone
USB to micro USB Power cable!
Mini-jack to mini-jack
signal cable
Technical support is on www.sven..
Notes. Technical specications given in this table are supplemental information and cannot give
occasion to claims. Technical specications and package contents are subject to change without
notice due to the improvement of SVEN production.
TECHNICAL SPECIFICATIONS
Parameter, measurement unit
Frequency range, Hz
Output power (RMS), W:
Membrane, mm
Bluetooth supported proles
Radius of operation, m
Battery operation time, h
Battery capacity, mA / h
Cable lenght, m
Weight, g
Dimensions, mm
Value
speaker: 150 20,000; microphone: 50 16,000
6 (2 × 3)
Ø 38
HSP, HFP, A2DP, AVRCP
up to10
up to 7
800
0.5
250
218 × 55 × 65
15
PS-70BL
ENG
Users Manual

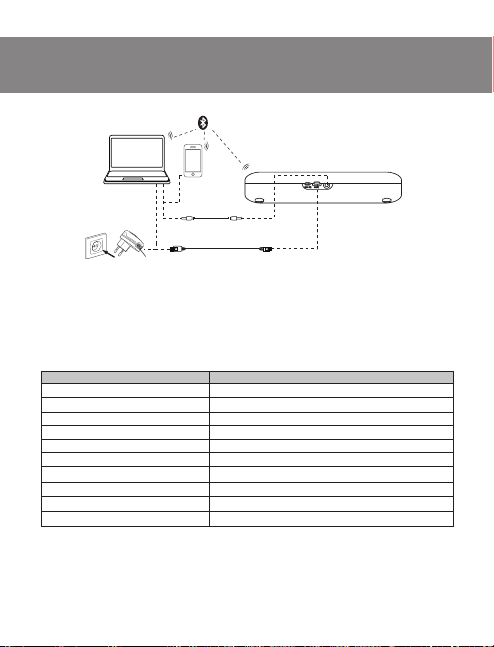

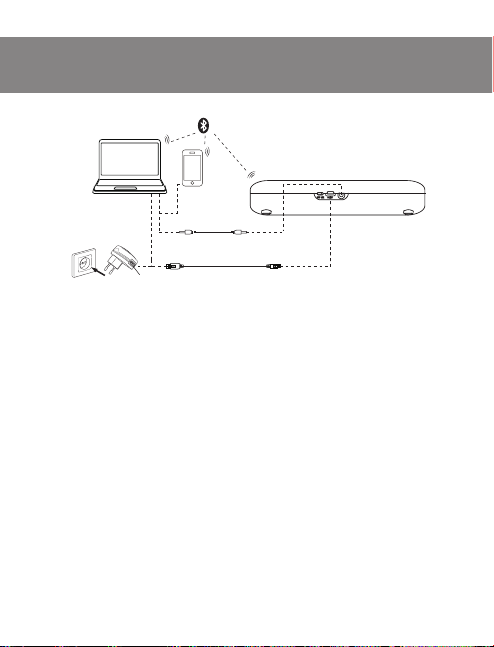

Fig. 2. Connection diagram
USB jack
Socket
PC
Bluetooth
:!PS-70BL
