Swann Swanstone Series User manual

Swanstone Shower Wall
Kits and Panels
mProduct Warnings
mSafety Guidelines
mKit Contents
mRequired Tools
mPreparation Tips
mInstallation Procedure
mCleaning & Maintenance
mSurface Repair
mWarranty Information
Read and Understand
Before Installing
Form # 193-12-21
www.swanstone.com

IMPORTANT NOTICE
IMPORTANT NOTICE: Indicates that equipment or property
damage can result if instructions are not followed.
Read and Understand the Manual
It is the responsibility of any individual who installs or
maintains this product to fully understand and follow
proper installation and maintenance procedures. Be aware of
the inherent dangers in the use of power tools when installing
this product. Read and understand all Warnings, Cautions, and
Important Notices in this manual.
Work Safely
DO NOT proceed if any doubt arises about the correct
or safe method of performing anything found in this or
other Swanstone manuals. The installation of this product can
require using power tools. Do not use power tools without
adequate training. If necessary, hire or consult a trained
professional for expert assistance before continuing.
Use Proper Tools
Always use proper tools which are in good, working
condition during the installation of the Swanstone
products. Using tools other than those listed could adversely
affect the integrity of floors, pipes, walls, or this product and
could result in water damage or other damage to floors, pipes,
walls, or other portions of your building or home.
Do Not Use Nails
The panels mount to walls with 100% clear silicone
sealant only. Swan recommends 100% clear silicone
sealant to mount this product. It is NOT recommended to use
GE brand of 100% silicone. Never use hammers, nails, or
screws. Hammers, nails, and screws could adversely affect the
integrity of this product. Nails and screws could puncture the
Swanstone Wall Systems and Panels, resulting in water or
other damage to floors, pipes, walls, or other portions of your
building or home.
Inspect Before Cutting
Make sure no electrical wiring or plumbing is present
before cutting into a wall to install any accessories.
Wall Conditions
Inspect the walls before installing the Swanstone
panels. Never install panels over damp walls or an
existing mold condition.
CAUTION
CAUTION: Indicates a potentially hazardous situation
which, if not avoided, may result in injury. It may also be
used to alert against unsafe practices.
Use Proper Installation Methods
Follow all instructions related to wall surface
preparation. Failure to follow such instructions could
cause the panels to detach from the wall surface after
installation, resulting in personal injury. Failure to follow these
instructions could result in water damage.
The Swan Assurance — if our product is
properly installed and maintained, as stated in
these instructions, it will not leak.
Remember –
Safety First
IMPORTANT NOTICE
The Swan Corporation, the makers of the
Swan products, cannot anticipate every
possible circumstance that might involve
a potential hazard during the installation
of our product(s). The warnings and
instructions in this installation guide
are, therefore, not all-inclusive. If a tool,
installation procedure, or work method
that is not specifically recommended by
The Swan Corporation is used, you must
satisfy yourself that it is safe. You should
also make sure that the Swan product(s)
will not be damaged by the methods you
choose. The Swan Corporation will not be
held responsible for water damage of any
kind in connection with the installation of
one of our Swan bath/shower/panel kits.
WARNING
To avoid product damage, personal injury,
or even possible death, carefully read,
understand, and follow all the instructions
in this installation guide before installing
this product(s). Do not use cleaning
fluids or operate power tools unless you
read and understand the instructions
and warnings in this and all other
applicable labels or manuals. Proper use
of tools and the products described in
this guide is your responsibility.
WARRANTY
This product is covered by a Limited
Lifetime Warranty. Refer to the Warranty
section in this manual for complete details.
Save this manual for future
reference.
Important information on cleaning,
maintenance, and repair is contained
within.
Safety Guidelines

Lifting Hazard
According to the National Institute for Occupational
Safety and Health, the recommended maximum safe
lifting weight is 51 pounds, with all lifting conditions perfect—
minimal forward reach, steady load close to the body, straight
back, load between knees and shoulders, and good grips.
To avoid personal injury, always use these proper lifting
techniques and use two people to move cartons weighing
more than 51 lbs. The box containing the Swanstone kit
can weigh in excess of 280 pounds. Use the appropriate
lifting devices to move the load. Always use two people when
lifting heavy or bulky cartons. DO NOT attempt to lift objects
that are too heavy.
WHEN CARRYING A HEAVY LOAD—GET HELP!
Slipping Hazard
Do not install this product in the presence of water.
Installing this product without drying all surfaces, or in
the presence of water, could cause you to slip and fall due to
wet floors or spilled fluids. Personal injury can result from slips
or falls. Before installation, dry all surfaces, including the floor,
with a cloth or paper towel. Clean up all water or spilled fluids
immediately.
Tripping Hazard
Personal injury can result from tripping over power
cords, tools, or other items. DO NOT leave items laying
around the work area.
Personal Protection
Be sure to use all personal protective
equipment, such as sturdy work boots,
preferably with steel toes, gloves, and hard hat, if necessary,
to ensure your own safety. To prevent possible damage to
your hearing, always wear ear protection, such as earmuffs or
earplugs, when working around power tools.
Cutting Hazard
The installation of the Swanstone product may require
using power tools. Keep hands away from the cutting
edge of any tool used in the installation of our product.
Placing fingers in or around the cutting blades could result in
serious personal injury.
Sharp Edge Hazard
After cutting the edge of a Swanstone panel, it can be
sharp. Wear protective gloves to prevent personal injury.
Room Temperature
Allow the Swanstone panels to adjust to room
temperature for at least six hours before
installation, and consult the 100% silicone
sealant manufacturer’s instructions for storage and surface
preparation. The panels should be installed at temperatures not
less than 65°F. Panels should not be installed in areas where
the temperature may drop below freezing (32°F). Failure to
follow this recommendation could adversely affect the silicone
sealants which holds the panels to the wall. If the panels are
not correctly adhered to the walls, they may fall off, causing
possible injury to someone in or around the shower enclosure.
Grab Bars
We recommend that shower compartments be
equipped with support grab bars that comply with the
most recent edition of ANSI-A117.1 requirements.
Grab bars must be anchored to structural support (wall studs)
behind the panels. Do not rely on the panels only for grab bar
support!
WARNING
WARNING: Indicates a potentially hazardous situation
which, if not avoided, could result in serious injury or
death.
Eye Protection
Be sure to use all personal protective equipment to
ensure your own safety. To avoid eye injury, always
wear protective glasses with side shields when using power
tools. Also, make sure no one else can be injured by flying
particles when using power tools.
Fire Hazard
Personal injury or death can result from a
fire caused by flammable liquids or
silicone sealants. Cleaners or solvents can be highly explosive,
resulting in personal injury or even death, when not used
properly. Clean up any flammable substance immediately.
Sparks or open flames can cause flammable substances to
ignite. DO NOT smoke while working on or near any
flammable substance.
Solvents Hazard
Follow all manufacturer’s safety instructions for silicone
sealants and denatured alcohol. Alcohol vapors are
both flammable and hazardous to breathe. Silicone vapors
may irritate eyes and nose. Personal injury can result from
improperly handling or use of products, such as denatured
alcohol. Always follow the manufacturer’s recommendations for
the safe use of these products. Ventilate any work area before
beginning to apply silicone sealants, cleaning agents, or
solvents.
Fumes Hazard
The fumes from the silicone and solvents used
by the installer can be harmful if used in an
unventilated room. Always work in a well-ventilated area. To
keep the area well-ventilated, open windows and use exhaust
fans. If adequate ventilation is not achievable or practical, use
respiratory protective equipment.
Dust Hazard
When cutting or drilling the Swanstone product,
use a dust collection method which prevents
dust particles from going into the air. Always work in a well-
ventilated area. Always use an OSHA approved dust mask
when cutting, drilling, or sanding Swanstone products.
Power Tool Hazard
To prevent personal injury or possible death,
always follow the electrical safety
recommendations of the power tool’s manufacturer. Do not use
power tools in an unsafe manner. Power tools should only be
connected to a circuit protected by a ground-fault circuit
interrupter (GFI).
Shock Hazard
Never use electric power tools around water,
condensation, or other liquids. Electric shock
can cause severe burns, significant injuries, and even death. If
an extension cord is required, always use an OSHA approved
extension cord. Power cords should only be connected to a
circuit protected by a ground-fault circuit interrupter (GFI).
800-325-7008 3 Swan
Safety Guidelines

Electrical Shock Hazard
Contacting live electrical wiring with power tools
or hand tools can cause serious injury or death.
Make sure all related circuit breakers are turned OFF. Test for
live circuits or wiring inside any wall where installation of the
Swanstone product requires cutting into a wall.
Electrocution Hazard
Water and other liquids conduct electric current
and can create a short circuit, resulting in injury
or death. Keep all liquids away from electrical cords and power
tools. DO NOT create a short circuit between a source of
electricity and a liquid by being in contact with both
simultaneously.
General Information
Required Tools
m100% clear silicone sealant
mOne tube of color-coordinated silicone
mCircular saw with 60 to 80 tooth carbide blade
mSaber saw (straight up and down travel) with bi-metal blade
(14 teeth per inch)
mDrill with 3/8” drill bit
mHole saw for shower faucet/shower head
mTape measure
mMasking tape (2” wide works best)
mLevel
mCompass or dividers (scribe the panel to the wall)
mCaulking gun
mClean paper towels or shop towels

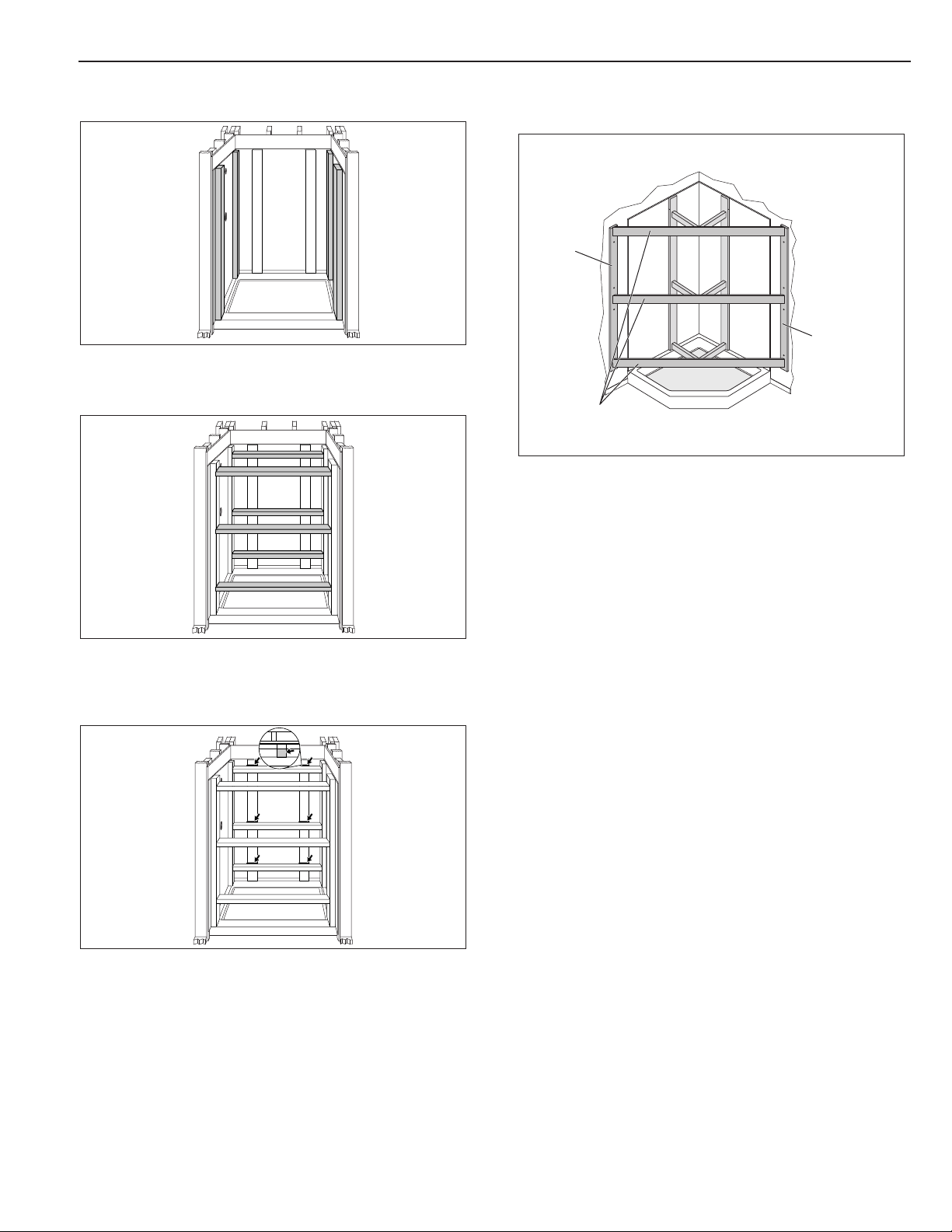

m2 x 4 lumber, as required for bracing (see Bracing
Instructions)
mIndustrial grade, hot glue gun and glue sticks (optional)
mDenatured alcohol
Kit Contents
Confirm that all parts of this kit have been included before
beginning installation.
SS-6296, SSST-3696-1, SSST-6296-1, SSSQ-3696-1,
SSSQ-6296-1, MSMK-7230, MSMK-7232, MSMK-7234,
MSMK-7236, MSMK-7262, MSMK-8430, MSMK-8432,
MSMK-8434, MSMK-8436, MSMK-8462, MSMK-9630,
MSMK-9632, MSMK-9634, MSMK-9636,MSMK-9662
One flat panel
DWP-369601
One deco panel
SK-363672, SK-363696
SK-364872, SK-364896
SK-484896, SK-366072
SK-366296
Three flat panels
Two corner moldings
Two soap shelves
Three flat panels
Two soap shelves
For best results, use 100% clear silicone sealant for bonding this
product to a properly constructed and prepared sub wall. You
will need one tube of 100% clear silicone sealant (tube sized to
fit a standard caulking gun) for every 1440 square inches or 10
square feet, or, 4 to 10 tubes for an average shower. Follow the
application recommendation located in the Panel Installation
section of this manual.
It is NOT recommended to use GE brand of 100% silicone.
Unpackaging
mUse care when opening the box so that you do not damage
the panels.
mThis product is shipped to you or your retail center after
careful inspection. After purchasing the kit, carefully unbox
and inspect the product for any shipping damage that may
have occurred. If damage is found, report it immediately to
the store of purchase. After inspection and during installation,
protect the products from construction damage by moving
them to another room or area until ready to install.
mStore panels in a flat area to avoid warpage until the time of
installation. Do not store the panels outside of the original
packaging in a vertical position.
mPlease use the model number located on the side of the box
or the front of this manual when contacting us with
questions concerning the installation of this unit.
mMake sure the walls are the correct size and are in good
condition. Installation of damaged product will void the
warranty.
Swan 4 800-325-7008
Safety Guidelines General Information
SK-363672, SK-363696, SK-364872
SK-364896, SK-484896, SK-366072
SK-366296
STMK72-3636, STMK96-3636 STMK72-3662, STMK96-3662
SQMK72-3636, SQMK96-3636 SQMK72-3662, SQMK96-3662
MSMK-723062, MSMK-723262, MSMK-723462, MSMK-723662
MSMK-843062, MSMK-843262, MSMK-843462, MSMK-843662
MSMK-963062, MSMK-963262, MSMK-963462, MSMK-963662
STMK72-3636
STMK96-3636
STMK72-3662
STMK96-3662
SQMK72-3636
SQMK96-3636
SQMK72-3662
SQMK96-3662
Three flat panels
Two soap shelves

Helpful Hints
mRead these instructions carefully and familiarize yourself
with the various parts of the kit.
mThe variety of installations possible for this kit may require
procedures other than those shown. Ensure construction is
correctly sized, plumb, and square.
mSave the large cardboard box for protection of the shower
floor during the installation process and to use as a
template for cutting the back shower wall panel.
mAllow sufficient time for the parts in this kit to adjust to room
temperature. We do not recommend installation of this
product at temperatures below 65 degrees.
mSawhorses with 2 x 4 cross-members or a worktable are
helpful during the installation process.
mAlways transport the panels vertically. Use care when laying
the panels flat to prevent flexing, especially when panels
have a cutout in them.
mStore unused materials away from the work area to prevent
accidental damage.
mIf the shower is placed over a garage or on an outside wall,
care must be taken to ensure that the shower is properly
insulated from cold temperatures.
Preparation Tips
mMeasure the width of the back wall (with green board)
installed. This measurement cannot exceed the width of the
Swanstone back panel. If the wall opening is too large, other
methods or two panels will be required to cover the wall.
mTurn off the hot and cold water supply.
mRemove faucet handles, escutcheons, filler spouts, and/or
anything mounted to the wall (i.e. towel bars, soap dishes,
etc.).
mAlways measure the location of the plumbing cutouts from
the back wall forward and from the ledge of the shower
base upward.
mEnsure all plumbing or electrical work inside the walls is
finished prior to installation of the wall panels.
mPrepare the area with 1/2” (13 mm) moisture-resistant
drywall, marine grade plywood, or concrete board. Never
install our products directly on any structure that is, or may
become, wet or damp.
mTrial fit the side panels before you begin. Swanstone panels
have a finished side and a nonfinished backer side. The
Swanstone panel has a sticker or stickers attached to the
nonfinished backer side and, upon installation, should be
placed against the sub-wall.
mWalls must be solid, plumb, and square within 1/8” of true.
Shim or trim the opening, as required. This kit has been
designed with some adjustability for minor alignment problems.
mThe mounting surface must be free of dirt, film, waxes, or
any other residues.
mIf you are installing a recessed accessory, cut the hole
after the panel is installed and fully supported by the wall.
Remember to position the accessory between the wall studs.
Caulking Tips
mFollow the instructions on the color match silicone sealant
tube
mWhen job is complete, inspect all caulked areas for gaps
and fill as needed.
mClean up any excess silicone that was missed using
denatured alcohol and a clean cloth.
mBe very careful not to disturb caulk joints.
Installation Procedure
Swanstone panels can be installed over a variety of products.
If you intend to apply the panels to any surface other than
those described, consult with a professional contractor. Use
the following sections when installing this product over:
mSHEETROCK/GREENBOARD/CEMENTBOARD/WOOD
mPLASTER
mCEMENT/CONCRETE
mOLD TILE
mWALLPAPER
mMASONITE
Sheetrock, Greenboard, Cementboard, or Wood
mSurface must be dry, smooth, and free of any dust, soap
scum, or any other contaminants.
mTo ensure proper adhesion of the Swanstone product,
the wall surface must be sealed with a water or oil-based
primer/sealer.
mAfter the primer/sealer is completely dry, complete the
installation following the instructions in this manual.
Plaster
Depending on the condition of the existing wall surface,
additional silicone may be required to ensure contact between
the substrate and the wall panel.
mSand textured or swirled finishes smooth.
mClean the wall surface with a damp cloth to remove any
dust, soap scum, or any other contaminants. The wall
surface must be dry and smooth.
mTo ensure proper adhesion of the Swanstone product,
the wall surface must be sealed with a water or oil-based
primer/sealer.
mAfter the primer/sealer is completely dry, complete the
installation following the instructions in this manual.
Cement/Concrete
Depending on the condition (flatness) of the existing wall
surface, additional silicone may be required to ensure contact
between the substrate and the wall panel.
mTo ensure proper adhesion of the Swanstone product, the
complete area must be sealed with two coats of water or
oil-based primer/sealer.
mAfter the primer/sealer is completely dry, complete the
installation following the instructions in this manual.
Old Tile
Depending on the condition of the existing wall surface,
additional silicone may be required to ensure contact between
the substrate and the wall panel.
IMPORTANT NOTICE
Old ceramic tiles, if solidly adhered, do not need to be
removed. All plastic tiles must be removed.
800-325-7008 5 Swan
General Information Installation Procedure

mRemove or reattach any loose ceramic tiles. Old tiles and
front edge ceramic tiles should be reset for appearance
only.
mRemove any tile accessories attached to the walls.
mRemove the bottom row of tile and cut a ventilation gap in
the substrate.
mSurface must be dry, smooth, and free of any dust, soap
scum, or any other contaminants.
mComplete the installation following the instructions in this
manual.
Note: If using a trim kit, old tiles may need to be removed to
allow a proper fit.
Wallpaper
mAll wallpaper must be removed from the area being
covered. Clean the wall surface to remove any dust, soap
scum, or any other contaminants. The wall surface must be
dry and smooth.
mTo ensure proper adhesion of the Swanstone product, the
complete wall surface must be sealed with two coats of
water or oil-based primer/sealer.
mAfter the primer/sealer is completely dry, complete the
installation following the instructions in this manual.
Masonite
mClean the wall surface to remove any dust, soap scum, or
any other contaminants. The wall surface must be dry and
smooth.
mTo ensure proper adhesion of the Swanstone product,
the wall surface must be sealed with a water or oil-based
primer/sealer.
mAfter the primer/sealer is completely dry, complete the
installation following the instructions in this manual.
Followed carefully, these installation instructions will result in
an easy, trouble-free installation of your Swanstone product.
Any deviations, additions, and/or deletions from the prescribed
installation, without prior written approval, will void the warranty
covering this product.
Disclaimer
mThe information contained in this Installation Manual is
given free of charge. It is based upon technical data which
we believe to be reliable and is intended for use, by persons
having knowledge of this technical area, at their own
discretion and risk. Swanstone assumes no responsibility
for results obtained or damage incurred from the use of this
material either in whole or in part by the buyer.
mThis manual will give you basic instructions for the
installation of the product in a step-by-step sequence that
will work in most types of installations. If you have an
installation application that is not covered in this manual,
please call your local Swanstone distributor or contact Swan
directly for additional information about your application.
mFollow all installation instructions. Failure to follow these
instructions could result in personal injuries, water damage,
or other damage to floors, pipes, walls, or other portions of
your building or home.

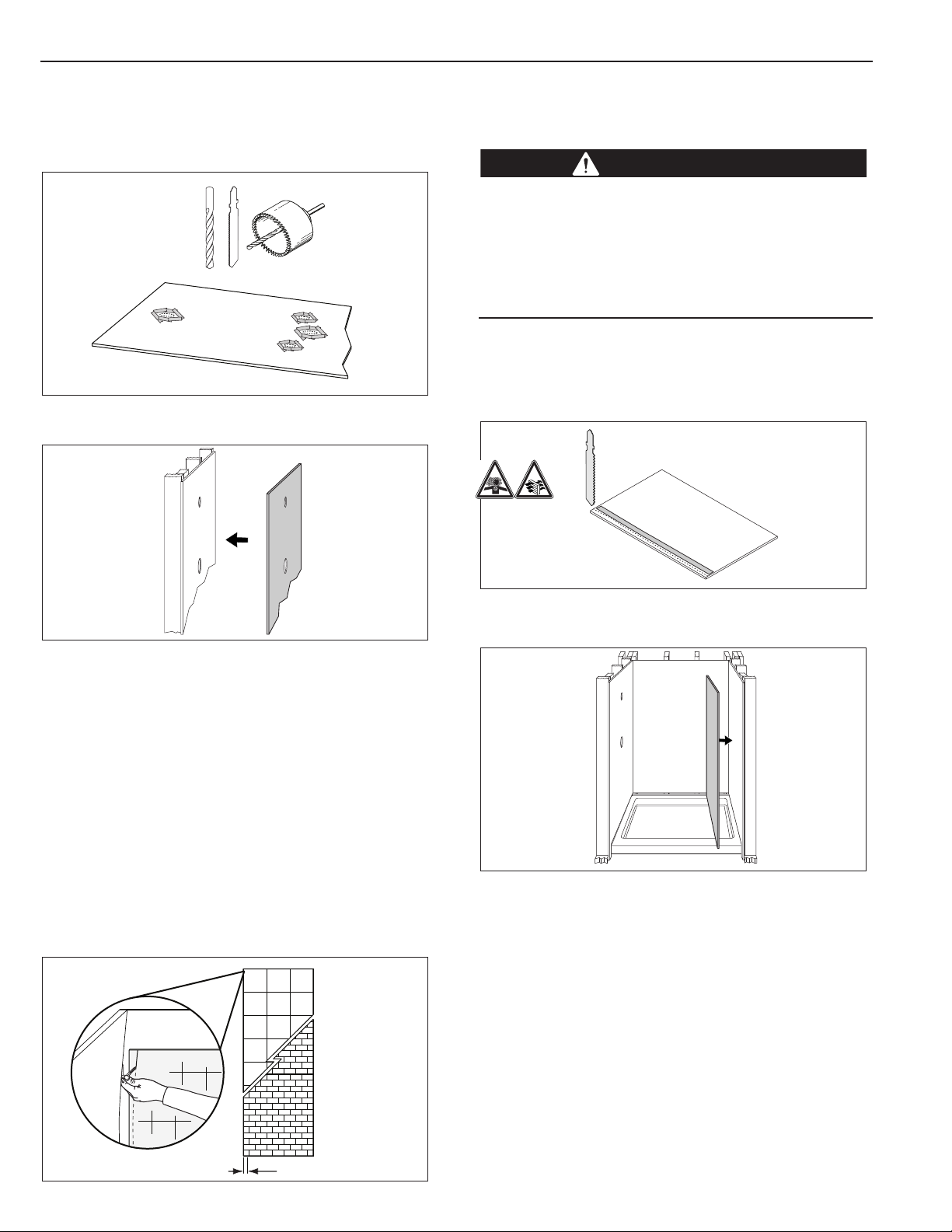

Filler Boards
If an existing wall covering (i.e. tile) does not extend to a
height equal to the height of the panel, it will be necessary to
install a filler board to that height. The filler board must equal
the thickness of the existing wall covering (tile). Usually, 1/4”
masonite or similar material is adequate. If desired, the filler
board can extend from the top edge of the tile to the ceiling.
A
B
Note: Failure to use a filler board to properly install the panels
could result in water damage or other damage to floors, walls,
or other portions of your building or home.
Wallboard Installation
Note: If the Swanstone wall panels will be installed over an
existing shower wall surface, proceed to the next section.
Install 1/2” moisture-resistant cementboard or greenboard
over back (1), front (2), and rear (3) wall surfaces of the rough
opening.
1. Measure and cut openings for the shower faucet(s) and
shower head before installation.
2. Install the wall board with a 1/2” gap above the shower
base side lip to prevent possible water (wicking affect)
damage.
1
2
3
3a. If Swanstone apron strips will NOT be installed along
the front edge of the shower base, the cementboard or
greenboard MUST be cut to fit up against the front edge of
the shower base.
3b. If Swanstone apron strips WILL be installed along the
front edge of the shower base, the greenboard MUST
be cut to leave a 1/2” gap between the front edge of the
shower base and greenboard.
Swan 6 800-325-7008
Installation Procedure

Note: For more information on installing apron strips, refer
to the Apron Strips (optional) instructions in the Installation
Procedure section of this manual.
IMPORTANT NOTICE
For a finished appearance, install greenboard up to the front
edge of the shower base UNLESS optional apron strips will be
cut from Swanstone material and installed next to the front edge
of the shower base. In that case, leave a 1/2” gap between the
shower base and the greenboard. The Swanstone apron strips
will cover this gap (see illustration below).
In addition, if baseboard trim (not included) will later be
installed along the floor next to the shower base, a 1/2” gap
between the floor and bottom of the greenboard is
recommended (see illustration below).
1/2"
1/2"
1/2"
4. Apply a coat of water or oil-based primer/sealer to all
the surfaces of the cementboard or greenboard (follow
the manufacturer’s instructions). Allow the primer to dry
thoroughly before installing the Swanstone panels.
Flat, Subway Tile, or Square Tile
Panel Installation
The installation process is the same for either flat or tile
panels. Follow the steps in this section for installation
instructions.
Back Panel
If the back wall measures less than the width of the panel, cut
the panel to fit the opening.
1. Using a builder’s square, make sure the shower base
is perpendicular to the side walls. If the walls are out of
square, the bottom of all the panels may need to be cut to
follow the contour of the shower base.
2. If the shower base is not perpendicular to the wall, use
a level and draw a line around the alcove on all three
walls. Measure the distance from the line to the top of the
shower base.
3. Transfer these measurements to both side panels and the
back panel. Cut the bottoms of the panels.
Note: On subway tile and square tile panels, this process will
keep the faux grout lines running level, although the
bottom tiles may not be evenly sized from the shower
base to the first faux grout line. Since every installation
is slightly different, it is up to the installer to create a
pattern match that is visually pleasing.
Note: When installing SQMK wall units all three panels
must be installed in the same direction - either vertically
or horiztonally. Do not mix rotation of panels as grout
lines will not align.
4. If the back panel must be cut (side-to-side) to fit the
opening, find and mark the center of the back wall in
the alcove opening. Use a level to draw a line from the
shower base to a point above the height of the wall panel.
C
L
C
L
Installation Procedure
800-325-7008 7 Swan

5. Place the panel, finished side facing up, on a flat surface.
Using a pencil, lightly mark the center of the back panel.
6. Take several measurements, bottom-to-top, from the
center line to each wall surface. These measurements will
ensure the back panel fits the exact contour of the two.
side walls.
7. Transfer the measurements onto the front surface of the
back panel.
Note: The back panel can be cut slightly smaller than the
opening because the side panels will cover any small
gap (less than 1/4 inch).
Cutting the side panel to precisely fit the back wall is not
necessary if a corner molding, supplied in some kits, is
used. This corner molding will cover gaps up to 1/2”.
WARNING
Dust Hazard
When cutting or drilling the Swanstone product,
use a dust collection method which prevents
dust particles from going into the air. Always work in a well-
ventilated area. To keep the area well-ventilated, open
windows and use exhaust fans. Always use an OSHA
approved dust mask when cutting, drilling, or sanding
Swanstone products.
8. Place pieces of masking tape over the area where the
saw contacts the finished surface of the panel.
9. Cut the panel using a circular saw with a 60-80 tooth
carbide blade or a saber saw with a bi-metal blade (14
teeth per inch).
IMPORTANT NOTICE
Any cutout for accessories should have rounded corners
(sharp corners can promote stress cracks).
10. Dry fit the back panel, and make any necessary
adjustments. Temporarily secure the back panel to the
wall in order to properly fit the front and rear panels.
IMPORTANT NOTICE
DO NOT force a panel to fit a bowed or curved wall as it may
break; furthermore, the resiliency of the panel can break the
silicone bond to the wall surface.
Swan 8 800-325-7008
Installation Procedure

Side Panel (with shower controls)
If the side panels do not require cutting to size, proceed to
Step 5.
Note: On subway tile and square tile panels, the side panels
are marked with labels in the top, right-hand or left-hand
corner of the panel. The edge closest to the label is the
outside finished edge and should not be cut.
Cutting the side panel to precisely fit the back wall is not
necessary if a corner molding, supplied in some kits, is
used. This corner molding will cover gaps up to 1/2”.
1. Place the panel on top of the shower base and slide it
against the back wall panel. If the side panel has only one
finished edge, make sure that the finished edge is facing
out.
2. Scribe (mark) the panel, as shown. If the panel is wider
than the wall, take this width into consideration when
scribing the panel.
Note: Precisely scribing and cutting the panel will provide a
clean 90 degree corner with no need for corner molding.
Flat Panel
Square Tile or Subway Tile Panel
3. Place the wall panel, finished side facing up, on a flat
surface. Place pieces of masking tape over the area where
the saw contacts the Swanstone panel.
4. Cut the panel using a circular saw with a 60-80 tooth
carbide blade or a saber saw with a bi-metal blade (14
teeth per inch).
5. Measure the openings for the shower controls and shower
head.
6. Place the wall panel, finished side facing up, on a flat
surface. Transfer the measurements to the panel.
WARNING
Dust Hazard
When cutting or drilling the Swanstone product, use a dust
collection method which prevents dust particles from going
into the air. Always work in a well-ventilated area. To keep
the area well-ventilated, open windows and use exhaust
fans. Always use an OSHA approved dust mask when
cutting, drilling, or sanding Swanstone products.
Installation Procedure
800-325-7008 9 Swan

7. Cut clearance holes using a router, saber saw, or hole
saw. Drill or cut from the finished side of the panel. For
best results, when drilling, place a scrap of wood beneath
the hole to ensure a clean cut.
8. Dry fit the panel, and make any necessary adjustments.
Side Panel (without shower controls)
If the panel does not require cutting to size, proceed to the
next section.
Note: On subway tile and square tile panels, the side panels
are marked with labels in the top, right-hand or left-hand
corner of the panel. The edge closest to the label is the
outside finished edge and should not be cut.
1. Place the panel on top of the shower base and slide it
against the back wall panel.
2. Scribe (mark) the panel, as shown. If the panel is wider
than the wall, take this width into consideration when
scribing the panel.
Note: Precisely scribing and cutting the panel will provide a
clean 90 degree corner with no need for corner molding.
3. Place the wall panel, finished side facing up, on a flat
surface. Place pieces of masking tape over the area where
the saw contacts the Swanstone panel.
WARNING
Dust Hazard
When cutting or drilling the Swanstone product, use a dust
collection method which prevents dust particles from going
into the air. Always work in a well-ventilated area. To keep
the area well-ventilated, open windows and use exhaust
fans. Always use an OSHA approved dust mask when
cutting, drilling, or sanding Swanstone products.
4. Cut the panel using a circular saw with a 60-80 tooth
carbide blade or a saber saw with a bi-metal blade (14
teeth per inch).
5. Dry fit the panel, and make any necessary adjustments.
Swan 10 800-325-7008
Installation Procedure

Panel Installation
WARNING
Fumes Hazard
The fumes from the silicone and solvents used
by the installer can be harmful if used in an
unventilated room. Always work in a well-ventilated area.
To keep the area well-ventilated, open windows and use
exhaust fans. If adequate ventilation is not achievable or
practical, use respiratory protective equipment.
1. Clean the backs of each panel with denatured alcohol or
another non oil-based cleaning solvent.
IMPORTANT NOTICE
Do not use oil-based cleaners, such as mineral spirits, to
clean the panels. The oil in the cleaner will prevent the panel
from adhering properly to the wall.
2. Apply the silicone in 1-1/4” diameter dots every 8 to 10
inches apart over the surface of the panel. Follow the
silicone manufacturer’s instructions and note all ventilation
and installation precautions.
Note: When using an industrial grade hot melt glue gun in
place of bracing, apply the silicone as stated in Step 2.
Then apply the hot melt glue to the panel, as needed,
and quickly press the panel firmly into place. Also refer
to the WARNING on the next page for hot melt glue
applications.
WARNING
This process is not recommended for the do-it-
yourself homeowner.
Using hot melt glue in place of bracing requires application
by a qualified installer. This temporary bonding method
must hold the panel to the wall during the 24 hour curing
time of the 100% clear silicone sealant. The hot melt glue by
itself is not sufficient to bond the panel to the wall.
Therefore, improper or inadequate application of the hot
melt glue may result in insufficient bonding of the panel to
the wall. Due to the weight of the panel, failure to follow this
recommendation may allow it to detach itself from the wall,
causing possible injury to someone in or around the
shower enclosure.
Improper installation methods may also result in water
damage or other damage to floors, walls, or other portions
of your building or home.
IMPORTANT NOTICE
Do not use a home applicator, craft-type hot melt glue gun.
Using this type of glue gun will NOT hold the panels in place
long enough for the silicone to bond properly to the wall.
3. Install back panel (1) first. Then, install left-hand panel (2).
Finally, install right-hand panel (3).
1
2 3
4. Firmly press the surface of each panel against the wall. It
is important to apply hand pressure to the entire surface of
the panel to bond it to the wall surface.

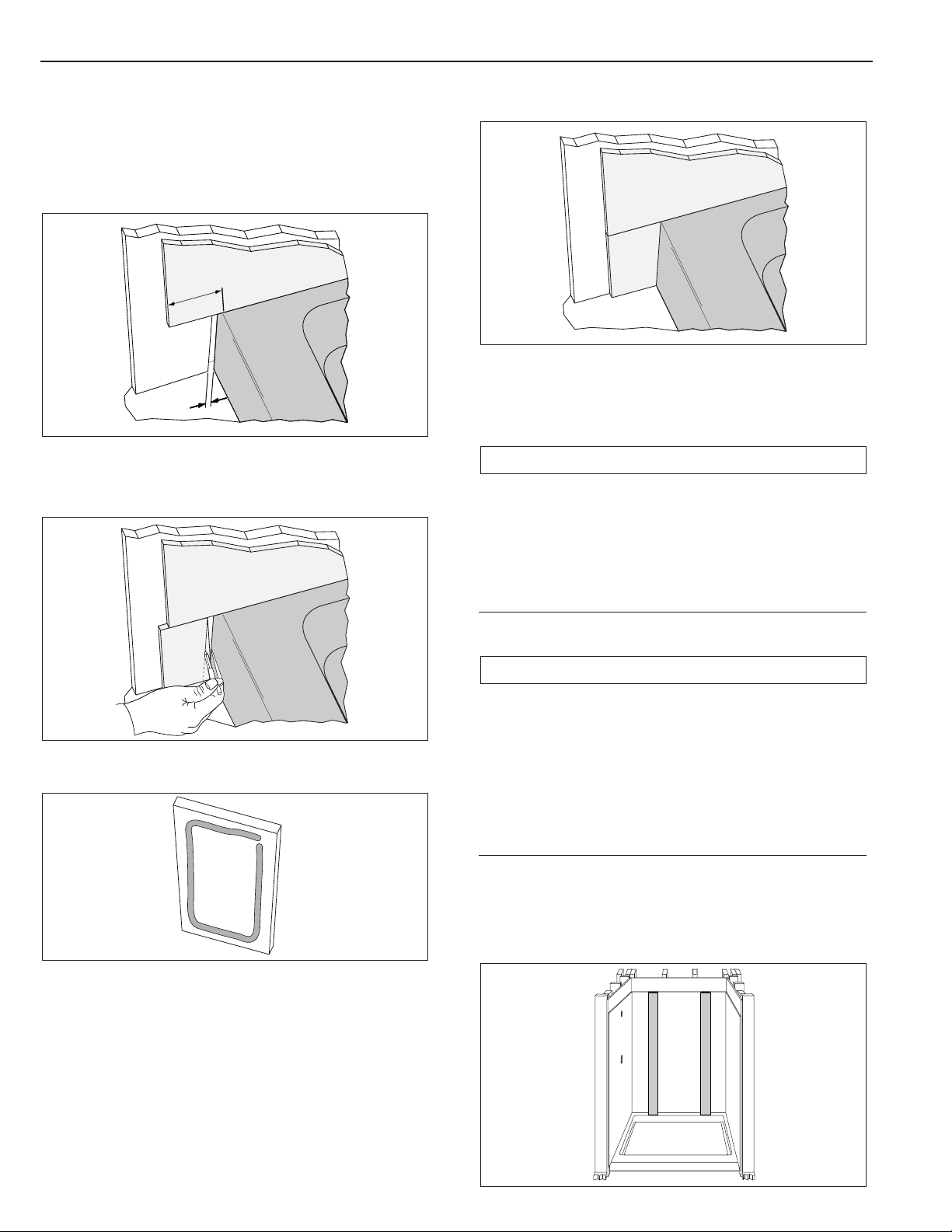

Apron Strips (optional)
If the wall and wall panel extends beyond the shower base,
adding apron strips will provide a finished look to your
installation.
The two small apron strips can be cut from scraps of a panel.
When cutting these apron strips, make sure the finished edge
of the panel is facing outward.
Installation Procedure
800-325-7008 11 Swan

1. Measure the distance from the top of the shower base to
the outside of the panel. Cut two pieces of the Swanstone
material to fit in this area.
Note: This illustration shows the recommended 1/2” gap
between the wallboard edge and the front of the shower
floor (helps prevent water damage due to wicking effect).
1/2"
2. Hold the apron strips in place and scribe the angle of the
shower base onto each piece. Remember, do not cut the
finished edge.
3. Place silicone on the back side of the apron strips.
4. Attach the apron strips to the wall.
Temporary Bracing
Install temporary bracing to hold the three panels in place until
the silicone is completely set (usually 24 hours). This will allow
proper curing of the silicone.
IMPORTANT NOTICE
To ensure contact between the panels and walls until the
silicone sets, install temporary bracing after completing
installation. The bracing should be constructed from lengths of
2 x 4’s. Failure to brace in the manner described could keep
the panels from adhering, resulting in personal injury, as well
as water damage or other damage to floors, walls, or other
portions of your building or home.
IMPORTANT NOTICE
To prevent scratches or other damage, make sure there are
no nails or other foreign objects in the surface of the bracing
that is placed against the panel.
If the horizontal braces are fastened to the vertical braces
using nails or screws, make sure the fasteners do not
penetrate the surface of the panel. Also, to prevent possible
damage to the walls, do not apply excessive pressure to the
braces.
1. Place two or three braces against the back wall. Place two
braces on panels that are 48” or less and three braces on
panels greater than 48” wide.
Swan 12 800-325-7008
Installation Procedure

2. Place two braces against each left and right wall.
3. Install (wedge) three horizontal braces (six total) against
the left and right wall braces.
4. Insert small blocks between the front-to-rear panel braces
and the back panel braces. These will apply pressure to
the back panel to hold it in place.
For corner shower wall installation use the following illustrated
bracing design.
ATTENTION: Additional bracing may be required if the
Swanstone brand panel does not make full contact to the
wall it is adhered to.
These boards need to
be attached to the two
outlying boards
Attach this
board to
the wall
Attach this
board to
the wall
5. Remove the braces after 24 hours.
Installation Procedure
800-325-7008 13 Swan

Corner Soap Dish Installation
The soap dish is a corner mount design. The soap dishes can
be stacked in one corner or placed in opposite corners.
Note: The soap dish is molded with a square corner (as shown
in the illustrations). This shape requires installation of
the optional corner molding after installation of the soap
dish.
1. Select a desirable height for mounting one or both soap
dishes. A height of at least 43” from the shower floor to
the soap dish is recommended.
43"
2. After marking the height, draw a 4” level line on both
walls. These lines will be used to align the top edges of
the soap dish.
3. Dry fit the soap dish prior to applying clear silicone. The
soap dish may require sanding to fit precisely in the
corner. The actual angle of the soap dish is slightly greater
than 90 degrees to accommodate some adjustment.
If necessary, mark and sand the side(s) of the soap
dish to achieve a proper fit, using a coarse grit (60 grit)
sandpaper.
4. Apply silicone to the edge of the soap dish.
Note: Either clear or color matched silicone can be used for
attaching the soap dish.
5. Align the soap dish with the level lines and press it into place.
6. Hold the soap dish securely in place and wipe off excess
silicone. You will want a uniform bead on both top and bottom.
7. Temporarily secure the soap dish with masking tape, as
shown. Remove the tape after approximately two hours. Do
not place anything on the soap dish for at least 24 hours.
Corner Molding (if applicable)
Installing the corner molding is optional. If the panels were
scribed and cut to create a tight-fitting corner, then the corner
molding can be eliminated. If, however, there are gaps
between the front/rear panel, the corner molding should be
installed. Either option, if done properly, is acceptable.
If the optional soap dish was installed, cut one piece of
molding to fit above the soap dish and one for below the soap
dish.
Note: Either clear or color matched silicone can be used to
install corner molding strips.
Swan 14 800-325-7008
Installation Procedure

1. Measure and cut the corner moldings to length.
2. Dry fit the corner molding.
WARNING
Fumes Hazard
The fumes from the silicone and solvents used
by the installer can be harmful if used in an
unventilated room. Always work in a well-ventilated area.
To keep the area well-ventilated, open windows and use
exhaust fans. If adequate ventilation is not achievable or
practical, use respiratory protective equipment.
3. Clean the surface of the panels and the back of the
molding with denatured alcohol or another non-oil based
solvent.
IMPORTANT NOTICE
Do not use oil-based cleaners, such as mineral spirits, to
clean the panels. The oil in the cleaner will prevent the panel
from adhering properly to the wall.
4. Apply a 1/8 to 1/4” bead of silicone to the back of the
corner molding in an S pattern, as shown.
5. Press the corner moldings into place. Remove any excess
silicone.
6. Place at least three pieces of masking tape on each
corner molding to hold it in place until the silicone adheres
to the wall panel.
Final Caulking
Apply a bead of the color-matched 100% silicone sealant.
IMPORTANT NOTICE
Follow the manufacturer’s instructions on the tube for proper
application. Allow at least 24 hours for silicone to set before
using the shower enclosure.
800-325-7008 15 Swan
Installation Procedure

1. Apply color-matched 100% silicone sealant to all of the
inside seams, as shown.
2. Also, apply color-matched 100% silicone sealant to
the exterior edges, as shown. This silicone sealant is
nonpaintable.
The installation is now complete. DO NOT discard these
installation instructions. PLEASE LEAVE THEM WITH THE
HOMEOWNER.
Attaching Shower Doors and Accessories
1. Follow the mounting instructions that come with each
accessory.
2. Drill pilot holes, where fasteners pass through the wall
panels, slightly larger than the fastener.
3. If anchors are being used, drill the hole in the panel large
enough for the head of the anchor to fit through the panel
and the structural wall behind it.
4. Use 100% clear silicone to seal any holes or joints
between the accessory and the wall panel.
Care and Cleaning
The Swanstone products are stain and abrasion resistant;
however, the finish requires reasonable care.
IMPORTANT NOTICE
Because cleaning products change over time, always check
the manufacturer’s instructions to make sure it is compatible
with solid surface acrylic or with fiberglass reinforced
polyester. DO NOT use a cleaner if the label indicates it
should not be used on solid surface acrylics or fiberglass
reinforced polyester. DO NOT use spray-on cleaners that
require daily use without immediately rinsing with water to stop
the chemical cleaning reaction because damage will result
and void the warranty.
Day-To-Day Cleanup
Simply wipe the surfaces with a clean towel to remove
watermarks and residues. All Swanstone products can be
cleaned with warm water, a soft cloth, and normal household
detergents or cleansers, such as Fantastic, Formula 409,
Clorox Clean-up, Handy Andy, Mr. Clean, Dow Scrubbing
Bubbles, Lysol Foaming Tub and Tile Cleaner, Top Job,
or Lestoil. Always rinse off cleaners within five minutes of
application.
Occasional scrubbing with household abrasive cleaners
ensures that the original luster is maintained.
Caulking Joints
Inspect caulking joints monthly for damage or any signs of
separation from the mating surface. Cracks in the caulking will
allow water to leak into the surrounding surfaces. Reapply
caulking to any joint showing signs of wear or cracking.
Failure to inspect and repair caulking joints will void the
warranty.
Installation Procedure Maintenance & Surface Repair
Swan 16 800-325-7008

Warranty
If a Swan product covered by this warranty is found to be
defective in materials or workmanship, after inspection by
an authorized Swan representative, we will repair, or at our
option, exchange the product for a similar model. This warranty
extends for a designated period of time, so long as it remains
in use in its original place of installation.
This warranty covers products installed in accordance with
the Swan Corporation’s installation instructions, used as
recommended, and not damaged due to misuse, abuse,
or improper installation. It does not apply to any seams or
changes made to the product by professional tradesmen or
fabricators.
The Swan Corporation’s option to repair or exchange the
products under this warranty does not cover any labor or other
costs of removal or installation, nor shall the Swan Corporation
be responsible for any other incidental or consequential
damages attributable to a product defect or to the repair or
exchange of a defective product.
Residential Limited Lifetime Warranty
The warranty applies only to the original purchaser and
installation of these products in residential applications. It does
not apply to commercial applications.
Commercial 30-Year Limited Warranty
The warranty applies only to the original purchaser and
installation of these products in commercial applications.
NOTES
Warranty
800-325-7008 17 Swan

Swan 18 800-325-7008

Save these Installation Instructions for future reference. They provide
important information on cleaning, maintenance, and surface repair of the
Swanstone Wall Systems and Panels.
www.swanstone.com Form # 193-12-21
