SLC / EN
We thank you for
choosing this product from
SWAROVSKI OPTIK.
If you have any
questions, please consult
your specialist dealer
or contact us directly at
WWW.SWAROVSKIOPTIK.COM.

SLC / DE SLC / DE
4 5
SLC / ENSLC / EN
1.

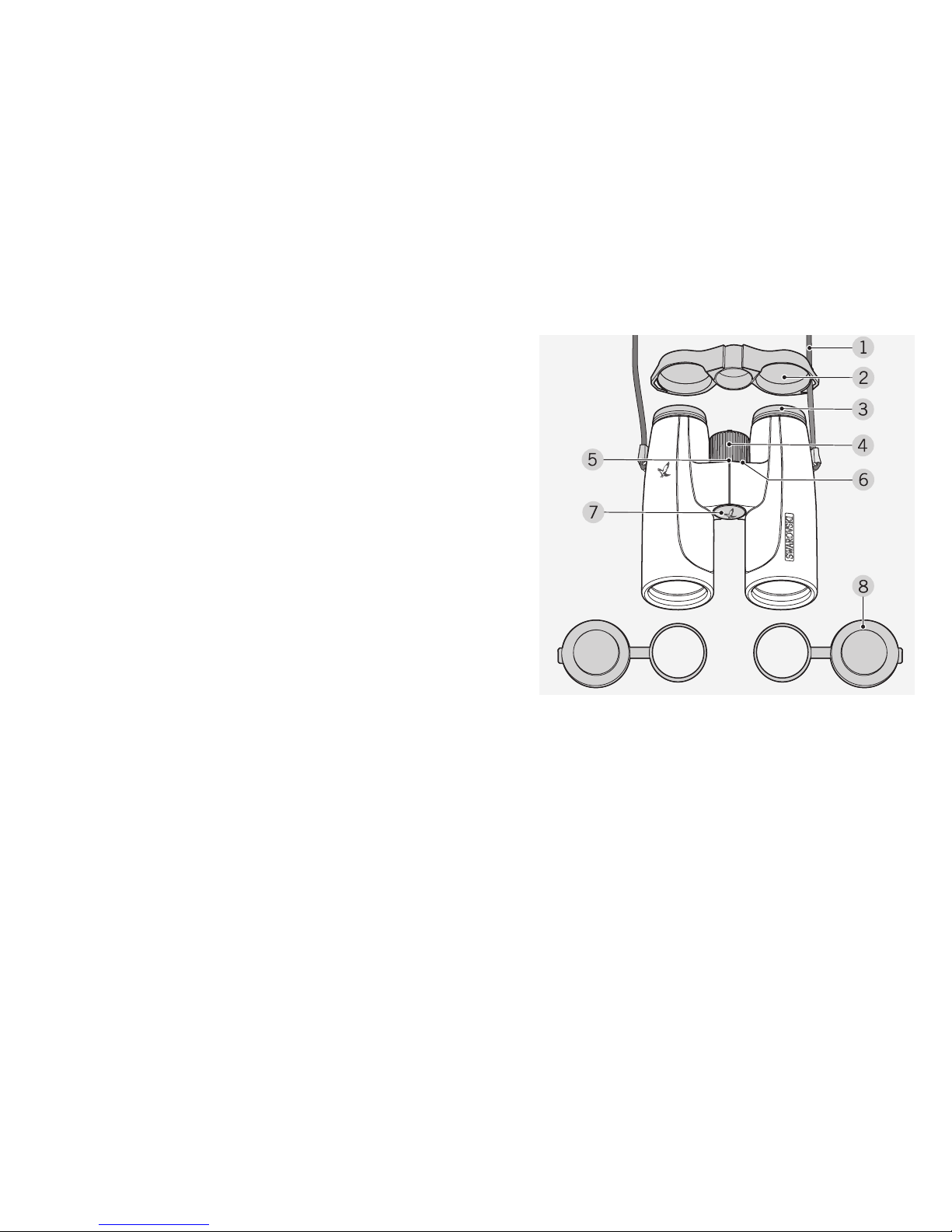

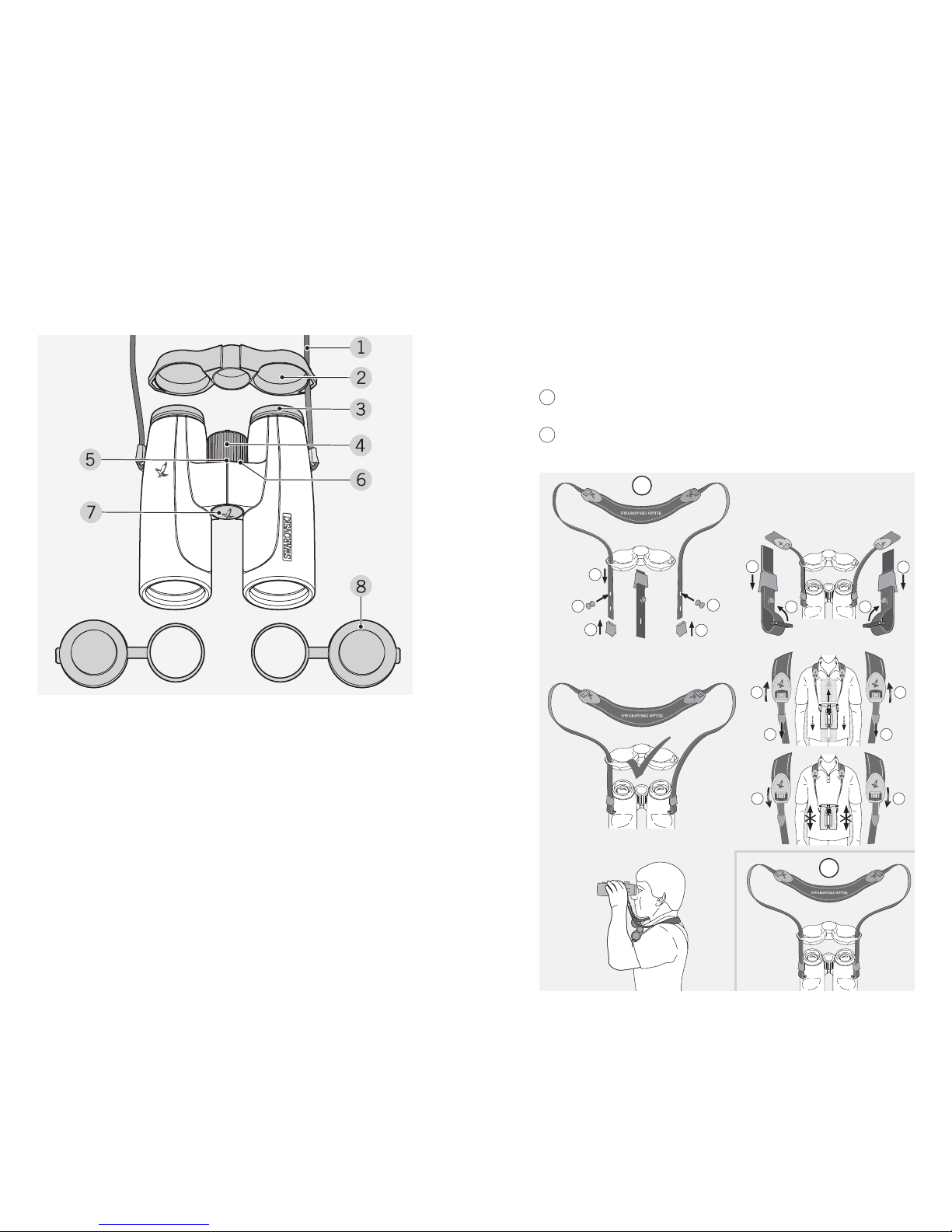

OVERVIEW
Supplied with the SLC:
Field bag, lens-cleaning cloth.
1 Carrying strap
2 Eyepiece cover
3
Screw-in-type eye cups
4 Focusing wheel
5 Dioptric scale
6 Dioptric zero point
7 Covering for the tripod
connector thread
8 Objective lens cover
2.
ATTACHING THE STRAP
66
7 7
A
B
88
3
3
1
22
44
55
The strap is not attached to the SLC during delivery. You
can easily attach the strap or special accessories.
Assembly with eyepiece cover attached on one side
(recommended).
Alternatively: with eyepiece cover attached on both
sides.
A
B

SLC / DE SLC / DE
6 7
SLC / ENSLC / EN
3.
OPERATION
3.1 ADJUSTMENT OF THE SCREW-IN-TYPE EYE CUPS
Basically, there are three (SLC 42) or four (SLC 56)
different adjustment positions available with different
distances between the eye and the lens. This allows
you to adjust the eye cups individually to your personal
preference.
Pos. A: Initial position without
spectacles: For this, twist out the
eyecups anti-clockwise to the full
extent.
Pos. B: Initial position with spec-
tacles: Twist in the eyecups clock-
wise until they stop.
Pos. C and D: Alternative positions
or interim adjustment stages for
spectacle-wearers and non-spec-
tacle-wearers.
3.2 ADJUSTMENT OF INTERPUPILLARY DISTANCE
To see a single round image, turn the two halves of the
binoculars until no irritating shadows can be seen.
3.3 ADJUSTMENT OF FOCUSING
It is possible to bring every subject
into focus from the shortest adjust-
ment distance (see technical data
sheet) to infinity by turning the
focusing wheel.
In the infinity position the little
nose of the focusing wheel is at
the top.
3.4 DIOPTRIC COMPENSATION
To achieve optimal image quality, the possibly varying
visual acuity between the left and right eye must be
corrected.
Use with equal acuity of both eyes:
1. Pull the focusing wheel outwards.
2. By turning the focusing wheel, set the dioptric scale
to “0”.
3. Push the focusing wheel back in.

SLC / DE SLC / DE
8 9
SLC / ENSLC / EN
Use with varying acuity of both eyes:
1. Look through the left ocular with your left eye and
turn the focusing wheel to focus sharply on a selected
object.
2. Pull the focusing wheel outwards.
3. Now look at the same object through the right ocular
with your right eye and again adjust the focusing wheel
to attain optimal clarity.
4. Press the focusing wheel back in again.
Tip: Please note your personal dioptric setting on the diop-
tric scale. With it you may adjust your individual dioptric
setting anytime.
3.5 TRIPOD CONNECTOR
Remove the covering for the tripod connector thread on
the underside of the binoculars using a small coin. To
mount the binoculars on a tripod, you will need the tripod
adapter for SLC, which is sold separately as an accessory.
4.
ASSEMBLY INSTRUCTIONS FOR
OBJECTIVE LENS COVER
5.
MAINTENANCE AND CARE
5.1 LENS-CLEANING CLOTH
You can clean high sensitive lens surfaces with the en-
closed special microfibre cloth. It is suitable for objective
lens, ocular lens and spectacles.
Please keep the cloth clean, as dirt can damage the lens
surface. If the cloth becomes soiled it can be washed in
lukewarm soapy water and left to dry. Please only use for
cleaning lens surfaces!
5.2 CLEANING
We have designed all elements and surfaces to require
little care.
To ensure the long-lasting optical brilliance of your bino-
culars, you should keep the glass surfaces free of dirt, oil
and grease. When cleaning the lenses, first remove larger
particles with an optical lens brush. For the subsequent
thorough cleaning we recommend breathing onto the lens
surface to form a coat of condensation and then cleaning
it with a soft, moist cloth.
The housing is best cleansed with a soft, moist cloth
(don’t use the lens-cleaning cloth).
In the event of hard-to-remove dirt (e.g. sand) the eye
cups can be unscrewed and cleaned easily.
