Swegon ADAPT Parasol b User manual

ADAPT Parasol b
Technical manual
►Function in the room
►Technical description
►System technology
►ProSelect
►Heating with ADAPT Parasol
►Air quality sensor
►Change –over system
►Lighting control
►Start-up and Zero point calibration
►Two-stage cooling/two stage heating
►Modbus register
►Alarm list
1
ADAPT Parasol b

Contents
Installation and safety 3
Function in the room 4
General 4
Functional description air 4
Functional description water 4
Adaptation as required 5
Distribution of airflows 6
Configuration and settings 8
Sequences 11
Technical description 13
Sensor module overview 13
Sensor module occupancy 13
Sensor module temperature 14

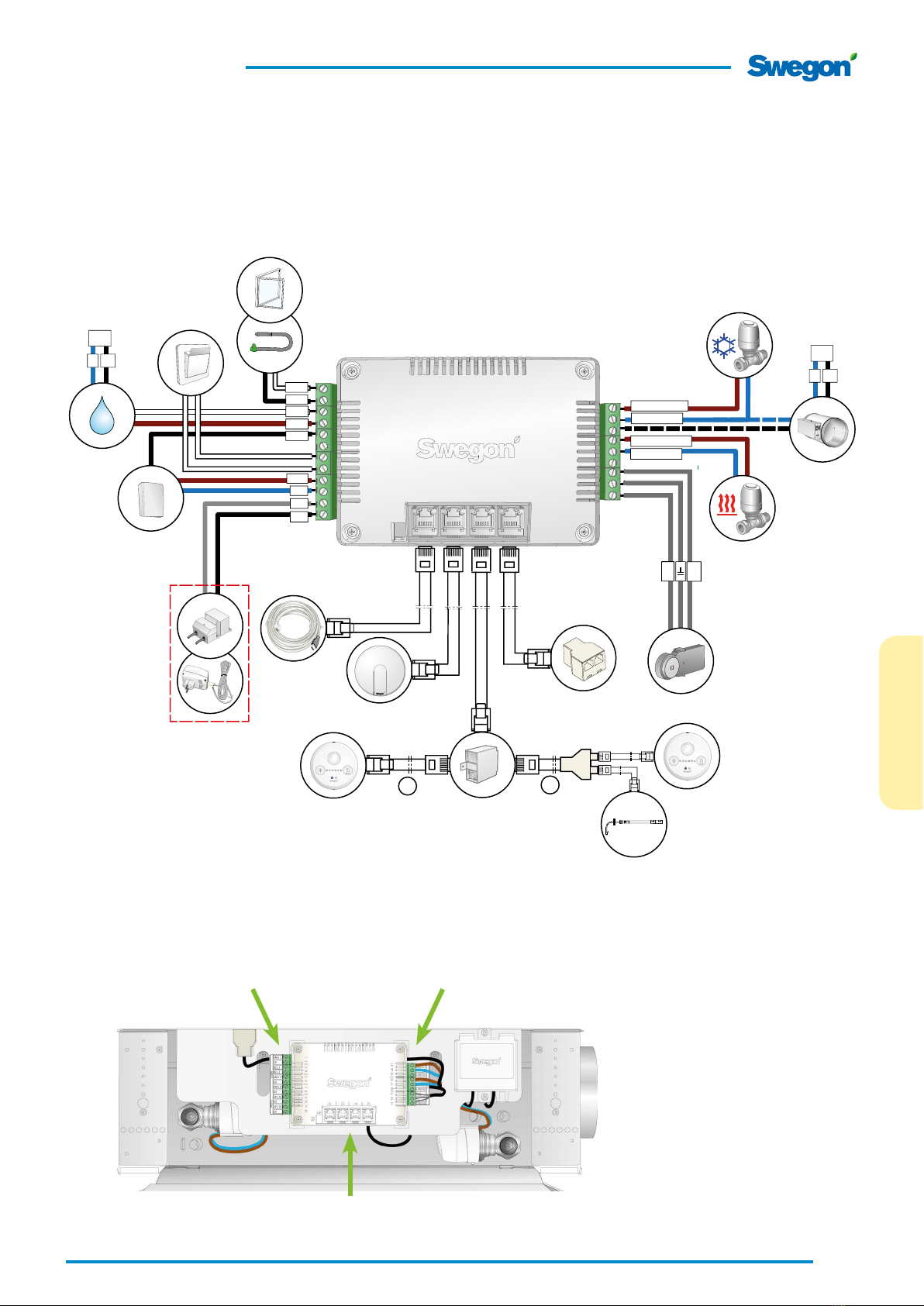

Regulator overview 15
Regulator outputs 16

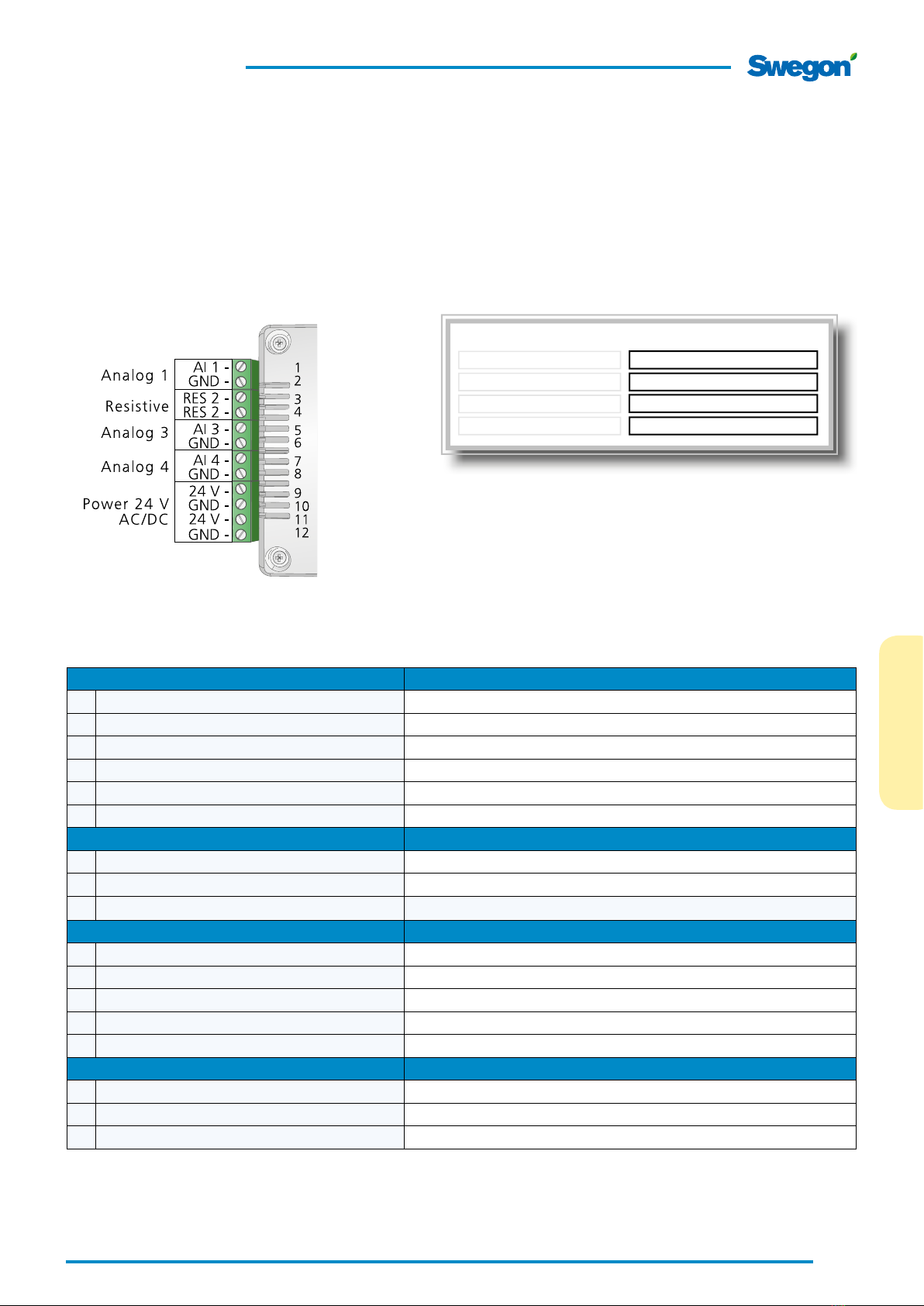

Regulator inputs 17
Regulator’s Modbus connections 18
System technology 19
Duct system 19
2-step optimisation in WISE 22
Master/Slaves 24
Display in Super Wise 25
ProSelect 26
Sizing and hardware configuration 26
Heating with ADAPT Parasol 28
Air quality sensor 29
Change –over system 30
Lighting control 31
Start-up and Zero point calibration 31
Two-stage cooling/two stage heating 32
Modbus register 33
Alarm list 41
2
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

Installation and safety
About this manual
This manual is intended for technicians or those with the equivalent knowledge who work in design, commissioning,
maintenance or for some other reason need a more technical description of the product than offered by a product data
sheet.
The manual contains information about:
Technical description.
Help during project design
Installation and start-up
Instruction about how the different settings are made
Changing the project
Swegon reserves the right to make changes to both the manual and to the product without prior notice
Safety Instructions
Responsibility
It is the user's responsibility to:
• Make all relevant risk assessments of the activities that are related with this manual.
• Ensure that all necessary safety precautions have been taken before the activities related with this manual are star-
ted.
3
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

Function in the room.
General Functional description air
The product regulates the amount of air to the room
according to three levels:
• Unoccupied
• Min. occupancy
• Max. occupancy
For Unoccupied mode a low airflow is supplied to
save air. When someone enters the room the occupancy
is detected by the occupancy sensor integrated in the
sensor module and the airflow is increased to the Min
occupancy level.
In addition to an occupancy sensor there is also a tem-
perature sensor in the sensor module that measures the
temperature of the room air. When the temperature
exceeds the desired setpoint in the room, the ADAPT
Parasol starts to cool, either with air first, or water first
depending on which the chosen sequence selection.
When the output demand becomes large enough, or air
quality is poor enough, ADAPT Parasol will variably open
up to Max occupancy airflow.
Functional description water
Different temperature settings can be set for
• Unoccupied
• Occupancy:
• Holiday mode, i.e. extended unoccupied mode
• In the case of unoccupied mode the temperature
can be allowed to deviate more from the room’s set-
points than for occupancy. When someone enters the
room and the sensor module indicates occupancy
the ADAPT Parasol is set to normal operation mode
and then regulates the desired room temperature more
accurately. Holiday mode works in the same way
as unoccupied mode, but here the temperatures are
permitted to deviate further from the room’s setpoint
and a signal from a master system is required
• Heating and cooling are controlled in sequence to
avoid simultaneous cooling and heating. However,
there is a cold draught protection that can be activated
and this then means that you allow a certain amount
of heat simultaneously with cooling.
ADAPT Parasol is a four-way blowing comfort module
with built-in control equipment for demand-control not
only of the air but also the entire indoor climate in the
room.
The product can work as a stand-alone unit or connected
in a system such as Swegon’s WISE.
Function of the product is based on a constant duct pres-
sure being provided either through a zone damper such
as CONTROL Zone or in a smaller system with a unit that
can maintain the duct pressure sufficiently constant.
In a room where the occupancy rate is low and/or uneven
ADAPT Parasol can, in the event being unoccupied, save
air through the integrated damper and also allow the
temperature to deviate more from the room’s setpoint
than with occupancy, all to save energy.
On occupancy the integrated control equipment quickly
takes care of the indoor climate by opening the damper
and the cooling or heating valves so that an indoor
climate with high comfort is maintained - yet still with
minimal energy input.

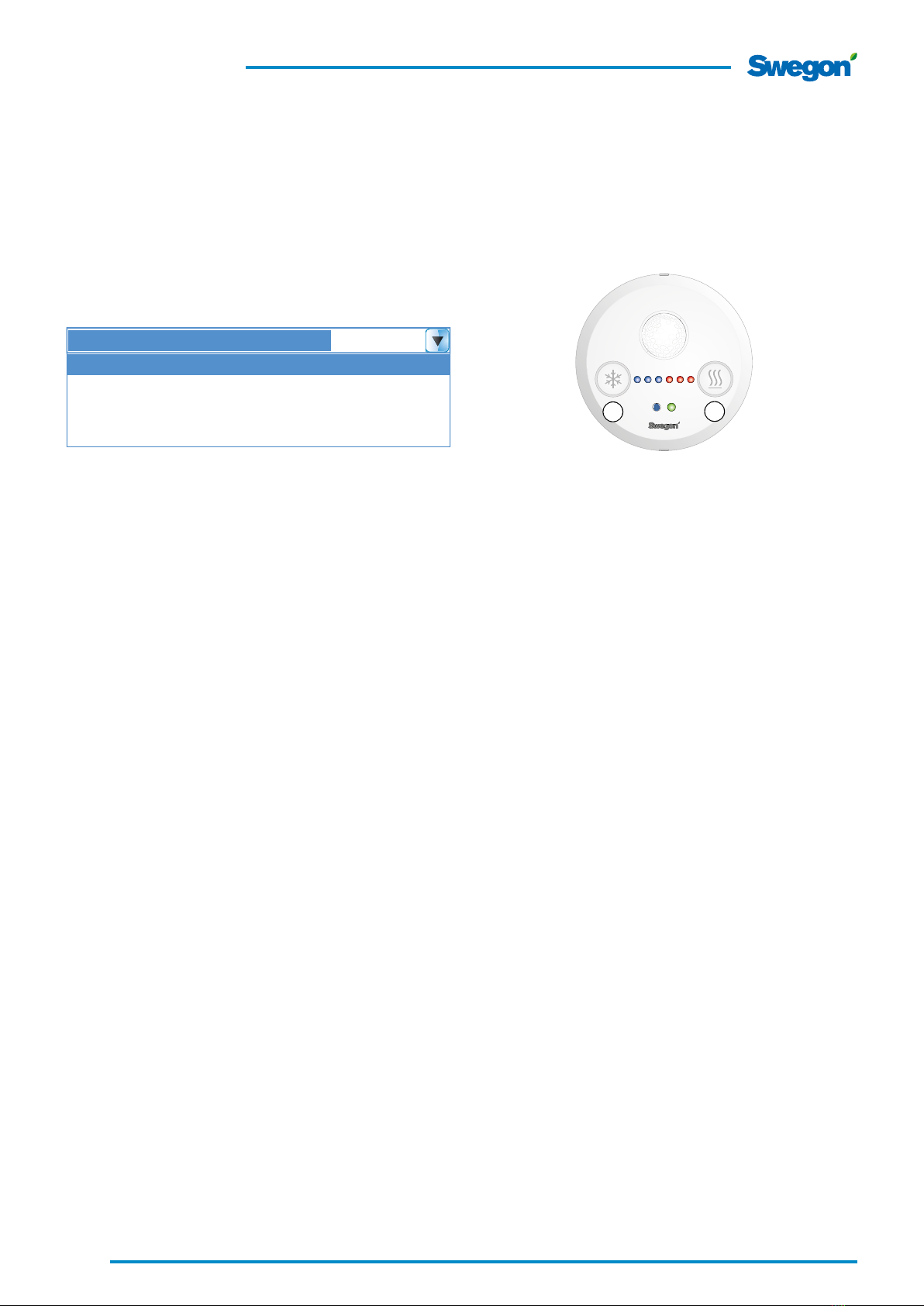

A sensor module with temperature and occupancy sen-
sors registers what is happening in the room and act at
the same time as setpoint selector and alarm indicator.
4
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

• Morning, no occupancy
• Airflow “unoccupied”
• The temperature is still regulated according to the set-
tings for unoccupied, but if a cooling demand occurs
e.g. due to solar incident radiation ADAPT Parasol will
start to cool the room.
• Night, no occupancy in the room
• The temperature is permitted to deviate slightly more
from the setpoint than for occupancy.
• Airflow “unoccupied”
Function in the room.
• Morning, the workday begins and someone enters into
the room.
• The sensor module detects occupancy and the airflow
rises to the set Min Occupancy flow, which is the mini-
mum airflow in the room when someone is present.
• The temperature is now allowed to deviate less from
the setpoint value than in unoccupied mode.
• Different things can happen during the day that
change the room's climate, such as increased solar
incident radiation or increased sensory pollution loads
from occupants.
• ADAPT Parasol can now manage this by opening the
water valve in combination with variably regulating the
airflow towards the Max Occupancy flow.
Adaptation as required
During a day different things occur that affect the room’s
climate, and ADAPT Parasol uses both air and water to
maintain a good climate:
5
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

The principle is the same for a conference room or a open
plan office.
When several ADAPT Parasols are installed in the same
room the airflow is evenly distributed between them.
One product is then defined as the master while the
others become slaves.
If the room is large and there is a great distance between
products, it may be an alternative to allow all the units to
be Masters, i.e. all are regulated independently of each
other. Different parts of the room can then have different
climates, which may be the intention, but you also risk
supplying the room as a whole with both cooling and
heating simultaneously.
Function in the room.
Distribution of the airflows
Master and Slave(s) share the room’s supply airflow
proportionally. Proportionally as two different ADAPT
Parasols, e.g. 600 and 1200 can have different maximum
flows.
Example: If a 600 gives a maximum of 25 l/s and a 1200
max 40 l/s and the room's total supply airflow at one time
is 30 l/s, the 600 will give approx. 12 l/s and the 1200
about 18 l/s. Had both been identical they would have
given 15 l/s each.
The extract air constantly receives a signal from the
master, a signal voltage of 2-8 V, which is converted from
the master’s flow.
RE
5
1
2
4
6
3
2
GP
GP

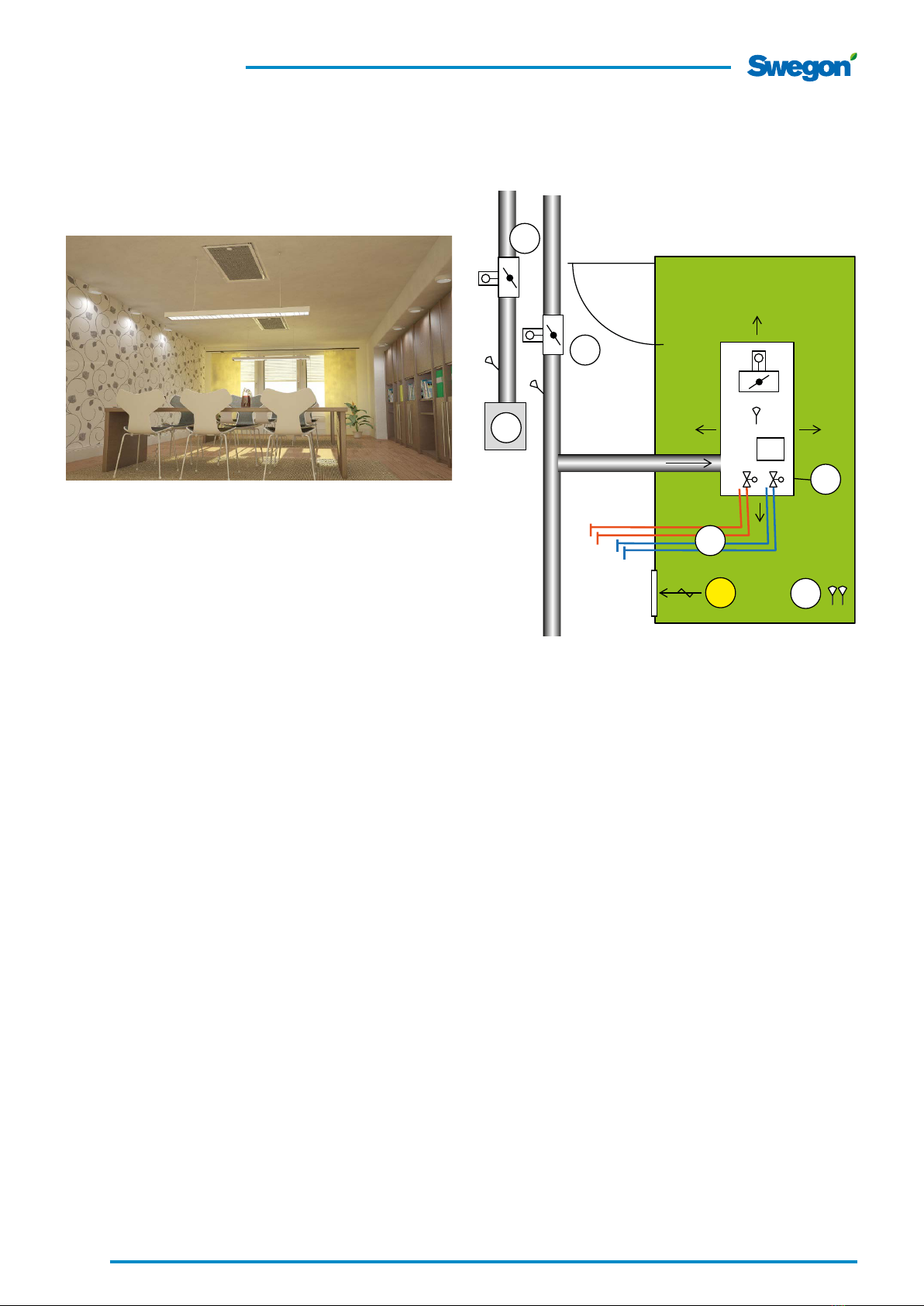

ADAPT Parasol works perfectly as a standalone unit, i.e.
without a connection to the master system. The simplest
solution is that shown in the picture, a room with ADAPT
Parasol and extract air via the air transfer grille. Air balan-
cing occurs on a zone level and ADAPT Parasol demand-
controls the climate in the room.
1. Comfort module ADAPT Parasol with supply air,
cooling and heating Incl.
• pressure sensor
• communications unit/regulator
• damper with motor.
2. Zone damper CONTROL Zone
3. Extract air diffuser
4. Cooling water and heating water
5. Extract air via transfer air to the corridor.
6. External Sensor module (occupancy and temperature
sensors)
Since heating is provided from ADAPT Parasol in the case
above, the sensor module is positioned on the wall.
6
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

Function in the room.

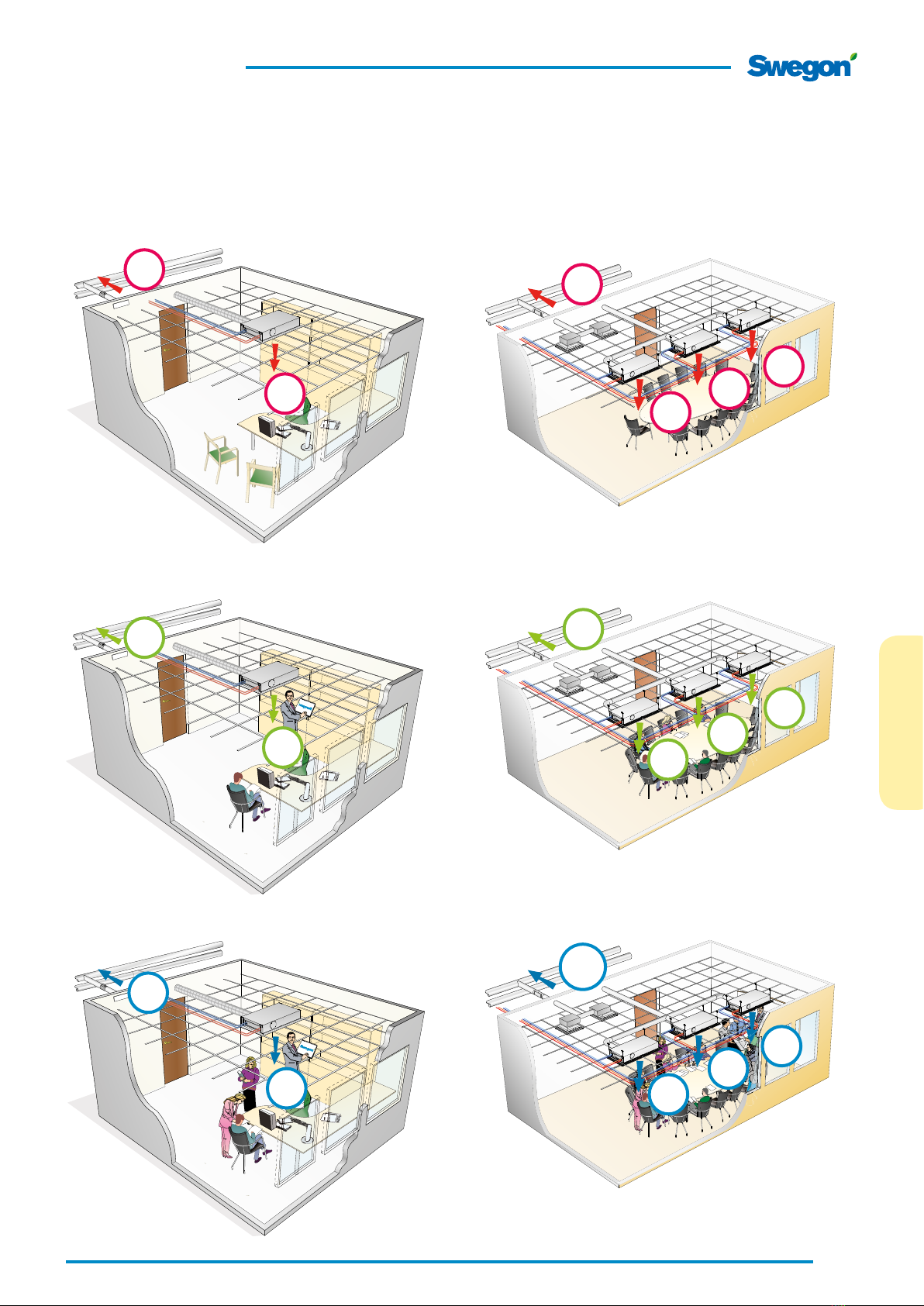

Distribution of the airflows
Office - Unoccupied Conference room - Unoccupied
Office - Min. Occupancy Conference room - Min. Occupancy
Office - Max. Occupancy Conference room - Max. Occupancy
21 l/s
60 l/s
120 l/s
7 l/s
20 l/s
40 l/s
7 l/s
20 l/s
40 l/s
7 l/s
20 l/s
40 l/s
5 l/s
15 l/s
30 l/s
5 l/s
15 l/s
30 l/s
7
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

ADAPT Parasol
Tilluft Master
ADAPT Parasol
Tilluft Slav
ADAPT
Damper
Frånluft
Slav

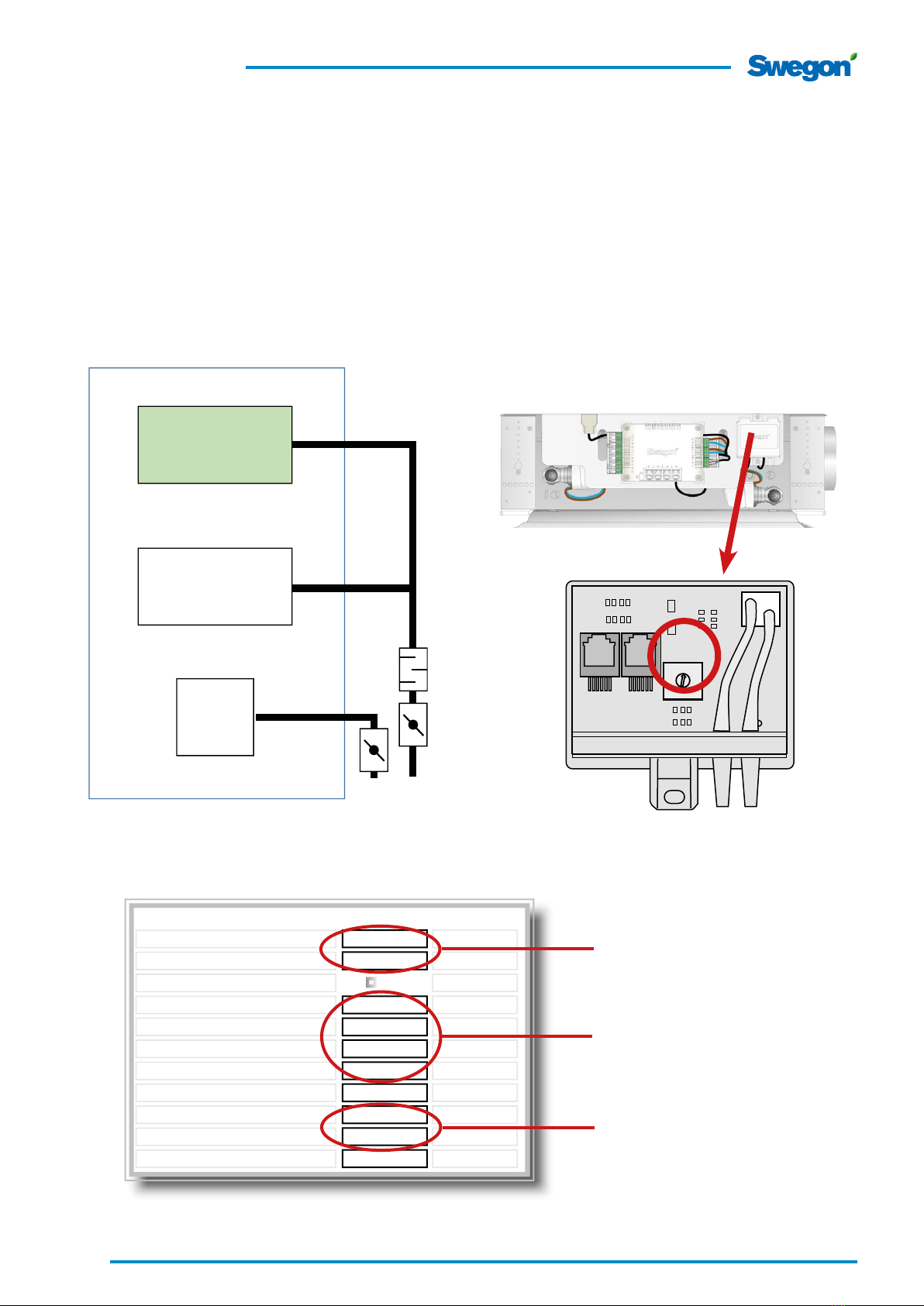

Master: All settings for the room; temperature, airflow
etc. are made here.
• Output no. 19 is set to “ADAPT analogue extract air”
to send the control signal to the extract air damper.
• Modbus address 4, 8, 12 etc. as per SuperWISE std.
• Pressure sensors and sensor module are addressed 0
with the dial.
• K-factor for ADAPT Parasol master
Function in the room.
Airflow settings
K-factor min flow
K-factor max flow
Zero cal. pressure sensor
Airflow setpoint UNOCC.
Airflow setpoint OCC.
Airflow setpoint MAX
Airflow setpoint HOLIDAY
Min cooling Pressure
ADAPT EA analogue min
ADAPT analogue max
ADAPT EA offset
51
416
50
40
200
320
200
200
400
0
k*100
k*100
l/s *10
l/s *10
l/s *10
l/s *10
dpa
l/s *10
l/s *10
%* 100
K-factor for ADAPT Parasol master
Room air flows
Working range for the extract damper.
SWICCT
Configuration and settings
The following pages show a room with ADAPT Parasol
Master, ADAPT Parasol Slave and ADAPT Damper slave/
extract air and the settings you should remember to set on
each unit to get the room to perform as intended.
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
ADAPT Parasol
Supply air Master
ADAPT Parasol
Supply air Slave
ADAPT
Damper
Extract air
Slave
8
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

Function in the room.
Slave:
• Output no. 13 is set to “ADAPT slave supply air” to
slave control the damper signal from the master.
• The Modbus ID is set between 1-9, not connection to
SuperWISE.
• Addressing of the pressure sensors via the dial should
always follow the slave unit’s Modbus ID 1-9. Addres-
sing of the sensor module ideally follows the same pat-
tern, but is not required. Crucially, two sensor modules
must not have the same address if they are connected
on the same circuit as in this case with master/slave in
the room.
The regulator on the slave unit serves in this case as
the connection point, all intelligence is used in the
master unit.
However, if the room in the future is fitted with a par-
tition, the unit can be easily reconfigured as the master
in its room.
The sensor module connected to the slave unit reports
occupancy and temperature to the master.
• K-factor for ADAPT Parasol slave should be set in the
slave-controller.
ADAPT Parasol
Tilluft Master
ADAPT Parasol
Tilluft Slav
ADAPT
Damper
Frånluft
Slav
ADAPT Parasol
Tilluft Master
ADAPT Parasol
Tilluft Slav
ADAPT
Damper
Frånluft
Slav
Extract air
Must be "slave", changed as necessary using TUNE Adapt.
Modbus address 5, 6, 7, 9, 10, 11 as per SuperWISE std.
The right size of damper for the extract air is selected
using the product sheet for ADAPT Damper.
All dampers have default settings for unoccupied, min.
occupancy and max. occupancy. These values (or new if
they have been changed) must be specified in the soft-
ware settings for ADAPT Parasol master in the room, see
the description of Master on page 8 and extract air page
10.

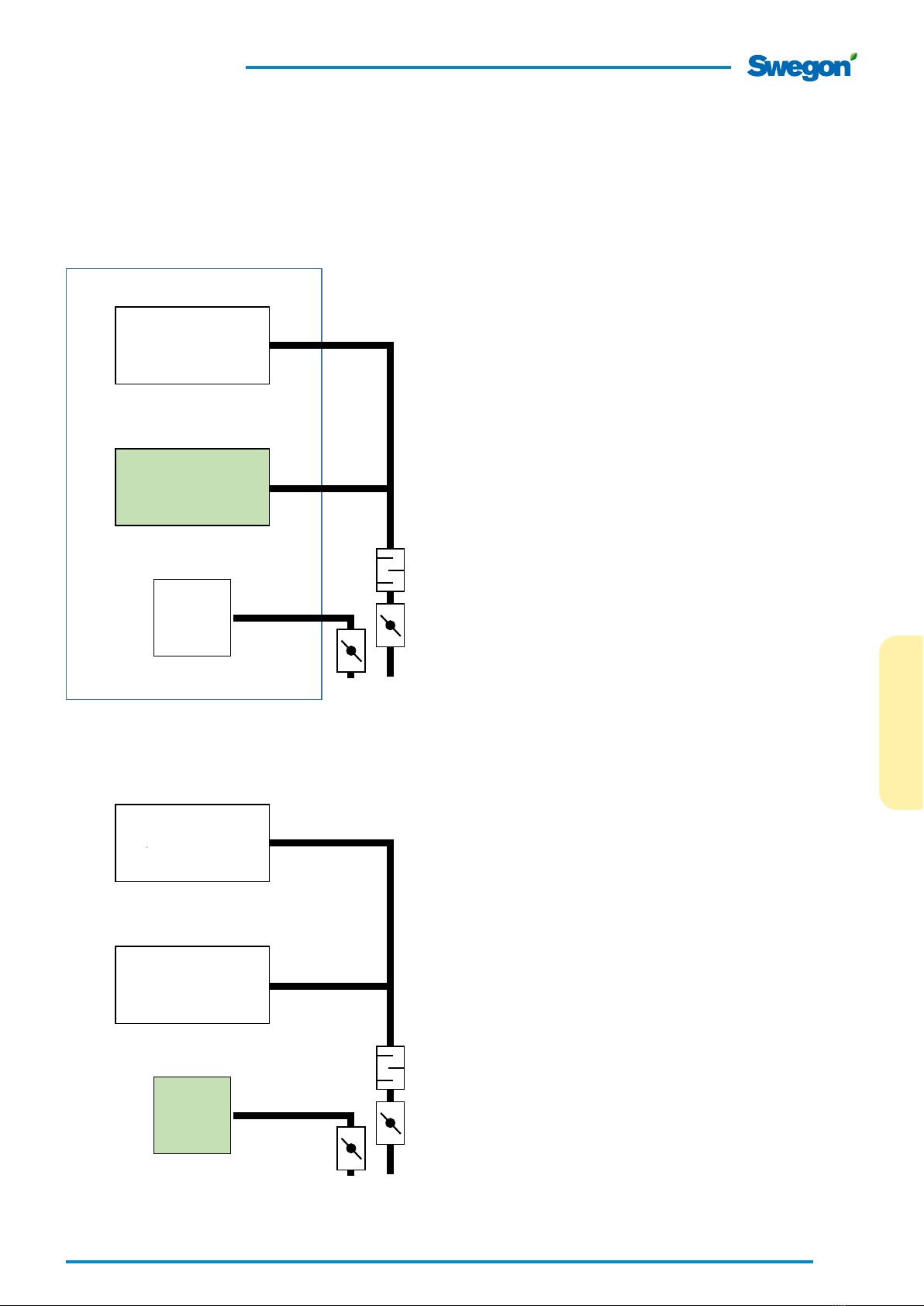

Configuration and settings
ADAPT Parasol
Supply air Master
ADAPT Parasol
Supply air Slave
ADAPT
Damper
Extract air
Slave
ADAPT Parasol
Supply air Master
ADAPT Parasol
Supply air Slave
ADAPT
Damper
Extract air
Slave
9
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

Configuration and settings

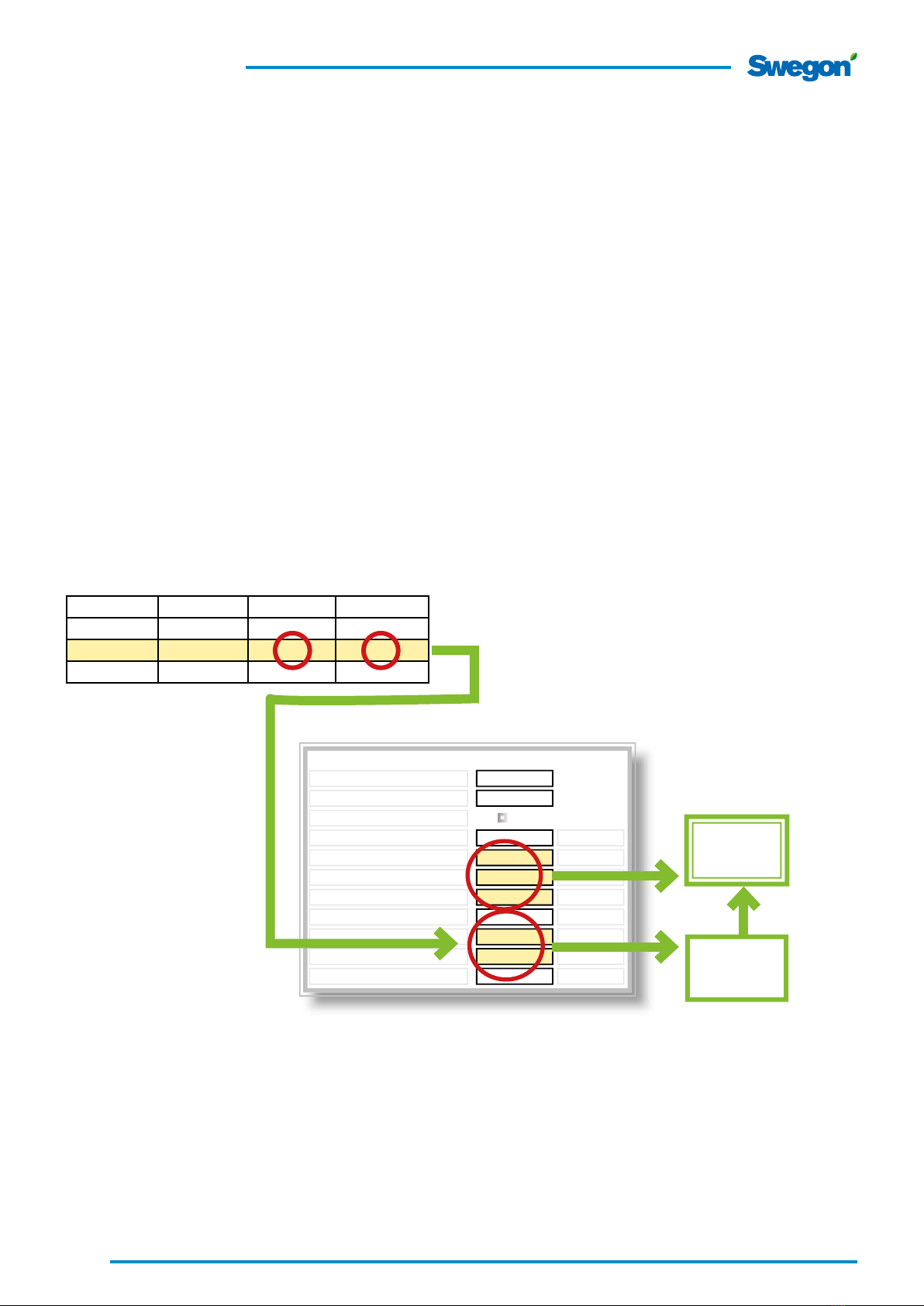

Function in the room.
Example:
Assume that the room shown with ADAPT Parasol master + slave + ADAPT Damper extract air slave must have the flows
Unoccupied = 12 l/s
Min. occupancy = 25 l/s
Max. occupancy = 60 l/s
By stating the extract air damper’s Min and Max. Flow in the ADAPT Parasol master (via SWICCT or SuperWISE) this
knows what 2V and 8V represent for flows on the extract air damper.
The master then converts the inputted room flows (12/25/60) to an analogue signal between 2-8 V which then slave
controls the extract air damper. The damper can by means of its flow measurement report back the flow.
ADAPT Damper product sheet:
Standard settings for default products
Airflows (l/s) Unoccupied* M i n . a i r fl o w M a x . a i r fl o w
Size 125 0/4 835
Size 160 0/6 10 80
Size 200 0/10 15 125
Airflow settings
K-factor min flow
K-factor max flow
Zero cal. pressure sensor
Airflow setpoint HOLIDAY
Airflow setpoint UNOOCC.
Airflow setpoint OCC
Airflow setpoint MAX
Min cooling Pressure
ADAPT EA analogue min
ADAPT EA analogue max
ADAPT EA offset
51
416
50
120
250
600
200
100
800
0
k*100
k*100
l/s *10
l/s *10
l/s *10
l/s *10
dPa
l/s *10
l/s *10
%* 100
SWICCT, input in ADAPT Parasol master:
2V = 10 l/s
8V = 80 l/s
12 l/s = 2.17 V
60 l/s = 6.28 V
Note that the extract air damper’s work range must be equal or greater than the room flow.
If the extract air flow must be shared by the two ADAPT Dampers, these must be of the same size and it is the total
flow of the two dampers that should be entered in ADAPT Parasol master controler.
In the above the settings are described based on the ADAPT Damper’s default values being used. These values can be
changed as usual with TUNE Adapt or SuperWISE, and then it is these new values that must be entered in
ADAPT Parasol master controler as set out above.
Continued, extract air
10
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

Sequence selection, cooling with Air or Water first.
It is possible to prioritise cooling with water first or air first.
For the sequence selection water/air the cooling valve is not permitted to open until a given nozzle pressure is reached,
this is to ensure that no cold air drops down into the occupancy zone.
The sequence selections are parameter selections in software, i.e. it is the same physical product being delivered from
the factory.
The principle is the same irrespective of whether you have one product in the room or several Master/Slaves connected.

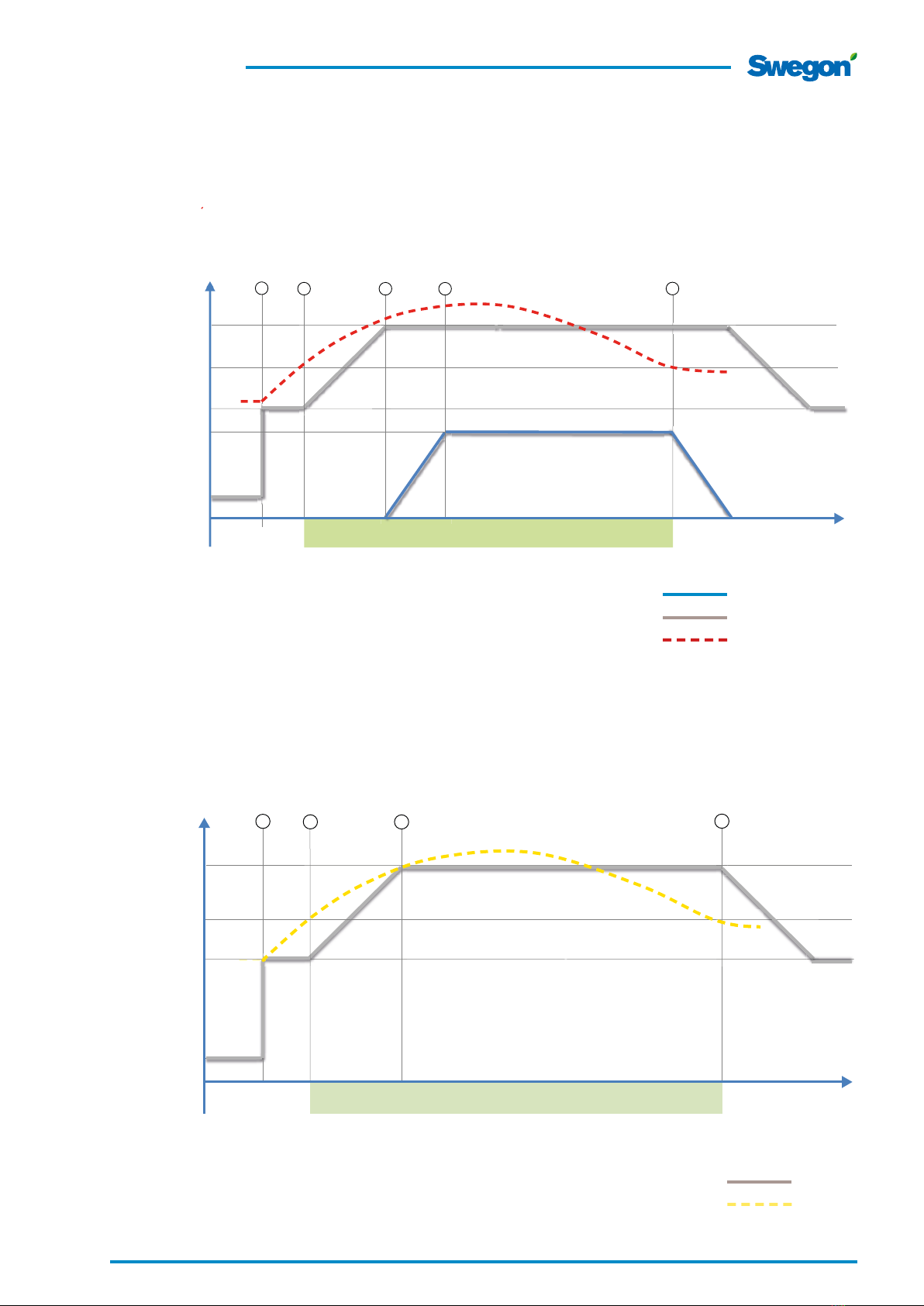

Sequence selections are described in the following graphs.
Function in the room.
Sequences
1. Occupancy - temperature rises
2. Room temperature reaches the level for the cooling demand - air opens to
reach the minimum pressure that permits the cooling valve to open
3. The cooling valve is permitted to open
4. Cooling valve fully open, but there is still a cooling demand in the room -
air damper opens to cool with more air
5. Cooling valve and air damper fully open
6. Temperature reaches the room’s setpoint, damper and valve close
ADAPT Parasol
- Sequence Water/Air
Flow
Water/Air
* Min P (Min cooling pressure): minimum permitted nozzle pressure to allow the cooling valve to open, this is to pre-
vent cold draughts when the cold water circulates in the coil. In the event of a too low nozzle pressure and low tem-
perature there is a risk the air drops too early from the ceiling.
20 Pa default but can be changed.
*
6
5
4
123
Max. occupancy flow
Min. P cooling valve
Min. occupancy flow
Valve 100% open
Vacancy flow
Valve 0% open
Occupancy with cooling demand
Water
Air
Room temperature
11
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

ADAPT Parasol
- Sequence Air / Water
Function in the room.
Sequences
1. Occupancy - temperature rises
2. Room temperature reaches the level for cooling demand - air opens
3. Air damper fully open, but there is still a cooling demand in the room -
valve opens for cooling with water
4. Air damper and water valve fully open
5. Temperature reaches the room’s setpoint, damper and valve close
Water
Air
Room temperature
ADAPT Parasol
- Sequence Air quality
1. Occupancy - CO2/ VOC content rises
2. CO2/ VOC content reaches the permitted upper limit value - air damper opens variably
3. Air damper fully open
4. CO2/ VOC content reaches the permitted lower limit value - air damper closes
5
4
123
Max. occupancy flow
Min. occupancy flow
Valve 100% open
Vacancy flow
Valve 0% open
Flow
Water/Air
Occupancy with cooling demand
4
123
Max. occupancy flow
Min. occupancy flow
Vacancy flow
Flow
Air
Occupancy with increased airflow to improve air quality
Luft
VOC/CO2
12
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

• Temperature and occupancy sensor
• Setpoint selector switch
• Installation on a wall or on the face plate
• Circular or rectangular
• Alarm indication
• Open/close the product’s dampers and valves for e.g.
function control/commissioning.
• Modbus connected
• Alternative connection point for the connection of a
PC for software configuration
Technical description
1. Occupancy sensor / IR sensor
2. LEDs for temperature, adjustment or alarm indication
3. Function keys
LED indicating function
Green = OK
Flashing Green = Condensation alarm
Yellow = alarm
Green/yellow = Comfort alarm (not acute)
4. Temperature sensor
5. 3 parallel RJ12 ports (Modbus) for connections e.g.
regulator, additional sensor module or PC.
6. Addressing the sensor module A maximum of 10
sensor modules (possibly slaves included) can be con-
nected to each master regulator. Each one must then
have its own address 0-9.
7. Switch for termination resistance. Switch 1 is set to
On on the last device in a circuit.
Sensor module front
1
2
3
45
3
ON
1 2
Sensor module rear
7
8
6
Sensor module occupancy
• Occupancy detector of the IR type, i.e. a heat-detect-
ing sensor that quickly reacts to occupancy in the room
• Coverage area depending on the placement in the
room, see figure.
• On and off delay adjustable via SWICCT default is 10 s,
and 10 minutes respectively.
• Several sensor modules can be used in the room, for
example, in a conference room if you want the set-
point selector switch on the wall but the occupancy
sensor on the ceiling.
1,1 m
1,1m 10m
d
h
Ceiling mounted
Wall mounted
h (m) d (m) A (m2)
2.5 5.2 21
2.7 5.6 24
2.9 6.0 28
3.1 6.4 32
Sensor module overview
Luft
VOC/CO2
13
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

• The temperature in the room is set by pressing the
function buttons (A)=cooling / (B)=heating.
• Both cooling and heating setpoints move, which
means that the previously created neutral zone is
maintained.
• For example, Cooling Setpoint = 24°C (call for cooling
when the room temperature exceeds 24°C) Heating
Setpoint 22°C (Start heating when the room tem-
perature is below 22°C).
• Press the sensor module twice to make it warmer
means the set values shift 2°C to 24 and 26°C
respectively.
• If the desired temperature is not reached after a
specific time a comfort alarm is generated, which
is indicated by the alarm LED switching between
yellow/green.
• The sensor module can be mounted on a wall where
the room's setpoint needs to be changed often. Nor-
mally this need arises only in rooms used by different
people with different needs.
• Wall mounting is also recommended when you heat
with ADAPT Parasol, usually this gives a fairer meas-
urement of the room temperature.
In SWICCT it is possible to state how you wish to
measure the temperature in the room:
• Mean value of sensor modules: In cases where
multiple sensor modules are connected to the master,
for example, when using slave units, the mean value of
all sensor modules can then be used for temperature
control in the room.
• Sensor module id 0: the selection means that only
one sensor module (the one with id 0, master unit) is
used for temperature control.
• External temperature sensor: here you state that
an external temperature sensor is used, and regulation
occurs only according to this sensor.
• Mean value of sensor modules and ext. Temp.
Sens: signifies that the mean value of both sensor
modules and external temperature sensors is used for
temperature control.
Technical description
Sensor module temperature
Temperature settings
Room temperature sensor use
Mean value of sensor module (s)
Mean value of sensor module (s)
Sensor module id 0
External temperature sensor
Mean value off sensor module(s) and ext.temp.sens.
AB
14
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

Technical description
Regulator overview
Connections
1. Connection when no VOC sensor is used
2. Connection when a VOC sensor is used
24V
G0G
24V
G0G
grey
black
blue (US=black)
brown (US=white)
brown (US=white)
blue (US=black)
|1 2 |3 4 |5 6 |7 8 |9 10 11 12 |
|13 14 15 |16 17 18 |19 20 21 |
| 22 | 23 | 24 | 25 |
black
brown
blue
black
white
brown
white
RoHS
1. 2.
y24V
Inputs Outputs
Modbus
15
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

Technical description
Regulator outputs
Outputs’ standard settings
The outputs on the regulator
The outputs can be switched with SWICCT for alternative functions, for example, the use of a 0-10 V actuator for
cooling/heating instead of 24V
Digital output 1, 2, 3 (21, 18, 15) Description
→Not used No signal on the output
→Power supply 24V constant supply out from the output
→Water cooling 24V when there is a cooling signal
→Water heating 24V when there is a heating signal
→Water change over 2 pipe 24V for cooling/heating demand
→Water cooling primary sequence Cooling sequence 0-50% 24V
→Water cooling secondary sequence Cooling sequence 50-100% 24V
→Water heating primary sequence Heating sequence 0-50% 24V
→Water heating secondary sequence Heating sequence 50-100% 24V
Analogue output 1, 2, 3 (19, 16, 13) Description
→Not used No signal on the output
→Water cooling 0-10V for a cooling demand
→Water heating 0-10V for a heating demand
→Water change over 2 pipe 0-10V for cooling/heating demand
→Water change over 4 pipe For 6-way valve, 0-5V=cooling, 5-10V=heating
→Water cooling primary sequence Cooling sequence 0-50% 0-10V
→Water cooling secondary sequence Cooling sequence 50-100% 0-10V
→Water heating primary sequence Heating sequence 0-50% 0-10V
→Water heating secondary sequence Heating sequence 50-100% 0-10V
→ECOPulse Control signal for integrated damper at 3 different operating modes
→2step Control signal for integrated damper at 3 different operating modes
→Variable Control signal for integrated damper at 3 different operating modes
→ADAPT analogue extract air Calculated 0-10V signal for extract air (ADAPT Damper)
→ADAPT slave supply air ADAPT Parasol slave (control signal to internal damper)
Max 60 VA
Max 60 VA
Max 60 VA
Normally closed 
Normally closed 
Normally closed 
Normally closed 
Normally closed 
Normally closed 
Water cooling 
Not used 
Water heating 
Not used 
Power supply 
Variable 
Output configuration
Digital output 1 (21)
Analogue output 1 (19)
Digital output 2 (18)
Analogue output 2 (16)
Digital output 3 (15)
Analogue output 3 (13)
16
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

Technical description
Regulator inputs
Inputs’ standard settings
The inputs on the regulator
The inputs can be switched with SWICCT for alternative functions, for example, the use of keycard switches and
window contacts
Input 1 usage Description
→Not used Not used.
→Room Temperature External temperature sensor is used
→Change over temperature Ext. Temp sensor for change-over is used
→Temperature (read only) Only temp. reading, no regulation
→Window contact NO Window contact normally open
→Window contact NC Window contact normally closed
Input 3 usage
→Not used Not used.
→CO2 0-10V CO2 sensor with 0-10 V control range
→CO2 2-10V CO2 sensor with 2-10 V control range
Input 4 usage
→Not used Not used.
→Keycard switch NO Keycard switch normally open
→Keycard switch NC Keycard switch normally closed
→Window contact NO Window contact normally open
→Window contact NC Window contact normally closed
Occ mode
Use occupancy sensor Detect occupancy/unoccupied
Always occupied Force on occupancy mode
Always unoccupied Force on in unoccupied mode
Not used 
Not used 
Not used 
Use occupancy sensor 
Input configuration
Input 1 usage
Input 3 usage
Input 4 usage
Occ. mode
17
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

Technical description
Regulator’s Modbus connections
RS 485
MB 1
RS 485
MB 2
SuperWISE bus
BMS bus
Sensor module
Pressure sensor
Slave controller
The master circuit (22, 23) is used for communication
between ADAPT Parasol master units and communication
from the master unit up to the superordinate system, for
example, SuperWISE.
The slave circuit (24, 25) is used for communication
between slave units ADAPT Parasol and to connect the
sensor module, pressure sensor, VOC sensor, etc.
Note that 22 and 23 are parallel (same function), and 24
and 25 are parallel. Important to distinguish between the
pairs 22/23 and 24/25.
The order of the connected units on each circuit is not
important, however it is more important to avoid so-
called Stubs and build just one circuit instead.
4x RS485, modular RJ12 6/6
22 & 23 parallel, master circuit
24 & 25 parallel, slave circuit
18
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com

System technology
Duct system
Remember:
• ADAPT Parasol measures the pressure in each unit
and can therefore manage the occupancy flow
accurately as long as there is sufficient duct pressure
available.
• The built-in damper generates very little noise com-
pared with traditional balancing damper and in many
cases a sound attenuator in the room can therefore
be excluded. However, beware of other sounds such
as crosstalk and noise from other sources such as
zone dampers further back in the system.
• By selecting the unoccupied flow and maximum
occupancy flow in a smart way in the software you
also compensate for the duct pressure drop and con-
trol measurement is easier, see page 20-21.
• The software manages the flows, but beware of the
noise.
• However, traditional balancing dampers may be
required for duct lengths and duct pressure drop out-
side the recommended ranges. This is easily checked
by using ProSelect by entering the actual duct pres-
sure on the actual product.
Traditional system design with pressure
controlled units and zone dampers
that maintain a constant pressure in
each zone. In a small installation, a
good unit can possibly maintain a
sufficiently constant pressure.
19
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
ADAPT Parasol b

System technology
Duct system
Duct pressure, Pa 104
Min. l/s 5
Occupancy l/s 15
Max. l/s 27.9
Duct pressure, Pa 80
Min. l/s 4.4
Occupancy l/s 15
Max. l/s 24.4
Duct pressure, Pa 68
Min. l/s 4
Occupancy l/s 15
Max. l/s 22.5
104 Pa 101 Pa 98 Pa 95 Pa 92 Pa 89 Pa 86 Pa 83 Pa 80 Pa 77 Pa 74 Pa 71 Pa 68 Pa
27 m
40 m
3 m
Minimum and maximum flows from ProSelect limited by the available pressure and nozzle configuration selected for an
ADAPT Parasol 1200 HF LMLM.
Min. occupancy flow is selectable in ProSelect and here is set to 15 l/s.
For an accepted pressure drop in the duct system of 1 Pa/m, the following can be used:
Duct pressure, Pa 104
Min. l/s 5
Occupancy l/s 15
Max. l/s 22.5
Duct pressure, Pa 80
Min. l/s 5
Occupancy l/s 15
Max. l/s 22.5
Duct pressure, Pa 68
Min. l/s 5
Occupancy l/s 15
Max. l/s 22.5
104 Pa 101 Pa 98 Pa 95 Pa 92 Pa 89 Pa 86 Pa 83 Pa 80 Pa 77 Pa 74 Pa 71 Pa 68 Pa
27 m
40 m
3 m
In SWICCT or by configuring ADAPT Parasol in ProWISE limits can also be set for unoccupied and occupancy max flow
(note the product's absolute min and max from the previous figure which are controlled by the selected nozzle setting!)
By letting the most exposed product in this way be the design unit for the current duct section and taking this into
account at an early stage, you do not use a balancing damper before each product and can thus save both available
pressure and money on unnecessary balancing dampers, which in addition also risk creating noise.
Of course, the pressure fluctuations in a duct system can be so large that a traditional balancing damper may still be
required, but in all probability a damper in front of each product is not necessary as it should be enough to lower the
pressure in some of the duct system and then apply the above.
Design unit
20
ADAPT Parasol b
Swegon reserves the right to alter specifications. 25/11/2014 www.swegon.com
