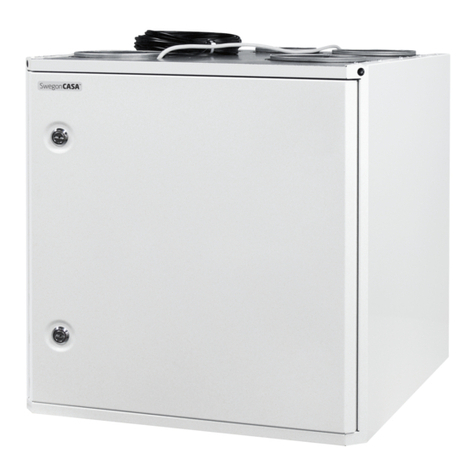

Swegon CASA R120 Instruction Manual

Instructions for installing the reheating cassette
Swegon CASA®R120
10212RVM_c_EN-m
The installation work must be carried out by
a qualified service company only
!
Installation of reheating cassette in the ventilation unit
The installation work and commissioning must be carried out by a duly qualified person only. Due to applicable
electrical safety regulations, you are not permitted to install the reheating cassette yourself. The ventilation unit
warranty will continue to be applicable only if the installation work is carried out by a qualified service technician.

Swegon reserves the right to alter specifications.2 www.swegon.com/casa
R120.301112
BA
3 PCS. M4 x 10
C
~5 CM
E F
D
12
To install the reheating cassette

Swegon reserves the right to alter specifications. www.swegon.com/casa 3
R120.301112
H
3 PCS. M4 x 10
G
3 PCS. BUNDLING STRAPS
The packaging contains the following
items
• Reheating cassette
• 3 small bundling straps
Tools required for installation
• Crosshead screw driver
If the ventilation unit is reset to its
original factory settings, you will have to
program the unit again as described above.
To program the Swegon CASA R120 ventilation unit
After you have connected the reheating cassette, you
will have to change the operational settings of the ven-
tilation unit. You can change the parameters from the
Premium control panel in the following way:
To activate the reheating function
• Go from the basic image by pressing the Menu but-
ton to reach the Main menu
• Select Installation and service and press Select
• Enter the code: 1234, and confirm by pressing the
Set button
• In the Installation and service menu, select Functions
and press Select
• Select Heating and press Select
• Select On and press the Set button
• Leave the menu by pressing the Return button an ap-
propriate number of times
To commission the reheater
• Go from the basic image by pressing the Menu but-
ton to reach the Main menu
• Select Installation and service and press Select
• Enter the code: 1234, and confirm by pressing the
Set button
• In the Installation and service menu, select Air
heater and press Select
• Select Air heater, reheat and press Select
• Select On and press the Set button
• Leave the menu by pressing the Return button an ap-
propriate number of times
The installation work, the entering of
settings and commissioning should be car-
ried out by qualified personnel only.
