SWELLPRO C1 - XR User manual

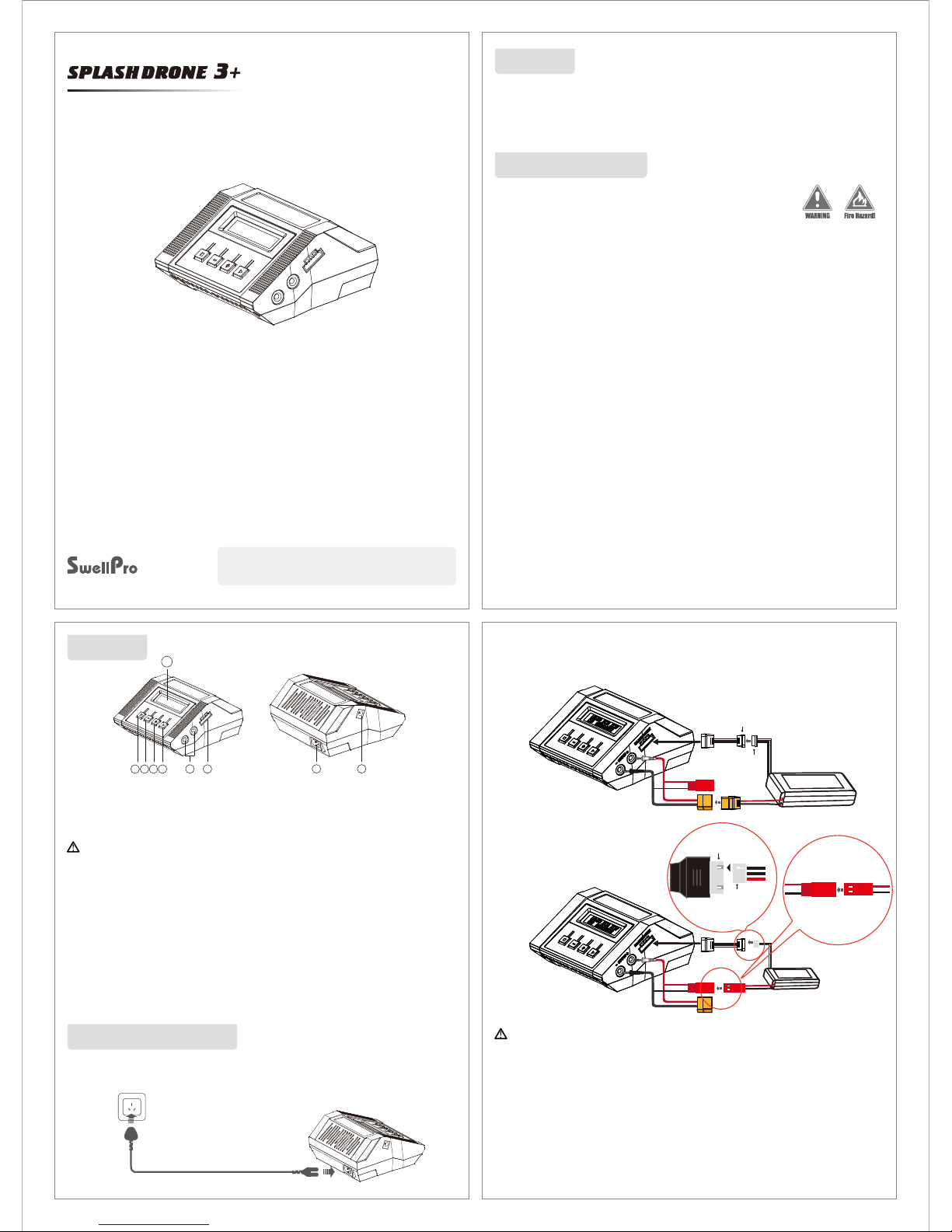

4. Connection instructions
AC input connection
Connector Drone Battery
Red Red
2. Connect either a LiPo-2S battery or LiHV-4S (HIGH VOLTAGE).
NEVER CHARGE A LIPO-4S BATTERY WITH THIS CHARGER AS THE HIGH
VOLTAGE WILL DAMAGE THE BATTERY AND CAN BE A FIRE RISK.
1. Before charging, check that the terminals and wires of the battery pack are
not damaged.
2. When connecting the battery, always check that the positive (red) and
negative (black) wires are connected correctly and the connector plugs are
connected to the same coloured ports on the charger.
3. In order to avoid short circuits, connect the banana connector cable to the
charger first, then connect the battery. When disconnecting, disconnect the
battery first, then disconnect the charger.
4. Only one battery can be charged at a time.
Connector
Controller Battery
LiHV-4S Battery
Charging Port
Charging port of the cable
LiPO-2S
Battery
Charging
Port
Charging port
of the cable
Black Black
User Manual V2.1
Model: C1 - XR

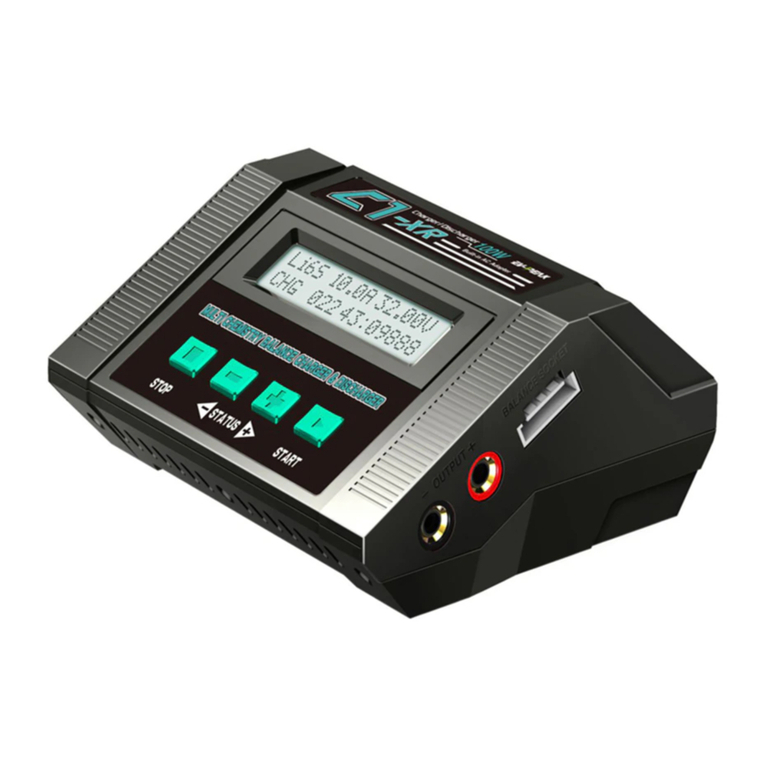

AC/DC Smart Balance Charger
www.swellpro.com
WARNING:
The SplashDrone 3+ utilizes high voltage LiHV battery technology in the
drone battery.
The battery charger supplied with the SplashDrone 3+ is only suitable for
charging SwellPro LiHV batteries and the LiPo batteries for the Splash-
Drone 3+ remote controller.
Charging non-LiHV, low voltage LiPo drone batteries (including the
batteries for the older SplashDrone 3) with the LiHV charger is dangerous
and may cause the battery to catch fre or explode.
1
2. Important Precautions
1. Foreword
Thank you for purchasing this SwellPro product, please read the entire contents of
this manual thoroughly, to comprehensively familiarize yourself with the product
before using it.
The safety precautions in this manual are only intended to supplement local
safety regulations.
Lithium batteries store a large amount of energy. Care
must be taken to ensure that batteries and chargers are in
good order and are compatible.
1. Do not use this product in direct sunlight, rainy or moist environments.
2. This product should be kept away from dangerous materials such as heat
source, high pressure, water, flammable gas and corrosive agents. Operate the
charger in a suitable environment 5 °C ~ 45 °C.
3. The product should be placed on a horizontal surface. Ensure the charger has
sufficient ventilation(recommended >50cm).
4. Do not cover the product or battery during operation. Do not place the
battery on top of the charger.
5. Do not charge non-rechargeable lithium batteries or incompatible batteries.
6. During operation, the charger and battery should be placed on a strong
anti-flammable and non-conductive surface. Do not charge batteries on a car
seat, carpet or other similar surfaces.
7. Only charge compatible batteries. Charging incompatible batteries is a fire risk.
8. Do not charge or discharge a battery that has been physically damaged.
9. Do not disconnect the input line during charging. After charging has
completed, disconnect the battery and then the input line.
10. Keep the charger clean and dry.
11. Do not modify or disassemble this product.
12. Avoid using this product during thunderstorms.
13. Do not allow children under the age of 14 to use the charger.
14. Do not short-circuit or disassemble a battery.
15. NEVER LEAVE A LITHIUM BATTERY UNATTENDED DURING CHARGING OR
DISCHARGING.
16. In the event of fire, disconnect the charger and use a dry powder fire
extinguisher to fight the fire.
2
3.Charger
1
7
2 3 4 5 6 8 9
WARNING:
The SplashDrone 3+ utilizes high voltage LiHV battery technology in
the drone battery.
The battery charger supplied with the SplashDrone 3+ is only suitable
for charging SwellPro LiHV batteries and the LiPo batteries for the
SplashDrone 3+ remote controller.
Charging non LiHV, low voltage LiPo drone batteries (including the
batteries for the older SplashDrone 3) with the LiHV charger is
dangerous and may cause the battery to catch re or explode.
3
1. The charger can be connected to an AC outlet (100~240V AC) or to a suitable
high-current DC source 11~18V such as a car charging port or cigarette lighter
adapter.
Please check www.swellpro.com for the
latest version of this manual.
1. Mode Switch
2. Decrease
3. Increase
7. LCD Screen
8. AC Input
9. DC Input (for connection to a car
charging port)
4. Start/Confirm
5. Main Output
6. Balance Interface

6
Version Comments
1.0 Pre-release Manual for Smart Balance Charger
2.0 New Manual for Smart Balance Charger
2.1 Added Charging connection Controller Battery
4
5. Operation Instructions
START
> 2Seconds
1. Standby
After the charger is powered on, it will enter standby mode.
Connect the battery and the balance port. The charger will
automatically detect the connected battery type.
LIPO BAL-CHG 2S
10S 2A 2. Charging Current selection
After entering the main interface, you can press the “INC” and
“DEC” buttons to set the charging current value. Check that the
selected current does not exceed the battery specifications.
Then press the“START” button to confirm the set value.
If there is no action in 10 seconds the program will
automatically recommend a charging current according to the
number of cells and capacity. The 10 second countdown will be
displayed in the lower left corner of the current setting
interface. The settings buttons will reset the countdown timer.
3. Start charging
Press and hold the "START" button for 2 seconds to start the
charging program. When in charging mode, the “INC”,“DEC” and
“ENT” buttons are not available. Press the “ESC” to stop charging.
LIPO BAL-CHG 2S
10S 1A
LI2s 7a 8.4v
bal 005.47 00121
This charger can only charge LiPo-2S or LiHV-4S batteries.
DO NOT CHARGE ANY OTHER BATTERY TYPE AND NEVER LEAVE A
CHARGING BATTERY UNATTENDED.
5
6. Interface Description
Error messages:
CONNECT BREAK!
CELLS IMBALANCE!
OVERHEATING!
OVER CAPACITY!
POLARITY REVERSE
HIGH VOLTAGE!
HIGH CELL VOLT!
SHORT CIRCUIT!
POWER SUP FAULT!
SELF TEST FAULT!
CELLS ERROR!
SAFETY TIMER!
SETTINGS CHANGED
When the charger is used incorrectly or there is a fault, the charger will
prompt an error message for the user to view. As shown below:
type of battery
Balanced charging mode
Charging voltage
Charged capacity
LI2s 7a 8.4v
bal 005.47 00121
Charging current
Charging time
The battery has been disconnected from the charger.
The cells of the battery are unbalanced. The battery cannot be
charged.
The charger has overheated. Power off the charger and allow it
to cool.
The connected battery cannot be charged.
The battery has been incorrectly connected. Check all
connections.
The input voltage is too high. The battery cannot be charged.
The battery voltage is too high. The battery cannot be charged.
The connected battery has an incompatible number of cells.
The connected battery has not charged in a safe time.
The selected setting has been changed successfully.
The charger output has been short-circuited.
The input supply is unacceptable.
The charger`s self-test has failed. The charger cannot be used.
7. Specifications
130*115*61mm
380g
2-10A
5W
LiPo-2S、LiHV-4S
AC input 100-240V DC output 11V-18VInput
Output Power
Battery types
Charging Current
Discharge power
Battery Numbers
Balance Current
Input Protection
Output Protection
Working Temperature
Size
Weight
LiPo、LiHV
400mA/cell
Overcurrent
Overvoltage, undervoltage, short circuit, overheating,
short circuit, reverse connection
5-45℃
100W
Note: The product specifications mentioned in this manual are for
reference only.This manual is correct at the time of release, and is subject
to change without notice.
7
8. After-sales and Warranty
9.Warning
10.Version Information
Thank you for purchasing this SwellPro product, we will do our best to
provide you with comprehensive after-sales service to fully protect your
rights. If your product is at fault, please contact SwellPro after-sales staff.
1. The product is covered by a 12-month warranty.
2. Warranty repairs are free of charge for one year from the date of
purchase.If the customer is unable to provide valid proof of purchase, the
date will be based on the internal date code of the charger.
3. For repairs after the first 12 months of use, the cost will be charged as
appropriate, and the customer shall bear the round-trip shipping costs.
1. Product damage caused by failure to use a suitable input voltage as required.
2. Damage caused by not following the instructions.
3. Any man-made, accidental impact or other force majeure that causes damage
to the product.
4. Modification, disassembly or modification of the internal circuit of this product
without the approval of the company.
5. Water immersion or intrusion, moisture or other foreign matter entering the
product and causing damage.
6. Aging, bumps and scratches on the surface of the product.
The product specifications and information mentioned in this
manual are for reference only and are subject to change without
notice.
Warranty does not cover damage due to neglect or incorrect usage of the
charger including:
The user is responsible for any consequences caused by the operation of
the charger. SwellPro is not liable for the costs beyond the cost of the
product and reserves the right to modify the terms of this warranty which
is subject to change without notice.
●1. This product is not intended for use by persons with physical, sensory or
mental disabilities or lack of experience and relevant knowledge (especially
children).
●2. This product is not a toy. Please keep away from children.
●3. If the product is in any way damaged, turn off the power to avoid the risk
of electric shock.
●4. This product is for indoor use only.
