Sylvania SMPK8167 User manual

SMPK8167
Sylvania is a registered trademark of OSRAM Sylvania Inc. Used under license.

Your Pocket Guide
Portable Media Player
Install Software
Get Connected
Transfer Media
Plug Your Ears & Enjoy
MENU
VOL

1
What’s in the blister?
Know Your Player Well
System Requirement
Software Installation
Connect & Charge
Transfer
Software Operation
Language Selection
Music Playback
Edit Lyrics
Repeat Mode
EQ Mode
Video Playback
Photo Browse
E-Book
Records
Technical Data
Trouble Shooting
2
3
4
5
6
7-8
9 - 12
13
14
15
16
17
18
19
20
21
22
23

2
What’s in the blister?
Portable Media Player
Earphone USB Cable
What’s in the blister?
CD-ROM containing:
Media player driver for
Windows® 98/98SE
Software for converting
.act files into .wav files.
Software for formatting
internal memory.
Your Pocket Guide
<RXU3RFNHW*XLGH
3RUWDEOH0HGLD3OD\HU
,QVWDOO6RIWZDUH
*HW&RQQHFWHG
7UDQVIHU0HGLD
3OXJ<RXU(DUV(QMR\
MENU
VOL
MENU
VOL

3
Switch the On/Off switch
Turn On/Off
Power On/Off
Scroll through lists
Select Option
Return to previous menu
Play/Pause songs
Jump to next song
Fast Forward
Move back to previous song
Fast Backward
Display lyrics
Stop lyrics display
Volume up
Volume down
Select image
Jump to next image
Jump to previous image
Hold long
Hold long
Quit to main menu
Hold long
Press and press
Press and press
General
Music
Images
To Press
long
Hold
Hold long
Hold long
Hold long
Hold long Fast Backward
Play/Pause a movie
Jump to next movie
Fast Forward
Move back to previous movie
Movie
Front View
Top View
Bottom View
MENU
VOL
ONOFF
POWERON/OFF
MENU
BACKWARD
FORWARD
PLAY / PAUSE
VOLUME
USB PORT
EARPHONE JACK
MENU
MENU
MENU
MENU
MENU

Windows® 98/98SE/ME/2000/XP/Vista
Pentium Class or faster Processor
CD-ROM Drive
64MB RAM
30MB free hard disk space
USB Port
You’ll need a computer with:
System Requirement
4

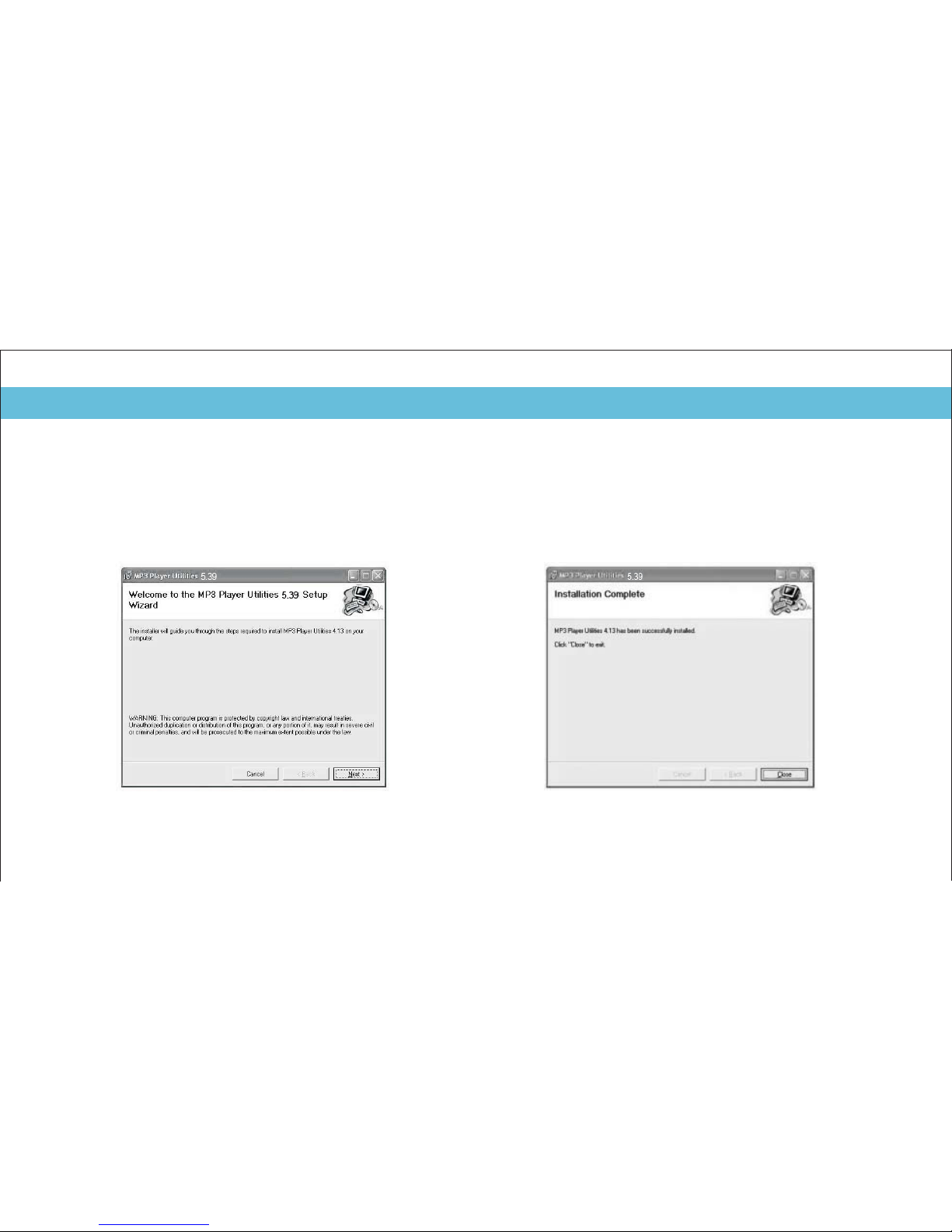

Insert the CD into the CD ROM drive of your PC.
Click to start driver installation.
Follow the on-screen-menu to complete the installation.
Setup.exe
Click once you reach the
screen.
Close Installation
Complete
For Windows® 98/98SE users, please install the driver in the CD-ROM before downloading any files to your player.
Software Utilities Installation
Software Installation
5

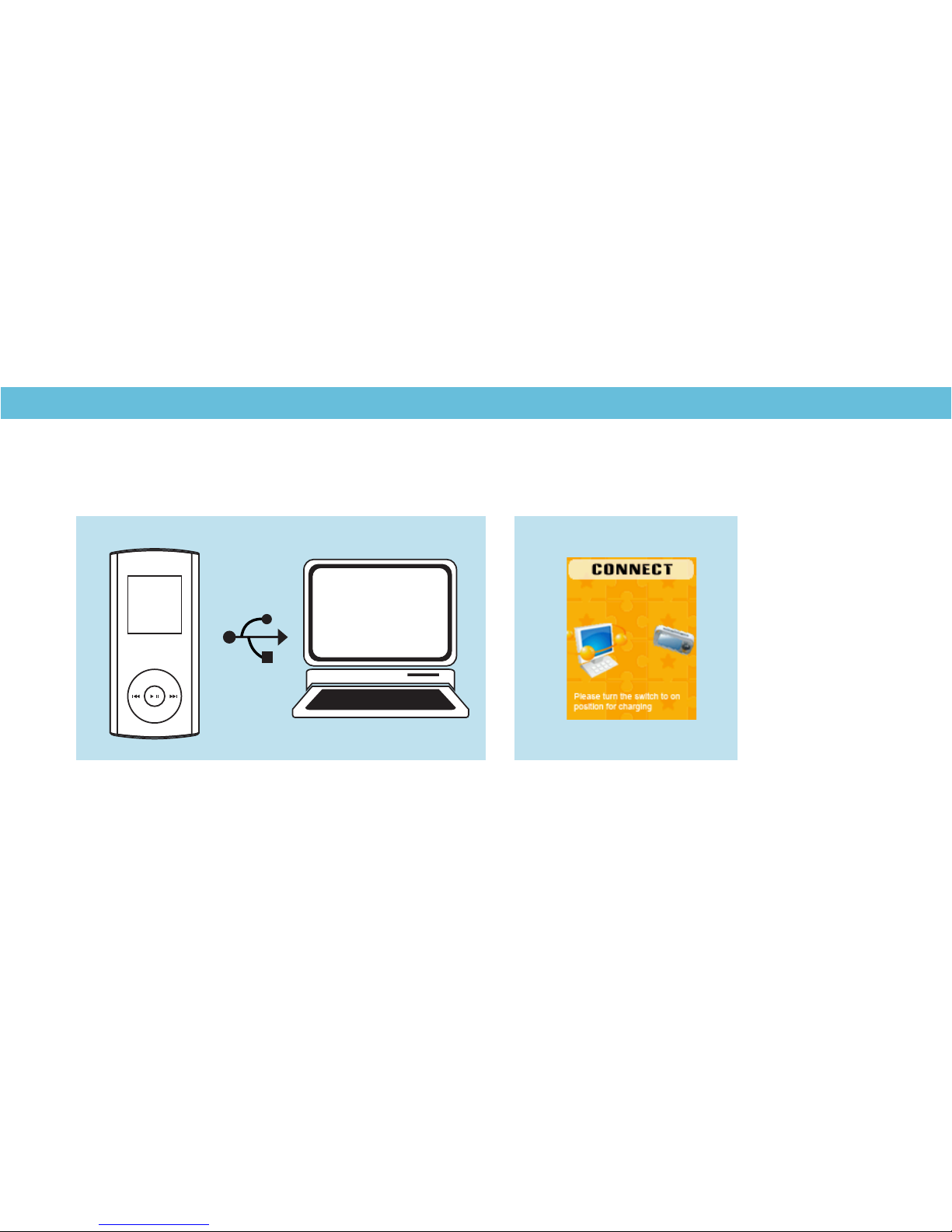

Connect & Charge
Connect
Your player will be charged while being connected to PC through the USB cable.
!You will see the charging animation in the bottom right hand corner of the display.
The player is fully charged when the charging animation stops.
Attention: Please turn the switch to on position for charging.
6
MENU
VOL

Step 1:
Set the Online Device of the player as USB Disk
(Refer to Page 6), then connect it to your PC
by USB cable. Once the connection is successfully
made, the above screen display (1) would be
shown. Try re-connecting the player if the above
screen doesn't appear.
Step 2:
The above screen (2a) would appear.
(Apply only to Windows® XP)
Choose and click
to close the window.
Take no action OK
Double click on your
desktop and the above window (2b)
would appear. Look for the
icon.
My Computer
Removable Disk
Get Your Player Connected
Transfer
7

3
Step 3:
Double click the icon.
Note: Do not disconnect the USB cable
once you click into the removable disk
window. Such action may cause data loss
or problems to the player.
Removable Disk
Drag and drop your media files into the
removable disk.
You can create any folder or directory
in the removable disk.
Close the removable disk window and
disconnect the player from your PC
after the data transfer.
Transfer Music, lmage & Movie
8

Software Operation
You can convert your favorite video file in any other format into the .AMV format with the
help of the 
Theconvertingprogressisshown asbelow
AMV converter Programs?MP3 Player Utilities 5.39?AMV Converter
Software Operation
2
9

Software Operation

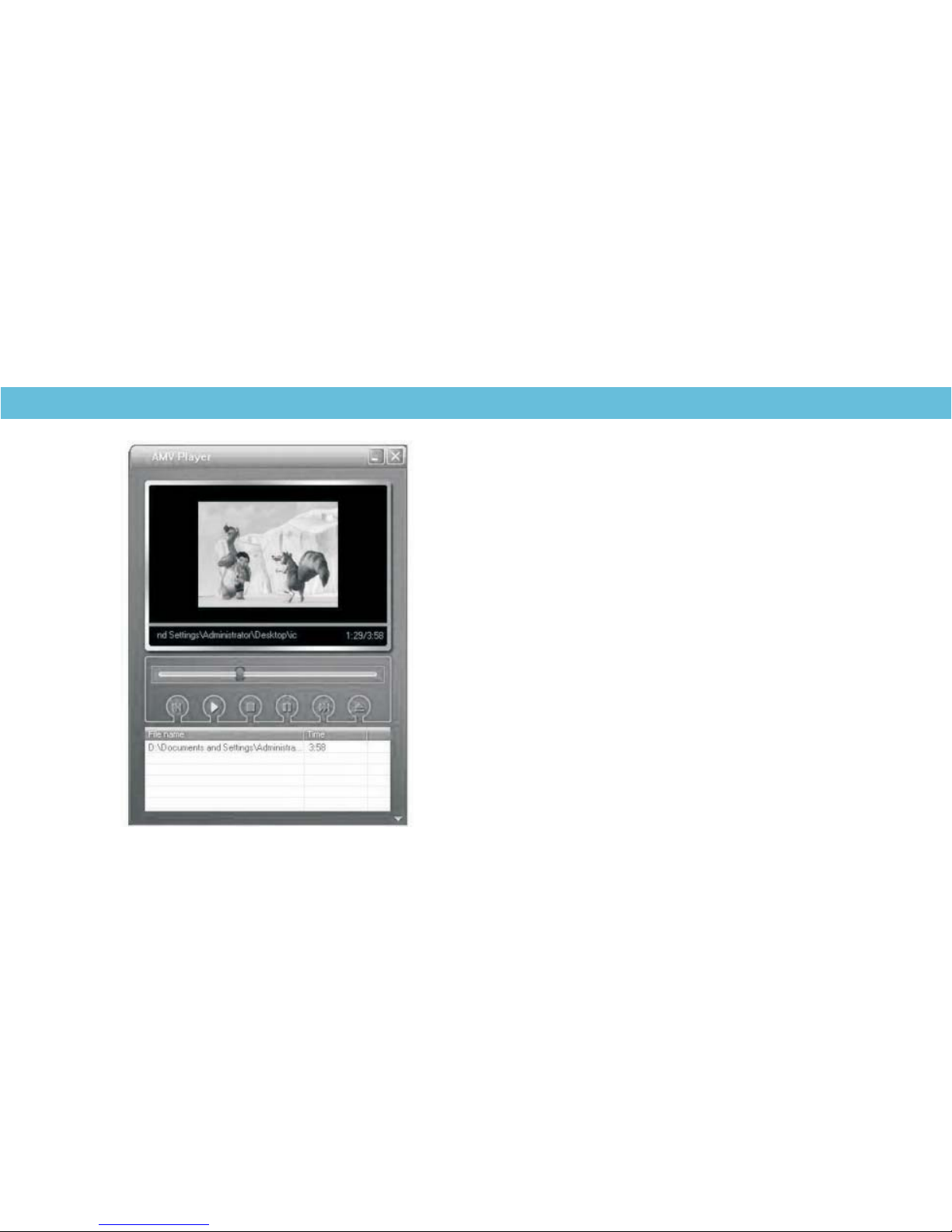

To enjoy the convertedmovieonyourPCyoucan
playitthruthe

AMVplayer Programs?MP3 Player
Utilities 5.39?AMV Player
Enjoy Your AMV Movie
10

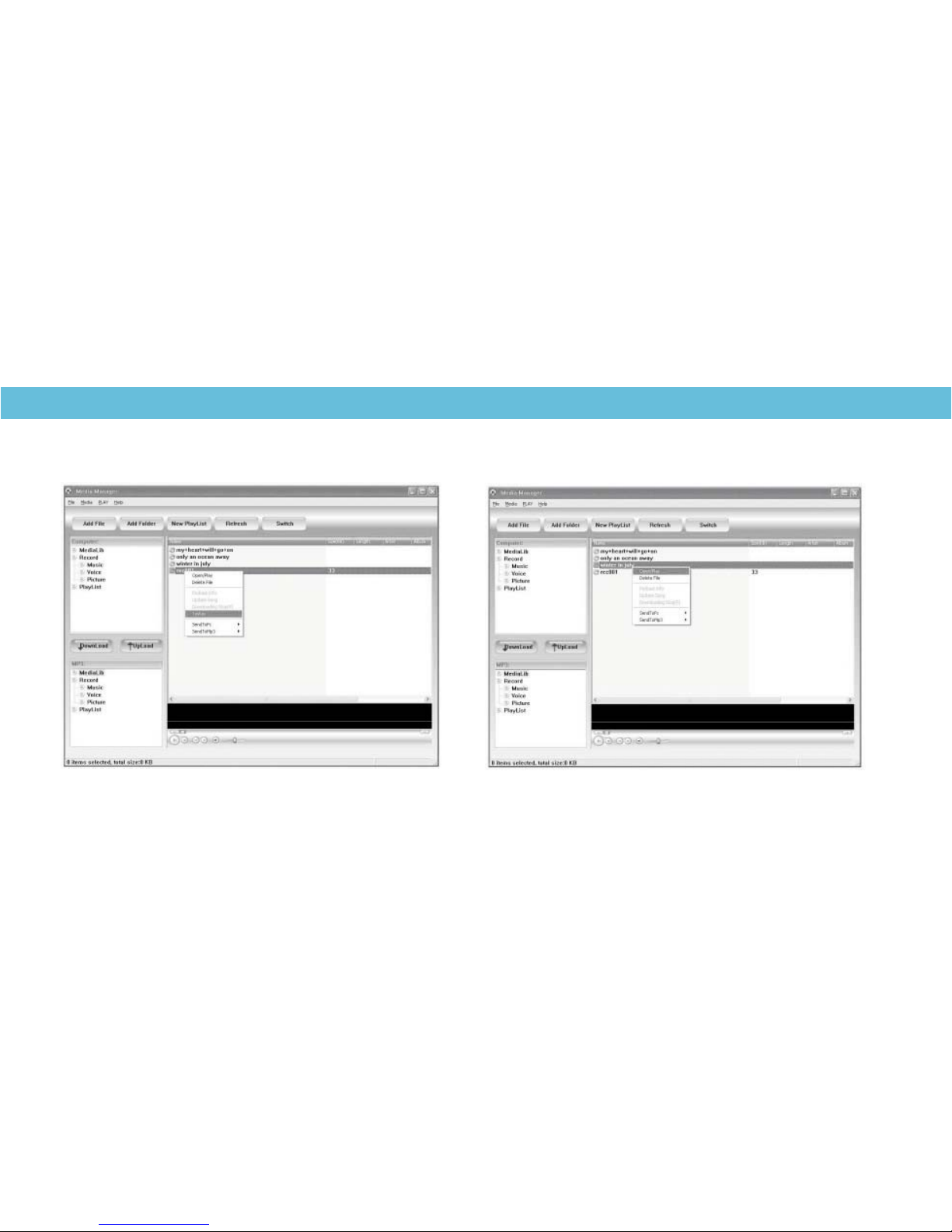

Your can enjoysongsfrombothPCandyourplayerthru
the

Media Manager Programs?MP3 Player Utilities 5.39?
Media Manager
Software Operation
You can also convert your recorded .ACT voice
into .WAV format thru the .Media Manager
Software Operation
11

Setup
Firmware Version
Firmware Upgrade
Exit
MENU
MENU
MENU
12

Music Playback
Music Playback
Select on the main menu and press
to enter the music mode, then you can select
different songs by pressing / , and you can
easily play the song you’ve chosen by a simple
press of .
Music
Display Lyrics
A-B repeat
While enjoying music, you can press to pause
While playing music, you can press to enter sub-menu.
or continue the music; press / to move back
Press / to select Replay Mode and then press again
to the previous song or jump to the next song;
to select Replay. The mark A is flashing on the display and
Hold / long to move your song forward or
wait for the setting. Press / to set mark A. Mark A is set if
rewind it. If you want to adjust the volume,
flashing stopped. Press / to set mark B. Mark B is set if
please press button and then press or
flashing stopped. The music between mark A and mark B will be
button.
repeated until you press M button to disable the function.
The edited lyrics will be displayed synchronously
if you hold whileplayingmusic
Andyoucanpress once to quit the lyrics display scene.
MENU
MENU
MENU
MENU
MENU
13

Edit Lyrics
Edit Lyrics
You can copy the synchronous lyrics from
internet, and create a new
on your PC,paste them, andthenselectto
savethisdocumentintheextensionof
shownasEHORZ 
Text Document
LRC
Then put both .LRC and .MP3 (or .WMA)
files of the same song into the same folder
in the removable disk. Your lyrics would be
shown when you play that song.
24
14

Procedure:
In PLAYING mode (1), press while playing music to enter
the selection menu screen (2). Choose and press
to enter the menu screen (3).
Repeat
Repeat
Repeat Mode
Repeat Mode
7 Repeat Modes are available:
Normal, Repeat One, Folder, Repeat Folder, Repeat All, Random, Intro.
Normal
All music files will be played one by one
and stopped at the last music until you
disable this function.
Repeat One
The currently played song will be played
repeatedly until this function is disabled.
Folder
All music in the selected folder would be
played once until this function is disabled.
Repeat Folder
All music in the selected folder would be
played from the beginning to the last one
repeatedly until this function is disabled.
Repeat All
All music would be played from the
beginning to the last one repeatedly until
this function is disabled.
Random
All music would be played randomly until
this function is disabled.
Intro
All music would be played for 10 seconds
from the beginning until this function is
disabled.
MENU
MENU
15

Procedure:
In PLAYING mode (1), press while playing music to enter the
selection menu screen (2). Press to select and press
to enter the menu screen (3).
Equalizer
Equalizer
7 EQ Modes are available: Natural, Rock, Pop, Classic, Soft, Jazz, DBB.
EQ mode
Listen to your music at its best
MENU
MENU
16

Video Playback
Video Playback
While enjoying video, you can press topauseorcontinue
themovieandpresstomovebacktothe previous movie
or jump to the next one. You can move your movie forward or
rewind it while playing by holding long
Select onthemainmenuandpress toenter
thevideoplaybackmodeYoucanselectdifferentmoviesby
pressingandpressto start playing
AMV

17

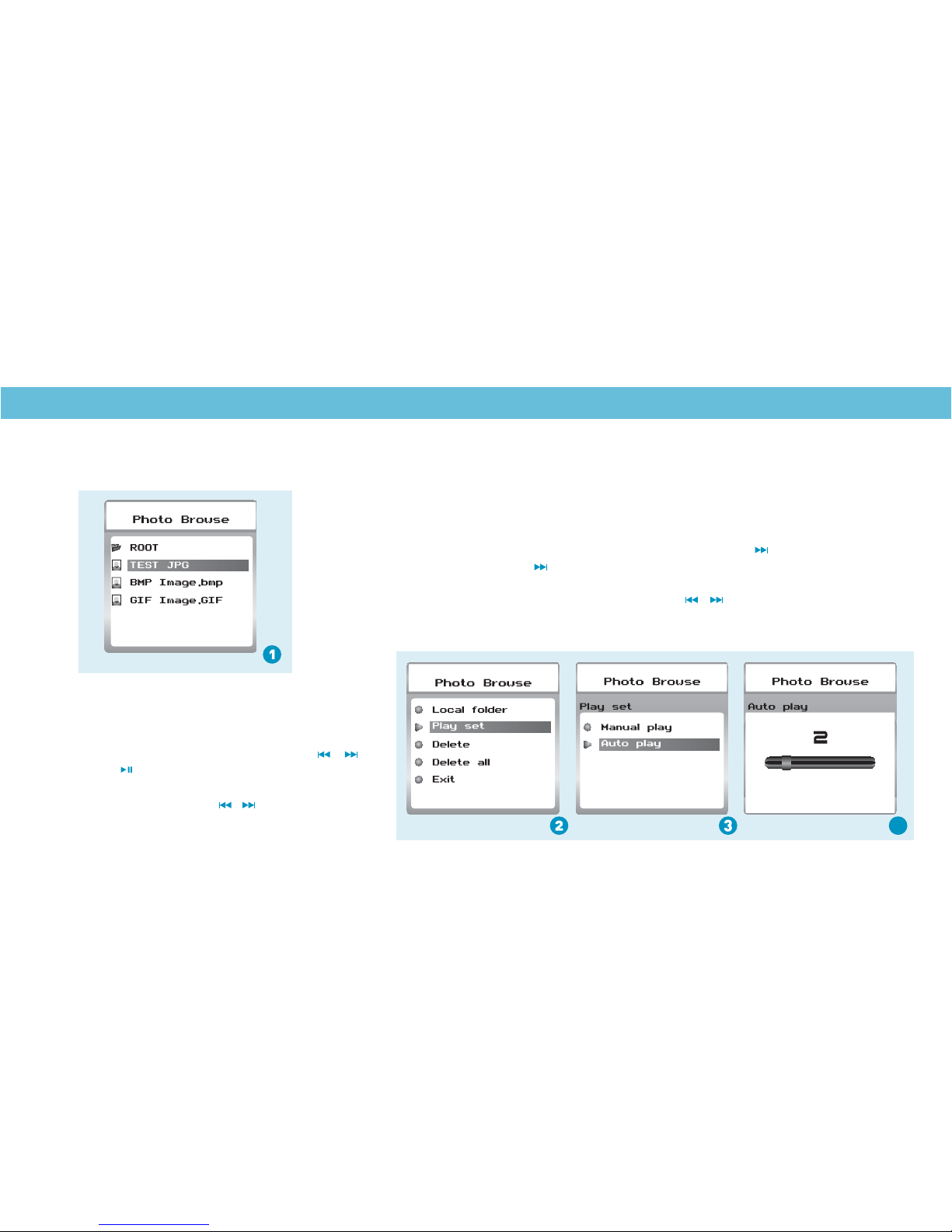

Photo Browse
Photo Browse
Select onthemainmenuandpressto
entertheROOTfolderwithlistedphotosunderit
Youcanselectdifferentphotosbypressing 
andpresstoview
During photo browse, you can switch to theprevious
ornextphotobypressingtoo
Photo 
/,
/
SlideShow
If you want to create a SlideShow for all photos, you can presswhen
yoXselectaphotoontheROOTfolderlistthenpresstoselect
pressthentoselect Press  togetaccessto
theScreenofAutoPlay Gap Setting.
You can adjust the auto play gap by press Thenpresstoconfirm
yoursetting
Playback set
Auto play
4
MENU
MENU
MENU
MENU
MENU
18
