Sylvania SMPK4233 User manual

Your Pocket Guide
SMPK4233
Install Software
Get Connected
Transfer Media
Plug Your Ears & Enjoy
Digital MP4 Player

SMPK4233

1
2
3
4
5
6-7
8-9
10
11-12
13
14
15
16
17
18-19
20
21
22
23
What’s in the blister?
System Requirement
Software Installation
Connect & Charge
Transfer
Software Operation
Settings
Know Your Player Well
Music Playback
Edit Lyrics
Repeat Mode
EQ Mode
Video Playback
Photo Browse
Ebook
Recorder
Technical Data
Trouble Shooting

2

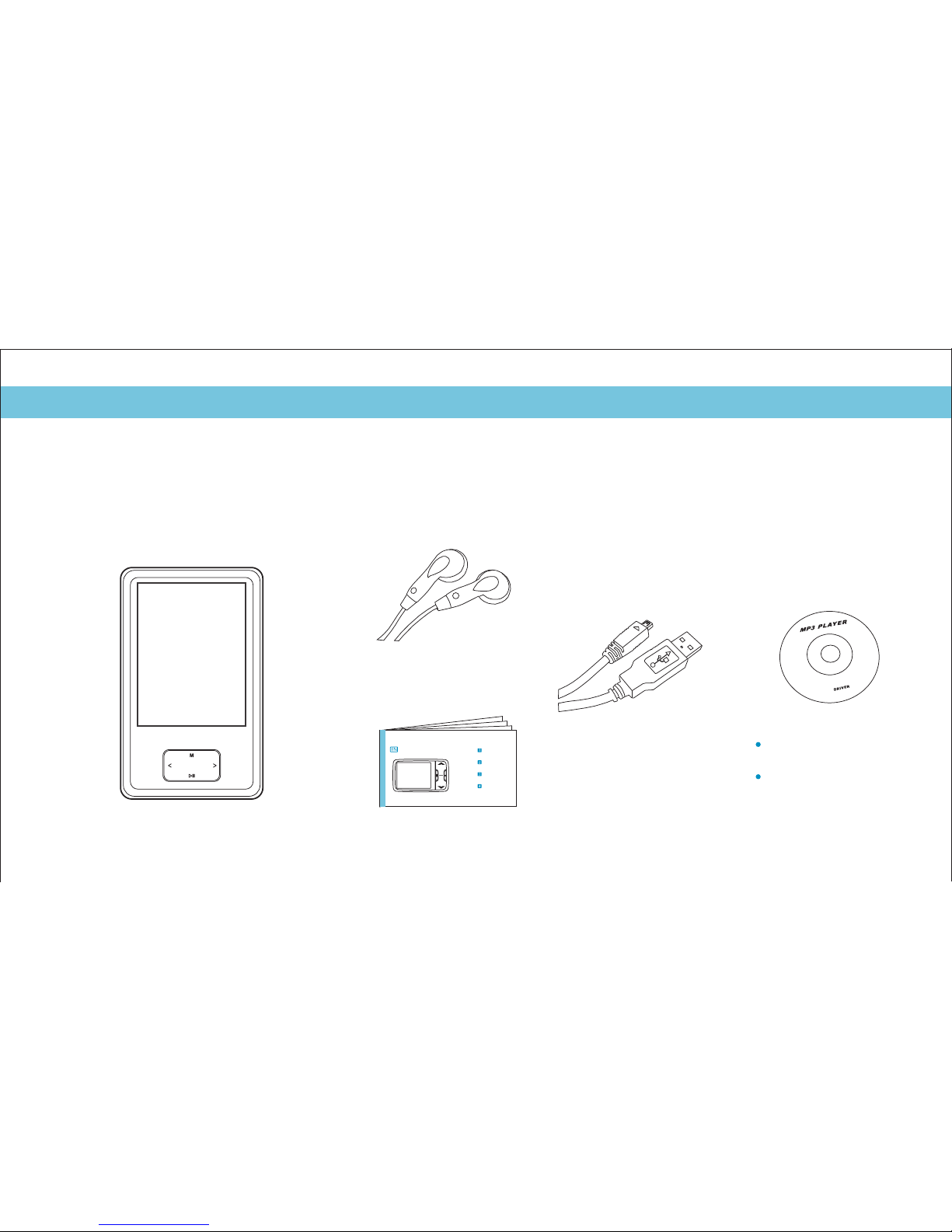

What’s in the box?
Portable Media Player
Earphone
Your Pocket Guide
USB Cable
What’s in the blister?
CD-ROM containing:
Media player driver for
Windows® 98
Software for converting
video files
Your Pocket Guide
M03
Portable Media Player
Install Software
Get Connected
Transfer Media
Plug Your Ears & Enjoy

/ /
Windows® 98 2000 XP
Pentium Class or faster Processor
CD-ROM Drive
64MB RAM
30MB free hard disk space
USB Port
3
You’ll need a computer with:
System Requirement

Insert the CD into the CD ROM drive of your PC.
Click to start driver installation.
Follow the on-screen-menu to complete the installation.
Setup.exe
Click once you reach the
screen.
Close Installation
Complete
For Windows® 98 users, please install the driver in the CD-ROM before downloading any files to your player.
4
Software Utilities Installation
Software Installation

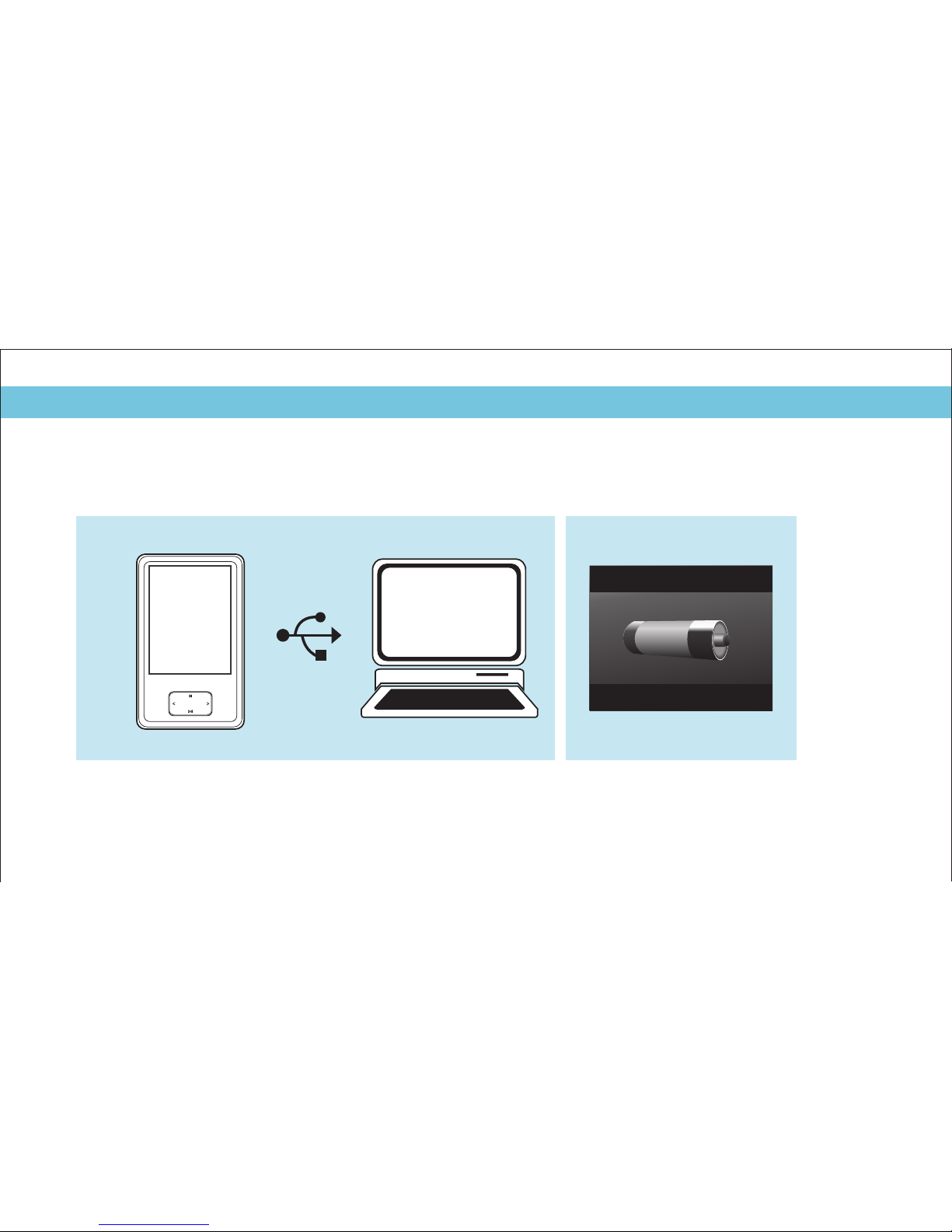

Connect & Charge
Connect
Your player will be charged while being connected to PC through the USB cable.
5
! You will see the charging animation on the display.
The player is fully charged when the charging animation stops.

Step 2:
The above screen (1) would appear.
(Apply only to Windows® XP)
Choose and click
to close the window.
Take no action OK
Double click on your
desktop and the above window (2)
would appear. Look for the
icon.
My Computer
Removable Disk
Get Your Player Connected
Transfer
6
Step 1:
Plug the USB cable to the USB ports
of your PC and player. Once the connection
is successfully made, the removable disk
of the player will be found.
2

3

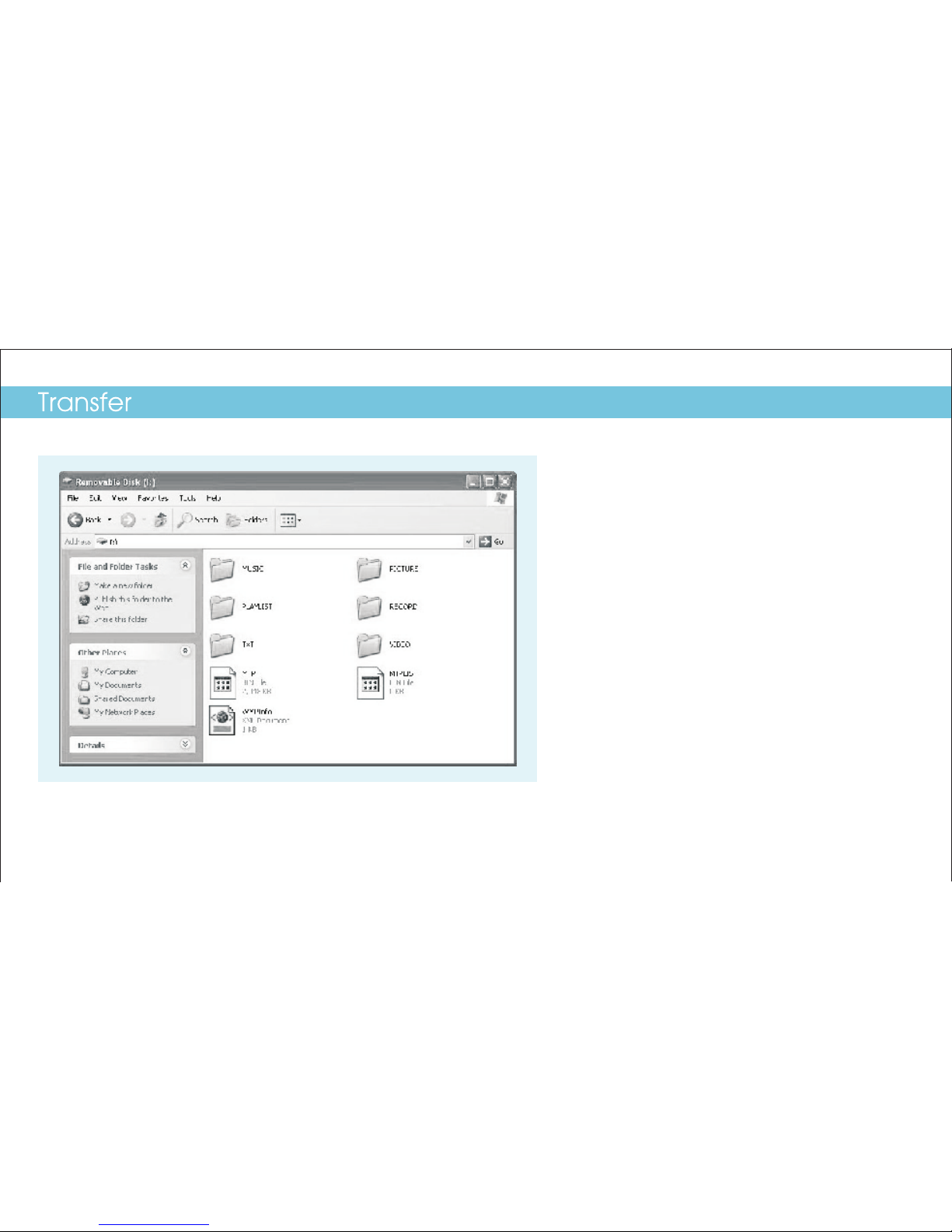

Transfer Music, lmage, Movie & Ebook
Step 3:
Double click the icon.
Note: Do not disconnect the USB cable once
you click into the removable disk window.
Such action may cause data loss or problems
to the player.
Drag and drop your media files into
the removable disk.
Removable Disk
Close the removable disk window and
disconnect the player from your PC
after the data transfer.
7

Software Operation
You can convert your favorite video file in any other format
into the .AVI format with the help of the
( ).
AVI Converter
Start\Programs\MP3 Player Utilities 5.02 \AVI Converter
After selecting the source video file and your preferred target
file path. You can press the Convert button to start it.
The converted .AVI file will be played automatically
after conversion via Media Player.
Software Operation
8

Software Operation
Software Operation
If the updated firmware version is available, please use
to upgrade it.MP3 Player Firmware Upgrade Tool
Your can enjoy songs from both PC and your player
thru the
( ).
Media Manager
Programs\MP3 Player Utilities 5.02\Media Manager
9

Setting Date & Time
Settings
Language Selection
10
Jan 1st 2006 20:50
Information
Display
Rename Playlist
Date and Time
Player Configure
Language Select
Reset
Jan 1st 2006 20:50
Simplified Chinese
Traditional Chinese
JAPANESE
KOREAN
French
German
Italian
English
Spanish
Portuguese
Jan 1 st 2006 20:50
Information
Display
Rename Playlist
Date and Time
Player Configure
Language Select
Encrypted Disk Setting
Reset
Jan 1 st 2006 20:52
Year:2006
Month:1
Day:1
Hour:20
Minute:52
Press to select on the setting menu,
and press to confirm.
Select by pressing .
Then you can press to move to
Year / Month / Day / Hour / Minute,
and press / to adjust them.
At last, press to confirm your setting.
Press button to return to the main menu.
Previous/ next
Previous/ Next
Play
Date and Time
Adjust Date and Time
Press button to select on the main menu,
and press to enter its sub-menu. Press to select
, and press again to the language options list.
12 languages are available:
English, Simplified Chinese, Traditional Chinese, Japanese, Korean,
French, German, Italian, Spanish, Portuguese, Dutch and Russian.
Press Previous/ Next button to select your preferred language,
and press to confirm.
Previous/ Next
Previous/ Next
M
Setting
Language Select

11
Menu
Previous
Play / Pause
USB Port
Mic
Earphone Jack
Next
On/Off
Vol+
Vol-

12
Switch the On/Off switch
Turn On/Off
Power On/Off
Scroll through lists
Select Option
Lock
Unlock
Return to previous menu
Hold Play long
Previous/ Next
Play
Play
Next
Next
Next
Next
Previous
Previous
Previous
Previous
Play
General
To Press
Play/Pause songs
Jump to next song
Fast Forward
Move back to previous song
Fast Backward
Display lyrics
Stop lyrics display
Volume up
Volume down
Select image
Jump to next image
Jump to previous image
Quit to main menu
Music
Images
Press Play
Hold long Next
Hold for 2 seconds+/-
Hold for 2 seconds +/-
Hold longPrevious
Hold twiceVol -
Hold Vol -
Fast Backward
Play/Pause a movie
Jump to next movie
Fast Forward
Move back to previous movie
Movie
Scroll upwards
Select article
Scroll downwards
Ebook
Hold longNext
Hold long Previous
(just for Music and Video mode)

Music Playback
Music Playback
Display Lyrics
13
NOR
1/3
16:30
Now Playing
00:00:41 00:05:10
my+heart+will+go+on.mp3
unknown
unknown
The edited lyrics will be displayed synchronously
if you hold twice while playing music.
You can hold once again to quit the lyrics display scene.
Vol -
Vol -
Press to select on the main menu,
and press to enter it.
Select and press to view the songs list.
Then you can select different songs by pressing
, and you can easily play the song you've
chosen by a simple press of .
Previous/ Next
Previous/ Next
My Music
All Music
NOR
1/3
16:33
Now Playing
00:00:22 00:05:10
Every night in my dreams
I see you, l feel you,
While enjoying music, you can press to pause
or continue the music;
Press to move back to the previous song
or jump to the next song;
Hold long to move your song forward or
rewind it.
When playing music, hold button to enter the Sub Menu.
When playing music, press to return to the previous menu,
press again to return to the main menu.
Play
Previous/ Next
Previous/ Next
M
Play
Play

Edit Lyrics
Edit Lyrics
You can copy the synchronous lyrics from
internet, and create a new
on your PC, paste them, and then select to
save this document in the extension of
shown as below.
Text Document
.LRC
Then put both .LRC and .MP3 (or .WMA)
files of the same song into the same folder
in the removable disk. Your lyrics would be
shown when you play that song.
24
14

Repeat Mode
Repeat Mode
5 Repeat Modes are available:
Sequence, Repeat One, Repeat All, Random Play, Intro.
15
Sequence
All music files will be played one by one
and stopped at the last music until you
disable this function.
Repeat One
The currently played song will be played
repeatedly until this function is disabled.
Repeat All
All music would be played from
the beginning to the last one repeatedly
until this function is disabled.
Random Play
All music would be played randomly
until this function is disabled.
Intro
All music would be played for 10 seconds
from the beginning until this function is
disabled.
Procedure:
Press while playing music to enter the sub-menu screen (1).
Select and press to enter the Repeat menu screen (2).
Press to select your preferred repeat mode, and press
to confirm.
Repeat
Previous/ Next
NOR
1/3
16:30
Now Playing
00:00:41 00:05:10
my+heart+will+go+on.mp3
unknown
unknown
Sequence
Repeat One
Repeat All
Random Play
Intro
NOR
1/3
16:30
Now Playing
00:00:41
my+heart+will+go+on.mp3
Repeat
EQ
Replay Times: 00 times
Replay Gap: 5 seconds
Replay Mode
Tempo Rate: 0
Remove
Add To MyList
Information
Add Tag

EQ mode
Listen to your music at its best
16
NOR
1/3
16:30
Now Playing
00:00:41
my+heart+will+go+on.mp3
Repeat
EQ
Replay Times: 00 times
Replay Gap: 5 seconds
Replay Mode
Tempo Rate: 0
Remove
Add To MyList
Information
Add Tag
Procedure:
Press while playing music to enter the sub-menu screen (1).
Press to select and press to enter
the Equalizer menu screen (2).
If you don’t feel satisfied with the 7 fixed EQ Modes:
Normal, Rock, Pop, Classic, Soft, Jazz, DBB.
You can press to select , and press to
its sub-menu screen.
Press to select , and press to enter
the User EQ Setting screen.
you can press to move to each item; and press / to
adjust them.
At last, press to confirm your setting and get back to
the previous menu.
Next
Next
Next
Previous/ Next
EQ
SRS Mode
User Mode
NOR
1/3
16:30
Now Playing
00:00:41 00:05:10
my+heart+will+go+on.mp3
unknown
unknown
Normal
Rock
Pop
Classic
Soft
Jazz
DBB
SRS Mode

Video Playback
Video Playback
17
While enjoying video, you can press to pause or continue
the movie, and press to move back to the previous movie
or jump to the next one. You can move your movie forward or rewind it
while playing by holding long.
Play
Previous/ Next
Previous/ Next
If you want to adjust the volume, please press / .
Press to select on the main menu,
and press to enter it. Select by pressing .
Choose , and press to enter the video files list.
Press to select different movies, and press to play.
Previous/ Next
Previous/ Next
My Video
Dir List
Local Memory
Dir List
ice_176.avi
16:35
test1.avi
When playing the video, press to enter the sub-menu and choose exit
to back to the previous menu. Press again to retun to the main menu.
M
Play

Photo Browse
Photo Browse
18
Jan 2nd 2006
Play Mode
Picture List
16:39
Slide Gap 1s
Scan Mode
Jan 2nd 2006
Play Mode
Picture List
16:39
Slide Gap 1s
Scan Mode
Jan 2nd 2006 16:39
File List Mode
Outline Mode
Photos Preview
Press to select on the sub-menu of My Picture,
and press to enter its options list.
Press to choose , and press to confirm you setting.
Then you can preview all the pictures after you select to enter
the pictures list.
Previous/ Next
Next
Scan Mode
Outline Mode
Press Previous/Next to select on the main menu,
and press to confirm. Select by pressing .
Press to , and press to enter it.
Choose . The pictures list will be shown
after you press .
Then you can press to select a picture, and
press to play it.
While playing a picture, you can press to play
the previous or next picture, too.
My Picture
Picture List
Dir List
Local Memory
Previous/Next
Previous/ Next
When browsing photos, press button to get back to
previous Menu, press again to return to the Main menu.
Play
Play
