目 录 /Content
洗眼器概述 /Introduction..........................................................................................................................1
壁挂式洗眼器 /Wall-Mounted Eye/Face Wash
WG7023/WG7023Y...............................................................................................................................3

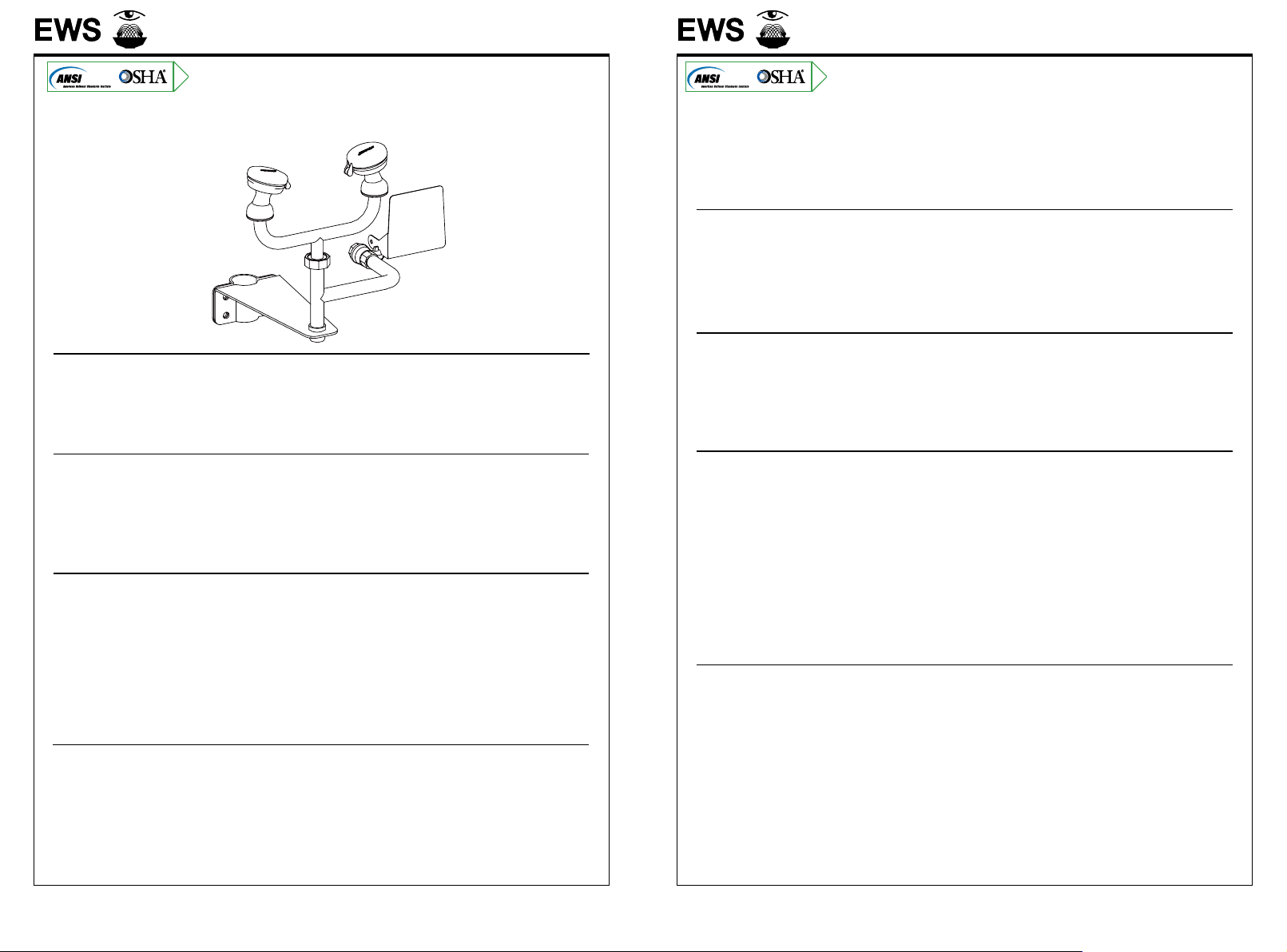

WG7020................................................................................................................................................7

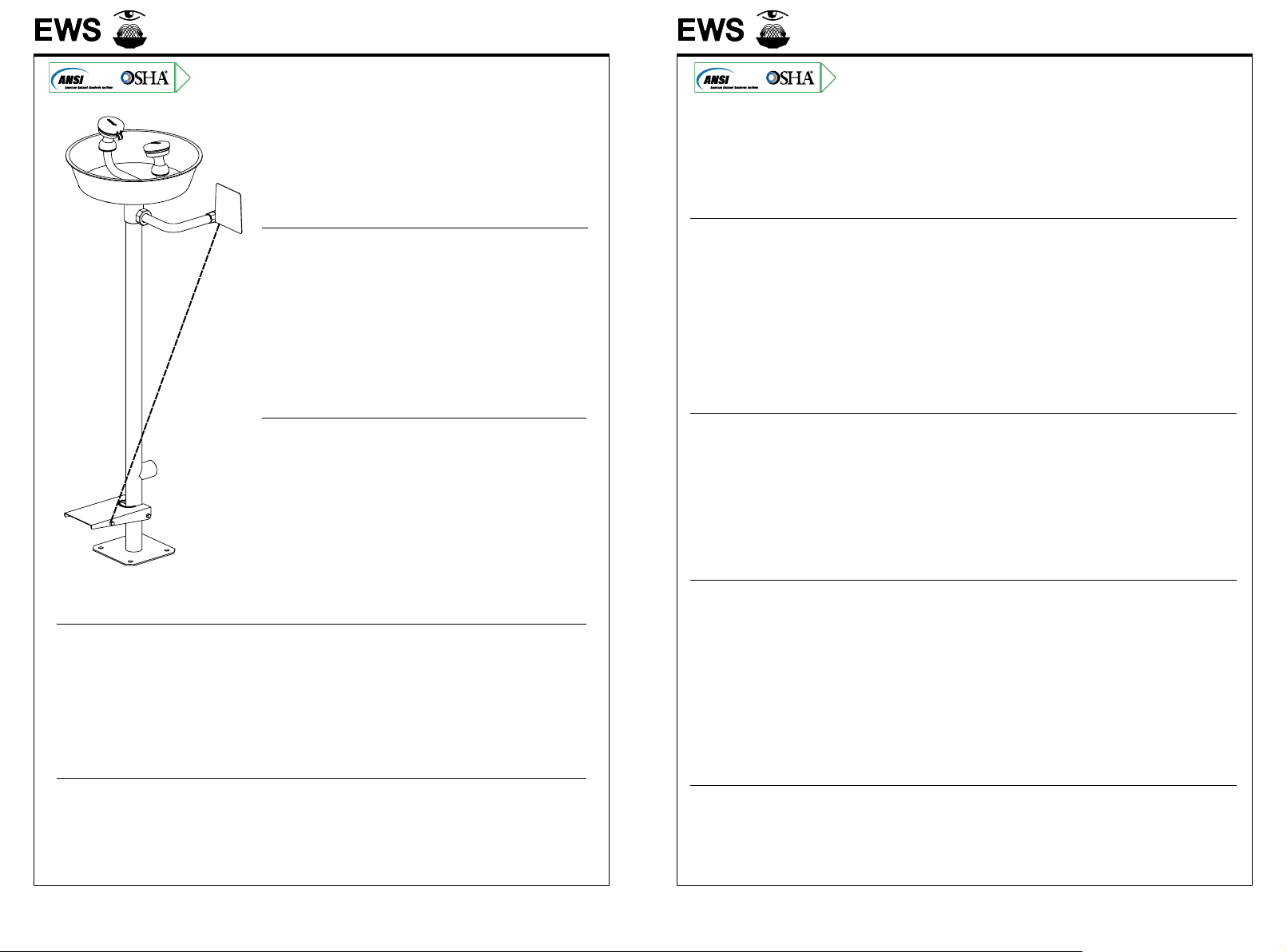

立式洗眼器 Pedestal Mounted Eye/Face Wash
WG7033F/WG7033FY..........................................................................................................................11

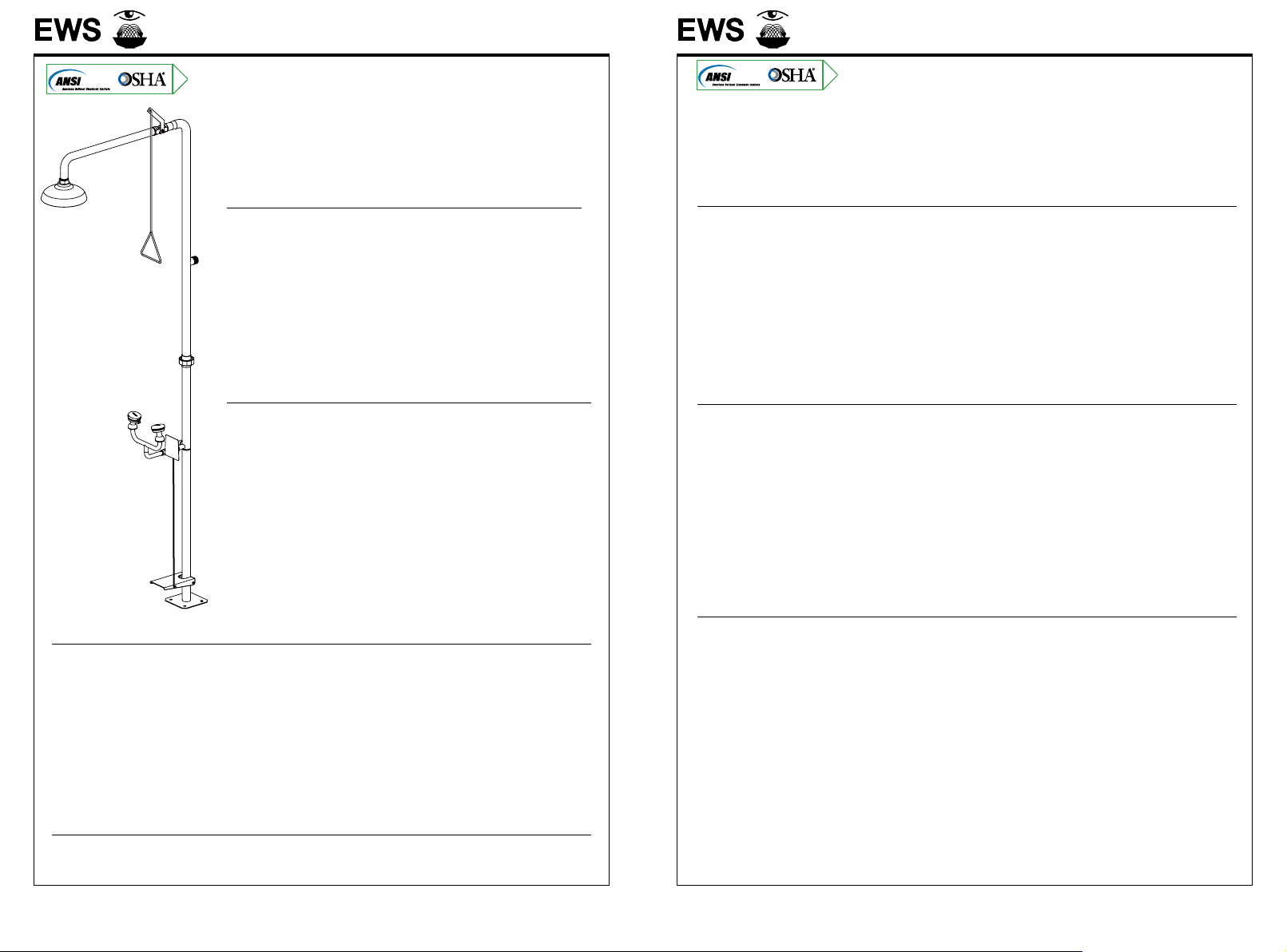

紧急冲淋器 Emergency Shower
WG7043H/WG7043HY/WG7043V/WG7043VY....................................................................................15
WG7043/WG7043Y...............................................................................................................................19
复合式洗眼器 /Combination Unit
WG7050F/WG7050FY...........................................................................................................................23
WG7053F/WG7053FY...........................................................................................................................27
培训、维护与操作 /Training/O & M...........................................................................................................31
常见问题解答 /Q & A ................................................................................................................................32
声明
经过几个月的技术创新，西斯贝尔成功研制了新款洗眼器，老款的钢制洗眼器已经下线，为
此给您带来的不便，请谅解。
根据版权法，未经 SYSBEL 书面同意，不得复制本手册的全部或部分内容，我们已尽力确
保信息正确，如有内容更新，恕不另行通知，可随时查看我们的官方网站 www.sysbel.com.cn
如果您有任何其他的问题，请联系 SYSBEL 客服中心：[phone]
西斯贝尔
STATEMENT
SYSBEL has made a lot of efforts in technical innovation and launched a series of new
products.The facilities we sold before have been ofine.We apologize for the changement
and the inconvenience.
Acccording to the Copyright Act,all or part of the content of this manual are prohibited to
be copied without written consent from SYSBEL.We have been made to ensure that the
information on the manual right,such as update without prior notice and ready to check out
our website www.sysbel.com.
If you have additional questions or concerns please contact SYSBEL Customer Service at
[phone].
SYSBEL
SY SBEL
®
SYSBEL IS SAFETY
©2015 SYSBEL All Rights Reserved Worldwide
Westingarea Building ,1 Meisheng Rd,Pudong
Free Trade Zone，Shanghai 200131，P.R.C
TEL：[phone]
FAX：[phone]

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 1 of 32 Page 2 of 32
洗眼器概述 / Introduction
关于 SYSBEL 洗眼器
符合美标 ANSI Z358.1-2014，澳标 AS 4775-2007 紧急洗眼和冲淋
设备标准以及 OSHA 29 CFR 1910.151(C) 的相关规定。用于安全应急
防护，当遭遇化学品意外伤害，SYSBEL 洗眼器可用于冲洗受伤者的
身体、面部或眼部等遭受化学品物质喷溅的部位，及时减轻化学物质的
伤害程度，实现快速初级自救，为专业医疗救助争取时间，保证人身安全。
产品命名规则
WG 70 52 F Y H V
钢制洗眼器产品代号
产品类型
脚踏装置
水盆或花洒罩颜色
垂直阀
水平阀
SYSBEL产线代号
"20"- 无盆式壁挂洗眼 / 脸器 "23"- 壁挂式洗眼 / 脸器 "33"- 立式洗眼 / 脸器
"43"- 紧急冲淋器 "50" 无盆式复合洗眼器 "53"- 复合式洗眼器
使用须知
1. 仔细阅读产品说明书，确保正确安装洗眼器，然后将该文件交于相关部门妥善保管。安装人员
须遵守当地的规范安装洗眼器；
2. OSHA 29 CFR 1910.151(C) 规定在员工身体有可能受到伤害如腐蚀性物质喷溅等工作场所，
需要配置能快速冲淋及清洗眼部、面部的洗眼冲淋装置，且要求在 10 秒内到达紧急洗眼和冲淋
设备。
3. 安装之前仔细清点包装箱内的组件，确保完整，如有发现部件不全，请勿实施安装；
4. 工作内容涉及到危险化学品的员工须接受准确操作紧急洗眼器的培训；
5. 依据 ANSI Z358.1-2014 标准要求，接入的水源水压为 30psi(210kPa)，水温要求 16-38℃(60-
100 ℉)；
6. 确保安装后管路无漏水且供应足够的水源，供水源需保持畅通状态，禁止中断对洗眼器的供水；
7. 每周定期开启洗眼器，确保正常可以正常使用，每年大检，确保符合 ANSI Z358.1 标准的各项
要求；
8. 如对产品的操作和安装有任何疑问，请到官网 www.sysbel.com.cn 查询或致电
[phone]，
9. 相关产品信息和售后保障亦可在官网查询。
其他
• M10 的膨胀螺丝，螺栓 , 螺母，垫圈等
• 生料带和密封剂
• 1"BSP 或1/2"BSP 进水管接头
• 1" BSP 排水管接头
• 连续足够的供水源
• 及时处理冲洗后的废水，防止地面积水造成对人员潜在的二次伤害
• 将洗眼器标识牌安装在洗眼器上或就近墙壁上
备注：本手册尽力向客户提供正确的的安装指导，但客户需要遵守当地法规和依据具体施工环境。
符合美国国家标准协会颁发的 ANSI Z358.1-2014
的标准及 OSHA 29 CFR 1910.151（C）
SYSBEL Eye Wash Station
Standards Licensed to the internationally recognised standard ANSI Z358.1-2014 and are compliant
with AS4775-2007 for Emergency Eyewash and Shower equipment.Also, meet the codes of OSHA 29
CFR 1910.151(C).Used for safety emergency protection in case of injury by chemical,SYSBEL eywash
system can be used to wash the body ,face ,eyes or other parts of the injured suffering spraying
by chemical and other substances to timely reduce the injury caused by chemical and make rapid
preliminary self-help possible.
How to Specify Model and Congurations
WG 70 52 F Y H V
Steel EWS No.
Types
Foot Treadle Kits
Color of Bowl and Showerhead
Vertical Valve
Horizontal Valve
Production Codes
"20"---Wall-Mounted Eye/Face Wash without Bowl "23"---Wall-Mounted Eye/Face Wash
"33"---Pedestal Mounted Eye/Face Wash "43"---Emergency Shower
"50"---Combination Unit without Bowl "53"---Combination Unit
Please Read!
1. Read this user manual completely to ensure proper installation and operation,then le it with the
owner or maintenance department. Compliance and conformity to local codes and ordinances is the
responsibility of the installer.
2. OSHA 29 CFR 1910.151(C) species workplaces where employees may be vulnerable to harm
such as corrosive substance spraying shall be equipped with emergency eyewash and shower
equipment that can be used to shower and clean eyes,face or body rapidly.
3. Separate parts from packaging and make sure all parts are accounted for before discarding any
packaging material.Don't start installing the facility once the parts are found imcomplete.
4. Workers who may come in contact with potentially hazardous materials should be trained regarding
the placement and proper operation of emergency equipment.
5. Accoring to ANSI Z358.1-2014,the delivered ushing uid is tepid water which is suitabl for drinking
and at a ow pressure of 210kPa.
6. Test the unit for leaks and adequate water ow. Main water supply to the eyewash should be “ON”
at all times. Provisions shall be made to prevent unauthorized shutoff.
7. The inspection and testing results of this equipment should be recorded weekly to verify proper
operation. This equipment should be inspected annually to ensure compliance with ANSI Z358.1.
8. For questions regarding the operation or installation of these products, visit www.sysbel.com.
9. Product warranties and parts information may also be found under ”Products” on our website at
www.sysbel.com.
Supplies Required:
• M10 or 3/8" oor anchors and bolts
• Teon tape and pipe sealant
• Piping to 1" BSPM or 1/2" BSPM water supply inlet
• Piping to 1" BSPF drain outlet
• Adequate and continued supply sources
• Dispose the shower waste water immediately
• High-visibility sign-mounting hardware
Note：Local codes may require the installation of a backow prevention valve to complete proper
installation. Compliance with local codes is the responsibility of the installer.
洗眼器概述 / Introduction

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 4 of 32Page 3 of 32
壁挂式洗眼 /脸器 Wall-Mounted Eye/Face Wash
---WG7023/WG7023Y
壁挂式洗眼 /脸器 Wall-Mounted Eye/Face Wash
---WG7023/WG7023Y
符合美国国家标准协会颁发的 ANSI Z358.1-2014 的标准及 OSHA 29 CFR 1910.151 （C）.
产品描述
● 符合 ANSI Z358.1-2014 和AS 4775-2007 关于紧急洗眼和冲淋设备的规定；
● 304 不锈钢管件适用于较恶劣的环境中；
● 推手启动洗眼 /脸设备；
● 210kPa(30psi) 的水压下，洗眼 /脸器出水量高于 11.4LPM(3.0GPM) 的最低要求；
● 洗眼器喷头可将水同时并持续，均匀 ,柔和地冲洗到面部和脸上；
● WG7023Y 采用 AES 塑料的水盆，颜色为亮黄色，易于观察。具有抗氧化，刚度高，韧性好等特性；
● WG7023 配置更加耐用的不锈钢水盆，抗腐蚀性能优异。
规格参数
● 进水口：15mm(1/2") BSP 内螺纹； 排水口：25mm(1") BSP 外螺纹
● 水盆：WG7023Y 配置 AES 塑料材质，WG7023 为304SS( 不锈钢 )
● 喷头（专利产品）：AES 树脂材质的喷淋头配置硬币槽内嵌式的起泡器，起泡器周围设置 80 个微孔
● 过滤器：六分网垫 硅胶 +304SS 24*16.5*2.5( 外径 *内径 *厚度 )
● 球阀：1/2"( 四分 )球阀，304SS
● 触发器：推手 ,304SS
使用说明
● 按照说明书正确安装壁挂式洗眼器，工作在具有危害品的场所需配置洗眼器，确保使用者可以在 10s
内到达紧急设备
● 设备放置的地方须有明显标识便于识别，且该处场所光线较好
● 冲洗液须达到饮用水标准，且供水水压 210kPa, 供水量不小于 30 升/分钟 (建议水温 16-38℃)
● 工作人员须在工作场所进行关于如何正确操作紧急设备的指导和培训
● 受到伤害的人员须进行至少 15 分钟的冲洗
● 使用完毕后，关闭设备，然后立即在其他人员的帮助下求助医护人员或其他专业人士，及时进行医疗
救助
安装说明
安装参考：见 Page 5 & 6
安装工具：手枪钻 x1, 膨胀螺丝，螺栓，螺母若干 (建议 M10)，扳手，螺丝刀等其他安装固定的小工具。
备注：安装完毕后，及时检验设备是否正常工作。
WG7023 & WG7023Y 可选择安装在墙上或垂
直管件上，配置挂墙支架，水盆，球阀及喷头。独
特设计的喷头提供了较低速率的出水，起泡器和微
孔独立出水，提供了更加柔和的水流同时冲洗面部
和脸部。整个紧急洗眼和冲淋设备完全符合美国国
家标准协会的 ANSI Z358.1-2014 和澳洲标准 AS
4775-2007.
Comply with the regualation in ANSI Z358.1-2014 and OSHA 29 CFR 1910.15(C)
Model WG7023 & WG7023Y have option of mounting on the wall or onto the vertical stanchion,
featuring wall-mounted bracket,water bowl,stay-open valve and eye/wash nozzle heads. Zero velocity
point provides more comfort and control for effective sweeping hazardous contaminants away from the
face and eyes using a soft aerated stream for eye wash and independently angled face wash stream
for optimum coverage. Standards Licensed to the internationally recognised standard ANSI Z358.1-
2014 and are compliant with AS4775-2007 for Emergency Eyewash and Shower equipment.
Descriptions
● To Meet the standard of Emergency Eyewash and Shower Equipment in ANSI Z358.1-2014 and AS
4775-2007;
● Natural polished stainless steel(304SS) recommended for harsh environment;
● Be activated by push handle;
● Eye/face wash exceeds minimum water ow of 3.0GPM(11.4LPM) at 210kPa (30psi);
● AES plastic nozzle heads provide even,continued and comfortbable uid to irrigate and ush both the
face and the eye simultaneously;
● For WG7023Y,water bowl and showerhead are high-visibility yellow and made of AES plastic which
have high weather resistance properties,high rigidty and high tenacity.
● For the most durable water bowl and showerhead in WG7023,select stainless steel(304SS) which
stands up to corrosion and aggressive impact.
Specications
● Water supply inlet：15mm(1") BSP-FEMALE taper
● Waste water outlet: 25mm(1") BSP-MALE
● Bowl:AES plastic for WG7023Y and 304SS for WG7023
● Nozzle heads(Patent):AES resin body with coin slot hidden faucet aerator and 80 tiny holes on plate.
Dust cover is easy to open
● strainer:mesh lter,SG+304SS 23*16.5*2.5(D*d*H/mm)
● Ball valve:15mm full port 304SS
● Activation:push handle,304SS
Instuctions
● Be assembled and installed in accordance with instructions and adjacent to the employees who may
be exposed to hazardous materials so that it take an individual less than 10 seconds to reach the
nearest ermegency facility
● Be located in an area identied with a highly visible sign and the area around the facility is well-lit
● The delivered ushing uid is suitable for drinking,and the water ow is less than 30LPM at a ow
pressure of 210kPa.(water temperature:16-38℃)
● Employees shall be instructed in the location and proper use of emergency eyewash and shower
equipment.
● The injured individual should proceed to the unit and ush eyes and face for the required 15-minute
period
● Closing the emergency facility after use,and ask for the a physician or other appropriate professional
with others'help immediately.
Installation
Ref: see drawing on page 5 & 6
Tools: cable drilling tool;anchors;nuts(M10);spanners;screwdriver,etc.
Note:The emergency facility shall be inspected to work normaly.

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 6 of 32Page 5 of 32
编号
NO.
部件名称
Name
数量
Qty.
1喷头
nozzle head 2
2牛角弯
bull horn tube 1
3水盆
water bowl 1
4快速接头
quick coupling 1
5过滤网垫
strainer washer 1
6管件
pipe 2
7支架
bracket 1
8DN15 球阀
ball valve 1
9推手
push handle 1
1
2
3
4 5
9 8 7
6

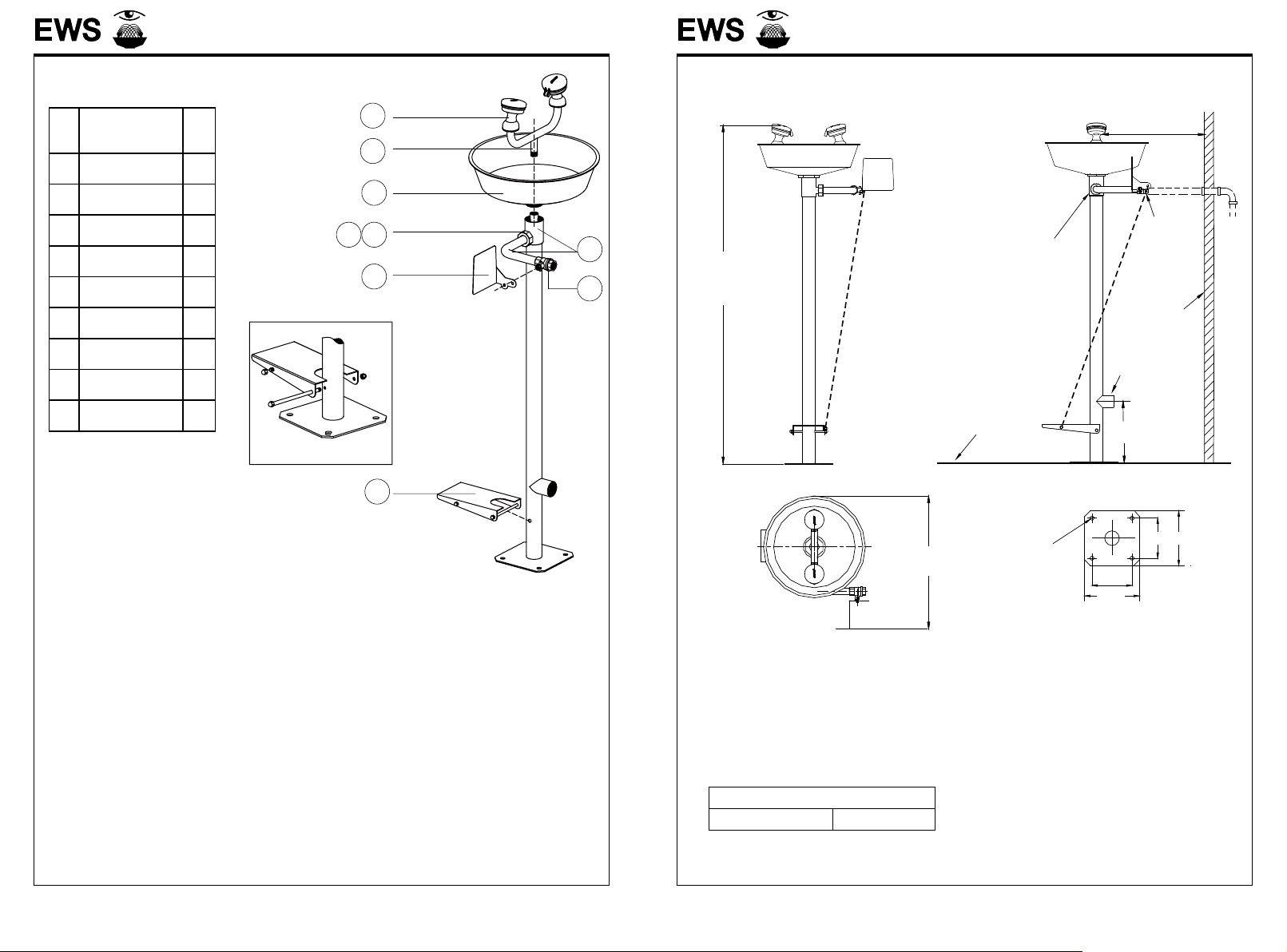

Installation/ 安装
产品组装：
1. 安装水盆、喷头及牛角弯；
2. 固定推手在合适的位置；
3. 如下图所示将支架固定的合适的场所；
Assemble
1. Assemble water bowll,nozzle heads and bull horn tube.
2. Fix push handle on 1/2" valve;
3. Located the unit properly as the picture in next page.
备注：
1. 图示和表格中并未完全表明所有的部件，请以实物为准。
2. 快速接头处的网垫起过滤作用 .
3. 阀的触发器如图示位置安装，确保原始状态为闭合；
Note：
1. Product picture & chart are for reference only. Detailed information is in accordana with the nal
product.
2. Quick couping is equiped with at washer for straining.
3. Right position for push hand as the picture shown.The initial state of valve is closed.
壁挂式洗眼 /脸器 Wall-Mounted Eye/Face Wash
---WG7023/WG7023Y
壁挂式洗眼 /脸器 Wall-Mounted Eye/Face Wash
---WG7023/WG7023Y
Dimensions/ 尺寸
Quick Coupling with Filter Mesh
(内置网垫的快速接头)
17"
[470mm]
Note：All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 1⁄8" (3mm) per threaded joint.
Use thread sealant/locker on all threaded connections.
Mounting hardware not supplied.
Water inlet pipe shall be connected with steel pipes which is stationary.
备注：鉴于该图为装配图，所有的螺纹为标准啮合，由螺纹旋合造成的尺寸公差为+/-3mm.
所有的管螺纹连接建议使用生料带和密封剂;
安装工具和相关配件不提供；
进水口应连接钢制管件，且钢管要求固定不可移动。
Water Flow Rate 水流量
Eye/Face Wash 洗眼/脸喷头 4-6GPM(15-23LPM)
NPT = National Pipe Thread(美制管螺纹)
BSP = British Standard Pipe Thread（英制管螺纹）
GPM=Gallon per Minute(加仑每分钟)
LPM=Liter per Minute（公升每分钟）
2-3/4"
[72mm]
1-1/8"
[30mm]
38mm O.D tube
外径38mm的钢管
4 x 3/8" or M10
Mouting Hardwares
(No Supplied)
安装工具(不提供)
Top View
俯视图
Mounting Details
安装细节 Installation B
安装B
Bracket(支架) A Bracket B
Wall / 墙体
1"BSPM Outlet
排水孔
33"-53"
[838-1343mm]
to the floor line
离地面距离
21"-40"
[535-1020mm]
Drain Pipes(No Supplied)
排水管(不提供)
4 x 3/8" or M10
Mouting Hardwares
(No Supplied)
安装工具(不提供)
Installation A
安装A
8-1/2"
[220mm]

[phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 8 of 32Page 7 of 32
www.sysbel.com.cn
无盆式壁挂洗眼 /脸器 Wall-Mounted Eye/Face Wash without Bowl
---WG7020
无盆式壁挂洗眼 /脸器 Wall-Mounted Eye/Face Wash without Bowl
---WG7020
产品描述
●
符合 ANSI Z358.1-2014 和AS 4775-2007 关于紧急洗眼和冲淋设备的规定；
● 304 不锈钢管件适用于较恶劣的环境中；
●
推手启动洗眼 /脸设备；
● 210kPa(30psi) 的水压下，洗眼 /脸器出水量高于 11.4LPM(3.0GPM) 的最低要求；
●
洗眼器喷头可将水同时并持续，均匀 ,柔和地冲洗到面部和脸上；
规格参数
●
进水口：15mm(1/2") BSP 内螺纹
●
喷头（专利产品）： AES 树脂材质的喷淋头配置硬币槽内嵌式的起泡器，80 个微孔环绕起泡器
●
过滤器：六分网垫 硅胶 +304SS 24*16.5*2.5( 外径 *内径 *厚度 )
●
球阀：1/2"( 四分 )球阀
●
触发器：推手 ,304SS
使用说明
● 按照说明书正确安装壁挂式洗眼器，工作在具有危害品的场所需配置洗眼器，确保使用者可以在 10
内到达紧急设备
●
设备放置的地方须有明显标识便于识别，且该处场所光线较好
●
冲洗液须达到饮用水标准，且供水水压 210kPa, 供水量不小于 30LPM( 建议水温 16-38℃)
●
工作人员须在工作场所进行关于如何正确操作紧急设备的指导和培训
●
受到伤害的人员须进行至少 15 分钟的冲洗
●
使用完毕后，关闭设备，然后立即在其他人员的帮助下求助医护人员或其他专业人士，及时进行医
疗救助
安装说明
安装参考：见 Page 9 & 10
安装工具：手枪钻 x1, 膨胀螺丝，螺栓，螺母若干 (建议 M10)，扳手，螺丝刀等其他安装固
定的小工具。
备注：安装完毕后，及时检验设备是否正常工作。
WG7020 也可选择安装在墙上或垂直管件上，配置挂墙支架，球阀及喷头。独特设计的喷头提供
了较低速率的出水，起泡器和微孔独立出水，提供了更加柔和的水流同时冲洗面部和脸部。整个紧急
洗眼和冲淋设备完全符合美国国家标准协会的 ANSI Z358.1-2014 和澳洲标准 AS 4775-2007.
符合美国国家标准协会颁发的 ANSI Z358.1-2014 的标准及 OSHA 29 CFR 1910.151（C）. Comply with the regualation in ANSI Z358.1-2014 and OSHA 29 CFR 1910.15(C)
Model WG7020 has option of mounting on the wall or onto the vertical stanchion, featuring wall-
mounted bracket,stay-open valve and eye/wash nozzle heads. Zero velocity point provides more
comfort and control for effective sweeping hazardous contaminants away from the face and eyes
using a soft aerated stream for eye wash and independently angled face wash stream for optimum
coverage. Standards Licensed to the internationally recognised standard ANSI Z358.1-2014 and are
compliant with AS4775-2007 for Emergency Eyewash and Shower equipment.
Descriptions
● To Meet the standard of Emergency Eyewash and Shower Equipment in ANSI Z358.1- 2014 and
AS 4775-2007;
● Natural polished stainless steel(304SS) recommended for harsh environment;
● Be activated by push handle;
● Eye/face wash exceeds minimum water ow of 3.0GPM(11.4LPM) at 210kPa (30psi);
● AES plastic nozzle heads provide even,continued and comfortbable uid to irrigate and ush both
the face and the eye simultaneously;
Specication
● Water supply inlet 15mm(1”) BSP-FEMALE taper
● Nozzle heads:”Innovation technology”,AES resin body with coin slot hidden faucet aerator and 80
tiny holes on plate.Dust cover is easy to open
● strainer:mesh lter,SG+304SS 23*16.5*2.5(D*d*H/mm)
● Ball valve:15mm full port 304SS
● Activation:push handle,304SS
Instuctions
● Be assembled and installed in accordance with instructions and adjacent to the employees who
may be exposed to hazardous materials so that it take an individual less than 10 seconds to reach
the nearest ermegency facility
● Be located in an area identied with a highly visible sign and the area around the facility is well-lit
● The delivered ushing uid is suitable for drinking,and the water ow is less than 30LPM at a ow
pressure of 210kPa.(water temperature:16-38℃)
● Employees shall be instructed in the location and proper use of emergency eyewash and shower
equipment.
● The injured individual should proceed to the unit and ush eyes and face for the required
15-minute period.
● Closing the emergency facility after use,and ask for the a physician or other appropriate
professional with others'help immediately.
Installation
Ref: see drawings on page 9 & 10.
Tools: cable drilling tool;anchors;nuts(M10);spanners;screwdriver,etc.
Note:The emergency facility shall be inspected to work normaly.

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 10 of 32Page 9 of 32
壁挂式洗眼 /脸器 Wall-Mounted Eye/Face Wash
---WG7020
壁挂式洗眼 /脸器 Wall-Mounted Eye/Face Wash
---WG7020
Dimensions/ 尺寸
Quick Coupling with Filter Mesh
(内置网垫的快速接头)
15"
[380mm]
Note：All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 1⁄8" (3mm) per threaded joint.
Use thread sealant/locker on all threaded connections.
Mounting hardware not supplied.
Water inlet pipe shall be connected with steel pipes which is stationary.
备注：鉴于该图为装配图，所有的螺纹为标准啮合，由螺纹旋合造成的尺寸公差为+/-3mm.
所有的管螺纹连接建议使用生料带和密封剂;
安装工具和相关配件不提供；
进水口应连接钢制管件，且钢管要求固定不可移动。
Water Flow Rate 水流量
Eye/Face Wash 洗眼/脸喷头 4-6GPM(15-23LPM)
NPT = National Pipe Thread(美制管螺纹)
BSP = British Standard Pipe Thread（英制管螺纹）
GPM=Gallon per Minute(加仑每分钟)
LPM=Liter per Minute（公升每分钟）
2-3/4"
[72mm]
1-1/8"
[30mm]
Top View
俯视图
Mounting Details
安装细节 Installation B
安装B
Bracket(支架) A Bracket B
Wall / 墙体
33"-53"
[838-1343mm]
to the floor line
离地面距离
21"-40"
[535-1020mm]
4 x 3/8 " or M10
Mouting Hardwares
(No Supplied)
安装工具(不提供)
Installation A
安装A
8-1/2"
[220mm]
38mm O.D tube
外径38mm的钢管
4 x 3/8 " or M10
Mouting Hardwares
(No Supplied)
安装工具(不提供)
编号
NO.
部件名称
Name
数量
Qty.
1喷头
Nozzle heads 2
2牛角弯
bull horn tube 1
3快速接头
quick coupling 1
4过滤网垫
strainer washer 1
5管件
pipe 2
6推手
push handle 1
7DN15 球阀
ball valve 1
8支架
bracket 1
1
2
3 4
5
6 7 8
Installation/ 安装
产品组装：
1. 安装喷头及牛角弯；
2. 固定推手在合适的位置；
3. 如下图所示将底座固定的合适的场所；
Assemble
1. Assemble nozzle heads and bull horn tube.
2. Fix push handle on 1/2" valve;
3. Located the unit properly as the picture in next page.
备注：
1. 图示和表格中并未完全表明所有的部件，请以实物为准。
2. 快速接头处的网垫起过滤作用 .
3. 阀的触发器如图示位置安装，确保原始状态为闭合；
Note：
1. Product picture & chart are for reference only. Detailed information is in accordana with the nal
product.
2. Quick couping is equiped with at washer for straining.
3. Right position for push hand as the picture shown.The initial state of valve is closed.

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 12 of 32Page 11 of 32
立式洗眼 /脸器 Pedstal Mounted Eye/Face Wash
---WG7033F/WG7033FY
立式洗眼 /脸器 Pedstal Mounted Eye/Face Wash
---WG7033F/WG7033FY
安装说明
安装参考：见 Page 13 & 14
安装工具：手枪钻 x1, 膨胀螺丝，螺栓，螺母若干 ( 建议 M10)，扳手，螺丝刀等其他安装固定的小工具。
备注：安装完毕后，及时检验设备是否正常工作。
WG7033F & WG7033FY 可固定于地面，应对墙体不方
便安装的情况下，配置脚踏推手，水盆等。独特设计的喷头提
供了较低速率的出水，起泡器和微孔独立出水，提供了更加柔
和的水流同时冲洗面部和脸部。整个紧急洗眼和冲淋设备完全
符合美国国家标准协会的 ANSI Z358.1-2014 和澳洲标准 AS
4775-2007.
符合美国国家标准协会颁发的 ANSI Z358.1-2014 的标准及 OSHA 29 CFR 1910.151（C）.
使用说明
●按照说明书正确安装复合式洗眼器，工作在具有危害品的场所需配置洗眼器，确保使用者可以在
10s 内到达紧急设备
●设备放置的地方须有明显标识便于识别，且该处场所光线较好
●冲洗液须达到饮用水标准，且供水水压 210kPa, 供水量不小于 30LPM( 建议水温 16-38℃)
●工作人员须在工作场所进行关于如何正确操作紧急设备的指导和培训
●受到伤害的人员须进行至少 15 分钟的冲洗
●使用完毕后，关闭设备，然后立即在其他人员的帮助下求助医护人员或其他专业人士，及时进行医
疗救助
规格参数
●进水口：15mm(1/2") BSP 内螺纹
●排水口：25mm(1") BSP 内螺纹
●主体管件：外径 38mm 的304SS 钢管
●水盆：WG7033FY 配置 AES 塑料材质，WG7033F 为
304SS
●喷头 ( 专利申请中 ): AES 树脂材质的喷淋头配置硬币槽
内嵌式的起泡器，80 个微孔环绕起泡器
●过滤器：六分网垫硅胶 +304SS 24*16*2.5( 外径 *内径 *
厚度 )
●球阀：1/2"( 四分 )球阀
●触发器：推手，脚踏，二者可用不锈钢链连接
产品描述
●符合 ANSI Z358.1-2014 和AS 4775-2007 关于紧急洗眼
和冲淋设备的规定；
● 304 不锈钢管件适用于较恶劣的环境中；
●推手和脚踏均可启动洗眼 /脸设备；
● 210kPa(30psi) 的水压下，洗眼 /脸器出水量高于
11.4LPM(3.0GPM) 的最低要求；
●洗眼器喷头可将水同时并持续，均匀 ,柔和地冲洗到面部
和脸上；
● WG7033FY 采用 AES 塑料的水盆，颜色为亮黄色，易于
观察。具有抗氧化，刚度高，韧性好等特性；
● WG7033F 配置更加耐用的不锈钢水盆，抗腐蚀性能优异。
Comply with the regualation in ANSI Z358.1 and OSHA 29 CFR 1910.15(C)
Model WG7033F & WG7033FY pedestal mounted eye/face wash features pedestal,stay-open valve
and eye/wash nozzle heads,water bowl. Zero velocity point provides more comfort and control for
effective sweeping hazardous contaminants away from the face and eyes using a soft aerated stream
for eye wash and independently angled face wash stream for optimum coverage. Standards Licensed
to the internationally recognised standard ANSI Z358.1-2014 and are compliant with AS4775-2007 for
Emergency Eyewash and Shower equipment.
Descriptions
● To Meet the standard of Emergency Eyewash and Shower Equipment in ANSI Z358.1- 2014 and AS
4775-2007;
● Natural polished stainless steel(304SS) recommended for harsh environment;
● Hand and foot operation for eye/face wash;
● Eye/face wash exceeds minimum water ow of 3.0GPM(11.4LPM) at 210kPa (30psi);
● AES plastic nozzle heads provide even,continued and comfortbable uid to irrigate and ush both the
face and the eye simultaneously;
● For WG7033FY,water bowl and showerhead are high-visibility yellow and made of AES plastic
which
have high weather resistance properties,high rigidty and high tenacity.
● For the most durable water bowl and showerhead in WG7033F,select stainless steel(304SS) which
stands up to corrosion and aggressive impact.
Specication
● Water supply inlet 15mm(1”) BSP-FEMALE taper
● Waste water outlet: 25mm(1”) BSP-FEMALE
● Main pipe 38mm O.D tube,304SS
● Bowl:AES plastic for WG7033FY and 304SS for WG7033F
● Nozzle heads:”Innovation technology”,AES resin body with coin slot hidden faucet aerator and 80
tiny holes on plate.Dust cover is easy to open
● Strainer:mesh lter,SG+304SS 24*16*2.5(D*d*H/mm)
● Ball valve:15mm full port 304SS
● Activation:push handle and foot treadle with connecting chain 304SS
Instuctions
● Be assembled and installed in accordance with instructions and adjacent to the employees who may
be exposed to hazardous materials so that it take an individual less than 10 seconds to reach the
nearest ermegency facility
● Be located in an area identied with a highly visible sign and the area around the facility is well-lit
● The delivered ushing uid is suitable for drinking,and the water ow is less than 30LPM at a ow
pressure of 210kPa.(water temperature:16-38℃)
● Employees shall be instructed in the location and proper use of emergency eyewash and shower
equipment.
● The injured individual should proceed to the unit and ush eyes and face for the required 15-minute
period
● Closing the emergency facility after use,and ask for the a physician or other appropriate professional
with others'help immediately.
Installation
Ref: see drawing on page 13 & 14
Tools: cable drilling tool;anchors;nuts(M10);spanners;screwdriver,etc.
Note:The emergency facility shall be inspected to work normaly.

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 14 of 32Page 13 of 32
150mm
150mm100mm
100mm
4 Anchor Holes
安装孔φ12mm
Note：All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 1⁄8" (3mm) per threaded joint.
Use thread sealant/locker on all threaded connections.
Mounting hardware not supplied.
Water inlet pipe shall be connected with steel pipes which is stationary.
备注：鉴于该图为装配图，所有的螺纹为标准啮合，由螺纹旋合造成的尺寸公差为+/-3mm.
所有的管螺纹连接建议使用生料带和密封剂;
安装工具和相关配件不提供；
进水口应连接钢制管件，且钢管要求固定不可移动。
Water Flow Rate 水流量
Eye/Face Wash 洗眼/脸喷头 4-6GPM(15-23LPM)
NPT = National Pipe Thread(美制管螺纹)
BSP = British Standard Pipe Thread（英制管螺纹）
GPM=Gallon per Minute(加仑每分钟)
LPM=Liter per Minute（公升每分钟）
Dimensions/尺寸
17"
[470mm]
Quick Coupling with Filter Mesh
(内置网垫的快速接头)
7-1/2"
[190mm]
地平线
Floor Line
1"BSPF Outlet
排水孔
1/2 " BSP Supply
进水口
12" [300mm]
Recommended / 建议
wall or obstructions
墙体或障碍物
41-1/2"
[1050mm]
to the floor line
离地面距离
编号
NO.
部件名称
Name
数量
Qty.
1喷头
nozzle heads 2
2牛角弯
bull horn tube 1
3水盆
water bowl 1
4过滤网垫
strainer washer 1
5快速接头
quick coupling 1
6推手
push handle 1
7DN15 球阀
ball valve 1
8管件
pipes 2
9脚踏
foot pedal 1
1
2
54
7
8
3
6
9
Installation/ 安装
产品组装：
1. 安装水盆，喷头及牛角弯；
2. 固定推手在合适的位置；
3. 安装脚踏并用金属链条连在推手上；
4. 如下图所示将底座固定的合适的场所；
Assemble
1. Assemble water bowl,nozzle heads and bull horn tube.
2. Fix push handle on 1/2" valve;
3. Install foot pedal and connect the push hand by chain.
4. Located the unit properly as the picture in next page.
备注：
1. 图示和表格中并未完全表明所有的部件，请以实物为准。
2. 快速接头处的网垫起过滤作用 .
3. 阀的触发器如图示位置安装，确保原始状态为闭合；
Note：
1. Product picture & chart are for reference only. Detailed information is in accordana with the nal
product.
2. Quick couping is equiped with at washer for straining.
3. Right position for push hand as the picture shown.The initial state of valve is closed.
立式洗眼 /脸器 Pedstal Mounted Eye/Face Wash
---WG7033F/WG7033FY
立式洗眼 /脸器 Pedstal Mounted Eye/Face Wash
---WG7033F/WG7033FY

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 16 of 32Page 15 of 32
壁挂式洗眼 /脸器 Wall-Mounted Eye/Face Wash
---WG7043/WG7043Y
立式紧急冲淋器 Pedstal Mounted Shower
---WG7043/WG7043Y
安装说明
安装参考：见 Page 17 & 18
安装工具：手枪钻 x1, 膨胀螺丝，螺栓，螺母若干 (建议 M10)，扳手，螺丝刀等其他安装固定
的小工具。
备注：安装完毕后，及时检验设备是否正常工作。
SYSBEL 立式安全冲淋器能快速冲洗身体和衣物上的污染物，
其配置 304 不锈钢管件，手动球阀，花洒罩等。AES 塑料的叶
轮花洒器内置限流器，搭配花洒罩，出水更加均匀，流畅。整个
紧急洗眼和冲淋设备完全符合美国国家标准协会的 ANSI Z358.1-
2014 和澳洲标准 AS 4775-2007.
符合美国国家标准协会颁发的 ANSI Z358.1-2014 的标准及 OSHA 29 CFR 1910.151（C）.
产品描述
●符合 ANSI Z358.1-2014 和AS 4775-2007 关于紧急洗眼和冲
淋设备的规定；
● 304 不锈钢管件适用于较恶劣的环境中；
●不锈钢三角拉环易于冲淋器操作；
●冲淋器出水超出 75.7LPM(20GPM) 的最低要求；
● WG7043Y 采用 AES 塑料的花洒罩，颜色为亮黄色，易于观察。
具有抗氧化，刚度高，韧性好等特性；
● WG7043 配置更加耐用的不锈钢花洒罩，抗腐蚀性能优异。
规格参数
● 进水口：25mm(1") BSP 外螺纹
●主体管件：外径 38mm 的304SS 钢管
●喷淋头：WG7043Y 配置 AES 塑料材质，WG7043 为304SS
●冲淋管：外径 32mm 钢管 ,304SS
●球阀：1" 球阀 ,304SS
●触发器：三角拉环 ,304SS
●辅助出水口：1/2"( 四分 )外螺纹
使用说明
●按照说明书正确安装复合式洗眼器，工作在具有危害品的场所
需配置洗眼器，确保使用者可以在 10s 内到达紧急设备
●设备放置的地方须有明显标识便于识别，且该处场所光线较好
●冲洗液须达到饮用水标准，且供水水压 210kPa, 供水量 120-
150 升/分钟 (建议水温 16-38℃)
●工作人员须在工作场所进行关于如何正确操作紧急设备的指导
和培训
●冲淋器喷头离使用者站立的距离在 208.3cm 和243.8cm 之间，
且 40.6cm 范围内无障碍物
●预留的辅助出水口可选择安装防烫阀或防冻阀 (不提供 )
●受到伤害的人员须进行至少 15 分钟的冲洗
●使用完毕后，关闭设备，然后立即在其他人员的帮助下求助医
护人员或其他专业人士，及时进行医疗救助
Comply with the regualation in ANSI Z358.1-2014 and OSHA 29 CFR 1910.15(C)
SYSBEL's pedestal safety shower rapidly removes contaminants from the body while the eye/face
washes ush hazardous contaminants.Featuring 304SS pipe work,stay-open valve,showerhead,etc.
AES resin impeller action yellow showerhead with integral flow control.Standards Licensed to the
internationally recognised standard ANSI Z358.1-2014 and are compliant with AS4775-2007 for
Emergency Eyewash and Shower equipment.
Descriptions
● To Meet the standard of Emergency Eyewash and Shower Equipment in ANSI Z358.1-2014 and AS
4775- 2007;
● Natural polished stainless steel(304SS) recommended for harsh environment;
● 304SS pull rod with triangular handle is easy to operate for shower;
● Shower exceeds minimum water ow 20GPM(75.7LPM) at 210kPa(30psi);
● For WG7043Y,showerhead is high-visibility yellow and made of AES plastic which have high weather
resistance properties,high rigidty and high tenacity.
● For the most durable and showerhead in WG7043,select stainless steel(304SS) which stands up to
corrosion and aggressive impact.
Specication
● Water supply inlet 25mm(1”) BSP-MALE taper
● Showerhead:AES plastic for WG7043Y and 304SS for WG7043
● Main pipe:38mm O.D tube,304SS
● Shower arm:32mm O.D 304SS tube
● Ball valve: 25mm full port 304SS
● Activation:Triangular handle,304SS pull rod
● Accessory outlet:1/2” BSPM
Instuctions
● Be assembled and installed in accordance with instructions and adjacent to the employees who may
be exposed to hazardous materials so that it take an individual less than 10 seconds to reach the
nearest ermegency facility
● Be located in an area identied with a highly visible sign and the area around the facility is well-lit
● The delivered ushing uid is suitable for drinking,and the water ow is 120-150LPM at a ow
pressure of 210kPa.(water temperature:16-38℃)
● Employees shall be instructed in the location and proper use of emergency eyewash and shower
equipment.
● Be positioned so that the showerhead is at least 208.3cm(82in.)and not more than 243.8cm(96in.)
from the surface on which the user stands. The center of the spray shall be at least 40.6cm(16in.)
from any obstruction
● Accessory outlet is option for installing anti scald valve kit or anti freeze valve kit(not included)
● The injured individual should proceed to the unit and ush eyes,face,even full body for the required
15-minute period
● Closing the emergency facility after use,and ask for the a physician or other appropriate professional
with others'help immediately.
Installation
Ref: see drawing on page 17 & 18
Tools: cable drilling tool;anchors;nuts(M10);spanners;screwdriver,etc.
Note:The emergency facility shall be inspected to work normaly.

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 18 of 32Page 17 of 32
Dimensions/ 尺寸
Note：All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 1⁄8" (3mm) per threaded joint.
Use thread sealant/locker on all threaded connections.
备注：鉴于该图为装配图，所有的螺纹为标准啮合，由螺纹旋合造成的尺寸公差为+/-3mm.
所有的管螺纹连接建议使用生料带和密封剂。
Water Flow Rate 水流量
Showerhead 花洒 20-23GPM(75.7-90LPM)
NPT = National Pipe Thread(美制管螺纹)
BSP = British Standard Pipe Thread（英制管螺纹）
GPM=Gallon per Minute(加仑每分钟)
LPM=Liter per Minute（公升每分钟）
66-3/4"
[1695mm]
28-1/2"
[723mm]
Auxiliary Outlet
1/2" BSPM
(辅助排水孔)
34-1/2"
[876mm]
1"BSPM Inlet
进水孔
91"
[2320mm]
94-1/2"
[2400mm]
65-1/2"
[1663mm]
83-1/2"
[2120mm]
地平线
Floor Line
8-1/4"
[210mm]
150mm
4 Anchor Holes
安装孔φ12
100mm
立式紧急冲淋器 Pedstal Mounted Shower
---WG7043/WG7043Y
立式紧急冲淋器 Pedstal Mounted Shower
---WG7043/WG7043Y
编号
NO.
部件名称
Name
数量
Qty.
1DN25 球阀
ball valve 1
2横管
shower arm 1
3花洒罩
showerhead 1
4上主体管
upper main pipe 1
5快速接头
quick coupling 1
6下主体管
lower main pipe 1
7堵头
cap 1
8三角拉环
pull rod 2
9垫圈
at washer 1
1
2
5
4
7
8
3
6
9
Installation/ 安装
产品组装：
1. 安装花洒罩以及连接的管件；
2. 将三角拉环固定在 1" 球阀上；
3. 上主体管件和下主体管件通过快速接头连接
Assemble:
1.Install shower head and shower arm;
2.Fix the pull rod on 1" ball valve;
3..Use quick coupling to connect two main pipe;
备注：
1. 图示和表格中并未完全表明所有的部件，请以实物为准。
2. 阀的触发器如图示位置安装，确保原始状态为闭合；
Note：
1.Product picture & chart are for reference only. Detailed information is in accordana with the nal
product.
2.Right position for pull rod as the picture shown.The initial state of valve is closed.

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 20 of 32Page 19 of 32
紧急冲淋器 Emergency Shower
---WG7043H/WG7043HY/WG7043V/WG7043VY
紧急冲淋器 Emergency Shower
---WG7043H/WG7043HY/WG7043V/WG7043VY
符合美国国家标准协会颁发的 ANSI Z358.1-2014 的标准及 OSHA 29 CFR 1910.151（C）.
SYSBEL 安全冲淋器WG7043H/WG7043HY/
WG7043V/WG7043VY 能快速冲洗身体和衣物上的污
染物，其配置 304 不锈钢管件，手动球阀，花洒罩等。
AES 塑料的叶轮花洒器内置限流器，搭配花洒罩，出
水更加均匀，流畅。整个紧急洗眼和冲淋设备完全符
合美国国家标准协会的 ANSI Z358.1-2014 和澳洲标准
AS 4775-2007.
规格参数
●进水口：25mm(1") BSP 内螺纹
●主体管件：外径 32mm 的304SS 钢管
●喷淋头：WG7043HY 和WG7043VY 配置 AES 塑料
材质，WG7043H 和WG7043V 为304SS
●球阀：1" 球阀 ,304SS
●触发器：三角拉环 ,304SS
产品描述
●符合 ANSI Z358.1-2014 和AS 4775-2007 关于紧急洗眼和冲淋设备的规定；
●304 不锈钢管件适用于较恶劣的环境中；
●不锈钢三角拉环易于冲淋器操作；
●冲淋器出水超出 75.7LPM(20GPM) 的最低要求；
●WG7043HY 和WG7043VY 采用 AES 塑料的花洒罩，颜色为亮黄色，易于观察。具有抗氧化，刚度高，
韧性好等特性；
●WG7043H 和WG7043V 配置更加耐用的不锈钢花洒罩，抗腐蚀性能优异。
使用说明
●按照说明书正确安装复合式洗眼器，工作在具有危害品的场所需配置洗眼器，确保使用者可以在 10
秒内到达紧急设备
●设备放置的地方须有明显标识便于识别，且该处场所光线较好
●冲洗液须达到饮用水标准，且供水水压 210kPa, 供水量 120-150 升/分钟 (建议水温 16-38℃)
●工作人员须在工作场所进行关于如何正确操作紧急设备的指导和培训
●冲淋器喷头离使用者站立的距离在 208.3cm 和243.8cm 之间，且 40.6cm 范围内无障碍物
●预留的辅助出水口可选择安装防烫阀或防冻阀 (不提供 )
●受到伤害的人员须进行至少 15 分钟的冲洗
●使用完毕后，关闭设备，然后立即在其他人员的帮助下求助医护人员或其他专业人士，及时进行医疗
救助
安装说明
安装参考：见 Page 21 & 22
安装工具：手枪钻 x1, 膨胀螺丝，螺栓，螺母若干 (建议 M10)，扳手，螺丝刀等其他安装固定的小工具。
备注：安装完毕后，及时检验设备是否正常工作。
Comply with the regualation in ANSI Z358.1-2014 and OSHA 29 CFR 1910.15(C)
SYSBEL's safety showers rapidly remove contaminants from the body while the eye/
face washes flush hazardous contaminants.Featuring 304SS pipe work,stay-open
valve,showerhead,etc.AES resin impeller action yellow showerhead with integral ow control.
Standards Licensed to the internationally recognised standard ANSI Z358.1-2014 and are
compliant with AS4775-2007 for Emergency Eyewash and Shower equipment.
Descriptions
● To Meet the standard of Emergency Eyewash and Shower Equipment in ANSI Z358.1-2014
and AS 4775-2007;
● Natural polished stainless steel(304SS) recommended for harsh environment;
● 304SS pull rod with triangular handle is easy to operate for shower;
● Shower exceeds minimum water ow 20GPM(75.7LPM) at 210kPa(30psi);
● For WG7043HY and WG7043VY,showerhead is high-visibility yellow and made of AES plastic
which have high weather resistance properties,high rigidty and high tenacity.
● For the most durable and showerhead in WG7043H and WG7043V,select stainless
steel(304SS) which stands up to corrosion and aggressive impact.
Specication
● Water supply inlet 25mm(1”) BSP-FEMALE taper
● Showerhead:AES plastic for WG7043HY & WG7043VY and 304SS for WG7043H &
WG7043V
● Main pipe:32mm O.D tube,304SS
● Ball valve: 25mm full port 304SS
● Activation:Triangular handle,304SS pull rod
Instuctions
● Be assembled and installed in accordance with instructions and adjacent to the employees
who may be exposed to hazardous materials so that it take an individual less than 10 seconds
to reach the nearest ermegency facility
● Be located in an area identied with a highly visible sign and the area around the facility is
well-lit
● The delivered ushing uid is suitable for drinking,and the water ow is 120-150LPM at a ow
pressure of 210kPa.(water temperature:16-38℃)
● Employees shall be instructed in the location and proper use of emergency eyewash and
shower equipment.
● Be positioned so that the showerhead is at least 208.3cm(82in.)and not more than
243.8cm(96in.) from the surface on which the user stands. The center of the spray shall be at
least 40.6cm (16in.) from any obstruction.
● Accessory outlet is option for installing anti scald valve kit or anti freeze valve kit(not included)
● The injured individual should proceed to the unit and ush eyes,face,even full body for the
required 15-minute period
● Closing the emergency facility after use,and ask for the a physician or other appropriate
professional with others'help immediately.
Installation
Ref: see drawing on page 21 & 22
Tools: cable drilling tool;anchors;nuts(M10);spanners;screwdriver,etc.
Note:The emergency facility shall be inspected to work normaly.

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 22 of 32Page 21 of 32
NOTES：
1. All dimensions assume standard thread engagement.
Variations in manufacturing allow for +/- 1⁄8" (3mm) per
threaded joint.
2. Use thread sealant/locker on all threaded connections.
3. Mounting hardware not supplied.
备注：
1.鉴于该图为装配图，所有的螺纹为标准啮合，由螺纹旋
合造成的尺寸公差为+/-3mm；
2.所有的管螺纹连接建议使用生料带和密封剂；
3.安装使用的工具，管路等配件不提供。
Water Flow Rate 水流量
Showerhead 花洒 20-23GPM(75.7-90LPM)
NPT = National Pipe Thread(美制管螺纹)
BSP = British Standard Pipe Thread（英制管螺纹）
GPM=Gallon per Minute(加仑每分钟)
LPM=Liter per Minute（公升每分钟）
Dimensions/尺寸
wall / 墙体
地平线
Floor Line
82-96"
[2083-2438mm]
69"[1753mm] Max.
距地面最大值
8-1/4"
[210mm]
Hanger Bracket
悬挂支架
27-1/2"
[700mm]
8-1/2"
[215mm]
82-96"
[2083-2438mm]
69"[1753mm] Max.
距地面最大值
wall / 墙体
Suspended Ceiling
吊顶天花板
34-1/2" [876mm]
Recommended / 建议
Fixed Bush
固定衬套
Suspended Ceiling
吊顶天花板
Fixed Bush
固定衬套
82-96"
[2083-2438mm]
69"[1753mm] Max.
距地面最大值
Hanger Bracket
悬挂支架
34-1/2" [876mm]
Recommended / 建议
地平线
Floor Line
wall or obstructions
墙体或障碍物
1
2
4
3
编号
NO.
部件名称
Name
数量
Qty.
1 DN25 球阀 /ball valve 1
2管件 /pipe 1
3花洒罩 /shower head 1
4三角拉环 /pull rod 1
Installation/ 安装
产品组装：
1. 安装花洒罩以及连接的管件；
2. 将三角拉环固定在 1”球阀上；
Assemble:
1.Install shower head and shower arm;
2.Fix the pull rod on 1" ball valve;
备注：
1. 图示和表格中并未完全表明所有的部件，请以实物为准。
2. 阀的触发器如图示位置安装，确保原始状态为闭合；
Note：
1.Product picture & chart are for reference only. Detailed information is in accordana with the nal
product.
2.Right position for pull rod as the picture shown.The initial state of valve is closed.
紧急冲淋器 Emergency Shower
---WG7043H/WG7043HY/WG7043V/WG7043VY
紧急冲淋器 Emergency Shower
---WG7043H/WG7043HY/WG7043V/WG7043VY

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 24 of 32Page 23 of 32
无盆式复合洗眼器 WG7050F&WG7050FY，一个供水源可同时满足全身，
脸部、眼部上污染物和有害物质的冲洗。配置 304 不锈钢管件，手动
球阀，水盆，洗眼器喷头，花洒罩等。更加舒适和限流的水以较低的
速度冲洗面部和脸部，AES 塑料的叶轮花洒器内置限流器，搭配花洒
罩，出水更加均匀，流畅。整个紧急洗眼和冲淋设备完全符合美国国
家标准协会的 ANSI Z358.1-2014 和澳洲标准 AS 4775-2007.
符合美国国家标准协会颁发的 ANSI Z358.1-2014 的标准及 OSHA 29 CFR 1910.151（C）.
安装说明
安装参考：见 Page 25 & 26
安装工具：手枪钻 x1, 膨胀螺丝，螺栓，螺母若干 (建议 M8)，扳手，螺丝刀等其他安装固定的小工具。
备注：安装完毕后，及时检验设备是否正常工作。
使用说明
●按照说明书正确安装复合式洗眼器，工作在具有危害品的场所需配置洗眼器，确保使用者可以在 10s
内到达紧急设备
●设备放置的地方须有明显标识便于识别，且该处场所光线较好
●冲洗液须达到饮用水标准，且供水水压 210kPa, 供水量 120-150 升/分钟 (建议水温 16-38℃)
●工作人员须在工作场所进行关于如何正确操作紧急设备的指导和培训
●冲淋器喷头离使用者站立的距离在 208.3cm 和243.8cm 之间，且 40.6cm 范围内无障碍物
● 洗眼器喷头距离地面的高度在 83.8cm 和134.6cm 之间且离墙或其他障碍物的距离不小于 15.3cm
●预留的辅助出水口可选择安装防烫阀或防冻阀 (不提供 )
●受到伤害的人员须进行至少 15 分钟的冲洗
●使用完毕后，关闭设备，然后立即在其他人员的帮助下求助医护人员或其他专业人士，及时进行医疗
救助
产品描述
●
符合 ANSI Z358.1-2014 和AS 4775-2007 关于紧急洗眼和冲淋
设备的规定；
● 304 不锈钢管件适用于较恶劣的环境中；
●
推手和脚踏均启动洗眼 /脸设备；
●
不锈钢三角拉环易于冲淋器操作；
● 210kPa(30psi) 的水压下，洗眼 /脸器出水量高于
11.4LPM(3.0GPM) 的最低要求；
●
冲淋器出水超出 75.7LPM(20GPM) 的最低要求；
●
洗眼器喷头可将水同时并持续，均匀 ,柔和地冲洗到面部和脸上；
● WG7050FY 采用 AES 塑料的花洒罩，颜色为亮黄色，易于观察。
具有抗氧化，刚度高，韧性好等特性；
● WG7050F 配置更加耐用的不锈钢花洒罩，抗腐蚀性能优异。
规格参数
●进水口：25mm(1") BSP 外螺纹；
排水口：25mm(1") BSP 内螺纹
●主体管件：外径 38mm 的304SS 钢管
冲淋器：
●喷淋头：WG7050FY 配置 AES 塑料材质，WG7050F 为304SS
●管件：外径 32mm 钢管 304SS
●球阀：304SS 1" 球阀
●触发器：三角拉环
洗眼器：
●喷头（专利产品）： AES 树脂材质的喷淋头配置硬币槽内嵌式
的起泡器，
80 个微孔环绕起泡器
●过滤器：六分网垫 硅胶 +304SS 24*16.5*2.5( 外径 *内径 *厚度 )
●球阀：1/2"( 四分 )球阀
●触发器：推手，脚踏，二者可用不锈钢链连接
●辅助出水口：1/2"( 四分 )外螺纹
Comply with the regualation in ANSI Z358.1-2014 and OSHA 29 CFR 1910.15(C)
Model WG7050F & WG7050FY are combination unit without water bowl.Also,The safety shower rapidly
removes contaminants fromthe body while the eye/face washes ush hazardous contaminants and irritants
from the eyes and face.Featuring 304SS pipe work,stay-open valve,nozzle heads,showerhead,etc.zero
velocity point provides more comfort and control for effective irrigation of the eyes and face.AES resin
impeller action yellow showerhead with integral flow control.Standards Licensed to the internationally
recognised standard ANSI Z358.1-2014 and are compliant with AS4775-2007 for Emergency Eyewash and
Shower equipment.
Descriptions
●To Meet the standard of Emergency Eyewash and Shower Equipment in ANSI Z358.1- 2014 and AS 4775-
2007;
● Natural polished stainless steel(304SS) recommended for harsh environment;
● Hand and foot operation for eye/face wash;
● 304SS pull rod with triangular handle is easy to operate for shower;
● Eye/face wash exceeds minimum water ow of 3.0GPM(11.4LPM) at 210kPa (30psi);
● Shower exceeds minimum water ow 20GPM(75.7LPM) at 210kPa(30psi);
● AES plastic nozzle heads provide even,continued and soft uid to irrigate and ush both the face and the
eye simultaneously;
● For WG7050FY,showerhead are high-visibility yellow and made of AES plastic which have high weather
resistance properties,high rigidty and high tenacity.
● For the most durable showerhead in WG7050F,select stainless steel(304SS) which stands up to corrosion
and aggressive impact.
Specications
● Water supply inlet 25mm(1”) BSP-MALE taper , Waste water outlet: 25mm(1”) BSP-FEMALE
● Main pipe 38mm O.D tube 304SS
shower:
● Showerhead:AES plastic for WG7050FY and 304SS for WG7050F
● Shower arm:32mm O.D 304SS tube
● Ball valve: 25mm full port 304SS
● Activation:Triangular handle,304SS pull rod
Eyewash:
● Nozzle heads（Patent）:AES resin body with coin slot hidden faucet aerator and 80 tiny holes on plate.
Dust cover is easy to open
● strainer:mesh lter,SG+304SS 23*16.5*2.5(D*d*H/mm)
● Ball valve:15mm full port 304SS
● Activation:push handle and foot treadle with connecting chain 304SS
● Accessory outlet:1/2” BSPM
Instuctions
● Be assembled and installed in accordance with instructions and adjacent to the employees who may
be exposed to hazardous materials so that it take an individual less than 10 seconds to reach the nearest
ermegency facility
● Be located in an area identied with a highly visible sign and the area around the facility is well-lit
● The delivered ushing uid is suitable for drinking,and the water ow is 120-150LPM at a ow pressure of
210kPa.(water temperature:16-38)
● Employees shall be instructed in the location and proper use of emergency eyewash and shower
equipment.
● Be positioned so that the showerhead is at least 208.3cm(82in.)and not more than 243.8cm(96in.) from
the surface on which the user stands. The center of the spray shall be at least 40.6cm (16in.) from any
obstruction
● Nozzle heads are not less than 83.8cm(33in.)and no greater than 134.6cm(53in.) from the surface on
which the user stands.
● Accessory outlet is option for installing anti scald valve kit or anti freeze valve kit(not included)
● The injured individual should proceed to the unit and flush eyes,face,even full body for the required
15-minute period
● Closing the emergency facility after use,and ask for the a physician or other appropriate professional with
others'help immediately.
复合式洗眼器 Combination Unit
---WG7050F/WG7050FY
复合式洗眼器 Combination Unit
---WG7050F/WG7050FY

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 26 of 32Page 25 of 32
Dimensions/ 尺寸
Note：All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 1⁄8" (3mm) per threaded joint.
Use thread sealant/locker on all threaded connections.
备注：鉴于该图为装配图，所有的螺纹为标准啮合，由螺纹旋合造成的尺寸公差为+/-3mm.
所有的管螺纹连接建议使用生料带和密封剂。
Water Flow Rate 水流量
Showerhead 花洒
Eye/Face Wash 洗眼/脸喷头
20-23GPM(75.7-90LPM)
4-6GPM(15-23LPM)
NPT = National Pipe Thread(美制管螺纹)
BSP = British Standard Pipe Thread（英制管螺纹）
GPM=Gallon per Minute(加仑每分钟)
LPM=Liter per Minute（公升每分钟）
Floor Line
66-3/4"
[1695mm]
28-1/2"
[723mm]
Auxiliary Outlet
1/2 " BSPM
(辅助排水孔)
65-1/2"
[1663mm]
91"
[2320mm]
95-1/2"
[2400mm]
1 " BSPF Inlet
进水孔
地平线
34-1/2"
[876mm]
8-1/4"
[210mm]
83-1/2
"
[2120mm]
9"
[225mm]
150mm
4 Anchor Holes
安装孔φ12
100mm
编号
NO.
部件名称
Name
数量
Qty.
1管件 /Pipe 1
2花洒罩 /shower head 1
3三角拉环
pull rod 1
4洗眼喷头
nozzle head 2
5牛角弯
bull horn tube 1
6推手
push handle 1
7 DN15 球阀 /ball valve 1
8快速接头
quick coupling 1
9脚踏 /foot pedal 1
10 下主管 /lower pipe 1
11 快速接头
quick coupling 1
12 上主管 /upper pipe 1
13 DN25 球阀 /ball valve 1
Installation/ 安装
产品组装：
1. 安装花洒罩以及连接的管件；
2. 将三角拉环固定在 1”球阀上；
3. 上下主体管件使用快速接头连接；
4. 洗眼器组件通过快速接头连接到主管件上；
5. 固定推手在合适的位置；
6. 安装脚踏并用金属链条连在推手上；
7. 如下图所示将底座固定的合适的场所；
8. 悬挂或黏贴标识牌于视线良好的区域。
Assemble of WG7050FY & WG7050F
1.Install shower head and shower arm;
2.Fix the pull rod on 1" ball valve;
3.Use quick coupling to connect two main pipe;
4.Assemble nozzle heads and bull horn tube;
5.Fix push handle on 1/2" valve;
6.Install foot pedal and connect the push hand by chain.
7.Located the unit properly as the picture in next page.
8.Hang or paste the sign in the area where shall be highly visible.
备注：
1. 图示和表格中并未完全表明所有的部件，请以实物为准。
2. 大小快速接头处均有垫圈，且小的快速接头为网垫，起过滤作用 .
3. 阀的触发器如图示位置安装，确保原始状态为闭合；
Note：
1.Product picture & chart are for reference only. Detailed information is in accordana with the nal
product.
2.Each quick couping is equiped with at washer. Bigger at washer for 13 and the smaller one for 11.
3.Right position for push hand or pull rod as the picture shown.The initial state of valve is closed.
复合式洗眼器 Combination Unit
---WG7050F/WG7050FY
复合式洗眼器 Combination Unit
---WG7050F/WG7050FY
1
5
2
6
3
4
7
8
9
10
11
12
13

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 28 of 32Page 27 of 32
有盆式复合洗眼器 WG7053F & WG7053FY，一个供水源可同时满
足全身，脸部、眼部上污染物和有害物质的冲洗。配置 304 不锈钢管件，
手动球阀，水盆，洗眼器喷头，花洒罩等。更加舒适和限流的水以较低
的速度冲洗面部和脸部，AES 塑料的叶轮花洒器内置限流器，搭配花洒
罩，出水更加均匀，流畅。整个紧急洗眼和冲淋设备完全符合美国国家
标准协会的 ANSI Z358.1-2014 澳洲标准 AS 4775-2007.
符合美国国家标准协会颁发的 ANSI Z358.1-2014 的标准及 OSHA 29 CFR 1910.151（C）.
产品描述
● 符合 ANSI Z358.1-2014 和AS 4775-2007 关于紧急洗眼和冲淋设备的规
定；
● 304 不锈钢管件适用于较恶劣的环境中；
●推手和脚踏均启动洗眼 /脸设备；
●不锈钢三角拉环易于冲淋器操作；
● 210kPa(30psi) 的水压下，洗眼 /脸器出水量高于 11.4LPM(3.0GPM) 的
最低要求；
●冲淋器出水超出 75.7LPM(20GPM) 的最低要求；
●洗眼器喷头可将水同时并持续，均匀 ,柔和地冲洗到面部和脸上；
● WG7053FY 采用 AES 塑料的水盆和花洒罩，颜色为亮黄色，易于观察。
具有抗氧化，刚度高，韧性好等特性；
● WG7053F 配置更加耐用的不锈钢水盆和花洒罩，抗腐蚀性能优异。
规格参数
● 进水口：25mm(1") BSP 外螺纹
● 排水口：25mm(1") BSP 内螺纹
● 主体管件：外径 38mm 的304SS 钢管
冲淋器：
● 喷淋头：WG7053FY 配置 AES 塑料材质，WG7053F 为304SS
● 管件：外径 32mm 钢管 304SS
●球阀：304SS 1" 球阀
●触发器：三角拉环
洗眼器：
●水盆：WG7053FY 配置 AES 塑料材质，WG7053F 为304SS
●喷头 (专利申请中 )：AES 树脂材质的喷淋头配置硬币槽内嵌式的起泡器，
80 个微孔环绕起泡器
●过滤器：六分网垫 硅胶 +304SS 24*16.5*2.5( 外径 *内径 *厚度 )
●球阀：1/2"( 四分 )球阀
●触发器：推手，脚踏，二者可用不锈钢链连接
●辅助出水口：1/2"( 四分 )外螺纹
使用说明
●按照说明书正确安装复合式洗眼器，工作在具有危害品的场所需配置洗眼器，确保使用者可以在 10s 内
到达紧急设备
●设备放置的地方须有明显标识便于识别，且该处场所光线较好
●冲洗液须达到饮用水标准，且供水水压 210kPa, 供水量 120-150 升/分钟 (建议水温 16-38℃)
●工作人员须在工作场所进行关于如何正确操作紧急设备的指导和培训
●冲淋器喷头离使用者站立的距离在 208.3cm 和243.8cm 之间，且 40.6cm 范围内无障碍物
● 洗眼器喷头距离地面的高度在 83.8cm 和134.6cm 之间且离墙或其他障碍物的距离不小于 15.3cm
●预留的辅助出水口可选择安装防烫阀或防冻阀 (不提供 )
●受到伤害的人员须进行至少 15 分钟的冲洗
●使用完毕后，关闭设备，然后立即在其他人员的帮助下求助医护人员或其他专业人士，及时进行医疗救
助
SYSBEL's combination unit(WG7053F & WG7053FY) are an interconnected assembly of emergency
equipment supplied by a single source of flushing fluid.The safety shower rapidly removes contaminants
from the body while the eye/face washes flush hazardous contaminants and irritants from the eyes and
face.Featuring 304SS pipe work,stay-open valve,bowl,nozzle heads,showerhead,etc.zero velocity point
provides more comfort and control for effective irrigation of the eyes and face.AES resin impeller action yellow
showerhead with integral ow control.Standards Licensed to the internationally recognised standard ANSI
Z358.1-2014 and are compliant with AS4775-2007 for Emergency Eyewash and Shower equipment.
Comply with the regualation in ANSI Z358.1-2014 and OSHA 29 CFR 1910.15(C)
Descriptions
● To Meet the standard of Emergency Eyewash and Shower Equipment in ANSI Z358.1- 2014 and AS 4775-
2007;
● Natural polished stainless steel(304SS) recommended for harsh environment;
● Hand and foot operation for eye/face wash;
● 304SS pull rod with triangular handle is easy to operate for shower;
● Eye/face wash exceeds minimum water ow of 3.0GPM(11.4LPM) at 210kPa (30psi);
● Shower exceeds minimum water ow 20GPM(75.7LPM) at 210kPa(30psi);
● AES plastic nozzle heads provide even,continued and soft uid to irrigate and ush both the face and the
eye simultaneously;
● For WG7053FY,water bowl and showerhead are high-visibility yellow and made of AES plastic which have
high weather resistance properties,high rigidty and
high tenacity.
● For the most durable water bowl and showerhead in WG7053F,select stainless steel(304SS) which stands
up to corrosion and aggressive impact.
Specications
● Water supply inlet 25mm(1”) BSP-MALE taper
● Waste water outlet: 25mm(1”) BSP-FEMALE
● Main pipe 38mm O.D tube 304SS
Shower:
● Showerhead:AES plastic for WG7053FY and 304SS for WG7053F
● Shower arm:32mm O.D 304SS tube
● Ball valve: 25mm full port 304SS
● Activation:Triangular handle,304SS pull rod
Eyewash:
● Bowl:AES plastic for WG7053FY and 304SS for WG7053F
● Nozzle heads:”Innovation technology”,AES resin body with coin slot hidden faucet aerator and 80
tiny holes on plate.Dust cover is easy to open
● strainer:mesh lter,SG+304SS 23*16.5*2.5(D*d*H/mm)
● Ball valve:15mm full port 304SS
● Activation:push handle and foot treadle with connecting chain 304SS
● Accessory outlet:1/2” BSPM
Instuctions
● Be assembled and installed in accordance with instructions and adjacent to the employees who may
be exposed to hazardous materials so that it take an individual less than 10 seconds to reach the nearest
ermegency facility
● Be located in an area identied with a highly visible sign and the area around the facility is well-lit
● The delivered ushing uid is suitable for drinking,and the water ow is 120-150LPM at a ow pressure of
210kPa.(water temperature:16-38℃)
● Employees shall be instructed in the location and proper use of emergency eyewash and shower
equipment.
● Be positioned so that the showerhead is at least 208.3cm(82in.)and not more than 243.8cm(96in.) from the
surface on which the user stands. The center of the spray shall be at least 40.6cm (16in.) from any
obstruction
● Nozzle heads are not less than 83.8cm(33in.)and no greater than 134.6cm(53in.) from the surface on which
the user stands.
● Accessory outlet is option for installing anti scald valve kit or anti freeze valve kit(not included)
● The injured individual should proceed to the unit and ush eyes,face,even full body for the required
15-minute period
● Closing the emergency facility after use,and ask for the a physician or other appropriate professional with
others'help immediately.
复合式洗眼器 Combination Unit
---WG7053F/WG7053FY
复合式洗眼器 Combination Unit
---WG7053F/WG7053FY

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 30 of 32Page 29 of 32
Dimensions/ 尺寸
1
2
3
5
6
4
7
8
9
10
11
12
13
14
15
编号
NO.
部件名称
Name
数量
Qty.
1管件
shower arm 1
2花洒罩
shower head 1
3三角拉环
pull rod 1
4洗眼喷头
nozzle head 2
5牛角弯
bull horn tube 1
6水盆
water bowl 1
7管件
pipe 3
8推手
push handle 1
9DN15 球阀
ball valve 1
10 脚踏
foot pedal 1
11 快速接头
quick coupling 2
12 堵头
caps 1
13 快速接头
quick coupling 1
14 上主管
upper main pipe 1
15 DN25 球阀
valve 1
Installation/ 安装
产品组装：
1. 安装花洒罩以及连接的管件；
2. 将三角拉环固定在 1”球阀上；
3. 上下主体管件使用快速接头连接；
4. 安装水盆，喷头及牛角弯；
5. 固定推手在合适的位置；
6. 安装脚踏并用金属链条连在推手上；
7. 如下图所示将底座固定的合适的场所；
8. 悬挂或黏贴标识牌于视线良好的区域。
Assemble of WG7053FY & WG7053F
1.Install shower head and shower arm;
2.Fix the pull rod on 1" ball valve;
3.Use quick coupling to connect two main pipe;
4.Assemble water bowl,nozzle heads and bull horn tube.
5.Fix push handle on 1/2" valve;
6.Install foot pedal and connect the push hand by chain.
7.Located the unit properly as the picture in next page.
8.Hang or paste the sign in the area where shall be highly visible.
备注：
1. 图示和表格中并未完全表明所有的部件，请以实物为准。
2. 大小快速接头处均有垫圈，且小的快速接头为网垫，起过滤作用 .
3. 阀的触发器如图示位置安装，确保原始状态为闭合；
Note：
1.Product picture & chart are for reference only. Detailed information is in accordana with the nal product.
2.Each quick couping is equiped with at washer. Bigger at washer for 13 and the smaller one for 11.
3.Right position for push hand or pull rod as the picture shown.The initial state of valve is closed.
66-3/4"
[1695mm]
28-1/2"
[723mm]
Auxiliary Outlet
1/2 " BSPM
(辅助排水孔)
Note：All dimensions assume standard thread engagement. Variations in manufacturing allow for +/- 1⁄8" (3mm) per threaded joint.
Use thread sealant/locker on all threaded connections.
备注：鉴于该图为装配图，所有的螺纹为标准啮合，由螺纹旋合造成的尺寸公差为+/-3mm.
所有的管螺纹连接建议使用生料带和密封剂。
Water Flow Rate 水流量
Showerhead 花洒
Eye/Face Wash 洗眼/脸喷头
20-23GPM(75.7-90LPM)
4-6GPM(15-23LPM)
NPT = National Pipe Thread(美制管螺纹)
BSP = British Standard Pipe Thread（英制管螺纹）
GPM=Gallon per Minute(加仑每分钟)
LPM=Liter per Minute（公升每分钟）
17"
[470mm]
34-1/2"
[876mm]
65-1/2"
[1663mm]
93"
[2320mm]
94-1/2"
[2400mm]
7-1/2"
[190mm]
1 " BSPF Outlet
排水孔
1 " BSPM Inlet
进水孔
8-1/4"
[210mm]
83-1/2"
[2120mm]
41-1/2"
[1050mm]
to the floor line
离地面距离
地平线
10"
[250mm]
Floor Line
φ12-1/2"
[320mm]
150mm
4 Anchor Holes
安装孔φ12
100mm
复合式洗眼器 Combination Unit
---WG7053F/WG7053FY
复合式洗眼器 Combination Unit
---WG7053F/WG7053FY

www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
www.sysbel.com.cn [phone]
Copyright © 2015 SYSBEL. All Rights Reserved.
Page 32 of 32Page 31 of 32
Training / O & M
培训、操作和维护
Training / O & M
培训、操作和维护
作为紧急设备的制造商，我们有义务为用户提供如何操作，检验以及培训和维护的详细说明。
这些指导文件在我们的官方网站 www.sysbel.com.cn 也可以查询到。
只是简单的安装紧急洗眼器并不能完全保障员工的人身安全。根据美国国家标准协会（ANSI）
中Z358.1 的标准规范，所有有可能接触到危险化学品的员工必须在紧急洗眼和冲淋器安装的位
置接受合适的培训，学会如何正确的使用该紧急设备。
同时，ANSI 要求对紧急设备进行周检，更为详细的检验至少一年进行一次，以验证是否符合
标准的各项规定。
每周例行启动紧急洗眼器在 ANSI Z358.1 中有明确的要求，是为了确保所有的紧急设备可以正
常操作使用。一般情况下，短暂快速的开启进行测试可能就足够了，但更为有价值的测试是要求
每一次长达 15 分钟。目的是保证冲洗液流经设备的每一个部分，清理沉积的杂质以及降低管件
死水造成的污染。测试应在正式的环境中进行，确保每个站点的紧急设备能够可靠地运行。更为
详细的检验要求每年进行一次。
此外，周期性进行的检验，包括安装位置，日期和产品性能，这些都需要记录在如设备上的检
验标签上。任何有关设备功能性的问题将得到及时的发现，此外，这些信息为设备维护部门提供
了及时参考，更好的监控所有的紧急设备。
As the manufacturer of the emergency equipment,we have an obligation to provide detailed
instructions on the proper operation, inspection,training and maintenance of the emergency
equipment.These guides are also available on the Sysbel website (www.sysbel.com).
Simply installing emergency equipment is not a sufcient means of assuring workers safety.
Acoording to the standard of ANSI Z358.1,all employees who may be exposed to hazardous
materials shall be trained in the location and proper use of emergency eye/face wash and
shower.
Also,ANSI requires a weekly activation, as well as a more detailed inspection at least
annually for compliance with the standard.
Weekly activation is clearly stated in the ANSI standard as a necessary requirement to
ensure proper operation of all emergency equipment.Generally,a quick activation to test the
unit might seem sufcient, it is more valuable to test each unit for the required 15-minute ush
every time.The intention is to guarantee that each piece of equipment has the proper ushing
uid supply and ow, to clear the line of any sediment build-up and to minimize contamination
related to inactive water. Testing should be conducted in a real-life scenario to ensure that the
emergency units in each site are able to reliably perform. More detailed inspection is required
on an annual basis.
In addition, documentation of the periodic testing including location, dates and performance
provides records to demonstrate your facility’s diligence in protecting and monitoring each
unit. These records can be managed in a variety of forms,for example, inspection tags on the
units. Any questions or concerns related to functionality will be found in time by recording.
Furthermore, these information gives safety team an instant reference for monitoring all safety
equipments .
Problems/ 常 见 问 题 Solutions/ 解决方案
洗眼器 /冲淋器不出水
No ow from nozzle heads or
shower heads.
1. 确认是否连接水源 .
Conrm the equipment supplied by a source
of ushing uid.
2. 检验水阀是否开启 .
Check the shut-off ball valve.
管件或接头处有漏水
water leak between joints or tting.
1. 仔细观察管件是否有缺陷 .
Observe the defect of pipe.
2. 快速接头处是否安装垫圈 .
Rubber plate intalled in quick coupling
3. 管螺纹处是否使用生料带或密封剂 .
Reassemble and use teon tape or sealant
on joints.
洗眼器喷水高度不满足洗眼要求
water streams from nozzle heads
do not meet at desired eye level
建议水压在 0.2Mpa-0.3Mpa 之间 .
Recommend a ow pressure of 0.2Mpa-0.3Mpa.
洗眼器出水不足，冲淋器很足
Insufcient water ow
on eyewash,however,shower is
sufcient.
1. 确保总的进水量不少于 130LPM，水压在
0.2Mpa-0.3Mpa 之间
Ensure the water ow rate is no less than 130
LPM at a ow pressure of 0.2-0.3Mpa .
2. 检查管件是否被堵塞
Check the blocking of the pipe.
3. 小快速接头内的过滤片取出清洗
Remove the lter meshes from quick
couplings.
洗眼器喷水很高，冲淋器水量不足
Insufficient water flow on shower
while eyewash is sufcient.
洗眼器两喷头出水高度不平衡
Water stream from nozzle heads
are not balanced
1. 拆除喷头，观察内部结构是否有堵塞
Disassemble the nozzle heads and clean the
ow regulators.
2. 确认起泡器的安装是否一致
Check two aerators are intalled properly.
3. 起泡器是否被堵塞
Probable clogging of the aerators.
起泡器喷水高度与微孔出水高度有
明显差异
Water stream from aerator is lower
or higher than that from holes
apprently.
1. 观察内置的 O型圈是否缺失
Observe whether O-rings inside are missing.
2. 检查小的限流器是否被堵塞
Probable clogging of ow regulator inside
nozzle heads.
3. 起泡器是否被堵塞
Possible blocked aerators.

SYSBEL 为
SYSBEL
注册商标,受法律保护
SYSBEL®is the registered trademark of
SYSBEL
®
printed in shanghai 2015 Code No. SYS150420
