System Build 7467056COM User manual

7467056COM

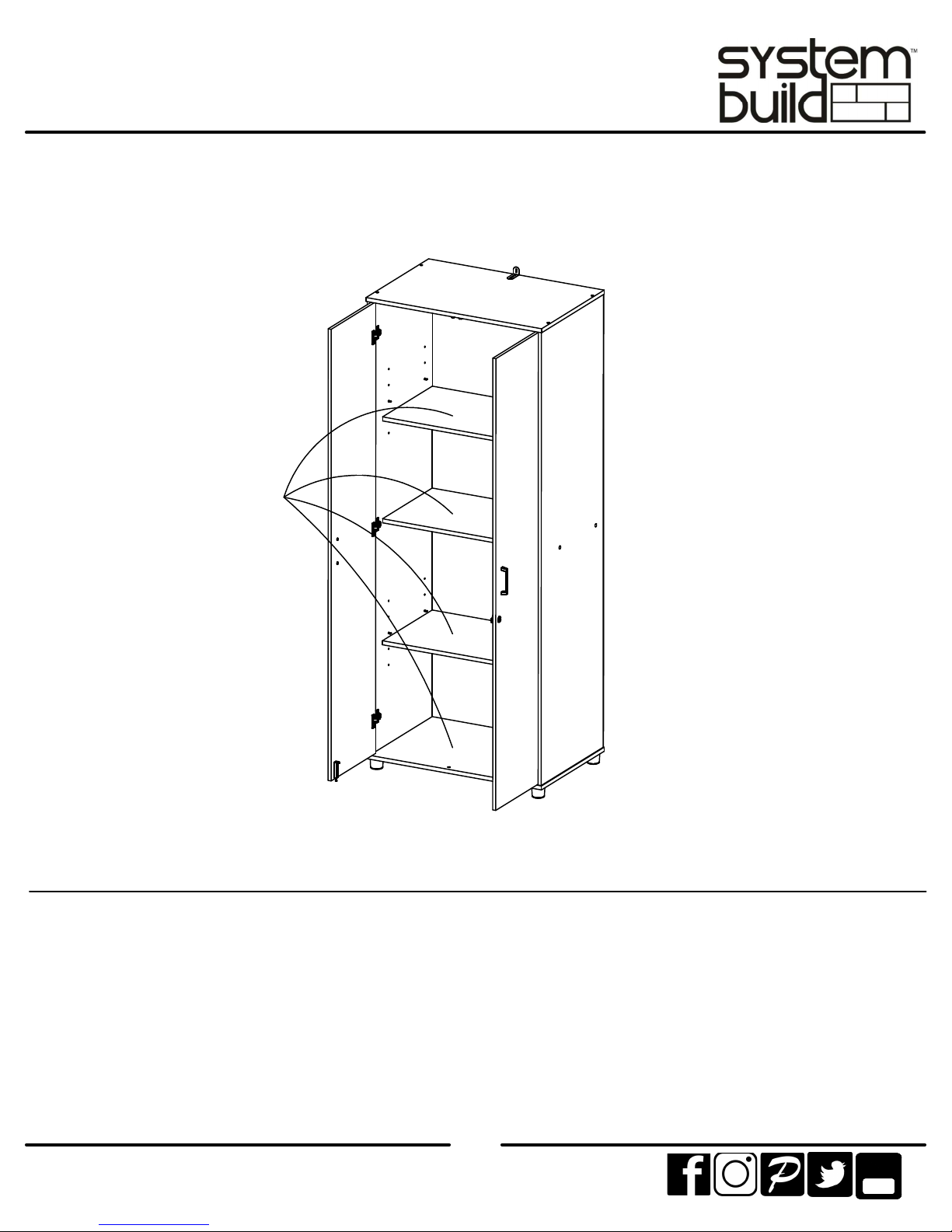

STORAGE CABINET
- Unit can tip over causing severe injury or death.

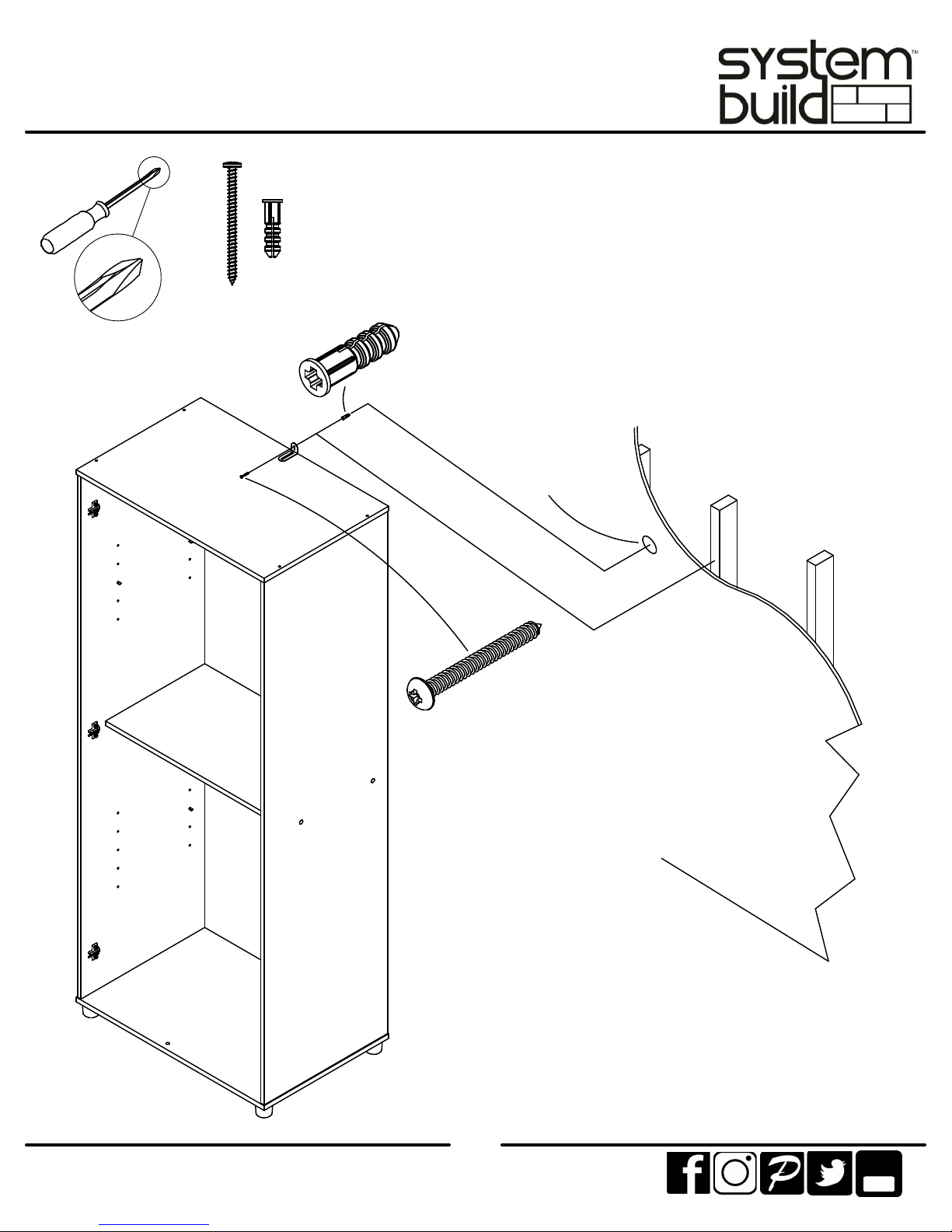

- Anchor unit to stud in wall (if instructed to).
- Do Not allow children to climb on unit.
- Put heavy items on lower shelves or drawers.
B347467056COMT0
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WARNING
For the latest information on SystemBuild products
follow us at Ameriwood Home
Tube
You
Date of Purchase ___ / ___ / ___
Lot Number:
Do Not Return This Product!
Contact our customer service team for help first.
Call: 1-866-452-4081 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.systembuild.com
Assembly Difficulty Meter
Easy Tough

Contact Us!
Helpful Hints
2
systembuild.com
Do NOT return this product!
Contact our friendly customer service team first for help.
Call us!
1-866-452-4081
Monday-Friday
9am - 5pm CST
Visit systembuild.com to view the
limited warranty valid in the U.S. and Canada.
Assembly Tips
- Open your item in the area you plan to keep it to avoid excessive heavy lifting.
- Identify, sort and count the parts before attempting assembly.
- Compression dowels are lightly tapped in with a hammer.
- Slides are labeled with a R (right) and L (left) for proper placement.
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge.
- Use all the nails provided for the back panel and spread them out equally.
- Back panel must be used to make sure your unit is sturdy.
- Do NOT use harsh chemicals or abrasive cleaners on this item.
- Never push, pull, or drag your furniture.
Tube
You
Tube
You
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR

3
systembuild.com

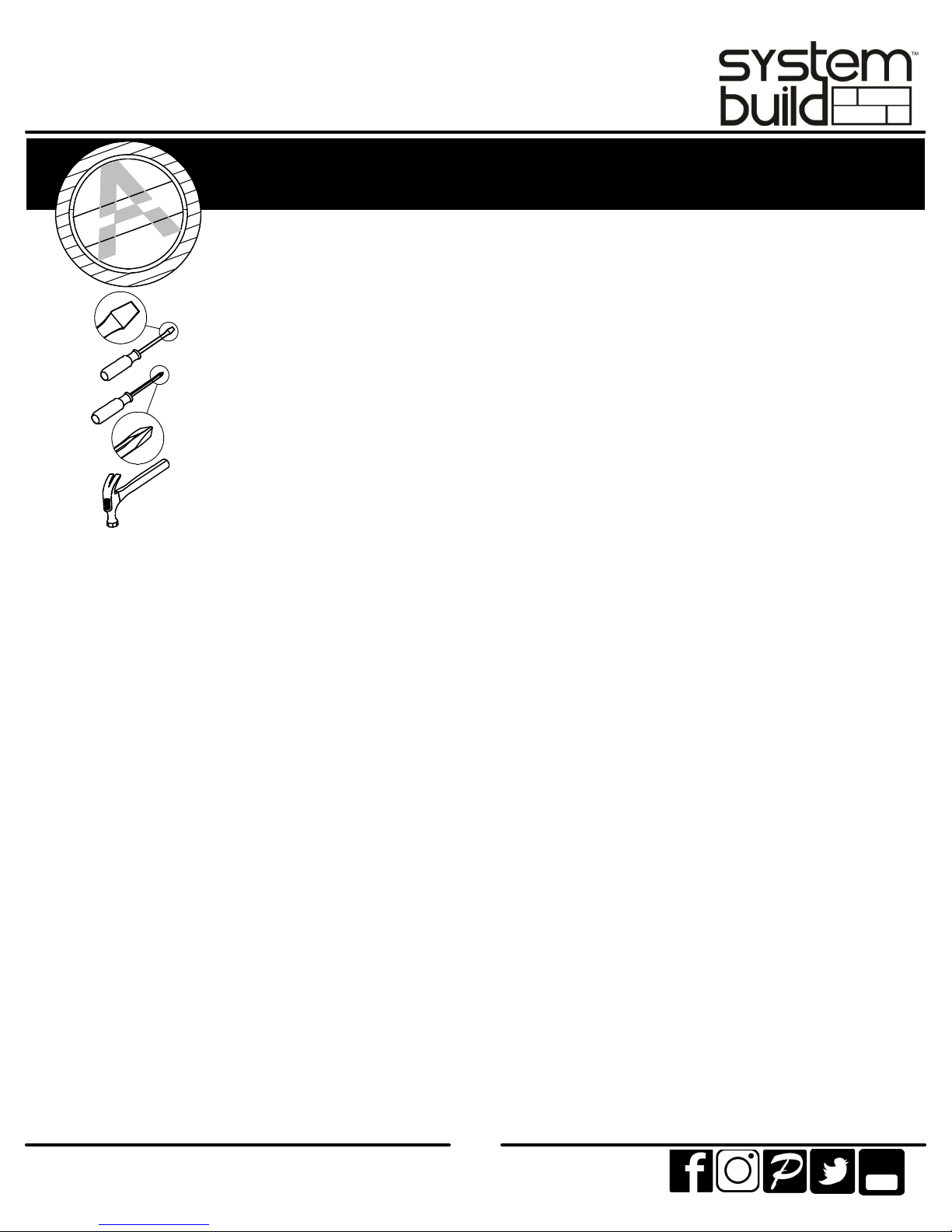

Before You Start
P
Quick
Tip
Assembly
P
P
P
Tube
You
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Caution: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is tight.
Failure to do so may result in stripping the screw.
P

4
systembuild.com

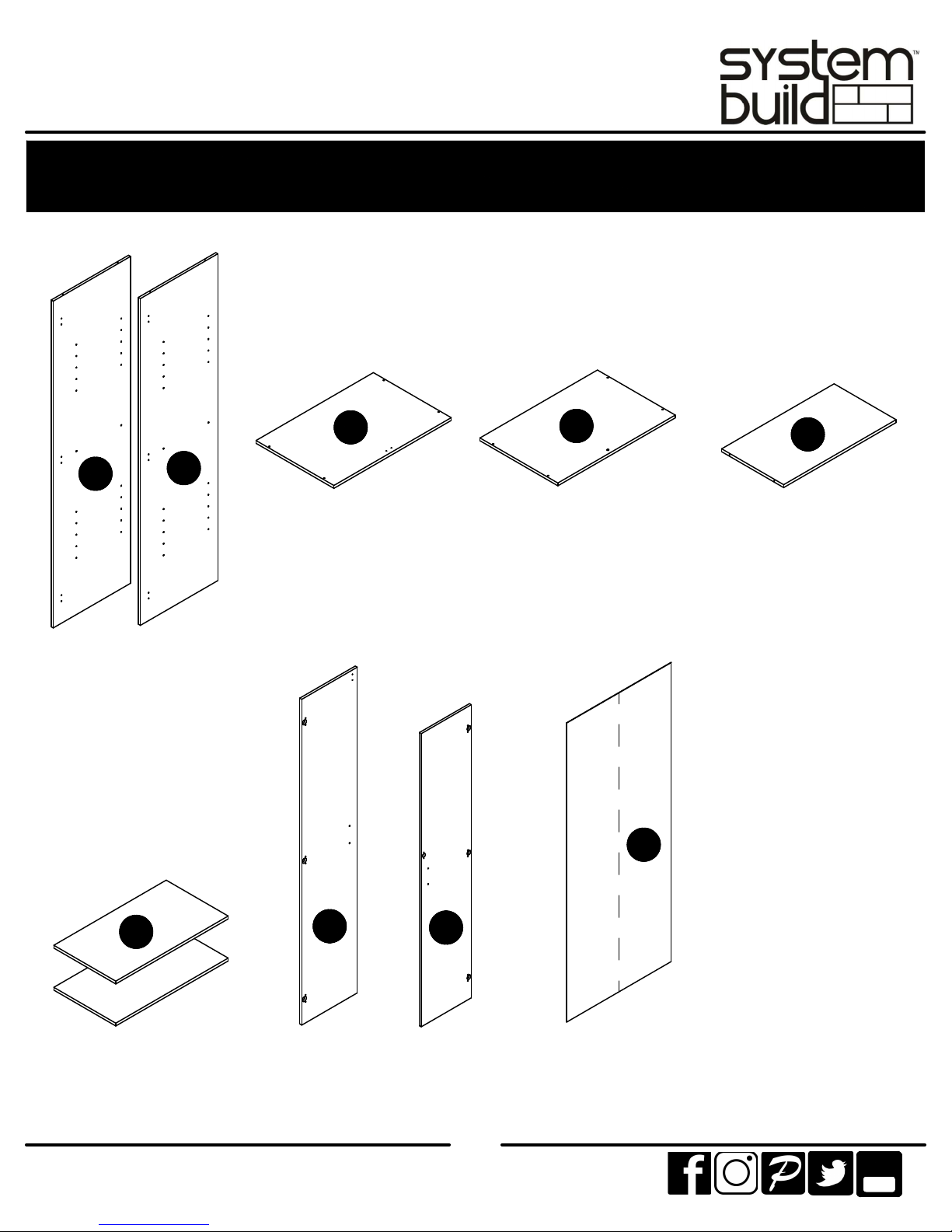

Board Identification
Not actual size
Tube
You
This piece is
paperboard
construction.
It is not made from
wood, but is required
for the assembly of
your unit.
2 End Panels
37467056010
top
37467056030
bottom
37467056040
fixed shelf
37467056050
2 Adjustable Shelves
37467056060
left door
37467056070
right door
37467056080
back panel
K74675600
H
G
F
E
D
C
AA
I

5
systembuild.com
Board Identification
Not actual size
A
C
D
E
F
G
H
I
F
This piece is paperboard
construction.
It is not made from wood,
but is required for the
assembly of your unit.
A

6
systembuild.com
Part List
Actual Size
Tube
You
Not Actual Size
(x12)
#A13410
1-3/4" flat head screw
(x4)
#A24045
screw cap
(x2)
#A11145
1/2" flat head screw
(x2)
#A11210
3/4" pan head screw
(x2)
#A11195
5/8" pan head screw
(x8)
#A80250
shelf support
(x4)
#A17300
3/4" machince screw
(x40)
#A21110
nail
(x4)
#A43100
glide
(x1)
#A55015
lock
(x2)
#89020
bumper
(x2)
#A52700
handle
(x6)
#A65640
hinge
(x1)
#A55410
latch
(x1)
#A84050
safety bracket kit

7
systembuild.com

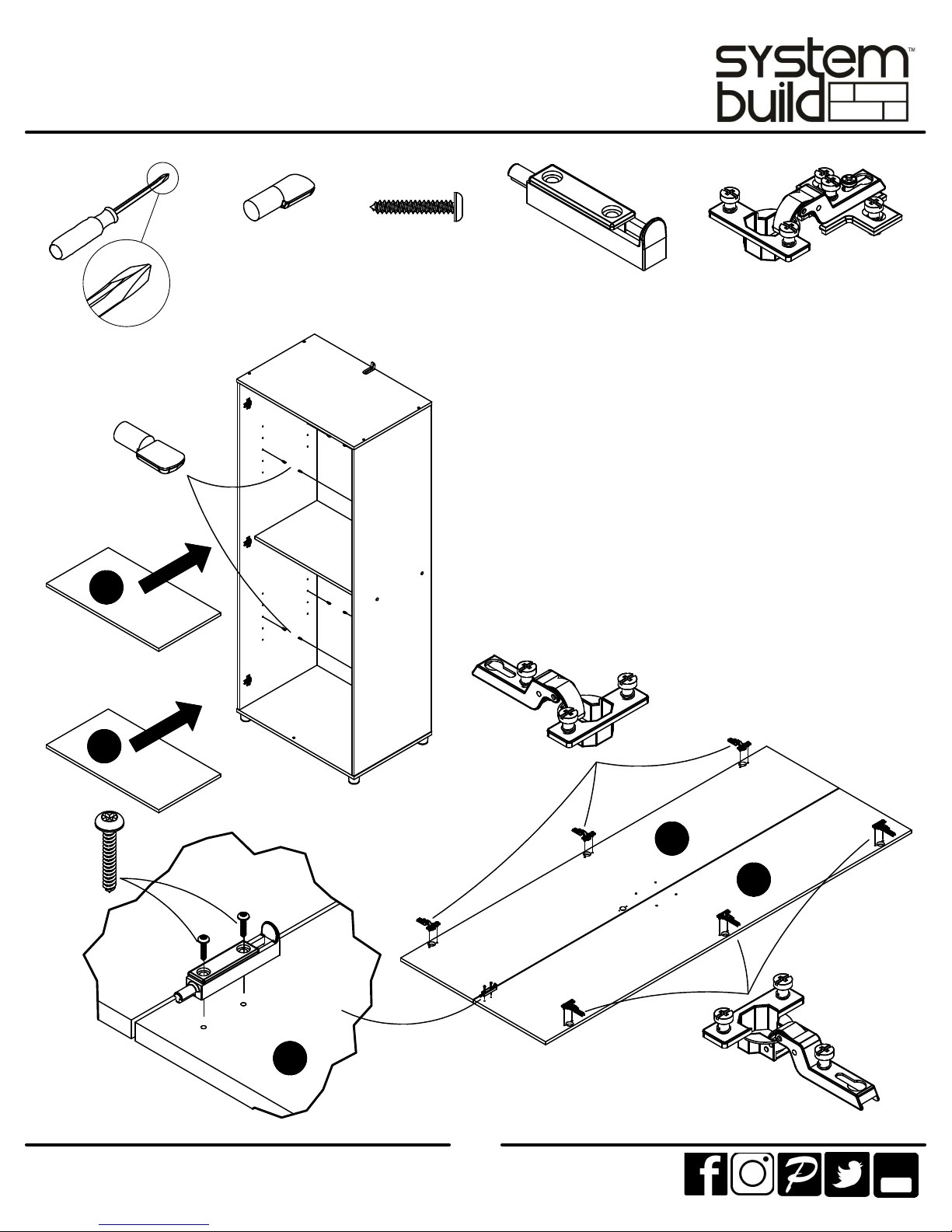

STEP1
Tube
You
Separate hinge by loosening screw as shown.
(x6)
#A65640
A
X2

8
systembuild.com
STEP2
Tube
You
D
C
(x1)
#A84050
safety bracket kit
(x2)
#89020
bumper
(x2)
#A11195
5/8" pan head screw
(x4)
#A43100
glide
Attach the bumper to the far side of the top (C)
with two 5/8” screws. Attach the safety bracket to
the near side of the top (C).
Press the glides into the holes in the bottom (D).

9
systembuild.com

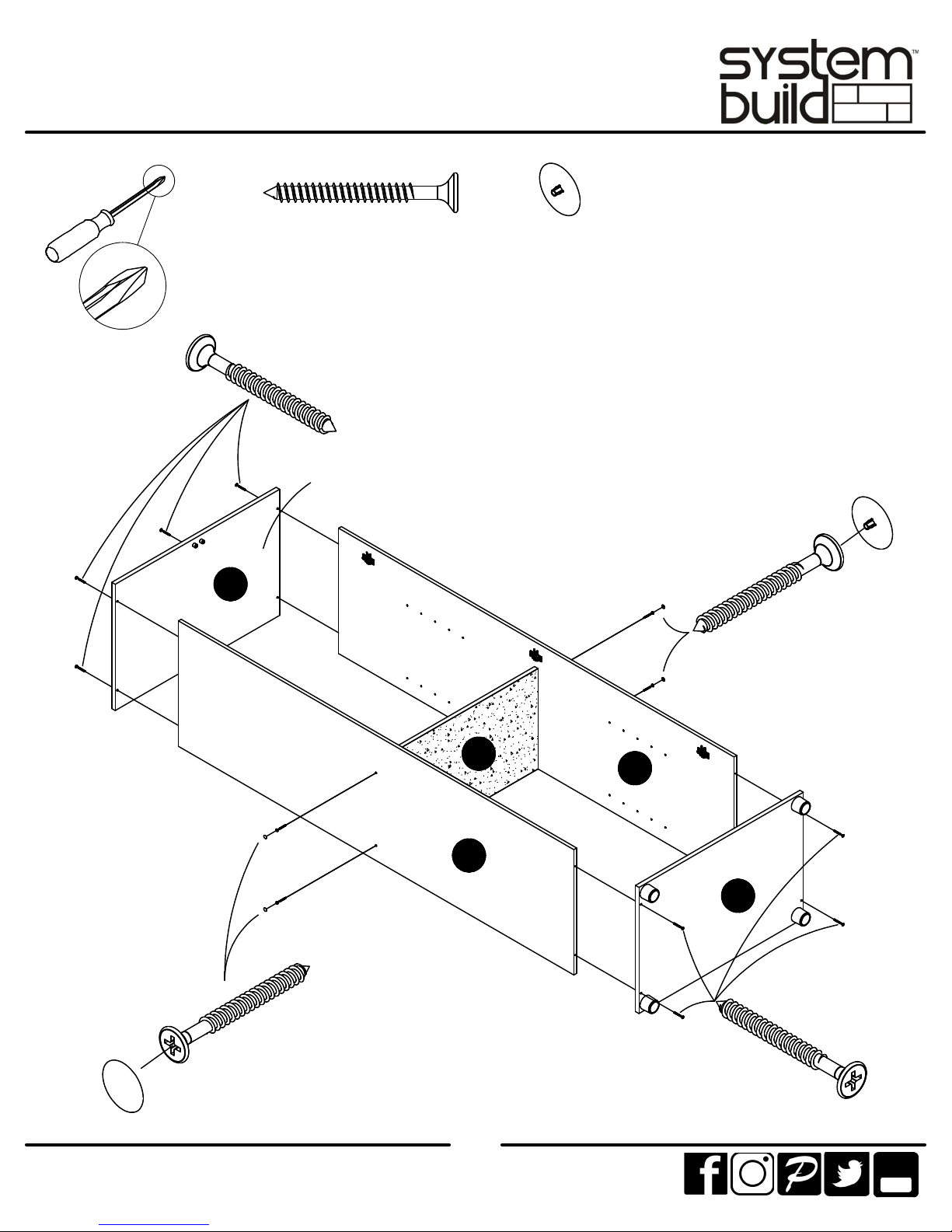

STEP3
C
E
A
A
D
All finished edges are to face up.
After assembly, press the screw caps onto the screws.
(x12)
#A13410
(x4)
#A24045
Tube
You
finished side
* raw edges are shaded

10
systembuild.com
STEP4
I
* raw edges are shaded
(x36)
#A21110
Assure that the unit is square.
Distance from corner to corner must be equal as shown.

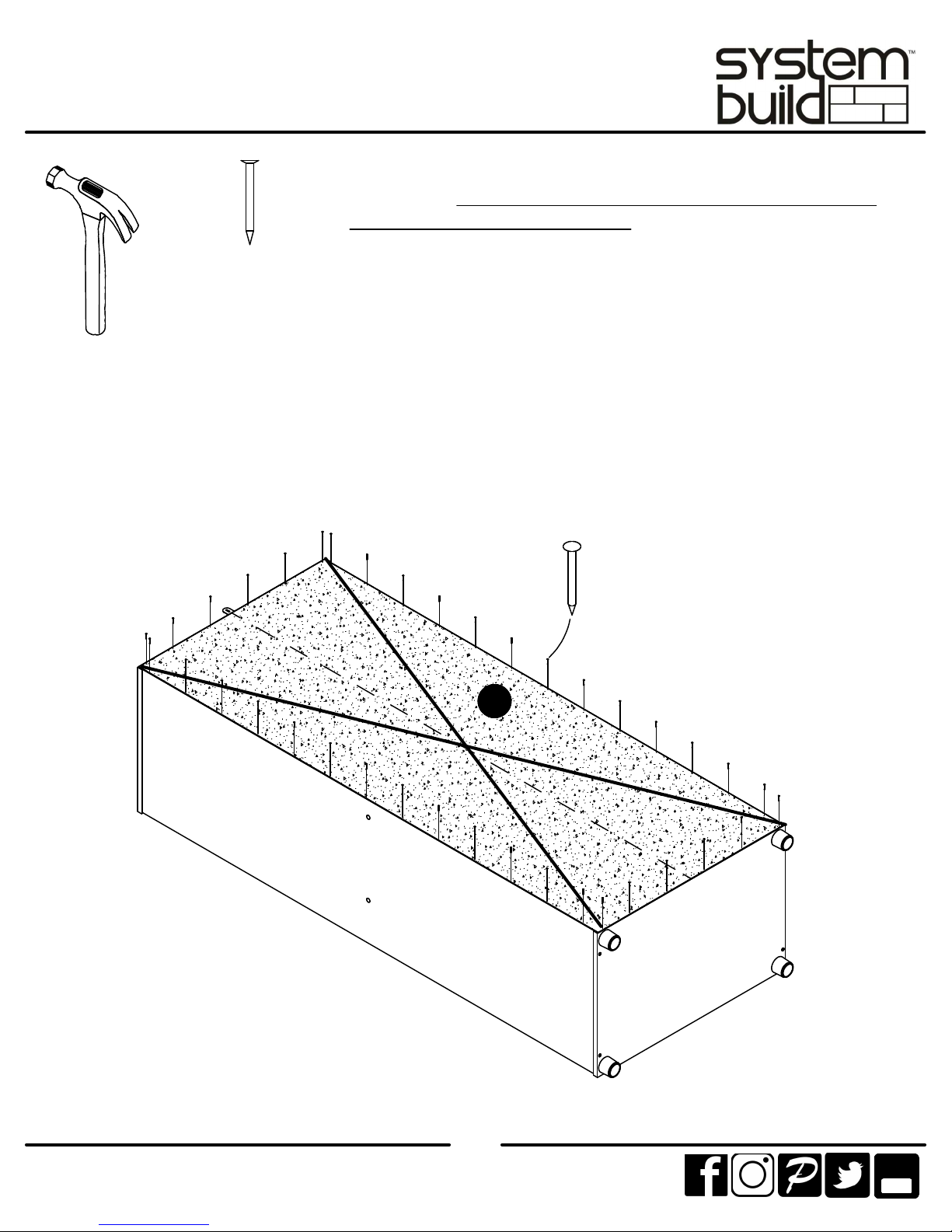

Attach the back panel as shown nailing straight into the raw edges.
IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT
AND MUST BE INSTALLED PROPERLY.
Carefully turn the unit onto its front.
Tube
You
