Tacony Simplicity S65 User manual

Owner’s Manual
S65

Getting Started
Important Safety Instructions 2
Description of the Vacuum 3
Assembling the Vacuum
Attaching the Wand and Floor Nozzles 4
Installing the Battery 5
Removing the Battery 5
Charging the Battery 5
Storing the Vacuum 6
Operating the Vacuum
On/Off Switch 7
2-Speed Switch 7
Attachment Cleaning
Carpet/Bare Floor Nozzle 8
Bare Floor Soft Nozzle 8
Pet Tool Turbo Brush 9
Crevice/Dusting Combo Tool 9
Upholstery Tool 9
Angle Adapter 9
Maintenance and Care
Emptying the Dust Cup 10
Removing and Replacing the Dust Cup (for Cleaning) 10
Replacing the Filter 11
Removing the Brushroll 12
Cleaning the Brushroll 13
Problem Solving Guide
Troubleshooting 14
How to Contact Your Authorized Retailer 14
Key Replacement Parts 14
For Best Performance 14
Warranty 15
CONTENTS

2
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions
should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS
APPLIANCE. FOR HOUSEHOLD USE ONLY.
IMPORTANT: The manufacturer cannot accept responsibility for damage
caused when the appliance is not used according to the instructions, or for uses other
than those for which it was intended.
WARNING: To reduce the risk of fire, electric shock, damage or injury:
• Fully assemble vacuum before operating.
• Use and store in a dry location.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Use only as described in this manual.
• Do not use charger with damaged cord
or plug. If appliance or charger is not
working as it should, has been dropped,
damaged, left outdoors, or dropped into
water, return it to an Authorized Retailer
for service.
• Do not pull or carry charger by cord, use
cord as a handle, close a door on the
cord, or pull cord around sharp edges or
corners. Do not run appliance over cord.
Keep cord away from heatedsurfaces.
• Do not unplug charger by pulling on cord.
To unplug charger, grasp the plug, not the
cord.
• Do not handle charger, including charger
plug, and charger terminals with wet
hands.
• Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair and anything that
may reduce air flow.
• Keep hair, loose clothing, fingers and all
parts of the body away from openings and
movingparts.
• Do not use pet tool on pets.
• Do not pick up anything that is burning or
smoking, such as cigarettes, matches or
hot ashes.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids such as gasoline or
use in areas where they may bepresent.
• Do not attempt to service the unit while
charger is plugged in.
• Do not charge the unit outdoors.
• Recharge only with the charger specified
by the manufacturer. A charger that is
suitable for one type of appliance may
create a risk of fire when used with
another appliance; Charger part # C240-
0900 from Simplicity, Use appliances only
with specifically designated battery packs.
Use of any other battery packs may create
a risk of injury and fire. Battery packpart #
C240-0100 from Simplicity.
• Do not open, crush, expose to heat above
100ºC (212ºF) or incinerate the battery
even if it is severely damaged. The battery
can explode in a fire.
• The appliance should be stored only in the
temperature range of -20-35°C and used
and charged only in the range of 0-40°C.
• Batteries must be disposed of responsibly.
Contact an Authorized Retailer for
information on battery disposal. To find
battery recycle pickup sites near you,
please visit www.call2recycle.org.
• Remove the battery before performing
any service on the vacuum.
• Under abusive conditions, liquid may be
ejected from the battery; avoid contact.
If contact accidentally occurs, flush with
water. If liquid contacts eyes, seek medical
help. Liquid ejected from the battery may
cause irritation or burns.
SAVE THESE INSTRUCTIONS

3
DESCRIPTION OF THE VACUUM
2
1
3
4
5
7
6
8
10
11
12
18
15
16
19
14
17
13
1 On/Off Switch
2 2-Speed Switch
3 Filter Release Knob
4 Battery Compartment
5 Dust Cup
6 Dust Cup Release Button
7 Wand Release Button
8 Metal Wand
9 Floor Nozzle Release Button
10 Nozzle Storage Hook
11 Carpet/Bare Floor Nozzle
12 Bare Floor Soft Nozzle
13 Angle Adapter
14 Crevice/Dusting Combo Tool
15 Pet Tool Turbo Brush
16 Upholstery Tool
17 Battery Charger
18 Storage/Charging Station
19 Storage Wall Mount
9

4
ASSEMBLING THE VACUUM
Attaching the Wand and
Floor Nozzles
NOTE: Do not operate the vacuum
until it is completely assembled.
The vacuum, floor nozzles, wand and
accessories are packed separately.
1. Connect the male end of the metal
wand to the vacuum body (Fig. 1).
2. Connect the female end of the metal
wand to either floor nozzle or tools
as required (Fig. 2).
3. Place the other tools on the Storage/
Charging Station (Fig. 3).
Fig. 2
Fig. 1
Fig. 3

5
ASSEMBLING THE VACUUM
Warning: The S65 battery included
can only be used with the S65 model as
intended.
Installing the Battery
Push the battery into the battery
compartment until it clicks into place
(Fig. 1).
Removing the Battery
Press the two battery release buttons
and pull the battery pack out of the main
body (Fig. 1).
Charging the Battery
The battery is partially charged and will
run for a short time.
1. Set the main body onto the
Storage/Charging Station, ensuring
the connection between points
on body with Storage/Charging
Station (Fig. 2).
2. Plug the battery charger into the
Storage/Charging Station and into
an electrical outlet (Fig. 3). The
indicator light on the battery will
be red while the battery is charging.
When the indicator light is blue, the
battery is fully charged (Fig. 4).
Charging time is approximately
4-5 hours.
3. Remove the battery charger from the
vacuum and begin vacuuming.
Battery Indicator Light
Solid Blue = Fully Charged
Solid Red = Low Battery
Fig.1
Fig.2
Fig.3
Fig.4

6
ASSEMBLING THE VACUUM
Storing the Vacuum
The vacuum body can be conveniently
stored on the Storage/Charging Station,
as well as the wand and cleaning tools
when not in use (Fig. 1).
Both floor nozzles have a storage hook
on the back for convenient storage on
the Storage/Charging Station (Fig. 2).
The vacuum can also be stored on the
wall mount for easy access. Attach the
mount to a wall for convenient storage
(Fig. 3). A template and screws are
provided to help you affix the wall
mount to the wall.
Fig. 1
Fig. 2
Fig. 3

7
On/Off Switch
To turn vacuum cleaner on or off, pull the
trigger switch inside the handle (Fig. 1).
2-Speed Switch
Low Speed
The vacuum automatically starts on low
speed for cleaning bare floors and rugs.
High Speed
Push the 2-speed switch on top of the
vacuum for high speed cleaning rugs and
carpet (Fig. 2). The switch will light up
blue.
NOTE: The vacuum has a slow start
feature and will take a moment to start
after you pull the trigger. This is normal.
Using the vacuum on high speeds reduces
the runtime of the battery. Runtimes may
vary based on floor surface, charge level
and age of battery.
OPERATING THE VACUUM
Fig. 1
Fig. 2

8
ATTACHMENT CLEANING
The vacuum is equipped with two floor
nozzle types.
Either nozzle can be attached to the end
of the wand for floor cleaning or directly
to the vacuum body to clean stairs or
small spaces.
Carpet/Bare Floor Nozzle
Ideal for cleaning carpets, rugs and bare
floors (Fig. 1).
Bare Floor Soft Nozzle
Ideal for all hard floor surfaces, wood,
vinyl and tile. Gently buffs while it cleans
(Fig. 2).
Fig. 1
Fig. 2

9
ATTACHMENT CLEANING
The vacuum is equipped with a pet
tool turbo brush, crevice/dusting combo
tool, upholstery tool and angle adapter.
Attach any of the tools onto the vacuum
body or the end of the wand (Fig. 1).
Pet Tool Turbo Brush
Ideal for removing pet hair from
upholstery and vehicles (Fig. 2).
NOTE: Do not use pet tool on pets.
Crevice/Dusting Combo Tool
Ideal for tight places, between seat
cushions or corners. Remove the
attachment to use as a crevice tool.
Add the attachment with brushes
exposed to use as a dusting brush.
Add the attachment with felt exposed
to use as upholstery tool (Fig. 3).
Upholstery Tool
Ideal for soft surfaces and furniture
(Fig. 4).
Angle Adapter
Attach to the end of the wand. Then
attach any tool for cleaning hard to
reach areas (Figs. 5 & 6)
Fig. 2
Fig. 4
Fig. 5 Fig. 6
Fig. 3
Fig. 1

10
MAINTENANCE AND CARE
NOTE: Always turn off the vacuum and
remove the battery before performing
any service.
Emptying the Dust Cup
1. Press the wand release button and
remove the wand from the main body.
2. Hold the dust cup over a trash container.
3. Push the dust cup release button to
release the bottom of the dust cup
(Fig. 1). The base will drop down and
the debris will fall into the trash
container.
4. Shake the dust cup to release any debris
that might be inside the dust cup.
5. When the dust cup is empty of debris,
firmly push the base onto the dust cup
until it clicks and is fully latched (Fig. 2).
Removing and Replacing the
Dust Cup (for Cleaning)
1. Turn the dust cup counter-clockwise
to line-up the arrows and remove from
the main body (Fig. 3).
2. Turn the internal cylinder clockwise to
remove from the main body (Fig. 4).
3. Rinse the dust cup and internal cylinder
with warm water and allow to dry
thoroughly before re-attaching to
the main body.
4. Replace the internal cylinder and dust
cup onto the main body. Fig. 3
Fig. 1
Fig. 4
Fig. 2

11
MAINTENANCE AND CARE
NOTE: Always turn off the vacuum and
remove the battery before performing
any service.
Replacing the Filter
1. Lift up the filter release knob and
remove the filter holder from the main
body (Fig. 1).
2. Turn the filter counter-clockwise to
remove from the filter holder (Fig. 2).
3. Replace with a new filter turning it
clockwise until it snaps into the filter
holder.
4. Replace the filter holder into the main
body (Fig. 3).
NOTE: Filter cannot be washed and reused.
Fig. 2
Fig. 1
Fig. 3

12
MAINTENANCE AND CARE
Removing the Brushroll
NOTE: Always turn off the vacuum and
remove the battery before performing
any service.
1. Remove the floor nozzle from the wand.
Turn the floor nozzle over (Fig. 1).
2. Use a coin or screwdriver to turn the
screw counter-clockwise (Fig. 2). Then
lift off the brushroll cover.
3. Remove the brushroll to clean.
4. Replace the brushroll then replace the
brushroll cover. Tighten the screw by
turning once clockwise.
5. Re-attach the floor nozzle to the wand
and continue to vacuum.
Fig. 1
Fig. 2

13
MAINTENANCE AND CARE

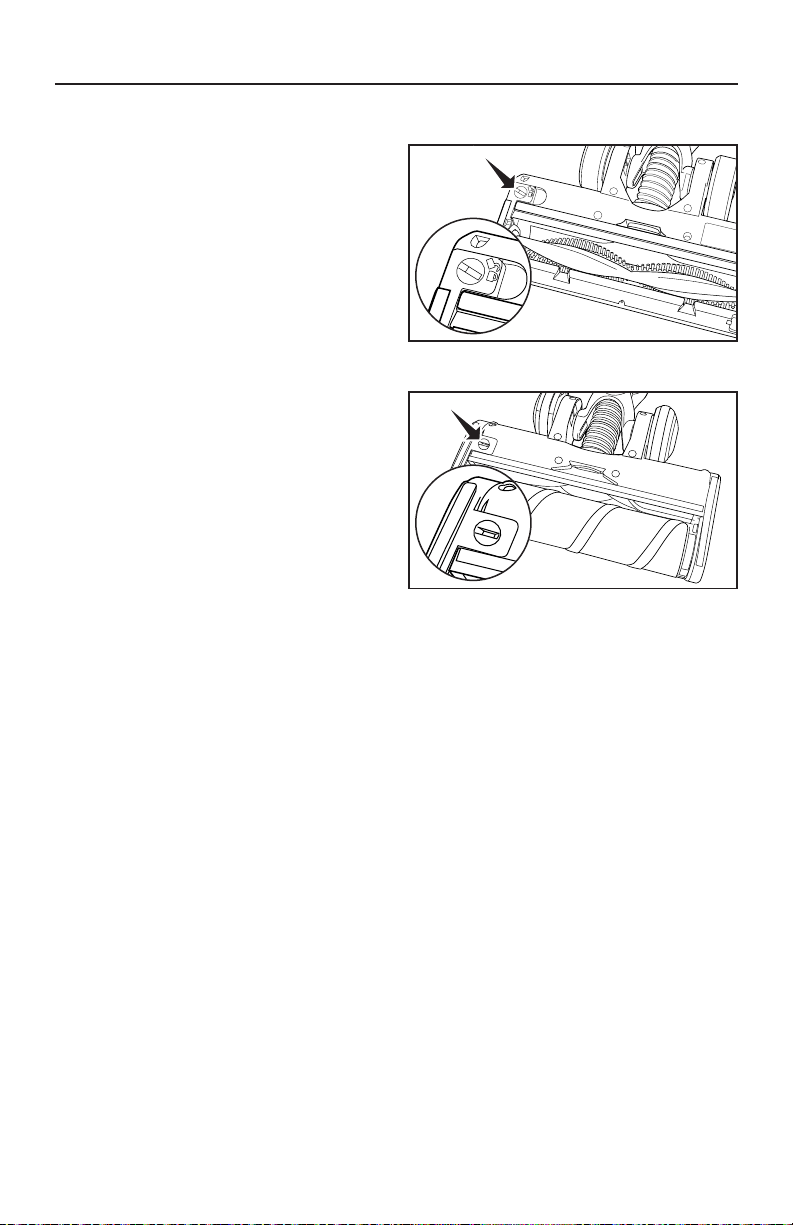

Cleaning the Brushroll
NOTE: Always turn off the vacuum and
remove the battery before performing
any service.
1. To maintain efficient cleaning, the
brushroll must be kept free of carpet
fiber, string, or hair buildup. After
every 7 to 10 uses, remove the battery
and turn the vacuum cleaner over
and check the brushroll for fiber and
hair buildup.
2. Use scissors to remove any buildup
entangled around the brushroll (Fig. 1). Fig. 1

14
PROBLEM SOLVING GUIDE
PROBLEM CHECK POINT POSSIBLE SOLUTION
Vacuum will
not operate
Battery charge Charge the battery
Battery installation Install battery correctly
Main body, wand and
floor nozzle connection
Assemble wand and floor nozzle
correctly to main body
Vacuum will
not pick-up
dirt or suction
power
is weak
Full or clogged dust cup Empty dust cup
Worn brushroll Replace brushroll
Clogged floor nozzle Check for clogs
Clogged wand Check for clogs
Wand not inserted fully
to body Insert wand fully to body
Dirty Filter Replace filter
Brushroll does
not turn Brushroll Clean the brushroll
Dirt escaping
from vacuum
Full or clogged dust cup Empty dust cup
Filter not installed
correctly Install filter correctly
Puncture in filter Replace filter
How to Contact Your Authorized Retailer
Any other service should be performed by an Authorized Retailer. To locate your nearest
Authorized Retailer, visit our website at SimplicityVac.com or call 888-974-6759.
Key Replacement Parts
• Genuine HEPA Media Filter: SF65
For Best Performance
• Keep machine and all accessories clean and in good operating condition.
• Empty dust cup frequently and clean or replace the filter routinely.
• Always use genuine filters and parts, as use of other products may result in poor
cleaning or filtration performance. Simplicity Vacuum filtration products are designed
for maximum performance.
• Store machine carefully in a dry area.
• For optimum cleaning performance and safety, follow your owner’s manual.
Troubleshooting
WARNING! To reduce the risk of electrical shock or injury from moving parts, turn off
the vacuum and remove battery before servicing or cleaning.
CAUTION! To reduce the risk of electric shock, do not handle plug or appliance with
wet hands.

15
WARRANTY
What is Covered:
This warranty covers any defects in material and workmanship in the vacuum and
applies exclusively to the original purchaser.
How Long Coverage Lasts:
Warranty coverage for this vacuum lasts one year. Household models used
commercially are only warranted for 90 days.
What is Not Covered:
• Damage to the vacuum which occurs from neglect, abuse, alterations, accident,
misuse or improper maintenance.
• Normal replacement items: disposable filters.
What We Will Do:
This warranty provides, at no cost to you, all labor and parts to keep this vacuum
in correct operating condition during the warranted period.
How to Get Service:
Warranty service can only be obtained by presenting the vacuum to an Authorized
Retailer. A proof-of-purchase and product serial number will be required before
service is rendered. To locate your nearest service center, please call 888-974-6759
or visit SimplicityVac.com.
THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ANY AND ALL OTHER WARRANTIES
WHETHER WRITTEN, ORAL, EXPRESSED OR IMPLIED, (INCLUDING ANY WARRANTY
OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE). THIS WARRANTY
DISCLAIMS LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.
How State Law Applies:
This warranty gives you specific legal rights, and you may also have other rights
which vary from state to state.
Owner’s Warranty Information (keep this for your records…)
Store Name
Store Address City State Zip
Telephone Date of Purchase
Serial Number Model Number
Register your warranty online at SimplicityVac.com

Manual del Usuario
S65
