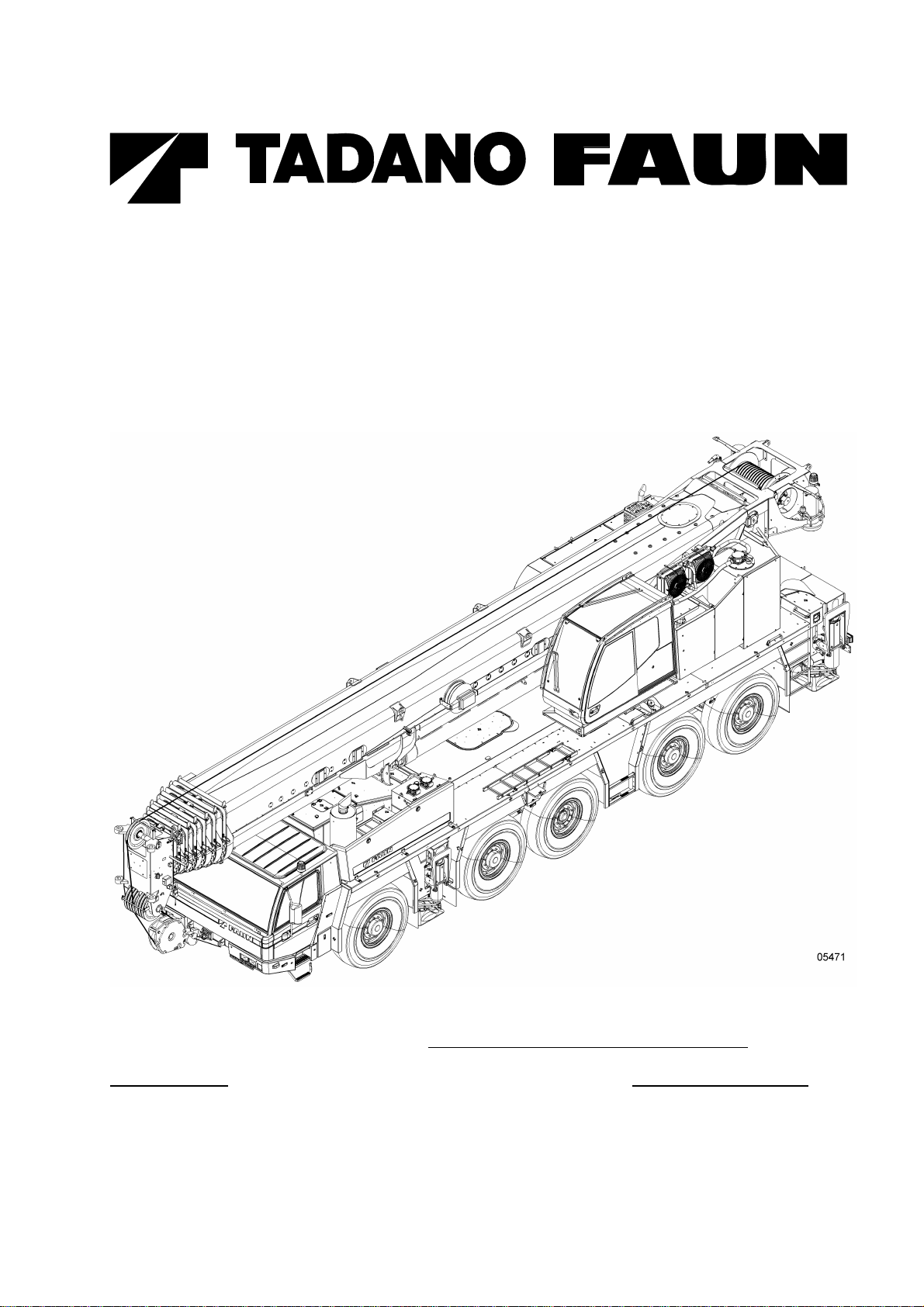

Tadano FAUN ATF 220G-5 Installation and user guide

Operating, Service and
Maintenance Manual
ATF 220G - 5
Vehicle identification no: WFN5 RUG R1 62036…
Manufacturer After-Sales Service:
FAUN GmbH
Postfach 10 01 08
D - 91205 Lauf a.d. Pegnitz
Phone: [phone] - 0
Fax: [phone]
TX: 62 29 90
TADANO FAUN GmbH
Postfach 10 02 64
D - 91205 Lauf a.d. Pegnitz
Phone: [phone] - 0
Fax: [phone]
TX: 62 29 90

0010_EN_FA036_K_00_00_00_FA029
Dear Customer,
We have gone to great lengths to provide the conditions for a long
service life of your FAUN crane.
High-grade coatings, multi-layer paint systems and high-performance
application procedures with a high process reliability characterize the
excellent visual appearance of our FAUN cranes. Service and upkeep
are indispensable to maintain this finish:
1. Paint takes some time to develop its maximum resistance. Thus,
please do not clean your crane with excessively hot water, nor
with excessive water pressure during the first 8 weeks. Avoid
steam-jet units.
2. When using the crane on construction sites, when loading it with
load take-up equipment and wooden planks, damage to the
paint is inevitable. Such damage will result in corrosion or rust
and must therefore be repaired in an expert fashion without de-
lay.
3. Damage may also be caused by stone impact during travel. This
also requires immediate action.
4. The paintwork is also vulnerable to weather conditions and thaw-
ing salt. Thus, regular cleaning of the crane and preservation of
connectors, welts and screw couplings is necessary.
Customer satisfaction is our aim !

0015_EN_ALLGE_I_00_00_00
