Note : Dimension is with boom angle at -1.5degree.
( ) Reference dimensions in mm.
Feet Meters
Turning radius
6 wheel steer 32'6" 9.9
2 wheel steer 48'11" 14.9
Specifications are subject to change without notice.
GENERAL DIMENSIONS
(26.5R25☆☆ Tires)
160 Ton Capacity (145 Metric Tons)
HYDRAULIC ROUGH TERRAIN CRANE
DIMENSIONS
GR-1600XL-2
Self-removable counterweight
Self-removable outriggers
- 1 -

CRANE SPECIFICATIONS
BOOM
WIRE ROPE
- Non-rotating 3/4"(19mm) 7X35 class.
Six sections extended by single telescoping cylinder,
Breaking Strength 79,400lbs(36,000kg)
42.8'~200.0' (13.1m~61.0m), of round box construction
with 7 sheaves, 15-3/4" (0.400m) root diameter, at boom head.
HOOK BLOCKS
Two easily removable wire rope guards, rope dead end provided on
7.9 ton (7.2 metric ton) - Weighted hook with swivel and
both sides of boom head. Boom telescope sections are supported
safety latch, for 3/4"(19mm) wire rope(OPTIONAL).
by wear pads both vertically and horizontally.
Extension speed 157.3’ in 450 seconds.
HYDRAULIC SYSTEM
PUMPS
- Two variable piston pumps for crane functions.
Tandem gear pump for steering, swing and optional equipment.
BOOM ELEVATION
- By a double acting hydraulic cylinder
Powered by carrier engine. Pump disconnect for crane is
with holding valve. Elevation -1.5
o
~81.5
o
, combination controls for engaged/ disengaged by rotary switch fromoperator's cab.
hand or foot operation. Boom angle indicator.
Automatic speed reduction and slow stop function.
CONTROL VALVES
- Multiple valves actuated by pilot
Boom raising speed 20
o
to 60
o
in 28 seconds.
pressure with integral pressure relief valves.
JIB
- Two stage bi-fold lattice type, offset angle (5°-40°) by tilt
RESERVOIR
- 202 gallon (763 lit.) capacity. External sight
cylinder.
level gauge.
Single sheave, 17-5/16" (0.440m) root diameter, at the head of both
jib sections. Stowed alongside base boom section. Jib length is
FILTRATION
- BETA10=10 return filter, full flow with bypass
33.8' (10.3m) or 59.1' (18.0m). Assistant cylinders for mounting
protection, located inside of hydraulic reservoir. Accessible for
and stowing, controlled at right side of superstructure.
easy replacement.
Self stowing jib mounting pins.
OIL COOLER
- Air cooled fan type.
AUXILIARY LIFTING SHEAVE
(SINGLE TOP)
Single sheave,17-5/16" (0.440m) root diameter. Mounted to main
boom head for single line work (stowable).
CAB AND CONTROLS
ANTI-TWO BLOCK
DEVICE
- Pendant type over-winding cut out
Both crane and drive operations can be performed from one
device with audio-visual (FAILURE lamp/BUZZER) warning system.
cab mounted on rotating superstructure.
SWING
15
o
tilt, Left side, 1 man type, steel construction with sliding door
Hydraulic axial piston motor through planetary swing
access and safety glass windows opening at side. Door
speed reducer. Continuous 360
o
full circle swing on ball bearing
window is powered control. Windshield glass window and roof
turn table at 1.3min
-1
{rpm}. Equipped with manually locked/released
glass window are shatter-resistant. Tilt-telescoping steering
swing brake. A 360
o
positive swing lock manually engaged in cab.
wheel. Adjustablecontrol lever stands for swing, boom hoist,
Twin swing system: Free swing or lock swing controlled by
boom telescoping, auxiliary hoist and main hoist. Control lever
selector switch on front console.
stands can change neutral positions and tilt for easy access to
cab. 3 way adjustable operator's seat with high back, headrest
COUNTERWEIGHT
and armrest. Engine throttle knob. Foot operated controls:
boom elevating boom telescoping, service brake and engine throttle.
STANDARD
Hot water cab heater and air conditioning.
40,100lbs (18.2t) section. Hydraulically installed and removed.
Dash-mounted engine start/stop, monitor lamps, cigarette
OPTIONAL WEIGHT
lighter, drive selector switch, parking brake switch, steering
Additional 24,500lbs (11.1t) insert for a total of 64,600lbs (29.3t).
mode select switch, power windowswitch, pump engaged/
disengaged switch, swing brake switch, telescoping/auxiliary
HOIST
hoist select switch, outrigger controls, free swing / lock swing
selector switch, eco mode switch, high speed hoist (main/aux)
MAIN HOIST
- Variable speed type with grooved drum driven
switch and ashtray.
by hydraulic axial piston motor through speed reducer.
Power load lowering and raising. Equipped with automatic
Instruments - Torque converter oil temperature, engine water
brake (neutral brake) and counterbalance valve. Controlled
temperature, air pressure, fuel, speedometer, tachometer,
independently of auxiliary hoist. Equipped with cable follower
hour meter and odometer / tripmeter. Hydraulic oil pressure is
and drum rotation indicator.
monitored and displayed on the AML-C display panel.
DRUM
- Grooved15" (0.382m) root diameter x 29-1/4"
(0.742m) wide. Wire rope: 1050' of 3/4"diameter rope (320mof
19mm). Drum capacity: 1293' (394m) 7 layers. Maximum single line
pull:1st layer 21,800lbs (9,900kg).Maximum permissible line pull
wire strength: 15,900lbs (7,200kg).
AUXILIARY HOIST
- Variable speed type with grooved drum
driven by hydraulic axial piston motor through speed reducer.
Power load lowering and raising. Equipped with
automatic brake (neutral brake) and counterbalance valve.
Controlled independently of main hoist. Equipped with cable
follower and drum rotation indicator.
DRUM
- Grooved15" (0.382m) root diameter x 29-1/4"
(0.742m) wide. Wire rope: 738' of 3/4"diameter rope (225m of
19mm). Drum capacity: 1293' (394m) 7 layers. Maximum single line
pull:1st layer 21,800lbs (9,900kg).Maximum permissible line pull
wire strength: 15,900lbs (7,200kg).
- 2 -

Tadano electronic LOAD MOMENT INDICATOR system
TADANO AML-C monitors outrigger extended length and
(AML-C) including:
automatically programs the corresponding "RATED LIFTING
h
Control lever lockout function with audible and visual
CAPACITIES" table
pre-warning
h
Boom position indicator
Operator's right hand console includes transmission gear
h
Outrigger state indicator
selector and sight level bubble. Upper console includes
h
Boom angle / boom length / jib offset angle / jib length / load
working light switch, roof washer and wiper switch
radius / rated lifting capacities / actual loads read out
emergency outrigger set up key switch,
h
Ratio of actual load moment to rated load moment
jib equipped/removed select switch, eco mode switch,
indication
high speed hoist (main / aux) switch,
h
Automatic Speed Reduction and Slow Stop function
boom emergency telescoping switch (2nd and 3rd
･
4th
・
top)
on boom elevation and swing
and air conditioning control switch. Swing lock lever.
h
Working condition register switch
h
Load radius / boom angle / tip height / swing range
NOTE:
Each crane motion speed is based on unladen
preset function
conditions.
h
External warning lamp
h
Tare function
h
Fuel consumption monitor
h
Main hoist / auxiliarly hoist select
h
Drum rotation indicator (audible and visible type) main and
auxiliary hoist
CARRIER SPECIFICATIONS
TYPE
- Rear engine, left hand steering, driving axle 2-way
SUSPENSION
- 1st: Rigid mounted to frame. 2nd and 3rd:
selected type by manual switch, 6x2 1st drive, 6x4 1st and "Hydro-Pneumatic suspension cylinders" with levering adjustment and
3rd drive.
oscillation.
FRAME
- High tensile steel, all welded mono-box construction.
BRAKE SYSTEMS
- Service: Air over hydraulic disc brakes on
all 6 wheels. Parking/Emergency: Spring applied-air released
TRANSMISSION
- Electronically controlled full automatic
brake acting on input shaft of 1st and 3rd axle. Auxiliary: Electro-
transmission. Torque converter driving full powershift with
pneumatic operated exhaust brake.
driving axle selector. 5 forward and 2 reverse speeds, constant
mesh.
TIRES
- 26.5R25
☆☆
Air pressure:94psi(650kPa)
2 speeds - high range - 2 wheel drive; 4 wheel drive
3 speeds - lowrange - 4 wheel drive
OUTRIGGERS
- Four hydraulic, beamand jack outriggers.
Vertical jack cylinders equipped with integral holding valve. Each
TRAVEL SPEED
- 9.3 mph (15 km/h) with counterweight
outrigger beam and jack is controlled independently fromcab.
2.5 mph (4 km/h) without counterweight
Beams extend to 26'10-7/8" (8.2 m) center-line and retract to
within 10' 10-1/2" (3.315 m) overall width with floats.
AXLE
-
1st: Full floating type, steering and driving axle with planetary
Outrigger boxes are self-removable for ease of transportation.
reduction and open differential. 2nd: Steering and not driving axle.
Outrigger jack floats are attached thus eliminating the need of manually
3rd: Full floating type, steering and driving axle with planetary
attaching and detaching them. Controls and sight bubble located
reduction and open differential.
in superstructure cab. Four outrigger extension lengths are
provided with corresponding "RATED LIFTING CAPACITIES" for
STEERING
- Hydraulic power steering controlled by steering
crane duty in confined areas.
wheel. Four steering modes available: 2 wheel front, 4 wheel
Min. Extension
9' 9-3/4"(2.99m) center to center
rear, 6 wheel coordinated and 6 wheel crab .
Mid. Extension
18' 1/2"(5.50m) center to center
Mid. Extension
23'11-3/8"(7.30m) center to center
Max. Extension
26'10-7/8"(8.20m) center to center
Float size(Diameter)
1'10-1/2" (0.57m)
ENGINE
Model
Mitsubishi 6M60-TLA3B (Tier3)
Radiator
Fin and tube core, thermostat controlled
Type
Direct injection diesel
Fan, in.(mm)
Suction type, 6-blade, 23.6 (600) dia.
No. of cylinders
6
Starting
24 volt
Combustion
4 cycle, turbo charged and after cooled
Charging
24 volt system, negative ground
BoreXStroke, in.(mm)
4.646 X 4.528 (118X115)
Battery
2-120 amp. Hour
Displacement, cu. in (liters)
460 (7.54)
Compressor, air, CFM(l /min)
29 CFM (830) at 2,600rpm
Air inlet heater
24 volt preheat
Output, Max. HP(kW)
Gross 267 (200) at 2,600rpm
Air cleaner
Dry type, replaceable element
Torque, Max. ft-lb (Nm)
579 (785) at 1,400rpm
Oil filter
Full flow with replaceable element
Capacity, gal.(liters)
Fuel filter
Full flow with replaceable element
Cooling water
3.4 (13)
Fuel tank, gal.(liters) 79.2 (300), right side of carrier Lubrication 3.4 ~ 4.0 (13 ~ 15)
Cooling Liquid pressurized, recirculating by-pass Fuel 79.2 (300)
- 3 -

-
Sixsection extended boom by single telescoping cylinder
-
Tadano electronic load moment indicator system (AML-C)
42.8'~200.0' (13.1m~61.0m)
-
Tare function
-
33.8' (10.3m) or 59.1' (18.0m) bi-fold lattice jib, offset
-
Boom angle indicator
angle (5°-40°) by tilt cylinder.
-
Outrigger extension length detector
-
Quick reeving type bi-fold jib
-
Electronic crane monitoring system
-
Anti-Two block device (overwind cutout)
-
Rear view mirrors (right and left side)
-
Mirror for main and auxiliary hoists
-
Fenders
-
Work lights
-
Air dryer
-
Variable speed main hoist with grooved drum, cable follower
-
Complete highway light package
and 1050' of 3/4" (320m of 19mm) cable.
-
Towing hooks-Front and rear
-
Variable speed auxiliary hoist with grooved drum, cable
-
Hook block tie down (front bumper)
follower and 1293' of 3/4" (225m of 19mm) cable.
-
Weighted hook storage compartment
-
Drum rotation indicator (audible,visible and thumper type) main
-
Halogen head lamp
and auxiliary hoist
-
Self-removable outrigger boxes
-
Auxiliary lifting sheave (single top) stowable
-
Independently controlled outriggers
-
2-speed hoist
-
Four outrigger extension positions
-
Tadano twin swing system and 360
o
positive swing lock
-
Self-storing outrigger pads
-
Positive control
-
Electronic controlled automatic transmission driven
-
Hydraulic oil cooler
by torque converter
-
15
o
tilt cab
-
6 X 4 X 6 drive/steer
-
3 way adjustable cloth seat with armrests, high back
-
1st axle: open differential
and seat belt
-
3rd axle: open differential
-
Tilt-telescoping steering wheel
-
Automatic rear axle oscillation lockout system
-
Tinted safety glass and sun visor
-
26.5R25
☆☆
tires
-
Front windshield wiper and washer
-
Disc brakes
-
Roof window wiper and washer
-
Water separator with filter(high filtration)
-
Power window (cab door )
-
Back-up alarm
-
Cigarette lighter and ashtray
-
24 volt electric system
-
Cab floor mat
-
Tool storage compartment
-
Pump disconnect in operator's cab
-
Tire inflation kit
-
Air conditioner (hot water heater and cooler)
-
Mitsubishi 6M60-TLA3B turbo charged after cooled engine
-
Full instrumentation package
(267HP) with exhaust brake
-
Self centering finger control levers with pilot control
-
Engine over-run alarm
-
Control pedals for boom elevating and boom telescoping
-
Lifting eyes
-
Low oil pressure/high water temp. warning device (visual)
-
Telematics(machine data logging and monitoring system)
-
2nd and 3rd steer centering light
with HELLO-NET via internet
-
Air cleaner dust indicator
(availability depends on countries)
-
Fuel consumption monitor
-
Eco mode system
-
Self-removable counterweight
-
Additional weight 24,500lbs (11.1t)
-
Boom and jib mounted aircraft warning light
-
Removable boom system
-
Wind speed indicator
-
7.9 ton (7.2 metric ton) hook with swivel
-
Emergency steering system
-
Working lamp with remort controller
-
Over-unwinding prevention
LINE SPEEDS AND PULLS
DRUM WIRE ROPE CAPACITIES
F.P.M
m/min
F.P.M
m/min
Lbs.
kgf
Feet
Meters
Feet
Meters
253
77
354
108
21,800
9,900
147.0
44.8
147.0
44.8
276
84
384
117
19,900
9,010
159.4
48.6
306.4
93.4
299
91
413
126
18,200
8,270
172.2
52.5
478.7
145.9
318
97
446
136
16,800
7,640
184.7
56.3
663.4
202.2
341
104
476
145
15,600
7,090
197.2
60.1
860.6
262.3
361
110
505
154
14,600
6,620
209.6
63.9
1070.2
326.2
384
117
535
163
13,700
6,210
222.1
67.7
1292.3
393.9
-
Maximum permissible line pull wire strength
15,900lbs (7,200kg) with 7X35 class rope.
DRUM DIMENSIONS
Inch
mm
1
Linespeeds based only on hook block, not loaded.
15
382
2
Developed by machinery with each layer of wire rope, but not based
29-1/4
742
on ropestrength or other limitation in machinery or equipment.
26-5/8
677
3
Seventh layer of wire rope are not recommended
for hoisting operations.
Main and auxiliary drum grooved lagging
3/4" (19mm) wire rope
Rope per layer
Total wire rope
STANDARD EQUIPMENT
OPTIONAL EQUIPMENT
Layer
Low
High
Low
Line pulls Available
2
Main or auxiliary hoist -
15"(0.382m)drum
5
2nd
5th
Wire
rope
layer
1st
Length
Flangediameter
6
HOISTING PERFORMANCE
7
4
7th
3
4th
Line speeds
1
1
Rootdiameter
6th
3rd
2
3
- 4 -

GR-1600XL WORKING RANGE CHART
- 5 -

GR-1600XL WORKING RANGE CHART
- 6 -

GR-1600XL RATED LIFTING CAPACITIES(IN POUNDS)
COUNTERWEIGHT 64,600lbs(29.3t)
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8''(8.20m) SPREAD
360
o
ROTATION
42.8'
57.2'
71.6'
86.1'
100.5'
114.9'
129.3'
143.7'
158.1'
172.5'
187.0'
200.1'
(13.1m)
(17.4m)
(21.8m)
(26.2m)
(30.6m)
(35.0m)
(39.4m)
(43.8m)
(48.2m)
(52.6m)
(57.0m)
(61.0m)
8'
*320,000
200,000
174,200
10'
241,800
200,000
174,200
127,000
12'
218,000
200,000
174,200
145,500
15'
187,200
182,800
174,200
145,500
111,800
20'
148,400
148,800
145,500
138,700
106,300
84,700
57,300
25'
121,500
122,400
122,800
120,800
106,300
77,600
66,400
48,700
30'
101,000
102,500
102,700
102,100
97,700
77,600
61,100
52,700
37,900
35'
48,700
85,100
85,300
84,700
86,200
74,700
54,900
48,900
41,700
33,100
45'
64,200
62,400
64,200
63,300
63,500
46,700
43,000
37,700
33,100
26,500
22,900
50'
54,700
56,200
55,600
57,100
43,900
39,200
35,500
32,000
26,500
22,900
60'
45,400
44,300
46,100
45,200
38,800
33,500
31,100
28,400
26,000
22,900
65'
41,000
41,400
40,300
36,600
31,100
28,900
26,900
24,700
22,700
75'
32,600
33,500
32,600
33,100
27,100
24,900
24,000
22,300
20,500
80'
30,200
29,500
30,400
25,400
23,600
22,500
21,200
19,600
90'
23,600
26,000
24,700
22,500
21,200
19,800
19,200
17,600
95'
23,800
22,500
21,400
20,100
18,700
18,100
16,500
105'
18,500
18,700
19,000
18,100
17,000
16,300
14,800
110'
17,200
17,900
16,800
16,300
15,700
14,100
120'
12,800
15,200
14,100
15,000
13,900
12,600
125'
14,100
13,400
13,700
12,800
11,900
130'
13,000
12,800
12,600
11,700
11,200
140'
11,500
10,800
9,700
9,700
145'
10,600
9,900
9,000
9,000
155'
8,400
7,500
7,500
160'
7,900
6,800
6,600
170'
5,500
5,500
175'
4,900
4,900
180'
4,400
185'
3,700
*Over front with special Equipment
A
:Boom length in feet
B
:Load radius in feet
NOTE: The lifting capacity data stowed in the LOAD MOMENT INDICATOR (AML-C) is based on the standard
number of parts of line listed in the chart.
A
B
- 7 -

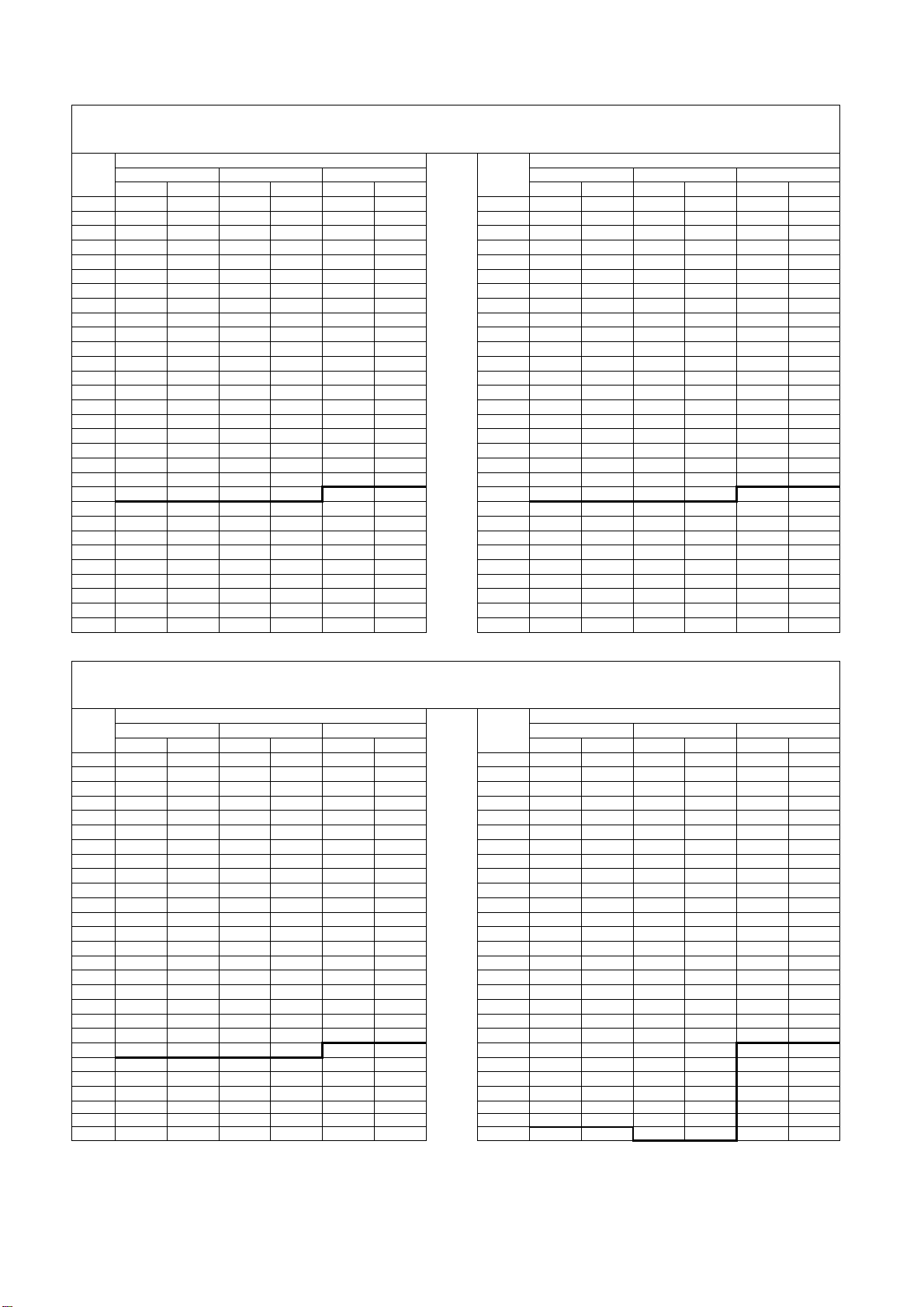

R W R W R W R W R W R W
81.5 48.2' 12,100 57.1' 12,100 66.9' 11,200 81.5 42.3' 13,700 51.5' 13,700 61.4' 12,800
81 51.2' 12,100 61.0' 12,100 69.2' 11,000 81 44.9' 13,700 54.1' 13,700 63.3' 12,600
80 56.4' 12,100 65.3' 11,900 74.1' 10,800 80 49.9' 13,700 58.7' 13,400 67.6' 12,100
79 61.7' 12,100 69.6' 11,500 78.7' 10,400 79 54.8' 13,700 63.3' 13,000 71.9' 11,900
78 67.3' 12,100 74.1' 11,000 82.7' 10,100 78 59.7' 13,700 67.6' 12,600 75.5' 11,500
77 71.9' 11,900 80.1' 10,800 86.9' 9,900 77 64.3' 13,700 71.9' 12,300 79.7' 11,200
76 76.4' 11,500 83.0' 10,400 91.2' 9,700 76 68.2' 13,200 76.1' 11,900 83.3' 10,800
75 80.4' 11,000 87.6' 10,100 94.8' 9,300 75 72.5' 12,800 79.7' 11,500 87.3' 10,600
73 89.6' 10,600 96.1' 9,700 103.0' 8,800 73 80.7' 11,900 87.9' 10,800 94.8' 10,100
70 102.0' 9,500 108.0' 8,800 114.0' 8,400 70 92.5' 11,000 99.4' 10,100 105.0' 9,500
68 110.0' 9,000 116.0' 8,400 121.0' 7,900 68 100.0' 10,400 106.0' 9,500 112.0' 9,000
65 122.0' 8,400 127.0' 7,900 132.0' 7,500 65 111.0' 9,500 117.0' 8,800 122.0' 8,400
63 129.0' 7,900 134.0' 7,500 138.0' 7,300 63 118.0' 9,300 124.0' 8,600 128.0' 8,200
60 139.0' 7,300 144.0' 6,800 148.0' 6,600 60 128.0' 8,600 133.0' 8,200 137.0' 7,700
58 146.0' 6,800 151.0' 6,600 154.0' 6,400 58 135.0' 8,200 139.0' 7,700 143.0' 7,500
55 155.0' 6,200 159.0' 6,000 163.0' 6,000 55 144.0' 7,700 148.0' 7,300 151.0' 7,100
53 161.0' 6,000 165.0' 5,700 168.0' 5,500 53 150.0' 7,300 154.0' 7,100 156.0' 6,800
50 169.0' 5,300 173.0' 5,100 175.0' 4,900 50 158.0' 6,800 161.0' 6,400 164.0' 6,400
48 175.0' 4,900 178.0' 4,600 180.0' 4,600 48 163.0' 6,400 166.0' 6,200 168.0' 6,000
45 182.0' 4,400 185.0' 4,200 186.0' 4,200 45 170.0' 5,700 173.0' 5,500 174.0' 5,500
43 187.0' 4,000 190.0' 4,000 43 174.0' 5,300 177.0' 5,300
40 193.0' 3,500 195.0' 3,300 40 180.0' 4,900 183.0' 4,600
38 197.0' 3,100 199.0' 2,900 38 184.0' 4,400 186.0' 4,200
35 202.0' 2,400 204.0' 2,400 35 190.0' 3,700 191.0' 3,500
33 206.0' 2,200 207.0' 2,000 33 193.0' 3,500 194.0' 3,300
30 210.0' 1,800 30 198.0' 2,900 198.0' 2,900
28 28 200.0' 2,600 201.0' 2,600
25 25 204.0' 2,400 203.0' 2,200
23 23 206.0' 2,200
20 20 208.0' 2,000
R W R W R W R W R W R W
81.5 37.1' 15,900 46.9' 15,900 57.1' 15,000 81.5 29.2' 23,400 37.1' 16,100
81 39.4' 15,900 49.2' 15,900 59.1' 14,800 81 30.5' 23,100 38.4' 15,900
80 44.0' 15,900 53.5' 15,900 63.0' 14,300 80 33.1' 22,500 41.0' 15,700
79 48.6' 15,900 57.7' 15,400 66.6' 13,900 79 35.8' 22,000 43.3' 15,400
78 52.8' 15,900 61.7' 15,000 70.2' 13,400 78 39.0' 21,400 45.9' 15,200
77 57.4' 15,900 65.3' 14,600 73.8' 13,000 77 41.3' 20,900 48.6' 15,200
76 61.7' 15,900 69.2' 14,100 77.4' 12,800 76 43.6' 20,500 50.9' 15,000
75 64.3' 15,200 73.2' 13,700 80.7' 12,300 75 38.7' 28,200 46.3' 20,100 53.1' 14,800
73 72.2' 14,300 80.1' 12,800 87.6' 11,900 73 44.0' 26,900 51.2' 19,200 57.7' 14,300
70 84.3' 13,000 90.6' 11,900 97.1' 11,000 70 51.2' 24,900 58.7' 18,100 64.6' 13,900
68 91.5' 12,300 97.8' 11,500 104.0' 10,600 68 56.4' 23,800 63.3' 17,400 68.9' 13,700
65 102.0' 11,500 107.0' 10,600 113.0' 9,900 65 63.3' 22,300 70.2' 16,800 75.1' 13,400
63 109.0' 11,000 114.0' 10,100 118.0' 9,700 63 67.9' 21,200 74.8' 16,300 79.4' 13,200
60 118.0' 10,100 123.0' 9,700 127.0' 9,300 60 74.8' 19,800 81.4' 15,700 85.3' 13,000
58 124.0' 9,700 129.0' 9,300 133.0' 8,800 58 79.1' 19,200 85.3' 15,200 89.2' 12,800
55 133.0' 9,000 137.0' 8,600 140.0' 8,400 55 85.3' 18,100 91.5' 14,800 94.8' 12,600
53 138.0' 8,600 142.0' 8,400 145.0' 7,900 53 89.2' 17,400 95.1' 14,300 98.1' 12,600
50 146.0' 8,200 149.0' 7,700 151.0' 7,500 50 95.1' 16,800 101.0' 14,100 103.0' 12,600
48 151.0' 7,700 154.0' 7,300 156.0' 7,100 48 99.0' 16,300 104.0' 13,900 106.0' 12,300
45 157.0' 7,100 160.0' 6,600 162.0' 6,600 45 104.0' 15,700 109.0' 13,400 111.0' 12,300
43 162.0' 6,600 164.0' 6,400 43 107.0' 15,400 112.0' 13,400
40 168.0' 6,000 170.0' 5,700 40 112.0' 15,000 116.0' 13,200
38 171.0' 5,500 173.0' 5,300 38 115.0' 14,600 119.0' 13,000
35 176.0' 4,900 178.0' 4,600 35 120.0' 14,300 123.0' 13,000
33
179.0'
4,400
181.0'
4,200
33
122.0'
14,100
125.0'
12,800
30
183.0'
3,700
185.0'
3,700
30
126.0'
13,900
129.0'
12,800
28
186.0'
3,500
187.0'
3,300
28
128.0'
13,200
131.0'
12,800
40
o
Tilt
360
o
ROTATION
C172.5'(52.6m) Boom + 33.8'(10.3m) Hydraulic offset jib C114.9'(35.0m) Boom + 33.8'(10.3m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
GR-1600XL RATED LIFTING CAPACITIES(IN POUNDS)
COUNTERWEIGHT 64,600lbs(29.3t)
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
360
o
ROTATION
C200.1'(61.0m) Boom + 33.8'(10.3m) Hydraulic offset jib C187.0'(57.0m) Boom + 33.8'(10.3m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
40
o
Tilt
COUNTERWEIGHT 64,600lbs(29.3t)
- 8 -

R W R W R W R W R W R W
81.5 56.1' 8,200 72.2' 8,200 88.9' 7,100 81.5 47.9' 8,800 65.6' 8,800 81.0' 7,300
81 59.1' 8,200 74.5' 8,200 91.9' 7,100 81 49.2' 8,800 68.2' 8,800 83.7' 7,300
80 65.3' 8,200 81.0' 8,200 97.1' 6,800 80 56.4' 8,800 73.8' 8,800 88.6' 7,100
79 70.9' 8,200 86.3' 8,200 102.0' 6,800 79 61.7' 8,800 78.1' 8,600 92.8' 7,100
78 76.8' 8,200 91.5' 7,900 107.0' 6,600 78 66.6' 8,800 83.3' 8,400 97.4' 7,100
77 82.0' 8,200 96.1' 7,700 112.0' 6,600 77 71.9' 8,800 87.6' 8,200 102.0' 6,800
76 87.9' 8,200 101.0' 7,500 116.0' 6,600 76 77.1' 8,800 92.5' 7,900 106.0' 6,800
75 93.5' 8,200 106.0' 7,300 119.0' 6,400 75 82.0' 8,800 97.1' 7,900 110.0' 6,600
73 103.0' 7,700 115.0' 6,800 129.0' 6,200 73 92.2' 8,800 106.0' 7,700 118.0' 6,600
70 117.0' 7,100 128.0' 6,400 140.0' 5,700 70 106.0' 8,200 119.0' 7,300 129.0' 6,400
68 126.0' 6,800 135.0' 6,000 147.0' 5,500 68 114.0' 7,700 127.0' 7,100 137.0' 6,200
65 138.0' 6,200 149.0' 5,700 158.0' 5,300 65 126.0' 7,300 138.0' 6,600 147.0' 6,200
63 147.0' 6,000 156.0' 5,500 165.0' 5,100 63 135.0' 7,100 146.0' 6,400 154.0' 6,000
60 159.0' 5,500 167.0' 5,100 175.0' 4,900 60 146.0' 6,600 156.0' 6,000 163.0' 5,700
58 166.0' 5,100 174.0' 4,900 181.0' 4,600 58 153.0' 6,400 163.0' 5,700 169.0' 5,500
55 176.0' 4,600 183.0' 4,400 189.0' 4,200 55 163.0' 6,000 172.0' 5,500 177.0' 5,300
53 182.0' 4,200 189.0' 4,000 194.0' 3,700 53 169.0' 5,500 177.0' 5,100 182.0' 4,900
50 191.0' 3,700 197.0' 3,500 200.0' 3,300 50 177.0' 4,900 186.0' 4,600 189.0' 4,400
48 197.0' 3,300 201.0' 3,100 205.0' 3,100 48 183.0' 4,600 190.0' 4,200 193.0' 4,200
45 205.0' 2,900 209.0' 2,600 211.0' 2,400 45 191.0' 4,000 198.0' 3,700 199.0' 3,700
43 210.0' 2,600 213.0' 2,400 43 196.0' 3,700 202.0' 3,500
40 216.0' 2,000 219.0' 1,800 40 202.0' 3,300 207.0' 2,900
38 38 207.0' 2,900 211.0' 2,600
35 35 212.0' 2,200 216.0' 2,000
33 33 216.0' 2,000 219.0' 1,800
30 30
28 28
25 25
23 23
20 20
R W R W R W R W R W R W
81.5 44.9' 10,400 61.7' 9,700 76.1' 7,500 81.5 30.2' 14,100 44.6' 11,900 58.7' 8,200
81 47.6' 10,400 64.3' 9,700 78.4' 7,500 81 31.5' 14,100 45.9' 11,700 60.4' 8,200
80 52.8' 10,400 69.2' 9,500 82.7' 7,500 80 35.1' 14,100 49.2' 11,500 63.3' 7,900
79 57.7' 10,400 73.5' 9,300 86.6' 7,300 79 38.4' 14,100 52.5' 11,200 65.9' 7,900
78 63.0' 10,400 78.1' 9,000 90.9' 7,300 78 41.7' 14,100 55.4' 11,000 68.6' 7,900
77 67.3' 10,400 82.0' 8,800 94.8' 7,300 77 44.6' 14,100 58.4' 10,600 71.2' 7,700
76 72.2' 10,400 86.3' 8,600 98.1' 7,100 76 47.9' 14,100 61.0' 10,400 73.8' 7,700
75 76.8' 10,400 90.9' 8,600 102.0' 7,100 75 51.2' 14,100 64.0' 10,100 76.4' 7,700
73 86.6' 10,100 98.8' 8,200 110.0' 6,800 73 57.1' 13,200 70.2' 9,900 81.7' 7,500
70 98.0' 9,500 111.0' 7,700 120.0' 6,600 70 65.9' 12,300 74.8' 9,300 88.9' 7,300
68 114.0' 9,300 118.0' 7,500 127.0' 6,600 68 71.5' 11,700 83.7' 9,000 93.5' 7,100
65 119.0' 8,800 129.0' 7,300 136.0' 6,400 65 80.1' 11,000 91.5' 8,600 100.0' 7,100
63 126.0' 8,400 135.0' 7,100 143.0' 6,400 63 85.3' 10,600 96.5' 8,400 105.0' 7,100
60 136.0' 7,900 146.0' 6,800 152.0' 6,200 60 93.2' 10,100 104.0' 7,900 112.0' 6,800
58 143.0' 7,500 153.0' 6,800 157.0' 6,200 58 98.1' 9,700 109.0' 7,900 116.0' 6,800
55 153.0' 7,100 162.0' 6,600 165.0' 6,200 55 105.0' 9,300 115.0' 7,500 122.0' 6,800
53 159.0' 6,600 167.0' 6,200 170.0' 6,000 53 110.0' 9,000 120.0' 7,500 125.0' 6,600
50 167.0' 6,000 174.0' 5,500 176.0' 5,300 50 117.0' 8,600 126.0' 7,300 130.0' 6,600
48 173.0' 5,500 179.0' 5,300 180.0' 5,100 48 121.0' 8,400 130.0' 7,300 134.0' 6,600
45 180.0' 5,100 186.0' 4,900 186.0' 4,600 45 127.0' 8,200 135.0' 7,100 138.0' 6,600
43 185.0' 4,900 190.0' 4,400 43 131.0' 7,900 138.0' 7,100
40 191.0' 4,200 195.0' 3,700 40 136.0' 7,700 143.0' 6,800
38 196.0' 3,700 199.0' 3,300 38 143.0' 7,500 146.0' 6,800
35 201.0' 3,100 204.0' 2,900 35 145.0' 7,300 150.0' 6,800
33
205.0'
2,900
207.0'
2,600
33
148.0'
7,300
153.0'
6,800
30
210.0'
2,400
211.0'
2,200
30
152.0'
7,100
156.0'
6,800
28
213.0'
2,200
213.0'
2,000
28
155.0'
7,100
158.0'
6,800
40
o
Tilt
360
o
ROTATION
C172.5'(52.6m) Boom + 59.1'(18.0m) Hydraulic offset jib C114.9'(35.0m) Boom + 59.1'(18.0m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
GR-1600XL RATED LIFTING CAPACITIES(IN POUNDS)
COUNTERWEIGHT 64,600lbs(29.3t)
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
360
o
ROTATION
C200.1'(61.0m) Boom + 59.1'(18.0m) Hydraulic offset jib C187.0'(57.0m) Boom + 59.1'(18.0m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
40
o
Tilt
COUNTERWEIGHT 64,600lbs(29.3t)
- 9 -

R W R W R W R W R W R W
81.5 48.2' 12,100 57.1' 12,100 66.9' 11,200 81.5 42.3' 13,700 51.5' 13,700 61.4' 12,800
81 51.2' 12,100 61.0' 12,100 69.2' 11,000 81 45.0' 13,700 54.1' 13,700 63.3' 12,600
80 56.4' 12,100 65.3' 11,900 74.2' 10,800 80 49.9' 13,700 58.7' 13,400 67.6' 12,100
79 61.7' 12,100 69.6' 11,500 78.7' 10,400 79 54.8' 13,700 63.3' 13,000 71.9' 11,900
78 67.3' 12,100 74.2' 11,000 82.7' 10,100 78 59.7' 13,700 67.6' 12,600 75.5' 11,500
77 71.9' 11,900 80.1' 10,800 86.9' 9,900 77 64.3' 13,700 71.9' 12,300 79.7' 11,200
76 76.4' 11,500 83.0' 10,400 91.2' 9,700 76 68.2' 13,200 76.1' 11,900 83.3' 10,800
75 80.4' 11,000 87.6' 10,100 94.8' 9,300 75 72.5' 12,800 79.7' 11,500 87.3' 10,600
73 90.0' 10,600 96.1' 9,700 103.0' 8,800 73 80.7' 11,900 87.9' 10,800 94.8' 10,100
70 102.0' 9,500 108.0' 8,800 114.0' 8,400 70 92.5' 11,000 99.4' 10,100 105.0' 9,500
68 110.0' 9,000 116.0' 8,400 121.0' 7,900 68 100.0' 10,400 106.0' 9,500 112.0' 9,000
65 122.0' 8,400 127.0' 7,900 132.0' 7,500 65 111.0' 9,500 117.0' 8,800 122.0' 8,400
63 129.0' 7,900 134.0' 7,500 138.0' 7,300 63 118.0' 9,300 124.0' 8,600 128.0' 8,200
60 138.0' 7,100 144.0' 6,600 147.0' 6,200 60 128.0' 8,600 133.0' 8,200 137.0' 7,700
58 144.0' 6,000 149.0' 5,700 152.0' 5,300 58 134.0' 7,700 139.0' 7,300 142.0' 6,800
55 152.0' 4,600 157.0' 4,400 160.0' 4,200 55 142.0' 6,400 147.0' 6,000 150.0' 5,700
53 157.0' 4,000 162.0' 3,700 165.0' 3,500 53 147.0' 5,500 152.0' 5,300 154.0' 4,900
50 165.0' 2,900 170.0' 2,900 172.0' 2,600 50 155.0' 4,400 159.0' 4,200 161.0' 4,000
48 170.0' 2,400 174.0' 2,200 176.0' 2,200 48 160.0' 4,000 163.0' 3,500 165.0' 3,500
45 45 167.0' 3,100 170.0' 2,900 171.0' 2,600
43 43 171.0' 2,400 174.0' 2,200
40 40 177.0' 1,800
38 38
35 35
33 33
30 30
28 28
25 25
23 23
20 20
R W R W R W R W R W R W
81.5 37.1' 15,900 46.9' 15,900 57.1' 15,000 81.5 29.2' 23,400 37.1' 16,100
81 39.4' 15,900 49.2' 15,900 59.1' 14,800 81 30.5' 23,100 38.4' 15,900
80 44.0' 15,900 53.5' 15,900 63.0' 14,300 80 33.1' 22,500 41.0' 15,700
79 48.6' 15,900 57.7' 15,400 66.6' 13,900 79 35.8' 22,000 43.3' 15,400
78 52.8' 15,900 61.7' 15,000 70.2' 13,400 78 39.0' 21,400 45.9' 15,200
77 57.4' 15,900 65.3' 14,600 73.8' 13,000 77 41.3' 20,900 48.6' 15,200
76 61.7' 15,900 69.2' 14,100 77.4' 12,800 76 43.6' 20,500 50.9' 15,000
75 64.3' 15,200 73.2' 13,700 80.7' 12,300 75 38.7' 28,200 46.3' 20,100 53.2' 14,800
73 72.2' 14,300 80.1' 12,800 87.6' 11,900 73 44.0' 26,900 51.2' 19,200 57.7' 14,300
70 84.3' 13,000 90.6' 11,900 97.1' 11,000 70 51.2' 24,900 58.7' 18,100 64.6' 13,900
68 91.5' 12,300 97.8' 11,500 104.0' 10,600 68 56.4' 23,800 63.3' 17,400 68.9' 13,700
65 102.0' 11,500 107.0' 10,600 113.0' 9,900 65 63.3' 22,300 70.2' 16,800 75.1' 13,400
63 109.0' 11,000 114.0' 10,100 118.0' 9,700 63 67.9' 21,200 74.8' 16,300 79.4' 13,200
60 118.0' 10,100 123.0' 9,700 127.0' 9,300 60 74.8' 19,800 81.4' 15,700 85.3' 13,000
58 123.0' 9,300 128.0' 8,600 132.0' 8,200 58 79.1' 19,200 85.3' 15,200 89.2' 12,800
55 131.0' 7,700 136.0' 7,300 139.0' 6,800 55 85.3' 18,100 91.5' 14,800 94.8' 12,600
53 136.0' 6,800 141.0' 6,400 143.0' 6,000 53 89.2' 17,400 95.1' 14,300 98.1' 12,600
50 143.0' 5,500 147.0' 5,300 150.0' 5,100 50 95.1' 16,800 101.0' 14,100 103.0' 12,600
48 148.0' 4,900 152.0' 4,600 154.0' 4,400 48 98.8' 15,900 104.0' 13,900 106.0' 12,300
45 154.0' 4,000 158.0' 3,700 159.0' 3,500 45 104.0' 14,100 109.0' 13,400 111.0' 12,300
43 158.0' 3,300 162.0' 3,100 43 107.0' 13,200 112.0' 12,600
40 164.0' 2,600 167.0' 2,400 40 112.0' 12,100 116.0' 11,500
38 168.0' 2,200 171.0' 2,000 38 115.0' 11,200 119.0' 10,800
35 35 119.0' 10,400 123.0' 10,100
33
33
122.0'
9,900
125.0'
9,500
30
30
125.0'
9,300
128.0'
9,000
28
28
128.0'
8,800
130.0'
8,600
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
GR-1600XL RATED LIFTING CAPACITIES(IN POUNDS)
COUNTERWEIGHT 40,100lbs(18.2t)
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
360
o
ROTATION
C200.1'(61.0m) Boom + 33.8'(10.3m) Hydraulic offset jib C187.0'(57.0m) Boom + 33.8'(10.3m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
40
o
Tilt
COUNTERWEIGHT 40,100lbs(18.2t)
40
o
Tilt
360
o
ROTATION
C172.5'(52.6m) Boom + 33.8'(10.3m) Hydraulic offset jib C114.9'(35.0m) Boom + 33.8'(10.3m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
- 10 -

R W R W R W R W R W R W
81.5 56.1' 8,200 72.2' 8,200 88.9' 7,100 81.5 47.9' 8,800 65.6' 8,800 81.0' 7,300
81 59.1' 8,200 74.5' 8,200 91.9' 7,100 81 49.2' 8,800 68.2' 8,800 83.7' 7,300
80 65.3' 8,200 81.0' 8,200 97.1' 6,800 80 56.4' 8,800 73.8' 8,800 88.6' 7,100
79 70.9' 8,200 86.3' 8,200 102.0' 6,800 79 61.7' 8,800 78.1' 8,600 92.9' 7,100
78 76.8' 8,200 91.5' 7,900 107.0' 6,600 78 66.6' 8,800 83.3' 8,400 97.4' 7,100
77 82.0' 8,200 96.1' 7,700 112.0' 6,600 77 71.9' 8,800 87.6' 8,200 102.0' 6,800
76 87.9' 8,200 101.0' 7,500 116.0' 6,600 76 77.1' 8,800 92.5' 7,900 106.0' 6,800
75 93.5' 8,200 106.0' 7,300 119.0' 6,400 75 82.0' 8,800 97.1' 7,900 110.0' 6,600
73 103.0' 7,700 115.0' 6,800 129.0' 6,200 73 92.2' 8,800 106.0' 7,700 118.0' 6,600
70 117.0' 7,100 128.0' 6,400 140.0' 5,700 70 106.0' 8,200 119.0' 7,300 129.0' 6,400
68 126.0' 6,800 135.0' 6,000 147.0' 5,500 68 114.0' 7,700 127.0' 7,100 137.0' 6,200
65 138.0' 6,200 149.0' 5,700 158.0' 5,300 65 126.0' 7,300 138.0' 6,600 147.0' 6,200
63 147.0' 6,000 156.0' 5,500 164.0' 5,100 63 135.0' 7,100 146.0' 6,400 154.0' 6,000
60 156.0' 4,900 164.0' 4,200 172.0' 3,700 60 146.0' 6,400 155.0' 5,700 162.0' 5,300
58 162.0' 4,000 170.0' 3,500 177.0' 3,100 58 152.0' 5,500 161.0' 4,900 167.0' 4,400
55 171.0' 2,900 178.0' 2,400 185.0' 2,200 55 160.0' 4,400 169.0' 4,000 175.0' 3,500
53 177.0' 2,200 184.0' 2,000 190.0' 1,800 53 165.0' 3,500 175.0' 3,300 179.0' 2,900
50 50 174.0' 2,600 182.0' 2,400 185.0' 2,200
48 48 179.0' 2,200 187.0' 2,000
45 45
43 43
40 40
38 38
35 35
33 33
30 30
28 28
25 25
23 23
20 20
R W R W R W R W R W R W
81.5 45.0' 10,400 61.7' 9,700 76.1' 7,500 81.5 27.6' 14,100 44.6' 11,900 58.7' 8,200
81 47.6' 10,400 64.3' 9,700 78.4' 7,500 81 29.2' 14,100 45.9' 11,700 60.4' 8,200
80 52.8' 10,400 69.2' 9,500 82.7' 7,500 80 32.8' 14,100 49.2' 11,500 63.3' 7,900
79 57.7' 10,400 73.5' 9,300 86.6' 7,300 79 36.1' 14,100 52.5' 11,200 65.9' 7,900
78 63.0' 10,400 78.1' 9,000 90.9' 7,300 78 39.7' 14,100 55.5' 11,000 68.6' 7,900
77 67.3' 10,400 82.0' 8,800 94.8' 7,300 77 42.7' 14,100 58.4' 10,600 71.2' 7,700
76 72.2' 10,400 86.3' 8,600 98.1' 7,100 76 46.3' 14,100 61.0' 10,400 73.8' 7,700
75 76.8' 10,400 90.9' 8,600 102.0' 7,100 75 49.2' 14,100 64.0' 10,100 76.4' 7,700
73 86.6' 10,100 98.8' 8,200 110.0' 6,800 73 55.8' 13,200 70.2' 9,900 81.7' 7,500
70 98.4' 9,500 111.0' 7,700 120.0' 6,600 70 64.6' 12,300 78.1' 9,300 88.9' 7,300
68 114.0' 9,300 118.0' 7,500 127.0' 6,600 68 70.9' 11,700 83.7' 9,000 93.5' 7,100
65 119.0' 8,800 129.0' 7,300 136.0' 6,400 65 79.4' 11,000 91.5' 8,600 100.0' 7,100
63 126.0' 8,400 135.0' 7,100 143.0' 6,400 63 84.7' 10,600 96.5' 8,400 105.0' 7,100
60 136.0' 7,700 145.0' 6,800 152.0' 6,200 60 92.5' 10,100 104.0' 7,900 112.0' 6,800
58 142.0' 6,800 151.0' 6,000 156.0' 5,500 58 97.4' 9,700 109.0' 7,900 116.0' 6,800
55 151.0' 5,500 159.0' 4,900 163.0' 4,400 55 105.0' 9,300 115.0' 7,500 122.0' 6,800
53 189.0' 4,900 164.0' 4,200 168.0' 3,700 53 110.0' 9,000 120.0' 7,500 125.0' 6,600
50 164.0' 3,700 172.0' 3,300 174.0' 2,900 50 116.0' 8,600 126.0' 7,300 130.0' 6,600
48 170.0' 3,100 177.0' 2,900 178.0' 2,400 48 121.0' 8,400 130.0' 7,300 134.0' 6,600
45 177.0' 2,400 183.0' 2,000 184.0' 1,800 45 127.0' 8,200 135.0' 7,100 138.0' 6,600
43 182.0' 1,800 43 131.0' 7,900 138.0' 7,100
40 40 137.0' 7,700 143.0' 6,800
38 38 143.0' 7,500 146.0' 6,800
35 35 145.0' 7,300 150.0' 6,800
33
33
148.0'
7,300
153.0'
6,800
30 30 152.0' 6,800 156.0' 6,600
28
28
155.0'
6,600
157.0'
6,200
COUNTERWEIGHT 40,100lbs(18.2t)
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
360
o
ROTATION
C172.5'(52.6m) Boom + 59.1'(18.0m) Hydraulic offset jib C114.9'(35.0m) Boom + 59.1'(18.0m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
40
o
Tilt
GR-1600XL RATED LIFTING CAPACITIES(IN POUNDS)
COUNTERWEIGHT 40,100lbs(18.2t)
ON OUTRIGGERS FULLY EXTENDED 26'10-7/8"(8.20m) SPREAD
360
o
ROTATION
C200.1'(61.0m) Boom + 59.1'(18.0m) Hydraulic offset jib C187.0'(57.0m) Boom + 59.1'(18.0m) Hydraulic offset jib
5
o
Tilt
20
o
Tilt
40
o
Tilt
5
o
Tilt
20
o
Tilt
40
o
Tilt
- 11 -

WARNING AND OPERATING INSTRUCTIONS
FOR LIFTING CAPACITIES
GENERAL
1. RATED LIFTING CAPACITIES apply only to the machine as 10. When making lifts at a load radius not shown, use the next
originally manufactured and normally equipped by TADANO longer radius to determine allowable capacity.
LTD. Modifications to the machine or use of optional 11. Load per line should not exceed 15,900lbs (7,200kg) for
equipment other than that specified can result in a reduction main winch and auxiliary winch.
of capacity. 12. Check the actual number of parts of line with LOAD MOMENT
2. Hydraulic cranes can be hazardous if improperly INDICATOR (AML-C) before operation. Maximum lifting
operated or maintained. Operation and maintenance of this capacity is restricted by the number of parts of line of LOAD
machine must be in compliance with information, in the MOMENT INDICATOR (AML-C). Limited capacity is as
Operation and Maintenance Manual supplied with
determined from the formula, Single line pull for main winch
the crane. If this manual is missing, order a replacement 15,900lbs (7,200kg) x number of parts of line.
through the distributor. 13. The boom angle before loading should be greater to account
3. The operator and other personnel associated with this for deflection. For rated lifting capacities, the loaded boom
machine shall fully acquaint themselves with the latest angle and the load radius is for reference only.
American National Standards Institute (ANSI) safety 14. Maximum capacity without boom pin is shown in the chart.
standards for cranes. The 39.4' (12.0m) boom length capacities are based on boom
fully retracted. If not fully retracted [less than 53.7'(16.4m)
SET UP boom length], use the rated lifting capacities for the 53.7' (16.4m)
1. Rated lifting capacities on the chart are the maximum boom length.
allowable crane capacities and are based on the machine 15. Do not operate extension or retraction of the boom with loads.
standing level on firm supporting surface under ideal job Extension or retraction of the boom with loads may be
conditions. Depending on the nature of the supporting attempted within the limits of the RATED LIFTING CAPACITIES.
surface, it may be necessary to have structural supports The ability to telescope loads is limited by hydraulic pressure,
under the outrigger floats or tires to spread the loads to a boom angle, boom length, crane maintenance, etc.
larger bearing surface. 16. For lifting capacity of single top, deduct the weight of the load
2. For outrigger operation, outriggers shall be properly extended handling equipment from the rated lifting capacity of the boom.
with tires free of supporting surface before operating crane. For the lifting capacity of single top, the net capacity shall not exceed
15,900lbs (7,200kg) including main boom hook mass attached
OPERATION to the boom.
1. Rated lifting capacities have been tested to and meet 17. When the base jib or top jib or both jibs are removed, set the jib state
minimum requirements of SAE J1063-Cantilevered Boom switch to the REMOVED position.
Crane Structures Method of Test. 18. When erecting and stowing jib, be sure to retain it by hand or by
2. Rated lifting capacities do not exceed 85 % of the tipping other means to prevent its free movement.
load on outriggers fully extended as determined by SAE 19. Use "ANTI-TWO BLOCK DEVICE" disable switch when erecting and
J765-Crane Stability Test Code. stowing jib and when stowing hook block. While the switch is
Rated lifting capacities for partially extended outriggers are pushed, the hoist does not stop, even when overwind condition
determined from the formula, Rated Lifting Capacities occurs.
=(Tipping Load - 0.1 x Tip Reaction)/1.25. 20. For selected boom length or less with jib, rated lifting capacities are
3. Rated lifting capacities above thick lines in the chart are determined by loaded boom angle only in the column headed
based on crane strength and those below, on its stability. "selected boom+jib".
They are based on actual load radius increased by boom For boom length 154.2'(47.0m) or less and 125.5'(38.3m) or longer
deflection. with jib, rated lifting capacities are detarmined by loaded boom angle
4. The weight of handling device such as hook blocks, slings, only in the column handed "154.2'(47.0m)boom+jib.
etc., must be considered as part of the load and must be For boom length 125.5'(38.3m) or less with jib, rated lifting capacities
deducted from the lifting capacities. are determined by loaded boom angle only in the column headed
5. Rated lifting capacities are based on freely suspended loads "125.5'(38.3m)boom+jib".For angles not shown, use the next lower
and make no allowance for such factors as the effect of wind, loaded boom angle to determine allowable capacity.(Telescoping MODEⅠ)
sudden stopping of loads, supporting surface conditions, For boom length 154.2'(47.0m) or less and 139.8'(42.6m) or longer
inflation of tires, operating speeds, side loads, etc. Side pull with jib, rated lifting capacities are detarmined by loaded boom angle
on the boom or jib is extremely dangerous. only in the column handed "154.2'(47.0m)boom+jib.
Such action can damage the boom, jib or swing mechanism, For boom length 139.8'(42.6m) or less with jib, rated lifting capacities
and lead to overturning of the crane. are determined by loaded boom angle only in the column headed
6. Rated lifting capacities do not account for wind on lifted load "139.8'(42.6m)boom+jib".For angles not shown, use the next lower
or boom. We recommend against working under the condition loaded boom angle to determine allowable capacity.(Telescoping MODEⅡ)
that the load is out of control due to a strong wind.During 21. When lifting a load by using jib (aux. winch) and boom (main
boom lift, consider that the rated lifting capacity is reduced by winch) simultaneously, do the following: 国内は禁止しているが問題ないか？
50% when the wind speed is 20mph(9m/s) to 27mph(12m/s); hEnter the operation status as jib operation, not as boom
reduced by 70% when the wind speed is 27mph(12m/s) to operation.
31mph(14m/s).If the wind speed is 31mph(14m/s) or over, hBefore starting operation, make sure that mass of load is
stop operation. During jib lift, stop operation if the wind speed within rated lifting capacity for jib.
is 20mph(9m/s) or over. 22. Before telescoping the boom, set the telescoping mode selector switch to
7. Rated lifting capacities at load radius shall not be exceeded. MODEⅠor MODEⅡwith the boom fully retracted. A change of the telescoping
Do not tip the crane to determine allowable loads. mode is not permissible when the boom has been partially or fully extended.
8. Do not operate at boom lengths, radii, or boom angle, where 23. Crane operation is prohibited without full counterweight 22,000lbs.(10 ton) installed.
no capacities are shown. Crane may overturn without any Outriggers shall be extended 26'10-7/8" (8.2m) spread when installing or
load on the hook. removing removable counterweight.
9. When boom length is between values listed, refer to the
rated lifting capacities of the next longer and next shorter
booms for the same radius. The lesser of the two rated lifting DEFINITIONS
capacities shall be used. 1. Load Radius: Horizontal distance from a projection of the axis
of rotation to supporting surface before loading to the center of
the vertical hoist line or tackle with load applied.
2. Loaded Boom Angle: The angle between the boom base
section and the horizontal, after lifting the rated lifting capacity
at the load radius.
3. Working Area: Area measured in a circular arc about the
centerline of rotation.
4. Freely Suspended Load: Load hanging free with no direct
external force applied except by the hoist line.
5. Side Load: Horizontal side force applied to the lifted load either
on the ground or in the air.
- 12 -

A
B C (13.1m) C(17.4m) C(21.8m) C(13.1m) C(17.4m) C(21.8m)
8' 73 22,000 78 22,000 81 22,000 73 22,000 78 22,000 81 22,000
10' 70 22,000 76 22,000 79 22,000 70 22,000 76 22,000 79 22,000
12' 67 22,000 73 22,000 77 22,000 67 20,500 73 22,000 77 22,000
15' 63 22,000 70 22,000 75 22,000 63 13,700 70 17,400 75 19,400
20' 54 14,800 65 18,100 71 19,600 54 6,200 65 9,900 71 12,100
25' 45 9,000 59 12,300 66 14,100 59 4,900 66 7,100
30' 33 3,500 53 7,700 62 9,700 62 3,300
35' 45 4,000 57 6,000
D
2nd boom
3rd boom
4th boom
5th boom
Top boom
E
NOTE:The lifting capacity data stowed in the LOAD MOMENT INDICATOR (AML-C) is based A:Boom length in feet
on the standard number of parts of line listed in the chart. B:Load radius in feet
Standard number of parts of line for on-rubber operation should be according to the C:Loaded boom angle (o)
chart. D:Minimum boom angle (o)
for indicated length (no load)
E:Numberofpartsofline
ON-RUBBERSTATIONARY
0 45 90 0 45
0
0 0
54 59 62
00 0
0
4
0 0
0
0
4
0
4
0
90
00 0
4 4
GR-1600XL RATED LIFTING CAPACITIES (IN POUNDS)
WITHOUT COUNTERWEIGHT
Over front and rear 360o Rotation
42.8' 42.8' 57.2' 71.6'71.6'57.2'
0 0
4
45 57
0 0 0
Telescoping conditions (％）
0 0 00
- 13 -

WARNING AND OPERATING INSTRUCTIONS
FOR ON-RUBBER LIFTING CAPACITIES
1. Rated lifting capacities on-rubber are in pounds and do not exceed 6. Over front and rear operation shall be performed within 10 degrees.
75 % of tipping loads as determined by SAE J765-Crane Stability 7. On-rubber lifting with "jib" is not permitted. Maximum permissible
Test Code. boom length is 71.6'. (21.8m).
2. On rubber lifting is only permitted without counterweight and 8.
When making lift on-rubber stationary, set parking brake.
stationary. Creep operation is prohibited. 9. For creep operation, boom must be centered over front of machine,
Rated lifting capacities shown in the chart arebased on condition
swing lock engaged, and load restrained from swinging. Travel slowly
that crane is set on firm level surfaces with suspention-fully and keep the lifted load as close to the ground as possible, and
retracted. Those above thick lines are based on tire capacity and especially avoid any abrupt steering, accelerating or braking.
those below, on crane stability. They are based on actual load
10. Do not operate the crane while carrying the load.
radius increased by tire deformation and boom deflection. 11. Creep is motion for crane not to travel more than 200' (60 m) in any
3. If the suspention-lock cylinders contain air, the axle will not 30 minute period and to travel at the speed of less than 1 mph
be locked completely and rated lifting capacities may not be (1.6km/h).
obtainable. Bleed the cylinders according to the operation safety 12. For creep operation, choose the drive mode and proper gear
and maintenance manual. according to the road or working condition.
4. Rated lifting capacities are based on proper tire inflation, capacity
and condition. Damaged tires are hazardous to safe operation of
crane.
5. Tires shall be inflated to correct air pressure.
Air Pressure
94psi
（
650kPa)
WARNING AND OPERATING INSTRUCTIONS
FOR USING THE LOAD MOMENT INDICATOR (AML-C)
1. Set AML select keys in accordance with the actually operating crane (2) For creep operation.
conditions and don't fail to make sure, before crane operation, that the hThe creep capacities are attainable only when boom is
displays on front panel are correct. in the straight forward position of chassis and the over
2. When operating crane on outriggers: front position symbol is on. If boom is not in the straight
hSet P.T.O. switch to "ON". forward position of chassis , never lift load.
hPress the outrigger state select key to register for the 4. This machine is equipped with an automatic swing stopping device.
outrigger operation. If the display agrees with the actual state, (For the details, see Operation and Maintenance Manual.)
press the set key to register. After the completion of the registration, But, operate very carefully because the automatic swing stop
the pop-up window closes. does not work in the following case.
hPress the lift state select key to register the lift state to be used hDuring on-rubber operation.
(single top/jib/boom). hWhen the "P.T.O" switch is set to "OVERRIDE" and the
hEach time the lift state select key is pressed, the display changes. "OVERRIDE" key switch outside the cab is on.
If the display agrees with the autual state, press the set key 5. During crane operation, make sure that the displays on front
to register. After the completion of the registration, panel are in accordance with actual operating conditions.
the pop-up window closes. 6. The displayed values of LOAD MOMENT INDICATOR
hwhen erecting and stowing jib, select the status of jib set (AML-C) are based on freely suspended loads and make no
(Jib lift indicator symbol flickers). allowance for such factors as the effect of wind, sudden
3. When operating crane on-rubber: stopping of loads, supporting surface conditions, inflation of
hSet P.T.O. switch to "ON". tire, operating speed, side loads, etc.
hPress the outrigger state select key to register for the on-rubber For safe operation, it is recommended when extending and
operation. Each time the outrigger state select key is pressed, lowering boom or swinging, lifting loads shall be
the display changes. Select the stationary operation, the on-rubber appropriately reduced.
state indicative symbol flickers. 7. LOAD MOMENT INDICATOR (AML-C) is intended as an aid
hPress the lift state select key to register the lift state. to the operator. Under no condition should it be relied upon
However, pay attention to the following. to replace use of capacity charts and operating instruction.
(1) For stationary operation. Sole reliance upon LOAD MOMENT INDICATOR (AML-C)
hThe front and rear capacities are attainable only when the over front aids in place of good operating practice can cause an
or rear position. accident. The operator must exercise caution to assure
The front capacities are attainable only when the over front safety.
position symbol comes on. When the boom is more than
2 degrees from centered over front of chassis, 360
°
capacities are in effect.
hWhen a load is lifted in the front or rear position and then swung
to the side area, make sure the value of the LOAD
MOMENT INDICATOR(AML-C) is below the 360
°lifting
capacity.
GR-1600XL Axle weight distribution chart
Hydraulic offset jib GVW
Base machine
Remove: 1.7.9ton (7.2metric ton) hook block -661
2.110ton (100metric ton) hook block -2,381
3.Counterweight 24,500lbs (11,100kg) -24,515
4.Counterweight 40,100lbs (18,200kg) -40,036
5.Front and rear outrigger boxes and beams
-19,758
6.Auxiliary Winch&wire rope -2,650
7.Boom and jib -38,413 -846 -846
-49,699
5,642
5,642 -17,424 -22,543 2,559 2,559
1,080
-1,865
-1,865 -1,202 490
-11,816 -11,816
-7,635
-6,063
-6,063 -8,962 -3,463 -2,750 -2,750
12,066
-26,050
-26,050 -18,160 5,473 -7,236 -7,236
-3,904
763
763 -1,080 -1,771
7,388
-15,953
-15,953 -11,120 3,351 346 346
200,960 64,812 67,550 68,599 91,154 29,398 30,640 31,116
-928
134
134 -300 -421 61 61
Tires
26.5R25
☆☆
Pounds Kilograms
1st 2nd 3rd GVW 1st 2nd 3rd
- 14 -

MEMO
TADANO LTD. (INTERNATIONAL DIVISION) TADANO AMERICA CORPORATION
4-12, Kamezawa 2-chome, Sumida-ku, 4242 West Greens Road.
Tokyo 130-0014, JAPAN Houston, Taxas, 77066 U.S.A.
PHONE: [phone] PHONE: [phone]
FAX: [phone] FAX: [phone]
http://www.tadano.co.jp/indexe.html
http://www.tadanoamerica.com
Form No. GR-1600-2-00102/US-01
- 15 -
