Tadano Mantis 10010MX Operating instructions

TMC 99600140093_B 12.18.2013
Operating and Maintenance Manual
10010MX
50 TON/45 METRIC TON DIESEL POWERED TELESCOPIC BOOM CRAWLER CRANE
Crane Serial No:______________________________________
Manufacturer:
Tadano Mantis Corporation
1705 Columbia Ave.
Suite 200
Franklin, TN 37064
Phone: [phone]
Fax: [phone]
Courtesy of CraneMarket.com

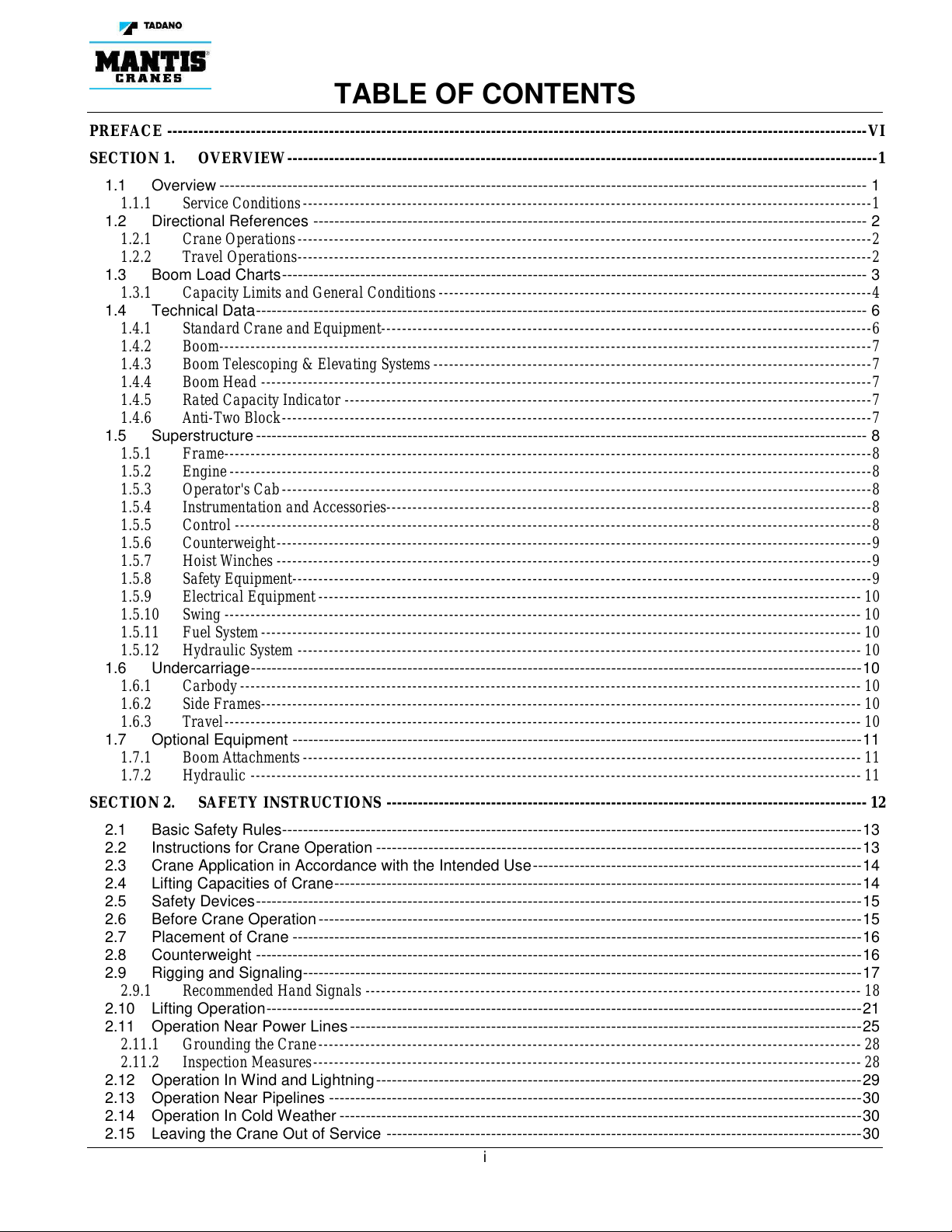

TABLE OF CONTENTS
i
PREFACE --------------------------------------------------------------------------------------------------------------------------------------VI
SECTION 1. OVERVIEW-----------------------------------------------------------------------------------------------------------------1
1.1 Overview ---------------------------------------------------------------------------------------------------------------------------- 1
1.1.1 Service Conditions-------------------------------------------------------------------------------------------------------------1
1.2 Directional References ---------------------------------------------------------------------------------------------------------- 2
1.2.1 Crane Operations--------------------------------------------------------------------------------------------------------------2
1.2.2 Travel Operations--------------------------------------------------------------------------------------------------------------2
1.3 Boom Load Charts---------------------------------------------------------------------------------------------------------------- 3
1.3.1 Capacity Limits and General Conditions -----------------------------------------------------------------------------------4
1.4 Technical Data--------------------------------------------------------------------------------------------------------------------- 6
1.4.1 Standard Crane and Equipment----------------------------------------------------------------------------------------------6
1.4.2 Boom-----------------------------------------------------------------------------------------------------------------------------7
1.4.3 Boom Telescoping & Elevating Systems ------------------------------------------------------------------------------------7
1.4.4 Boom Head ---------------------------------------------------------------------------------------------------------------------7
1.4.5 Rated Capacity Indicator -----------------------------------------------------------------------------------------------------7
1.4.6 Anti-Two Block-----------------------------------------------------------------------------------------------------------------7
1.5 Superstructure --------------------------------------------------------------------------------------------------------------------- 8
1.5.1 Frame----------------------------------------------------------------------------------------------------------------------------8
1.5.2 Engine ---------------------------------------------------------------------------------------------------------------------------8
1.5.3 Operator's Cab-----------------------------------------------------------------------------------------------------------------8
1.5.4 Instrumentation and Accessories---------------------------------------------------------------------------------------------8
1.5.5 Control --------------------------------------------------------------------------------------------------------------------------8
1.5.6 Counterweight------------------------------------------------------------------------------------------------------------------9
1.5.7 Hoist Winches ------------------------------------------------------------------------------------------------------------------9
1.5.8 Safety Equipment---------------------------------------------------------------------------------------------------------------9
1.5.9 Electrical Equipment -------------------------------------------------------------------------------------------------------- 10
1.5.10 Swing -------------------------------------------------------------------------------------------------------------------------- 10
1.5.11 Fuel System ------------------------------------------------------------------------------------------------------------------- 10
1.5.12 Hydraulic System ------------------------------------------------------------------------------------------------------------ 10
1.6 Undercarriage---------------------------------------------------------------------------------------------------------------------10
1.6.1 Carbody ----------------------------------------------------------------------------------------------------------------------- 10
1.6.2 Side Frames------------------------------------------------------------------------------------------------------------------- 10
1.6.3 Travel-------------------------------------------------------------------------------------------------------------------------- 10
1.7 Optional Equipment -------------------------------------------------------------------------------------------------------------11
1.7.1 Boom Attachments ----------------------------------------------------------------------------------------------------------- 11
1.7.2 Hydraulic --------------------------------------------------------------------------------------------------------------------- 11
SECTION 2. SAFETY INSTRUCTIONS -------------------------------------------------------------------------------------------- 12
2.1 Basic Safety Rules---------------------------------------------------------------------------------------------------------------13
2.2 Instructions for Crane Operation ---------------------------------------------------------------------------------------------13
2.3 Crane Application in Accordance with the Intended Use---------------------------------------------------------------14
2.4 Lifting Capacities of Crane-----------------------------------------------------------------------------------------------------14
2.5 Safety Devices--------------------------------------------------------------------------------------------------------------------15
2.6 Before Crane Operation --------------------------------------------------------------------------------------------------------15
2.7 Placement of Crane -------------------------------------------------------------------------------------------------------------16
2.8 Counterweight --------------------------------------------------------------------------------------------------------------------16
2.9 Rigging and Signaling-----------------------------------------------------------------------------------------------------------17
2.9.1 Recommended Hand Signals ----------------------------------------------------------------------------------------------- 18
2.10 Lifting Operation------------------------------------------------------------------------------------------------------------------21
2.11 Operation Near Power Lines --------------------------------------------------------------------------------------------------25
2.11.1 Grounding the Crane-------------------------------------------------------------------------------------------------------- 28
2.11.2 Inspection Measures---------------------------------------------------------------------------------------------------------28
2.12 Operation In Wind and Lightning---------------------------------------------------------------------------------------------29
2.13 Operation Near Pipelines ------------------------------------------------------------------------------------------------------30
2.14 Operation In Cold Weather ----------------------------------------------------------------------------------------------------30
2.15 Leaving the Crane Out of Service -------------------------------------------------------------------------------------------30
Courtesy of CraneMarket.com

TABLE OF CONTENTS
ii
2.16 Potential Causes of Accidents ------------------------------------------------------------------------------------------------30
2.16.1 Operation Faults That May Cause Accidents ---------------------------------------------------------------------------- 30
2.16.2 Servicing Faults That May Cause Accidents ----------------------------------------------------------------------------- 31
2.17 Fire, Smoke, Inflammation and Explosion Hazards ---------------------------------------------------------------------32
SECTION 3. OPERATING INSTRUCTIONS -------------------------------------------------------------------------------------- 37
3.1 Location of Warning and Instruction Markings (US) ---------------------------------------------------------------------37
3.2 Location of Warning and Instruction Markings (Export) ----------------------------------------------------------------42
3.3 Location of Cab Warning and Instruction Markings ---------------------------------------------------------------------45
3.4 Load Moment Indicator (AML) ------------------------------------------------------------------------------------------------52
3.5 Dash/Control Panels ------------------------------------------------------------------------------------------------------------52
3.6 Cab Display -----------------------------------------------------------------------------------------------------------------------55
3.6.1 Operating Pages -------------------------------------------------------------------------------------------------------------56
3.6.2 Service Pages----------------------------------------------------------------------------------------------------------------- 57
3.6.3 Display Icons ----------------------------------------------------------------------------------------------------------------- 58
Display Gauges -------------------------------------------------------------------------------------------------------------------------- 63
3.7 Switch Panel ----------------------------------------------------------------------------------------------------------------------65
3.8 Engine LEDs ----------------------------------------------------------------------------------------------------------------------67
3.8.1 Startup Procedure ----------------------------------------------------------------------------------------------------------- 67
3.9 Ignition Acc./Off/On/Start-------------------------------------------------------------------------------------------------------68
3.10 Foot Throttle-----------------------------------------------------------------------------------------------------------------------69
3.11 Swing Right/Left Controls (LH Joystick) ------------------------------------------------------------------------------------70
3.12 Swing Brake Pedal --------------------------------------------------------------------------------------------------------------70
3.13 Swing Brake Switch -------------------------------------------------------------------------------------------------------------71
3.14 Telescope Out/In Controls (LH Joystick) -----------------------------------------------------------------------------------72
3.15 Auxiliary Winch Control---------------------------------------------------------------------------------------------------------72
3.16 Main Winch/Boom Hoist Controls (RH Joystick) -------------------------------------------------------------------------73
3.17 Travel Controls -------------------------------------------------------------------------------------------------------------------74
3.18 Auxiliary Equipment Controls -------------------------------------------------------------------------------------------------77
3.19 Other Operator Controls--------------------------------------------------------------------------------------------------------79
3.20 Emergency Back Up System--------------------------------------------------------------------------------------------------79
3.20.1 Emergency Back Up System Procedure-----------------------------------------------------------------------------------79
3.21 Battery Cutoff Switch------------------------------------------------------------------------------------------------------------80
3.22 Operation --------------------------------------------------------------------------------------------------------------------------81
3.22.1 Alarm Systems---------------------------------------------------------------------------------------------------------------- 81
3.22.2 Walk-Around Inspection ---------------------------------------------------------------------------------------------------- 81
3.22.3 Air Intake System------------------------------------------------------------------------------------------------------------- 81
3.22.4 Engine Cooling System------------------------------------------------------------------------------------------------------ 81
3.22.5 Electrical System------------------------------------------------------------------------------------------------------------- 82
3.22.6 Fuel and Lube Systems ------------------------------------------------------------------------------------------------------ 82
3.23 Pre-Start Checks-----------------------------------------------------------------------------------------------------------------82
3.24 Electric Starting-------------------------------------------------------------------------------------------------------------------83
3.24.1 Starting With Jumper Cables----------------------------------------------------------------------------------------------- 84
3.24.2 After Starting the Engine---------------------------------------------------------------------------------------------------- 85
3.24.3 Engine Stopping-------------------------------------------------------------------------------------------------------------- 85
3.24.4 After Stopping the Engine--------------------------------------------------------------------------------------------------- 86
3.24.5 Horn --------------------------------------------------------------------------------------------------------------------------- 86
3.25 Cold Weather Operation -------------------------------------------------------------------------------------------------------87
3.25.1 Fuel Selection ----------------------------------------------------------------------------------------------------------------87
3.25.2 Fuel Heaters------------------------------------------------------------------------------------------------------------------ 87
3.25.3 Fuel Filters ------------------------------------------------------------------------------------------------------------------- 87
3.25.4 Engine Compartment Temperature---------------------------------------------------------------------------------------- 87
3.26 Winch Operation -----------------------------------------------------------------------------------------------------------------88
3.26.1 Main Winch-------------------------------------------------------------------------------------------------------------------88
3.26.2 Auxiliary Winch -------------------------------------------------------------------------------------------------------------- 88
Courtesy of CraneMarket.com

TABLE OF CONTENTS
iii
3.26.3 Winch Warm-Up Procedure------------------------------------------------------------------------------------------------ 88
3.26.4 Anti-Two-Block Control-----------------------------------------------------------------------------------------------------88
3.26.5 Overload Control ------------------------------------------------------------------------------------------------------------ 89
3.26.6 Last Wrap Control ----------------------------------------------------------------------------------------------------------- 89
3.27 Boom Controls--------------------------------------------------------------------------------------------------------------------90
3.27.1 Boom Hoist ------------------------------------------------------------------------------------------------------------------- 90
3.27.2 Boom Telescope--------------------------------------------------------------------------------------------------------------90
3.27.3 Anti-Two-Block (A2B) Control--------------------------------------------------------------------------------------------- 90
3.27.4 Overload Control ------------------------------------------------------------------------------------------------------------ 90
3.27.5 Backward Stability Control------------------------------------------------------------------------------------------------- 90
3.27.6 Swing Controls --------------------------------------------------------------------------------------------------------------- 91
3.27.7 Dual Mode Swing Valve----------------------------------------------------------------------------------------------------- 91
3.27.8 Swing Park Brake------------------------------------------------------------------------------------------------------------91
3.27.9 Swing Service Brake--------------------------------------------------------------------------------------------------------- 91
3.28 Travel Controls -------------------------------------------------------------------------------------------------------------------92
3.28.1 Tracks Forward/Reverse----------------------------------------------------------------------------------------------------92
3.28.2 Tracks Extend/Retract------------------------------------------------------------------------------------------------------- 92
3.29 Auger Operation (optional) ----------------------------------------------------------------------------------------------------93
3.29.1 Digging with the Auger ----------------------------------------------------------------------------------------------------- 93
3.29.2 Stowing the Auger------------------------------------------------------------------------------------------------------------ 93
3.29.3 Tool Circuit Operation------------------------------------------------------------------------------------------------------93
3.30 Reeving-----------------------------------------------------------------------------------------------------------------------------94
3.31 Preparation for Shipping -------------------------------------------------------------------------------------------------------96
3.32 Counterweight Removal/Installation-----------------------------------------------------------------------------------------96
3.32.1 Installing the Counterweight ----------------------------------------------------------------------------------------------- 96
3.32.2 Removing the Counterweight----------------------------------------------------------------------------------------------- 97
3.33 Jib/Extension Removal/Installation ------------------------------------------------------------------------------------------98
3.33.1 Removing the Jib and Extension ------------------------------------------------------------------------------------------- 99
3.33.2 Installing the Jib and Extension-------------------------------------------------------------------------------------------- 99
3.34 Extension/Jib Erection & Rigging ------------------------------------------------------------------------------------------ 100
3.34.1 Erecting and Rigging the Extension --------------------------------------------------------------------------------------100
3.34.2 Stowing the Extension ------------------------------------------------------------------------------------------------------102
3.34.3 Erecting and Rigging the Extension and Jib ----------------------------------------------------------------------------103
3.34.4 Stowing the Extension and Jib --------------------------------------------------------------------------------------------106
SECTION 4. MAINTENANCE--------------------------------------------------------------------------------------------------------109
4.1 Lubrication and Maintenance ----------------------------------------------------------------------------------------------- 109
4.2 Maintenance Intervals -------------------------------------------------------------------------------------------------------- 109
4.3 Engine ---------------------------------------------------------------------------------------------------------------------------- 113
4.3.1 Inspecting Oil Level --------------------------------------------------------------------------------------------------------113
4.3.2 Changing Oil/ Replacing the Oil Filter ----------------------------------------------------------------------------------114
4.3.3 Inspecting Hose Clamps of the Charge Air Hoses----------------------------------------------------------------------114
4.4 Fuel Tank ------------------------------------------------------------------------------------------------------------------------ 114
4.4.1 Draining Condensation Water from Tank -------------------------------------------------------------------------------114
4.4.2 Cleaning Fuel Strainer in the Filler Cap --------------------------------------------------------------------------------114
4.4.3 Draining Condensation Water from Separator -------------------------------------------------------------------------115
4.4.4 Replacing Fuel/Water Separators ----------------------------------------------------------------------------------------115
4.5 Water-Cooled Engine Cooling Systems ---------------------------------------------------------------------------------- 115
4.5.1 Coolant Level----------------------------------------------------------------------------------------------------------------115
4.5.2 Draining Coolant -----------------------------------------------------------------------------------------------------------116
4.6 Cleaning the Radiator--------------------------------------------------------------------------------------------------------- 116
4.7 Air Cleaner----------------------------------------------------------------------------------------------------------------------- 117
4.7.1 Removing / Installing the Filter Cartridge-------------------------------------------------------------------------------117
4.7.2 Filter Cartridge -------------------------------------------------------------------------------------------------------------118
4.7.3 Air Intake Pipes and Hoses------------------------------------------------------------------------------------------------118
Courtesy of CraneMarket.com

TABLE OF CONTENTS
iv
4.7.4 Inspecting Air Inlet Vacuum Switch --------------------------------------------------------------------------------------118
4.8 Exhaust System ---------------------------------------------------------------------------------------------------------------- 119
4.9 Hydraulic System -------------------------------------------------------------------------------------------------------------- 119
4.9.1 Inspecting Oil Level --------------------------------------------------------------------------------------------------------119
4.9.2 Replacing Filter Cartridges -----------------------------------------------------------------------------------------------120
4.9.3 Changing Oil ----------------------------------------------------------------------------------------------------------------121
4.9.4 Changing Oil Type----------------------------------------------------------------------------------------------------------121
4.9.5 Hydraulic Fittings ----------------------------------------------------------------------------------------------------------122
4.9.6 Checking Fittings -----------------------------------------------------------------------------------------------------------122
4.9.7 Oil Cooler--------------------------------------------------------------------------------------------------------------------122
4.9.8 Maintenance Instructions for Hydraulic Cylinders---------------------------------------------------------------------122
4.10 Speeds of Hydraulic Functions --------------------------------------------------------------------------------------------- 123
4.10.1 Speed Set-points of the Hydraulic System--------------------------------------------------------------------------------123
4.10.2 Speed Setting Tolerances --------------------------------------------------------------------------------------------------123
4.11 Hydraulic System Pressure Checks--------------------------------------------------------------------------------------- 123
4.11.1 Hydraulic System Pressure and Flow Settings--------------------------------------------------------------------------124
4.11.2 Hydraulic System Pressure Setting Tolerances -------------------------------------------------------------------------124
4.12 Electrical Equipment ---------------------------------------------------------------------------------------------------------- 125
4.12.1 Batteries----------------------------------------------------------------------------------------------------------------------125
4.12.2 Installing New Batteries----------------------------------------------------------------------------------------------------126
4.12.3 Starting the Engine with Jumper Cables---------------------------------------------------------------------------------126
4.12.4 Starter ------------------------------------------------------------------------------------------------------------------------127
4.12.5 Circuit Breaker Panel ------------------------------------------------------------------------------------------------------127
4.12.6 Lamps and Lights -----------------------------------------------------------------------------------------------------------127
4.13 Rated Capacity Indicator (RCI) --------------------------------------------------------------------------------------------- 127
4.14 Swing Mechanism ------------------------------------------------------------------------------------------------------------- 128
4.14.1 Checking Correct Oil Level and Leakage -------------------------------------------------------------------------------128
4.14.2 Changing Oil ----------------------------------------------------------------------------------------------------------------129
4.14.3 Inspecting the Swing Mechanism -----------------------------------------------------------------------------------------130
4.14.5 Bleeding the Swing Brake--------------------------------------------------------------------------------------------------130
4.14.7 Tooth Face Backlash (Swing Motor Gearbox Drive Shaft)------------------------------------------------------------130
4.14.8 Greasing Slew Ring Gear and Pinion------------------------------------------------------------------------------------131
4.14.9 Greasing the Slew Ring ----------------------------------------------------------------------------------------------------131
4.14.10 Checking Slew Ring Fasteners -----------------------------------------------------------------------------------------132
4.14.11 Checking Slew Device for Wear----------------------------------------------------------------------------------------133
4.15 Winches -------------------------------------------------------------------------------------------------------------------------- 133
4.15.1 Checking Winch Oil Level -------------------------------------------------------------------------------------------------133
4.15.2 Changing Winch Oil--------------------------------------------------------------------------------------------------------133
4.15.3 De-commissioning the Winch ---------------------------------------------------------------------------------------------135
4.15.4 Inspecting the Winch Brake------------------------------------------------------------------------------------------------135
4.16 Anti-Two Block (A2B) Switch------------------------------------------------------------------------------------------------ 135
4.17 Travel System ------------------------------------------------------------------------------------------------------------------ 136
4.17.1 Track Drive Reducers ------------------------------------------------------------------------------------------------------136
4.17.2 Track Tension ---------------------------------------------------------------------------------------------------------------136
4.17.3 Extend Beams----------------------------------------------------------------------------------------------------------------136
4.17.4 Undercarriage---------------------------------------------------------------------------------------------------------------136
4.18 Last Wrap Indicator------------------------------------------------------------------------------------------------------------ 137
4.19 Winch Rope --------------------------------------------------------------------------------------------------------------------- 137
4.19.1 Inspecting the Rope---------------------------------------------------------------------------------------------------------137
4.19.2 Cleaning and Lubrication of the Rope -----------------------------------------------------------------------------------137
4.19.3 Replacing Rope--------------------------------------------------------------------------------------------------------------137
4.19.4 Inspecting Rope Drum------------------------------------------------------------------------------------------------------138
4.19.5 Installing New Rope --------------------------------------------------------------------------------------------------------138
4.19.6 Winch Rope Care -----------------------------------------------------------------------------------------------------------139
4.20 Crane Cabin--------------------------------------------------------------------------------------------------------------------- 139
Courtesy of CraneMarket.com

TABLE OF CONTENTS
v
4.20.1 Heat, Ventilation, & Air Conditioning -----------------------------------------------------------------------------------139
4.20.2 Air Intake Filter-------------------------------------------------------------------------------------------------------------140
4.20.3 Wiper-blade Elements/Washing System----------------------------------------------------------------------------------140
4.21 Points of Lubrication, Maintenance ---------------------------------------------------------------------------------------- 140
4.21.1 Boom--------------------------------------------------------------------------------------------------------------------------140
4.21.2 Boom Hoist Cylinder -------------------------------------------------------------------------------------------------------140
4.21.3 Hook Block-------------------------------------------------------------------------------------------------------------------140
4.21.4 Jib and Extensions ----------------------------------------------------------------------------------------------------------141
4.21.5 Other Points of Lubrication -----------------------------------------------------------------------------------------------141
4.22 Lubrication and Filter Specifications -------------------------------------------------------------------------------------- 141
4.22.1 Lubrication Specification Table-------------------------------------------------------------------------------------------143
4.22.2 Filter Specification Table--------------------------------------------------------------------------------------------------144
4.22.3 Inspection Scheme (Daily, Before Startup) ------------------------------------------------------------------------------145
4.22.4 Oil / Coolant Level Inspection and Change Scheme -------------------------------------------------------------------146
4.22.5 Inspection and Cleaning Scheme -----------------------------------------------------------------------------------------147
4.22.6 Lubricating Scheme---------------------------------------------------------------------------------------------------------148
SECTION 5. APPENDIX A –LOAD MOMENT INDICATOR----------------------------------------------------------------149
5.1 General --------------------------------------------------------------------------------------------------------------------------- 149
5.2 Operating Status Registration & Load Moment Indicator Function Check --------------------------------------- 153
5.3 Alarm and Recovery Operation--------------------------------------------------------------------------------------------- 162
5.4 Other Functions ---------------------------------------------------------------------------------------------------------------- 164
5.4.1 Work Range Alarm Function ----------------------------------------------------------------------------------------------164
5.4.2 TARE Function--------------------------------------------------------------------------------------------------------------167
5.4.3 User Adjustment Menu -----------------------------------------------------------------------------------------------------167
SECTION 6. APPENDIX B –DRUM ROTATION & LAST LAYER INDICATOR --------------------------------------171
Courtesy of CraneMarket.com

PREFACE
vi
PREFACE
1. Purpose of this Operating Manual
This operating manual provides vital information that is a prerequisite for working safely with the machine. It is
intended primarily for the crane operator and for maintenance specialists. It must be available to the operator and
maintenance staff at all times. Thus, the manual must always be kept within easy reach of the operator's workplace
(i.e. in the operator’s cab).
This manual is an integral part of the vehicle. Before putting your Tadano Mantis crane into operation, please study
the manual thoroughly. Familiarize yourself with section 2 "Safety Instructions," as well as the instruction plates
mounted on the machine and their meaning. You must also be informed about the arrangement, functions and
direction of operation of all the controls before you start up the machine for the first time.
Whenever you work with the crane, be sure to observe the instructions laid down in this operating manual.
2. Manual Organization
Section 1 Overview –describes the 10010MX in general, lists general cautions for safe crane operation, and
explains the crane’s systems and the way its documentation is organized.
Section 2 Safety –provides information pertaining to the proper use of this equipment.
Section 3 Operation –provides detailed instructions about operation of all systems of this equipment.
Section 4 Maintenance–provides the necessary information to maintain the equipment and troubleshoot
faults or errors during operation.
3. Use of this Operating Manual
This operating manual covers the machine model supplied, plus any optional equipment that may be available. To
find the information you need, please consult the table of contents. The headline of the corresponding chapter
appears in the header of each page. The controls, gauges, and switches installed in the cab (at the operator's
place) are mentioned on many pages. The figures shown may differ from the machine model actually supplied.
They are still relevant, however.
Courtesy of CraneMarket.com

PREFACE
vii
Safety precautions and recommendations are outlined in this section and are also included in the operation and
maintenance instructions given in subsequent sections. Warning labels are also provided on the machine. The
cautionary instructions in this manual and on the labels are identified as "DANGER," "CAUTION," or "NOTE."
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION indicates an important operational or
maintenance procedure or condition, which, if not strictly
observed, can result in damage to machine components or
deteriorated machine performance.
It is virtually impossible to anticipate every situation that might present a hazard. The safety precautions given in
this manual and on the machine labels are not exhaustive. It is important, therefore, to strictly follow the
instructions in this manual and be sensitive to potential dangers in order to prevent bodily injury and damage to the
machine.
The contents of this manual must not be copied, distributed, used for purposes of competition, or
disclosed to any third party.
Copyright according to the Copyright Act expressly reserved.
Courtesy of CraneMarket.com

OVERVIEW
1
SECTION 1. OVERVIEW
1.1 OVERVIEW
The Tadano Mantis 10010MX is a diesel-powered, hydraulically operated, telescopic boom crawler crane. Its
maximum load capacity is 50 ton at a 10 ft radius (45.4 metric tons at 3m).
The 10010MX is operated from the crane operator’s cab. This main operating station provides for operation and
monitoring of all crane functions, including winch, boom, swing, and travel controls. All controls for normal crane
operations are arranged in the standard configuration for crane operation.
1.1.1 Service Conditions
The 10010MX was designed and built to operate in the following environment conditions:
Condition
Range
Temperature
-4°F (-20°C) to 115°F (46°C)
Altitude
<10800 ft (3300 m)
Wind Speed
Consult load chart provided with crane.
Options are available to extend the extremes of some of these service conditions. Please contact your Tadano
Mantis dealer for information regarding these options.
Courtesy of CraneMarket.com

OVERVIEW
2
1.2 DIRECTIONAL REFERENCES
1.2.1 Crane Operations
When the words “right” and “left” designate direction in craning operations, they refer to the right- or left-hand side
of the 10010MX as viewed from the operator’s cab, no matter which direction the cab is facing.
1.2.2 Travel Operations
When the words “right” and “left” designate direction in travel operations, they refer to the right or left hand side of
the 10010MX as viewed with the operator cab facing forward. If the cab is facing backward (boom over the drive
end of the undercarriage), all travel control functions are reversed.
Always use caution when using the 10010MX’s travel controls as well as any other function.
LEFT HAND SIDE
RIGHT HAND SIDE
FRONT (Idler End)
REAR
(Drive End)
Courtesy of CraneMarket.com

OVERVIEW
3
1.3 BOOM LOAD CHARTS
The following diagram represents a load chart example. The load charts are classified in various categories,
depending on the crane's working configuration. For each job, the operator must select the table that is as close as
possible to the actual working position. It contains all data required for crane work. All the data required for crane
work must be entered in the RCI (Rated Capacity Indicator) before work is commenced.
The instructions provided in the "notes referring to the load chart" must also be observed.
1 = Work radius (distance between the center of the ring gear and the center of the bottom block or the load)
2 = Amount of counterweight, swing and/or working area and the specified track extension width
3 = Actual boom length
4 = Recommended parts of line reeving to achieve maximum rated capacity for each boom length with low speed
winch operation
1
2
3
4
Courtesy of CraneMarket.com

OVERVIEW
4
1.3.1 Capacity Limits and General Conditions
The Tadano Mantis 10010MX Crane as manufactured by Tadano Mantis Corporation meets the requirements of
ASME B30.5 (2011) when specifically equipped. Structure and stability have been tested in accordance with SAE
J1063 and SAE J765, respectively. Lifting capacities as determined by boom length, angle, or lifting radius apply
only to machines as originally equipped by the manufacturer and in a properly maintained condition.
Capacities given are maximum covered by the manufacturer’s warranty and are based on a freely
suspended load with no allowance for factors such as out-of level operation, supporting surface conditions,
hazardous surroundings, experience of personnel, etc.
Establish practical working loads based on prevailing operating conditions such as, but not limited to, those
listed above.
When making lifts where capacities may be within a zone limited by structural strength, determine that the
weight of the load is known within ± 10% before making the lift.
DO NOT lift a load without consulting the load chart.
Deductions from rated capacities must be made for the
weight of the hook block, overhaul ball, slings, spreader
bar, or other suspended equipment.
Side pull on the boom is extremely dangerous and must be
avoided. DO NOT exceed the manufacturer’s specified
maximum reeving.
Load radius is defined as the horizontal distance from the axis of rotation to the center of the lifting device
after load is applied.
Boom angle is the included angle between the longitudinal axis of the boom base section and the
horizontal axis, after lifting the load. The boom angle before lifting should be somewhat greater than
desired to account for boom deflection.
Boom angle/boom length relationships given in the load charts are an approximation of the resulting load
radius. The radius should be accurately measured.
Boom height dimensions are measured from ground to center of lower boom head sheave.
You may attempt to telescope the boom with a load within the limits of rated capacities. However, boom
angle, system hydraulic pressure, and/or boom lubrication may affect operation.
The load moment indicator system used on the 10010MX is an operational aid that warns the crane
operator of approaching overload conditions and also warns of over hoist conditions that could cause
damage to the equipment and injury to personnel.
The device is not and shall not be a substitute for good operator judgment, experience, and the use of
accepted crane operating procedures.
It is the responsibility of the operator to ensure safe operation of the crane and that he understands and
observes all supplied warnings and instructions.
Prior to operating the crane, carefully and thoroughly read and understand the information in this manual to
ensure knowledge of the operation and limitations of the RCI/A2B system and crane.
Proper functioning is dependent upon proper daily inspections and upon observation of the operating
instructions set forth in the RCI/A2B manual.
Courtesy of CraneMarket.com

OVERVIEW
5
Conditions Contributing to the Risk of Tipping the
Crane
a. Load and/or working radius specified in the load
charts are not strictly adhered to.
b. Weight of the load is not determined before lifting.
c. Swinging of the load due to improper crane
operation.
d. Side load induced by pulling at an angle to the
booms longitudinal axis.
e. The ground is not capable of supporting the crane
and the suspended load.
f. The ground is uneven or sloped beyond acceptable
parameters as described in the load charts.
g. Insufficient distance between the crane and holes,
ditches, or other working surface instabilities.
Courtesy of CraneMarket.com

OVERVIEW
6
1.4 TECHNICAL DATA
1.4.1 Standard Crane and Equipment
The Tadano Mantis 10010MX was designed and built to provide a long service life when it is used and maintained
in accordance with the instructions in this manual. Although replacement components may be available from
various sources, it is highly recommended, in order to maintain the integrity of this crane, only genuine Tadano
Mantis service parts be used for replacement. In addition, the structural steel components of this crane are
constructed of high strength alloy steel, requiring proper welding techniques to prevent compromising the integrity
of this crane, should a repair be necessary. Please consult your authorized Tadano Mantis dealer or Tadano
Mantis Customer Support before repairing or replacing structural components on this crane.
Dimensions and Weights:
Courtesy of CraneMarket.com

OVERVIEW
7
1.4.2 Boom
The boom consists of four full power sections, 37.6 ft (11.4 m) retracted and 111.6 ft (34 m) fully extended.
Maximum tip height is 117 ft (35.7 m). The max tip height with the optional jib and extension is 166 ft (50.6 m).
Angle of boom adjustment
-1° to +78°
Time required for boom angle
adjustment
approx. 44 s
1.4.3 Boom Telescoping & Elevating Systems
The elevating system features a cylinder and counterbalance lock valves, which provide boom elevations from -1°
to 78°. The telescoping system features one double-acting hydraulic cylinder, wire rope pendants, sheaves and
counterbalance lock valves.
Total length retracted
37.6 ft (11.4 m)
Total length extended
111.6 ft (34 m)
Max. pulley height
117 ft (35.7 m)
Time for extending the telescopes
Approx. 105 s
1.4.4 Boom Head
Seven 19 in (483 mm) diameter, cast nylon sheaves on heavy-duty roller bearings are mounted in the boom head
(five load bearing and two lead in sheaves).
1.4.5 Rated Capacity Indicator
Standard RCI system includes audible and visual warnings and function shutdown. The system's LCD screen
provides a continuous electronic display of working boom length, boom angle, working load radius, tip height,
parts-of-line (operator set), machine track configuration (operator set), relative load moment, maximum permissible
load and actual load. The standard work area definition audio and visual warnings aid the operator in avoiding job-
site obstructions by presetting and defining the work area.
1.4.6 Anti-Two Block
Standard anti-two block system includes audible warning and function shutdown when imminent two-block
conditions exist.
Courtesy of CraneMarket.com

OVERVIEW
8
1.5 SUPERSTRUCTURE
1.5.1 Frame
The frame is an all-steel, welded structure, precision machined to accept attachment of the boom and swing
devices.
1.5.2 Engine
Cummins 6 cylinder diesel engine, Type QSB6.7 certified to EU Stage IIIA, US EPA Tier 3 emissions. The engine
speed can be varied progressively via a pedal or by the preset and increment/decrement buttons on the display.
Power
194 kW (260 BHP @ 2200 rpm)
Max. torque
987 N-m (728 lb-ft @ 1500 rpm)
Fuel
Diesel
Operation
Four-stroke direct injection
Piston displacement
6.7 L (409 in³)
1.5.3 Operator's Cab
The fully-enclosed, air conditioned, all-steel modular cab includes a lockable swinging door, acoustical lining, anti-
slip floor, and tinted safety glass. Sliding windows are located in the cab door and cab boom side. A vent window is
positioned in the rear of the cab. Grab bars and steps are appropriately located for easy access to the cab.
Standard cab accessories include a two-speed windshield wiper, top glass wiper, defroster, heater, air conditioner,
circulating fan, foot throttle, six-way adjustable fabric seat with headrest, seat belt, dome light, and a dry-chemical
fire extinguisher.
In an emergency, if the main access door of the cab is blocked, the sliding glass window to the right of the
operator’s seat can be used as an emergency exit. A glass-breaking hammer is supplied and attached to a panel
just below the window.
1.5.4 Instrumentation and Accessories
An integrated monitoring and control system provides engine instrumentation, hydraulic system monitoring, and 2
camera views. Engine instrumentation features a tachometer, voltmeter, temperature gauge, hour meter, and fuel
gauge. Hydraulic system monitoring provides fluid level, fluid temperatures, pump pressures, pilot pressure, and
load sense pressures. Winch rotation is indicated by thumper in respective joystick. Cameras’views are set up to
provide a rear view from the crane as well as a view for monitoring winch operation. Warnings include low fuel
level, low fluid level, fan solenoid fault, high hydraulic temperature, return filter clogging, pilot filter clogging, and air
filter clogging.
In addition, indicators are provided for crane level and load moment.
A termination switch is located in the seat that is capable of immediately disabling all hydraulic functions as the
operator rises from the seat. Additionally, a termination switch is located in the left hand armrest that can be
activated by lifting the armrest.
1.5.5 Control
Four-way electronic joysticks mounted in the operator’s seat armrests control swing, auxiliary hoist, main hoist,
boom telescope, winch hi-speed/low-speed and boom hoist in standard mode. Two two-way electronic foot pedals
Courtesy of CraneMarket.com

OVERVIEW
9
control travel. A single one-way hydraulic pedal controls the swing service brake. Joystick functions change
according to the operating mode selected by the operator.
1.5.6 Counterweight
The 20,000 lb (9070 kg) single-piece counterweight can be removed and installed via a pendant attached to the
boom.
1.5.7 Hoist Winches
Planetary geared, two-speed winches are powered by open loop bent axis variable displacement motors, with a
multi-disc internal brake. Winch Drum rotation indicators provide audible signals to the operator when the drum is
in motion.
Main Winch
Aux Winch
Drum diameter
10.63 in (270 mm)
10.63 in (270 mm)
Rope diameter
.63 in (16.0 mm)
.63 in (16.0 mm)
Approx. rope length
550 ft (152 m)
350 ft (107 m)
Hoist line pull, max
Low speed
High speed
15,000 lbs (66.7 kN)
7,500 lbs (33.4 kN)
15,000 lbs (66.7 kN)
7,500 lbs (33.4 kN)
Max. line speed
Low speed
High speed
205 ft/min (62 m/min)
415 ft/min (126 m/min)
205 ft/min (62 m/min)
415 ft/min (126 m/min)
NOTE
♦Maximum allowable line pull may be limited by rope strength at allowable safety factors. Allowable line pull by
parts of line with standard wire rope is listed in the table below.
WIRE ROPE LINE PULL CAPACITIES*
10010MX
Parts of
Line
Main Winch
Aux Winch
lb
kN
lb
kN
1
11771
52.4
11771
52.4
2
23542
104.7
23542
104.7
3
35313
157.1
4
47084
209.4
5
58855
261.8
6
70626
314.2
7
82397
366.5
8
94168
418.9
9
105939
471.2
10
117710
523.6
*Based on 5/8’’ (16mm) diameter 6x36, IWRC, EIPS rope.
1.5.8 Safety Equipment
Critical hydraulic circuits are protected from movement in the event of loss of pressure by counterbalance valves.
Courtesy of CraneMarket.com

OVERVIEW
10
1.5.9 Electrical Equipment
12 Vdc systems with two batteries (12V, 900 CCA each), three remote-operated spot lights, and strobes mounted
on the back corners for swing warning.
1.5.10 Swing
The superstructure rotates 360° around a shear ball slew bearing with an external gear that matches with the
swing drive pinion and bolts to the superstructure and the carbody. The hydraulic swing drive powers the system
and consists of a gear motor driving into a planetary reducer with a shaft mounted pinions providing infinitely
variable speeds of up to 2.2 rpm.
Swing braking is achieved through a “failsafe,” hydraulically released, spring applied, multi-disc wet brake, which
includes a foot applied service brake. The brake can be electrically actuated through a cab mounted switch into a
“locked-on” (parking) mode. A two-position house lock system is included. The operator may turn free swing mode
on and off through the display. Regular lubrication of the bearing is achieved through a cab mounted grease
applicator.
1.5.11 Fuel System
An 80 US gal (300 L) tank is bolted to the superstructure. The fuel filtration system consists of an inline fuel/water
separator as well as an engine mounted fuel filter.
1.5.12 Hydraulic System
The load sensing, open-loop hydraulic system is served by two variable volume pumps mounted in tandem. The
pumps provide a maximum output of 168 gpm (636 lpm) @ 2,200 rpm and maximum operating pressure of 4,800
psi (330 bar). An extra circuit is included for ready adaptation to hydraulic accessories.
The system includes two electro-hydraulically pressure and flow compensated valve banks. The 300 gal (1136 L)
capacity hydraulic oil reservoir has a spin-on filter-breather cap, clean-out access and a sump type drain. An air to
oil remote mounted cooler provides oil cooling with thermostatically-controlled, hydraulically driven fans. Hydraulic
oil filtering is achieved with three 5-micron full flow cartridge type filters designed to return in-tank with bypass
protection and an electronic bypass indicator.
System pressure test ports with quick disconnect fittings are provided for diagnostics.
1.6 UNDERCARRIAGE
1.6.1 Carbody
The welded steel, box type carbody is fabricated with square axles to accept the crawler side frames. The top
surface is precision machined to receive the slew bearing.
1.6.2 Side Frames
Two welded steel removable side frames are paired with a track group consisting of two top and thirteen bottom
oil-filled & sealed rollers. Each frame includes an oil-filled, self-lubricating idler and spring type, track tensioning
device. Standard track shoes are 36 in (900 mm) wide three bar semi-grousers. The side frames extend and
retract hydraulically and are electrically controlled from the cab.
1.6.3 Travel
Each side frame contains a pilot controlled, two-speed track drive. The drives are hydraulic piston motors, which
propel the crane at a low speed of 0.9 mph (1.5 km/hr) and at a high speed of 1.5 mph (2.4 km/hr). The internal
brake system is spring applied and automatically released upon actuation of the travel system. The hydraulic travel
system provides skid steering and track counter- rotation and achieves an unladed grade-ability of 68%.
Courtesy of CraneMarket.com

OVERVIEW
11
1.7 OPTIONAL EQUIPMENT
1.7.1 Boom Attachments
Boom Extension: 30 ft (9.1 m) lattice type swingaway that stores alongside of the boom base section and
can be used with or without the optional 20 ft (6.1 m) jib. Head contains two 19 in (483 mm) diameter high
strength cast nylon sheaves mounted on heavy duty roller bearings, reeving up to two parts of wire rope.
With the extension deployed the maximum tip height is 145 ft (44.2 m).
Boom Jib: 20 ft (6.1 m) lattice type swingaway, attaches to and stores alongside the extension and can
only be used with the extension deployed. Offsets are at 15° and 30°. With jib and extension deployed the
maximum tip height is 166 ft (50.6 m).
Auxiliary Boom Head: quick reeve, single 19 in (483 mm) diameter high strength, cast nylon sheave
mounted on a heavy duty roller bearing boom tip adapter.
Wire Rope: rotation resistant (non-spin) 0.63 in (16 mm) wire rope is available.
Overhaul Ball:12 US ton (11 metric ton) ball includes a bottom swivel hook and safety latch.
Hook Block:50 US ton (45 metric ton) hook block consists of five 16 in (406 mm) diameter steel sheaves
mounted on heavy duty roller bearings with a swivel hook and safety latch.
1.7.2 Hydraulic
Auger Ready Package: includes hoses, fasteners and stowage bracket assembly mounted to the base
section of the boom with a flow capability of 34 gpm (130 lpm).
Complete Auger Package: adds a two-speed auger motor/gear box and two 60 in (1.52 m) Kelly bars to
the Auger Ready Package.
Tool Circuit: provides 5 gpm (19 lpm) and 10 gpm (38 lpm) at 2500 psi (176 kg/cm²) through a 50 ft (15.24
m) twin hose reel with quick disconnect fittings to operate open center tools.
Pole Claw Kit: includes boom tool circuit, boom-mounted dual twin hose reel, pole claw, wiring harness,
valves, mounting brackets, and fasteners.
Courtesy of CraneMarket.com

SAFETY INSTRUCTIONS
12
SECTION 2. SAFETY INSTRUCTIONS
Most accidents that occur during crane operation and maintenance are caused by failure to observe basic safety
rules and precautions. Before operating your machine or performing maintenance, read and become familiar with
all the safety precautions and recommendations given in this section. Remember that failure to observe even a
single precaution could involve you and the people around the machine in a serious accident.
Foreseeing potential dangers is vital for preventing accidents. All personnel working with the machine, including
the supervisor, crane operator, and rigger, should be sensitive to potentially dangerous situations and take the
necessary measures to prevent accidents.
Safety precautions and recommendations are outlined in this section and are also included in the operation and
maintenance instructions given in subsequent sections. Warning labels are also provided on the machine. The
cautionary instructions in this manual and on the labels are identified as "DANGER," “WARNING,” or "CAUTION."
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation
which, if not avoided, could result in death or serious
injury.
CAUTION indicates an important operational or
maintenance procedure or condition, which, if not strictly
observed, can result in damage to machine components or
deteriorated machine performance.
It is virtually impossible to anticipate every situation that might present a hazard. The safety precautions given in
this manual and on the machine labels are not exhaustive. It is important, therefore, to strictly follow the
instructions in this manual and be sensitive to potential dangers in order to prevent bodily injury and damage to the
machine.
NOTE
♦Remember that your most important duty is to ensure the safety of you, your coworkers and any other people in
the area.
Use of an improper or unauthorized method during
operation or maintenance of this machine can be
dangerous and could lead to serious injury or death. Read
this manual thoroughly and be familiar with the proper
operating and maintenance procedures before using the
machine. Do not operate the machine or perform
maintenance on it until you understand the instructions in
this manual.
Courtesy of CraneMarket.com
