Tailfin AP20 User manual

AP20 Trunk Top Bag
Assembly Instructions
www.tailfin.cc
[e-mail]
for further assistance
Torx T25 Wrench
&
Torque Wrench
15 minutes

AP20 Trunk Top Bag
What’s included
A
B
C
D
Trunk Top Bag
Front Connector
Rear Connector
4 x M5*12mm Countersunk
Screws
C B
D
A

Install Front Connector
Step One
A
B
C
Attach Front Connector to
bag using two of the screws
provided. Partially remove
rubber cover for easier
installation
Ensure front strap is
underneath the connector
Tighten each screw in turn
to 5Nm
DSlide rubber cover back in
place
AB
CD
AB
CD

Install Rear Connector
Step Two
A
B
C
Attach Rear Connector to
the bag using the two
remaining screws
You may need to rotate the
connector when initially
installing the screws
Tighten each screw in turn
AB
DUse a torque wrench and
tighten screws to 5Nm
CD

Attach to Tailfin Rack
Step Three
A
B
C

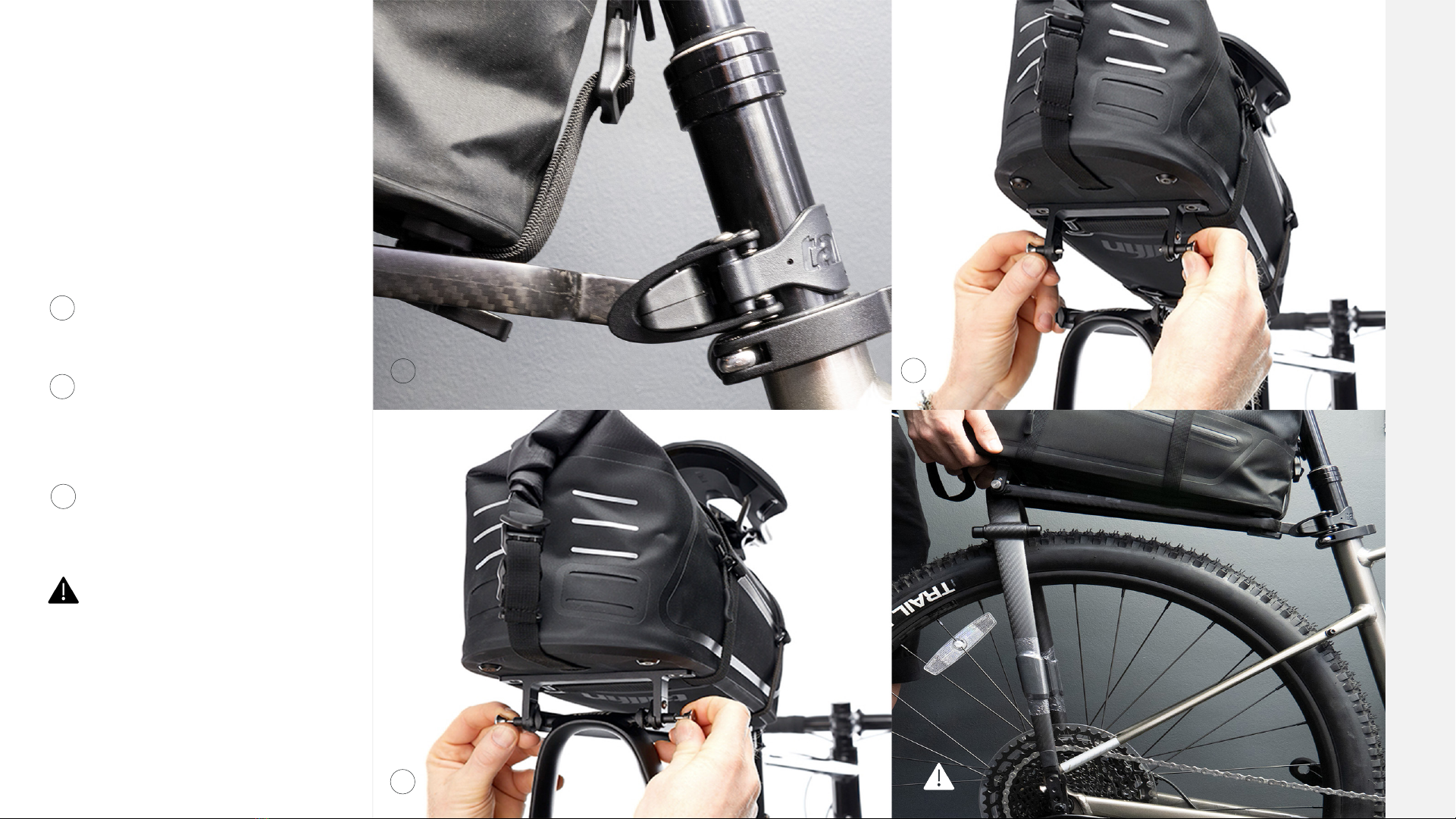

Place Front Connector
under Top Stay
Align rear of bag with Rack
and pull open pins until the
bag seats in position
Push rear connector pins all
the way in.
CHECK that the bag is fully
connected by trying to lift
rear of bag before each ride
AB
C
AB
C

Bag Compression
Optional Step
ATo compress the bag, open
the Direct Access Pocket
before you roll the bag shut.
This will help remove
excess air and reduce the
bag’s size. Close the zip to
finish

Stacking Straps
Optional Step
AIf you are travelling light,
cross the two straps over
into an ‘X’ to prevent them
from moving around

www.tailfin.cc
[e-mail]
for further assistance
AP20 Trunk Top Bag
Assembly Instructions
