Tailfin Carbon Rack User manual

Rack
www.tailfin.cc
[e-mail]
for further assistance
Torx T25 Wrench
&
Torque Wrench
20 minutes
Assembly Instructions

Rack
What’s included
Arch
Fast Release Dropouts*
* For ‘Axle + Fast Release Dropout’ option
If Direct Mounting click here
1
2
3
4
5
Top Stay
Axle*
Long Seat Post Strap
1
2
3
4
5

Orientate Arch and Fast
Release Dropouts
Step One
A
CD
*Not applicable to Direct Mount setup, proceed to Step 3
A
B
C
Use the Tailfin logo to
orientate the Arch.
Place Dropout on Arch.
The sloped side of the
dropout faces outside
The quick release pin
faces backwards
D
The logo is legible when
stood behind the bike. This
will ensure panniers are
also at the correct angle
B

Attach Fast Release
Dropouts
Step Two
AAttach Dropouts to the
Arch using the
countersunk screws
included.
Tighten screws in turn to
5Nm
A

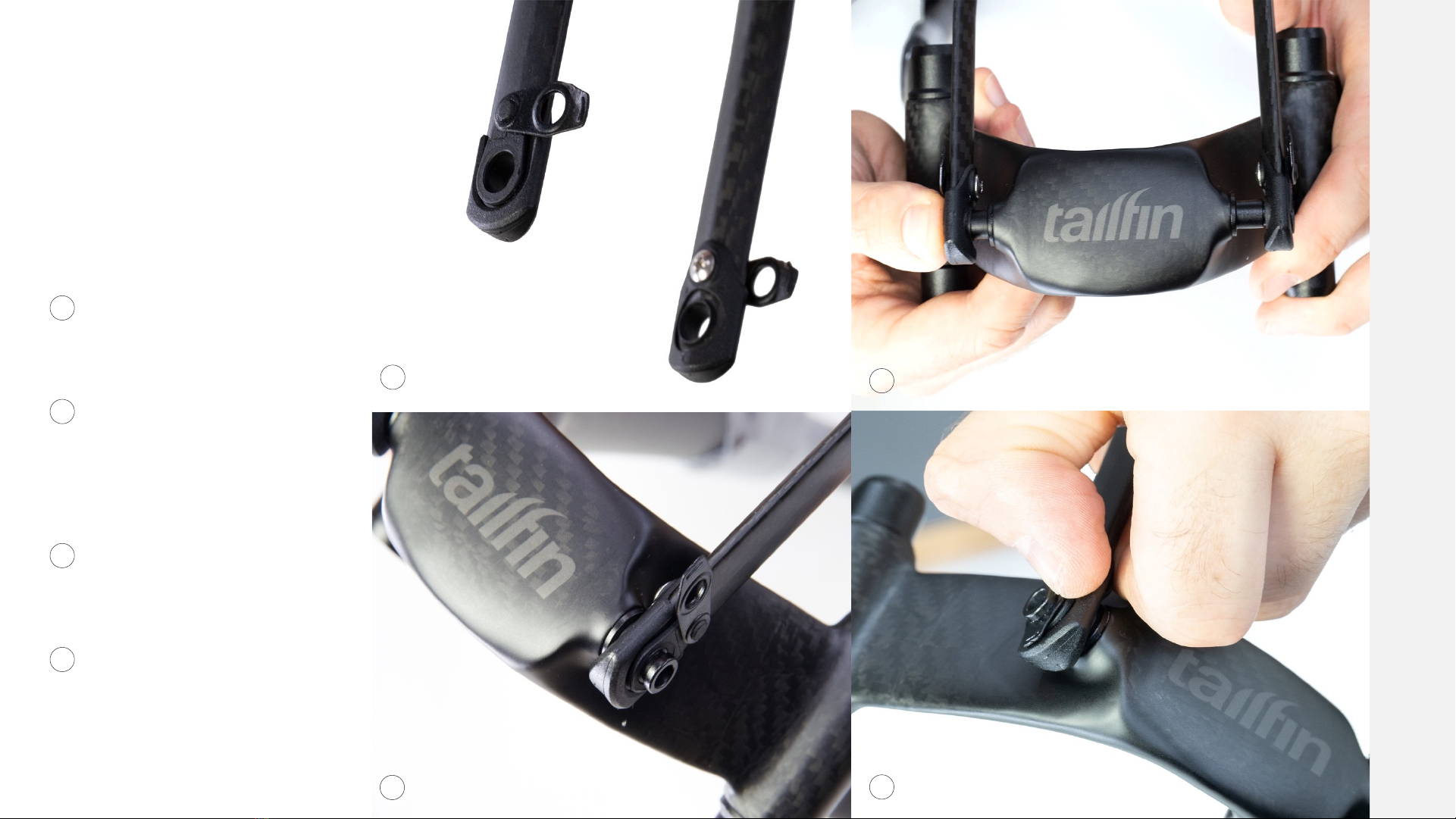

Attach Top Stay
Step Three
A
B
C
Rotate retaining clips so
they are pointing vertically
*WARNING* Do not overly
flex the Top Stay, This can
cause a fracture
D
Attach one side of the Top
Stay to Arch. Repeat for
the opposite side.
Push both arms of the Top
Stay fully onto the Arch
AB
C
Now attach the retaining
clips on both sides of the
Top Stay.
Check the retaining clip is
fully seated in the groove
all the way around D

Attach Rack to Bike
Step Five
AOpen Fast Release
Dropouts
BClamp Dropouts in place
around Axle/Frame Mount
Adaptors
CClose Seat Post Connector
in place
AB
C
C

Warning
Step Six
Ensure ’teeth’ of the Seat
Post Connector are closed
by pushing on the lever.
Clamp is locked, ready to
ride
A
BDO NOT use the release
button to attach the Rack.
Clamp is unlocked, do not
ride
C
ACorrect
BIncorrect

√
Anti-Theft Screws
Optional Step
A
B
A Security Torx key and
screws are included with
each set of Fast Release
Dropouts
Install the screws to lock
the Fast Release Dropouts
to your axle
A
B
