Tailfin Direct X Series User manual

AeroPack Carbon & Alloy assembly
1Tailfin 2020 Assembly Instructions © TAILFIN 2020
Step 1 –Attach Dropouts to Rack
Tailfin 2020 Assembly Instructions © TAILFIN 2020 2
1. Unpack the arch,
screws & the Dropouts 2. Check orientation
of dropouts and
screw to arch
3. Check sloped
surface is on the
outside edge
4. Whilst pushing
upwards, tighten the
four screws to 5Nm
5 Nm
4 PLACES
5. Dropouts now fully
assembled
Optional Step - Anti-theft screws
Tailfin 2020 Assembly Instructions © TAILFIN 2020 3
1. The dropouts are
supplied with 2 optional
security screws and a
security Torx tool
3. When installed they
prevent the quick release
mechanism from being
opened easily
2. These can be screwed to
the quick-release
mechanism as shown
Step 2 - Attach rear connector
4
1. Unpack the rear
connector and arch
2. Work both sides of the rear connector
to this position
5 Nm
3. Join both sides of the connector then
add screw and tighten to 5Nm
Tailfin 2020 Assembly Instructions © TAILFIN 2020
Step 3 –Attach front seatpost connector to bag
5
1. Unpack front connector, 2x screws & seatpost
connector 2. Screw seatpost connector in position –make sure
that the front strap is UNDER the seatpost connector
–tighten screws to 5Nm
5 Nm
2 PLACES
Tailfin 2020 Assembly Instructions © TAILFIN 2020
Step 4 –Assemble arch to bag
6
1. Ready the arch, bag and
2x screws
5 Nm
2 PLACES
2. Attach rack to bag and tighten 2x screws to
5Nm
Tailfin 2020 Assembly Instructions © TAILFIN 2020
Direct X & S series frame mounting
Parts included in the box as standard
7Tailfin 2020 Assembly Instructions © TAILFIN 2020
1. The spacer kit included
with every arch includes:
4x 7mm Thick Spacers
2x M5 Washers
2x M5x16 Screws
2x M5x20 Screws
2x M5x30 Screws
Step 1 –Measure bike frame
8
2. Depending on the width of your dropouts
will determine how many spacers are
required to fit the rack
Tailfin 2020 Assembly Instructions © TAILFIN 2020
Step 2 –Select the number of spacers required
9
Direct mount
•No spacers
•2x M5x16mm
•Max Dropout Width = 191mm
•Min Dropout Width = 177mm
Double spacer per side
•2x spacers per side
•2x M5x30 Screws
•Max Dropout Width = 163mm
•Min Dropout Width = 149mm
Single spacer per side
•One spacer per side
•2x M5x20 Screws
•Max Dropout Width = 177mm
•Min Dropout Width = 163mm
Tailfin 2020 Assembly Instructions © TAILFIN 2020
Step 3 –Screw rack in place
10
Insert correct number of spacers
and screw directly to the frame
Tailfin 2020 Assembly Instructions © TAILFIN 2020

This manual suits for next models

3

Other Tailfin Bicycle Accessories manuals

Tailfin AeroPack User manual

Tailfin

Tailfin AeroPack User manual

Tailfin X Series User manual

Tailfin

Tailfin X Series User manual

Tailfin UD22L User manual

Tailfin

Tailfin UD22L User manual

Tailfin AP20 User manual

Tailfin

Tailfin AP20 User manual

Tailfin AeroPack User manual

Tailfin

Tailfin AeroPack User manual

Tailfin Zip Top Tube Pack User manual

Tailfin

Tailfin Zip Top Tube Pack User manual

Tailfin Carbon Rack User manual

Tailfin

Tailfin Carbon Rack User manual

Popular Bicycle Accessories manuals by other brands

EUFAB 11232 Fitting instructions

EUFAB

EUFAB 11232 Fitting instructions

WHEELSWING VOLT 1 user manual

WHEELSWING

WHEELSWING VOLT 1 user manual

Bosch Kiox 300 owner's manual

Bosch

Bosch Kiox 300 owner's manual

Mactronic BATTERY SCREAM 3.3 quick start guide

Mactronic

Mactronic BATTERY SCREAM 3.3 quick start guide

Burley DASH FM Owner's instruction & safety manual

Burley

Burley DASH FM Owner's instruction & safety manual

Burley BEE Homeowner's instructions

Burley

Burley BEE Homeowner's instructions

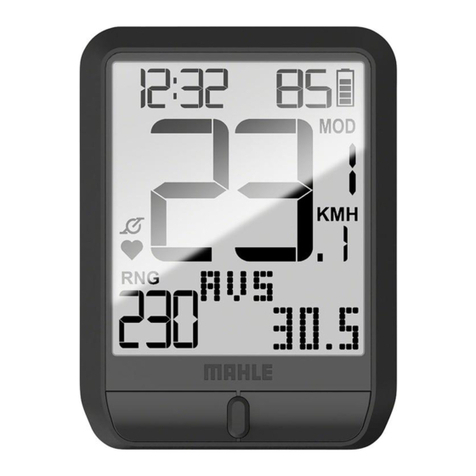

MAHLE PULSARONE quick start
