Tait TB9300 User manual

TB9300 Base Station/Repeater
Installation and Operation Manual
MBC-00008-22 · Issue 22 · July 2019

2TB9300 Installation and Operation Manual
© Tait International Limited July 2019
Contact Information
Tait Communications
Corporate Head Office
Tait International Limited
P.O. Box 1645
Christchurch
New Zealand
For the address and telephone number of regional
offices, refer to our website:www.taitradio.com
Copyright and Trademarks
All information contained in this document is the
property of Tait International Limited. All rights
reserved. This document may not, in whole or in part,
be copied, photocopied, reproduced, translated, stored,
or reduced to any electronic medium or machine-
readable form, without prior written permission from
Tait International Limited.
The word TAIT and the TAIT logo are trademarks of
Tait International Limited.
All trade names referenced are the service mark,
trademark or registered trademark of the respective
manufacturers.
Disclaimer
There are no warranties extended or granted by this
document. Tait International Limited accepts no
responsibility for damage arising from use of the
information contained in the document or of the
equipment and software it describes. It is the
responsibility of the user to ensure that use of such
information, equipment and software complies with the
laws, rules and regulations of the applicable
jurisdictions.
Enquiries and Comments
If you have any enquiries regarding this document, or
any comments, suggestions and notifications of errors,
please contact your regional Tait office.
Updates of Manual and Equipment
In the interests of improving the performance,
reliability or servicing of the equipment, Tait
International Limited reserves the right to update the
equipment or this document or both without
prior notice.
Intellectual Property Rights
This product may also be made under license under one
or more of the following patents:
- US7203207, AU2004246135, CA2527142,
GB2418107, HK1082608, MY134526, US8306071
- US7339917, AU2004246136, CA2526926,
GB2418812, MY134217
- US7499441, AU2005262626, CA2570441,
GB2430333, JP4690397, NZ551231, KR100869043,
RU2351080, BRP10512052, MXPA06015241
- US 7200129, AU2005226531, CA2558551,
CN1930809, GB2429378, JP4351720, BRP10508671,
NZ549124, KR848483, RU2321952
Environmental Responsibilities
Tait International Limited is an environmentally
responsible company which supports waste
minimization, material recovery and restrictions in the
use of hazardous materials.
The European Union’s Waste Electrical and Electronic
Equipment (WEEE) Directive requires that this
product be disposed of separately from the general
waste stream when its service life is over. For more
information about how to dispose of your unwanted
Tait product, visit the Tait WEEE website at
www.taitradio.com/weee. Please be environmentally
responsible and dispose through the original supplier,
or contact Tait International Limited.
Tait International Limited also complies with the
Restriction of the Use of Certain Hazardous Substances
in Electrical and Electronic Equipment (RoHS)
Directive in the European Union.
In China, we comply with the Measures for
Administration of the Pollution Control of Electronic
Information Products. We will comply with
environmental requirements in other markets as they
are introduced.

TB9300 Installation and Operation Manual 3
© Tait International Limited July 2019
Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Scope of Manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Associated Documentation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Publication Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

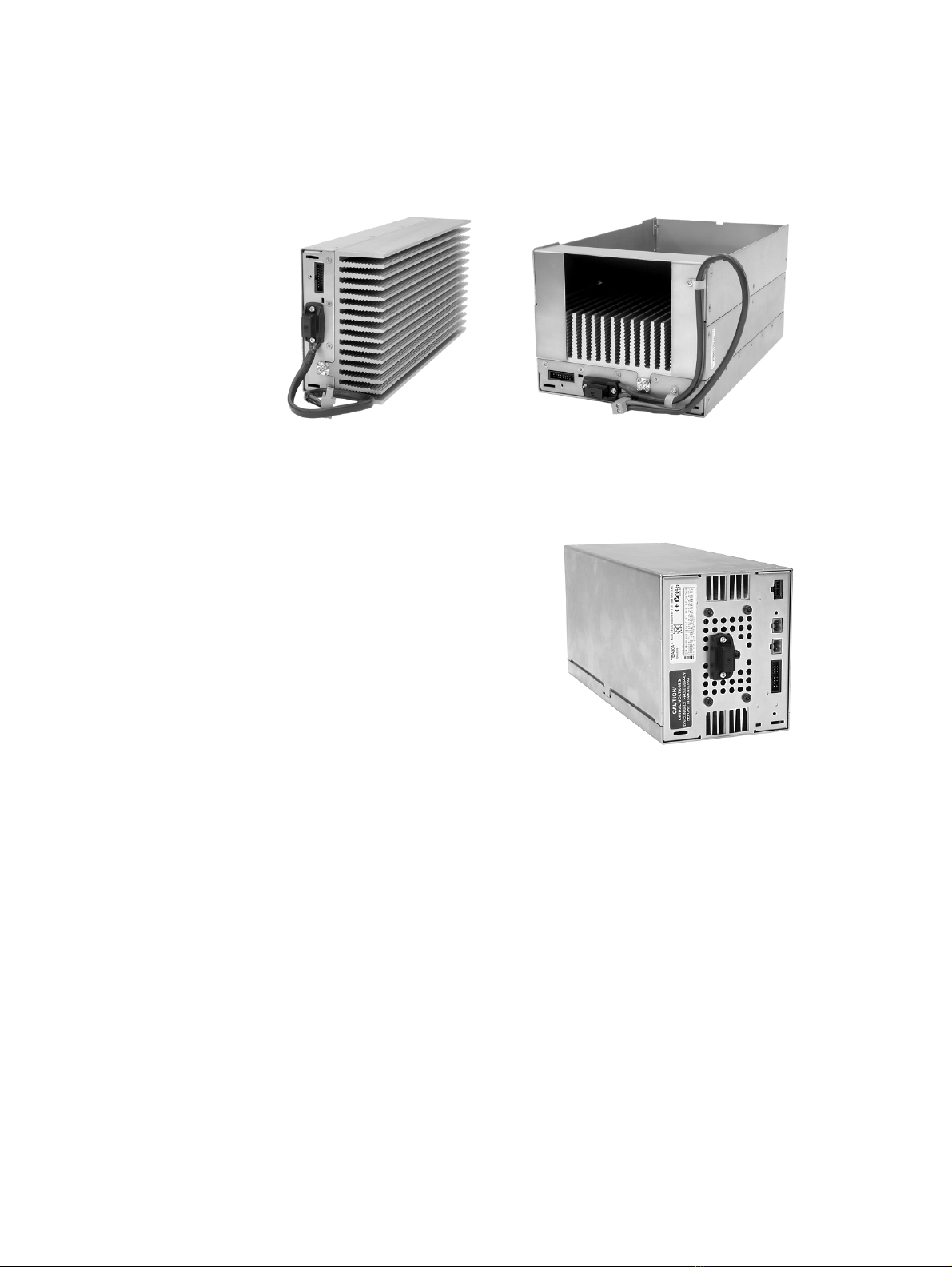

1.2 Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

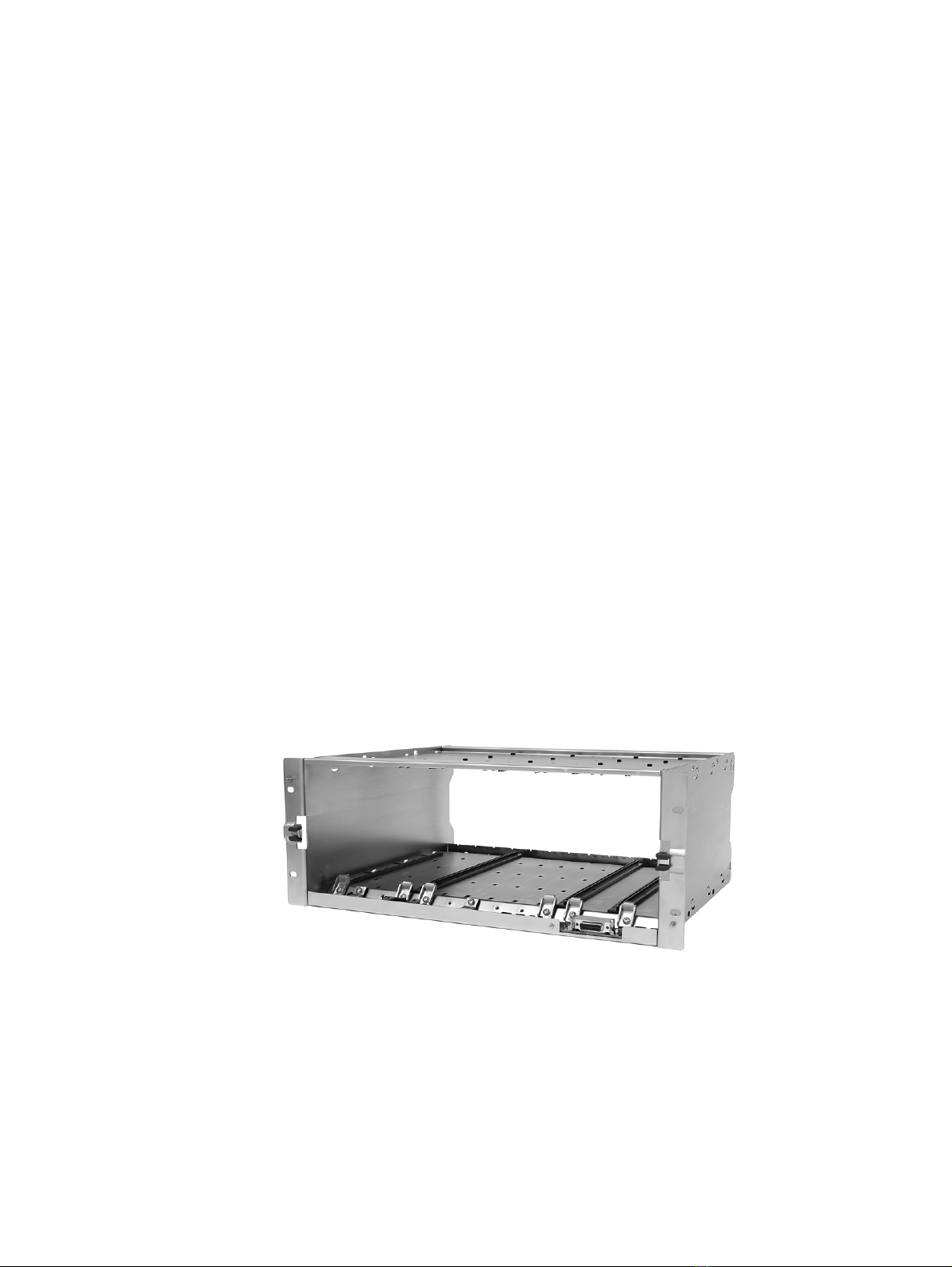

1.3 Mechanical Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1.4 Frequency Bands and Sub-bands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1.5 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.6 Licenses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.7 Theory of Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1.7.1 Signal Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.7.2 Online and Offline Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.7.3 Intermodule Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1.7.4 Power Management and Distribution . . . . . . . . . . . . . . . . . . . . . . . . . . 26
1.7.5 PMU Operation on DC Input. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
1.7.6 Front Panel Fans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
2 General Safety and Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2.1 Personal Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2.1.1 Unpacking and Moving the Equipment. . . . . . . . . . . . . . . . . . . . . . . . . 32
2.1.2 Lethal Voltages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
2.1.3 AC Power Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.1.4 Explosive Environments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.1.5 High Temperatures. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.1.6 LED Safety (EN60825-1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
2.1.7 Proximity to RF Transmissions / A proximité des émissions RF . . . . . 34
2.2 Equipment Safety. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.2.1 Installation and Servicing Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.2.2 Preventing Damage to the PA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.2.3 ESD Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
2.2.4 Anti-tampering Devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.3 Environmental Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.3.1 Operating Temperature Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.3.2 Humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.3.3 Dust and Dirt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
2.4 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.4.1 Distress Frequencies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.4.2 Compliance Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.4.3 FCC Compliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
2.4.4 Unauthorized Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4TB9300 Installation and Operation Manual
© Tait International Limited July 2019
2.4.5 Health, Safety and Electromagnetic Compatibility in Europe. . . . . . . . 38
3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

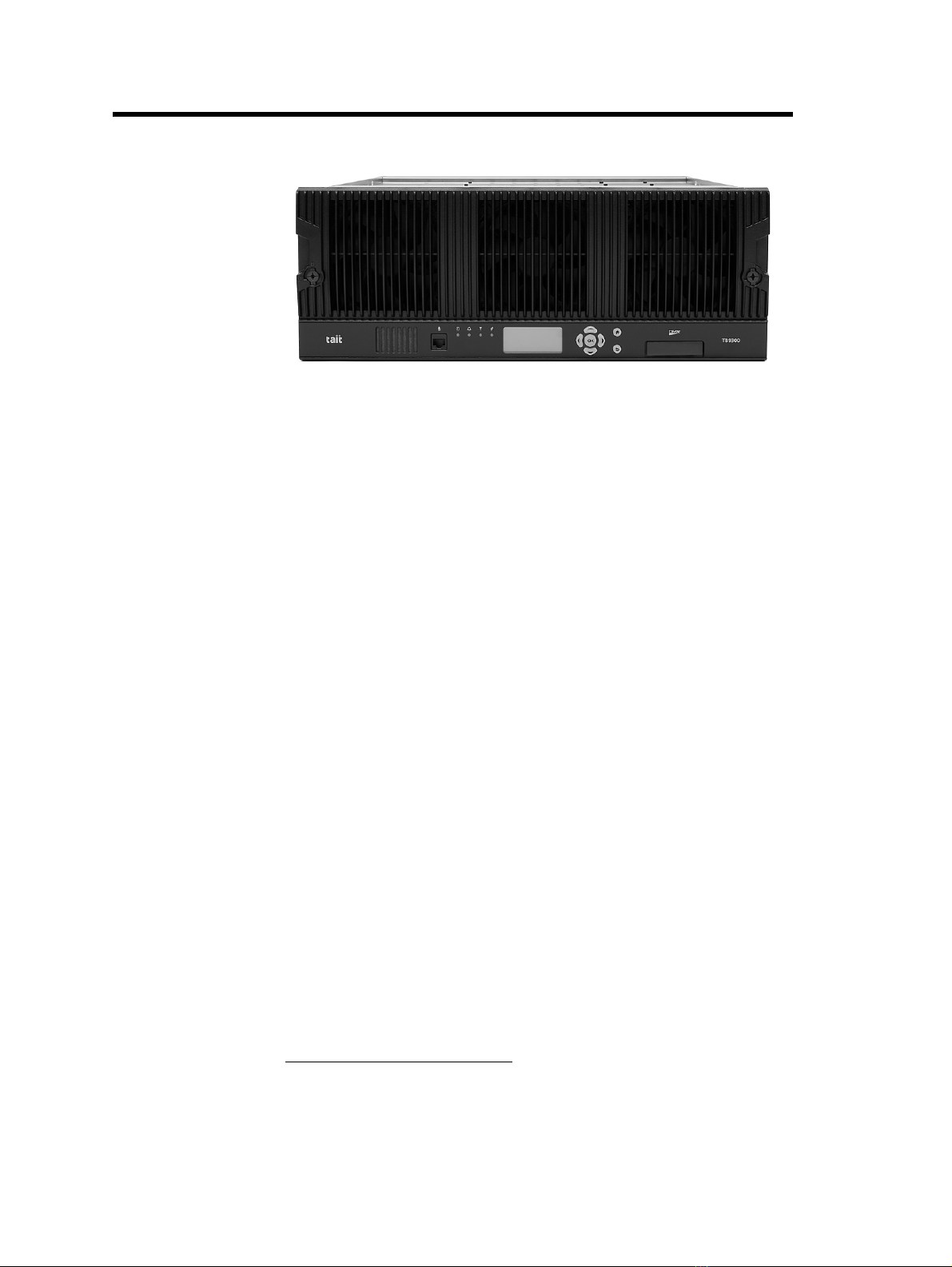

3.1 Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
3.2 Module Indicator LEDs and Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.2.1 Reciter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
3.2.2 PA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
3.2.3 PMU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
4.1 Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.1.1 Equipment Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.1.2 Grounding and Lightning Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.1.3 Equipment Ventilation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.1.4 Ambient Temperature Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
4.1.5 Cabinet and Rack Ventilation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
4.2 Unpacking and Moving the Subrack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
4.3 Identifying the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
4.4 Initial Setting Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
4.4.1 Confirming Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
4.4.2 Working with Configurations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
4.4.3 Customizing the Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
4.4.4 Recommended Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . 60
4.4.5 Restricted Port Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
4.4.6 Changing the Root Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
4.4.7 Tuning the Reciter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
4.5 Installing the Base Station on Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.5.1 General Installation Advice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.5.2 Equipment Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
4.5.3 Mounting the Subrack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
4.6 Connecting Up the Base Station. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
4.6.1 Connection Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
4.6.2 Connecting AC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
4.6.3 Connecting DC Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
4.6.4 Connecting the Auxiliary DC Power Output. . . . . . . . . . . . . . . . . . . . . 75
4.6.5 Connecting RF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
4.6.6 Connecting an External Frequency Reference. . . . . . . . . . . . . . . . . . . . 77
4.6.7 Connecting a 1PPS Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
4.6.8 Ethernet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
4.6.9 Connecting General Purpose Inputs and Outputs . . . . . . . . . . . . . . . . . 80
5 Working with Base Stations from Your PC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
5.1 PC Recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.2 Connecting Your PC to the Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
5.2.1 Logging In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
5.2.2 Setting the IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
5.2.3 Security Certificates. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5.2.4 Local Connection to a Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
5.2.5 Troubleshooting Connection Problems . . . . . . . . . . . . . . . . . . . . . . . . . 86
5.2.6 Finding a Lost or Forgotten IP Address. . . . . . . . . . . . . . . . . . . . . . . . . 86

TB9300 Installation and Operation Manual 5
© Tait International Limited July 2019
5.2.7 Setting Up Authentication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
5.3 Working with the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
5.3.1 Monitoring Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
5.3.2 Troubleshooting Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
5.3.3 Viewing Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
5.3.4 Viewing the Base Station and Network Identity . . . . . . . . . . . . . . . . . . 93
5.4 Basic Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
5.4.1 User Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
5.4.2 Taking the Base Station Offline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
5.4.3 Troubleshooting Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
5.4.4 Disabling the Front Panel Keypad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
5.4.5 Uploading New Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
5.4.6 Downloading Firmware from a Package Server . . . . . . . . . . . . . . . . . . 96
5.4.7 Activating New Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
5.4.8 Working with Configuration Files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
5.4.9 Setting Up Custom Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
5.4.10 Subaudible Signaling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
5.4.11 Checking for Interference on a Receive Channel . . . . . . . . . . . . . . . . . 99
5.4.12 SNMP Network Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
5.4.13 Single or Channel Group Base Stations. . . . . . . . . . . . . . . . . . . . . . . . 101
5.4.14 Marshaling or Transmit Delay. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
5.4.15 Configuring Receive-Only Base Stations . . . . . . . . . . . . . . . . . . . . . . 102
6 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
8 Replacing Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
8.1 Saving the Base Station’s Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
8.2 Preliminary Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
8.3 Replacing a Reciter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
8.4 Replacing a Power Amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .111
8.5 Replacing a Power Management Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
8.6 Replacing the Module Guide Rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .113
8.7 Replacing the Subrack Interconnect Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
8.8 Final Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Appendix A – Interface Pin Allocations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
System Interface Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Ethernet Connector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
PMU Auxiliary DC Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Appendix B – Inter-Module Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Dual 50W Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Single 50W Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
100W Base Station. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Appendix C - TB9300 Cable Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Cable Kits. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
T01-01150-0002 - TB9300 Kit Cable Single 50W Channel Upgrade. . . . . . . . . . . . . 121

6TB9300 Installation and Operation Manual
© Tait International Limited July 2019
T01-01150-0004 - TB9300 Kit Cable Single 100W Channel Upgrade . . . . . . . . . . . . 121
Appendix D - Installing the Firmware Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Mongoose Installation Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Setting Up a Central Package Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Setting up a Temporary Package Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Tait General Software License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Simplified EU Declaration of Conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

TB9300 Installation and Operation Manual Preface 7
© Tait International Limited July 2019
Preface
Scope of Manual
This manual provides information on installing and operating the TB9300
base station. It is intended for use by experienced technicians familiar with
installing and operating base station equipment. It also includes
configuration, maintenance and troubleshooting information.
Unless mentioned specifically, this manual will use the term “base station”
to refer to both base station and repeater.
Document Conventions
The TB9300 base station has a web interface with an accordion menu on
the left side of the screen. “Configure > Base Station > Channels” means
click Configure in the top-level menu, then in the expanded Configure
menu click Base Station, and finally click on the Channels tab on that page.
Within this manual, four types of alerts may be given to the reader. The
following paragraphs illustrate each type of alert and its associated symbol.
Warning This alert is used when there is a hazardous situation
which, if not avoided, could result in death or serious injury.
Caution This alert is used when there is a hazardous situation which,
if not avoided, could result in minor or moderate injury.
Notice This alert is used to highlight information that is required to
ensure procedures are performed correctly. Incorrectly performed pro-
cedures could result in equipment damage or malfunction.
This icon is used to draw your attention to information that may
improve your understanding of the equipment or procedure.

8 Preface TB9300 Installation and Operation Manual
© Tait International Limited July 2019
Associated Documentation
The following associated documentation for this product is available on the
Tait support website.
■TB9300 Specifications Manual (MBC-00009-xx)
■TN9300 DMR Tier 2 Conventional Radio Network System Manual
(MNB-00005-xx)
■TN9300 DMR Tier 3 Trunked Radio Network System Manual
(MNB-00003-xx)
■TN9300 DMR Radio Network Node Controller Installation Manual
(MNB-00001-xx)
■Safety and Compliance Information (MBA-00012-xx)
The characters xx represent the issue number of the documentation.
Technical notes are published from time to time to describe applications for
Tait products, to provide technical details not included in manuals, and to
offer solutions for any problems that arise. Technical notes are available in
PDF format from the Tait support website. For more information contact
your regional Tait office.

TB9300 Installation and Operation Manual Preface 9
© Tait International Limited July 2019
Publication Records
Issue Publication
Date Description
22 July 2019 General updates for the 3.00 release
Minor updates throughout
SNMP Network Management section added - provides information on MIBs
21 March 2019 General updates for the 2.60 release
Added “Connecting General Purpose Inputs and Outputs” section
Instructions added for disabling Secure Shell Remote Access (SSH).
Content added for working with configurations
Content added for uploading, downloading and activating new firmware
New chapter: Appendix C added, featuring cable kits
20 December 2018 General updates for the 2.55 release
Updated root password information
Added H4 band throughout
19 July 2018 General updates for the 2.50 release
Updated to “Tait International Limited”.
Information added for H5 band.
Minor updates throughout.
Product Code “T01-01121-XXXX” included where required.
Under “Tuning the Reciter”, added a table to indicate which bands require
manual tuning, and which bands are electronically tuned.
18 March 2018 General updates for the 2.45 release
“Publication Record” now shows most recent manual issue at top of table
Added note about fill-in receiver to “8.4 Replacing a Power Amplifier”
Added section: “5.4.11 Configuring Receive-Only Base Stations”
Clarified “Bands and Sub-Bands” table”
Added section 5.2.4 “Local Connection to a Base Station”
17 November 2017 General updates for the 2.40 release
Modified the operations portion of the base station Description on page 10
Added workaround for the WUI blank screen when using Internet Explorer.
Updated Front Panel Fans on page 31
Added information for slow response when cancelling a firmware package
download in Subaudible Signaling on page 98
Added information regarding potential TB9300 reset when an IP address is
saved while online in Setting the IP Address on page 84
Updated G.711 block in Signal Paths on page 24
Updated table for clarity under Licenses on page 20
16 September 2017 General updates for the 2.35 release
“Express” is now “Express6” with “Express” now used to encompass both
“Express6” and “Express20”.
Amended “Express20” license description for clarity
Updated manual throughout to include new C1 and C3 bands
Updated “Final Reassembly” chapter regarding airflow separator
Removed obsolete airflow separator from “Mechanical Assembly” on pages
15 and 16.
Screenshots have been updated throughout.
15 March 2017 General updates for the 2.30 release.
Added paragraph for MPT operation in Applications on page 19.
Added C-Band information to the tables and to Tuning the Reciter on
page 62
Completely revamped the entire “Cabinet and Rack Ventilation” section.
Added some missing K4 and K8 band frequency information.

10 Description TB9300 Installation and Operation Manual
© Tait International Limited July 2019
1 Description
The Tait TB9300 base station is a robust state-of-the-art digital fixed
station that combines Tait’s proven strengths in reliability, high
performance and modular design with software-based configurability and
operation, digital signal processing, and voice-over-IP technology.
The TB9300 combines industry-leading digital voice quality with rugged
design specifications and intuitive user interfaces. These products are
designed to meet the needs of professional radio users.
The ability of the base station to link stations using standard Internet
Protocol communications, and to add features through software options
ensures that DMR systems designed with the TB9300 are scalable in both
size and functionality.
Its Ethernet interface provides built-in network connectivity which allows
the base station to join with other base stations to form a channel group.
This network supports voice-over-IP and remote management of all base
stations via a web browser.
The TB9300 operates as the following:
■an IP connected transceiver in trunked DMR or MPT networks
■an IP connected transceiver in trunked simulcast radio networks
■an IP connected transceiver in non-simulcast multi-site networks
■an IP connected transceiver in digital conventional simulcast networks
■an IP connected repeater in DMR conventional networks
■an analog 600 Ohm connected repeater in an analog conventional
network with CTCSS or DCS subaudible signaling1
1. Continuous Tone Coded Squelch System Commonly referred to as PL, an
acronym for Private Line
(DCS) Digital Code Squelch Commonly referred to as Digital Private Line

TB9300 Installation and Operation Manual Description 11
© Tait International Limited July 2019
1.1 Features
The following is a list of some base station features:
■Fully compliant with the DMR Tier 2 and Tier 3 Standards.
Can therefore interoperate with any similarly compliant radios.
■Analog conventional repeater operation.
■MPT operation as control channel or traffic channel transceiver in MPT/
IP network including standalone operation.
■Digital simulcast operation.
■Can be completely managed remotely from a PC running a web
browser: configuration, alarm monitoring, fault diagnosis, syslog,
feature and firmware upgrades. Alarms can also be reported via SNMP
traps, allowing integration with an SNMP-based network management
system.
■An integrated wiring solution is provided for the system control bus and
DC power connections to each module in the subrack.
■Reciters (receiver/exciter modules) can be replaced without affecting
the operation of other reciters in the same subrack.
■Rugged construction with generous heatsinks and fan-forced cooling
for continuous operation from –22°F to +140°F (–30°C to +60°C).

12 Description TB9300 Installation and Operation Manual
© Tait International Limited July 2019
1.2 Modules
The base station consists of a subrack with up to two physical transmit/
receive channels.
The single PMU (power management unit) supplies and manages power to
the whole subrack (refer to “Theory of Operation” on page 22). One reciter
and one PA (power amplifier) are needed for each physical transmit/receive
channel. There is also a front panel with user controls and fans. The
modules are interconnected at the front of the subrack. External
connections to the modules are located at the rear.
Modules come in different variants depending, for example, on the RF
band or the supply voltage.
Each module is inserted into the 4U subrack from the front and is secured
at the front with a metal clamp. Both clamp and module are easily removed
for rapid module replacement. The modules are secured laterally with
plastic guides that clip into the top and bottom of the subrack. These guides
can be easily repositioned to change the configuration of a subrack. The
heavier modules are also secured laterally by metal tabs at the rear of the
subrack.
The following provides a brief description of the available modules.
Subrack The 4U subrack is made of passivated steel and is designed to fit into a
standard 19 inch rack or cabinet. The subrack is fitted with an interconnect
board that connects the system control bus and power to the modules and
front panel. The position of a module in the subrack is defined by the socket
on the subrack interconnect board to which the module is connected by the
system control bus.

TB9300 Installation and Operation Manual Description 13
© Tait International Limited July 2019
Front Panel The front panel is mounted onto the subrack with two quick-release
fasteners. It incorporates the indicator LEDs, four-line LCD display, user
controls, ambient temperature sensor and cooling fans.
The indicator LEDS allow some monitoring of the operational status of the
base station. The user controls and display allow the technician to
configure the IP address of each module. Refer to “Front Panel” on page 39
for more information.
The base stations have different front panel ducting arrangements
depending on PA type and power. Front panels may not be interchange-
able.
The microphone input and speaker are not currently used.
Reciter The reciter module comprises the
receiver, exciter and digital control
circuitry. The reciter provides the
Ethernet interface and system inputs
and outputs.

14 Description TB9300 Installation and Operation Manual
© Tait International Limited July 2019
Power Amplifier The PA amplifies the RF output from the reciter and is available in 50W
and 100W models.
The 50W model mounts vertically in the subrack, while the 100W model
mounts horizontally as it has a wider heatsink. The 100W PA is also fitted
with an airflow duct.
Both models are designed to operate on the 28VDC output provided by the
PMU.
Power Management
Unit
The PMU provides the 28VDC
power supply for the modules in the
subrack. It can operate on
120/230VAC 50/60Hz nominal, and
12, 24 or 48VDC nominal. The input
voltage can be AC, DC, or both AC
and DC, depending on the model. The
PMU also has an auxiliary DC output
of 13.65VDC, 27.3VDC, or
54.6VDC, depending on the model.
50 W PA 100 W PA
AC and DC PMU shown

TB9300 Installation and Operation Manual Description 15
© Tait International Limited July 2019
1.3 Mechanical Assembly
This section illustrates the main mechanical components of the base
station.
Figure 1.1 below shows the configuration for a typical dual 50W base
station. The subrack has six slots, numbered from right to left as viewed
from the front of the subrack. The PMU occupies slots 5 and 6, with the
reciters in slots 1 and 2. The two PAs are mounted vertically in slots 3 and
4 with the heatsinks facing each other. The airflow separator between the
PAs helps to direct the cooling airflow evenly through each heatsink. The
PMU and each pair of reciters and PAs have their own cooling fans.
The front panel can be easily removed from the subrack by undoing two
quick-release fasteners. Refer to “Replacing Modules” on page 106 for
more details.
.
Figure 1.1 Mechanical assembly - dual 50W base station with front panel
bfront panel ireciter 1
csubrack jmodule retaining clamp
dPMU 1) subrack interconnect board
ePA 2 1! plastic guide rail
fPA 1 1@ subrack interconnect board retaining clamp
gcable retaining clip 1# front panel fastener
hreciter 2
bcdefg
hi
j
1)
1@
1# 1!

16 Description TB9300 Installation and Operation Manual
© Tait International Limited July 2019
Figure 1.2 below shows the configuration for a typical single 50W base
station. The PMU again occupies slots 5 and 6, with the reciter in slot 1 and
the PA in slot 3. The single PA is mounted vertically with the heatsink
facing the center of the subrack. This positions the cooling fins directly
behind the fan.
=
Figure 1.2 Mechanical assembly - single 50W base station
bPMU dreciter
c50W PA esubrack
bcde

TB9300 Installation and Operation Manual Description 17
© Tait International Limited July 2019
Figure 1.3 below shows the configuration for a typical 100 W base station.
The PMU occupies slots 5 and 6, with the PA directly beside it in slots 3
and 4. The reciter occupies slot 1. Unlike the 50W PAs, the 100W PA is
mounted horizontally with the heatsink facing upwards. It is also fitted with
an airflow duct to channel the airflow from the cooling fan through the
heatsink fins.
Figure 1.3 Mechanical assembly - single 100W base station
bPMU ereciter
cPA fsubrack
dairflow duct gcable retaining clip
bcde
f
g

18 Description TB9300 Installation and Operation Manual
© Tait International Limited July 2019
1.4 Frequency Bands and Sub-bands
Much of the circuitry in the base station is common to all frequency bands,
and is therefore covered by a single description in this manual. In some
cases the descriptions refer to specific bands or sub-bands, and these are
identified with the letters listed in the following table.
In Brazil, for K and L bands, the TB9300 is considered to be configured as
a base station with retransmission of received signals.
Frequency
Identification Frequency Band and Sub-band 50W 100W
B band B2 = 136 to 156MHz
B3 = 148 to 174MHz
✓
✓
✓
✓
C Band C1 = 174 to 193MHz
C3 = 216 to 225MHz
✓
x
x
✓
G band G4 = 330 to 380MHz ✓x
H band H1 = 400 to 440MHz
H5 = 400 to 470MHz
H2 = 440 to 480MHz
H3 = 470 to 520MHz
H4 = 380 to 420MHz
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
HC = 400 to 440MHz (receive)
HC = 440 to 480MHz (transmit)
✓
✓
x
x
K band K4
Transmit: 762 to 776 & 850 to 870
MHz
Receive: 792 to 824MHz
K8
Transmit: 757 to 758MHz
Receive: 787 to 788MHz
✓
x
✓
✓
L band L2 = 896 to 902MHz (receive)
L2 = 927 to 941MHz (transmit)
x
x
✓
✓

TB9300 Installation and Operation Manual Description 19
© Tait International Limited July 2019
1.5 Applications
The TB9300 is designed for operation in a Tait TN9300 DMR Tier 2
conventional radio network, a Tait TN9300 DMR Tier 3 trunked radio
network, an MPT-IP network, or as an analog conventional repeater.
TB9300 channel groups allow DMR simulcast and multicast operation
with receiver voting. With an external synchronization input, the TB9300
includes all voting and transmitter synchronization functions necessary.
Channel group operation applies to both trunked and conventional DMR
networks.
In a DMR Tier 3 trunked network the TB9300 operates as a traffic channel
or a control channel. With two logical channels for each radio frequency, a
single TB9300 base station can provide two traffic channels, two control
channels, or both a traffic channel and a control channel.
In an MPT network, the TB9300 operates as a control channel or as a traffic
channel. The TB9300 operates with a trunking node or in fallback
operation, both of which can be either trunked or conventional.
In analog operation the TB9300 operates as a conventional repeater with
CTCSS1or DCS subaudible signaling.
For more information, refer to the DMR System Manual.
1. Private Line (PL).

20 Description TB9300 Installation and Operation Manual
© Tait International Limited July 2019
1.6 Licenses
Some operational functions of the base station are controlled by licenses.
These functions will not work unless you purchase the appropriate feature
license and enable the feature set controlled by that license. The feature sets
currently available are listed below.
The base stations in a Tait DMR Tier 3 Network are controlled by a node
(DMR trunking controller). Tait sells three types of node: Full, Express20
and Express6. Each type of node has different capabilities. Refer to
TN-2134 for more information.
The following table defines the capability relationships between the node
and the base station:
Analog Air Interface
(TBAS301 - Default
Licence)
This is the default licence that accompanies the base station out of the box.
With this license, the base station can operate as an MPT transceiver or an
analog conventional repeater.
DMR Conventional
(TBAS304)
A base station with this license can operate in a Tait DMR Tier 2
conventional network. It can operate as a standalone repeater, or as a
member of a multi-site system (under the supervision of a DMR
conventional node).
DMR Trunking
Access
(TBAS303)
A base station with this license can accept connections only from an Access
standalone node. This license entitles a standalone node to control a single
site of up to four physical channels.
DMR Trunking
Express6
(TBAS302)
A base station with this license can accept connections from any Express
node/standalone node or standalone Access node. In single-site trunking
and fallback modes, this license entitles a standalone node to control a
single site of up to 6 physical channels.
Controller
Full Express20 Express6 Standalone
Access
Transceiver
Full ✓✓✓✓
Express20 x✓✓✓
Express6 xx✓✓
Access xxx✓
