Takstar CM-60 User manual

专业电容麦克风
TAKSTAR CM-60专业电容麦克风，采用
纯金镀膜音头，具有灵敏度高、频率响应宽、
失真小、噪音低等特点，音质清晰自然。心型
指向拾音方式，可有效降低声反馈，适合管弦
类乐器拾音。
CM-60广泛应用于演播室、录音棚、广播
电台、舞台演出及乐器拾音等专业场合。
频率响应曲线图
技术参数
单体：纯金镀膜电容式传声器
指向性：单指向
频率响应：30Hz~18KHz
灵敏度：-38dB±3dB(0dB=1V/Pa at 1KHz)
等效噪声级：≤20dB A
最大声压级：130dB (T.H.D≤1% at 1KHz)
输出阻抗:100Ω±30% (at 1KHz)
低频衰减：100Hz 12dB/倍频
使用电压：48V幻像电源
连接线的安装与拆卸
1.把卡侬（XLR）插头插入麦克风，旋转插头使上面的扣键与
麦克风上的槽口对准，然后将插头推入麦克风，直至扣键定
位。
2.麦克风与连接线分开时，可握住插头，同时按压扣键，然后
将插头从麦克风拉出。
L O W CU T
使用说明
连接幻像电源
开关的使用
低频衰减：当开关处于“ ”位置时，为无衰
减状态，当开关处“ ”位置时，可均衡近距
离拾音时的低频提升效应和降低噪声、舞台地
板振动声等。
※在使用低频衰减开关进行调节时，请关掉扩音器、嗽叭或将
音量调小，以避免开关产生的冲击声影响喇叭。
1. 使用时，应先将扩音器或调音台音量控制调小，然后将幻
像电源与麦克风连接好，再打开幻像电源的电源开关，并
将音量从小到大慢慢调节至合适，以免喇叭受到冲击。
2. 用手罩住麦克风头部，或使麦克风接近扬声器，可能产生
啸叫声，遇此情形时，首先降低音量，拉开同麦克风的距
离，尽量使麦克风不同扬声器相对。
3. 麦克风灵敏度高，必须注意不要从高处落下或给予强烈
冲击。
4. 麦克风不使用时应存放在干燥清洁的地方，避免在温度、
湿度过高的场所保管或使用，以免影响灵敏度和音色。
※ 本产品相关规格及参数如有变更，恕不另行通知。
※ 如需服务和配件方面的信息，请就近和得胜代理商联
系，或请访问得胜网站www.takstar.com
-30
-40
-50
-60
-70
(dBV/P a)
20 2K 20K 50 100 200 500 1K 5K
(Hz)
Frequency Response Graph
Uni
(at 1kHz)
-directional
0°
30°
60°
90°
120°
150°
330°
300°
270°
240°
210°
180°
国内 销售 部
服务 热线 ：400 6828 333 传真 ：[phone]
地址：广东省惠州市博罗县龙溪镇富康一路2号 邮编 ：516121
网址 ：www.takstar.com

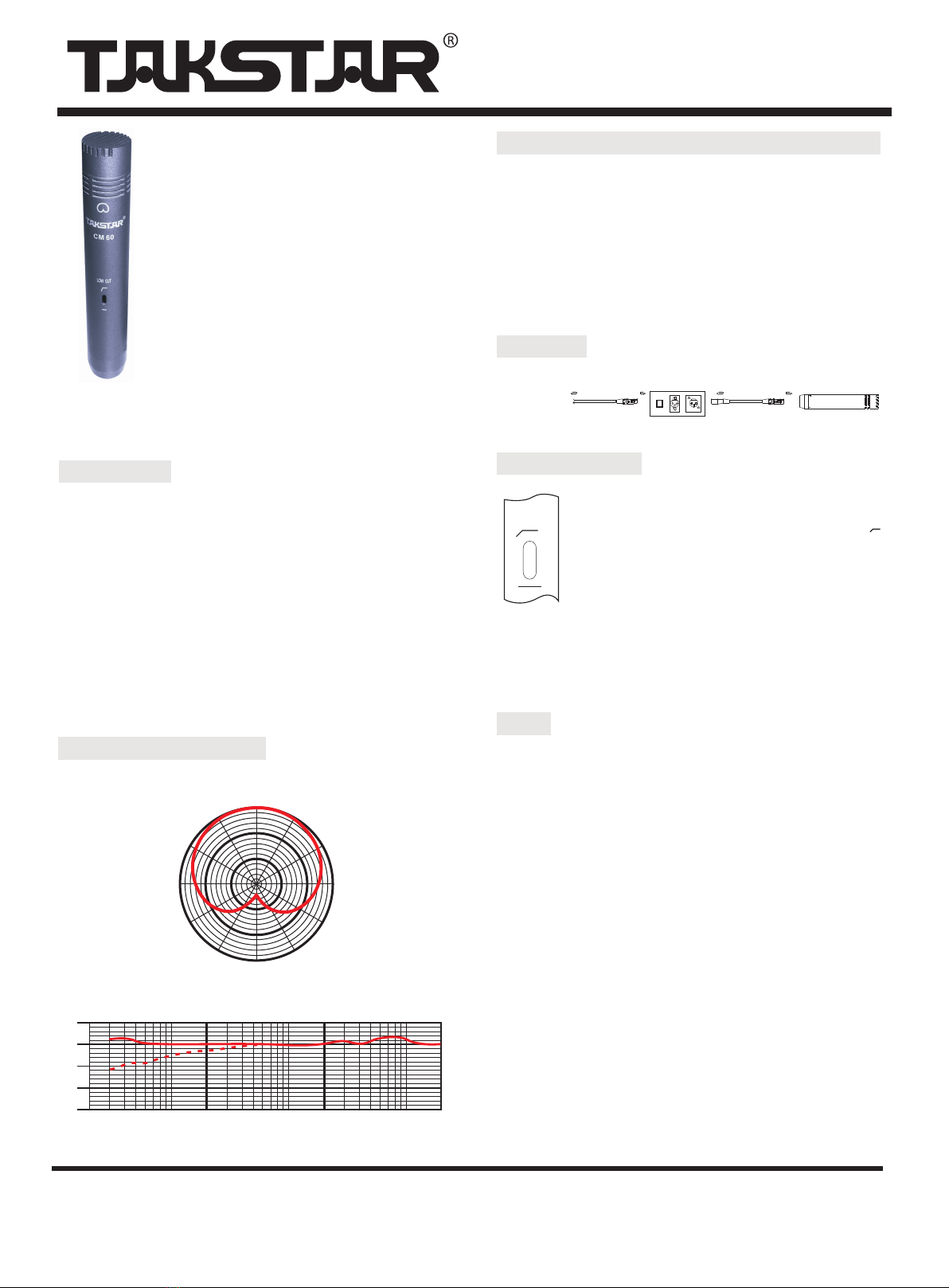

PROFESSIONAL CONDENSER
MICROPHONE
Element: Pressure Gradient Transducer
Polar Pattern: Uni-directional
Frequency Response: 30Hz~18kHz
Sensitivity: -38dB±3dB (0dB=1V/Pa at 1kHz)
Equivalent Noise Level: ≤20dB A
Max .Input SPL: 130dB (T.H.D≤ 1% at 1kHz)
Output Impedance: 100Ω±30% (at 1kHz)
Bass Filter: 100Hz 12dB/octave
Power Requirements: 48V DC Phantom Powerr
Specifications:
Frequency Response Graph:
1. Insert the XLR connector into the microphone. If necessary, rotate
the connector to align the key on the connector and the groove in
the microphone. Push the connector into the microphone until it
clicks.
2. To disconnect the cable and microphone, grasp the connector while
depressing the tab. Pull the connector away from the microphone.
Connecting and disconnecting the microphone cable:
Operations:
How To Use Switch:
Usage:
TAKSTAR CM-60
microphone, which adopts the Pressure Gradient
Transducer cartridge with vapor-deposited gold
diaphragm and
is a professional condenser
the cardioids polar pickup pattern.
These feature the microphone with the characteristic
of high sensit ivity, wide frequency response, small
distortion, as well as low self-noise. And its clear and
natural sound quality together with its effective
function of reducing the feedback sound make it
rightly suitable for orchestral musical instruments use.
CM-60
applications such as broadcasting, recording, and show on stage, ect.
may be used with confidence in a wide variety of professional
-30
-40
-50
-60
-70
(dBV/P a)
20 2K 20K 50 100 200 500 1K 5K
(Hz)
Frequency Response Graph
Uni
(at 1kHz)
-directional
0°
30°
60°
90°
120°
150°
330°
300°
270°
240°
210°
180°
XLRF XLR M XL RF
PHANTOM POWER
SUPPLI ER
VOICE AMP LI FI ER ,
MIXER,
POWER AMP LI FI ER
L O W CU T Low frequency attenuation: when the switch is on the
position “ - ”. It is of no attenuation, when it is on “ ”
position, it can balance the low frequency raising effect
of short distance pickup and reduce feedback, not easy
tocause howling.
※ Please turn off or just turn down the voice amplifier and speaker
while you adjusting the low frequency attenuation, in order to
prevent the speaker from pounding.
1. Turn on your amplifier or mixing board and set the volume control
to minimum position, To connect the phantom power to the
microphone turning on the phantom switch, accommodate the
volume control from low to high so obtained effect to your
moderate level for protected the sauna from pounding.
2. If the head of the microphone is covered by hand or brought close
to the speaker, a howling sound may be generated. To prevent this,
first decrease the volume, then place the microphone so that it is
not pointed to the speaker and that there is a sufficient distance
between the microphone and speaker.
3. The sensitivity of cartridge is very fine, don’t do drop. Hit it or apply
strong shock to it.
4. To maintain the sensitivity and quality of sound reproducing, avoid
exposing it to moisture and extreme temperatures.
※ Specifications are subject to change without prior notice
※ For additional information about service or parts, please contact your local
authorized Takstar Service Center or visit Takstar at www.takstar.com
International Sales Department
Address: No.2 Fu Kang Yi Rd., Longxi Boluo Huizhou, Guangdong 516121 China
Website: www.takstar.com Tel: [phone] Fax: [phone] E-mail: [e-mail]
