Takstar PCM-5600 User manual

专业录音麦克风
PCM-5600
PROFESSIONAL
RECORDING MICROPHONE

01
前言
尊敬的用户：
感谢您选购得胜PCM-5600专业录音麦克风，为了您能够更好的了解使用本
产品，建议您在使用前仔细阅读本说明书。
若存在有疑问或者您有宝贵的建议，可通过拨打得胜
官方服务热线 400 6828 333 或使用微信扫描二维码关注得
胜官方公众号与我们联系。
专业录音麦克风
PCM-5600
适用范围
◆ 直播K歌、现场演出、专业录音等
产品特性
◆ 一款专业录音室级手持电容麦克风，适用于直播K歌、现场演出、专业录音等
◆ 采用专业电容音头，宽广的频率响应，为表演带来细腻、动感的音色
◆ 心型指向拾音设计，有效抑制噪音和反馈，降低周围噪音干扰
◆ 具有两挡灵敏度调节开关，可根据不同应用场景的需要进行调节
◆ 麦克风舒适的握持手感，方便歌手演唱时拉麦、控麦的需要
◆ 内部采用硅胶减震结构，有效防止手持噪音，保障拾音效果
◆ 网头采用双层金属网防喷麦设计，有效打散强气流，防止喷麦声
◆ 精细的全金属外壳结构，提升触感和握感
标准配置
◆ PCM-5600麦克风 一支 ◆ 麦克风夹子 一个 ◆ 卡侬线 一条
◆ 铝合金箱 一个 ◆ 说明书 一份
◆ 皮袋 一个

03
02
-80
-100
音头：电容式音头
指向性：单指向
频率响应：30Hz-20KHz
灵敏度：-43dB±3dB (at 0dB)
增益调节：+10dB
等效噪声级：≤20dBA
峰值声压级：130dB（THD≤1% at 1KHz）
输出阻抗：110Ω±30%(at 1KHz)
工作电压：48V +/-4V幻象电源
单体重量：约400g
(at 1kHz)
Uni-directional
0°
30°
60°
90°
120°
150°
330°
300°
270°
240°
210°
180°
-40
-50
-60
-70
专业录音麦克风
PCM-5600
专业录音麦克风
PCM-5600
注：以上数据由得胜实验室测试得到，并拥有最终解释权！

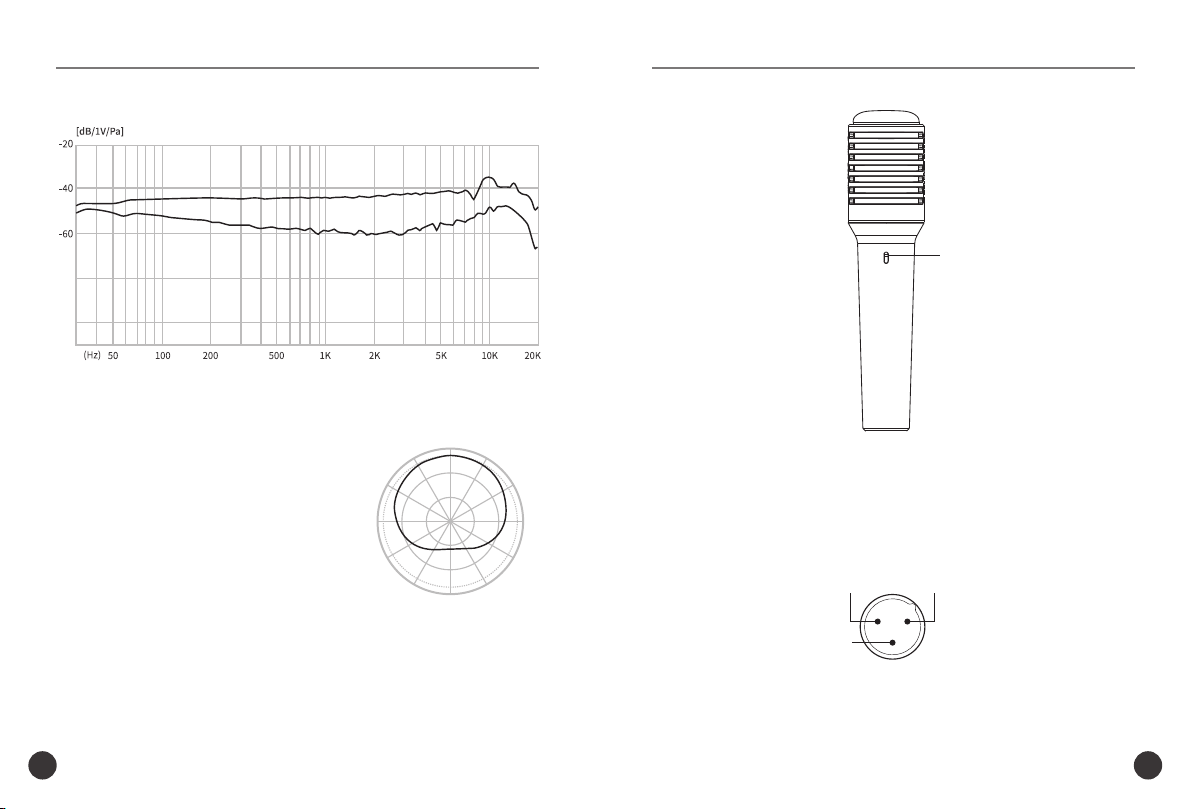

功能示意
1、 增益开关：手动增益调节，可根据实际应用需要灵活调节。
①当开关拨到“+10dB”位置时，拾音灵敏度增强10dB，适用于直播、录音、
演唱等需要远距离拾音的场合；
②当开关拨到“0dB”位置时，为无哀减状态，能够承受更高的声压，一般在
高声压级大动态拾音场合使用(如说唱，乐器拾音等)。
2、 XLR接口：通过XLR音频线与声卡、调音台等音频设备连接。
增益开关
+10dB
0dB
针脚1（接地） 针脚2（正）
针脚3（负）

2．麦克风可手持，也可以安装到支架上使用。安装支架使用时，先将配套的麦
克风夹子安装到带有5/8标准螺纹接口的麦克风支架上，再将麦克风安装到
夹子上，如图所示：
3．建议使用时，应先将音频设备（声卡、调音台等）音量调小，再打开幻象电
源开关，并将音量大小从小到大慢慢调节至合适，以免声压过大对扬声器造
成冲击；尽可能地拉开麦克风与扬声器的距离，避免麦克风与扬声器相对引
起啸叫。
05
使用说明

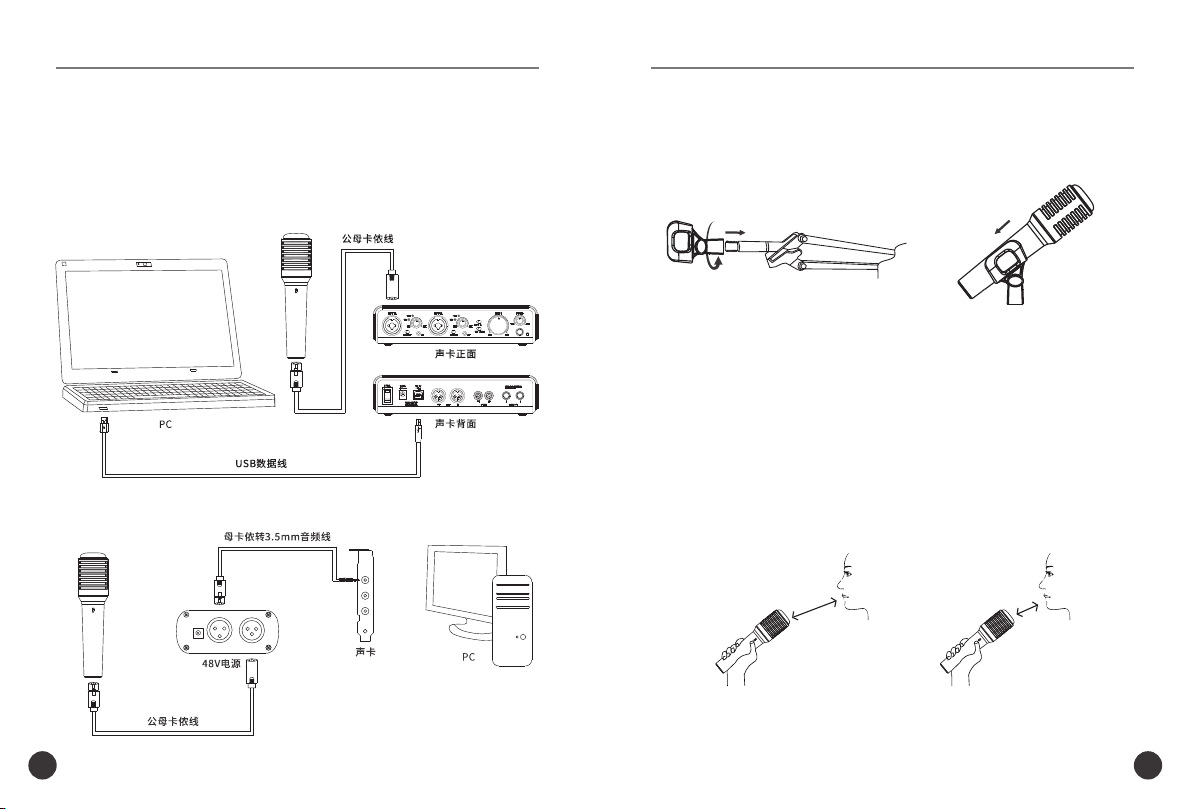

1. 通过公母卡侬线材与带有48V供电的音频设备（如声卡、调音台等）连接，
若设备本身没有幻象电源，则需另购一个48V幻象电源进行连接。
注：本产品需求的48V幻象电源规格为DC 48±4V/2.8mA±20%
① 音频设备带48V幻象电源供电的连接方法：
04
专业录音麦克风
PCM-5600
专业录音麦克风
PCM-5600
② 音频设备不带48V幻象电源供电的连接方法：
4．使用时，请对准麦克风网头顶部方向，当麦克风灵敏度调到+10dB时，人与麦
克风建议保持20-30厘米的拾音距离。当麦克风灵敏度调到0dB时，人与麦克风
建议保持10厘米左右的拾音距离，如下图所示：
20-30cm
灵敏度调到+10dB时
10cm左右
灵敏度调到0dB时

07
06
安全警示
为避免电击、高温、着火、辐射、爆炸、机械危险以及使用不当等可能造
成的人身伤害或财产损失，使用本产品前，请仔细阅读并遵守以下事项：
1．使用产品时请确认所连接设备与本产品功率是否匹配以及合理调整设备音
量大小，不要在超过产品功率及大音量下长时间使用，以免造成产品异常
和听力损伤；
2使用中若发现有异常（如冒烟、异味等），请立即关闭电源开关并拨掉电
源插头，然后将产品送经销商检修；
3．本产品及附件都应放置在室内干燥通风处，勿长期存放在潮湿、灰尘多的
环境，使用中避免靠近火源，雨淋、进水、过度碰撞、抛掷、振动本机及
覆盖通风孔，避免损坏其功能；
4．若产品需要固定于墙壁或天花板上时，请确保固定到位，防止因固定强度
不足导致产品发生跌落危险；
5．使用该产品时需遵守相关安全规定，法律法规明确禁止使用场合请勿使用
产品，以免导致意外事故；
6．请不要自行拆机改装或维修，以防止出现人身伤害，如有问题或服务需求
请联系当地经销商跟进处理。

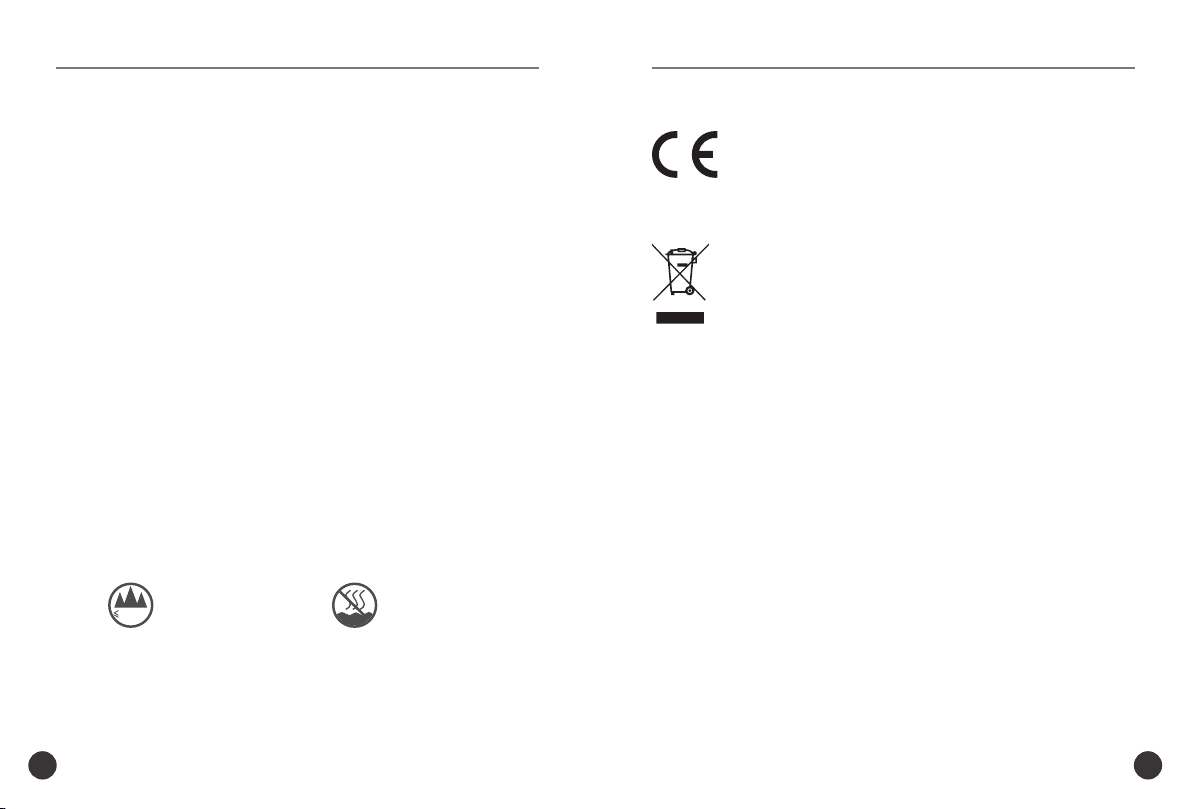

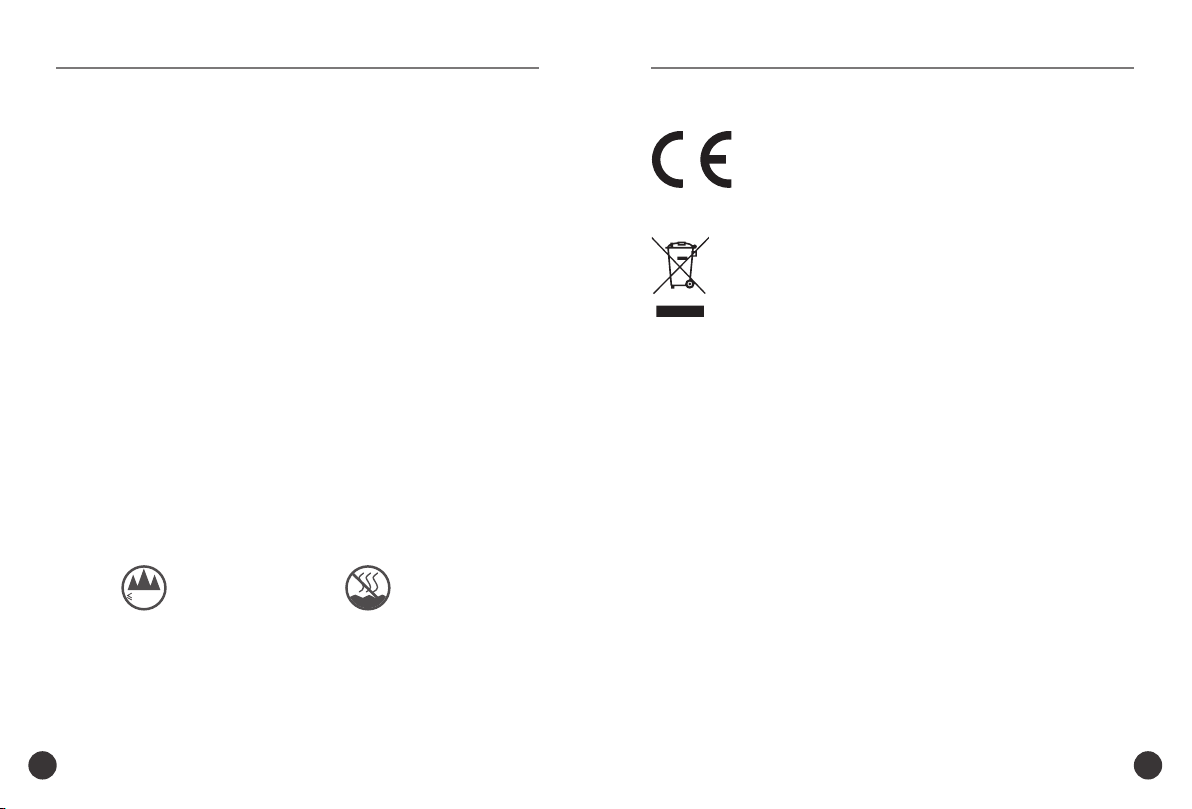

7．只能使用本产品要求规格的幻象电源，适用的海拔及气候条件由幻象电源
决定，使用前请阅读并理解幻象电源上的图标含义。示例如下：
．
专业录音麦克风
PCM-5600
专业录音麦克风
PCM-5600
仅适用于海拔2000
米以下地区使用
2000 m
仅适用于非热带
气候条件下使用
产品，本说明书可能不符合您的特定产品的技术规格。要获取最新版说明书，
请访问得胜官网，然后下载说明书文件。技术规格、设备或另售的附件在各个
地区可能有所不同，如有问题请与当地得胜经销商确认。 如需更多支持和深层
产品信息，请浏览得胜官方网站：https://www.takstar.com/
本说明书中内容符合截止印刷之日的技术规格。由于得胜公司会不断改进
关于图标含义解释
根据RL2004/108/EG和European Low Voltage Directive（欧洲
低电压指令）RL2006/95/EG的测试结果表明，本产品符合欧共
体关于电磁兼容性的成员国法律整合的指令中所规定的限值。
此符号表示，根据WEEE指令(2012/19/EU)和国家法律，由于这
种类型的废弃物会有潜在的有害物质，可能对环境和人类健康产
生负面影响，所以本产品不应与您的家庭垃圾一起处置，应将本
产品交由授权的电气和电子设备（WEEE）回收站回收。您在正
确处理本产品的同时将有助于自然资源的有效利用。如需了解更多有关您可以
在何处放置废物回收设备的信息，请联系您当地的城市办事处、废物管理局或
家庭废物处理服务部门。
关于本说明书

08 09
Preface
Dear Customer,
Thank you for purchasing Takstar PCM-5600 Professional Recording Microphone. In
order to better understand and use the product, please read this manual carefully.
If you have any questions or suggestions, please contact our local dealer.
Applications
◆ Livestream karaoke, live performance, studio recording
Features
◆ Handheld condenser mic for studio recording, livestream karaoke or live performance
◆ Pro condenser capsule with wide frequency response for detailed dynamic timbre
◆ Cardioid pickup pattern greatly reduces surrounding noise and feedback
◆ Two-gear sensitivity control suits various applications
◆ Comfortable to grip, easy to handle during stage performance
◆ Internal silicon damper prevents handling noise for clean sound
◆ Dual-layer metal grille effectively cuts off plosives
◆ Exquisite full-metal body, upgraded texture and feel
Package Contents
◆ PCM-5600 Microphone 1 pc ◆ Microphone Clamp 1 pc ◆ XLR Cable 1 pc
◆ Aluminum Case 1 pc ◆ Pleather Pouch 1 pc ◆ User Manual 1 pc
PCM-5600 PROFESSIONAL RECORDING MICROPHONE
专业录音麦克风
PCM-5600

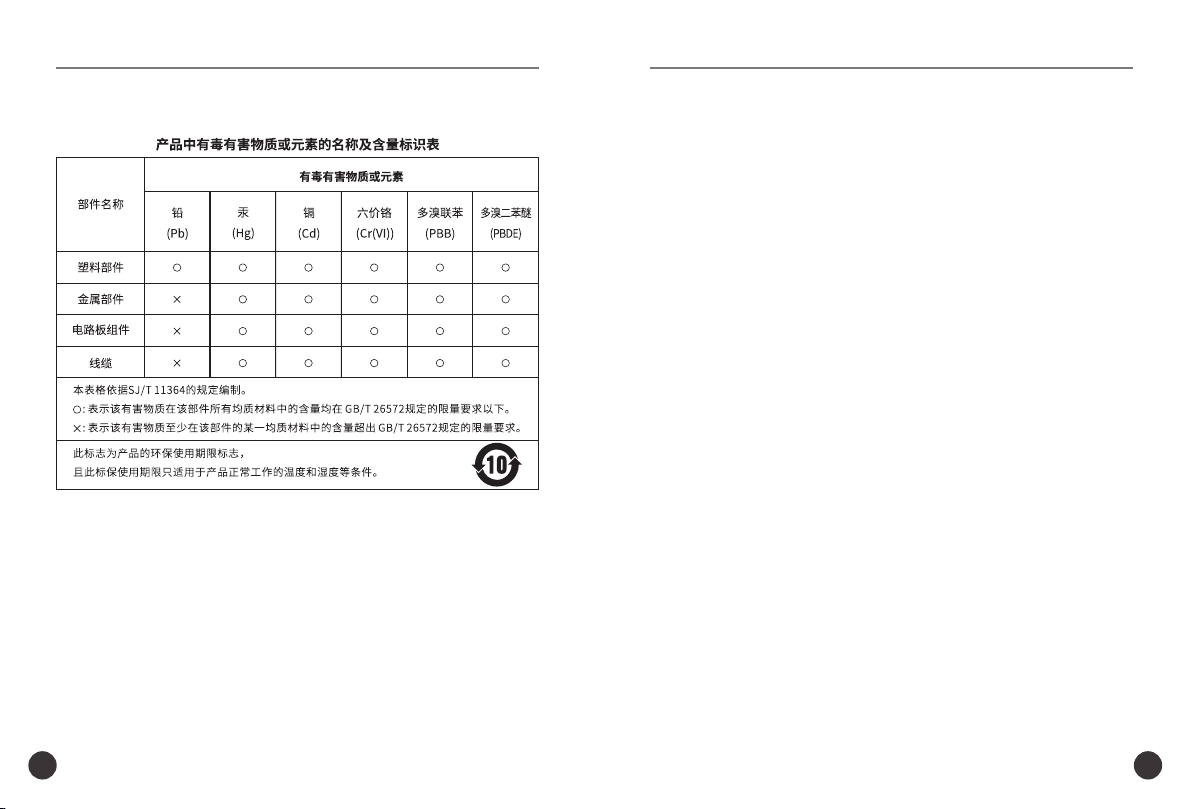

环保说明

11
10
PCM-5600 PROFESSIONAL RECORDING MICROPHONE PCM-5600 PROFESSIONAL RECORDING MICROPHONE
Function Descriptions
Gain Control
+10dB
0dB
1. Gain Control: manually adjust the gain level as appropriate to your actual application.
①Flip to “+10dB”: boost pickup sensitivity by 10dB, suitable for vocal pickup at farther
distance during live stream, recording, or performance.
②Flip to “0dB”: no boost or attenuation, suitable for pickup of sources with high sound
pressure (e.g., rap, instrument) as it has higher withstanding ability.
2. XLR Port: used to connect to audio device such as audio interface and mixing console
via XLR cable.
1 2
3
pin1 (ground) pin2 (+)
pin3 (-)
Specifications
Capsule: condenser capsule
Polar Pattern: unidirectional
Frequency Response: 30Hz-20KHz
Sensitivity: -43dB±3dB (at 0dB)
Gain Control: +10dB
Equivalent Noise Level: ≤20dBA
Peak SPL: 130dB (THD≤1% at 1KHz)
Output Impedance: 110Ω±30% (at 1KHz)
Power Requirement: 48V +/-4V phantom power
Net Weight: approx. 400g
frequency response curve
-80
-100
(at 1kHz)
Uni-directional
0°
30°
60°
90°
120°
150°
330°
300°
270°
240°
210°
180°
-40
-50
-60
-70
Note: The above data is measured by Takstar laboratory, and Takstar has the final
interpretation right!

12 13
PCM-5600 PROFESSIONAL RECORDING MICROPHONE PCM-5600 PROFESSIONAL RECORDING MICROPHONE
2. Hold the mic by hand, or install it on a stand. For stand installation, first fix the mic
clamp onto the 5/8 standard-threaded connector on the stand, then secure the mic
onto the clamp as shown below:
3. Please turn the volume to the minimum on the audio device (e.g., audio interface,
mixing console) before switching on the phantom power. Then gradually increase the
volume to an appropriate level. This helps to prevent the speakers from being
damaged by high sound pressure. Keep a proper distance between the mic and the
speakers to avoid feedback howling.
4. Please speak towards the top of the mic grille while recording. When mic sensitivity is
at +10dB, recommended distance from mic is 20~30cm; when at 0dB, recommended
distance is around 10cm, as shown below:
Operation Instructions
1. Using the XLR male-to-female cable, connect the mic to an audio device (e.g., audio
interface, mixing console) with built-in 48V phantom power supply, or use an external
48V power supply (not included) if none.
Note: The phantom power supply requirement for this product is DC 48±4V/2.8mA±20%.
① Connection method for audio device with built-in 48V phantom power:
② Connection method for audio device without built-in 48V phantom power:
Audio Interface - Rear
Audio Interface - Front
Male/Female XLR
Audio Cable
PC
USB Data Cable
48V Power Audio Interface PC
Female XLR to 3.5mm Audio Cable
Male/Female XLR Audio Cable
20-30cm
Sensitivity at +10dB
Around 10cm
Sensitivity at 0dB

1514
Safety Instructions
PCM-5600 PROFESSIONAL RECORDING MICROPHONE
To avoid electric shock, overheat, fire, radiation, explosion, mechanical risk and injury
or property loss due to improper use, please read and observe the following items
before use:
1 Please check if the power of the connected equipment matches with that of this
product before operation. Adjust the volume to proper level during operation. Do not
operate at over-power or high-volume level for extended time to avoid product
malfunction or hearing impairment.
.
2. If there is any abnormality during use (e.g., smoke, strange odor), please kill the
power switch and unplug from power source, then send the product to the local
dealer for repair.
3. Keep this product and its accessories in a dry and ventilated area. Do not store in a
humid or dusty area for extended time. Keep away from fire, rain, liquid intrusion,
bumping, throwing, vibrating, or from blocking any ventilation openings, to prevent
malfunction.
4. The product must, when installed on walls or ceilings, be fixed firmly in place at
adequate strength to prevent from falling.
5. Please abide by safety rules during operation. Do not use the product in places
prohibited by laws or regulations to avoid accident.
6. Do not disassemble or repair the product by yourself to avoid injury. If you have any
questions or require any services, please contact our local dealer.
7. Only use phantom power specified for the product. The applicable altitude and
climate conditions are subject to those described on the phantom power, for example:
Suitable only for
altitudes below 2,000m
2000 m
Suitable only for
non-tropical climates
PCM-5600 PROFESSIONAL RECORDING MICROPHONE
Label Meanings
According to the test results obtained based on RL2004/108/EG (Electro
magnetic Compatibility Directive) and RL2006/95/EG (Low Voltage
Directive), this product complies with the limits specified in the European
Community EMC (Electromagnetic Compatibility) Directive, an integration of relevant
laws from its member states.
This symbol indicates that, according to WEEE (Waste of Electrical and
Electronic Equipment) Directive (2012/19/EU) and national laws, this
type of waste should not be discarded along with your household waste,
as it contains potentially hazardous substances that may pose a negative
impact on the environment and human health. It should be handed over
to an authorized WEEE collection facility for recovery and recycle. Herewith you will be
helping effective utilization of natural resources. For more information on disposal of
WEEE products, please contact your local municipality, waste management bureau or
household waste disposal service.
About This Manual
This manual contains up-to-date technical specifications as of printing. However,
specifications contained herein may not conform to your particular product since
Takstar is constantly improving its products. For the latest version/more information,
please visit our website: https://www.takstar.com/
Specifications, devices or accessories available may vary from region to region. If you
have any questions, please contact our local dealer.
