Tanda TX7301 User manual

TX7301
Intelligent Sounder Strobe
Installation and Operation Manual
TANDA UK Technology Copyright ©2015, All right reserved.

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
2
Product Safety
To prevent severe injury and loss of life or property, read the instruction carefully before installing the
Sounder Strobe to ensure proper and safe operation of the system.
European Union directive
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points.
For more information please visit the website at www.recyclethis.info

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
3
Table of Content
1 Introduction .................................................................................................................................................. 4
1.1 Overview ................................................................................................................................................ 4
1.2 Feature and Benefits ........................................................................................................................... 4
1.3 Technical Specification ..................................................................................................................... 4
2 Installation ..................................................................................................................................................... 5
2.1 Installation Preparation ...................................................................................................................... 5
2.2 Installation and Wiring ........................................................................................................................ 5
3 Sounder Strobe Configuration ................................................................................................................ 6
3.1 Preparation ............................................................................................................................................ 6
3.2 Addressing ............................................................................................................................................. 7
3.3 Single and Dual Address Mode ....................................................................................................... 7
3.4 Typical and Saving Mode ................................................................................................................. 8
3.5 Sounder Strobe Type ........................................................................................................................... 9
3.6 Tones Selection ................................................................................................................................... 10
3.7 Read Configuration .......................................................................................................................... 11
4 General Maintenance ............................................................................................................................ 11
5 Troubleshooting Guide ............................................................................................................................ 12
Appendix 1 ..................................................................................................................................................... 12
Operational Performance Data for LPCB Approved Tones ......................................................... 12
Limitation of Sounder Strobe Device .................................................................................................. 13

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
4
1 Introduction
1.1 Overview
The TX7301 Intelligent Sounder Strobe is alarm warning device used to notify persons in the vicinity of
the occurrence fire emergency in order the person to take appropriate measures. The unit adopt
multi-application device starting from the types, parameters and wiring layout in single unit. The
TX7301 can change into different alarm warning types such as sounder-strobe type, sounder type or
strobe type using programming tool. In addition, parameters can be configured according to the
requirement which include alarm tone from 17 different tones, single address or dual address mode
and also setting of power mode to low current consumption in a simple programming.
The unit manufactured base on the requirement of EN 54 part 3, European Standard. The unit is
aesthetically pleasing with unobtrusive design that will complement modern building designs and its
plug-in type assembles make installation and maintenance more convenient to the installer. The unit
is compatible to the TX7004 Analogue Intelligent Fire Alarm Control Panel, produced by single
manufacture T&A, to avoid Intelligent communication compatibility problem.
1.2 Feature and Benefits
 EN54-3 Compliance
 Built-in MCU processor and digital addressing
 17 tones Programmable sound output
 Programmable types such as Sounder-Strobe, Sounder or Strobe alone
 Programmable Evacuate or Pre-alarm/Evacuate signal
 Low and normal consumption mode
 One or Two addresses mode
 10 Highlights LED status cluster
 Onsite Adjustable Parameters
 Loop or external power input
 Aesthetically pleasing design
 Universal mounting with fix base for simple installation
1.3 Technical Specification
 Compliance EN54-3
 Input Voltage Loop Power: 24VDC [18V to 27.5V]
External PSU: 24 VDC [20V to 27.5V]
 Typical Current Loop: Standby 0.7mA, Alarm: 1.5mA
[Loop and External PSU] External PSU: Standby 0.6mA, Alarm: 22mA
 Saving Current Standby 1.2mA, Alarm: 9mA
[Loop powered]
 Protocol/Addressing T&A, Value range from 1 to 254
 Address Sequence Single Address: Evacuate tone
Dual Address: 1st Alert Tone / 2nd Evacuate tone
 Strobe Light 10 Highlights LED
 Material / Colour ABS / RED Glossy finishing
 Dimension / Height L:152.5 x W:88.5 x H:46.75 mm (without base)
 Weight 184g (with Base), 124g (Without Base)
 Class Type A, Indoors
 Operating Temperature -10°C to +50°C
 Ingress Protection Rating IP21
 Humidity 0 to 95% Relative Humidity, Non condensing

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
5
2 Installation
2.1 Installation Preparation
This alarm warning device must be installed, commissioned and maintained by a qualified or factory
trained service personnel. The installation must be installed in compliance with all local codes having
a jurisdiction in your area or BS 5839 Part 1 and EN54.
2.2 Installation and Wiring
1. Mount the sounder base on standard one Figure [1&2]. Gang electrical back box. Follow the
arrow mark for the correct position. Do not over-tighten the screws otherwise the base will
twist. Use M4 standard screws.
2. Connect the wire in terminal as shown in Figure [3&4]. Verify the device number or other
device parameters if desired using handheld programmer then stick on the label before
attaching sounder-strobe. The sticker labels are available on the control panel.
3. Align the Intelligent Sounder Strobe and tabs and gently pushing the device until it locks into
place.

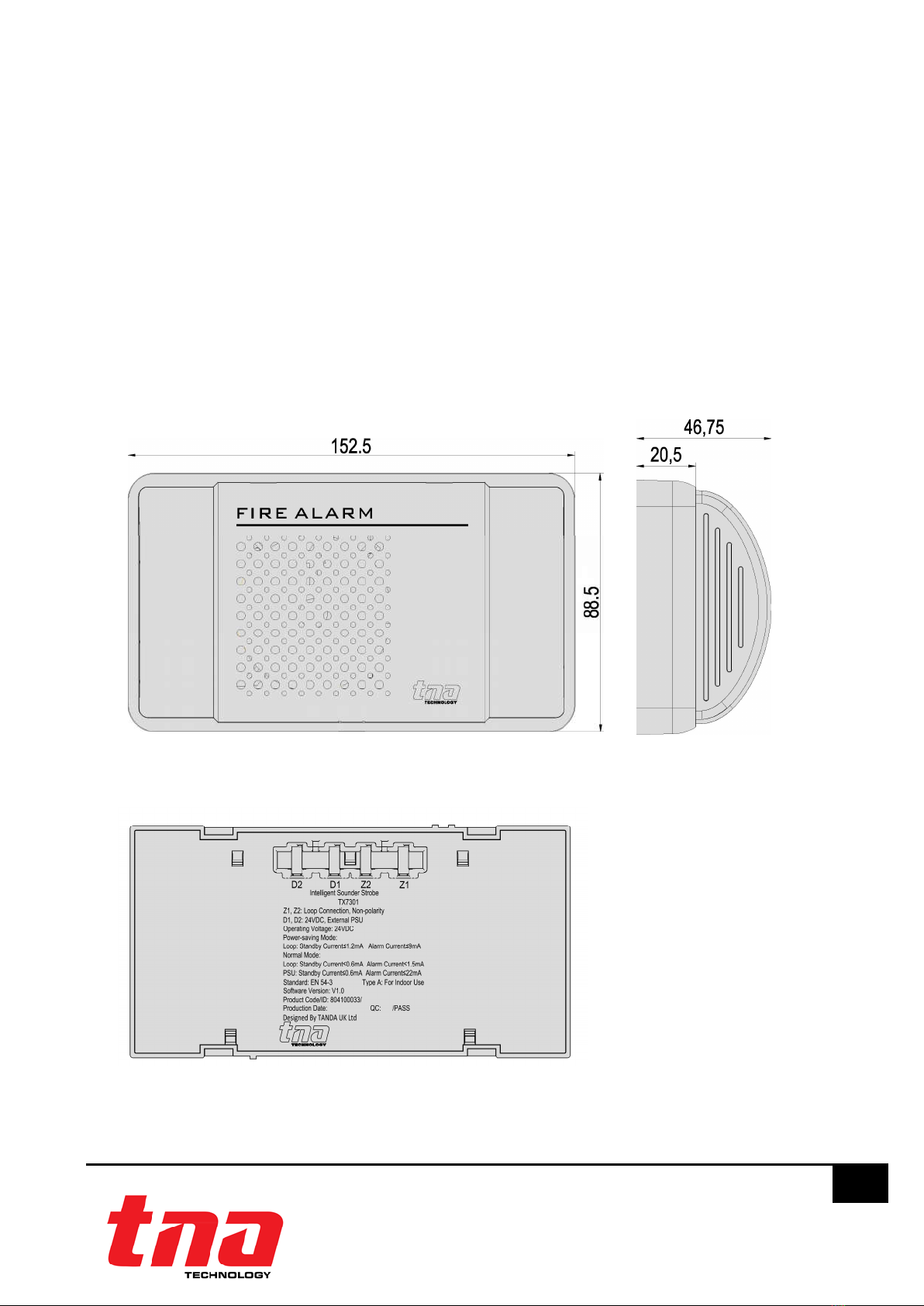

Figure 1
Figure 2
Terminal Description
Z1 Signal In (+)
Z1 Signal Out (+)
Z2 Signal In (-)
Z2 Signal Out (-)
D1 External PSU In (+) Optional
D1 External PSU Out (+)Optional
D2 External PSU In(-)Optional
D2 External PSU Out (-)Optional

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
6
3 Sounder Strobe Configuration
3.1 Preparation
The TX7930 handheld programmer is used to configure sounder strobe soft address and parameters.
This tools are not included, must be purchased separately. The programmer is packed with twin 1.5V
AA battery and cable, ready for usage once received.
It is mandatory for the commissioning personnel to have programmer tool in order to adjust the
sounder strobe conferring to the site situation and environmental requirements.
Program a unique address number for each device according to the project layout before placing
from the Terminal Base.
Warning: Disconnect the loop connection whilst connecting to the handheld programmer.

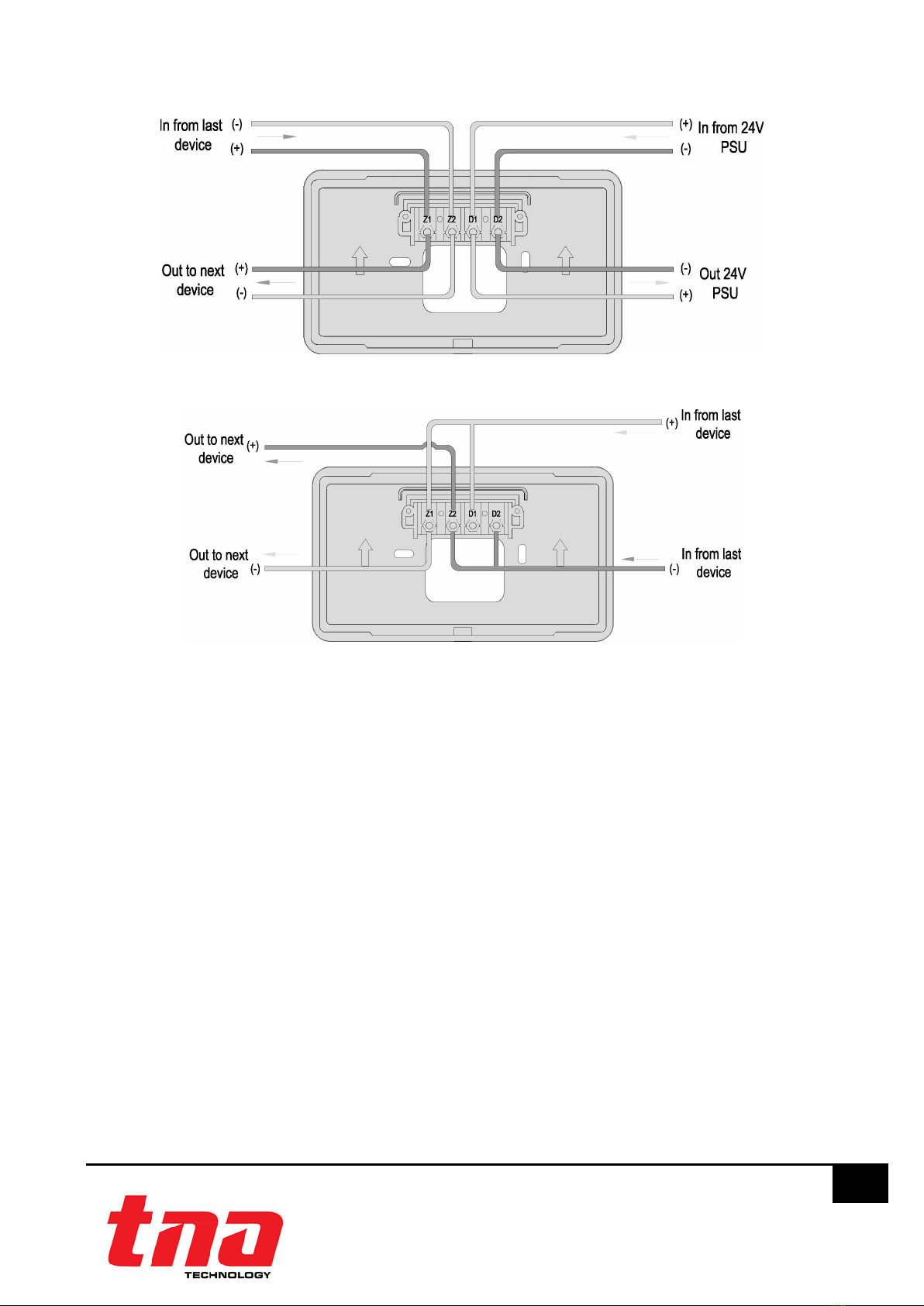

Figure 3 With External Supply
Figure 4 Loop Powered

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
7

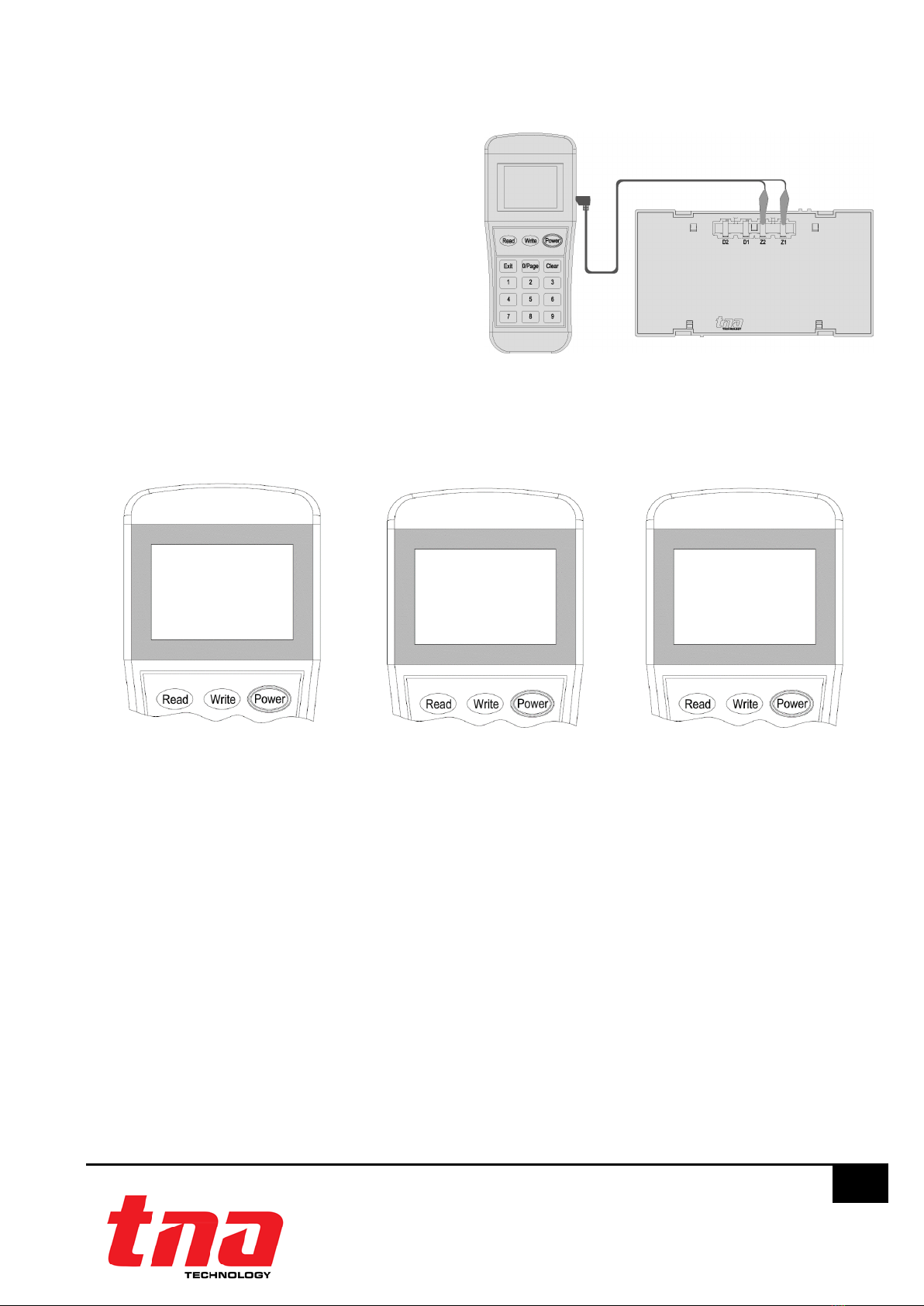

Figure 6 Figure 7 Figure 8
Figure 5
3.2 Addressing
1. Connect the programming cable to Z1
and Z2 terminals (Figure 5). Press “Power”
to switch on the unit.
2. Switch-on the programmer, then press
button “Write” or number “2” to enter Write
Address mode (Figure 6).
3. Input the desire device address value from
1 to 254 and then press “Write” to save the
new address (Figure 7).
Note: If display “Success”, means the
entered address is confirmed. If display
“Fail”, means failure to program the
address (Figure 8).
4. Press “Exit” key to go back Main Menu. Press “Power” key to switch-off the programmer.
3.3 Single and Dual Address Mode
Single address is commonly used to program immediate Evacuate tone while the dual
address used for programming Pre-alarm and Evacuate tones respectively in a given period
of time.
In Single Address Mode
When in action (Evacuation stage), the sounders will produce visible signal of 1.4 flashes per
second at 1±20% Hz frequency and simultaneously audible signal according to the pre-
defined tone (Table 1- Tone 14 is the default tone) and will stop if the panel is reset.
In Dual Address Mode
When In action the 1st Address sounder (Pre-alarm Stage), will produce visible signal of 0.7
flashes per second at 1±20% Hz frequency and simultaneously audible signal according to
the pre-defined tone (Table 1- Tone 17 is the default tone). This will run continuously
according to the pre-defined time unless the panel is being reset before.
When the delay time is over the 1st address sounder will stop then immediately, the 2nd
address sounder (Evacuate Stage) will produce visible signal of 1.4 flashes per second at
1±20% Hz frequency with simultaneously audible signal according to the pre-defined tone
(Table 1- Tone 14 is the default tone) and will stop if the panel is reset.
1. Read
2. Write T
3. R/W Config 7
4. Set
Address: 001
Next Address: 002
Success
Address: 003
Fail

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
8
Figure 9 Figure 10
1. Attach the programming cable to 1 and 6 Terminals of sounder. Press “Power” to switch-on
the unit.
2. Switch-on the programmer, then press button “3” to enter to Configuration mode (Figure 9).
3. Input the “1” for Single Address mode or “2” for Dual Address mode then press “Write” to
change the setting into the desire mode (Figure 10).
Note: If display “Success”, means the entered mode is confirmed. If display “Fail”, means
failure to program the mode.
In Dual address mode, the sounder will generate the unique next higher number for the
second address for example: In single address mode the address number is 15, when change
to dual address mode the address numbers will now be 15 and 16.
Warning: Dual address mode may cause Duplicate address fault on the panel and may
affect the operation of the next device with conflicted address number if not carefully
arrange the loop addressing.
4. Press “Exit” key to go back Main Menu. Press “Power” to switch off the programmer.
3.4 Typical and Saving Mode
When Sounder-Strobe is configured to Saving Mode the recommended wiring is loop
powered [Figure 2] within the limit of 20 units per loop and subject to the total calculated
current load in particular loop. If Sounder Strobe is configured to Typical Mode, it requires
external power supply [Figure 3] installer should consider additional power cable.
1. Attach the programming cable to 1 and 6 Terminals of sounder. Press “Power” to switch-on
the unit.
2. Switch-on the programmer, then press button “3” to enter to Configuration mode (Figure 11).
3. Input the “3” for Typical mode or “4” for Saving mode then press “Write” to change the
setting into the desire mode (Figure 12).
Note: If display “Success”, means the entered mode is confirmed. If display “Fail”, means
failure to program the mode.
Warning: Under saving mode loop powered up to 20 sounder strobe maximum per loop is the
recommended.
1. Read
2. Write T
3. R/W Config 7
4. Set
① Single ② Dual
③ Typ ④ Saving
⑤ Strobe ⑥ Sound
Configure Description
① Single [Default]
② Dual

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
9
Figure 11 Figure 12
Figure 13 Figure 14
4. Press “Exit” key to go back Main Menu. Press “Power” key to switch off the programmer.
3.5 Sounder Strobe Type
1. Attach the programming cable to 1 and 6 Terminals of sounder. Press “Power” to switch-on
the unit.
2. Switch-on the programmer, then press button “3” to enter to Configuration mode (Figure 13).
3. Input the “5” for Strobe type or “6” for Sounder type, then press “Write” to change the setting
into the desire mode (Figure 14).
Note: If display “Success”, means the entered type is confirmed. If display “Fail”, means
failure to program the type.
4. Press “Exit” key to go back Main Menu. Press “Power” key to switch off the programmer.
1. Read
2. Write T
3. R/W Config 7
4. Set
Read Description
③Typ: Typical mode, the
sounder device consume
15mA [Default]
④ Saving: Low current
consumption at 9mA
① Single ② Dual
③Typ ④Saving
⑤ Strobe ⑥ Sound
1. Read
2. Write T
3. R/W Config 7
4. Set
Read Description
⑤ Strobe: Visible signal only
⑥ Sound: Audible signal only
Note: Select 5 and 6 for both
visible and audible signal.
[Default 5 and 6]
① Single ② Dual
③ Typ ④ Saving
⑤Strobe ⑥ Sound

TX7301 Intelligent Sounder Strobe
Installation & Operation Manual
4050100338-Rev1.1-0916
TANDA UK
Specifications are subject to change without prior notice
10
3.6 Tones Selection
The Tones can be change according to the project requirement
Table 1
1. Attach the programming cable to 1 and 6 Terminals of sounder strobe. Press “Power” to
switch-on the unit.
2. Switch-on the programmer, then press button “4” to enter to Setting mode (Figure 15). The
programmer will display the actual configuration after few seconds.
Input the desire Tone (Table 1) then press “Write” to change the setting (Figure 16).
Note: If display “Success”, means the entered tone is confirmed (Figure 17). If display “Fail”,
means failure to program the tone. (Figure17) Tone 14, Tone 16 and Tone 17 are recognized
by LPCB.
3. Press “Exit” key to go back Main Menu. Press “Power” to switch off the programmer.
Parameter Tone
Code
dB(A) Output
( high)
dB(A) Output
(low)
Description
1 01 98.9 95.7 970Hz
2 02 100.9 96.6 800Hz / 970Hz @ 2Hz
3 03 102.9 99.3 800Hz -970Hz @1Hz
4 04 99.7 97.4 970Hz 1s off / 1s on
5 05 101.3 98.7 970Hz, 0.5s / 630Hz, 0.5s
6 06 102.7 98.8 500Hz - 1200Hz×3, 3.5s on / 0.5s off
7 07 106.6 101.4 2850Hz, 0.5s on / 0.5s off×3 / 1.5s off
8 08 106.1 102.3 2850Hz 0.4s on, 0.3s off
9 09 99.7 96.6 550Hz, 0.7s / 1000Hz, 0.33s
10 10 105.7 100.8 1500Hz -2700Hz @ 3Hz
11 11 102.3 97.0 2400Hz
12 12 102.4 97.0 500Hz -1200Hz @ 0.33Hz
13 13 104.4 100.6 2400Hz -2900Hz @ 9Hz
14 14 105.7 102.0 2400Hz -2900Hz @ 3Hz [Default]
15 15 102.0 99.2 800Hz-970Hz @ 3Hz
16 16 102.1 98.8 500Hz-1200Hz, 3.75s / 0.25s off
17 17 101.3 98.7 800Hz 1s off / 1s on [Pre-alarm]
