TATU PHT FLEX User manual

OPERATOR’S
MANUAL
PHT FLEXPHT FLEX

Dealer:
Owner:
Firm / Farm:
City: State:
No. of the Certificate of Guarantee:
Serial / No.:
Date: Invoice No.:
Product:
Notes:
IDENTIFICATION

1
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
Introduction
The PHT FLEX planter is quick and versatile. It was design for small
farms and can perform conventional or no-till plantation of corn, soybean,
beans, sorghum and other cultures.
This planter can be supplied with the three-point hitch version, with
frames options of 2200, 2700 and 3200 mm and availability to change
the spacing between the row units.
It has individual fertilizer hoppers for each row unit and seed hopper
with quick coupler to facilitate cleaning and adjustments.
Disc blades with vertical and lateral movements and scarifier spindle
that features minimal soil movimentation and fertilizer depth adjustment.
Gauge wheels with flexible bands and effective action along with the
double discs.
Compaction wheels with angle and pressure adjustments.
Wheelset with individual activation for the seed and fertilizer; the
right wheelset is for the seeds and the left one is for the fertilizer.
This operator's manual contains the necessary information for
the best performance of this planter. The operator must carefully read
the entire manual before working with the equipment. Also, read and
understand the safety recommendations.
For any further clarification or in the event of techical problems
that may arise during the service, consult your dealer and the Technical
Support department of the factory. They can ensure the fully functioning
of your TATU planter.

2Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
Table of contents
1. To the owner 3
2. To the operator 4 to 9
3. Data sheet 10 & 11
4. Components 12
5. Row unit / Assembly 13 to 15
6. Set-up instructions 16 to 27
Preparing the tractor 16
Hitching to the tractor 17

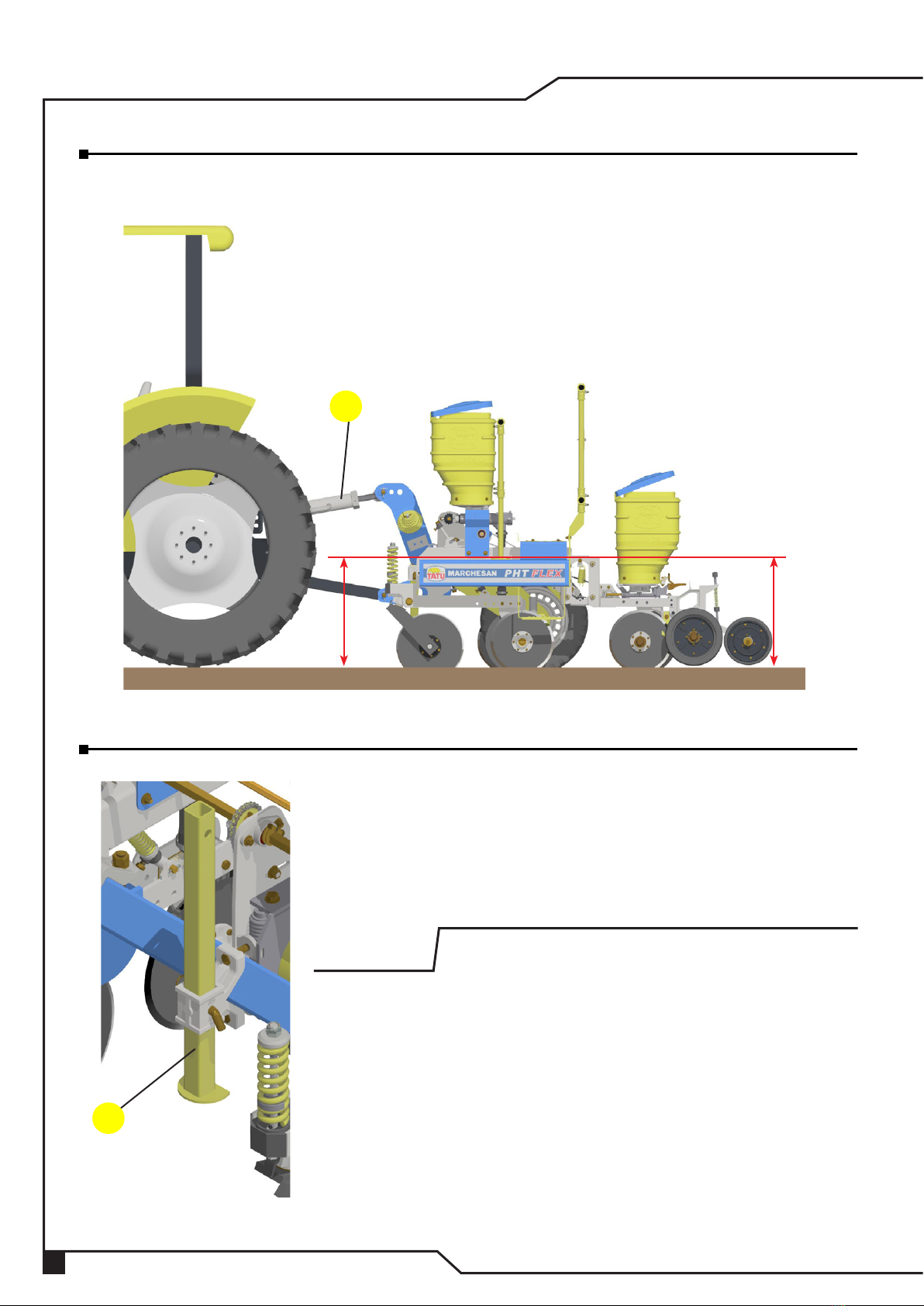

Planter leveling / Setting the planter to transport position 18
Spacing between row units / Positioning the row units in the frame 19
Procedures to remove the row unit 20
Procedures to change the spacing 21 & 22
Planning the plantation - Correct seed rate 22 & 23
Procedures before the plantation 23
Preparing for the plantation / Ideal working speed 24
Graphite powder use / List of standard seed plates 25
Seed plate kits 26
Seed plate replacement 27
7. Adjustments and operations 28 to 42
Seeds distribution / Procedures to change the sprocket 28
Seed distribution table 29
Calculation of seeds/meter according to the number of holes in the plates 30
Fertilizer distribution / Procedures to change the sprocket 31
Helical auger 32
Fertilizer distribution table 33
Practical test of seed and fertilizer distribution 34
Auxiliary calculation for the fertilizer distribution 35
Furrow opening and fertilizer position in the soil / Scarifier spindle 36
Fertilizer depth 37
Floating range of the row unit 38
Opening the seed furrows / Seed depth 39
Gauge wheels adjustment / Angular position of the wheels 40
Troubleshooting guide 41
Operations - Important points 42
8. Optional 43 & 44
Seed plates / Scarifier spindle 43 & 44
9. Maintenance 45 to 52
Lubrication / Lubrication points 45 & 46
Fertilizer metering maintenance 47
Cleaning the seed metering / Maintenance of the row hubs 48
How to replace the tires 49
Unaligned double disc adjustment 50
Planter maintenance 51
Tires inflation 52
10. Important data 53
Torque table 53
11. Important 54

3
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
General information
Important
To the owner
NOTE
The acquisition of any TATU product assures to the original purchaser the following
rights:
• Warranty certificate;
• Operator's manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well
as knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.
• Only people who own a full knowledge of the tractor and equipment
must transport, operate and carry out any maintenance on them;
• Marchesan is not responsible for any damage caused by accident
on transporting, incorrect utilization or inadequate storage, either
by negligence and/or lack of experience from any person;
• Marchesan is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
Right and left hand side indication are made observing the equipment from the rear.
To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.
The warranty shall not be applied to any equipment or any part thereof which
has been altered elsewhere than at the place of manufacture or which the
original purchaser thereof at retail has used or allowed to be used parts, not
made or supplied by Marchesan S/A.

4Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
The PHT FLEX planter is simple to operate, requiring however
the basic and essential cautions to its handling.
Always keep in mind that safety requires constant attention,
observation and prudence during plantation, transportation,
maintenance and storage.
To the operator
Working safely
Be careful with the environment
• Security aspects must be carefully observed to avoid
accidents.
• This symbol is a warning used to prevent accidents.
• The instructions near this symbol refers to the safety of the
operator, mechanician or third parties, therefore they should
be carefully read and observed. When the safety instructions
are not being followed, a serious accident or even death may
occur.
Read and understand the information before making any
adjustment or maintenance.
Before activating the equipment, check if there are no people
or animals on the row operation area or over the equipment.
Have extreme caution when operating with the power take-off
(PTO). Do not get closer during operation.
Products such as oil, fuel, filters, batteries and others must not
be spilt over the soil as they can penetrate the underground layers,
thus compromising nature. Ecological and conscious disposal of
them should be done.
Dear operator!
Respect the ecology. Do not throw trash away. This gesture of
goodwill helps to protect our environment.

5

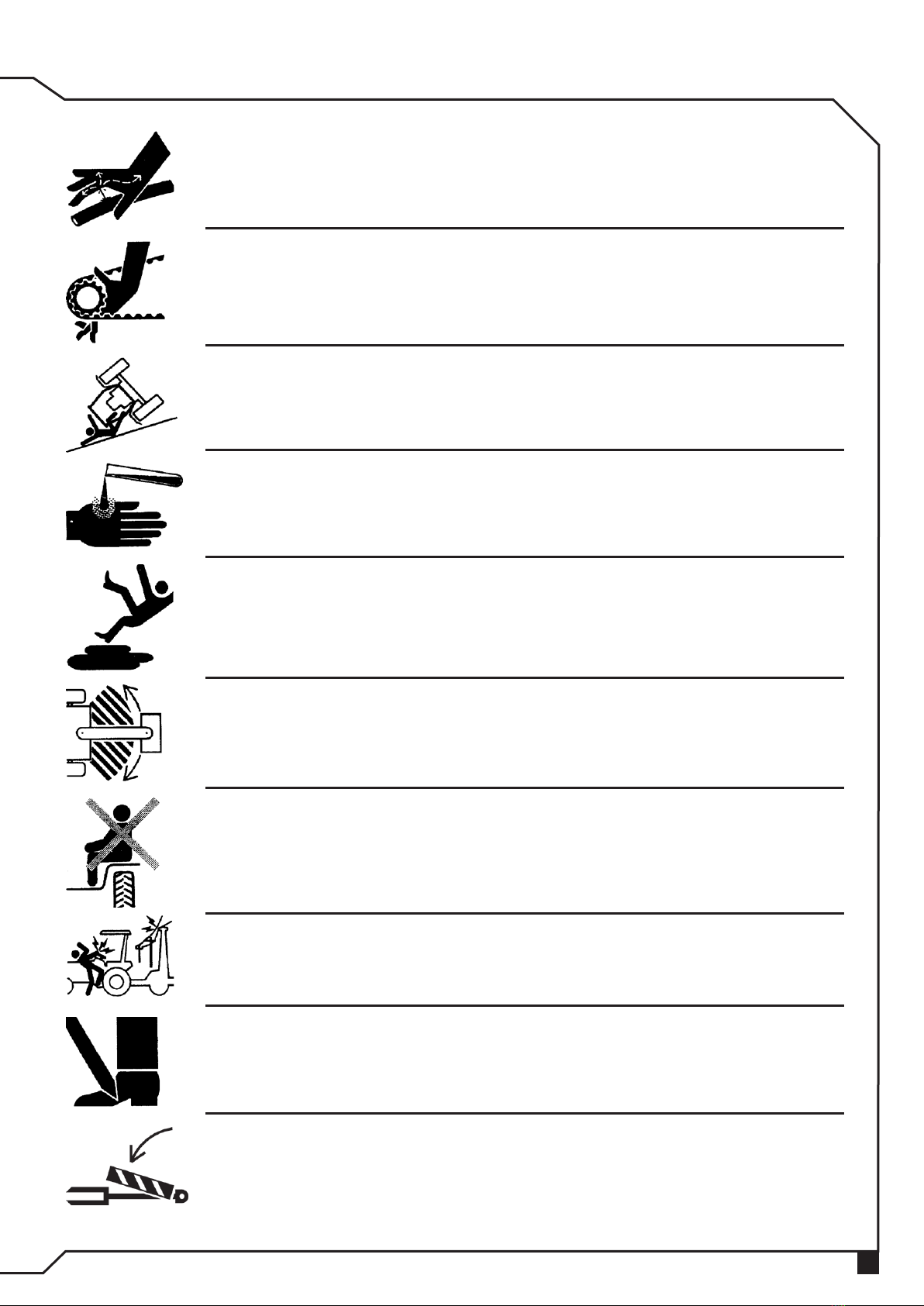

Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
To the operator
Never use your bare hands to check hydraulic leaks, the high
pressure can cause injuries.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean or free from oil and grease.
Risk of accidents.
Never transport the equipment on highways or paved roads
during the night. Avoid that the tractor wheels touch the drawbar in
sharp turns.
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
Any contact may result in severe shocks, injuries or death.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Always use the safety locks to carry out any maintenance or to
transport the equipment.

6Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
To the operator
• Only trained and qualified personnel are allowed to operate the equipment.
• While working or during transportation, only the presence of the operator is
allowed on the tractor.
• Do not allow children to play or to get over the equipment, while it is operating,
during transportation or storage.
• Have full knowledge of the soil before starting to work. Use the speed which is
suitable to the conditions of the ground or pathways to be covered. Provide the
delineation of obstacles or hazardous locations.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Never operate the equipment without its protective devices.
• Be careful while hitching the equipment to the tractor.
• Wear protective gloves to work near the cutting parts.
• When lifting or lowering the equipment, check if there are no people or animals
close or under it.
• Never attempt to change the adjustments, clean or lubricate the equipment while
it is moving.
• In case of emergency, know how to stop the tractor and planter quickly.
• Always shut down the engine, remove the key and use the handbrake before
leaving the tractor seat.
• Only pull the equipment using a tractor with appropriate power.
• Carefully check the transport width on narrow locations.
• Do not drive the equipment under the influence of alcohol or any soothing/
stimulating medicine, as it may result in a serious accident.
• Do not allow that any people or animal get under the equipment at any time.
• In case of a fire outbreak or any possible hazard, the operator must leave the
area as fast as possible and look for a safe place. Always have emergency
numbers at hands.
• Whenever you unhitch the equipment, either in the field or shed, do it on a flat
and firm surface and use parking jacks. Make sure the equipment is properly
supported.
• We suggest that you carefully read the manual, as it will be a guide for periodic
verifications that need to be done and will allow that you assure the maintenance
of your equipment.
• If there is any doubt after reading it, ask your dealer. For more complicated
operations, there will be the right person to help you there.
• Please check the general safety instructions on the back cover of this manual.

7
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
Transportation over truck or trailer
To the operator
Marchesan does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be done
on truck, trailer or others by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it can cause a serious accident.
• When lifting with a hoist, use the appropriate points to lift.
• Use the parking jacks to support the equipment properly.
• The drawbar must be lifted and locked on a vertical position or it must be removed
and locked to the load.
• Fasten the moving parts that may get loose and cause accidents.
• Underpin the equipment wheels appropriately.
• Use chock blocks and safety chains to secure the equipment to the truck or
trailer during the transport.
• Make sure the SMV (Slow Moving Vehicle) sign, and all the lights and reflectors
that are required by the local highway and transport autorithies are in place, are
clean and can be seen clearly by all overtaking and oncoming traffic.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment on truck or trailer. If necessary use banners, lights
and other devices in order to give adequate warning to the other drivers.

8Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
To the operator
Working safety standards
It is important to have knowledge not only about the functioning, operation of the
equipment and its technology, but also the working legal aspects when using the equipment,
such as: safety standards, operator's manual and working safety.
The equipment and tools used on the rural area must be properly handled, otherwise
health and safety of involved personnel may be compromised.
The operator must be capable and authorized to operate the tractor, meaning that
that person must comprehend the functioning instructions of the tractor and know about
the safety standards regarding the job that will be performed.
The Ministry of Labor and Employment created safety standards that aim to decrease
the risk of accidents that may occur to the rural worker. Related to the subject of agicultural
machines and equipments, we specifically cited the NR 06, NR 12 and NR 31 standards.
Regulatory Standard - NR 06:
• For purposes of applying this Regulatory Standard, Personal Protective Equipment
(PPE) is considered any device or product that is worn by an individual worker for protection
against risks that could threaten safety and health at work.
Regulatory Standard - NR 12:
• This Regulatory Standard and its annexes provide technical references, basic
principles and protective measures to ensure the health and physical integrity of workers
and establishes minimum requirements for the prevention of accidents and occupational
diseases in the design stages and use of machinery and equipment of all kinds, and also
to its manufacture, importation, trading, exhibition and cession in any way. It is understood
as using phase the construction, transportation, assembly, installation, adjustment,
operation, cleaning, maintenance, inspection, disabling and dismantling of machinery or
equipment.
Regulatory Standard - NR 31:
• This Regulatory Standard has the purpose to establish the precept to be applied on
the organization and on the working environment, in order to make compatible the planning
and development of agriculture, livestock, forestry, forest exploration and aquaculture with
safety on the working environment.

9
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
To the operator

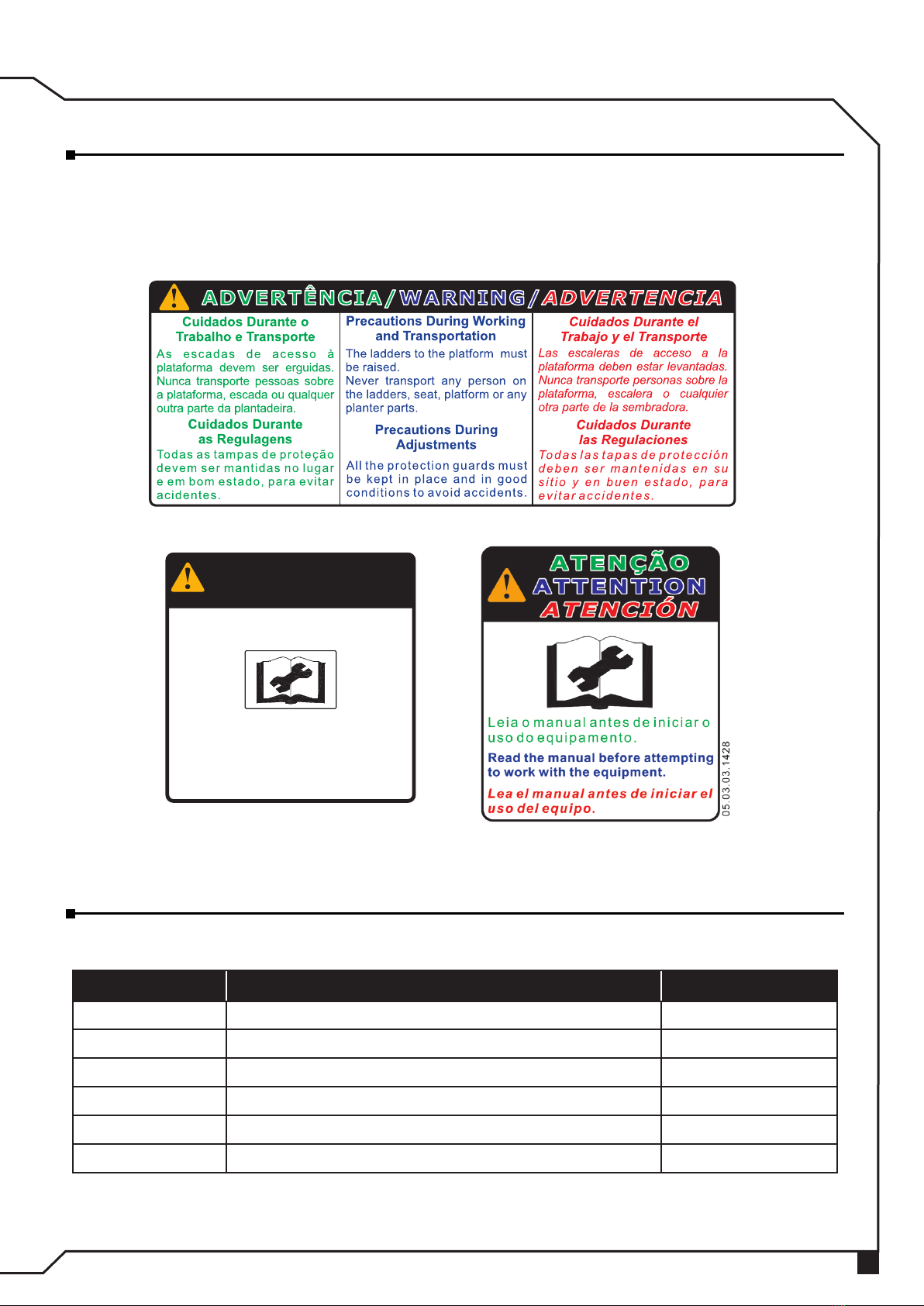

The safety decals warn about the equipment points that require more attention and they
should be kept in good repair. If these decals become damaged or illegible, replace them.
Marchesan provide decals, upon request and indication of the respective serial number.
Decal set
Safety decals
05.03.03.1942
El lacre podrá ser removido solamente
por el propietario.
O lacre somente poderá ser rompido
pelo proprietário.
Manual de Instruções
Instructions Manual
Manual de Instrucciones
The seal must only be broken by the
owner.
AADDVVEERRTTÊÊNNCCIIAA
WWAARRNNIINNGG
AADDVVEERRTTEENNCCIIAA
05.03.03.1565
Quantity Model Serial number
03 PHT FLEX decal 05.03.03.4620
01 Final test decal 05.03.03.1087
01 Read the manual decal 05.03.03.1428
02 Precautions during working/transportation decal 05.03.03.1565
01 2" coil pitch fertilizer table decal 05.03.03.1940
01 Seed distribution table decal 05.03.03.1983

10 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
Data sheet
Model
Number
of row
units
Spacing
between disc
blades
(mm)
Hoppers capacity
(liters) Working
width (mm)
Weight
(kg)
Tractor
required
power
(cv)
Fertilizer Seeds
2,200
PHT
FLEX
02 750 / 900 100 100 750 / 900 700
50
03 450 / 500 150 150 900 / 1000 880
2,700
PHT
FLEX
03 750 / 900 150 150 1,500 / 1,800 900
50
04 450 / 500 200 200 1,350 / 1,500 1,080
3,200
PHT
FLEX
04 750 / 900 200 200 2,250 / 2,700 1,120
65
05 450 / 500 250 250 1,800 / 2,000 1,300
Right wheelset for the seeds.
Left wheelset for the fertilizer.
Scarifier spindle: optional part.
Individual activation for seeds and fertilizer.
Ideal working speed: 5 to 7 km/h.
Consider 8 cv per row unit for the double discs.
Consider 11 cv per row unit for the rod.
5.60 x 15 tires - 4 ply (maximum pressure: 35 PSI).
For other adjustments, consult the product engineering department.
NOTE

11
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
Data sheet
Measures in millimeters.
ATTENTION
AA
BB
CC
Dimension for transportation
Rows A B C
03 2,200
2,395 1,82004 2,700
05 3,200

12 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
Components
PHT FLEX with three-point hitch
01 - Frame 02 - Tractor hitch
03 - Parking jack 04 - Disc blade
05 - Fertilizer row unit 06 - Fertilizer hopper
07 - Wheelset 08 - Seed row unit
09 - Seed hopper 10 - Sprockets
0606
0909
0808
0707
0505
0303 0101
0202
0404
1010

13
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
Row unit
Conventional or no-till plantation
Gauge wheels
with pressure and
angle adjustments
Seed hopper
that is easy to
clean and adjust Individual fertilizer hopper
for every row unit
Seed unaligned
double discs
15" x 15"
Fertilizer unaligned
double discs
15" x 15"
16" disc blade with lateral
and vertical movement
Scarifier spindle with
small soil movimentation
and soil depth adjustment

14 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX

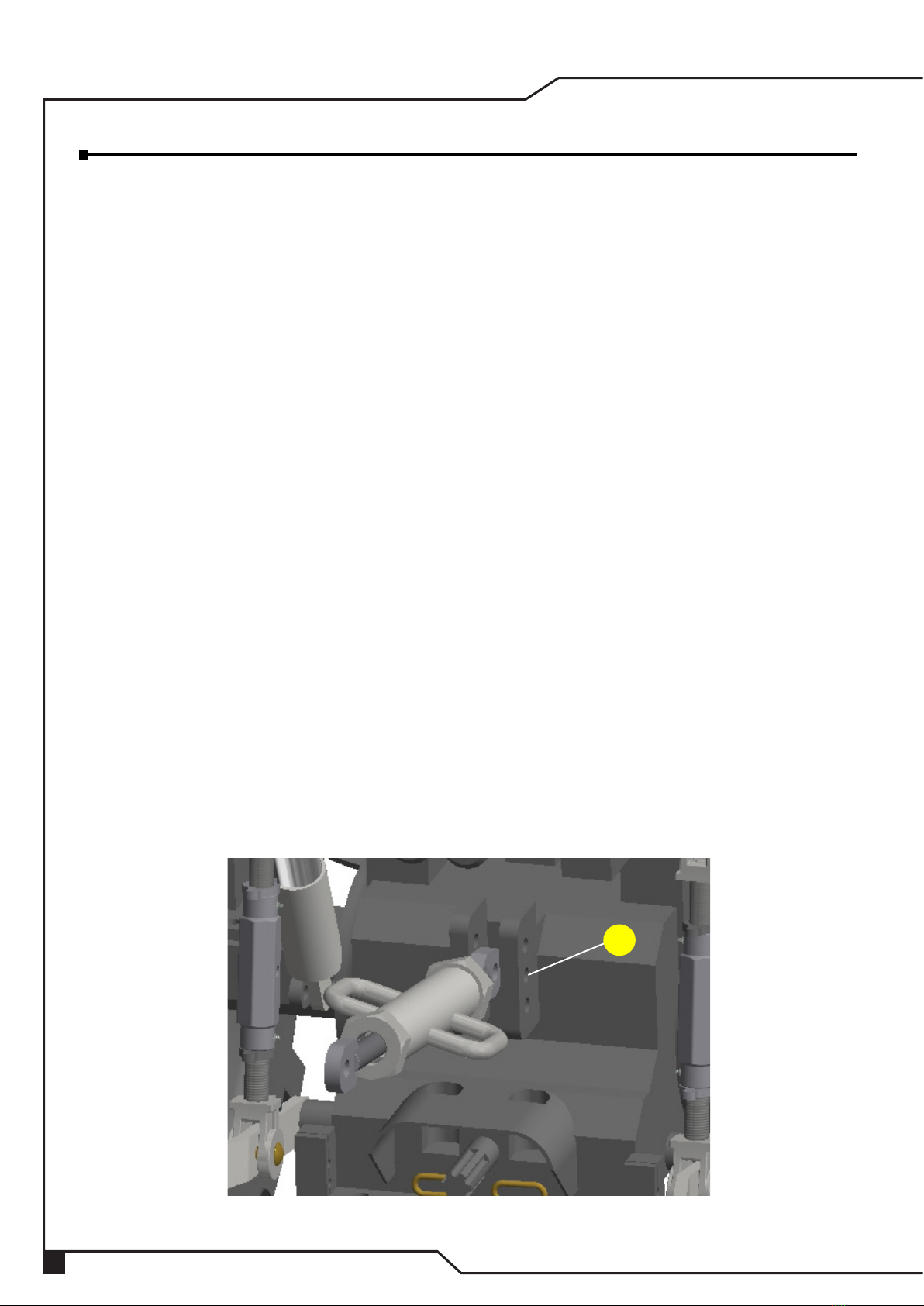

Assembly
Lower hitches assembly
Assemble the lower hitch (A) on the frame (B) using the support fastener (C) with bolts
(D), flat washer, spring washer and nuts.
AA
AABB
CC
DD

15
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
Assembly
Disc blade assembly
Position the disc blade (A) on the inner part of the arm (B) locking it on the clamp (C)
with elastic pin (D).
Couple the spring adjustment (E) on the clamp (C), passing it through the slot of the
row unit support (F); place the lower seat of the spring (G), the spring (H), upper seat of
the spring (I) and nut (J).
Lastly, lock the fertilizer row unit (K) to the frame and to the arm (L) using a bolt (M),
flat washer, spring washer and nut.
AA
BB
KK
FF
CC
DD
EE
GG
HH
LL
II
JJ
MM

16 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
Set-up instructions
Preparing the tractor
Before starting the operations, prepare the tractor and equipment appropriately.
Check the general conditions of the tractor, especially the good functioning of the
hydraulic system that must be in flotation mode.
The addition of water ballasts on the tires or a set of weights on the tractor front part
or on the rear wheels are the most used ways to increase the traction over the soil and to
assure a greater stability of the set.
The front and rear wheel gauges must be equal (consider a measure from the center
of the tires).
The reservoir fill-up process must be always done after the daily working period.
This avoids that the air humidity that is inside the reservoir condenses. If filled up, the air
volume inside the reservoir exits through the breather.
The operator must known the tractor operation commands to assure safety,
preservation and integrity of the tractor, as well as to allow an efficient and correct operation.
The PTO activation and deactivation must be done keeping a low rotation speed.
Use equipments which are compatible with the PTO rotation speed.
The option to choose the hole on the third point on the control rod (A) is related to
the type and humidity of the soil and the depth actuation of the equipment. For soils that
have smooth texture and light equipments, use the upper hole.
When working over harder soils or to reach greater depths, the sensibility must be
lowered in order to avoid that the control itself prevents the equipment penetration.
Follow the instructions on the tractor and equipment manual to assure the good
functioning of both of them.
AA

17
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. PHT FLEX
For hitching, choose a place as flat as possible.
Drive the tractor slowly in reverse gear to the planter direction and be ready to brake.
When close enough, use the lever to control the hydraulic position, leaving the left lower
arm in the same level of the hitch pin.
1) Hitch the right and left arms, which features ascent and descent movements through
the arm adjuster and place the lock pins. At this moment, the extension thread of the upper
arm can be used to approach or put away the planter to facilitate the hitching.
2) Place the upper arm (third point) and lock it using a lock pin. For a perfect hitching,
the planter must be centralized with the tractor, which is done as follows:
• Align the third point of the planter with the third point of the tractor;
• Totally raise the planter;
• Check if the distances between the lower arms and tires are the same on both sides
(as in "A"), being both in the same level (as in "B").
Hitching to the tractor
Set-up instructions
"A""A"
LongitudinalLongitudinal
levelingleveling
Upper hydraulicUpper hydraulic
armarm
AdjusterAdjuster
TransversalTransversal
levelingleveling
"B""B"
Lower hydraulicLower hydraulic
armarm
• The tractor hydraulic arms must be free so that they can follow the soil
unevenness.
• When hitching, be sure to not stay between the tractor and equipment.
NOTE

18 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
PHT FLEX
Planter leveling
Set-up instructions
Level the equipment through the three-point upper arm (A).
Totally lift the row units by activating the tractor
hydraulics.
Lift the parking jack (B), as shown on the illustration.
Setting the planter to transport position
IMPORTANT • Only fill up the planter on the work station.
• Never transport the planter with load excess.
• Before starting the operation, check if
there are any people or animal closer to the
equipment.
• Check the operator's manual to see the
maximum transportation speed.
AA
BB
