TATU LTA 3000 User manual

INSTRUCTIONS MANUAL
LTA 3000
LTA 5000
LTA 5000 S

Dealer:
Owner:
Firm / Farm:
City: State:
No. of the Certificate of Guarantee:
Serial / No.:
Date: Invoice No.:
Product:
Notes:
IDENTIFICATION

1
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
The rear scraper blades LTA 3000, LTA 5000 and LTA 5000
S were designed to simply and quickly carry out works in terrraces,
construction sites and to provide servicing in your property
roads and tracks, leveling the ground and removing bumps and
depressions in areas in the farming. The large free height of the
frame from the ground allows moving a great amount of earth.
It features reinforced structure, sturdy parts where
mechanical forces concentrate, better weight distribution, and
ensures excellent performance in a wide range of conditions.
The tractor is required to provide dual control of the hydraulic
drive.
The blade features vertical and horizontal angle adjustment.
This instructions manual contains the necessary information
for the best performance of this blade. The operator must carefully
read the entire manual before working with the equipment. Also,
read and understand the safety recommendations.
For any further clarification or in the event of technical
problems that may arise during the service, consult your dealer
and the Technical Support department of the factory. They can
ensure the fully functioning of your TATU blade.
Introduction

2Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
Table of contents
1. To the owner 03
2. To the operator 04 to 08
Safety stickers 08
3. Data sheet 09 to 11

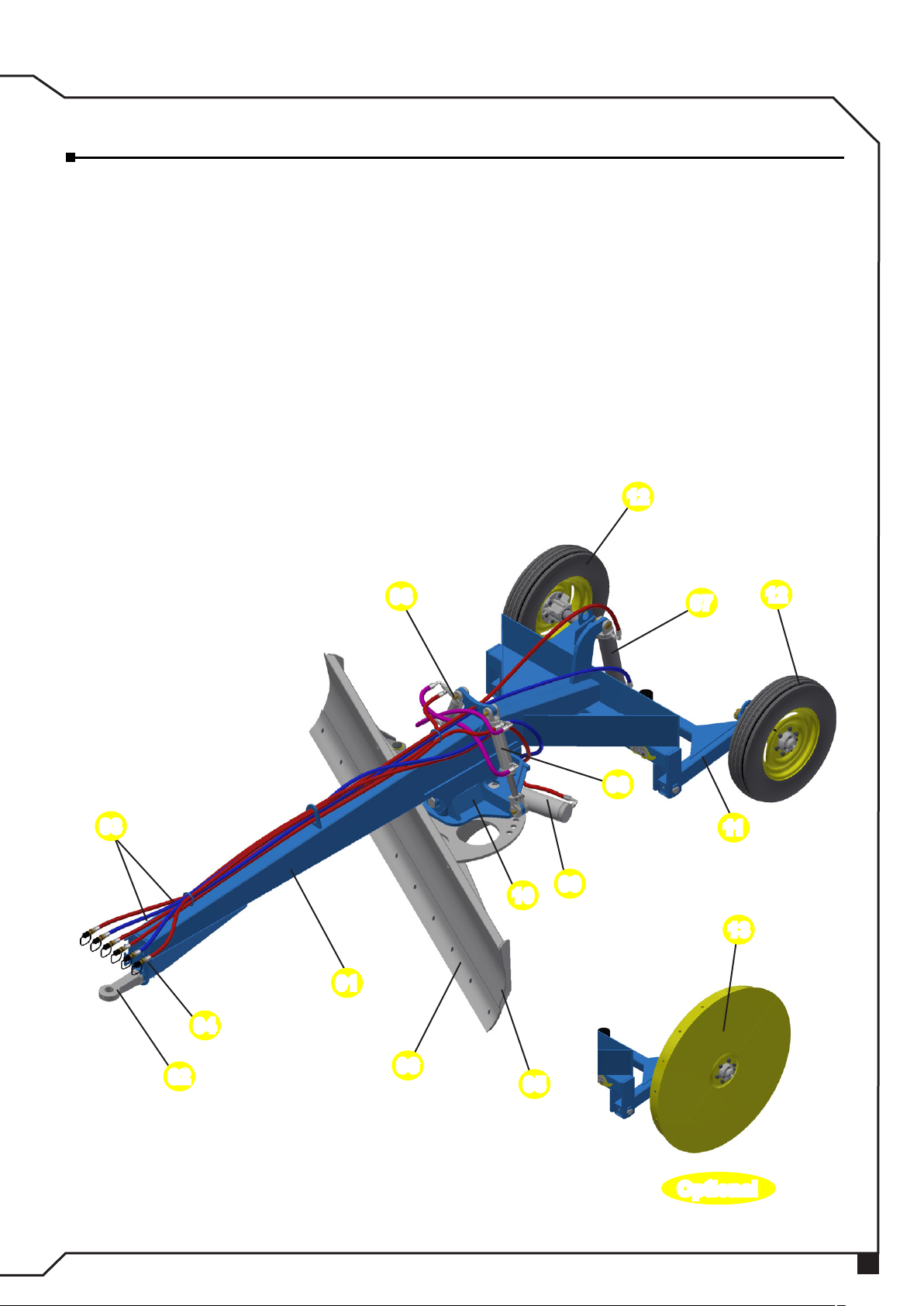

4. Components 12 to 14
5. Assembly 15 to 23

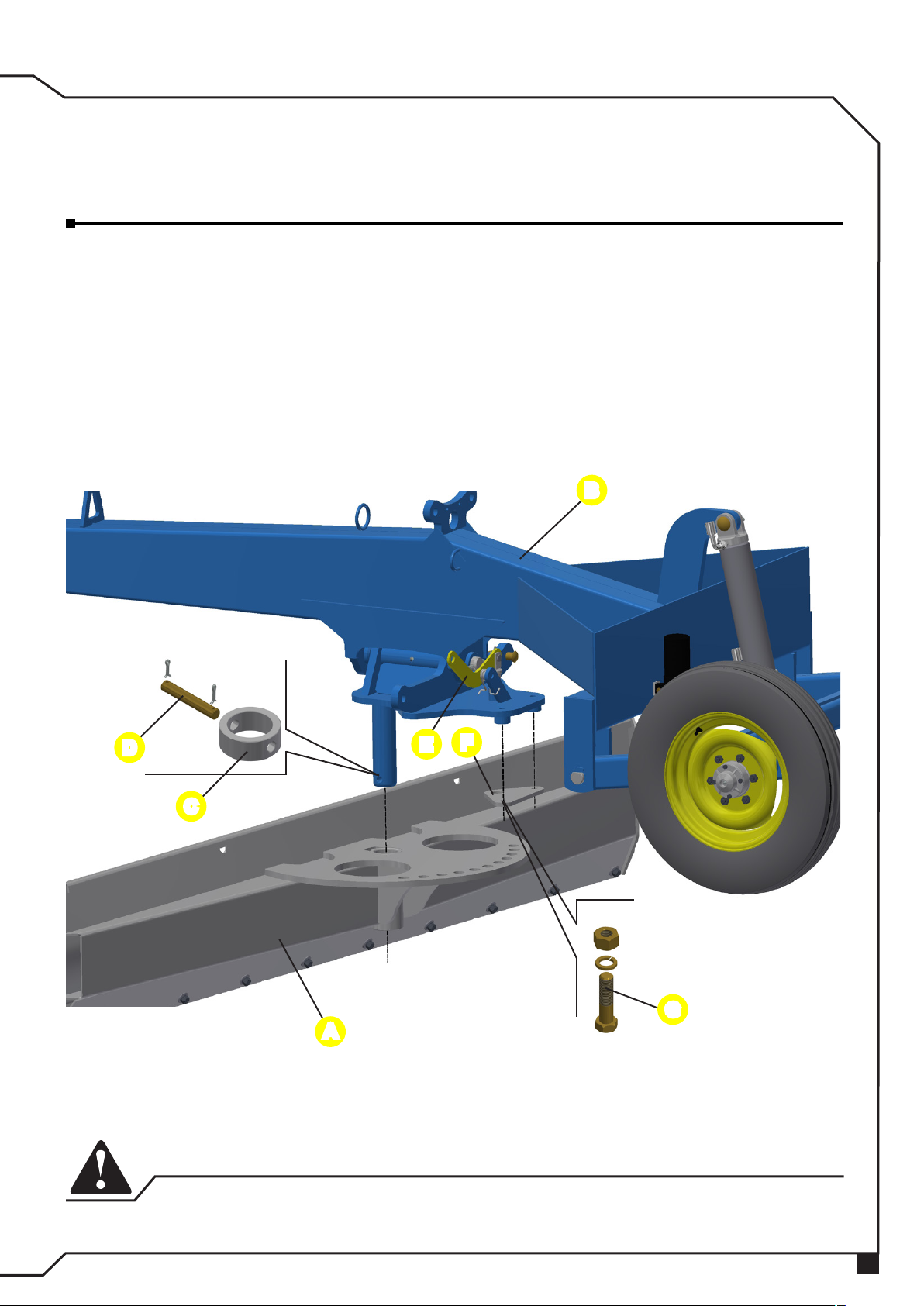

Blade assembly - LTA 3000 and LTA 5000 (mechanical) 15
Blade assembly - LTA 3000 and LTA 5000 (hydraulic) 16
Blade assembly - LTA 5000 S 17
Articulation cylinder assembly for LTA 3000 and LTA 5000 models 18
Hydraulic cylinder assembly for LTA 5000 S 19
Wheelset assembly 20
Hydraulic circuit - LTA 3000 and LTA 5000 (mechanical) 21
Hydraulic circuit - LTA 3000 and LTA 5000 (hydraulic) 22
Hydraulic circuit - LTA 5000 S 23
6. Set-up instructions 24 & 25
Tractor preparation / Blade preparation / Hitching to the tractor 24
Procedures for transportation 25
7. Adjustments and operations 26 to 32
Blade horizontal angle adjustment - LTA 3000 and LTA 5000 26
Blade horizontal angle adjustment - LTA 5000 S 27
Blade vertical angle adjustment 28
Cutting depth adjustment 28
Blade vertical angle adjustment - LTA 5000 S 29
Making terraces / Removing terraces 29 & 30
Operations - Important points 31
Troubleshooting 32
8. Optional 33 to 35
LTA hydraulic circuit with valve 33
LTA hydraulic circuit with electric pilot-operated valve 34
LTA 5000 S hydraulic circuit with electric pilot-operated valve 35
Electric circuit LTA with electric pilot-operated valve 36
9. Maintenance 37 to 41
Lubrication / LTA 3000 and LTA 5000 lubrication points 37 & 38
Lifting points 39
Blade maintenance / Tires ination / Maintenance precautions 40
Torque table 41
10. Important 42

3
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
General information
Important
To the owner
Right and left hand side indication are made observing the equipment from the rear.
To order any parts or request technical assistance services, it is required to provide
the data contained on the nameplate, which is located on the equipment frame.
The acquisition of any TATU product assures to the original purchaser the following
rights:
• Warranty certificate;
• Instructions manual;
• Technical assistance by the dealer on equipment delivery.
However, the owner must check the condition of the equipment on delivery, as well
as knowing the warranty terms.
Special attention should be given to the safety recommendations, operation precautions
and maintenance of the equipment.
The instructions in this manual indicates how to get the best performance and allow
the operator to get maximum income, increasing the equipment lifetime.
This manual should be read by operators and maintenance staff.
• Only people who own a full knowledge of the tractor and equipment
must operate them;
• Marchesan is not responsible for any damage caused by accident
on transporting, incorrect utilization or inadequate storage, either
by negligence and/or lack of experience from any person;
• Marchesan is not responsible for any damage caused by unpredictable
situations or the incorrect use of the equipment.
NOTE
The warranty shall not be applied to any equipment, or any parts thereof,
which has been altered elsewhere than at the place of manufacture or
which the original purchaser thereof, at retail, has used or allowed to be
used parts, not made or supplied by Marchesan S/A.

4Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
To the operator
Dear user!
Respect the ecology. Do not throw trash away. This gesture of
goodwill helps to protect our environment.
Products such as oil, fuel, filters, batteries and others are
spilled to the soil and can penetrate to the underground layers,
compromising nature. Ecological and conscious disposal of them
should be done.
Working safely
• Security aspects must be carefully observed to avoid accidents.
• This symbol is a warning used to prevent accidents.
• The instructions under this symbol refers to the safety of the
operator or third parties, therefore they should be carefully read
and observed.
Read and understand the information before making any
adjustment or maintenance.
Have extreme caution when operating with the power take-off
(PTO). Do not get closer during operation.
Be careful with the environment
The LTA 3000, LTA 5000 and LTA 5000 S rear blades are simple
to operate, requiring however the basic and essential cautions to
their handling.
Always keep in mind that safety requires constant attention,
observation and prudence during the transportation, maintenance
and storage.

5
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
To the operator
Never use your bare hands to check hydraulic leaks, the high
pressure can cause injuries.
Never attempt to change the adjustments, clean or lubricate the
equipment when the same is switched on or in movement.
Be careful while driving on slopes. Risk of overturn.
Prevent that chemical products (i.e.: fertilizers, treated seeds)
make any contact with your skin or clothes.
Keep access and work places clean or free from oil and grease.
Risk of accidents.
Never transport the equipment on highways or paved roads
during the night. Avoid that the tractor wheels touch the drawbar in
sharp turns.
The presence of any other people on the tractor or equipment
is stricly forbidden.
Have extreme caution when driving under electrical power lines.
Any contact may result in severe shocks, injuries or death.
For your protection and safety, always wear adequate clothes
and footwear while operating the equipment.
Always use the safety locks to carry out maintenance operations
and to transport the equipment.

6Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
To the operator
• While working or during transportation, only the presence of the operator is
allowed on the tractor.
• Do not allow children to play or to get over the equipment while it is operating,
during transportation or storage.
• Have full knowledge of the soil before starting to work. Use the speed which is
suitable to the conditions of the ground. Provide the delineation of obstacles or
hazardous locations.
• Use personal protective equipment (PPE).
• Wear appropriate clothes and footwear. Avoid clothes that are either loose or
hanging from the body, which may become entangled in moving parts.
• Never operate the equipment without its protective devices.
• When lifting or lowering the blade, check if there are no people or animals close
or under the equipment.
• Never attempt to change the adjustments, clean or lubricate the equipment while
it is moving.
• In case of emergency, know how to stop the tractor and blade quickly.
• Always shut down the engine, remove the key and use the handbrake before
leaving the tractor seat.
• Only drive the equipment using a tractor with appropriate power.
• Carefully check the transport width on narrow locations.
• Whenever you unhitch the equipment, either in the field or shed, do it on a flat
and firm surface and use the parking stands. Make sure the equipment is properly
supported.
• Do not drive the equipment under the influence of alcohol or any calming/
stimulating medicine, as it may result in a serious accident.
• In case of a fire outbreak or any possible hazard, the operator must leave the area
as fast as possible and look for a safe place. Always have emergency numbers
at hands.
• Please check the general safety instructions on the back cover of this manual.

7
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
Transportation over truck or trailer
Marchesan does not advise the equipment traffic on highways, because this
practice involves serious security risks in addition to being prohibited by the
current existing traffic law. The transportation for long distances should be done
on truck, trailer or other by following these safety guidelines:
• Use adequate ramps to load or unload the equipment. Do not make the loading
on ditch banks, it can cause a serious accident.
• When lifting with a hoist, use the appropriate points to lift.
• Fasten the moving parts that may get loose and cause accidents.
• Underpin the equipment wheels appropriately.
• Use chock blocks and safety chains to secure the equipment to the truck or
trailer during the transport.
• After 8 to 10 km transporting, please inspect the load condition. Repeat this
procedure every 80 to 100 km. Give more attention when transporting the
equipment on rough roads, slopes and other adverse conditions.
• Always be careful with the load height, especially when passing under electrical
power lines, bridges and others.
• Check all laws and regulations regarding the height limits and load width while
transporting the equipment to the truck or trailer. If necessary use banners,
lights and other devices in order to give adequate warning to the other drivers.
To the operator

8Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
The safety stickers warn about
the equipment points that require more
attention and they should be kept in
good repair. If these stickers become
damaged or illegible, replace them.
Marchesan provide stickers, upon
request and indication of the respective
serial number.
To the operator
Safety stickers
ATENÇÃO
ATTENTION
ATENCIÓN
05.03.03.1428
Leia o manual antes de iniciar o
uso do equipamento.
Read the manual before attempting
to work with the equipment.
Lea el manual antes de iniciar el
uso del equipo.
LUBRIFICAR E REAPERTAR DIARIAMENTE
LUBRICAR Y REAPRETAR DIARIAMENTE
L U B R I C A T E A N D T I G H T E N D A I LY
05.03.03.1827
Model LTA 3000 Serial number
Small sticker 05.03.03.4023
Sticker 05.03.03.4024
Big sticker 05.03.03.4025
Model LTA 5000 Serial number
Small sticker 05.03.03.4026
Big sticker 05.03.03.4027
Model LTA 5000 S Serial number
Small logo 05.03.03.4210
Small sticker 05.03.03.4211
Big logo 05.03.03.4212
Big sticker 05.03.03.4213

9
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
Data sheet
Model: ..............................................................................................................LTA 3000
Blade width:.....................................................................................................3,000 mm
Total length:.....................................................................................................4,400 mm
Tire outer width:...............................................................................................1,950 mm
Minimum transportation width:.........................................................................2,250 mm
Raised blade height:........................................................................................1,700 mm
Blade horizontal turn:...........................................................................................................45º
Blade vertical turn:.....................................................................................................20º
Working speed:...............................................................................................................5 Km/h
Tires:................................................................................................... 600 x 16 (44 PSI)
Weight:.................................................................................................................933 kg
Tractor required (cv):........................................................................................... 70 - 95
LTA 3000

10 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
Data sheet
Model:..............................................................................................................LTA 5000
Blade width: ................................................................................................... 4,200 mm
Total length using:
11L - 15 tires: .................................................................................. 5,455 mm
12.4 x 11 x 24 tires: ......................................................................... 5,700 mm
Iron wheel: ...................................................................................... 5,670 mm
Tire outer width:
11L - 15 tires: .................................................................................. 2,410 mm
12.4 x 11 x 24 tires: ......................................................................... 2,480 mm
Iron wheel: ...................................................................................... 2,270 mm
Minimum transportation width:........................................................................ 3,050 mm
Raised blade height:
11L - 15 tires: .................................................................................. 1,765 mm
12.4 x 11 x 24 tires: ......................................................................... 1,975 mm
Iron wheel: ...................................................................................... 1,925 mm
Blade horizontal turn:...........................................................................................................45º
Blade vertical turn:....................................................................................................20º
Working speed:.............................................................................................................. 5 Km/h
Types of tires:
11L - 15 tires - 10 tarps (52 PSI):.......................................................Standard
12.4 x 11 x 24 tires - 6 tarps (30 PSI):.................................................Optional
Iron wheel: .........................................................................................Optional
Total weight:
11L - 15 tires: .................................................................................... 1,100 kg
12.4 x 11 x 24 tires: ........................................................................... 1,320 kg
Iron wheel: ........................................................................................ 1,217 kg
Tractor required (cv):......................................................................................... 95 - 120
LTA 5000

11
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
Data sheet
Model: ...........................................................................................................LTA 5000 S
Blade width:.....................................................................................................4,500 mm
Total length:.....................................................................................................7,030 mm
Tire outer width:...............................................................................................3,350 mm
Minimum transportation width:.........................................................................4,000 mm
Raised blade height:...........................................................................................750 mm
Blade horizontal turn:...........................................................................................................47º
Blade vertical turn:.....................................................................................................21º
Working speed:...............................................................................................................5 Km/h
Tires:.................................................................................... 14.9 x 28 - 8 tarps (26 PSI)
Weight without ballast:.......................................................................................2,600 kg
Tractor required (cv):....................................................................................... 120 - 200
LTA 5000 S

12 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
Components
LTA 3000 and LTA 5000 (mechanical)
01 - Frame 07 - Blade articulation hydraulic cylinder
02 - Hitch 08 - Blade mounting support
03 - Hoses 09 - Wheelset
04 - Hose support 10 - Tires
05 - Blade 11 - 3/8" rope
06 - Lifting hydraulic cylinder
01
02
03
04 05
11
06
07
07
08
09
10
10

13
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
Components
LTA 3000 and LTA 5000 (hydraulic)
01 - Frame 08 - Blade articulation hydraulic cylinder
02 - Hitch 09 - Hydraulic cylinder adjustment
03 - Hoses 10 - Blade mounting support
04 - Hose support 11 - Wheelset
05 - Blade12 - Tires
06 - Reversible scraper 13 - Iron wheel (Optional)
07 - Lifting hydraulic cylinder
01
02
03
04
06 05
07
08
09
08
10
11
12
12
13
Optional

14 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
Components
LTA 5000 S
01 - Frame 07 - Blade articulation hydraulic cylinder
02 - Hitch 08 - Blade mounting support
03 - Hoses09 - Wheelset
04 - Hose support 10 - Tires
05 - Blade 11 - Blade hydraulic cylinder adjustment
06 - Lifting hydraulic cylinder
01
02
03
04
05
06
07
07
08
09
10
10
11
11

15
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
Assembly
In the first place, spread all the parts in a clean area to identify them easily. Check
the quantity of parts with the packing list which is found inside the packing box.
Blade assembly - LTA 3000 and LTA 5000 (mechanical)
Move the blade (A) to a flat plan and well supported so it is in the proper assembling
position.
Using a hoist, mount the frame (B), attaching it with a sleeve (C), pin (D) and cotter
pins.
After finishing such operation, position the lever lock shaft (E) on the blade and fix
the bottom base (F), attaching it with bolts (G), spring washers and nuts.
Make sure the blade is well supported in order to prevent accidents.
A
B
C
DEF
G

16 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
Blade assembly - LTA 3000 and LTA 5000 (hydraulic)
Assemble the blade (A) over a flat plan and well supported so it is in the proper
assembling position.
Use a hoist to fasten the frame (B) and lock using a sleeve (C), pin (D) and cotter pins.
After this operation, position the cylinder (E) between the frame and cylinder fastener
(F), locking with bolts (G), spring washers and nuts.
Lock the other end of the cylinder (E) to the blade using an axle (H) and cotter pin.
Assembly
A
B
C
D
E
F
G
H

17
Marchesan Implementos e Máquinas Agrícolas “TATU” S.A. LTA
Assembly
Blade assembly - LTA 5000 S
Place the blade over a flat
plan and well supported so it is in
the proper assembling position.
Use a hoist to fasten the
frame (A) to the blade fixation
support (B) using a joint shaft (C),
flat washers, spring washers and
bolts (D).
After this operation, position
the blade (E) and lock it to the
fixation support (B) using joint
shaft (C), flat washers, spring
washers and bolts (D).
BD
C
B
E
C
D
A

18 Marchesan Implementos e Máquinas Agrícolas “TATU” S.A.
LTA
Assembly
Articulation cylinder assembly for LTA 3000 and LTA 5000 models
Assemble the hydraulic cylinders to articulate the blade, being the rods facing down,
as indicated:
Assemble the cylinders (A) to the frame fixation support (B), using joint shafts (C)
and cotter pins. Assemble the other end of the cylinders (A) to the blade fixation support
(D) using joint shafts (E), pulley (F), guide (G), spring washer and nut.
Repeat the same operation for the cylinder (H) using joint shaft (I) and cotter pin.
A
B
C
C
I
D
E
F
G
H
