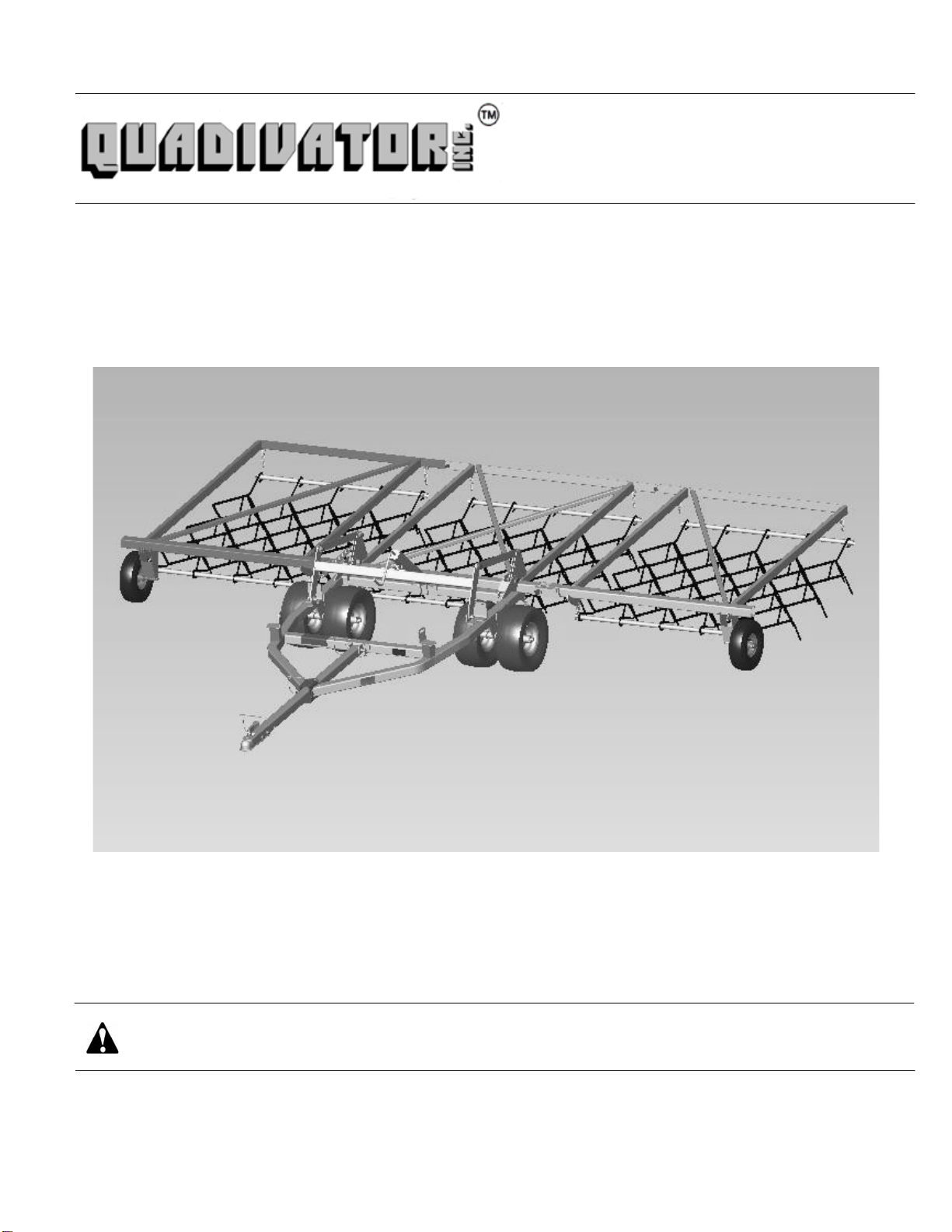

Quadivator UTV
Harrow
Assembly/Operators/Parts Manual
English Language Version 08
Printed: xxxxxxx 2009
Part # : 86XXXA
1000 6th Ave. NE
Portage La Prairie, MB
Canada, R1N 3C5
READ & SAVE THIS MANUAL

Quadivator UTV Harrow
QUADIVATOR WARRANTY POLICY
The warranty for the Quadivator Product is a limited warranty.
The manufacturer's warranty to the original customer is - the product is free from defects in
materials and workmanship for a period of one (1) year from the date of purchase by the original
purchaser.
We will repair or replace, at our discretion, parts found to be defective due to materials and
workmanship.
The warranty is subject to the following limitations and exclusions:
1. Engine Warranty - all engines utilized on our products have a separate warranty extended
to them by the engine manufacturer. Any engine service difficulty is the responsibility of the
engine manufacturer and in no way is Quadivator Inc. or its agents responsible for the engine
warranty. The Briggs & Stratton Engine Service Hot Line is 1-800-233-3723.
2. Commercial Use - the warranty period for any product used for commercial or rental use is
limited to ninety (90) days from the date of original purchase.
3. Limitations - the warranty applies only to products which have been properly assembled,
adjusted and operated in accordance with the instructions contained in this manual. The
warranty does not apply to any product of Quadivator Inc. that has been subject to alteration,
misuse, abuse, improper assembly or installation, shipping damage or normal wear of the product.
4. Exclusions - excluded from this warranty are normal wear, normal adjustments and normal
maintenance.
In the event you have a claim under this warranty, you must return the product to an authorized
service dealer. All transportation charges, damage or loss incurred during transportation of parts
submitted for replacement or repair under this warranty shall be borne by the purchaser. Should
you have any questions concerning this warrany, please contact us toll-free at 1-866 770-2169 or
on our web-site at www.quadivator.com. The model, serial numbers, date of purchase and the
name of the authorized Quadivator dealer from whom you purchased the Quadivator Product will
be needed before any warrany claim can be processed.
This warranty does not apply to any incidental or consequential damages and any implied
warranties are limited to the same time periods stated for all expressed warranties. Some
provinces and states do not allow the limitation of consequential damages or limiitations on how
long an implied warranty may last, so the above limitations may not apply to you. This warranty
gives you specific legal rights and you may have other rights, which vary from province to
province or state to state.
This is a limited warranty as defined by the Magnusson-Moss Act of 1975.

Quadivator UTV Harrow
Operators Manual – Version 08
i
FOREWORD
Congratulations on the purchase of your new Quadivator UTV Harrow. To obtain the best use of your
Quadivator UTV Harrow, read this manual carefully. It will help you become familiar with the
operation and maintenance of the Quadivator UTV Harrow. It is Quadivator Policy to use all research,
design and manufacturing improvements to improve our products. At the time of printing, this may
result in some of the minor parts in the manual becoming outdated.
Quadivator will have the most up to date parts and service information – call 1 866 770-2169 for
service information and parts orders!
Contact Information
Quadivator Inc. E-mail: [email protected]
1000 – 6th Ave NE Website: www.quadivator.com
Portage la Prairie, MB Tel. [phone]
Canada, R1N 3C5 Fax. [phone]
This symbol, the industry’s “Safety Alert Symbol”, is used throughout this manual and on labels on the
unit itself to warn the possibility of personal injury.
Read these instructions carefully.
It is essential that you read the instructions and safety regulations before you attempt to assemble or
use this unit.
NOTE
Indicates an imminent hazardous situation, which if
not avoided, will result in death or serious injury.
Indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate
injury.
DANGER
SAFETY FIRST
WARNING
CAUTION
A NOTE provides key information to make
procedures easier or clearer.

Quadivator UTV Harrow
Operators Manual – Version 08
ii
Table of Contents
1. Foreword / Safety First……………………………………………i
2. Pre-delivery Checklist…………………………………………… iii
3. Owners Registration & Delivery Checklist……….……….…. iv
4. Safe Operation ………………………………………………….....1
5. Setup ………………………………………………………..……… 3
6. Operation…………………….…………………………………..….4
7. Maintenance……………….……………………………………..…5
8. Troubleshooting……………………………………………………7
9. Torque Chart……………………………………………………..…8
10. Parts……………………..……………………………….…….….…9
11. Warranty Registration…………………………………………....13
Serial Number Location

Quadivator UTV Harrow
Operators Manual – Version 08
iii
PRE- DELIVERY CHECKLIST
Check off all items as they are found satisfactory or after adjustments are made:
1All safety shields and guard are securely in place.
1All decals are in place and readable.
1Tighten all hardware – see Bolt Torque Chart in Service Section (page 8).
1Check tire inflation pressure and set to 30 psi for Main Frame and 30 psi for Lift Frames.
1Operate for 5 – 10 minutes, check for excessive operation or unusual noise, when using
the Quadivator UTV Harrow and attachment(s).
1The Quadivator UTV Harrow and customer ordered attachments have been tested and to the best
of my knowledge, is ready to be delivered to the customer!
Date Pre-delivered –
Signature –

Quadivator UTV Harrow
Operators Manual – Version 08
iv
OWNER’S REGISTRATION
Name –
Address –
City/Town –
State/Prov. –
Postal/Zip (Mail) Code -
Model & Serial –
Date Sold –
DELIVERY Checklist – Review with customer:
1Tell the customer not to remove any of the safety shields or guards.
1Review the Quadivator Warranty.
1Review the Safe Operation and Service of the Quadivator Attachment.
1Review the Daily and Periodic Lubrication and Maintenance.
1Review the Daily and Periodic Inspections.
1Review with the customer the Parts & Service Availability.
Prior to delivery to the customer, do the following:
1Record Serial Numbers for the Quadivator Products
1Sign and copy this section for the dealer’s record.
1Give the customer the Operators Manual and encourage the customer to read the
manual.
Date Delivered –
Signature –

Quadivator UTV Harrow
Operators Manual – Version 08
1
Safe Operation
General Operation
1. Read, understand, and follow all instructions
on the machine and in the manual(s) before
starting.
2. Do not put hands or feet near rotating parts
or under the machine.
3. Allow only responsible adults, who are
familiar with the instructions, to operate this
machine.
4. Be thoroughly familiar with the controls and
the proper use of the equipment. Know how to
stop the unit and disengage the controls quickly.
5. Be sure the area is clear of bystanders
before operating. Stop machine if anyone
enters the area.
6. NEVER CARRY PASSENGERS while
operating any attachments.
7. Disengage the clutch on the UTV or compact
tractor and shift into neutral before starting or
attaching the UTV attachment. Always look
down and behind before and while backing up.
8. Handle fuel with care, it is highly flammable:
(a) Use an approved fuel container.
(b) Never add fuel to a running engine or
hot engine.
(c) Fill fuel tank outdoors with extreme care.
Never fill fuel tanks indoors.
(d) Replace gasoline cap securely and wipe
up spilled fuel.
.
9. Do not operate machine without the guards
and other safety devices in place and working.
10. Do not wear loose clothing or jewelry.
11. Slow down unit before turning.
12. Never leave a running machine unattended.
Always turn off unit, secure parking brake, stop
engine and remove key before dismounting.
13. Shut off engine and wait for all parts to
come to a complete stop before cleaning,
servicing and/or unplugging the machine.
14. Operate machine in daylight or good
artificial light.
15. Do not operate machine while under the
influence of alcohol, medication or drugs.
16. Watch for traffic when operating near or
crossing roadways.
17. Use extra care when loading or unloading
the machine into a trailer or truck.
18. Always wear eye protection when operating
or servicing machine.
19. Do not run UTV or compact tractor engine
indoors, except when starting. Open the outside
doors: Exhaust Fumes ARE Dangerous!
Slope Operation
1. Slopes are a major factor related to loss of
control and tip-over accidents, which can result
in severe injury or death.
2. Operation on all slopes requires extra
caution. Do not use the attachment, if you
cannot back up the slope or if you feel uneasy
on it.
3. Go up and down slopes, not across.
4. Watch for holes, ruts, bumps, rocks, or other
hidden objects. Uneven terrain could overturn
the machine. Tall grass can hide obstacles.
5. Choose a low ground speed so you will not
have to stop or shift while on a slope.
6. Do not work on wet grass. Tires may lose
traction.
7. ALWAYS keep the UTV or compact tractor in
gear when going down slopes. Do not shift to
neutral and coast downhill.
8. Avoid starting, stopping, or turning on a
slope. If the tires lose traction, raise the
attachment and SLOWLY proceed straight down
the slope.
DANGER Failure to observe
the following safety
instructions could
result in serious
injury and or death.

Quadivator UTV Harrow
Operators Manual – Version 08
2
9. Keep all movement on slopes slow and
gradual. Do not make sudden changes in speed
or direction, which could cause the machine to
roll over.
10. Use extra care while operating machine with
additional or other attachments; they can affect
the stability of the machine. Do not use on
steep slopes.
11. Do not try to stabilize the machine by
putting your foot on the ground.
12. Do not work near drop-offs, ditches or
embankments. The machine could suddenly roll
over if a wheel goes over the edge or if the edge
caves in.
Children
1. Keep children out of the working area and
under the watchful care of a responsible adult -
other than the operator.
2. Be alert and turn machine off if a child enters
the area.
3. Before and while backing, look behind and
down for small children.
4. Never carry children, even with the
attachment shut off. They may fall off and be
seriously injured or interfere with safe machine
operation. Children who have been given rides
in the past may suddenly appear around the unit
for another ride and be run over or backed over
by the machine.
5. Never allow children to operate the machine!
6. Use extreme care when approaching blind
corners, shrubs, trees, or other objects that may
block your view of a child.
Towing
1. Tow only with a machine having a hitch
designed for towing. Do not attach towed
equipment except at the hitch point.
2. Follow the manufacturer’s recommendation
for weight limits for towed equipment and towing
on slopes.
3. Never allow children or others in or on towed
equipment.
4. On slopes, the weight of the towed
equipment may cause loss of traction and loss
of control.
5. Travel slowly and allow extra distance for
stopping.
General Service
1. Keep all nuts and bolts tight to be sure the
equipment is in safe working condition.
2. Never tamper with safety devices. Check
their proper operation regularly.
3. Keep machine free of grass, and other debris
build-up.
4. If you strike a foreign object, stop and inspect
the machine. Repair, if necessary, before
restarting.
5. Never operate the machine at high transport
speed. Use care when backing up.
6. Maintain or replace safety and instruction
labels, as necessary.
7. Use only attachments and accessories
approved by the manufacturer.
Maintenance
1. Maintain or replace safety and instruction
labels as necessary.
2. Never tamper with safety devices and check
their operation regularly.
WARNING:
Tragic accidents can occur if the
operator is not alert to the
presence of children. Children
are often attracted to the
machine and the attachment.
Never assume that children will
remain there - the last time you
saw them.

Quadivator UTV Harrow
Operators Manual – Version 08
3
Setup
NOTE: RIGHT and LEFT hand sides are
determined by the forward travel of unit.

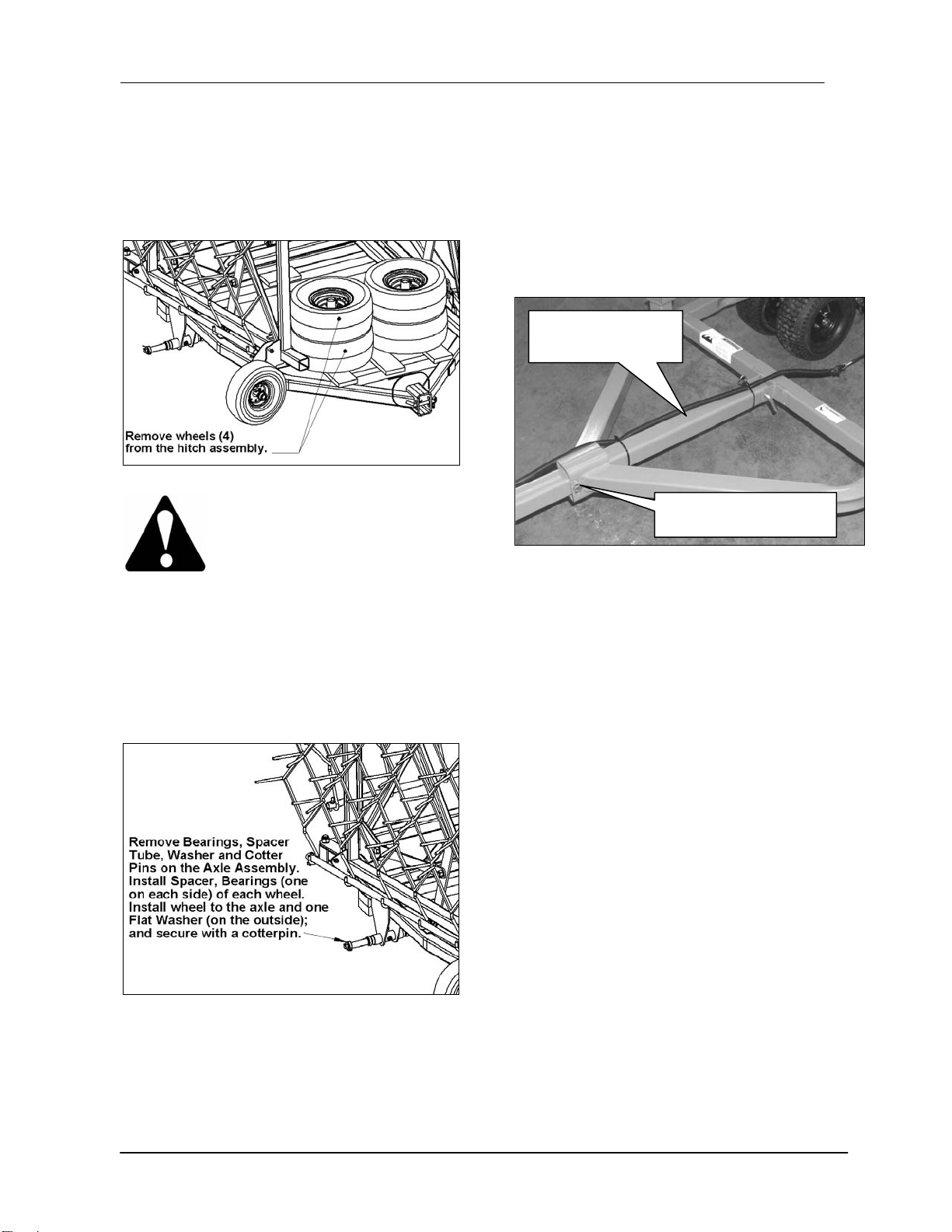

1. Uncrate unit, remove wheel assemblies and
place along the sides of the harrow cart frame.
Make sure the surface for assembling the
harrow is level.
2. Place equal sized support stands (at least 18
inches high) at each corner of the main harrow
cart frame. This eases installing the hitch tube
and wheels.
3. Remove wheel bearings, spacer tube and
flatwasher from each axle shaft.
4. Clean axle shafts and inside each wheel
before installation. Place spacer tube inside
wheel hub; bearings on each side of wheel hub.
Secure wheel with the flatwasher (found on the
axle shaft) and cotterpin.
5. Repeat tire installation for other side of harrow
cart frame.
6. Insert hitch tube through hitch height channel
and secure to harrow cart frame with a bent pin
and hitch pin.
7. Secure hitch tube to hitch channel at front of
harrow cart frame using a bent pin with hitch pin.
Use the middle hole on hitch height channel.
8. Check tire pressures for all wheels - they
should be 30 psi.
9. Remove support stands. Lower evenly the
UTV Harrow to the ground so wheels and hitch
contact at the same time.
10. Remove shipping materials from unit.
IMPORTANT: Do not remove lift lock tube until
an actuator or lift cylinder is obtained
NOTE: The chains used to secure the harrows
to the lift frames (front and rear) are 6 links long.
Remove any kinks or twists on these chains.
Actuator Installation (if so equipped)
1. Position actuator (piston end to the lift rock
shaft weldment) to brackets on lift rockshaft
weldment and harrow weldment. Secure
actuator using 5/8 clevis pins and hitch pin clips.
Hi
tch Height Channel
–
use middle hole.

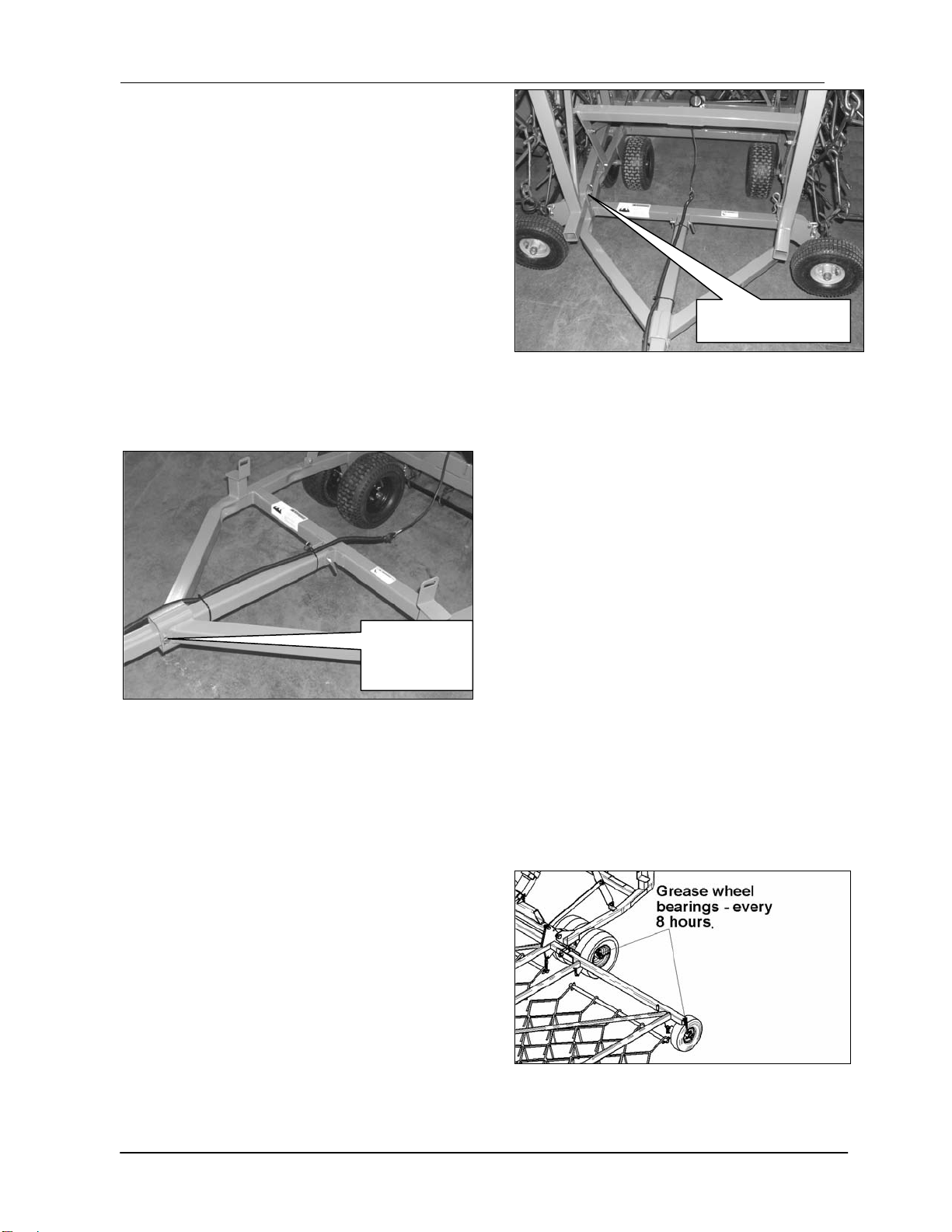

Hitch Tube to
Harrow Cart Frame
The UTV Harrow is in transport
position and top heavy. Lift unit
evenly onto support stands to
avoid a sudden weight shift.
Do not remove lift lock tube until
an actuator or lift cylinder is
installed.

Quadivator UTV Harrow
Operators Manual – Version 08
4
Actuator Installation
Electrical Installation
12. Route electrical wiring from actuator along the
harrow cart weldment to the hitch frame, and to
the front hitch coupler. Route away from pinch
points and moving parts that could catch the
wiring. Secure with tiestraps.
13. Mount the supplied switch to a convenient
location on the UTV or compact tractor. Check the
battery to ensure which are the positive (+) pole
and negative (-) pole.
14. Grease all wheels using multi-purpose
grease. Stop greasing when grease comes out of
the bearings.
Operation
NOTE: A 2” hitch ball is required when using with
the UTV, ATV or compact tractor.
The Quadivator UTV Harrow is attached to the rear
2” hitch ball of the UTV or compact tractor.
Actuator only: it is equipped with electric depth
control which is operated from a switch that is
mounted on the UTV, ATV or compact tractor.
Check the pneumatic wheels on the UTV Harrow
daily. The tires on the Harrow Cart Frame should
have 30 psi. The smaller turf tires on the left and
right hand lift frames should have 30 psi.
Do not exceed 6 mph (or 9 kph). The UTV harrow
will not do a good finishing job - if ground speed is
too high.
During heavy duty use, operate at a slower speed or
go over the area twice. Repeat, if necessary.
General Operation
Use the following guidelines to help ease using
your UTV Harrow:
1. Attach the harrow to the rear hitch of the UTV
or compact tractor. Secure with the locking handle
on the harrow hitch.
2. Attach electrical switch to UTV to operate the
actuator. Route & secure electrical wiring so it is
away from contact or pinch points between UTV
and tandem disk.
3. Lift the harrow with the actuator or lift cylinder.
NOTE: When the harrow is lowered to the
ground, the UTV must be in motion. The front part
of the harrows should make contact first. The
harrows will level out as the actuator or cylinder is
fully extended.
4. Raise the harrows with the actuator or lift
cylinder.
5. When not in use: lower harrow to the ground so
weight is removed from the wheels. Ensure the
wings are secure to the harrow lift center frame.
Guidelines
1. Check the tires on the UTV Harrow, when in
daily use – daily. All tires should have 30 psi.
2. Do not exceed 4 - 6 mph (or 6 - 9 km/h). The
UTV Harrow will not do a good job if the ground
speed is too high.
3. During heavy duty use, operate at a slower
speed; or go over the area twice. Repeat
operation, if necessary.
WARNING:
Always wear certified safety glasses
or wide vision safety goggles over
your glasses before starting,
maintaining and operating the UTV
harrow.
Actuator Mounting

Quadivator UTV Harrow
Operators Manual – Version 08
5
4. Check depth and adjust to conditions.
5. The UTV Harrow should be level when
operating. Locate the UTV, ATV or compact
tractor on a level surface; adjust the hitch height
so the harrows are flat on a level surface.
Hitch Height
The harrow center frame should be level when in
working position. If not, adjust the hitch tube
where it connects to the hitch channel. Remove
clevis pin and bent pin from bracket. Select
position and secure adjustment. Check if the main
frame is level. Check UTV or compact tractor, if
hitch can be adjusted by referring to its operator’s
manual.
1. Remove clevis pin along with bent pin from the
hitch channel. Select position and secure.
Hitch Height
2. Reinstall bent pin and secure with clevis pin.
Transport Position
The wings of the harrow can be placed in
transport by doing the following:
1. Raise harrows to full height. Make sure the
turf tires for the harrow lift frames (right and left
hand) are off the ground.
Transport Position
2. Take the right or left harrow lift frames and
swing forward to the sides of the harrow cart.
3. Lift the right or left harrow lift frames and
position on the harrow lift frame rest.
4. Secure in transport position using hitch pin
clips (1/4” x 3-1/2”). Make sure both lift frames
are secured.
5. Reverse procedure to place harrows in
working position.
Maintenance
1. Clean debris from frame, wheels and harrows.
2. Periodically inspect for loose, damaged, or
worn parts. Adjust or replace as needed.
3. Periodically check all hardware on the hitch
and harrows to ensure they are tight.
4. The wheels on the harrow cart and left and
right lift frame require periodic lubrication –
every 8 hours.
Hitch Height
Adjustment -
3 positions
Secure Wings to
Harrow Cart
Rest
.

Quadivator UTV Harrow
Operators Manual – Version 08
6
AFTER END OF SEASON USE: Remove
wheels, clean shafts and inside wheel. Apply a
light coating of grease and reinstall with
flatwashers and new cotterpin.
5. Check chains and harrow teeth to make sure
hardware is holding. Tighten loose hardware
and replace any missing pieces.
6. When harrow is not used for a period of time,
it is recommended clean off any dirt to prevent
rust.

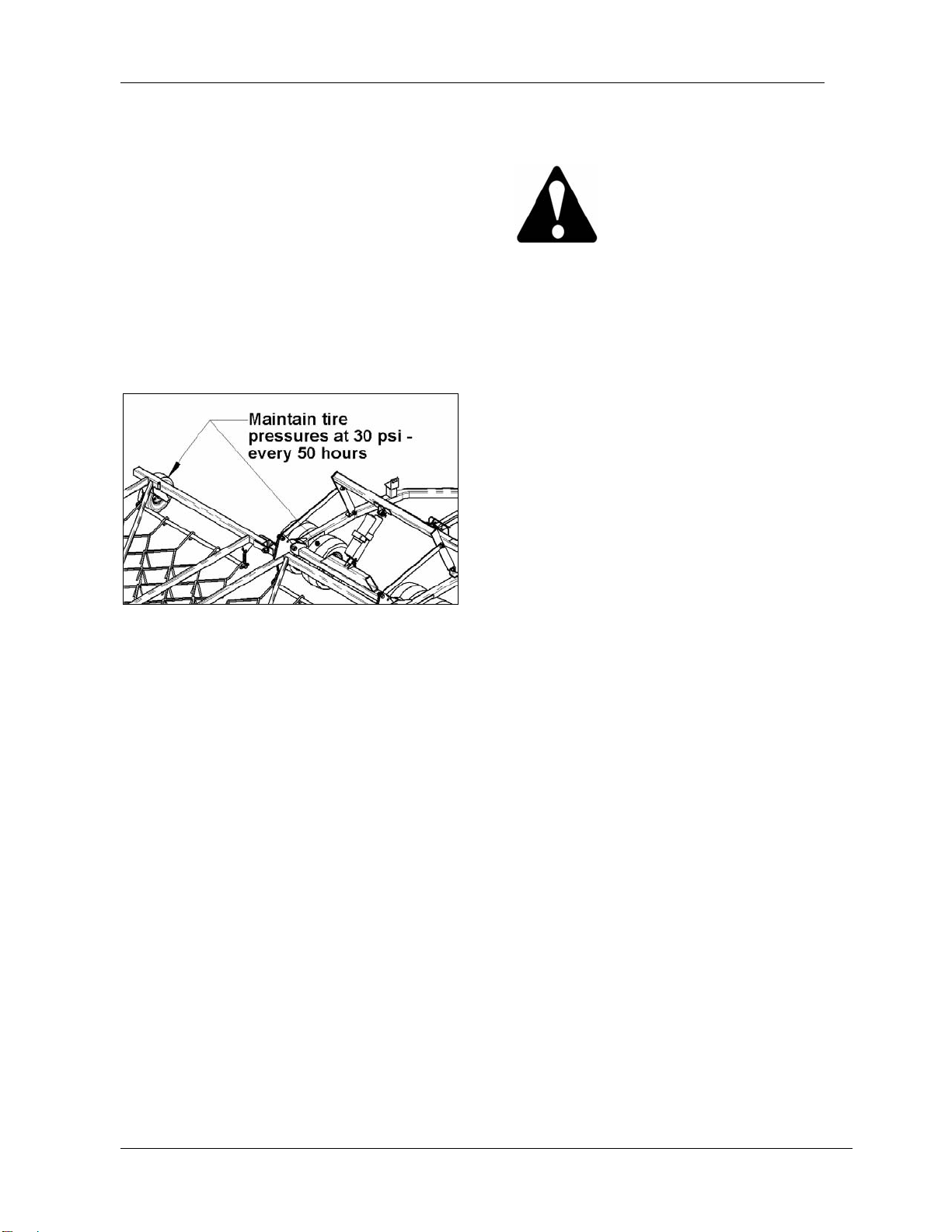

7. Check and maintain tire pressures (every 50
hours), when harrow is in use. Tire pressure for
all tires is 30 psi.
8. Replace harrow sections, if teeth become
broken or too worn. Refer to Parts Section of
this manual for replacement part numbers.
9. The hooks of the harrows may not stay
hooked to the harrow pull tubes. Make sure
harrows are hooked to harrow pull tubes. Place
a heavy metal plate under the hook of the
harrow. Pound down on the open loop end with
a heavy hammer to close the loop. Make sure it
is enough so the harrow pull tube will not slip
through.
Storage
1. Thoroughly clean off any dirt before storing.
2. Place the UTV harrow in transport position.
Store the harrow on a level location to ensure its
stability and safety.
3. Remove actuator or lift cylinder from unit and
store. Install the lift lock tube in its place and
secure.
4. Coat all teeth ends with grease or rust
inhibitor (paint) when storing the harrow after a
season.
5. Inspect the UTV Harrow for loose, damaged
or worn parts. Adjust, or replace if needed.
Transportation
1. Raise the harrows and place in transport
position. Make sure right and left harrow lift
frames are secure to the harrow cart frame.
2. Driving over bumps at improper speeds (over
5 MPH or 8 km/h) will cause the implement to hit
and scrape the ground.
3. Attaching the harrows to the UTV or other
towing vehicle increases the overall length and
width of the working implement. Allow additional
clearance for the implement to swing when
turning.
WARNING:
Exercise caution when
transporting. Making abrupt
turns can cause vehicle to
overturn and cause bodily
harm and/or injury.

Quadivator UTV Harrow
Operators Manual – Version 08
7
Troubleshooting
PROBLEM POSSIBLE
CAUSE POSSIBLE SOLUTION
Hard ground Wait for softer
ground
Penetration
is not deep
enough.
Adjust the hitch
until frame and
harrows are
level.
Poor harrow
performance.
Harrows are
worn. Replace with new.
Front or rear of
harrows are not
penetrating into
ground at the
same time.
Harrow cart
frame for the
harrow is not
level.
Level main
frame so it is
level in working
position. Refer
to Hitch Height
Adjustment –
page 4.
Soil and crop
residue sticks
Soil is too
wet and/or
sticky.
Wait for soil
conditions to
dry.
to the harrow
teeth. Harrow teeth
are plugged
with dirt,
debris.
Remove dirt
and debris.
UTV or tractor - Hard ground. Wait for softer
ground.
will not pull,
wheels spin. Ground is
too wet. Wait for soil to dry.
Hitting
obstructions. Remove obstructions.
Bent or broken
harrow teeth. Turning or
backing up
with harrows
in the
ground.
Raise harrows
when turning or
backing up.
PROBLEM POSSIBLE
CAUSE POSSIBLE SOLUTION
Actuator is not
connected to
the switch.
Connect wiring to
switch – check.
Switch is not
working.
Check switch and
electrical
connections.
Repair where
needed.
Machine will
not raise or
lower. Electrical
short in the
wiring
harness or to
electrical
source.
Check routing of
wiring harness
from actuator for
broken or pinched
wiring. Repair
where needed.
Plugging Too much
debris on the
field.
Remove debris
from the field.
Ridging on
outside.
Harrowing at
too high a
speed.
Reduce to 4-6
mph (6-9 km/h).
Does not run
level, or tow
straight.
Incorrect tire
pressures. Inflate tires evenly to 30 psi.
Harrows
unhooking
from pull
tube.
Harrow hooks
have spread
and are not
holding to
harrow pull
tube.
Install hooks to
harrow pull tube.
Close hook so it
does not slip
through.
Harrows not
level during
operation.
Improper level
adjustment. Check level, refer to page 5.
Actuator is
stuck at either
end of stroke
No electrical
power to
switch or
wiring.
Check wiring and
switch. Replace
switch or repair
wiring. Test
system.
Actuator is not
connected to
the switch.
Connect wiring to
switch – check
operation.
Actuator does
not operate.
Electrical
short in the
wiring
harness.
Check routing of
wiring harness for
broken or pinched
wiring. Repair as
needed.
Worn
actuator. Replace actuator.

Quadivator UTV Harrow
Operators Manual – Version 08
8
Torque Chart
Use the Torque Chart to ensure that the
hardware used on the Quadivator Product(s) is
tightened to the capacity of the hardware.
Replacement Parts
The following pages contain parts illustrations
and replacement part numbers for all
components on the Quadivator UTV Harrows.
At the time of printing, some of the minor parts in
the manual may become outdated.
To obtain replacement parts, please contact
your Quadivator Dealer for service. To locate
the nearest dealer, use the contact information
at the beginning of the Operators Manual.
Use the Torque Chart to make sure that the
hardware on your Quadivator Product(s) is
secure.
When ordering parts – please have the
following information on hand:
- Part Number - you are looking for.
- Model Number and Serial Number - of the
machine.
- Quantity required.
To ensure warranty support for your Quadivator,
please fill out the Warranty Registration Card
located in the Operator’s Manual.
American Standard Cap Screws
with UNC or UNF Threads Metric Cap Screws
SAE Grade
No.
Grade 5 –
Grade 8 - Property Class Class 8.8 - Class 10.9 -
(ft-lbs)
17 - 20.5 24 - 29
(ft-lbs)
17.4 - 20.2 21.7 - 25.3
5/16
(N-m)
23.1 - 27.8 32.5 - 39.3
M8 (N-m)
23.6 - 27.4 29.4 - 34.3
(kgf-m)
2.35 - 2.84 3.31 - 4.01
(kgf-m)
2.4 - 2.8 3.0 - 3.5
(ft-lbs)
35 - 42 45 - 54
(ft-lbs)
35.5 - 41.2 44.9 - 52.1
3/8
(N-m)
47.5 - 57.0 61.0 - 73.2
M10 (N-m)
48.1 - 55.8 60.8 - 70.5
(kgf-m)
4.84 - 5.82 6.22 - 7.47
(kgf-m)
4.9 - 5.7 6.2 - 7.2
(ft-lbs)
80 - 96 110 - 132
(ft-lbs)
57.2 - 66.5 76.0 - 86.8
1/2
(N-m)
108.5 - 130.2 149.2 - 179.0
M12 (N-m)
77.5 - 90.1 103 – 117
(kgf-m)
11.07 - 13.29
15.22 - 18.27 (kgf-m)
7.9 - 9.2 10.5 - 12.0
(ft-lbs)
110 - 132 160 - 192
(ft-lbs)
91.2 - 108 123 – 144
9/16
(N-m)
149.2 - 179.0 217.0 - 260.4
M14 (N-m)
124 - 147 167 – 196
(kgf-m)
15.22 - 18.27 22.14 - 26.57
(kgf-m)
12.6 - 15.0 17.0 - 20.0
(ft-lbs)
150 - 180 220 - 264
(ft-lbs)
145 - 166 192 – 224
5/8
(N-m)
203.4 - 244.1 298.3 - 358.0
M16 (N-m)
196 - 225 260 – 303
(kgf-m)
20.75 - 24.91 30.44 - 36.53
(kgf-m)
20.0 - 23.0 26.5 - 31.0

Bolt, Hx M8 x 15HBM8x1545
88434RM2 Wheel Rim, 4.10/3.50-4
3 1
ITEM Default
/QTY. PART acpart# DESCRIPTION
1 2
88435 Wheel Asss88435WA13 Tire, Archson, 15 x 6.00-6 Turf J22488435T
Grease Zerk 1/4-28 StraightGZ.2514 Weld't, Wheel Rim & Hub -4.10/3.50-488434WD
6 4 HNM8 NUT, HEX M8
7 1
88433 Bearing, Wheel Assy
2 1
< >Tire
ITEM Default
/QTY. PART acpart# DESCRIPTION
1 2 88433 Bearing, Wheel Assy
2 1
ITEM QTY. PART acpart# DESCRIPTION
1 1 86421A Channel Hitch Coupler-2" ball x 2" channel
2 1 86472 Tube, Hitch UTV harrow
3 2 FHN.5 0423-690 Flange Lock Nut-Unitorque -1/2-13NC
4 2 HB.5x3 Hex Head Bolt 1/2-13 X 3
Quadivator UTV Harrow 9
Wheel - UTV Harrow Assembly
Operators Manual - Version 08
UTV Harrow Hitch Assembly
(86495)
1
3
2
88434 - Wheel Assembly, Harrow Lift Frame
5
46
71
1
88435 - Wheel Assembly, Main Frame
2
3
1
4
3
2

Operators Manual - Version 08
(86470)
Quadivator UTV Harrow

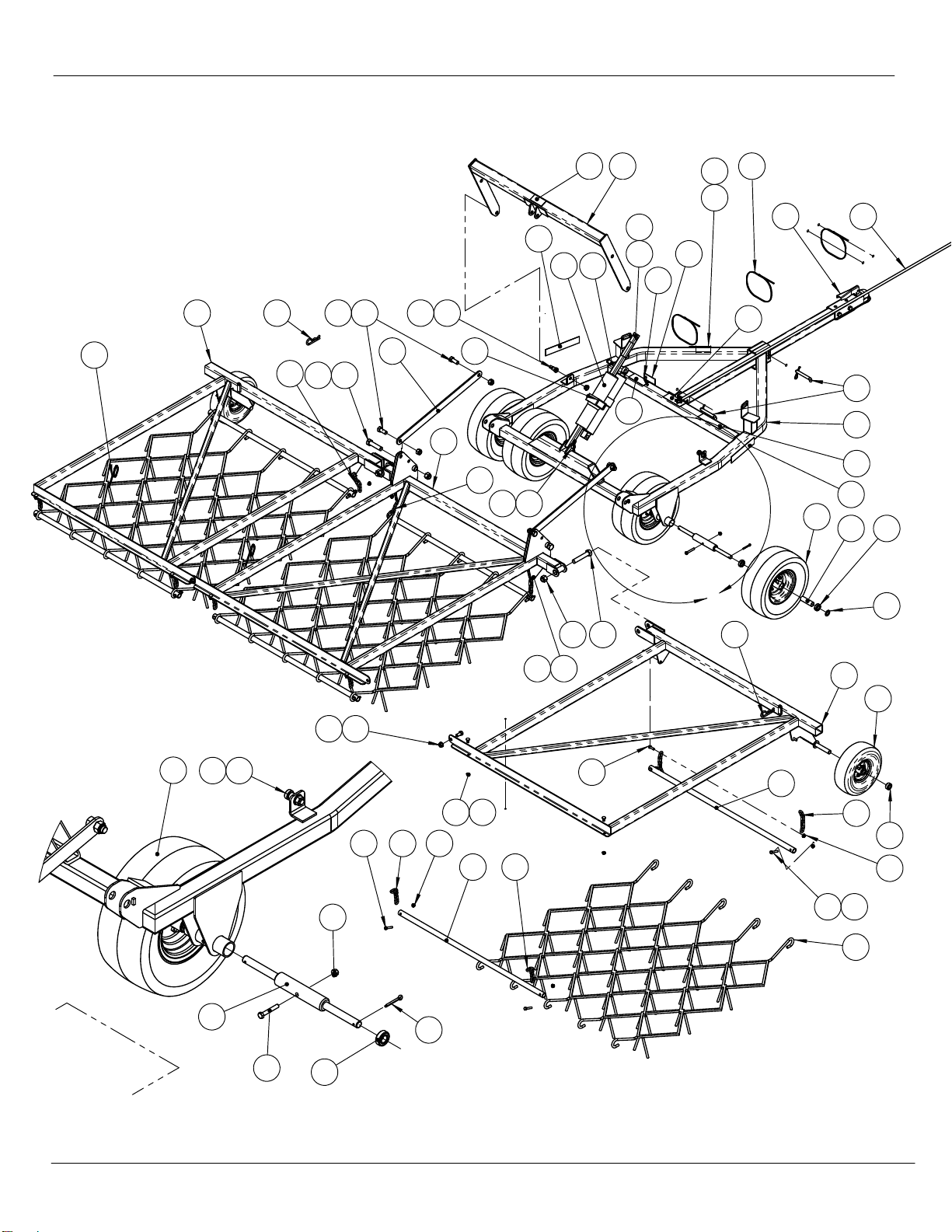

UTV Harrow Assembly
10
31
8
36
25
11
24
26
22
5
12
23
9
1713
10
48
37
34
15
19
18
4345
6
1
46
29
40 35
45 42
5035
38
21
27
28
51
46
19
41
20
32 4
44
4
3438
34
37
23
47
32
49
34
47
6
2
16
14
3
30
34
21
A
25
33
7DETAIL A
34
5035
39 30

ITEM Default
/QTY. PART acpart# DESCRIPTION
1 1 1411-503 1411-503 Decal, Warning -Pinch Point (Speedpoint)
2 1 1411-506 1411-506 Decal, Warning-Do Not Exceed 10 MPH
3 1 1411-507 1411-507 Decal, Warning-No passengers (Speedpoint)
4 2 1411-509 1411-509 Decal, Arctic Cat Speedpoint System
5 4 86459 Bearing Support Spacer
6 6 86471 Tube, Harrow Pull
7 2 86473 Axle, Harrow
8 1 86475 Weld't, Harrow Cart-UTV
9 1 86480 Weld't, Harrow Lift Frame-Center
10 1 86485LH Weld't, Harrow Lift Frame-LH
11 1 86485RH Weld't, Harrow Lift Frame-RH
12 1 86490 Wedl't, Lift Rock Shaft
13 1 86495 - Sub Assy, Hitch-Harrow
14 1 86545 - Tube, Lift Lock -Harrow
15 1 86546 - Decal, Caution -Do Not Remove
16 1 86546 - Decal, Caution -Do Not Remove
17 1 86635 - Harness, UTV implement
18 2 86659 Lift Link half
19 3 86665 Chain Assy, 1/4" Gr 30 Pr x 6 Links
20 3 86665 Chain Assy, 1/4" Gr 30 Pr x 6 Links
21 6 86665 Chain Assy, 1/4" Gr 30 Pr x 6 Links
22 3 87087 1441-503 Harrow Section ( 7/16" x 4' x 4')
23 1 87499 * Mini Motion Package***OPTIONAL***
24 2 88434 Wheel Assy, 4.10/3.50-4 Turf
25 4 88435R Wheel Assy, Modified 15 x 6.00-6 Turf J224
26 2 88647 Collar 3/4 in. w/ SS ZY PLATED
27 1 88666 Decal - Serial Plate Foil (1 5/8 x 3.00")
28 1 88667 Decal - Mylar Overlay, Frosted [not shown]
29 2 89209 Pin, Bent 1/2" w/clip
30 8 89824 0423-858 Bearing 6003-2RS-AAB
31 6 CB.313x3/4 0423-812 Carriage Bolt 5/16 x 3/4
32 2 CP.625x2 Pin-Clevis, 5/8 OD x 2 Usable x 1/8 Cotter
33 4 CTP.188x1.5 Cotter Pin 3/16 x 1.5"
34 26 FHN.313 0423-814 Flange Lock Nut, Unitorque 5/16 NC
35 4 FHN.5 0423-690 Flange Lock Nut-Unitorque -1/2-13NC
36 4 FW.688N Flat Washer .688 ID x 1.188 OD x .060t
37 6 HB.313x1 0423-831 Hex Head Bolt 5/16-18 X 1
38 12 HB.313x1.75 Hex Head Bolt 5/16-18 X 1 3/4
39 2 HB.313x2 Hex Head Bolt 1/4-20 X 2
40 2 HB.5x1 Hex Head Bolt 1/2-13 X 1
41 4 HB.625x1.5 Hex Head Bolt 5/8-11 X 1 1/2
42 2 HB.75x3 Hex Head Bolt 3/4-10 X 3
43 2 HB.75x4 Hex Head Bolt 3/4-10 X 4
44 4 HNY.625 0423-881 Nylon Locknut 5/8-11 NC
45 4 HNY.75 Nylon Locknut .75"
46 2 HPC.125X2.563 0423-696 Hitch Pin Clip 1/8 x 2 - 9/16"
47 2 HPC.25X3.5 0423-696 Hitch Pin Clip .25 x 3 1/2
48 3 LCT.04X11 Tie Wrap .04 x .17 x 11 in 35 Lbs-Black
49 2 LCT.05X8 0123-788 Tie Wrap .05 x .19 x 8 in 50 Lbs-Black
50 2 SBHS.625X.75 Shldr Bolt Sckt Head 5/8 x 3/4 Shoulder x 1/2-13
51 1 SW1 Decal - Warning - Read Operator's Manual
Operators Manual - Version 08
Quadivator UTV Harrow 11
UTV Harrow Assembly
(86470)

6DETAIL B SCALE 1 : 4
3
4
Quadivator UTV Harrow12
Operators Manual - Version 08
UTV Implement Harness
(86635)
8
DETAIL A
SCALE 1 : 4
1
27
B
5
A
ITEM Default
/QTY. PART acpart# DESCRIPTION
1 1 86981 - Female Body, Metri-pack 630 conn. (12129939-b)
2 2 86983 - Terminal, Female Connector (630 series)12015870
3 1 86987 - Connector, Metri Pack 280 (15300027)
4 2 86988 - Terminal, Female M/P 280 (12129493)
5 1 LCP.375 - Loom, 3/8 Split Convoluted x 86"
6 1 LCT.038x4 Tie Cable-Locking-Plastic .038 x .1 x 4 in 18 Lbs-Black
7 1 WR14G - Wire, Red 14 Ga x 86.5", GXL
8 1 WW14G - Wire, White 14 Ga x 86.5", GXL

Quadivator UTV Harrow 13
______________________________________________________________________
Operators Manual – Version 08
WARRANTY REGISTRATION – Quadivator UTV Harrow
Please fax this sheet to [phone] or mail it to:
Quadivator Inc.
P.O. Box 1127
1000 – 6th Ave NE
Portage la Prairie
Manitoba, R1N 3C5
CANADA
Harrow UTV Model # -
Harrow UTV Serial # -
Purchased by (Name)
Address-
City
State/Prov./Mail Code
Dealer -
Date Purchased (D/M/Y)
Thank you!

Quadivator UTV Harrow
14
______________________________________________________________________
Operators Manual – Version 08
NOTES
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
______________________________________
