TAUBIK TOUR User manual

TOUR
User Manual

1
Thank you for choosing and purchasing our E-Bike. For your
driving safety, please read this manual carefully to ensure that you can
follow the correct instructions, safety warnings and precautions before
using it.
⚫Strictly abide by local laws and regulations and traffic laws. The
company is not responsible for any consequences caused by violation
of the above laws and regulations.
⚫Strictly follow the instructions in the manual for corresponding
operations. The company is not responsible for any consequences
caused by improper use, speeding, overloading etc...
⚫Do not use this E-Bike to do stunts, it will increase the probability of
injury and damage to the E-Bike.
⚫Please always wear a helmet.
⚫Do not leave the battery near fire or heat sources.
⚫Please regularly check whether the brake performance is good.
⚫Please do not modify, repair or disassemble the product on your own.
⚫Avoid using used, defective and/or aftermarket batteries.
⚫People who should not ride the product include:
i. Anyone under the influence of alcohol or drugs.
ii. Anyone who suffers from disease that puts them at risk if they
engage in strenuous physical activity.
iii. Anyone who has problems with balance or with motor skills that
would interfere with their ability to maintain balance.
iv. Anyone whose weight is outside the stated limits (see
Specifications).
v. Pregnant women.
SAFETY INSTRUCTIONS

2
Model
TOUR
Max Load
120KG
Motor
500W/48V
Battery
15Ah
Suspension
Front spring suspension
Max Speed
32km/h
Derailleur
Rear: Shimano 8
Max Distance
±40km (Pure Power)
Max Distance
±70km –110km (Pedal assist）
Sensor
Speed Sensor
Frame
Aluminum
Brake Type
Hydraulic brakes
Tire Size
26” X 4.0”
Tire Pressure
SEE TIRE SPECIFICATIONS
Charger
54.6V/2A
Charge Time
6-8 hours
Fork
Suspension fork
Net Weight
32.6kg
SPECIFICATIONS

3

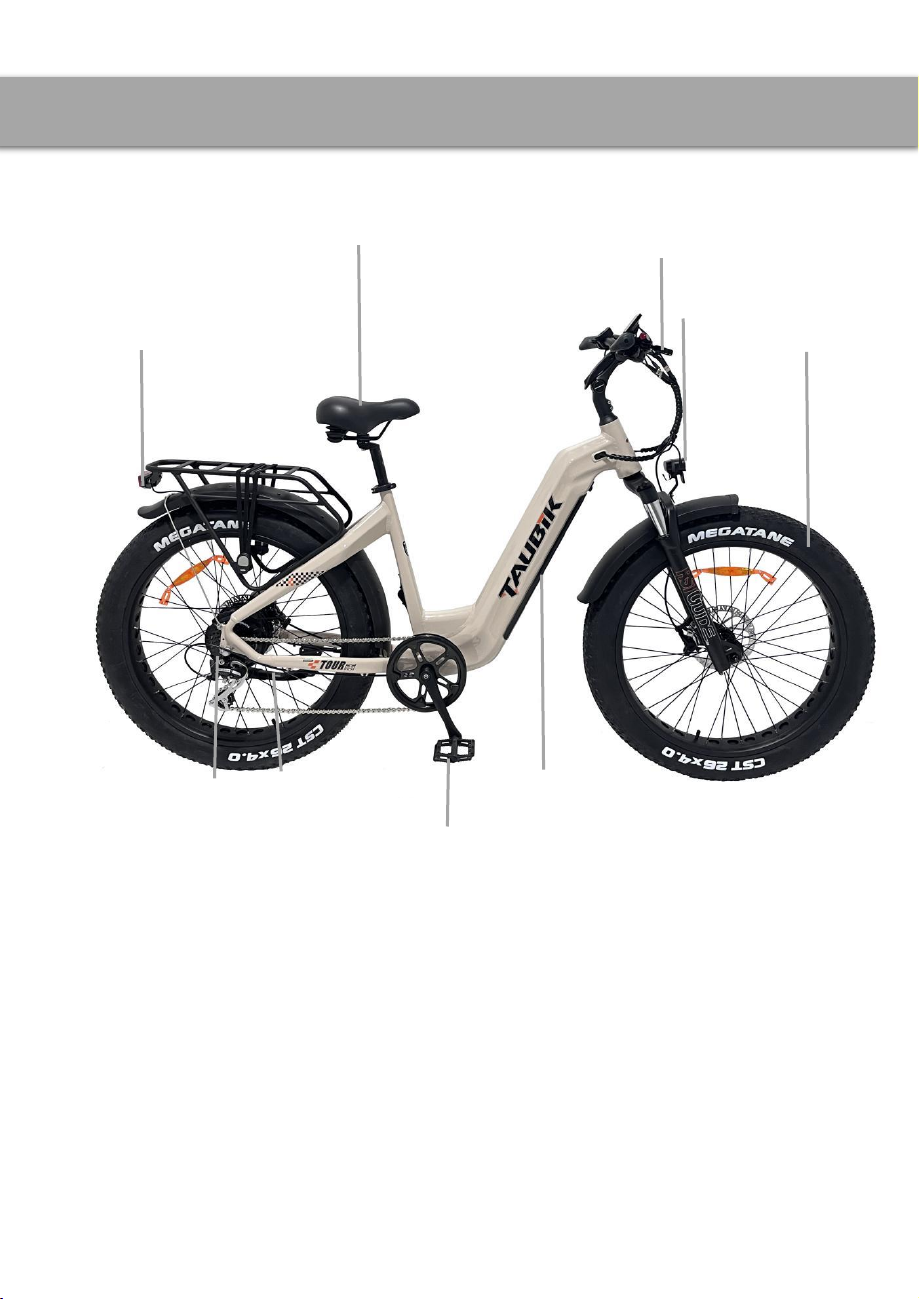

PARTS DIAGRAMS
Features & Parts
1. Brake light
2. Battery Pack
3. Seat
4. Brake Lever
5. Headlight
6. 26 inch Tire
7. Rear Derailleur
8. Kickstand
9. Pedal
①
②
③
④
⑤
⑥
⑦
⑨
⑨
⑨
⑧

4

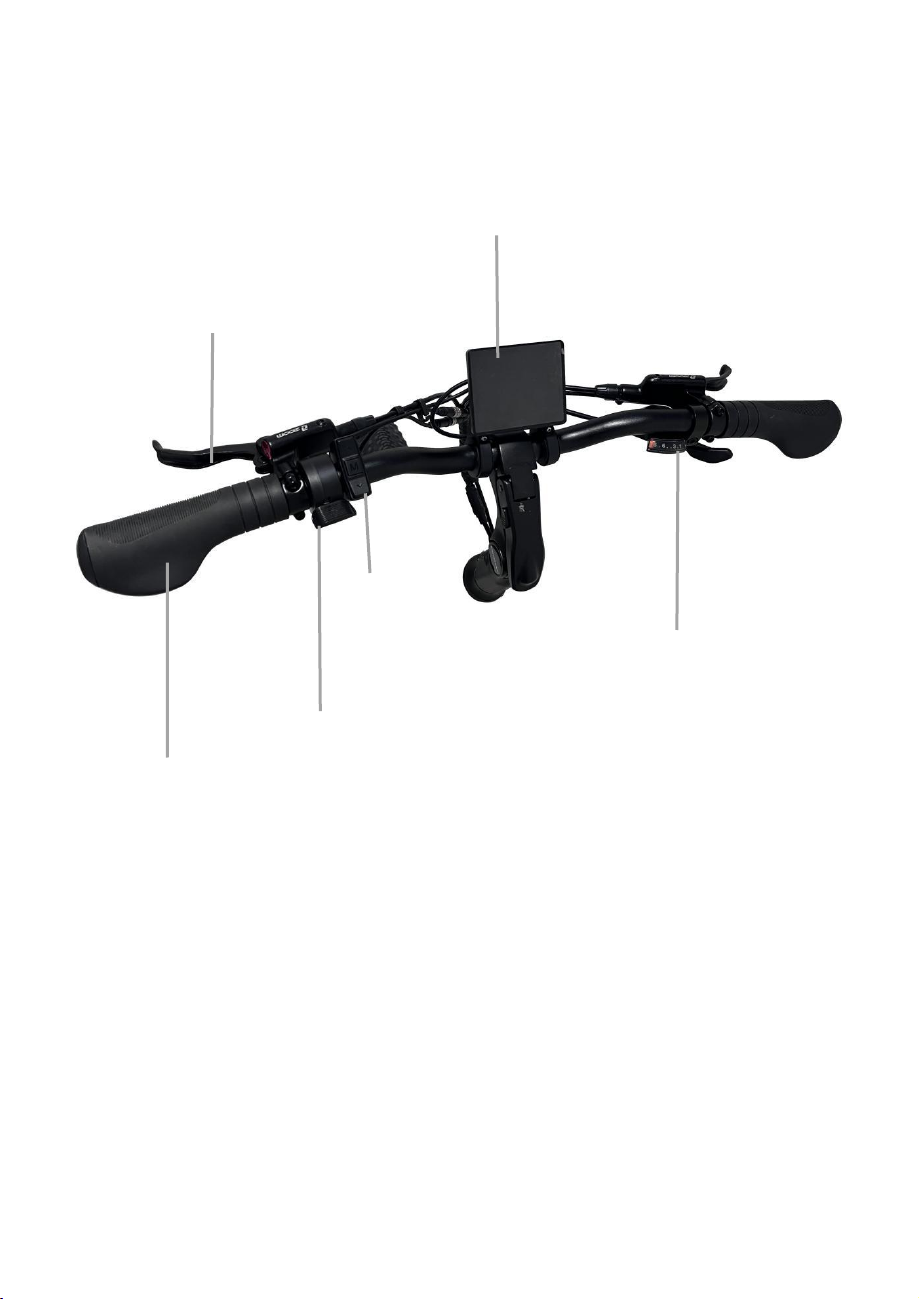

1. Left Brake Lever for front brake
2. LCD Display
3. Right shifter for rear derailleur
4. Handlebar
5. LCD Display Button
6. Thumb Throttle
①
④
⑤
②
③
⑥

5

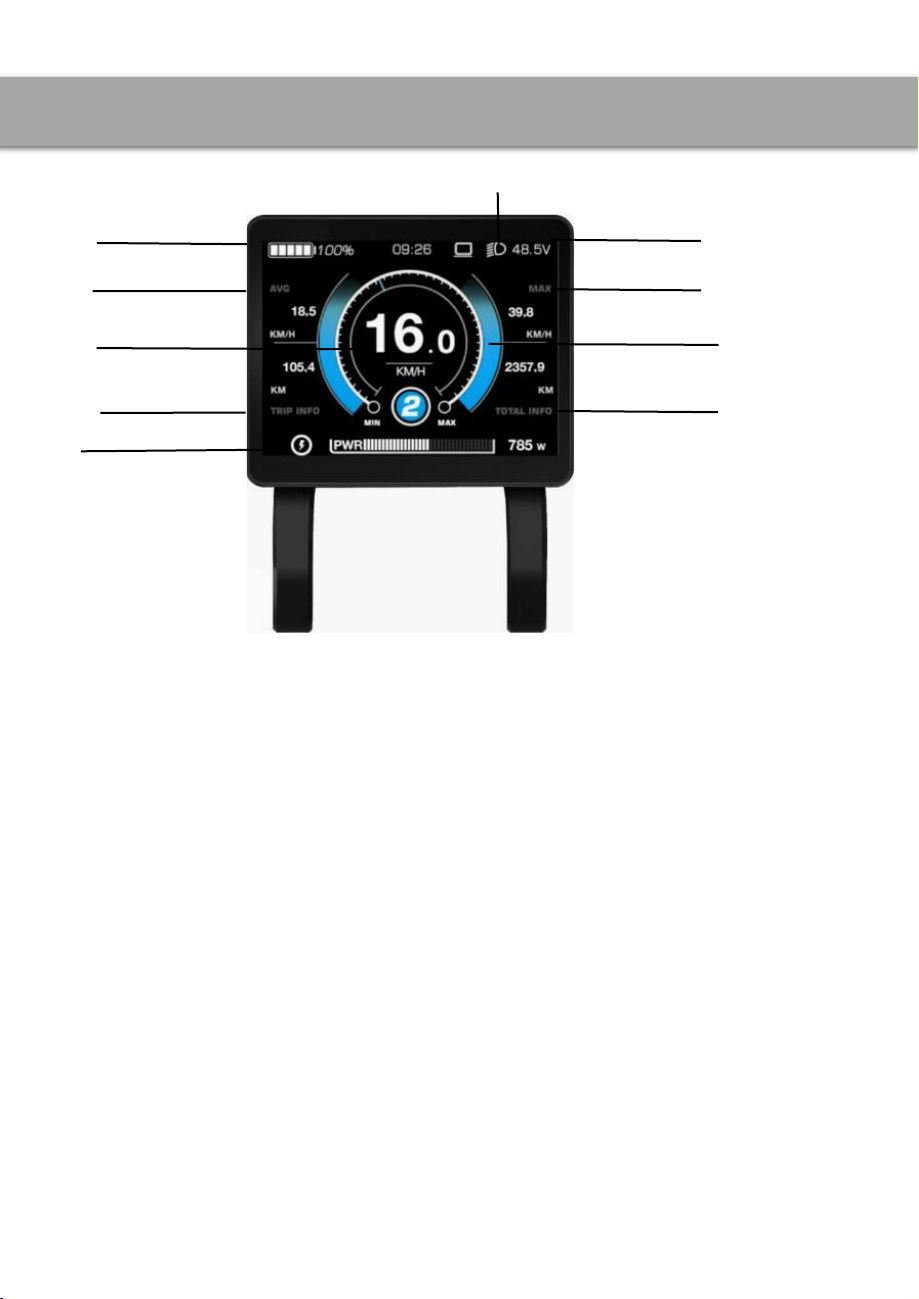

DISPLAY PANEL
①
④
⑥
（1）Voltage Indication
（2）Max speed
（3）Power gear
（4）Total distance travelled
（5）Indicates the Battery Capacity
（6）Average speed
（7）Current speed
（8）Single distance
（9）Power output by motor
（10）Indicates the headlight on
②
③
⑤
⑦
⑧
⑩
⑨

6
Short Press:Press the button and soon released, while the button is
released,the function activated accordingly
Long Press:Press the button and hold, when the hold time exceeds the
setting time(generally 2 seconds), the function activated accordingly.
No.
Function
Operation Method
1
Power on / off
Long Press ‘On/Off ’
2
PSA Level
10km/h,20km/h,30km/h,40km/h
Short Press 、 buttons to
switch assist level
3
Switch Speed/Power
Short Press ‘M’ buttons
5
Walk（Pedestrian mode)
Long Press buttons
6
Turn on/off headlight
Long Press buttons
DISPLAY BUTTON
M
Button
Adjust
Button
On/Off

7
Display can warn bike faults. When faults are detected, error code will be
shown on the interface and blink at 1Hz. When error code is
shown,button functions will not be affected, meaning interfaces can be
shown normally by pressing buttons. If no button operation after 5s, the
display will return to the error code interface.
Error code interface as shown below:
ERROR CODES

8
Error code
Error description
Suggest operation
"04" shown at
speed
Throttle doesn't turn back
to zero position (stay on
the high position)
Check if the throttle
turned back
"05" shown at
speed
Throttle failure
Check throttle
"07" shown at
speed
Over voltage protection
Check battery voltage
"08" shown at
speed
Failure of motor's hall
signal wire
Check motor
"09" shown at
speed
Failure of motor's phase
wire
Check motor
"11" shown at
speed
Failure of the motor's
temperature sensor
Check controller
"12" shown at
speed
Failure of the current
sensor
Check controller
"13" shown at
speed
Failure of the temperature
of the battery
Check battery
"14" shown at
speed
Controller temperature is
too high, and reaches the
protection point
Check motor
"21" shown at
speed
Failure of the speed
sensor
Check the install
position of the speed
sensor
"22" shown at
speed
Failure of BMS
communication
Change battery
"30" shown at
speed
communication failure
Check connector to
controller

9
Only use the provided charging cable to charge your TOUR battery pack.
Using any other unauthorized charger may cause damage to your battery pack
and/or.
CHARGING THE BATTCRY RACK
•Ensure the EBIKE is turned off.
•Remove the battery pack from the battery dock.
•Ensure that the charging port is clean and dry.
•Make sure that there is no dust, debris or dirt inside the port.
•Plug the charger into a grounded wall outlet.
•The charging indicator light ON ,the charger will be red.
•Connect the cable with the power supply (100~240VAC; ).
•Align and connect the 1-pin charging cable into the charging port of the
battery pack.
DO NOT FORCE OR BEND THE CHARGING CABE INTO THE
CHARGING PORT, AS IT MAY CAUSE THE PRONG TO BEND OR BREAK.
CHARGING
CAUTION

10
FAILURE TO FOLLOW ANY OF THE FOLLOWING SAFETY
PRECAUTIONS CAN AND MAY LEAD TO DAMAGE TO YOUR DEVICE, VOID
YOUR MANUEACIURER WARRANTY ； LEAD TO PROPERIY DAMAGE,
CAUSE SERIOUS BODIIY INJURY, AND CAN LEAD TO DEATH.
OPERATING CONDITIONS
Any TOUR that does not work properly can cause you to lose
control and fall. Inspect the entire device thoroughly before
every ride, and do not ride it until any problems have been
corrected.
KICKSTAND
Never ride your EBIKE with the kickstand down.
OPERATING YOUR Ebike
Make sure the battery pack is fully charged before the first Initial use. Before
turning on your E-bike, sit on it like a standard bicycle to get comfortable with
the device before using It with the motor.
GEARS
Your Ebike is equipped with 5 gears. The lowest gear (1) is for easier and uphill
pedaling, and the highest gear (5) is for maximum speed on level or downhill
terrain. Change gears only while pedaling.
The rear wheel contains 5 chain sprockets. When the chain is around the
largest sprocket you are in 1st gear, or the lowest gear. When the chain is
around the smallest sprocket, you are in 5th gear, or the highest gear.

11
PROBLEM
POSSIBLE CAUSES
SOLUTION
Motor will not engage
1. Low battery
2. Battery loose or unplugged
3. Severed wire connection
1. Recharge battery
2. Make sure battery
connections are secure
3. Contact customer
support
Feels shaky when
driving
1. Low tire pressure
2. Wheel is not securely
fastened
1. Inflate to 40 psi
2. Fasten wheel securely
3. Replace bearings
3. Bearings in steering system
are worn out
Mileage not being
recorded correctly
1. Infrequently charged
2. Defective or worn-out
battery pack
3. Cold temperature affecting
battery performance
4 Defective or incorrect charger
damaged battery
1. Charge battery pack
more often
2. Replace battery pack
3. Allow battery pack to
reach room temperature
and fully recharge it.
4. Contact customer
support
LCD Display not
registering
1. Low battery
2. Display is broken
3. Bad battery cells
4. Faulty charger burns out
display
1. Recharge battery pack
2. Replace display
3. Replace battery pack
4. Contact customer
support
TROUBLESHOOTING

12
PROBLEM
POSSIBLE CAUSES
SOLUTION
Brakes squealing
1. Dirty brake pad
2. Hard edges on new
brakes
3. Brake pads are too tight
1. Clean the brake pad
2. Squealing will stop the
more you ride
3. Adjust brake pads to l-
2mm gap from wheel
Stiffness when steering
1. Grime build-up in steering
system
2. Bearings in steering
system are worn out
1. Clean steering system
2. Replace bearings
The above table is only meant to act as a guide to help you figure out any
problems you may have with your EBIKE. If you are unable to get your EBIKE
to operate properly, please ask for support.
[email protected]
