Taurus FX9.9 User manual

TFFX99TFT.01.02
TF-FX99-TFT
max. 180 kg
~ 90 Min.
CM
127 kg
Assembly and Operating Instructions
Elliptical Trainer FX9.9
L 211 | W 82 | H 188

2FX9.9 Touch

3
Content
1 GENERAL INFORMATION 7
1.1 Technical Data 7
1.2 Personal Safety 8
1.3 Electrical Safety 9
1.4 Set-Up Place 9
2 ASSEMBLY 10
2.1 General Instructions 10
2.2 Scope of Delivery 11
2.3 Assembly 12
3 OPERATING INSTRUCTIONS 21
3.1 Console Display 21
3.2 Button Functions 22
3.3 Programmes 23
3.3.1 Quick Start 23
3.3.2 Target programmes 23
3.3.3 Pre-set programmes 23
3.3.4 User-dened programmes 28
3.3.5 Heart rate-oriented programmes 29
3.4 Fitness Test 30
3.5 Media 31
3.6 Bluetooth and Fitness Apps 32
4 STORAGE AND TRANSPORT 33
4.1 General Instructions 33
4.2 Transportation Wheels 33
5 TROUBLESHOOTING, CARE AND MAINTENANCE 34
5.1 General Instructions 34
5.2 Faults and Fault Diagnosis 34
5.3 Maintenance and inspection calendar 35
6 DISPOSAL 35
7 RECOMMENDED ACCESSORIES 36

4FX9.9 Touch
8 ORDERING SPARE PARTS 37
8.1 Serial Number and Model Name 37
8.2 Parts List 38
8.3 Exploded Drawing 43
9 WARRANTY 44
10 CONTACT 46

5
Dear customer,
Thank you for choosing a high-quality equipment of the brand Taurus®. Taurus® oers sports and
tness equipment for the sophisticated home sport and the equipment of tness studios and
business customers.WithTaurus® tness equipment, the focus is on what sport is all about: maximum
performance! Therefore, the equipment is developed in close consultation with athletes and sports
scientists. Because athletes know best what makes perfect tness equipment.
Further information can be found at www.sport-tiedje.com.
Legal Notice
Sport-Tiedje GmbH
Europe’s No. 1 for home tness
International Headquarters
Flensburger Straße 55
24837 Schleswig
Germany
Management:
Christian Grau
Sebastian Campmann
Dr. Bernhard Schenkel
No. HRB 1000 SL
Local Court Flensburg
European VAT Number: DE813211547
Disclaimer
©2008 Taurus® is a registered brand of the company SportTiedje GmbH. All rights
reserved. Any use of this trademark without the explicit written permission of Sport-
Tiedje is prohibited.
Product and manual are subject to change. Technical data can be changed without
advance notice.
Intended Use
The equipment may only be used for its intended purpose.
The equipment is suitable for home use and semi-professional use (e.g. hospitals, clubs, hotels,
schools, etc.). The equipment is not suitable for commercial or professional use (e.g. tness
studio).

6FX9.9 Touch
ABOUT THIS MANUAL
Please carefully read the entire manual before installation and rst use. The manual will help you to
quickly set up the system and explains how to safely use it. Make sure that all persons exercising with
the equipment (especially children and persons with physical, sensory, mental or motor disabilities)
are informed about this manual and its contents in advance. In case of doubt, responsible persons
must supervise the use of the equipment.
This equipment has been manufactured according to the latest safety knowledge.
As far as possible, potential safety hazards which could cause injury have been
eliminated. Make sure to carefully follow the instructions and that all parts are
securely in place. If required, read through the instructions again to correct any
mistakes.
Please pay close attention to the safety and maintenance instructions given here. The contract
partner cannot be held liable for damage to health, accidents or damage to the equipment when it
is not used in accordance with these instructions.
The following safety instructions may appear in this manual:
࣑ATTENTION
This notice indicates potentially hazardous situations which, if not avoided, may result in
property damage.
⚠CAUTION
This notice indicates potentially hazardous situations which, if not avoided, may result in slight
or minor injuries!
⚠WARNING
This notice indicates potentially hazardous situations which, if not avoided, may result in death
or serious injuries!
⚠DANGER
This notice indicates potentially hazardous situations which, if not avoided, will result in death
or serious injuries!
LNOTICE
This notice indicates further useful information.
Retain these instructions in a safe place for future reference, maintenance or when ordering
replacement parts.

7
1 GENERAL INFORMATION
1.1 Technical Data
TFT Display:
+ Training time in min.
+ Speed in km/h
+ Traning distance in km
+ Calories in kcal
+ Resistance level
+ Incline in %
+ Heart rate (using the hand pulse sensors or a chest strap)
+ RPM (Rotations per minute)
+ Watts
Brake system: Electro-magnetic induction brake
Resistance levels: 32
Watt range: 10 - 350 W
User memory: 4
Training programs in total: 43
Quick-Start Programs: 1
Target programs: 3
Heart rate programs: 3
Pre-set programs: 32
User dened programs: 4 (one per user)
Fitness Test: 1
Stride length: max. 56 cm
Stride height: 14 cm
Transfer ratio: 1:8.75
Flywheel mass: 10 kg
Weight and dimensions:
Packed dimensiosn (LxBxH): 125 cm x 65 cm x 95 cm
Assembled dimensions (LxBxH): 211 cm x 82 cm x 188 cm
Article weight (gross, incl. packaging): 150.6 kg
Article weight (net, without packaging): 127 kg
Maximum user weight: 180kg

8FX9.9 Touch
1.2 Personal Safety
⚠DANGER
+ Before you start using the equipment, you should consult your physician that this type of
exercise is suitable for you from a health perspective. Particularly aected are persons who:
have a hereditary disposition to high blood pressure or heart disease, are over the age of 45,
smoke, have high cholesterol values, are overweight and/or have not exercised regularly in
the past year. If you are under medical treatment that aects your heart rate, medical advice
is absolutely essential.
+ Note that excessive training can seriously endanger your health. Please also note that
heart rate monitoring systems can be inaccurate. If you notice any signs of weakness,
nausea, dizziness, pain, shortness of breath, or other abnormal symptoms, stop exercising
immediately and seek advice from your doctor if necessary.
⚠WARNING
+ This equipment may not be used by children under the age of 14.
+ Children should not be allowed unsupervised access to the equipment.
+ Persons with disabilities must have a medical license and must be under strict observation
when using the equipment.
+ The equipment is strictly for use by one person at a time.
+ If your equipment provides a safety key, the clip of the safety key must be attached to your
clothing before starting your training. In the event of a fall, the EMERGENCY STOP of the
equipment can be initiated.
+ Keep your hands, feet and other body parts, hair, clothing, jewellery and other objects well
clear of moving parts.
+ During use, wear suitable sports clothing rather than loose or baggy clothing.When wearing
sports shoes, make sure they have suitable soles, preferably made of rubber or other non-
slip materials. Shoes with heels, leather soles, studs or spikes are unsuitable. Never exercise
barefoot.
⚠CAUTION
+ If your equipment needs to be connected to the power supply with a mains cable, make
sure that the cable is not a potential tripping hazard.
+ Make sure that nobody is within the range of motion of the equipment during training so as
not to endanger you or other persons.
࣑ATTENTION
+ Do not insert any objects of any kind into the openings of the device.

9
1.3 Electrical Safety
⚠DANGER
+ In order to reduce the risk of an electric shock, always unplug the equipment from the
mains socket immediately after your workout, before assembly or dismantling, and before
maintenance or cleaning. Do not pull on the cable.
⚠WARNING
+ Do not leave the equipment unattended while the mains cable is plugged into the mains
socket. During your absence, the mains cable must be removed from the mains socket to
prevent improper use by third parties or children.
+ If the mains cable or plug is damaged or defective, contact your contract partner. Until
repair, the equipment must not be used.
࣑ATTENTION
+ The equipment requires a mains connection of 220-230V with 50Hz mains voltage.
+ The equipment may only be connected directly to an earthed socket using the supplied
mains cable. Extension cables must conform to VDE guidelines. Always completely unwind
the mains cable.
+ The socket must be protected by a fuse with a minimum fuse rating of "16A, slow blow".
+ Do not make any changes to the mains cable or the mains plug.
+ Keep the mains cable away from water, heat, oil and sharp edges. Do not route the mains
cable underneath the equipment or under a carpet or rug, and do not place any objects on
top of it.
1.4 Set-Up Place
⚠WARNING
+ Do not place the equipment in main corridors or escape routes.
⚠CAUTION
+ The training room should be well ventilated during training and not be exposed to any
draughts.
+ Choose the place in which to set up the equipment such that there is enough free space/
clearance to the front, the rear and to the sides of the equipment.
+ The set-up and mounting surface of the equipment should be at, loadable and solid.
࣑ATTENTION
+ The device may only be used in one building, in suciently tempered and dry rooms
(ambient temperatures between 10°C and 35°C). The equipment should not be used
outdoors or in rooms with high humidity (over 70%) like swimming pools.
+ A oor protective mat/equipment underlay can help to protect high-quality oor coverings
(parquet, laminate, cork, carpets) from dents and sweat and can help to level out slight
unevenness.

10 FX9.9 Touch
2 ASSEMBLY
2.1 General Instructions
⚠DANGER
+ Do not leave any tools, packaging materials such as foils or small parts lying around,
as otherwise there is a danger of suocation for children. Keep children away from the
equipment during assembly.
⚠WARNING
+ Pay attention to the instructions attached to the equipment in order to reduce the risk of
injuries.
⚠CAUTION
+ Do not open the packaging when it is lying on its side.
+ Ensure to have sucient room for movement in each direction during assembly.
+ The assembly of the equipment must be carried out by at least two adults. If in doubt, seek
the help of a third technically skilled person.
࣑ATTENTION
+ To prevent damage to the equipment and the oor, assemble the equipment on a mat or
packaging board.
LNOTICE
+ In order to make the assembly as simple as possible, some screws and nuts to be used can
already be pre-assembled.
+ Ideally, assemble the equipment at its later set-up place.

1
30L&30R
2
19
63
38
118
39
x1
x1
x1
x1
x1
x2
x1
x2
13L&13R
64 & 65
40
x2
68L&68R
x1
x2
x1
x1
x1
x1
x1
14R 15R
&
14L 15L
&
&
x1
155
12L&12R
11
x1
117
x1
44 & 45
x1
33
98 99
&
x1
x2
71
step1
step2
step3
step4
step6
step7
step5
(MM)
M8*1.25*120L 2PCS
3
ST4.2*15L 18PCS
96
13 19
M8*1.25*55L 4PCS
147
M8*1.25*70L 2PCS
5M8*1.25*35L 4PCS
148
D15.4*D8.2*2T 12PCS
4
D25*D8.5*2T 8PCS
51
M8*1.25*20L 4PCS
M8*1.25*50L 6PCS
D22*D8.5*1.5T 6PCS
M8*1.25*8T 6PCS
8
9
10
M12*1.75*70L 4PCS
72 M12*1.75*12T 4PCS
6
74
D24*D13.5*D2.5T 8PCS
73
M6*1.0*15L 8PCS
M5*0.8*12L 8PCS
97
M5*0.8*12L 10PCS
97
M8*1.25*25L 4PCS
119
D15.4*D8.2*2T 4PCS
4
D16*D8.5*1.2T 4PCS
7
KH-747A2
128
ST4.2*15L 2PCS
96
11

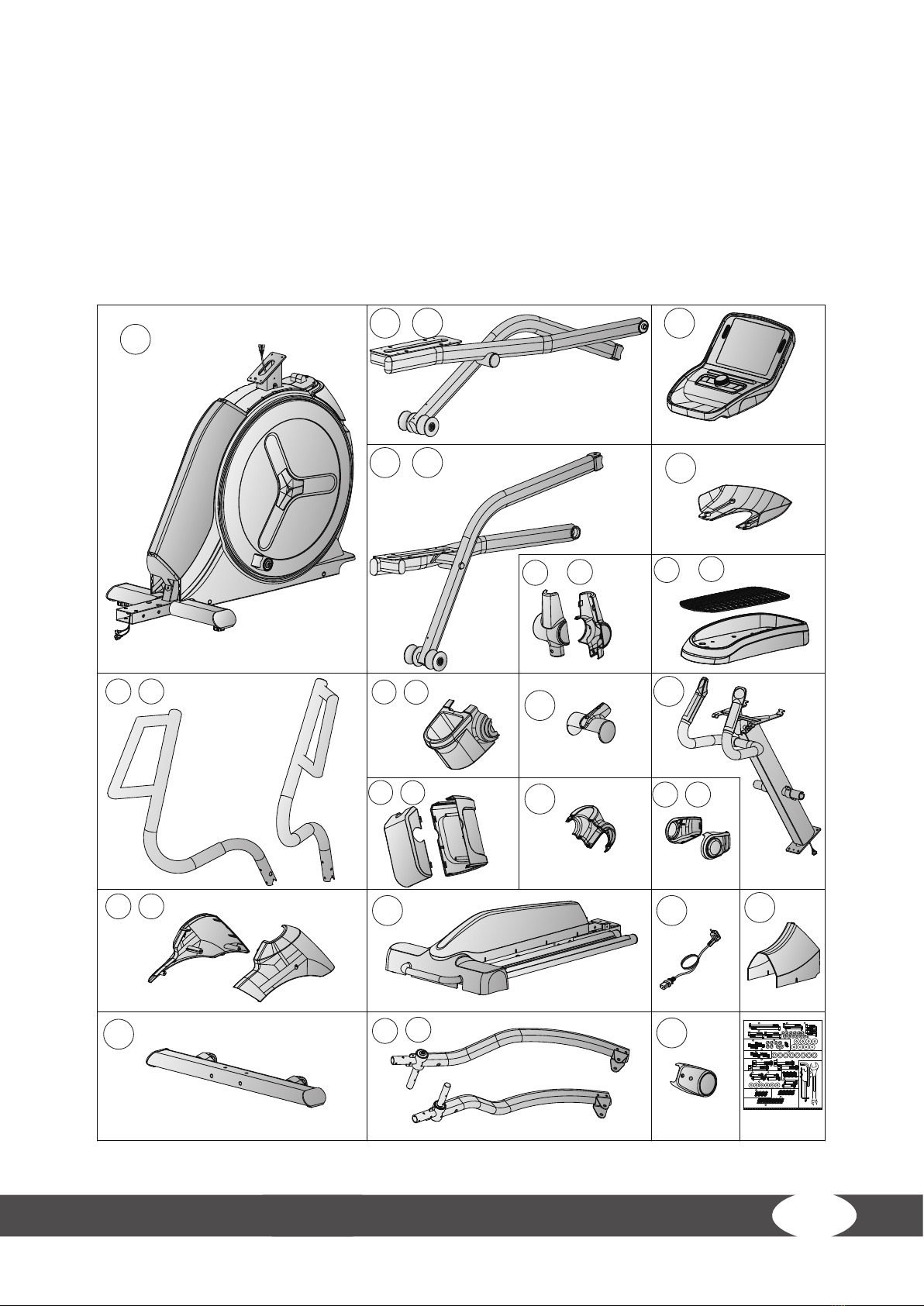

2.2 Scope of Delivery
The scope of delivery consist of the following parts. At the beginning, check whether all parts
and tools belonging to the device are included in the scope of delivery and whether damage has
occurred. In the event of complaints, the contractual partner must be contacted directly.
⚠CAUTION
If parts of the scope of delivery are missing or damaged, the assembly must not be carried out.

43
4
5
1
2
4
51 4148155
147
51
5
3
148
4
51
147 x4
x2
M8*1.25*120L x2
M8*1.25*70L
x4
D15.4*D8.2*2T x12
M8*1.25*55L
x8
D25*D8.5*2T
M8*1.25*35L
13 19
step1
158 167
166
165
1
2
3
43
4
5
1
2
4
51 4148155
147
51
5
3
148
4
51
147 x4
x2
M8*1.25*120L x2
M8*1.25*70L
x4
D15.4*D8.2*2T x12
M8*1.25*55L
x8
D25*D8.5*2T
M8*1.25*35L
13 19
step1
158 167
166
165
1
2
3
12 FX9.9 Touch
2.3 Assembly
Before assembly, take a close look at the individual assembly steps shown and carry out the assembly
in the order given.
LNOTICE
First loosely screw all parts together and check that they t properly. Tighten the screws using
the tool only when you are instructed to do so.
Step 1: Assembling the front and rear feet
1. Screwthefrontalfoot(2)tothemainframe(1)withtwohexagonalscrews(3),twohexagonalscrews
(5) and four spring washers (4). Only hand tighten the screws in place.
2. Connect the incline cable (158) and the control cable (167) together.
3. Connect both incline control cables (165 & 166)
together.
࣑ATTENTION
In the following step please pay attention that
you don't clamp the cables between the frames.
4. Screw the rear foot with the rails (155) to the
main frame (1) with eight washers (51), eight
spring washers (4), four hexagonal screws (147),
four hexagonal screws (148) and hand tighten
the screws in place.

x4
x4
x4
x2
D15.4*D8.2*2T
M8*1.25*25L
D16xD8.5x1.2T
ST4.2*15L
4
119
7
96
101
102
step2
4
7
11
119
33
96
1
x4
x4
x4
x2
D15.4*D8.2*2T
M8*1.25*25L
D16xD8.5x1.2T
ST4.2*15L
4
119
7
96
101
102
step2
4
7
11
119
33
96
1
13

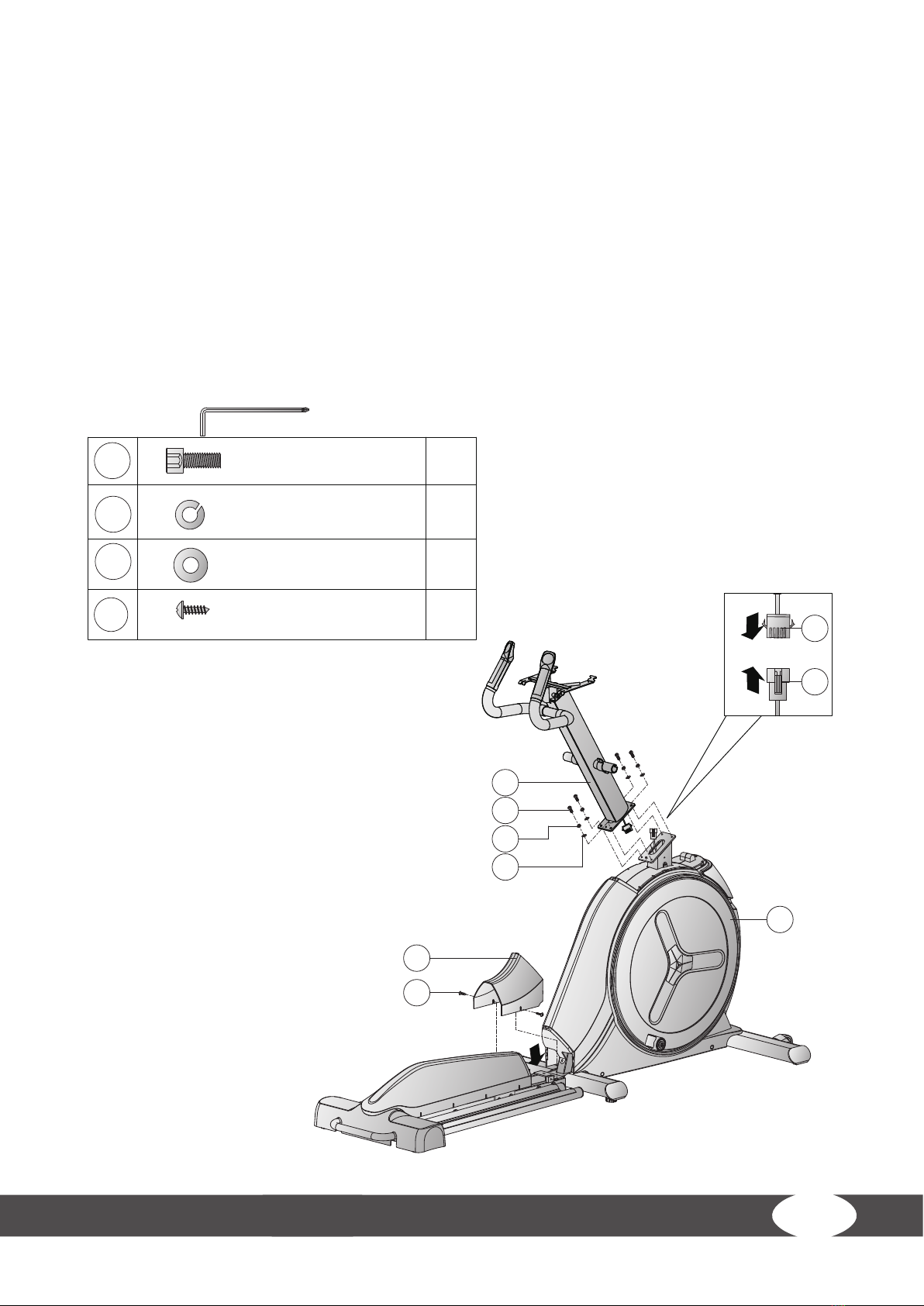

Step 2: Assembling the console mast
1. Connect the console cable in the mast (101) with the console cable in the main frame (102).
2. Connect the signal cable in the mast (178) with the signal cable in the main frame (179).
࣑ATTENTION
In the following step please pay attention that you don't clamp the cables between the frames.
3. Screw the console mast (11) to the main frame (1) with four washers (7), four spring washers (4),
four screws (119) and hand tighten the screws in place.
4. Screw the rear cover (33) to the frame with two screws (96) and hand tighten the screws in place.

6
12L
11
12L
12L 12R
11
6
step3
6
x2
ab
M8*1.25*20L x4
14 FX9.9 Touch
Step 3: Mounting the arms
1. Screw the left arm (12L) onto the console mast (11) with two Allen screws (6).
2. Screw the right arm (12R) onto the console mast (11) with two Allen screws (6). Only hand
tighten the screws in place.

1
14R
12R
72
15R
128
44
15R
73
73
74
72
73
73
74
45
44
step4
72
128
73
74
4-1
4-2
4-3
ab
x2
x2
x2
13 19
x4
x8
M12*1.75*70L x4
x8
D24*D13.5*D2.5T
M12*1.75*12T
M6*1.0*15L
1
14R
12R
72
15R
128
44
15R
73
73
74
72
73
73
74
45
44
step4
72
128
73
74
4-1
4-2
4-3
ab
x2
x2
x2
13 19
x4
x8
M12*1.75*70L x4
x8
D24*D13.5*D2.5T
M12*1.75*12T
M6*1.0*15L
15
Step 4: Mounting the pedals
1. Mount the right and left pedal poles (14R/14L) on their respective sides of the main frame (1),
each with two washers (73), one Allen screw (72) and one locking nut (74) (see g. 4-1).
2. Mount the right and left pedal mounts (15R/15L) on their repsective arm (12R/12L), each with
two washers (73), one Allen screw (72) and one locking nut (74) (see g. 4-2).
3. Mount the right and left pedals (44) onto the pedal mounts (15R/15L), each with four screws
(128) and place the pedal mats (45) on both pedals (44) (see g. 4-3).
4. Only hand tighten the screws in place.

!
!x6
M8*1.25*8T
x6
M8*1.25*50L x6
D22*D8.5*1.5T
10
13L
12L
9
8
13R
12R
8
9
10
5-2
5-1
10
9
8
step5
16 FX9.9 Touch

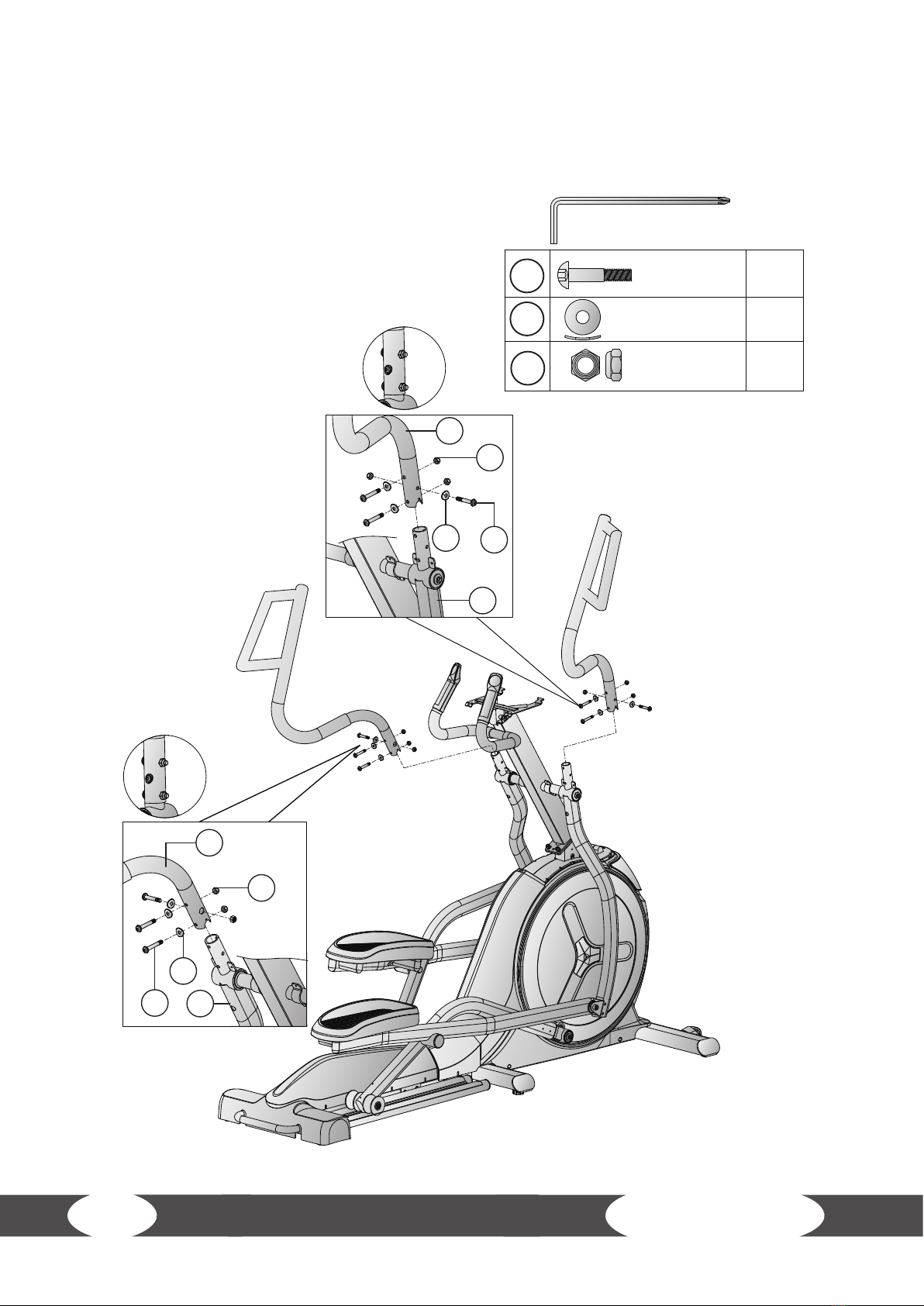

Step 5: Mounting the handles
Screw the right and left handles (13R/13L) onto the respecitve arm (12R/12L), each with three curved
washers (9), three Allen screws (8) and three locking nuts (10) (see gs. 5-1 & 5-2). Only hand tighten
the screws in place.

M5*0.8*12L x8
97
97
118
19
11
97
11
19
11 97
118
19
100
101
108
109
107
step6
6-1
6-2 6-3
97
106
17

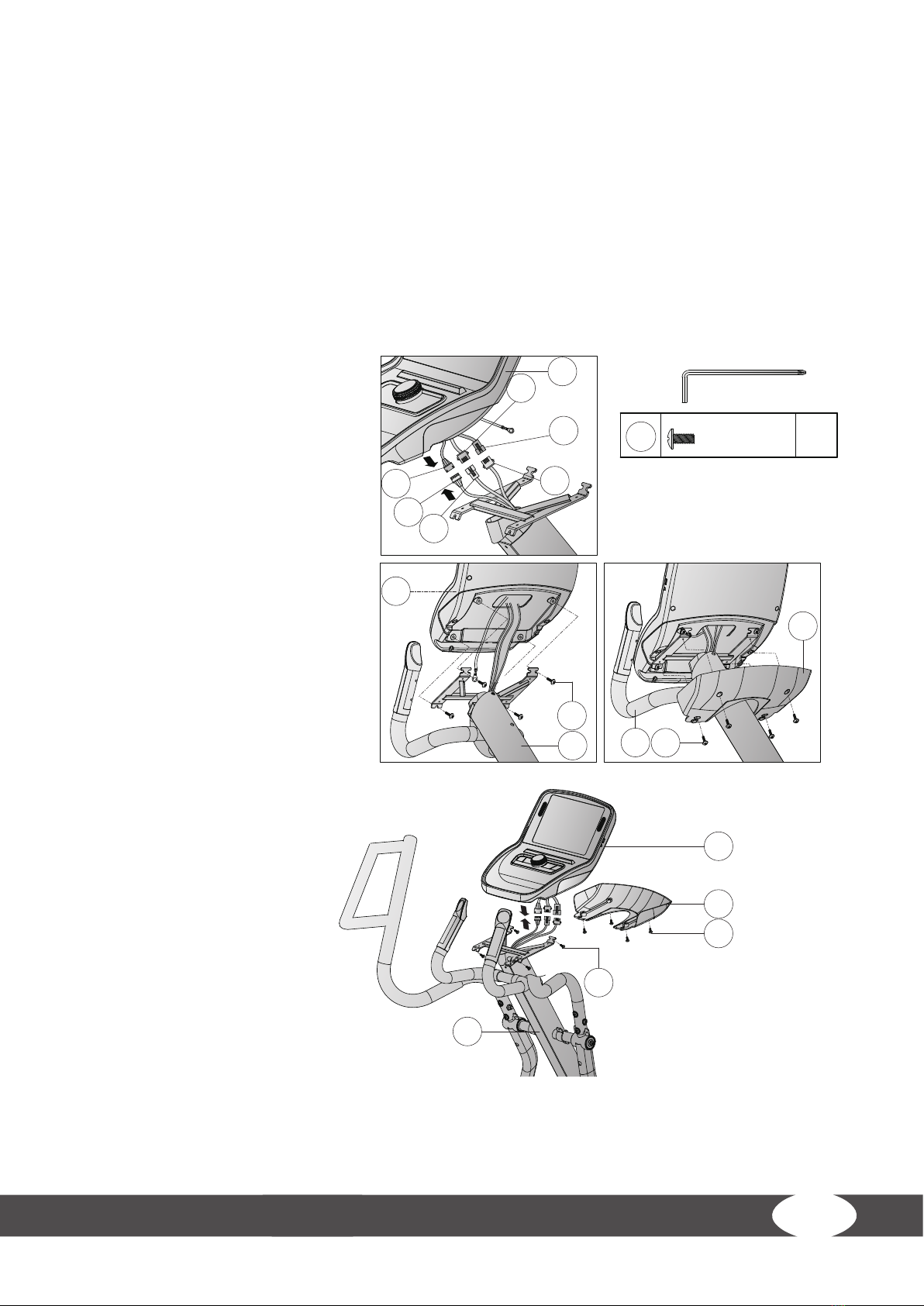

Step 6: Mounting the console
1. Connect the console cable from the console (100) with the console cable from the console mast
(101) (see g. 6-1).
2. Connect the rst hot-key cable from the console (106) with the rst hot-key cable from the
console mast (108) and the second hot-key cable from the console (107) with the second hot-
key cable from the console mast (109) (see g. 6-1).
3. Connect the signal cable from the console (177) with the signal cable from the console mast
(178) (see g. 6-1).
࣑ATTENTION
Pay attention to not
pinch the cabels during
the next steps.
4. Guide the ground cable
through the console
braket on the console
mast (11) and mount
the console (19) to the
console mast (11) with
four screws (97) (see g.
6-2).
5. Use one of the screws
(97) to x the ground
cable (see g. 6-2)
and hand-tighten the
screws.
6. Screw the cover (118)
onto the console mast
(11) with four screws
(97) (see g. 6-3) and
hand tighten the screws
in place.

18 FX9.9 Touch
Step 7: Mounting the covers
1. Screw the front cover (99) under the console (19) onto the console mast (11) with two screws
(96) and hand tighten the screws in place. Clip the rear cover (98) onto the front cover (99) (see
g. 7-1).
2. Screw the rear part of the water bottle holder (39) onto the console mast (11) with four screws
(96) and hand tighten the screws in place. Clip the front cover of the water bottle holder (38) to
the rear part (39) (seeg.7-2).
3. Screw the front covers of the arms (64) onto both arms (12R/12L), each with two screws (96) (see
g. 7-3) and hand tighten the screws in place.
4. Clip the rear cover for the arms (65) onto the front cover (64) and screw it onto the arms
(12R/12L), each with one screw (96) (seeg.7-3).
5. Screw the left protective cover (30L) onto the main frame (1) with two screws (96) and one screw
(97) and hand tighten the screws in place.
6. Clip the right protective cover (30R) onto the left protective cover (30L) and screw it onto the
main frame (1) with one screw (97) (see g. 7-4).
7. Screw the outer cover of the pedal mount (68R) onto the outer side of the pedal mount
(15R/15L), each with two screws (96) and hand tighten the screws in place. Clip the inner cover
(68L) onto the outer cover (68R) (see g. 7-5).
8. Screw the wheel covers (63) on both sides of the crosstrainer, each with two screws (97)
(seeg.7-6) and hand tighten the screws in place.
9. Screw the axial covers (71) on both sides of the crosstrainer, each with two screws (97) (see g.
7-7) and hand tighten the screws in place.

M5*0.8*12L x10
ST4.2*15L x18
1
96
39 38
11
65 96
96
64
96
97
30R
30L
97
97
63
7-2
7-3
7-6
x2
x2
step7
7-4
97
96
96
68R
68L
7-5
x2
x2
7-7
71
7-1
96
98
99
11
97
19

step8
20 FX9.9 Touch
Step 8: Adjusting the feet
The crosstrainer can be stabilised on un-even surfaces with the adjustable feet.
1. Lift up the crosstrainer on one side to gain access to the adjustable feet underneath the frame.
2. Turn the screw clockwise to unscrew the foot, lifting the crosstraining at that point.
3. Turn the screw anti-clockwise
to lower the crosstrainer at that
point.
Step 9: Connecting the crosstrainer
to the mains supply
࣑ATTENTION
The crosstrainer should not be
plugged into a power board, as
it cannot be guaranteed that the
crosstrainer will be supplied with
sucient power. This could also
lead to technical errors occurring.
First connect the power cord (117)
to the crosstrainer and then plug it
into the wall socket, making sure the
electrical prerequisites covered in the
chapter about electrical safety are met.
LIMPORTANT NOTE
To ensure that your equipment has the latest software version, please perform an update before
using it for the rst time. Proceed as follows:
1. Tap "Settings" in the lower right corner of the screen.
2. Tap "Wireless" and connect your equipment to the Internet.
3. Return to the settings.
4. Tap "System and Apps" and go to updates.
5. Tap “Update”, to update the software.
Do not use or switch o the equipment during the update.
Check whether another update is available and carry it out as described above at regular
intervals. If a new version is available, the display shows a white icon. Otherwise the icon will
be grey.
