Tcl Alcatel pop4-10 4g&vf User manual

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

1/26

POP4-10 4G&VF

9030G/9030Q/VFD1400

Note: this manual is non-contractual and TCL Communication Ltd. can modify it without prior

notice on the characteristics of described equipments.

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

2/26

1.0

Preliminary Draft

Jane Chen

Rev.

Date

Modification description

Prepared By

Checked By

Approved By

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

3/26

Content

1. General.............................................................................................................................................4

2. Portable Label..................................................................................................................................6

2.1.Label zones......................................................................................................................................6

2.2.Commercial Label Samples...........................................................................................................8

2.3.L1 Spare Part List............................................................................................................................8

2.4.Accessory.........................................................................................................................................9

2.4.1. Charger......................................................................................................................................9

2.4.2. Headset......................................................................................................................................9

2.4.3. End user USB cable ..............................................................................................................10

2.5.Maintenance policy.......................................................................................................................10

2.5.1. For handset:............................................................................................................................10

2.5.2. For standard accessories (charger, headset and USB cable)........................................11

2.5.3. If input the following codes on tablet, you can:..................................................................11

2.5.4. User Data Format reset introduction...................................................................................11

2.6.Tablet maintenance......................................................................................................................13

2.7.Invoice check.................................................................................................................................13

2.8.IMEI Check.....................................................................................................................................15

2.9.Visual Mechanical inspection......................................................................................................15

2.10. Accessories inspection..........................................................................................................16

2.11. Tablet maintenance procedure............................................................................................16

3. Software download .......................................................................................................................22

3.1 Equipments requested when download：.................................................................................22

3.2 Handset driver installation............................................................................................................23

3.3 SW download process..................................................................................................................23

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

4/26

1. General

POP4-10 4G&VF(9030G/9030Q/VDF1400) is a Qualcomm MSM8937 Platform tablet with Octa core,

[email protected]Hz+4xA53 @ 1.1GHz, social network service etc functions. It originally installed Android M

system. It can work with the GSM900/ 1800 on VDF1400 and the GSM850/ 900/ 1800/1900 on

9030G/9030Q, with the W-CDMA900/2100MHz and with the LTE B1/3/7/8/20 on VDF1400/9030G and the

LTE B1/3/7/8/20/40 on 9030Q.

Detail features

Project Name

POP4-10 4G&VF

Commercial Name

9030G/9030Q/VDF1400

Platform & OS

Platform

Qualcomm MSM8937

CPU frequence

Octa core, [email protected]+4xA53

@ 1.1GHz

OS

Android

OS Version

Android M

Design

Design (dimension) (L x W x H mm)

259.2x155.8x7.95mm

Form factor

Bar

Side Keys

Volume & Power Key

Removable battery cover

no removable

Vibrator

No

Receiver

No

Estimated Weight (unit: g) with

battery

449g

Display

Main display vision size (unit:inch)

10.1“

Main display resolution

1920*1200

Main display technology

TFT

Main display PPI (unit: pixel/inch)

224

Main display color depth

16m (24 bit)

Main display orientation

Portrait

Main display touch technology

Capacitive

Touch Panel Type

GFF

Sub-LCD resolution & colour space

(if applicable)

N/A

LED indicator

No

Bearer

SIM Card Number

SS (Single SIM)

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

5/26

SIM type

3FF (Micro-SIM) - 15mm x 12mm

2G network

GSM(Quad band)

VDF 1400: GSM900/ 1800

9030G/Q: GSM850/ 900/ 1800/1900

3G network

W-CDMA (UMTS-FDD, UTRA-FDD)

900/2100MHz, compatible

850/900/1900/2100MHz

4G network

FDD

VDF1400/9030G: LTE B1/3/7/8/20

9030Q: LTE B1/3/7/8/20/40

Ports

SIM Card Number

SS (Single SIM)

USB

USB 2.0

Audio Jack

Yes

HDMI/MHL

No

Pogo pins

No

Memory

ROM (eMMC) Capacity

16GB（32GBCompatible）

RAM Capacity

2GB

External storage Capability

up to 32GB

Internal, End user memory size

10.01GB

Connectivity

GPS

Yes

Glonass

No

Bluetooth supported version

4.2

Wi-Fi / WLAN

802.11b/g/n

WIFI direct

Yes

NFC

No

Touch Icon position

in LCD VA

Wireless Display Capability

(Miracast)

Yes

Bluetooth Tethering

Yes

Wireless Charging

No

USB OTG

Yes

FM

Yes

Main camera

Pixel

5M(compatible 8M AF)

Camera Flash

No

Auto focus

No

Digital Zoom

4x

Panorama mode support

Yes

HDR

Yes

Video capture (resolution@fps)

1080@30fps

Picture Geo-tag support

Yes

Sub camera

Pixel

2M(compatible 5M FF)

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

6/26

Auto focus

No

Camera Flash

No

Camera Stabilizer(OIS)

No

Video capture (resolution@fps)

720p 11fps

Video Playback

720p 11fps

HDR

No

Sensors

G-sensor

Yes

Proximity

No

Light sensor

No

E-Compass

No

Gyroscope

No

Pressure sensor

No

Sensor Hub

No

Hall IC

Yes

Battery

Battery capacity (mAh)

5830mAh

Standby time

450H target

Talking time (Hours)

20h(LCD off)

Charging time [Hours]

4H target

Battery type (RF standby mode)

Soft pack

2. Portable Label

2.1. Label zones

Printing zone definition (CPE000166AC0--------For general 27x22+10x3+17x3 mm)

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

7/26

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

8/26

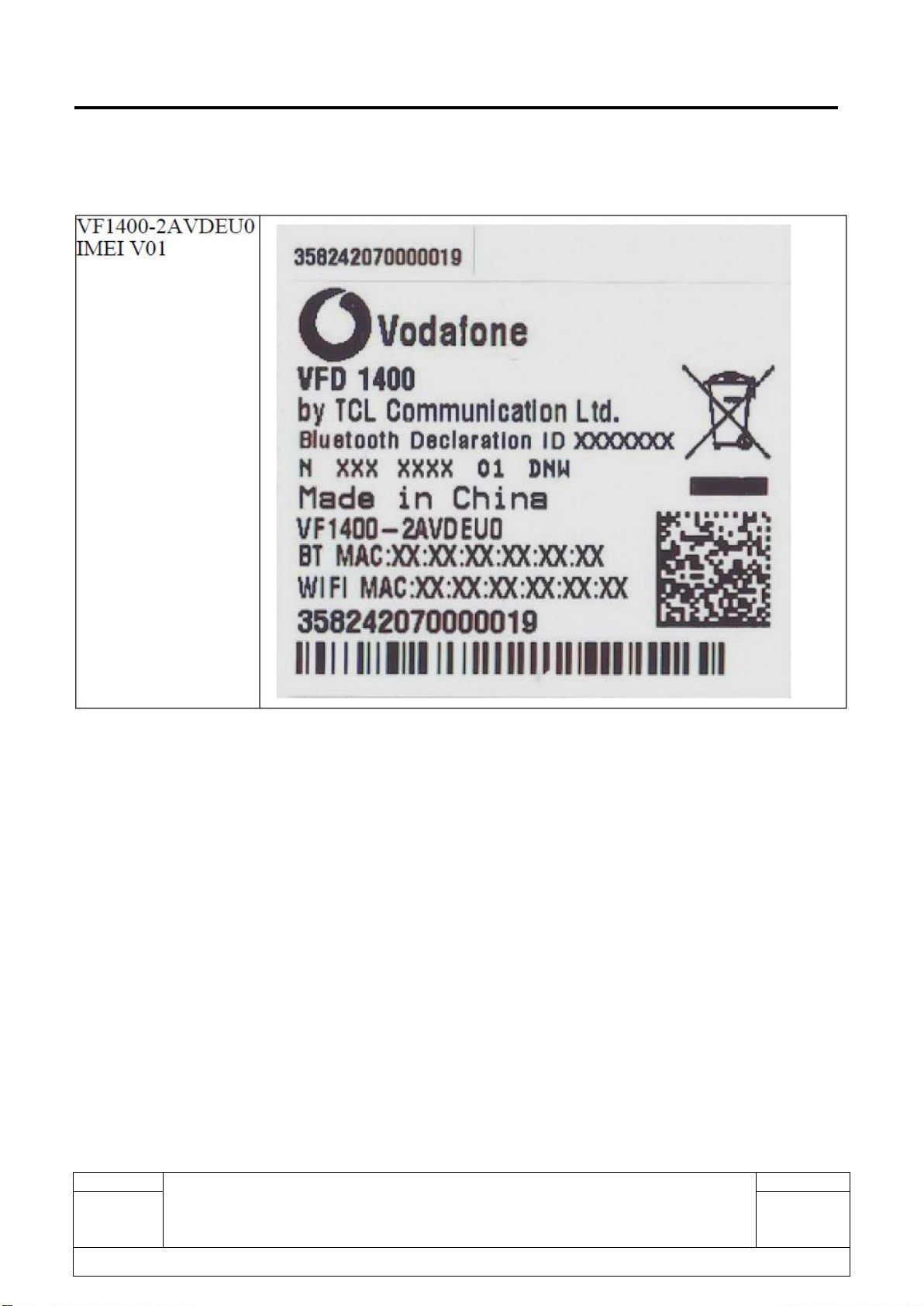

2.2. Commercial Label Samples

2.3. L1 Spare Part List

Please get the latest SPL in Forlog system.

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

9/26

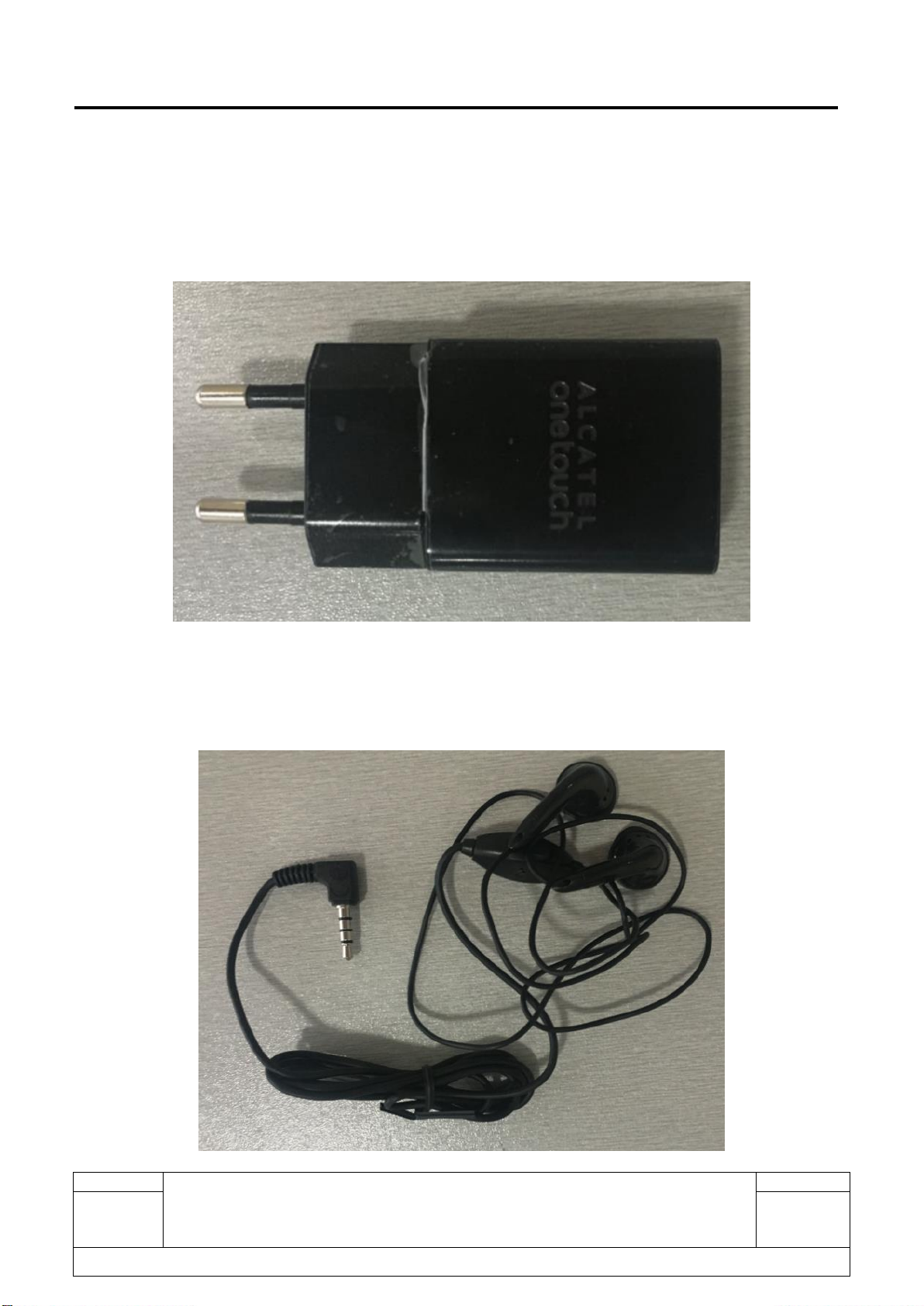

2.4. Accessory

2.4.1. Charger

2.4.2. Headset

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

10/26

2.4.3. End user USB cable

2.5. Maintenance policy

This chapter describes the maintenance of the 9030G/9030Q/VDF1400 series device authorized at L1

repair centre. The maintenance operations can only be performed in approved repair centres.

General

Main L1 maintenance operations are as following:

2.5.1. For handset:

1) Warranty check

2) Function test

3) SW downloading

4) Replacement of the defective tablet.

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

11/26

2.5.2. For standard accessories (charger, headset and USB cable)

1) Warranty check

2) Functional check

3) Replacement of defective accessories

2.5.3. If input the following codes on tablet, you can:

Code

Description

“Settings” -> “About tablet” ->

“Status” -> “IMEI information”

Check IMEI number

Open “Calculator” application, and

input “0x0-0+=”

Enter MMI Test mode (refer to 2.12)

open “Calculator” application, and

input “1x1-1+=”

Check SW version

End user format

Long press volume up key +power key

open “Calculator” application, and

input “9x9-9+=”

Enable the port

(The port will be locked after upgrading the

software.)

2.5.4. User Data Format reset introduction

How to use:long press “Power” Key + “Volume up” key in power off mode to enter recovery mode.

When to use: If you can‟t start your handset or when you start your handset, there will be something

wrong with it, like can‟t charge or can‟t charge normally.

What does it do when you use End user format function: it will format end user area, and your

handset will come back to factory model, everything you save or set in the handset (except SIM card)

will be lost.

Detail steps：

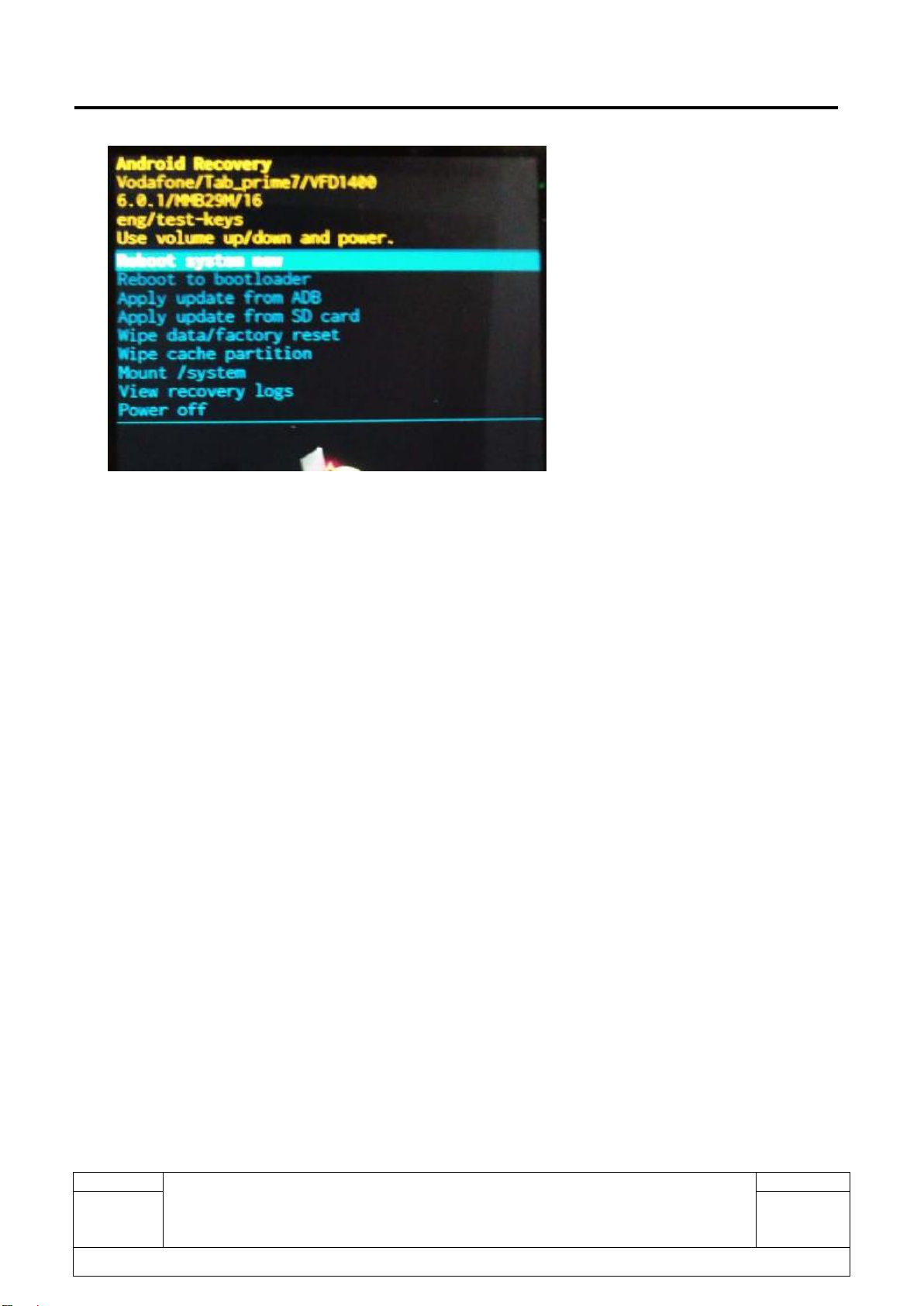

1. Long press “power”key + “volume up”key, and enter the Android system recovery mode.

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

12/26

2. Press “volume”key to select “wipe data / factory reset”, press “power”key to confirm;

3. Press “volume”key to select “Yes”and the press “power”key to double confirm the factory reset;

4. Factory reset complete, press “volume”key to select “reboot system now”and press “power”key to

confirm.

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

13/26

2.6. Tablet maintenance

1) Equipments for handset test.

Battery with full power.

One SIM card.

2) It is recommended the following tools:

One PC with Windows 2000/NT/XP/Windows 7.

One ampere meter for charger current test.

2.7. Invoice check

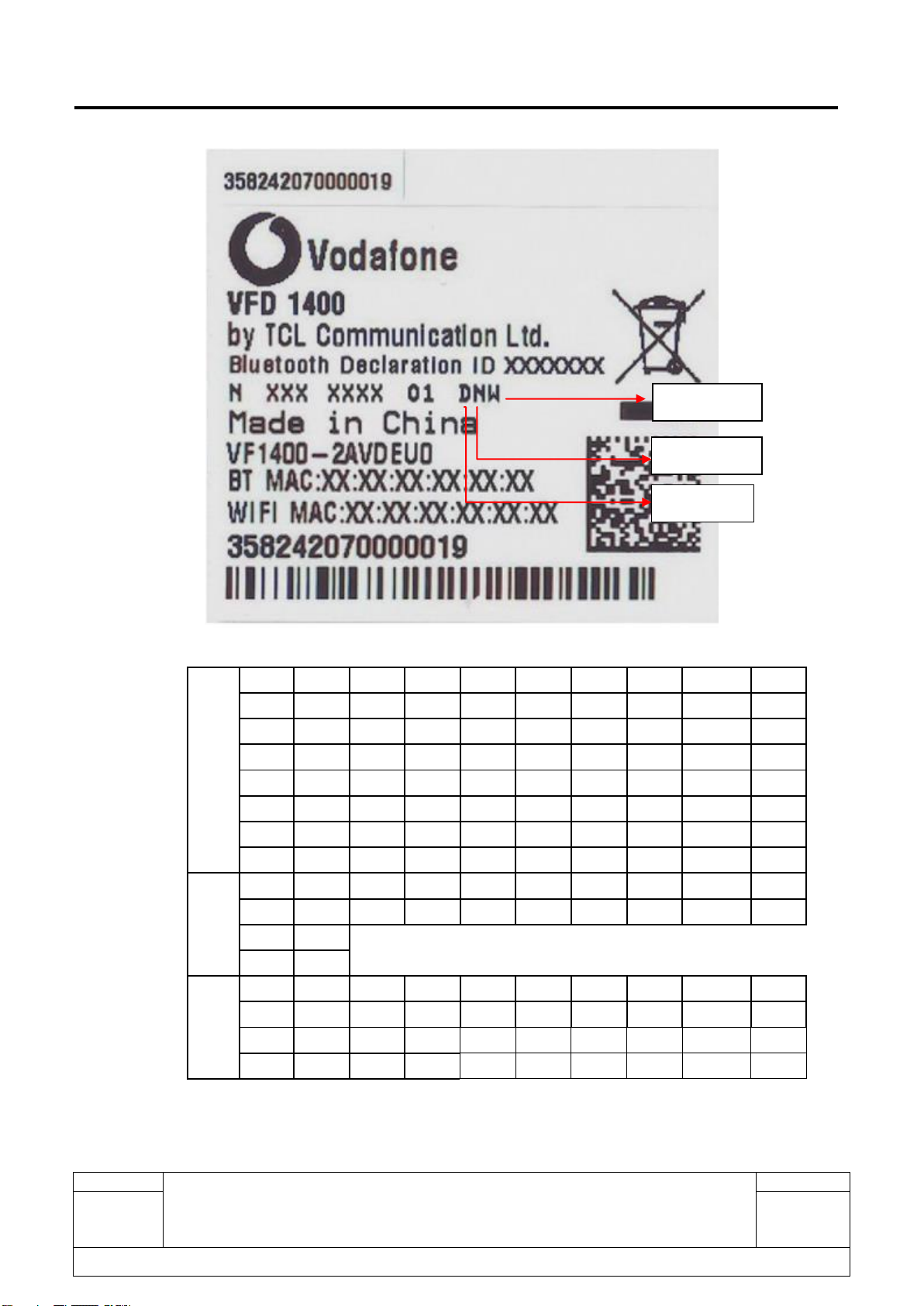

1. Check warranty status of Handset by POP (Proof of Purchase) firstly.

2. If the end user lost his POP, then consider the data code on commercial label as the purchasing day.

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

14/26

Note:

day

1

2

3

4

5

6

7

8

9

10

1

2

3

4

5

6

7

8

9

A

11

12

13

14

15

16

17

18

19

20

B

C

D

E

F

G

H

I

J

K

21

22

23

24

25

26

27

28

29

30

L

M

N

O

P

Q

R

S

T

U

31

V

mouth

Jan

Feb

Mar

Apr

May

Jun

Jul

Aug

Sep

Oct

E

F

G

H

I

J

K

L

M

N

Nov

Dec

O

P

year

10

11

12

13

14

15

16

17

18

19

T

U

V

W

X

Y

Z

A

B

C

20

21

22

23

24

26

27

28

29

30

D

E

F

G

H

I

J

K

L

M

Coding day

Coding month

Coding year

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

15/26

2.8. IMEI Check

1) Power on the handset, enter ”Settings” -> “About tablet” -> “Status” -> “IMEI information”.

2) Input 0X0-0+= on calculator screen.

3) There are two IMEI sticker positions on the device:

Position 1: in the back casing

Position 2: in the SD slot cover

If the IMEI sticker in the back casing is not lost:

We should make sure that the IMEI number MUST be the same with the one on the IMEI sticker; if not,

it‟s out of warranty policy.

2.9. Visual Mechanical inspection

Mechanical warranties check items:

1) Corrosion

Corrosion on the USB connectors, SIM connectors, and other metal surfaces

2) Hole

Holes (Diameter > 1mm) on any surface, including front casing, decorate frame, battery cover,

LCD Lens, keypad.

3) Bump

Bumps (Diameter>1mm) on any surface, including the front casing, decorate frame, battery cover,

LCD Lens, keypad

4) Scratch (length > 3mm)

Scratches on any surface, including the front casing, furnished frame, battery cover, LCD Lens,

keypad

5) Distortion

Bend, twisted or crushed on the h/s, cover/casing or connectors

6) Broken

LCD broken, casing broken, cover broken

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

16/26

7) Dropped.

Keypad tear off, LCD lens, connectors fallen off

8) Gap:

External physical damage relating to abnormal use, like front case and frame opened

9) Others:

Damage caused by disassembly like wrong part assembly, lost of components

Use in abnormal environment like too high temperature with plastic melts

2.10.Accessories inspection

Accessories warranties check items:

1) Any use in abnormal temperature, other than the one specified in the user manual. Any evidence of

plastic/casing melted.

2) Any mark of food or liquid around the accessory or in the USB socket.

3) Any evidence of mechanical shocked which damage the enclosure of the charger or headset.

4) Any mark of tentative of disassembly the accessory

5) Any abnormal use which induce wire damage, wire broken or USB socket deformed.

2.11.Tablet maintenance procedure

1) Check that the SIM card and SD card are set correctly.

2) Power on the tablet.

3) If the tablet asks to input NCK code, which means it is SIM locked, and can only be worked with

dedicated SIM card. Use the correct SIM card.

4) Enter the phone code if necessary.

5) If power on, test step by step with the auto test code:

Open “Calculator” application, and input “0x0-0+=” to enter MMI test mode, and then you will see

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

17/26

the interface displaying the SW version. Select “Auto” to start the auto test, or select “MANU” to do

the MMI test manually.

If one of the tests failed during “Auto” test mode, it will display “Failed: xxx, Press „Next‟to go on test;

Press „RETEST‟to retest this item; Press „END‟to Power off.”

Battery Type

I. You can get information about Battery Type.

II. Press “pass”key to continue.

Traceability

I. You can get information such as IMEI, BSN, BT, CU-REF, PTH, etc.

II. Press “pass”key to continue.

RAW Data

I. You can see Raw data test is running and it will display “Test: Pass”if it functions well;

II. Press “pass”key to continue;

Touch Panel

I. “Please draw in the yellow area” according to instructions

LCD

I. You will see the LCD display three colors - RED, GREEN and BLUE - if it functions well;

II. Press “Pass” to continue.

III. You will see the LCD display greychart if it functions well.

IV.Press “Pass”to continue.

V. You will see the LCD display black if it functions well.

VI.Press “Pass” to continue.

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

18/26

VII. You will see the LCD display white if it functions well.

VIII.Press “Pass” to continue.

IX.You will see the LCD display grey if it functions well.

X. Press “Pass” to continue.

Keyboard

I. You will see the key of the V+, V-, and power, click the corresponding key, then the key turn

gray on the screen.

II. Press “Pass” to continue.

Lcd Backlight

I. You will see the screen flash if it functions well

II. Press “Pass”to continue.

Main Camera

I. You will see the LCD displays the picture that back camera catch if it functions well;

II. Press “Pass” to continue;

Front Camera

I. You will see the LCD displays the picture that front camera catch if it functions well;

II. Press “Pass” to continue.

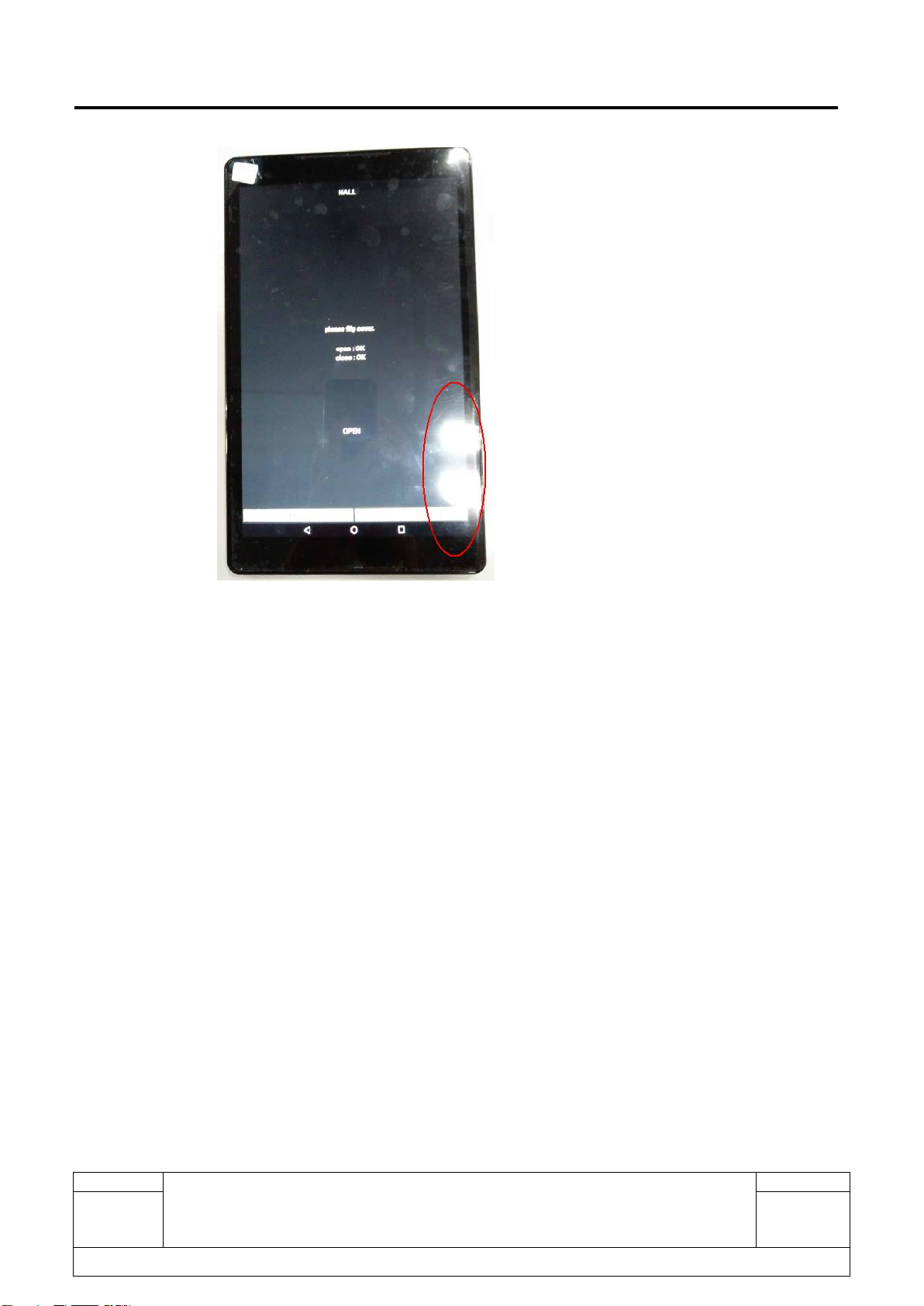

HALL

I. It will response accordingly when close the flip cover; Or close a magnet to the red circle

area in the picture below, then it will response;

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

19/26

II. Press “Pass”to continue;

AUDIO

I. You will hear piece of record from the left speaker if it functions well;

II. Press ”Pass”to continue;

III. You will hear piece of record from the right speaker if it functions well;

IV.Press ”Pass”to continue;

MIC

I. Press “start “to record sound, and then press”Play”, you will hear the record sound if it

functions well

II. Press “PASS” to continue.

Accessory

I. Insert the headset.

II. You will hear one record in left discrete;

L1 Service Manual TCLCommunication Ltd.

Rev.

9030G/9030Q/VFD1400 Level 1 Service Manual

Page

1.1

20/26

The “Volume Down “and “Volume Up”will display grey when you adjust the volume if it

functions well.

III.Press ”Pass”,you will hear one record in right discrete;

The “Volume Down “and “Volume Up” will display grey when you adjust the volume if it

functions well.

IV.Press ”pass”to continue;

V. Press “start “to record sound, and then press”Play”, you will hear the record sound if it

functions well

VI.remove your headset

VII. Press ”Pass”to continue;

FM

I. You will hear the sound from on channel when you insert earphoneif it functions well;

The “Volume Down “and “Volume Up”will display grey when you adjust the volume if it

functions well

II. Remove the ear phone then press “Pass” to continue;

USB/ Charger

I. Insert USB cable according to instruction, then it will say “USB:OK Charger :OK” ;

II. Remove USB cable according to instruction

III. Press “Pass” to continue;

G-Sensor

I. Put the handset towards up according to instruction;

II. Put the handset towards the directions indicated by instructions; it will say “All positions

checked” after you following all the directions if it if it functions well;

TCL Alcatel POP4-10 4G&VF User manual

Popular Tablet manuals by other brands
