TCL MOVETIME MT43AX User manual

User manual
MT43AX

Content
MOVETIME Family Watch .......................................................................... 1
Geng to know your watch ....................................................................................................... 1
Watch overview .......................................................................................................... 1
Power key ..................................................................................................................... 1
SOS key ......................................................................................................................... 1
Charging your watch ..................................................................................................................... 2
Watch strap..................................................................................................................................... 2
Remove straps ............................................................................................................. 2
Aaching new straps ................................................................................................. 2
Waterproof noce ......................................................................................................................... 2
Seng up your watch................................................................................................................... 3
Geng a SIM card...................................................................................................... 3
Inserng the SIM card ............................................................................................... 3
Powering on your watch............................................................................................ 4
Entering your PIN code ............................................................................................. 4
Language....................................................................................................................... 4
Download and install the app on your smartphone .............................................................. 4
Create an account.......................................................................................................................... 5
Log in to your account .................................................................................................................. 5
Pairing............................................................................................................................................... 5
SOS.................................................................................................................................................... 6
Home ................................................................................................................................................ 7
Using the touch screen.............................................................................................. 7
Watch face .................................................................................................................. 7
Nocaons ................................................................................................................................... 8
Basic.................................................................................................................................................. 9
Weather ........................................................................................................................ 9
Brightness ........................................................................................................... 9
Volume ................................................................................................................. 9
Power o............................................................................................................. 9
Call .....................................................................................................................................10
Make a call..................................................................................................................10
Call history..................................................................................................................10

Contacts............................................................................................................................10
Adding new friends ..................................................................................................10
Deleng a friend .......................................................................................................10
Phone call ...................................................................................................................10
Chat ...................................................................................................................................11
Sending a message ...................................................................................................11
Listening to voice messages ...................................................................................11
Group chat..................................................................................................................12
Sport..................................................................................................................................13
Sleep monitor..................................................................................................................13
Heart rate.........................................................................................................................13
Reminder..........................................................................................................................13
More .................................................................................................................................. 14
Alarm ................................................................................................................14
Message...........................................................................................................14
Watch face .....................................................................................................14
Calculator.........................................................................................................15
Sedentary reminder.......................................................................................15
Gesture control..........................................................................................................15
Sengs ...........................................................................................................15
TCL Connect app......................................................................................... 18
Manage your devices ..................................................................................................................18
Prole informaon....................................................................................................18
Adding a new watch.................................................................................................18
Family member management .................................................................................18

Home .............................................................................................................................................19
Chat.................................................................................................................................................21
Call...................................................................................................................................................21
Sengs........................................................................................................................................... 22
Share QR code...........................................................................................................22
Safe zone.....................................................................................................................22
Watch contacts..........................................................................................................22
Reminder.....................................................................................................................23
Clock ............................................................................................................................24
Health ..........................................................................................................................24
Scheduled power on/o..........................................................................................25
Time zone ...................................................................................................................25
Language.....................................................................................................................25
Firmware update.......................................................................................................25
Unpair the watch.......................................................................................................26
Locaon mode...........................................................................................................26
FAQ ..............................................................................................................................26
User manual ...............................................................................................................26
Safety and use ............................................................................................. 27
Trac safety..................................................................................................................................27
CONDITIONS OF USE ...............................................................................................................27
RADIO WAVES ............................................................................................................................31
General informaon................................................................................... 32
Disclaimer .....................................................................................................................................33
Warranty....................................................................................................... 34
Soware.........................................................................................................................................34
FAQ ................................................................................................................ 35

1
MOVETIME Family Watch
Geng to know your watch
Watch overview
Speaker
Power key
SOS key
Microphone
SIM card slot
Power key
• Long press for 3 seconds to power o your device when no valid SIM card is inserted.
Otherwise, long press for 3 seconds to restart the device (except when you have
received an incoming call).
• Press to increase the volume when you have received an incoming call.
• Short press to wake up / shut down the screen.
• Short press to go back to the Home screen from any other screen. Press again to turn
o the screen.
SOS key
• Long press for 3 seconds to make an SOS call. If have received an incoming call, long
press to gradually reduce the call’s volume.
• Press twice to start the voice assistant when you’re on the Home screen.
• When the screen is turned o, short press to wake it up.
• Press to reduce the volume when you have an incoming call.
• Short press to return to the previous screen.

2

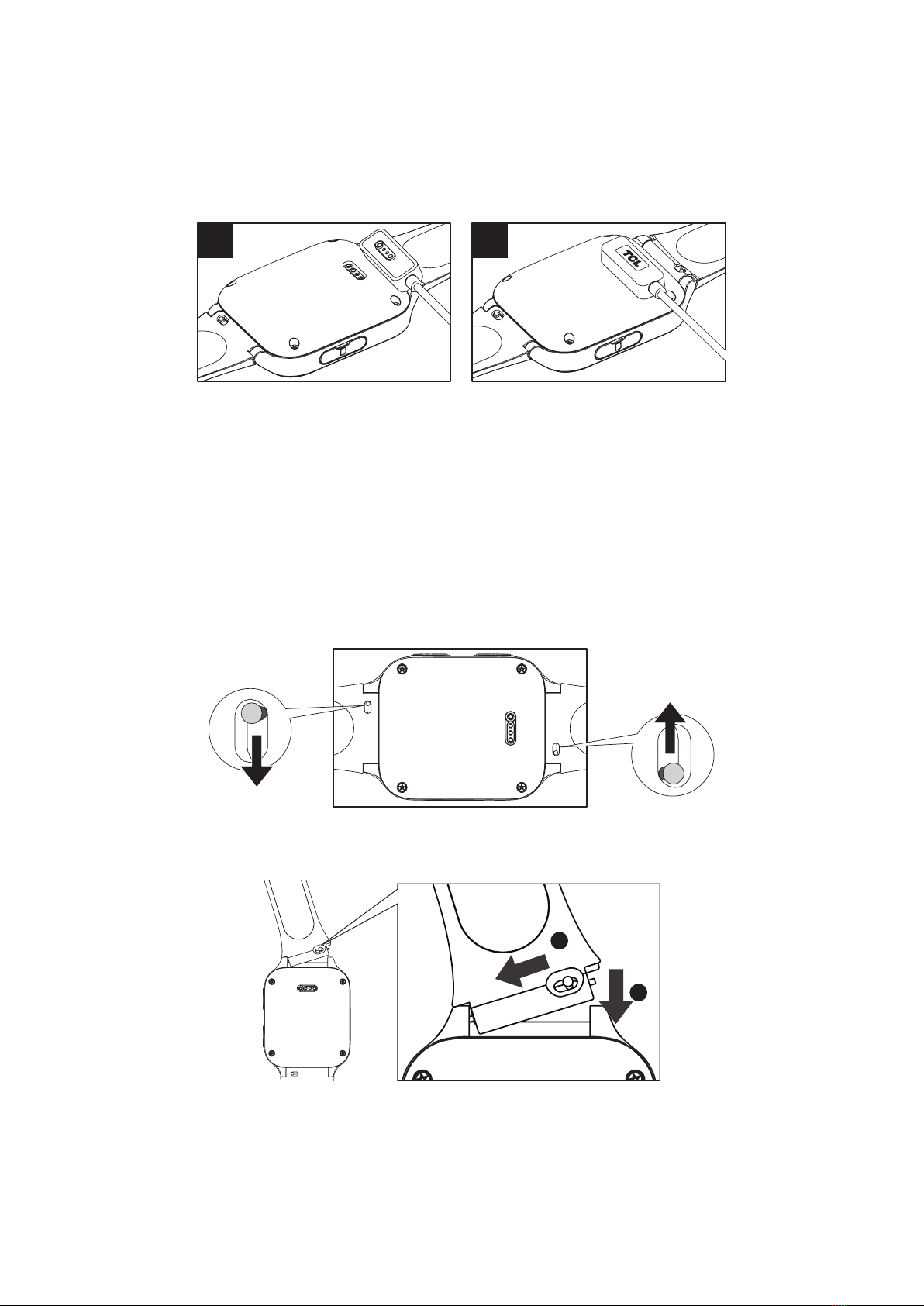

Charging your watch
Ensure that the pins in the charging dock are aligned with the pins in the back cover of your
watch. Connect the USB port with a 5V/1A USB charger to begin charging via the USB cable.
12
Note: If the charging port is corroded or dirty, this will seriously aect the charging. Please
keep the port clear by periodic cleaning. Aer playing sports, wipe any sweat from the
wristband before charging.
Watch strap
Straps are available in a range of colours, styles, and materials. To purchase one, please contact
retailers.
Remove straps
Aaching new straps
2
1
Waterproof noce
This product has an IP67 rang and is suitable for everyday use. DO NOT use it when
swimming, diving, scuba diving or taking a shower.

3
Seng up your watch
Geng a SIM card
A nano-SIM (not included) is required in order to set up and use your watch. Contact your
network operator to request a nano-SIM with a voice and data plan.
Standard Micro Nano
Note: Use a standard nano-SIM card (0.6~0.7mm thickness). A normal SIM or Micro SIM card
may cause abnormal operaon due to their dierent thicknesses aer card cung.
Inserng the SIM card
1. Push the SIM card tray to eject it.
2. Place the SIM card on the SIM card tray correctly.
3. Push the SIM card tray back into its slot using the card tool to close it.

4
Powering on your watch
Long press the Power key for 3 seconds to power on your watch.
Entering your PIN code
If you’ve enabled PIN code protecon for your SIM card, it’s necessary to enter the PIN code
on the pop-up window to validate it when using the watch for the rst me. The SIM card will
be locked aer 3 unsuccessful entry aempts, and you will then need to enter your PUK code
and enter your new PIN code twice. When you enter the right number, the Home screen will
appear, indicang that you have successfully disabled the PIN code protecon.
Language
You will be asked to select the system language when powering on your watch for the rst
me. To change the system language when the watch is unpaired, swipe right twice from the
Home screen and then go to Sengs > Language to select a language.
Download and install the app on your smartphone
To download the app you can:
• Search for “TCL Connect” in the Google Play store (Android 6.0 and above), or App
store (iOS 10.0 and above).
• Scan the following QR code.

5
Create an account
1. Touch Sign up to create your TCL Connect account.
2. Enter your name, email address and set a password for your account.(1)
3. Enter the vericaon code sent to your email address. This email address will be used to
help you reset your password should you forget it.
4. Touch Done.
Log in to your account
Enter your email address and password to log in.
Pairing
Make sure the SIM card is correctly inserted and you are able to connect to the internet
before pairing your watch with your phone. The connected network icon will appear at the
top le of your watch’s Home screen once connected to the internet.
4G network
3G network
2G network
Data roaming network
No network but can make calls
No network and can’t make calls
1. Touch Add Watch on the home page of the TCL Connect app.
2. Follow the instrucons to complete your watch user’s personal informaon (prole picture,
name and gender) and touch NEXT.
3. There are two ways to pair your watch with your phone:
• Scan the QR code to pair your watch
Swipe le from the Home screen of your watch to obtain the QR code when pairing the
watch for the rst me. Scan the QR code.
• Enter the IMEI number to pair your watch
The IMEI number is printed on a label on the device packaging. You can also swipe right
twice, go to More > Sengs > About watch to obtain the IMEI number. Enter the IMEI
number of your watch and touch Done to pair your watch with your phone.
(1) Read the “Terms of use” and “Privacy and security” and check the box.

6
Once the watch has been successfully paired with your phone, you will be brought to the
applicaon main screen. The locaon of the watch will be displayed here on the map.
SOS
Long press the Power key for 3 seconds from any screen to acvate SOS. When SOS is
acvated each family member will receive an app nocaon and an SMS informing them that
an SOS alert has been issued. These messages will contain a link to the locaon of the watch.
The watch will also make a call to the rst favourited family member (the administrator). If
there is no answer within 20 seconds it will automacally call the next family member on the
list. If none of the 3 favourited family members answer the call, a nal call will be made to the
emergency services.
Notes:
• To add and nominate favourite family members, please refer to the “Family member
management” secon of this user manual.
• The emergency services number is not set by default and should be added in the
administrator’s TCL Connect app. The number that should be set will depend on your
region.

7
Home
Press the Power key to wake up your device. The me and date will display on the Home
screen. You can change the watch face from the Sengs menu.
Using the touch screen
Touch
To select an applicaon or conrm an acon, use your nger to touch it.
Touch and hold
Long press the Home screen, swipe le to view dierent opons, and touch a watch face to
select it.
Swipe le/right
Swipe le/right to view applicaons, sengs, and funcons.
Swipe right to return to the previous page aer you have entered any applicaon.
Swipe up/down
Swipe up from the Home screen to view nocaons. Swipe down from the Home screen for
volume and brightness controls and to turn on/o the wireless connecon.
Watch face
Long press the Home screen, swipe le to view dierent opons, and touch a watch face to
select it.

8
Nocaons
Swipe up from the Home screen to view nocaons. Swipe down to go back.
Swipe le and touch to dismiss a nocaon aer viewing it.
Swipe up to the end and touch Delete to delete all the nocaons.
Chat message Medicine reminder
Alarm Sedentary reminder
New “Praise” in Sports Group invitaon
Event reminder Missed call
Voice reminder Mobile binding
Chat message: Nocaon will appear when a chat message is received.
Alarm: Nocaon will appear when an alarm sounds.
New “Praise” in Sports: Nocaon will appear when a friend “Praise” your Sport steps.
Event reminder: Nocaon will appear to remind you of an upcoming event.
Voice reminder: Nocaon will appear to remind you by playing a recording.
Medicine reminder: Nocaon will appear to remind you to take medicine.
Sedentary reminder: Nocaon will appear to remind you to exercise.
Group invitaon: Nocaon will appear when a group chat invite is received.
Missed call: Nocaon will appear when a call is missed. Touch the nocaon to call back.
Mobile binding: Nocaon will appear when your watch has been successfully paired with
a smartphone.
Please note that only that day’s nocaons will appear in the list, all the nocaons will be
erased at midnight every day.

9
Basic
Swipe down on the Home screen to enter the Basic page. Swipe up to return to the Home
screen.
Weather
You can see today’s weather and temperature on the screen, touch to see tomorrow’s, touch
again to see the day aer tomorrow’s, touch a third me to go back to today’s weather.
Brightness
1. Touch to see the brightness control.
2. Swipe le/right to adjust brightness.
Volume
1. Touch to see a range of controls for volume.
2. Swipe le/right to adjust the volume. When the
slider is swiped to the far le, the watch will be
mute and only vibrate.
Ringtone & Nocaon.
Alarm volume.
In call volume and call alert volume.
Power o
Touch to power o the watch.
Sat 09/12
4º
Overcast
Today

10
Call
Make a call
1. Swipe right from the Home screen and touch Call.
2. Whitelist o: Tap the number and touch to dial.
Whitelist on: Touch the contact which on the contacts list to place a phone call.
Call history
Swipe right to the call history. Touch one name to call back.
Contacts
Swipe le/right from the Home screen to select the applicaon. Touch Contact > Watch to
view the contact list saved in your watch. You can touch the Whitelist switch to turn on/o.
When the whitelist funcon is turned on, the watch will prevent unfamiliar numbers from
calling in. Default is o.
Adding new friends
Touch Contacts > + Friend. Keep both watches in close proximity, shake them, and touch OK.
Deleng a friend
In the contact list, swipe le on the name of the friend. Touch the Delete icon that then
appears on screen. Touch to conrm, or touch to cancel.
Phone call
1. Swipe le from the Home screen and touch Contacts.
2. Touch the contact and choose to place a phone call.
Touch to end the call.

11
Chat
Sending a message
Voice message
Touch Chat to select a contact or a group. Hold to record, and release it to send the message.
Emoji
Touch Chat to select a contact or a group. Touch to select and send an emoji.
Note: If the message fails to send, will appear next to the message. Touch the icon to
resend the message.
Listening to voice messages
If there is an unheard voice message, a red dot and the number of unheard voice messages
(up to 99) will appear on the contact icon.
1. Touch the contact.
2. Touch the unheard voice message to hear it.

12
Group chat
Creang a group
Add friends rst before you create a group.
1. Swipe right twice from the Home screen and touch Chat > + Create a group.
2. Choose a group picture and invite friends.
3. Touch to create a group, or touch to cancel.
Managing group chat
1. Swipe right twice from the Home screen and touch Chat.
2. Swipe le and touch to edit the group:
• Touch on the top to invite friends to join in.
• Touch to remove a member from the group.(1)
• Touch Mute to mute group nocaons.
3. Touch Save.
Deleng a group
1. Swipe right twice from the Home screen and touch Chat.
2. Swipe le and touch to quit the group.
If you have been removed from the group by the creator, the group icon will change to grey.
When you touch it, a pop-up will remind you that you have been removed.
Family chat
Family chat is created by the administrator on the mobile app. The watch user could swipe le
to view the family chat members and mute the family chat.
(1) Removing your friends from the group is not the same as deleng your friends from the watch. You can sll
nd them in the contact list.

13
Sport
Swipe le/right from the Home screen to select an applicaon. Touch Sports to view your
sports stascs including steps, distances and calories burned. If you have inserted a SIM card
in your watch, you can view the daily step rankings for you and your friends. You can touch
the to “praise” their steps. You will receive a nocaon if one of your friends “praises” your
steps. You can also swipe up to the end of this page and touch Who praised me to view the
friends who have “praised” you.
Sleep monitor
Swipe le/right from the Home screen to select an applicaon. Touch Sleep monitor to view
your sleep status including the monitoring me, the total hours slept and the number of deep
or light sleep hours.
Monitoring me: Enter the Sleep mode during the me, you can set it on your app, the
default is 21:00 PM to 9:00 AM.
Deep: The length of deep sleep.
Light: The length of light sleep.
History: A bar graph will show you the sleep mes during the week, the deep sleep mes is
shown in dark colour in the lower part of the bar graph, the light sleep mes is shown in gray
in the upper part of the bar graph. Swipe right to view the data of the past 3 months’.
Heart rate
Swipe le/right from the Home screen to select the applicaon. Touch Heart Rate to measure
your heart rate over several seconds. Note that your watch must have proper contact with your
wrist to ensure data accuracy. Do not move your body while taking heart rate measurements.
If ve consecuve measurements are out of the standard range, a pop-up box will remind
you.
Reminder
Check what need to do today in this list. The list is created by a guardian using their smartphone.

14
More
Alarm
Set a new alarm
1. Touch .
2. Touch Time, swipe up/down to set the me.
3. Touch Save.
4. Touch Repeat, choose Never or Mon to Sun one or more, then touch Save.
5. Touch Finish.
Disable an alarm
Disable:
Enable:
Touch the switch to turn on/o the alarm.
Delete an alarm
Swipe le on the alarm, touch to delete.
Message
Read a message
Swipe up/down and touch the message you wish to read.
Delete a message
Swipe le on the message you want to delete. Touch the Delete icon that then appears
on screen. Touch to conrm, or touch to cancel.
Watch face
There are dierent watch faces to choose from.
1. Touch .
2. Swipe le/right to view dierent watch faces.
3. Click one to conrm and return to the sengs page.

15
Calculator
To access the Family watch calculator, swipe le / right from the Home screen to select an
applicaon, touch More, and then touch .
Sedentary reminder
Set the me interval for the sedentary reminder
1. Touch More > Sedentary reminder.
2. Choose the me interval: 30 min, 1 hour, 1 hour 30 min or 2 hours.
Touch the switch to turn this mode on or o. The default seng is on.
Note: You won’t receive reminders while the sleep monitor funcon is acve or during
lunchme (13:00 to 15:00). Even if the sleep monitor funcon is not switched on, the
sedentary reminder won’t operate between 21:00 and 9:00.
Gesture control
Raise wrist light up screen. Fall wrist light o screen.
Touch the switch to turn this mode on or o. The default seng is on.
Sengs
Roaming connecon
Touch to turn on/o the roaming data connecon. Default is on.
Display
To adjust the screen brightness:
1. Touch More > Sengs > Display > Brightness.
2. Swipe the slider to adjust the brightness.
To set the duraon of the screen display me:
1. Touch More > Sengs > Display > Screen me out.
2. Choose the me: 10s, 30s or 1min.
Sound
To change the ringtone:
1. Touch More > Sengs > Sound.

16
2. Touch Call ringtone to change the ringtone for calls.
Touch Nocaon ringtone to change the ringtone of nocaons.
Touch Alarm ringtone to change the ringtone of alarms.
To turn on vibraon:
Touch More > Sengs > Sound, and turn on the switch for Vibrate. Your watch will vibrate
for calls, messages, alarms, reminders, low baery, power on, power o, and nocaons.
Default is o.
To adjust the volume:
1. Touch More > Sengs > Sound.
2. Swipe le/right to adjust the volume. When the slider is swiped to the far le, the watch
will be muted and only vibrate.
Ringtone & Nocaon.
Alarm volume.
In call volume and call alert volume.
Watch memory
To check storage space:
1. Touch More > Sengs > Watch memory. You can see the storage status (total used/total
available) on the top.
2. Swipe right to return to the Watch memory screen.
To free up storage:
1. Touch More > Sengs > Watch memory.
2. Touch Clean to delete all the chat record on the watch.
3. Touch OK.
Your watch will also periodically clear the chat history to ensure that the memory does not
overow.
VoLTE
VoLTE (Voice over Long-Term Evoluon) is a high-denion voice/video communicaon
technology carried on the 4G network. Default is o.
Language
You can set your watch’s language by swiping up/down and selecng your preferred language.
