Instruction Sheet
1 of 11
© 2016 TE Connectivity Ltd. family of companies.
All Rights Reserved.
*Trademark
TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product, and/or company names may be trademarks of their respective owners.
PRODUCT INFORMATION 1-800-522-6752
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.te.com.
408-1729
22 NOV 16 Rev K
Crimping Die
Wire Size
(AWG)
Head or Tool
Part Number
Color Code Dot
47820
Red
8
Hydraulic Crimping Head 69051
or
Hydraulic Hand Tool 59974-1
47821
Blue
6
47822
Yellow
4
47823
Red
2
47824
Blue
1/0
Hydraulic Crimping Head 69066
47825
Yellow
2/0
47915
Red
3/0
47918
Blue
4/0
Figure 1
1. INTRODUCTION
Crimping Dies 47820 through 47823 are used with Crimping Head 69051 or Hand Tool 59974--1. Crimping
Dies 47824, 47825, 47915, and 47918 are used with Crimping Head 69066. The dies crimp pre-insulated
AMPOWER* terminals onto wire sizes 4 through 1/0 AWG, TERMINYL* terminals and splices onto wire sizes 8
through 4/0 AWG, TERMINYL splices with step-down adapters onto wire sizes 16-14 through 1/0 AWG, and
PLASTI-GRIP* terminals and splices onto wire sizes 8 through 4/0 AWG. Refer to Figure 1 to ensure
compatibility of crimping die, head or tool, and wire size.
NOTE
Dimensions in this document are in millimeters [with inches in brackets]. Figures and illustrations are for reference only and
are not drawn to scale.
For detailed information about the head or tool, refer to the instructions packaged with the head or tool.
Reasons for reissue of this instruction sheet are provided in Section 8, REVISION SUMMARY.
2. DESCRIPTION (FIGURE 1)
Each crimping die consists of a stationary die (nest) and a moving die (anvil). The stationary die features a
locator. Each die contains a color code dot that matches the color code of the terminal and splice. When
mated, the dies form a crimping chamber.
Crimping Dies; PN 47820 thru
47825, 47915, and 47918
Crimping Dies; PN 47820 thru 47825, 47915, and 47918 (Typical)

408-1729
Rev K
2 of 11
3. DIE INSTALLATION AND REMOVAL
DANGER
To avoid personal injury, ALWAYS release hydraulic pressure to hose or control and disconnect power unit from power supply
before installing or removing dies.
3.1. Installation
1. Remove latch pin and open yoke on crimping head (see Figure 2).
Figure 2
2. Loosen the setscrew in the yoke.
3. Insert the shank of the stationary die into the yoke, and tighten the setscrew.
NOTE
The stationary die has a large shank and the moving die has a small shank, as shown in Figure 2.
4. Extend the ram until the ram setscrew is visible.
5. Loosen the setscrew in the ram.
6. Insert the shank of the moving die into the ram, and tighten the setscrew.
CAUTION
To avoid damage to the dies, be sure the moving and stationary dies are properly oriented.
7. Activate the tool or power unit to allow the ram to return to the “down” position.
8. Close the yoke and insert the latch pin.
3.2. Removal
1. Remove latch pin and open yoke on crimping head.
2. Loosen the setscrew in the yoke, and remove the stationary die.
3. Extend the ram until the ram setscrew is visible.
4. Loosen setscrew in ram and remove moving die.

408-1729
Rev K
3 of 11
4. CRIMPING PROCEDURE
4.1. Crimping Terminals
DANGER
Avoid personal injury. When operating tool or power unit, exercise caution while holding terminals or wire near crimping area.

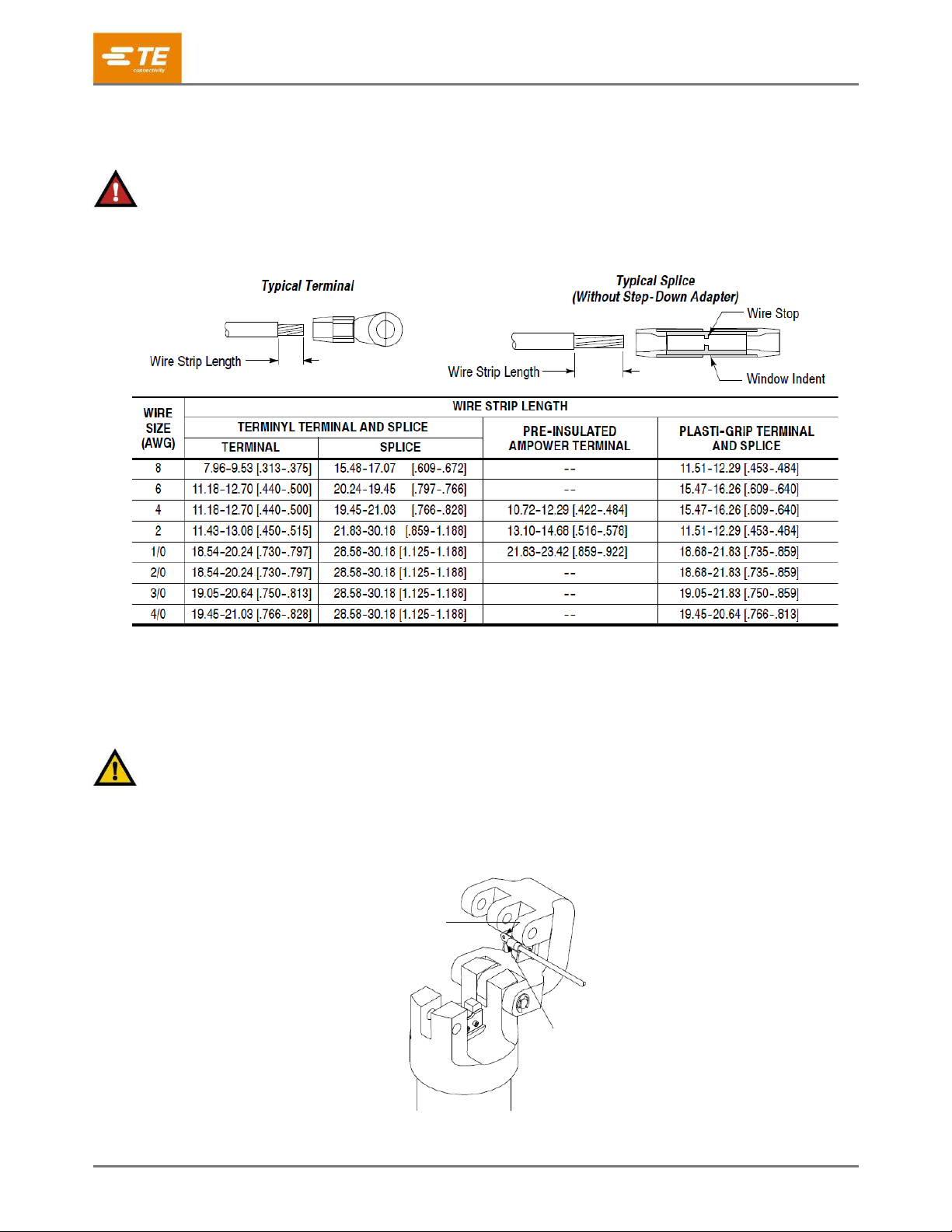

1. Strip wire to the dimensions listed in Figure 3.
Do not nick or cut the wire strands.
Figure 3
2. Select the proper color-coded terminal for the wire size. The wire size stamped on the terminal
tongue and on the crimping die must match the wire size selected.
3. Insert stripped wire fully into terminal wire barrel. The end of the conductor must not protrude more
than 1.60 mm [.063 in.] beyond the edge of the wire barrel.
CAUTION
Do NOT turn or twist the wire or terminal during insertion.
4. Remove crimping head latch pin and open yoke.
5. Place the terminal in the stationary die with the edge of the wire barrel resting against the locator and
the bottom of the terminal tongue facing the stationary die. See Figure 4.
Figure 4
Bottom of
Terminal Tongue
Facing Stationary
Die
Edge of Wire Barrel
Resting Against Locator

408-1729
Rev K
4 of 11
6. Holding the terminal in place, close the yoke and insert the latch pin.
CAUTION
Be sure latch pin is fully inserted, otherwise damage to the die and tool or head will occur when the tool or power unit is
activated.
7. Holding wire in place, activate tool or power unit to complete crimp.
8. When crimp is completed, remove the latch pin, open the yoke, and remove the terminal.
NOTE
If terminal sticks in die after crimping, apply a rocking action to the terminal to remove it from the die. Wipe light oil on the dies
to prevent sticking, or use spray dry lubricant.
9. Inspect the crimp according to Section 5.
4.2. Crimping Splices without Step-Down Adapter
DANGER
Avoid personal injury. When operating tool or power unit, exercise caution while holding splice or wire near the crimping area.
1. Strip wires to the dimensions listed in Figure 3.
Do not nick or cut the wire strands.
2. Select the proper color-coded splice for the wire size. The wire size stamped on the splice and on
the crimping die must match the wire size selected.
3. Insert the stripped wire into the wire barrel of the end of the splice to be crimped until the wire bottoms
against the wire stop within the splice.
4. Remove crimping head latch pin and open yoke.
5. Place the splice in the stationary die. Grasp the end of the splice to be crimped and point the opposite
end toward the top of the head yoke at a 30° (approximate) angle. Rotate the end of the splice to be
crimped into the die. Position the edge of the window indent against the locator. Refer to Figure 5.
Figure 5
Top of Yoke
Edge of Window Indent
Resting Against Locator
Rotate End of Splice to be
Crimped into Stationary Die
End of Splice
Pointed Toward
Top of Yoke at
Approximately
30°Angle

408-1729
Rev K
5 of 11
6. Holding the splice in place, close the yoke and insert the latch pin.
CAUTION
Be sure latch pin is fully inserted, otherwise damage to the dies and tool or head will occur when the tool is activated.
7. Holding wire in place, activate tool or power unit to complete first wire barrel crimp.
8. When crimp is completed, remove latch pin, open yoke and remove the splice.
NOTE
If splice sticks in die after crimping, apply a rocking action to the splice to remove it from the die. Wipe light oil on dies to
reduce sticking, or use spray dry lubricant.
9. To crimp the other half of splice, reposition un-crimped end of splice in the stationary die and follow
the same procedure used to crimp the first half of splice.
10. Inspect the crimp according to Section 5.
4.3. Crimping Splices with Step-Down Adapter
DANGER
Avoid personal injury. When operating tool or power unit, exercise caution while holding splice or wire near the crimping area.
1. Strip wires to the dimensions listed in Figure 3.
Do not nick or cut the wire strands.
2. Select the proper splice, adapter, and crimping die for the wire size (see Figure 6).
NOTE
Note that the end of the splice containing the adapter has a different color code. Use the crimping die for the larger wire size to
crimp both ends of the splice. For example, use Crimping Die 47820 (for wire size 8 AWG) to crimp both ends of the splice
with step-down adapter for stepping down from wire size 8 to 16-14 AWG.
Figure 6
3. Insert stripped wire into the wire barrel of the end of the splice to be crimped until the wire bottoms
against the wire stop within the splice (refer to Figure 3).
4. Remove crimping head latch pin and open yoke.
5. Place the splice in the stationary die. Grasp the end of the splice to be crimped and point the opposite
end toward the top of the head yoke at a 30° (approximate) angle. Rotate the end of the splice to be
crimped into the die. Position the edge of the window indent against the locator. Refer to Figure 5.

408-1729
Rev K
6 of 11
6. Holding the splice in place, close the yoke and insert the latch pin.
CAUTION
Be sure latch pin is fully inserted, or damage to the dies and tool or head will occur when the tool is activated.
7. Holding the wire in place, activate tool or power unit to complete first wire barrel crimp.
8. When crimp is completed, remove latch pin, open yoke and remove splice.
NOTE
If splice sticks in die after crimping, apply a rocking action to the splice to remove it from the die. Wipe light oil on dies to
reduce sticking, or use spray dry lubricant.
9. To crimp the other half of splice, reposition un-crimped end of splice in the stationary die and follow
the same procedure used to crimp the first half of splice.
10. Inspect the crimp according to Section 5.
4.4. Crimping PLASTI-GRIP Butt Splices
DANGER
Avoid personal injury. When operating tool or power unit, exercise caution while holding butt splices or wire near crimping
area.
1. Strip wires to the dimensions listed in Figure 3.
Do not nick or cut the wire strands.
2. Select the proper color-coded butt splice for the wire size. The wire size stamped on the butt splice
and on the crimping die must match the wire size selected.
3. Remove crimping head latch pin and open yoke. Remove the stationary die from the yoke, then
remove the locator from the stationary die. Re-assemble the stationary die onto the yoke.
CAUTION
To avoid damage to the dies, be sure the stationary die is properly oriented with the moving die.
4. Insert the stripped wire into the wire barrel of the end of the butt splice to be crimped until the wire
bottoms against the wire stop within the splice.

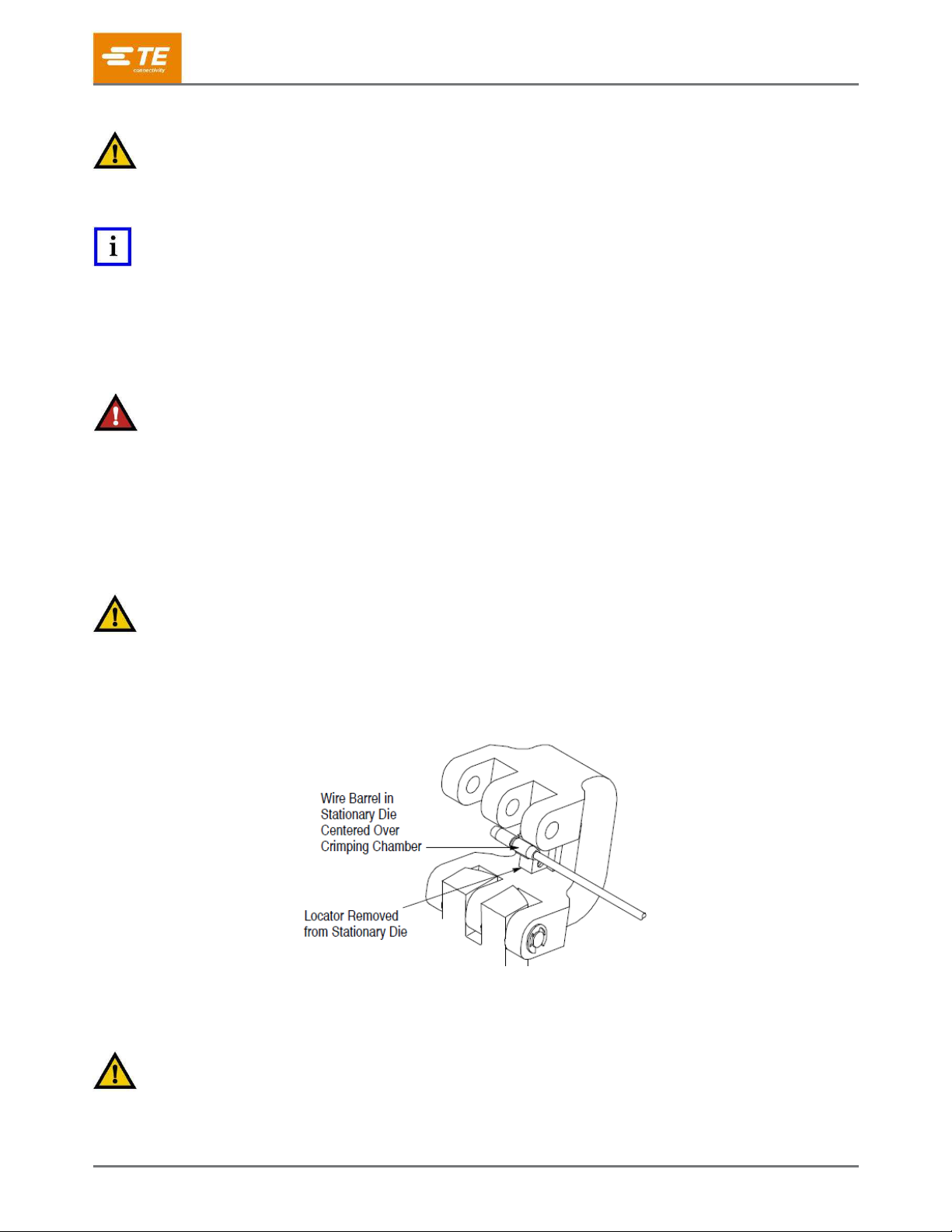

5. Place the butt splice in the stationary die with the wire barrel of the end of the splice to be crimped
centered over the crimping chamber (see Figure 7).
Figure 7
6. Holding butt splice in place, close the yoke and insert latch pin.
CAUTION
Be sure latch pin is fully inserted, otherwise damage to the die and tool or head will occur when the tool or power unit is
activated.
7. Holding wire in place, activate tool or power unit to complete first wire barrel crimp.

408-1729
Rev K
7 of 11
8. When crimp is completed, remove latch pin, open yoke, and remove the butt splice.
NOTE
If butt splice sticks in die after crimping, apply a rocking action to the butt splice to remove it from the die. Wipe light oil on dies
to reduce sticking, or use spray dry lubricant.
9. To crimp the other half of butt splice, reposition un-crimped end of splice in the stationary die and
follow the same procedure used to crimp the first half of splice.
NOTE
Be sure to re-assemble locator onto stationary die after crimping PLASTI-GRIP butt splices.
10. Inspect the crimp according to Section 5.
5. CRIMP INSPECTION
Inspect crimped terminals and splices by checking the features described in Figure 9. Use only the terminals
and splices that meet the conditions shown in the “ACCEPT” column.
6. MAINTENANCE / INSPECTION
DANGER
To avoid personal injury, ALWAYS release hydraulic pressure to hose or control and disconnect power unit from power supply
before performing maintenance or inspection procedure.
Each crimping die is thoroughly inspected before packaging. Since there is a possibility of damage during
shipment, the crimping die should be inspected immediately upon arrival at your facility.
Regular inspections should be performed by quality control personnel. A record of scheduled inspections
should remain with the dies and/or be supplied to supervisory personnel responsible for the dies. Though
recommendations call for at least one inspection a month, the inspection frequency should be based on the
amount of use, ambient working conditions, operator training and skill, and established company standards.

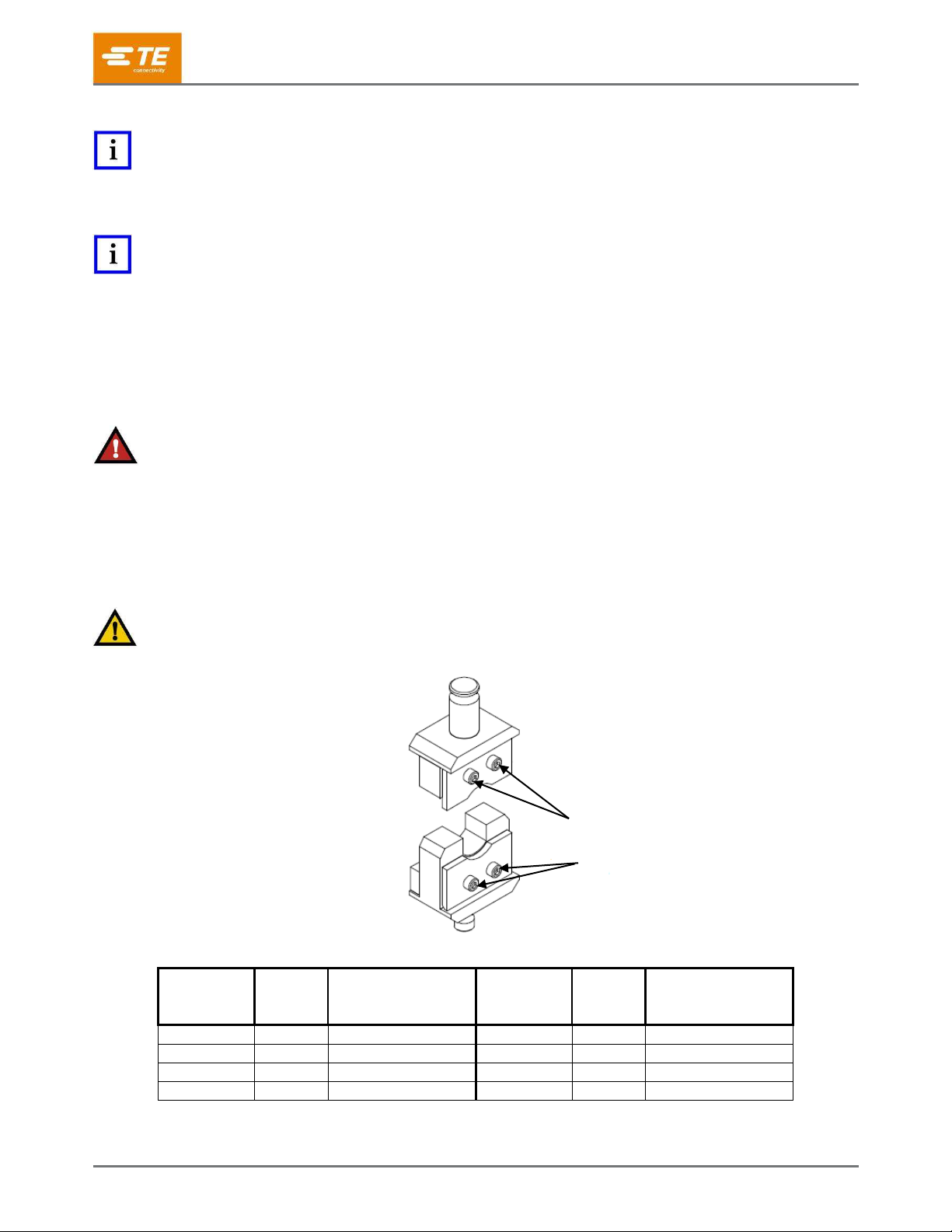

CAUTION
Regular inspections should include checking torque setting of (4) screws in accordance with Figure 8.
Crimping Die
PN
Wire Size
(AWG)
Screw Torque Setting
Specification
(inch-pounds)
Crimping Die
PN
Wire Size
(AWG)
Screw Torque Setting
Specification
(inch-pounds)
47820
8
28
47824
1/0
49
47821
6
28
47825
2/0
49
47822
4
28
47915
3/0
49
47823
2
28
47918
4/0
49
Figure 8
Torque (4) Screws in
Accordance with Figure 8.

408-1729
Rev K
8 of 11
Figure 9

408-1729
Rev K
9 of 11
6.1. Daily Maintenance
It is recommended that each operator of the dies be made aware of-and responsible for-the following steps of
daily maintenance:
1. Remove dust, dirt, and other contaminants with a clean brush, or a soft, lint--free cloth. Do NOT use
objects that could damage the dies.
2. Make certain the dies are protected with a THIN coat of any good SAE 20 motor oil. Do not oil
excessively.
3. When the dies are not in use, mate them and store in a clean, dry area.
6.2. Visual Inspection
1. Remove all lubrication and accumulated film by immersing the dies in a suitable commercial
degreaser that will not affect paint or plastic material.

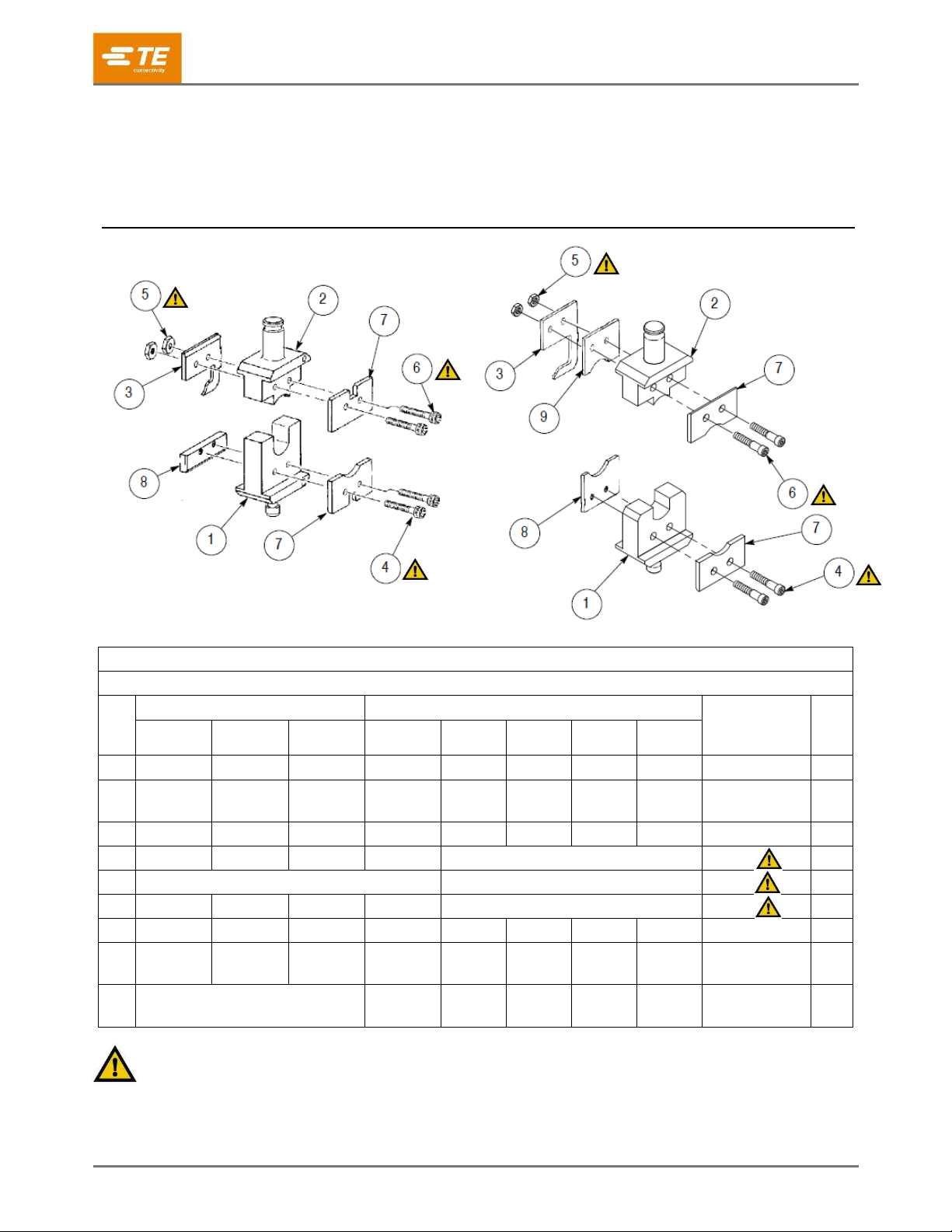

2. Make sure all die components are in place. If replacements are necessary, refer to the replacement
parts listed in Figure 12.
3. Check components for wear. Remove and replace worn components.
4. Inspect the crimp area for flattened, chipped, cracked, worn, or broken areas. If damage is evident,
the dies must be repaired before returning them to service (see Section 7, REPLACEMENT AND
REPAIR).

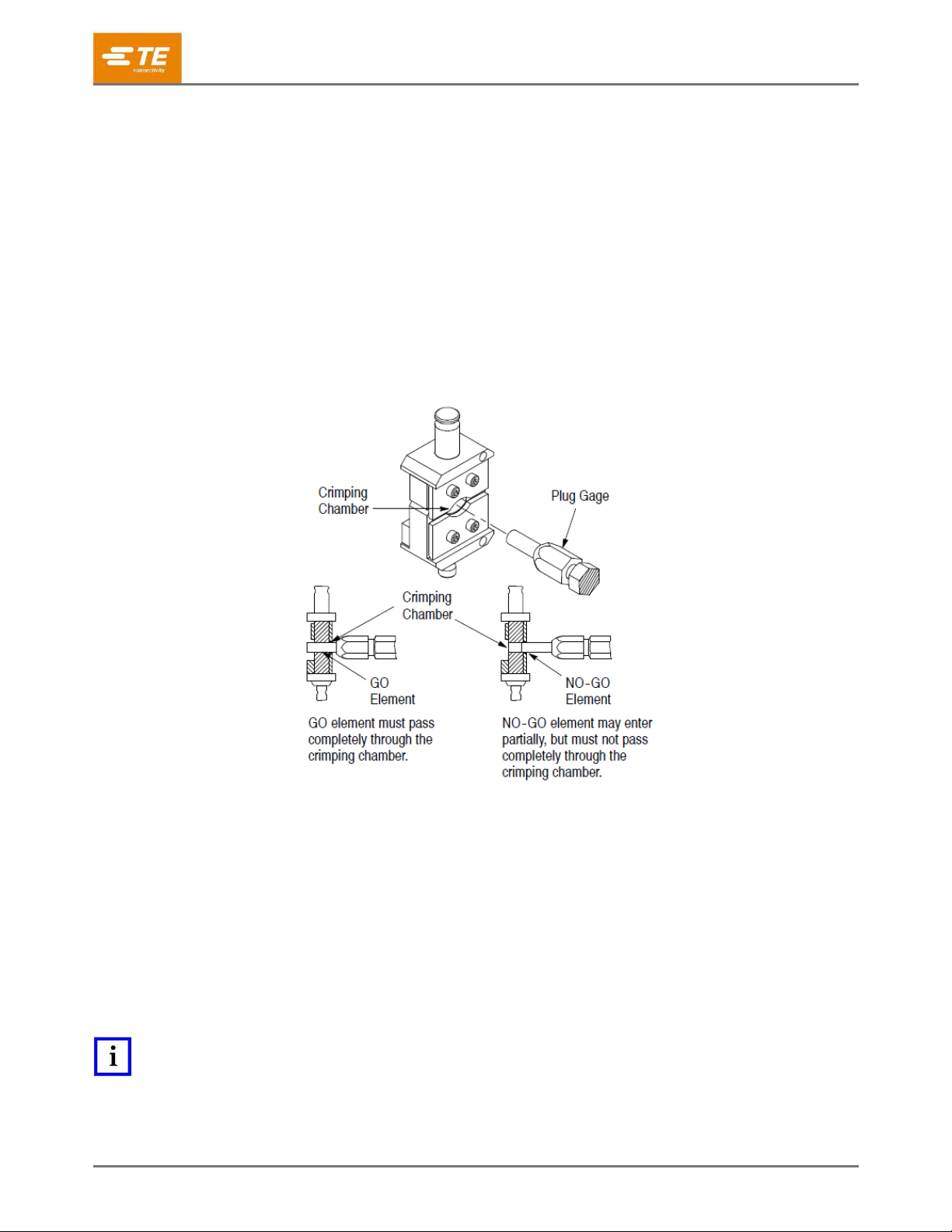

6.3. Gaging the Crimping Chamber
The die closure inspection is accomplished using plug gages. A suggested gage design and the GO and NO-
GO diameters of the plug gage elements are shown in Figure 10.
Figure 10

408-1729
Rev K
10 of 11
The following procedure is recommended for inspecting the die closures:
1. Mate the dies until it is evident that they have bottomed. Hold the dies in this position.
2. Align the GO element with the crimping chamber. Push element straight into the crimping chamber
without using force. The GO element must pass completely through the crimping chamber as shown
in Figure 11.
3. Align the NO-GO element and try to insert it straight into the crimping chamber. The NO-GO element
may start entry but must not pass completely through as shown in Figure 11.
If the crimping chamber conforms to the gage inspection, the crimping die is considered dimensionally correct
and should be lubricated with a THIN coat of SAE 20 motor oil.
If the crimping chamber DOES NOT conform to the gage inspection not, the dies must be repaired before
returning them to service (see Section 7, REPLACEMENT AND REPAIR).
For additional information concerning the use of a plug gage, refer to Instruction Sheet 408-7424.
Figure 11
7. REPLACEMENT AND REPAIR
The parts listed in Figure 12 are customer-replaceable. A complete inventory can be stocked and controlled to
prevent lost time when replacement of parts is necessary. Order replacement parts through your TE
Connectivity Representative, or call 1-800-526-5142, or send a facsimile of your purchase order to 1-717-986-
7605, or write to:
CUSTOMER SERVICE (038-035)
TE CONNECTIVITY CORPORATION
P.O. BOX 3608
HARRISBURG, PA 17105—3608
NOTE
Dies may be returned for evaluation and repair.
For die repair service, contact a TE Representative at 1-800-526-5136.

408-1729
Rev K
11 of 11
8. REVISION SUMMARY
Add screw torque and LOCTITE application to process resulting in a new Figure 8, renumbering of
subsequent Figures, and CAUTIONS in SECTIONS 6 and 8.
Revised quantities of Items 2, 3, 5, 6 in Figure 12.
Replacement Parts
Part Numbers for Crimping Die
Item
View A
View B
Description
Qty
Per
Assy
47820
47821
47822
47823
47824
47825
47915
47918
1
47941
47944
47947
47950
47910
47913
47916
47919
Die, Moving
1
2
47940
47943
47946
47949
47911
47914
47917
47920
Die,
Stationary
1
3
313336-1
313336-2
313336-3
313337-1
46606
313337-2
313337-3
313337-4
Locator
1
4
2-21000-0
2-306105-5
2-306105-5
4-306105-4
3-21000-0
Screw
2
5
21018-5
21018-6
Nut
2
6
4-306105-5
2-306105-5
2-21000-2
4-306105-6
6-305927--4
Screw
2
7
313322-4
313322-3
313322-2
313322-1
313323-1
313323-2
313323-3
313323-4
Plate, Flare
2
8
304383
304384
304385
1-45992-0
45992-3
45992-7
45992-8
45992-9
Plate, Flare,
Lower
1
9
N/A
45992-2
45992-1
45992-4
45992-5
45992-6
Plate, Flare,
Upper
1
CAUTION
Apply LOCTITE THREADLOCKER BLUE 242 or LOCTITE THREADLOCKER BLUE 243 to threads of items 4, 5, and 6.
Torque screws to applicable specification in Figure 8.
Figure 12
LOCTITE, THREADLOCKER BLUE 242, and THREADLOCKER BLUE 243 are trademarks.
VIEW A
VIEW B

Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
TE Connectivity:
47820 47821
