Teac Tascam MA-BT240 User manual

ENGLISH
FRANÇAIS
ESPAÑOL
DEUTSCH
ITALIANO
OWNER'S MANUAL
MODE D’EMPLOI
MANUAL DEL USUARIO
BEDIENUNGSANLEITUNG
MANUALE DI ISTRUZIONI
日本語
取扱説明書
Printed in China 1223.MA-3803A
LA207G0001
INSTALLATION AMPLIFIER

2 TASCAM MA-BT240
TEAC CORPORATION https://tascam.jp/jp/
Phone: [phone]
1-47 Ochiai, Tama-shi, Tokyo 206-8530 Japan
TEAC AMERICA, INC. https://tascam.com/us/
Phone: [phone]
10410 Pioneer Blvd., Unit #3, Santa Fe Springs, California 90670, U.S.A
TEAC UK Ltd. https://www.tascam.eu/en/
Phone: [phone]
Luminous House, 300 South Row, Milton Keynes, Buckinghamshire, MK9 2FR, UK
TEAC EUROPE GmbH https://www.tascam.eu/de/
Phone: [phone]
Bahnstrasse 12, 65205 Wiesbaden-Erbenheim, Germany
TEAC SALES & TRADING(SHENZHEN) CO., LTD https://tascam.cn/cn/
Phone: [phone]~2
Room 817, Xinian Center A, Tairan Nine Road West, Shennan Road, Futian District, Shenzhen,
Guangdong Province 518040, China

TASCAM MA-BT240 3
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning ash with arrowhead symbol, within equilateral triangle, is intended to
alert the user to the presence of uninsulated“dangerous voltage” within the product’s
enclosure that may be of sucient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table
specied by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualied service personnel.
Servicing isrequired when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally,
or has been dropped.
15. The apparatus draws nominal non-operating power
from the AC outlet with its POWER or STANDBY/ON
switch not in the ON position.
16. The mains plug is used as the disconnect device, the
disconnect device shall remain readily operable.
17. If you are experiencing problems with this product,
contact TEAC for a service referral. Do not use the
product until it has been repaired.
The nameplate is located on the bottom of the unit as shown
below.
Nameplate
Front side

4 TASCAM MA-BT240
CAUTION
o Do not expose this apparatus to drips or splashes.
o Do not place any objects lled with liquids, such as
vases, on the apparatus.
o Do not install this apparatus in a conned space such as
a book case or similar unit.
o The apparatus should be located close enough to the
AC outlet so that you can easily grasp the power cord
plug at any time.
WARNING
Products with Class 1 construction are equipped with a
power supply cord that has a grounding plug. The cord of
such a product must be plugged into an AC outlet that has
a protective grounding connection.
WARNING
This equipment is not suitable for use in locations where
children are likely to be present.
For U.S.A.
Supplier's Declaration of Conformity
Model Number: MA-BT240
Trade Name: TASCAM
Responsible party: TEAC AMERICA, INC.
Address: 10410 Pioneer Blvd., Unit #3, Santa
Fe Springs, California 90670, U.S.A
Telephone number: 1-323-726-0303
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
INFORMATION TO THE USER
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or
more of the following measures.
a) Reorient or relocate the receiving antenna.
b) Increase the separation between the equipment and
receiver.
c) Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
d) Consult the dealer or an experienced radio/TV technician
for help.
ATTENTION
Changes or modications to this equipment not expressly
approved by TEAC CORPORATION for compliance could void
the user’s authority to operate this equipment.
IN USA/CANADA, USE ONLY ON 120 V SUPPLY.
For Canada
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN
ICES-003.
CET APPAREIL NUMERIQUE DE LA CLASSE B EST CONFORME
A LA NORME NMB-003 DU CANADA.

TASCAM MA-BT240 5
For European Customers
Disposal of electrical and electronic equipment
(a) All electrical/electronic equipment and waste batteries/
accumulators should be disposed of separately from the
municipal waste stream via collection facilities designated
by the government or local authorities.
(b)By disposing of electrical/electronic equipment and
waste batteries/accumulators correctly, you will help save
valuable resources and prevent any potential negative
eects on human health and the environment.
(c) Improper disposal of waste electrical/electronic equipment
and batteries/accumulators can have serious eects on the
environment and human health because of the presence of
hazardous substances in the equipment.
(d)The crossed out wheeled dust bin symbol
indicates that electrical and electronic
equipment must be collected and disposed
of separately from household waste.
(e) The return and collection systems are available to the
end users. For more detailed information about disposal
of old electrical and electronic equipment, please contact
your city oce, waste disposal service or the shop where
you purchased the equipment.

6 TASCAM MA-BT240
Wireless equipment precautions
Compliance of radio transmitter and
interference
This product has the function of broadband transmitter using
2.4GHz Band.
Use frequency range: 2402 MHz - 2480 MHz
Maximum output power: Bluetooth® Class 2 (less than 2.5
mW) Please use only in the country where you purchased the
product. Depending on the country, restrictions on the use of
Bluetooth wireless technology might exist.
Model for USA
Labeling of authorization
FCC ID: XEG-MABT240
Model for Canada
Compliance of radio transmitter
This device complies with Innovation, Science and Economic
Development Canada’s licence-exempt RSSs.
Operation is subject to the following two conditions:
1) This device may not cause interference.
2) This device must accept any interference, including
interference that may cause undesired operation of the
device.
Labeling of authorization
IC ID: 1559C-MABT240
Model for EEA (European Economic Area)
Hereby, TEAC CORPORATION declares that
the radio equipment type MA-BT240 is in
compliance with Directive 2014/53/EU,
and the other European Directives, or
Commission Regulations.
Hereby, TEAC CORPORATION declares that
the radio equipment type MA-BT240 is
in compliance with UK Radio Equipment
Regulations.
The full text of the EU or UK declaration of conformity is
available at the following internet address: Please contact us
by e-mail.
https://tascam.eu/en/contact.html
Radiation Exposure requirements
This equipment meets the regulation, which is recognized
internationally, for the case of human exposure to radio waves
generated by the transmitter.
Statement of compliance
Model for USA
This equipment complies with FCC radiation exposure limits
set forth for an uncontrolled environment and meets the FCC
radio frequency Exposure Guidelines.
Model for Canada
This equipment complies with IC RSS-102 radiation exposure
limits set forth for an uncontrolled environment.
Model for EEA (European Economic Area)
This equipment complies with EN 62479; Assessment of the
compliance of low power electronic and electrical equipment
with the basic restrictions related to human exposure to
electromagnetic elds; the harmonised standard of DIRECTIVE
2014/53/EU.
This equipment has very low levels of RF energy that it
deemed to comply without maximum permissive exposure
evaluation (MPE). But it is desirable that it should be installed
and operated keeping the radiator at least 20 cm or more
away from person’s body (excluding extremities: hands,
wrists, feet and ankles).

TASCAM MA-BT240 7
Contents
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . .3
Wireless equipment precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Compliance of radio transmitter and interference . . . . . . .6
Radiation Exposure requirements. . . . . . . . . . . . . . . . . . . . . . .6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Included items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Trademarks and copyrights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Conventions used in this manual . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Precautions for placement and use . . . . . . . . . . . . . . . . . . . . . . . . .9
Notes about power supplies for US/Canada . . . . . . . . . . . . . . . . .9
Beware of condensation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
About TASCAM customer support service. . . . . . . . . . . . . . . . . 10
Bluetooth® overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Proles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Codecs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Content protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Transmission security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Names and functions of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Rear panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

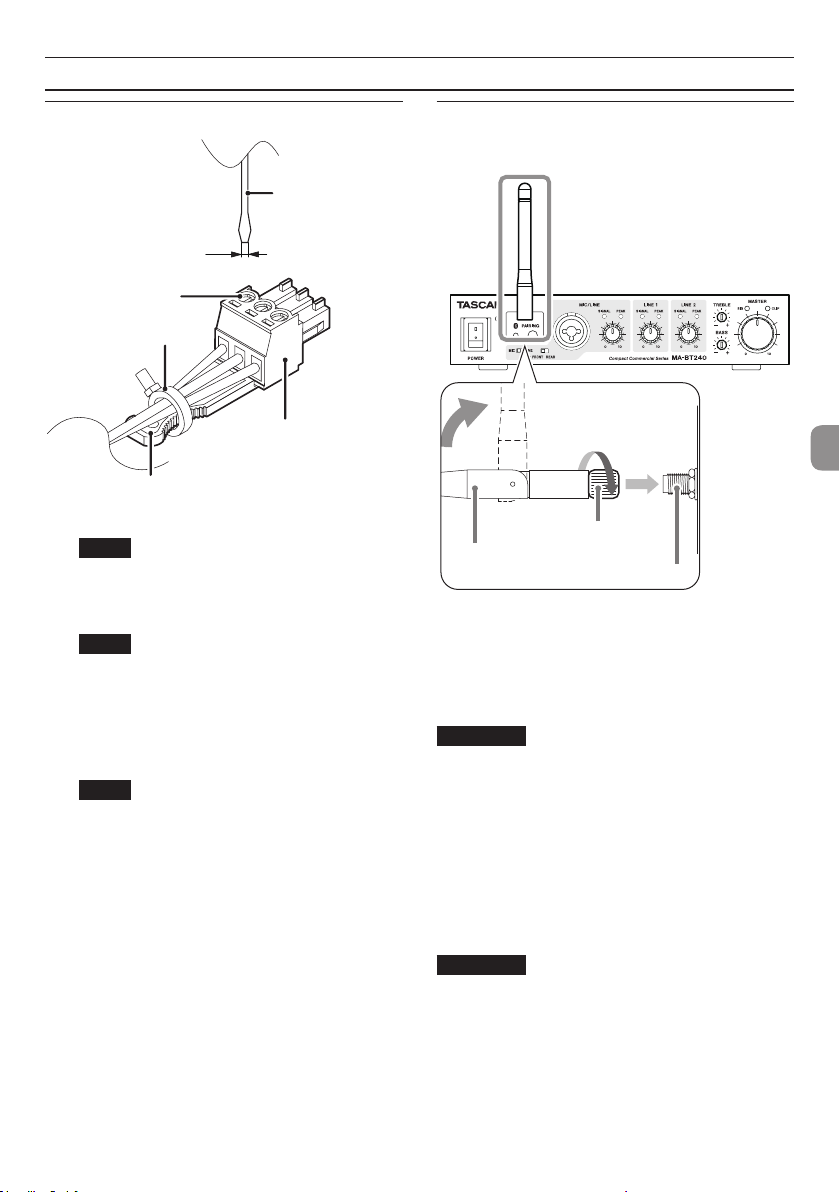

Connecting Euroblock plugs. . . . . . . . . . . . . . . . . . . . . . . . . . 13
Attaching the Bluetooth antenna . . . . . . . . . . . . . . . . . . . . . 13
Elongating the antenna . . . . . . . . . . . . . . . . . . . . . . . . . . 13

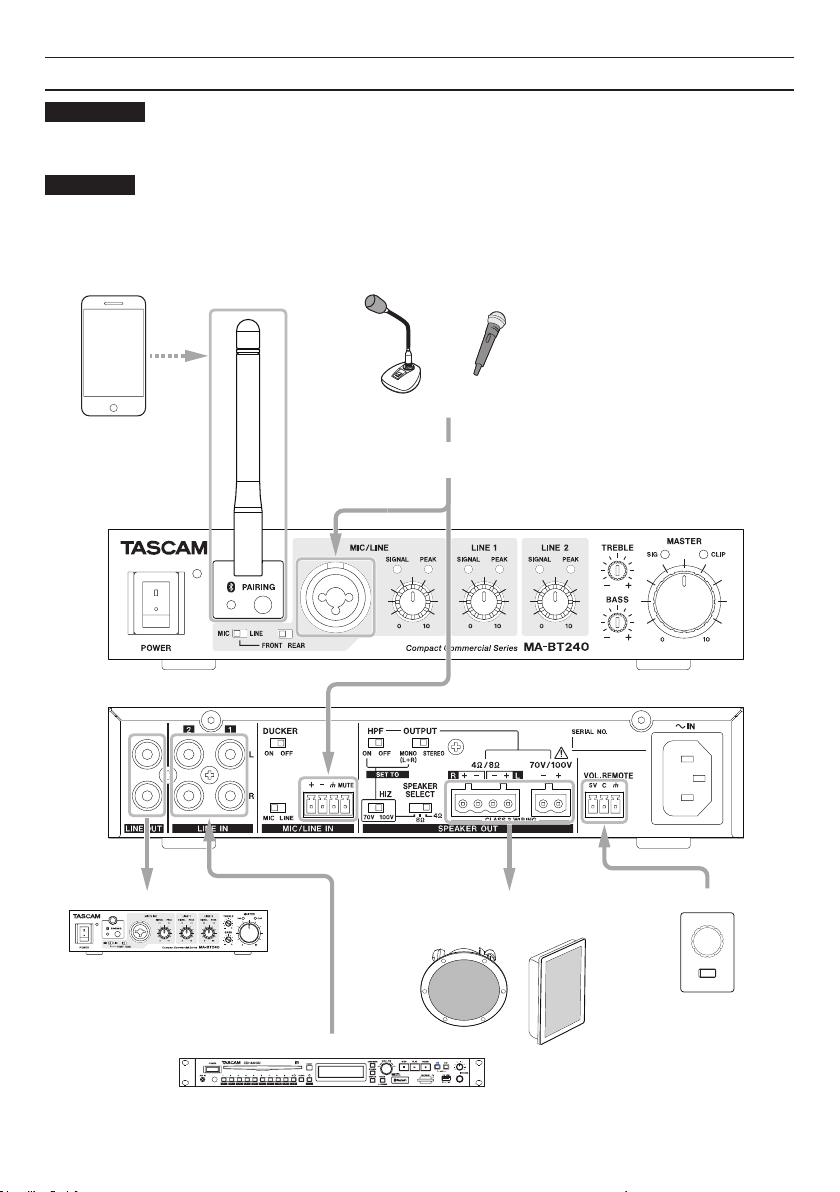

Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Step 1. Connecting speakers. . . . . . . . . . . . . . . . . . . . . . . . . . 15
For high-impedance connection (240 W × 1ch). . . . 15
For low-impedance connection (120W × 2ch) . . . . . 15
Step 2. Connecting other equipment . . . . . . . . . . . . . . . . . 16
Connecting to music sources . . . . . . . . . . . . . . . . . . . . . 16
Connecting microphones. . . . . . . . . . . . . . . . . . . . . . . . . 16
Using an external controller . . . . . . . . . . . . . . . . . . . . . . 16
Connecting with Bluetooth devices. . . . . . . . . . . . . . . . . . . 17
Pairing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Disconnecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Operation 1. Turning the unit on. . . . . . . . . . . . . . . . . . . . . . 18
Operation 2. Adjusting the volume (mix). . . . . . . . . . . . . . 18
Attaching rack ears. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using an AK-RM05 (sold separately). . . . . . . . . . . . . . . . . . . 19
Using an AK-RS1 (sold separately). . . . . . . . . . . . . . . . . . . . . 19
Troubleshootinng. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Specications/rated values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Speaker output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
High impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Low impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Mic/line inputs (MIC/LINE IN) . . . . . . . . . . . . . . . . . . . . . 21
Line inputs (LINE IN 1/LINE IN 2) . . . . . . . . . . . . . . . . . . 21
Audio performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Line outputs (LINE OUT) . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Bluetooth®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
External control
(VOL. REMOTE connector for output volume adjustment) . . . 21
Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

8 TASCAM MA-BT240
Included items
This product includes the following items.
Take care when opening the package to avoid damaging the
items. Keep the box and packing materials for transportation
in the future.
Please contact the store where you purchased this unit if any
of these items are missing or have been damaged during
transportation.
Main unit × 1
Model for Europe.
Power Cord x 1 3P (CEE7)
Model for USA/Canada.
Power Cord x 1 3P (NEMA 5-15P)
3-prong to 2-prong adapter × 1
Bluetooth antenna × 1
Various Euroblock plugs:
o For speaker output
5.08mm pitch (2 pin) for
high impedance × 1
5.08mm pitch (4 pin) for
low impedance × 1
o 3.81mm pitch (4 pin) for
mic input × 1
o 3.81mm pitch (3 pin) for
external controller use × 1
Cable band kit × 1
Rubber feet × 4
Owner's Manual (this document) including warranty × 1
TASCAM ID registration guide × 1
Introduction
Thank you very much for purchasing the TASCAM MA-BT240.
Before using this unit, read this Owner's Manual carefully so
that you will be able to use it correctly and enjoy working
with it for many years. After you have nished reading this
manual, please keep it in a safe place for future reference.
You can also download this Owner’s Manual from the TASCAM
website.
MA-BT240
https://tascam.jp/int/product/ma-bt240/docs
Features
o Class-D power amp that supports both low-impedance
(120 W × 2 ch @ 4Ω/8Ω) and high-impedance (240 W ×
1 ch, 100 V/70 V) connection
o Compact form supports both rack mounting and placement
on at surfaces
o Bluetooth® receiver built in
o 2 line inputs
o 1 mic/line input with ducking and paging functions
o Mixing function supported

TASCAM MA-BT240 9
Trademarks and copyrights
o The duplication, broadcast, showing, cable broadcast,
public performance and rental (including without
charge) of protected content without permission is
prohibited by law.
o The Bluetooth® word mark and logos are registered
trademarks owned by Bluetooth SIG, Inc. and any use of
such marks by TEAC Corporation is under license.
o TASCAM is a registered trademark of TEAC Corporation.
o Other company names, product names and logos in this
document are the trademarks or registered trademarks of
their respective owners.
Conventions used in this manual
We use the following conventions in this manual.
o As necessary, additional information is provided under
TIP, NOTE and CAUTION headings.
TIP
These are tips about how to use the unit.
NOTE
These provide additional explanations and describe special
cases.
ATTENTION
Failure to follow these instructions could result in damage to
equipment.
VCAUTION
Failure to follow these instructions could result in injury.
Precautions for placement and use
o The guaranteed operating temperature range of this unit
is 0–40°C.
o Do not install this unit in the following types of locations.
Doing so could make the sound quality worse or cause
malfunction.
Places with signicant vibrations
Next to a window or in another location exposed to
direct sunlight
Near heaters or other extremely hot places
Extremely cold places
Very humid or poorly ventilated places
Very dusty places
o Install the unit so that it is level.
o When placing it on a table or shelf, for example, attach the
rubber feet included in the same packaging to the bottom
of the unit to provide sucient airow. In addition, ensure
that there is enough open space (at least 10 cm) behind,
above and to the sides of the unit.
o When mounting this unit in a rack, leave at least 1U
between it and other equipment above and below
and ensure sucient airow. Furthermore, ensure
sucient airow by covering the open spaces with
ventilation panels or leaving them open, for example.
If the temperature inside the rack is high, open the
back of the rack and keep it at least 10 cm away from
walls and the ceiling and ensure ventilation. If the
back of the rack cannot be opened, install a fan kit or
other ventilation equipment.
Notes about power supplies for
US/Canada
Insert the included power cord all the way into the AC IN
connector.
This unit can be used with AC 100–120V (50/60Hz) power
supply voltage.
Hold the power cord by its plug when connecting or
disconnecting it.
VCAUTION
o The included power cord has a rated voltage of 125V AC.
It cannot be used with over 125 V.
o The 3-prong to 2-prong adapter is for Japan. It is not for
use in the USA.

10 TASCAM MA-BT240
Bluetooth® overview
This unit has a built-in Bluetooth 5.1 audio receiver, and can
output sound played on a computer or portable audio device
that supports Bluetooth (Bluetooth device).
ATTENTION
The Bluetooth function of this unit is not guaranteed to
enable connection or operation with all Bluetooth devices.
Proles
This unit supports the following Bluetooth proles.
o A2DP (Advanced Audio Distribution Prole)
o AVRCP (Audio/Video Remote Control Prole)
In order to transfer audio by Bluetooth, the Bluetooth device
must support A2DP.
In order to control playback on the Bluetooth device, it must
support AVRCP.
Even if a Bluetooth device supports the same proles, though,
its functions might dier according to its specications.
Codecs
This unit supports the following A2DP codecs. It will automatically
select one of them during audio transfer.
o SBC
o AAC
The unit will select the appropriate A2DP codec to use
according to the codec compatibility of the other Bluetooth
device and communication conditions.
NOTE
o The A2DP codec to be used cannot be selected by pressing
a button, for example.
o Due to characteristics of Bluetooth wireless technology,
playback from a Bluetooth device will be slightly delayed
compared to playback from this unit.
Content protection
This unit supports SCMS-T as a form of content protection
when transmitting audio, so it can play protected audio.
Transmission security
This unit supports security functions during Bluetooth
transmission in accordance with the Bluetooth standard
specications, but it does not guarantee the privacy of such
transmissions.
TEAC Corporation will bear no responsibility should an
information leak occur during transmission by Bluetooth.
Beware of condensation
Condensation could occur if the unit is moved from a cold
place to a warm place, it is used immediately after a cold
room has been heated or it is otherwise exposed to a sudden
temperature change. To prevent this, or if this occurs, let the
unit sit for one or two hours at the new room temperature
before using it.
Cleaning the unit
Use a dry soft cloth to wipe the unit clean. Do not wipe with
chemical cleaning cloths, thinner, alcohol or other chemical
agents. Doing so could damage the surface or cause discoloration.
About TASCAM customer support
service
TASCAM products are supported and warrantied only in their
country/region of purchase.
To receive support after purchase, on the TASCAM Distributors
list page of the TEAC Global Site (https://teac-global.com/),
search for the local company or representative for the region
where you purchased the product and contact that organization.
When making inquiries, the address (URL) of the shop or
web shop where it was purchased and the purchase date are
required. Moreover, the warranty card and proof of purchase
might also be necessary.

TASCAM MA-BT240 11
Names and functions of parts
VCAUTION
Turn o the power to this unit or minimize the volume before changing the switch settings on this unit.
Front panel
3456 78 90qw21
1POWER switch
Press to turn the unit on and o.
The POWER indicator lights when the unit is on.
2POWER indicator*
This shows the status of the unit.
When the POWER switch on the unit is turned on, the
POWER indicator lights green.
(“The POWER indicator is blinking orange and sound is
not output” on page 20)
3Bluetooth indicator*
This blinks while pairing and stays lit when connected.
4Bluetooth antenna connector
Connect the included Bluetooth antenna here.
5Bluetooth PAIRING button
Use this button to pair with Bluetooth devices.
(“Connecting with Bluetooth devices” on page 17)
6MIC/LINE settings
Use these to make MIC/ LINE input settings.
FRONT/REAR switch
This selects whether to use the MIC/LINE jack on
the front or the MIC/LINE IN connector on the back
of the unit as the MIC/LINE input.
(“Connecting microphones” on page 16)
MIC/LINE switch
This changes the level input to the MIC/LINE jack.
(“Connecting microphones” on page 16)
7MIC/LINE jack
This balanced MIC/LINE input is an XLR/TRS combo
jack.
XLR (1: GND, 2: HOT, 3: COLD)
TRS (Tip: HOT, Ring: COLD, Sleeve: GND)
o Condenser mics cannot be used with this.
8MIC/LINE knob
This adjusts the volume of the connector selected by
the FRONT/REAR switch. The indicators show the status.
SIGNAL indicator*
This lights when the input signal exceeds a certain
level.
PEAK indicator*
This lights when the signal is about to distort.
o If this lights, turn the knob counterclockwise to
reduce the volume.
9LINE 1 / LINE 2 knobs
These adjust the volumes of the LINE 1 and LINE 2 input
jacks.
SIGNAL indicators*
These light when the signals input to the LINE 1 /
LINE 2 input jacks exceed a certain level.
PEAK indicators*
These light when the signals input to the LINE 1 /
LINE 2 input jacks are about to distort.
o If this lights, turn the knob counterclockwise to
reduce the volume.
0BASS knob
This adjusts the low frequencies of signals output from
the speakers. The center position is the standard level.
Turn it counterclockwise to reduce and clockwise to
increase the volume of low frequencies.
NOTE
Use a small athead screwdriver to adjust this.
qTREBLE knob
This adjusts the high frequencies of signals output from
the speakers. The center position is the standard level.
Turn it counterclockwise to reduce and clockwise to
increase the volume of high frequencies.
NOTE
Use a small athead screwdriver to adjust this.
wMASTER knob
This adjusts the volume output from the speakers.
Turn this clockwise to increase the volume. Turn it
completely counterclockwise to minimize the volume
output.
SIG indicator*
This lights when the output signal exceeds a certain
level.
CLIP indicator*
This lights when the signal output to the speakers
exceeds a set value.
The internal limiter will operate when this happens.
o If this lights, turn the MASTER knob counter-
clockwise to reduce the volume.
* See Basic operation page 18 for details about indicator
lighting states.

12 TASCAM MA-BT240

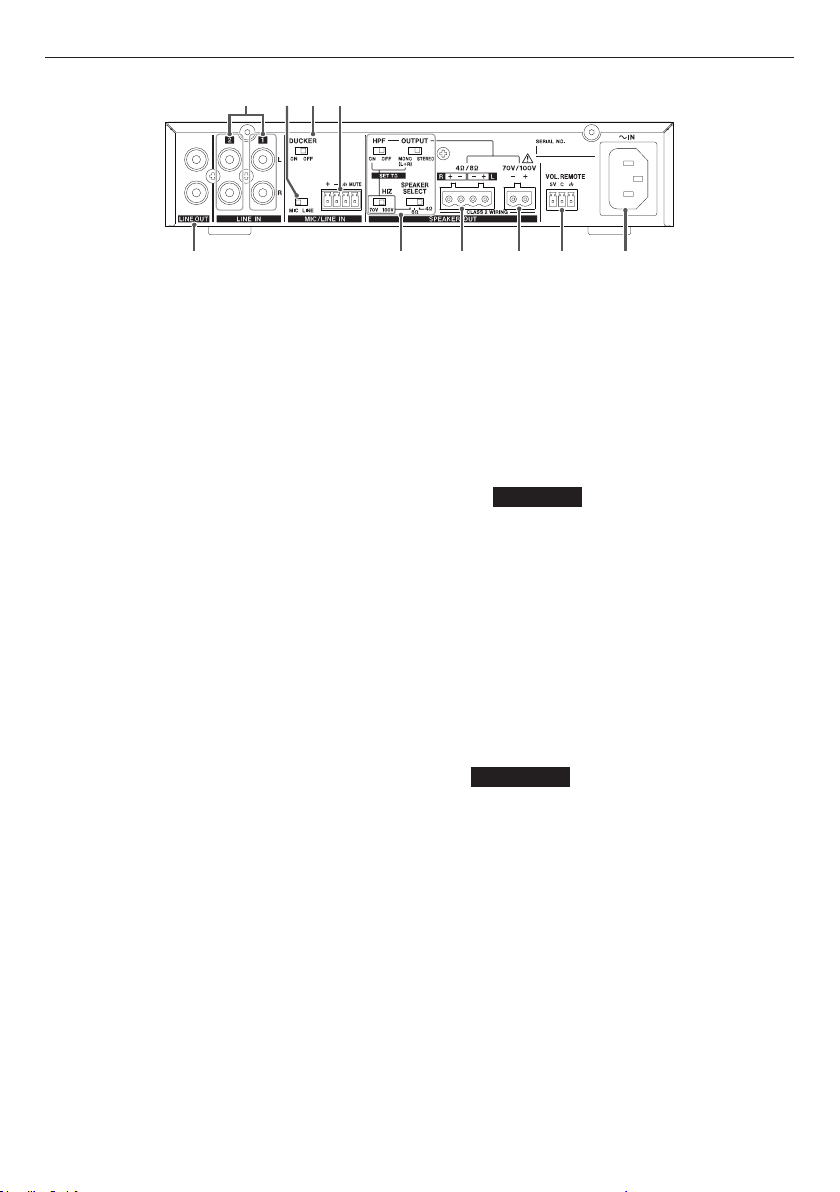

Rear panel
yert
suiopa
eLINE IN 1/2 jacks
These are unbalanced RCA stereo input jacks.
Use these to connect CD players, portable music players
and other devices.
Use the LINE 1 and LINE 2 knobs on the front of the unit
to adjust their volume levels.
rMIC/LINE switch
This changes the level input to the MIC/LINE IN on the
rear panel.
(“Connecting microphones” on page 16)
tDUCKER switch
If this is set to ON, other input signals will be automatically
attenuated during mic input.(ducking function).
This can make announcements clearer.
yMIC/LINE IN connector
This is a balanced Euroblock mic/line input connector.
o By connecting the talk switch of a paging mic to
the MUTE terminal, the volumes of input signals
other than the mic input can be attenuated.
(“Connecting microphones” on page 16)
uLINE OUT jacks
These are unbalanced RCA stereo output jacks.
Use these to output signals to the line input connectors
of other devices.
The signals output are a mix of the signals input from
the MIC/LINE (front) or MIC/LINE IN (back) with those
from the LINE IN 1 and LINE IN 2.
o The BASS, TREBLE and MASTER knobs as well as
external controller settings do not aect the LINE
OUT output.
iSPEAKER OUT settings
SPEAKER SELECT switch
Amp output can be set to high (HIZ) or low (4Ω, 8Ω)
impedance.
HIZ (Hi-Z) switch
When using high impedance connection, the
output voltage can be switched between 70V and
100V.
(“For high-impedance connection (240 W × 1ch)”
on page 15)
HPF switch
This activates the high pass lter.
ATTENTION
To prevent saturation of the speaker transformer,
always set this to ON when using high impedance
connection,
OUTPUT switch
This switches the output format to mono or stereo.
(“Step 1. Connecting speakers”on page 15)
oSPEAKER OUT 4Ω/8Ω terminals
These speaker outputs are for low-impedance connection.
(“For low-impedance connection (120W × 2ch)” on
page 15)
pSPEAKER OUT 70V/100V terminals
These speaker outputs are for high-impedance connection.
(“For high-impedance connection (240 W × 1ch)”on
page 15)
VCAUTION
Do not touch the SPEAKER OUT 70V/100V terminals
while the amplier is switched on, that may result in an
unpleasant sensation. All connections should be made
with the amplier switched o and the mains cable
removed.
aVOL. REMOTE connector
Use this connector to connect an external controller.
An external controller can be used to adjust the MASTER
volume of this unit.
(“Using an external controller” on page 16)
sAC IN connector
Connect the included power cord here.
(“Notes about power supplies for US/Canada”on page 9)

TASCAM MA-BT240 13
Preparation
Connecting Euroblock plugs
Euroblock plug
Terminal screw
2.5 mm or less
Euroblock plug tab
Flat-blade screw-
driver
Cable band
1. Loosen the Euroblock plug terminal screws.
NOTE
Use a at-blade screwdriver with a width of 2.5mm or
less.
2. Insert wires.
NOTE
The wires that are compatible with the included Euroblock
plugs are AWG12–AWG22 for speaker output and AWG16–
AWG28 for mic input and REMOTE.
Using wires within the compatible range, trim about 7 mm
of the protective sheaths from their ends.
3. Tighten the Euroblock plug terminal screws.
NOTE
Conrm that the wires cannot be pulled out.
4. Use an included wire band to attach the wires to the
Euroblock plug tab.
Attaching the Bluetooth antenna
Before connecting to a Bluetooth device, follow these procedures
to attach the included Bluetooth antenna.
Bluetooth antenna
Nut
Bluetooth antenna connector
1. Attach the included Bluetooth antenna to the Bluetooth
antenna connector.
2. Turn the Bluetooth antenna nut to secure it to the
antenna connector.
3. Raise the Bluetooth antenna.
ATTENTION
o Use the included antenna, which was designed for use
with the MA-BT240.
o Be careful to bend the antenna in the correct direction.
o Do not forcefully bend the antenna.
Elongating the antenna
The antenna can be elongated by using a commercially-available
cable with an RP-SMA connector.
o For the antenna cable, use one with 50Ω impedance that
is 20 m or less.
ATTENTION
Even when elongating the antenna, use the included one,
which was designed for use with the MA-BT240.

14 TASCAM MA-BT240
Connections
VCAUTION
o Always conrm that the power to the unit is o before connecting speakers.
If on, there is danger of electric shock.
ATTENTION
o When connecting other equipment, conrm that the power is o to devices being connected to this unit. Also conrm that
the volume knobs for the inputs being used and the MASTER are at 0 (turned completely counterclockwise).
o Always match the impedance settings of this unit and the speakers.
Use without matching could damage this unit and the speakers.
o Install the speaker cables so that there is no load on them.
Dynamic mics
Select FRONT or REAR
to use
Smartphone or other
Bluetooth device
Additional amplier and speakers
CD player, etc.
Speakers
(Low-impedance or high-impedance
connection)
External controller

TASCAM MA-BT240 15
Step 1. Connecting speakers
For high-impedance connection (240 W × 1ch)
1. Set SPEAKER SELECT to HIZ.
Set the output voltage to 70V or 100V according to the
setup in use.
NOTE
When using a high-impedance connection, it will
operate with output voltage of 100V or 70V.
100V is usual in Japan and Europe, while 70V is usual
in the USA.
Since it has less voltage drop than 70V, 100V is superior
for long-distance transmission.
2. Set HPF (high-pass lter) to ON and OUTPUT to MONO.
ATTENTION
Always set HPF to ON because a speaker transformer
could become saturated and the protective circuit of
this unit could be activated.
NOTE
If OUTPUT is set to STEREO during high-impedance
connection, only sound from the L channel will be output
from the speaker output. Always set it to MONO.
3. Connect to the SPEAKER OUT 70V/100V + and – terminals.
Use the included 5.08mm pitch (2pin) Euroblock for
connection.
ATTENTION
Do not exceed 240 W total for the rated input of the
connected speakers.
For low-impedance connection (120W × 2ch)
1. Set SPEAKER SELECT to 4Ω or 8Ω to match the connected
speakers.
2. Set OUTPUT to STEREO or MONO to select the output
format. When MONO is selected, the same sound (L+R)
will be output from both left and right.
3. Connect to the SPEAKER OUT 4Ω/8Ω L/R + and – terminals.
Use the included 5.08mm pitch (4pin) Euroblock for
connection.
ATTENTION
o When connecting multiple speakers, be sure that
the composite impedance equals or exceeds the
impedance set on this unit.
o Do not connect low-impedance speakers to the
high-impedance terminals.

16 TASCAM MA-BT240
Step 2. Connecting other equipment
VCAUTION
When connecting other equipment, conrm that the power
is o to devices being connected to this unit. Also conrm
that the volume knobs for the inputs being used and the
MASTER are at 0 (turned completely counterclockwise).
Connecting to music sources
Connect CD players, portable music players and similar
devices to the LINE IN 1 and LINE IN 2 RCA jacks.
Connecting microphones
1. Connect mics to the MIC/LINE connectors on the front
and rear of the unit.
When using a dynamic mic (with an XLR or TRS cable),
use the MIC/LINE jack on the front.
When using a wireless mic receiver or another device
that is xed in place use the MIC/LINE IN connector on
the rear.
Use the included 3.81mm pitch (4 pin) Euroblock for
connection when connecting to the MIC/LINE IN connector
on the rear panel.
o When connecting the talk switch of a paging mic,
wire it so that the MUTE connector and the
terminal are connected when the talk switch is
pressed.
2. Set the connector used and the input level.
When using the MIC/LINE input on the front, set the
switch to FRONT. Set the switch to MIC or LINE according
to the level of the connected equipment.
When using the MIC/LINE input on the rear, set the
switch to REAR. Set the switch on the rear to MIC or LINE
according to the level of the connected equipment.
FRONT/REAR switch on
the front panel
MIC/LINE switch on the
rear panel
Using an external controller
If a volume control (10kΩ B curve) is connected to the VOL.
REMOTE connector, the volume can be adjusted from a
remote location.
Use the included 3.81mm pitch (3 pin) Euroblock for connection.
o The volume will become louder when the terminal C
voltage increases.
Volume
10kΩ B curve
Connection
example
External controller
5V: Reference voltage output
C: Control voltage
: GND
Procedures for suitable volume adjustment
1. Maximize the level of the volume connected to the
VOL. REMOTE connector.
2. Adjust the MASTER volume on this unit to the necessary
maximum volume.
3. Adjust to the desired level with the volume connected
to the VOL. REMOTE connector.
The range that can be adjusted with the external controller
volume is the maximum volume range set with the MASTER
volume of this unit

TASCAM MA-BT240 17
Connecting with Bluetooth devices
Connect the included antenna to the front panel in order to
use Bluetooth.
Pairing
1. Press the PAIRING button on the front panel for at least
two seconds.
The indicator to the side of the PAIRING button will
blink while pairing.
2. Operate the Bluetooth device to be connected to this
unit.
o Refer to the operation manual of that Bluetooth
device for connection procedures.
o The indicator stays lit when connected to a Bluetooth
device.
3. Operate the connected Bluetooth device and adjust
the volume.
o When a Bluetooth device is connected, playback
will be paused. After adjusting the Bluetooth device
volume, start playback.
o Bluetooth volume cannot be adjusted by itself with
this unit.
Adjust the volume on the Bluetooth device.
ATTENTION
Bluetooth is designed to send playback pause commands
using AVRCP basic commands.
However, this does not guarantee operation with all
devices.
When a Bluetooth device is connected,minimize
volume of the MASTER knobs and the the Bluetooth
device beforehand.
NOTE
When this unit is turned on, it will automatically try to
connect with the Bluetooth device to which it was previously
connected.
At this time, connection will automatically be canceled if
connection is not possible because that Bluetooth device is
not turned on or its Bluetooth function is turned o.
Disconnecting
The Bluetooth device that is currently connected can be
disconnected from the unit.
1. Press the PAIRING button for at least two seconds.
2. This ends the connection. The indicator will start blinking
and the unit will be ready to connect.
NOTE
o After about two minutes pass, the indicator will become
unlit and Bluetooth will turn o.
o Pressing the PAIRING button for at least two seconds
while the indicator is blinking will make it become unlit
and turn o Bluetooth.

18 TASCAM MA-BT240
Basic operation
Operation 1. Turning the unit on
1. Conrm that the power switches are o on all devices
connected to this unit.
2. Conrm that the MASTER knob is set to 0 (turned
completely counterclockwise).
3. Connect the included power cord to the AC IN connector
and insert the power plug in an outlet.
4. Turn on the power to the connected devices before
turning this unit on.
ATTENTION
o The output from the LINE OUT jacks on the rear panel are
aected by the settings of the MIC/LINE, LINE 1 and LINE 2
knobs, but not by the MASTER knob.
o When adjusting the volume, minimize the settings of the
MIC/LINE, LINE 1 and LINE 2 knobs beforehand.
NOTE
When turning o the power, turn o this unit before turning
o connected devices.
Operation 2. Adjusting the volume (mix)
1. Adjust the MASTER knob so that the speaker volume
is low.
Adjust this again as necessary while conducting the
following procedures to prevent the volume from
becoming too loud.
2. Turn the volume knobs for each input to adjust their
volumes.
Input audio signals through the inputs being adjusted,
and adjust them so that their SIGNAL indicators light
but their PEAK indicators do not light.
NOTE
To adjust the Bluetooth volume, adjust it on the Bluetooth
device.
TIP
Adjusting the balance is easier if the volume of the
main channel is adjusted rst, followed by the volumes
of the remaining channels.
3. Adjust the MASTER knob to set the desired volume.
Indicator Status
POWER
Lit green Power is on
Blinking
orange Protection circuit is active
Lit Connected
Blinking Pairing or waiting to connect
MIC/LINE SIGNAL lit Less than 40 dB below maximum input level
PEAK lit Less than 3 dB below maximum input level
LINE 1
LINE 2
SIGNAL lit Less than 40 dB below maximum input level
PEAK lit Less than 3 dB below maximum input level
MASTER SIG lit Less than 46 dB below maximum output level
CLIP lit Over maximum output

TASCAM MA-BT240 19
Attaching rack ears
Rack ears (sold separately) must rst be attached before mounting this unit in a rack.
Refer to the illustrations below when attaching them.
ATTENTION
In addition to removing the rubber feet from the unit, be sure to leave at least 1U space open between this and other devices
above and below.
Using an AK-RM05 (sold separately)
When mounting two units, attach a bottom plate to connect
them.
Using an AK-RS1 (sold separately)
NOTE
The attachment holes in rackmount ears are elongated,
allowing adjustment so that the unit does not stick out of the
rack when attached.

20 TASCAM MA-BT240
Troubleshootinng
If you are having trouble with the operation of this unit,
please try the following before seeking repair.
If these measures do not solve the problem, please contact
the store where you purchased this unit or TASCAM customer
support service.
The unit will not turn on
Conrm that the power plug and other connectors are
inserted completely.
The POWER indicator is blinking orange and
sound is not output
o The protection circuit is active.
Turn the POWER switch o and leave it in a place with
good ventilation for several minutes before turning the
power on again.
Install this unit in a location that does not easily become
hot.
If that does not resolve the issue, conrm that a short is
not occurring with a speaker output.
o Conrm that this unit is not set to high impedance when
low-impedance speakers are connected.
If connecting multiple speakers when this unit is set to
low impedance, conrm that the composite impedance is
not lower than the impedance set on this unit.
The sound distorts
o If the CLIP indicator lights, turn the MASTER knob to
lower the volume.
o If a PEAK indicator lights for any input, turn its volume
knob to lower the volume.
o Lower the output volume of the paired Bluetooth device.
o Too much EQ could be the problem. Set the TREBLE and
BASS to their center positions.
The volume is low even when the MASTER
knob is turned up
o Make volume adjustments (mix) again.
(“Operation 2. Adjusting the volume (mix)” on page 18)
o Conrm that this unit is not set to low impedance when
high-impedance speakers are connected.
o Conrm that the MIC/LINE switch is not set to LINE even
though a mic is connected.
MIC/LINE sound is not output
This unit has FRONT/REAR and MIC/LINE input selections.
Check these switches again to conrm that they are set
correctly.
Cannot pair with another Bluetooth device
o Conrm that the other Bluetooth device supports A2DP.
o Conrm that the other Bluetooth device is in a state that
allows transmission. For details, check the operation
manual of that Bluetooth device.
o Turn the power o for both this unit and the other
Bluetooth device once, turn them both on again and try
pairing them.
o Conrm that the other Bluetooth device is not too far
away.
Are there walls or other obstacles, for example, between
this unit and the other Bluetooth device?
Try changing the positions of this unit and the other
Bluetooth device.
