Teac DV-10D User manual

DDVV--1100DD
SERVICE MANUAL
DVD Player
Effective : January, 2004 S-0112A
NOTES
●PC boards shown are viewed from parts side.
●The parts with no reference number or no parts number in the
exploded views are not supplied.
●As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
●£Parts marked with this sign are safety critical components. They
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
CONTENTS
1 SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・2
2 EXPLODED VIEWS AND PARTS LIST ・・・・・・・・・・・・・・・・・3
3 PC BOARDS AND PARTS LIST ・・・・・・・・・・・・・・・・・・・・・・・・5
4 INCLUDED ACCESSORIES ・・・・・・・・・・・・・・・・・・・・・・・・・・・・7
For U.S.A.

1 SPECIFICATIONS
−2−
DVD Player
Signal system ................................................................PAL/NTSC
Laser ......................Semiconductor laser, wavelength 650/790 nm
Frequency range ............................DVD: 4 Hz to 22 kHz (fs:48kHz)
DVD: 4 Hz to 44 kHz (fs:96kHz)
CD: 4 Hz to 20 kHz
Signal-to-noise rating (DVD) ..............................................105 dB
Audio dynamic range (DVD) ..................................................90 dB
Harmonic distortion (DVD)................................................0.006 %
Wow and flutter ........................................Below measurable level
(less than ± 0.001% (W.PEAK))
Operating conditions ........Temperature: 5˚C to 35˚C (40˚F to 95˚F)
Operation status: Horizontal
Outputs
Video output ..............................................................RCA jack x 1
1.0 Vp-p, 75 Ω, negative sync.
S-video output ......................................................S-video jack x 1
(Y) 1.0 Vp-p, 75 Ω, negative sync.
(C) 0.286 Vp-p, 75 Ω
Component output ......................................................RCA jack x 1
(Y) 1.0 Vp-p, 75 Ω, negative sync.
(PB, PR) 0.7 Vp-p, 75 Ω
Audio output (digital audio) ............RCA jack x 1, 1.15 Vp-p, 75 Ω
OPTICAL digital jack x 1
Audio output (analog audio) ............................RCA jack x 1 (2CH)
2.0 Vrms (1 kHz, 0 dB)
RCA jack x 1 (6CH)
General
Power supply ........................................................AC 120 V, 60 Hz
Power consumption ..............................................................18 W
Weight ......................................................................3.3 kg (7.3 lb)
External dimensions (W x H x D) ..................435 x 62 x 327.5 mm
(17-1/8" x 2-7/16" x 12-15/16")
Accessories
Audio cable (RCA) x 1
Video cable (RCA) x 1
Optical cable x 1
Owner's manual x 1
Remote control x 1
Battery (AAA) x 2
AC cord x 1
•Design and specifications are subject to change without notice.
•Weight and dimensions are approximate.
SAFETY INFORMATION
This product has been designed and manufactured according to FDA
regulations "title 21, CFR, chapter 1, subchapter J, based on the Radiation
Control for Health and Safety Act of 1968", and is classified as a class 1
laser product. There is no hazardous invisible laser radiation during
operation because invisible laser radiation emitted inside of this product
is completely confined in the protective housings.
The label required in this regulation is shown 1.
OCAUTION
USE OF CONTROLS OR ADJUSTMENT OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
Optical pickup:
Type : SF-HD60
Manufacturer : SANYO Electronics Co., Ltd.
Laser output : Less than 0.3 mW on the objective lens
Wavelength : 780 ± 25 nm (CD), 650 ± 15 nm (DVD)
1For U.S.A.

−3−
1
2
3
4
5
6
7
8
9
0
q
we
r
t
y
u
io
a
s
d
f
g
5
w
s
p
h
j

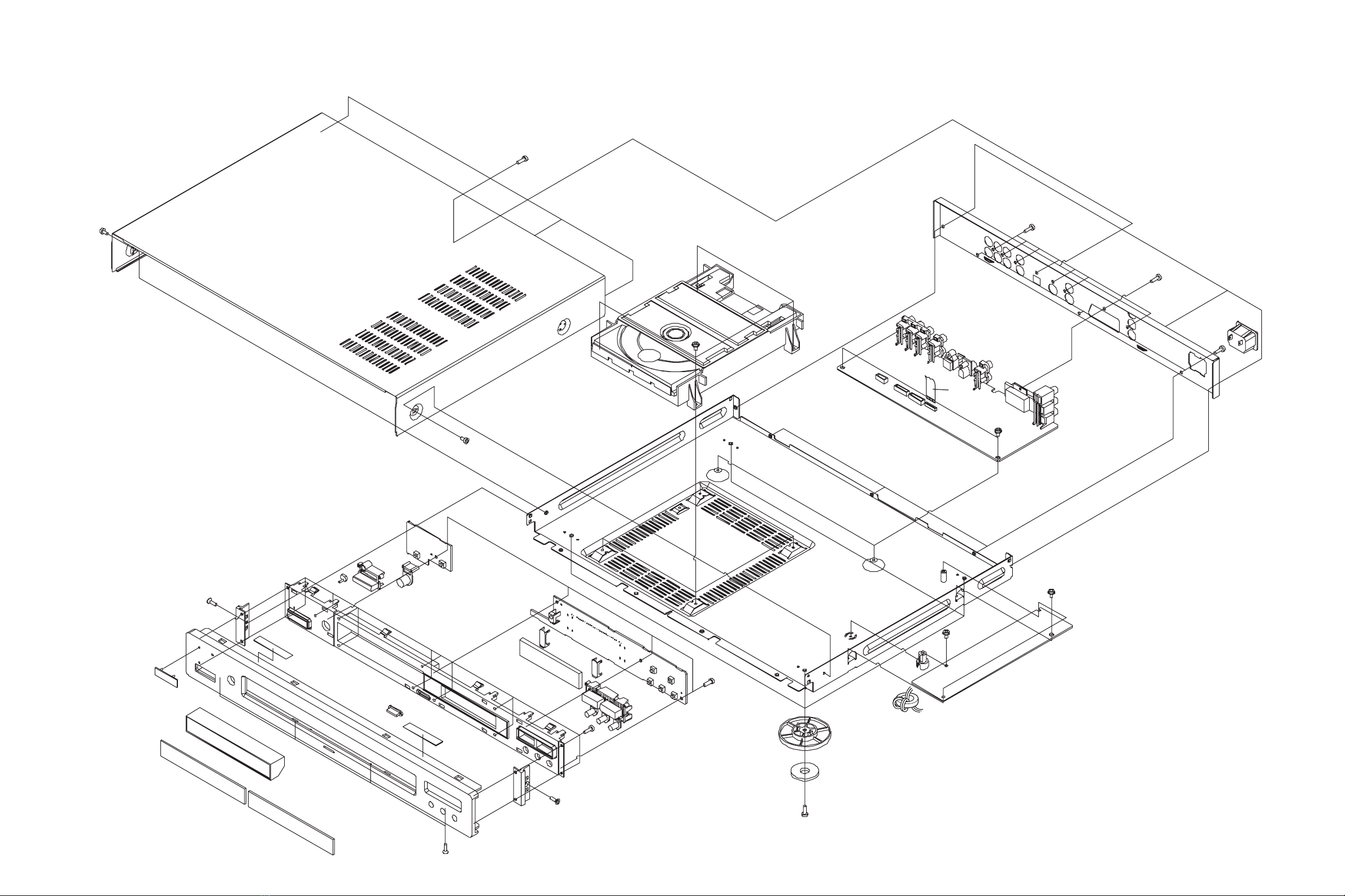

2 EXPLODED VIEWS AND PARTS LIST

−4−
EXPLODED VIEW LIST
REF.NO. PARTSNO. DESCRIPTION REMARKS
1CGU1A315Z WINDOW,DOOR
2CGU1A315Y WINDOW,FIP
3CGR1A304K122 BASE,DOOR
4CKM1A137ZC35 PANEL,FRONT(AL)
5CKM1A138C35 BAR,SIDE
6CGL1A218 INDICATER,POWER
7CGW1A365R6G5 PANEL,SUB
8CGL1A219 INDICATER,STAND‑BY
9CBT1A900R6G5 KNOB,POWER
10 CBT1A902R6ZG5 KNOB,OPEN
11 CBT1A901R6ZG5 KNOB,PLAY
12 CMD1A496 BRACKET,FIP
13 CUA1A235 CHASSIS,BOTTOM
14 KHG1A039Z CUSHION,FOOT
15 CKL1A081H30 FOOT
16 CHE1A030 HOLDER,PCB
17 CKC1A146S35 CABINET,TOP
18 CKF2A267Z PANEL,REAR
19£HJJ8A002Z RECEPTACLE
20 KGB1A047Z BADGE,TEAC
21 HFLHNV06SC14T F.I.P
22 COP11634B FRONTPCBASSY
23 COP11609BSMPS SMPSPCBASSY
24 COP11633C AVPCBASSY
25 HJDRL‑S873 DVDMECHANISM
26 CWC3B2A15A340B5 CARDCABLE(SHIELD)
27 CLZ9W003Z FERRITE,RING

3 PC BOARDS AND PARTS LIST
AV PCB
FRONT PCB
−5−

AV PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
COP11633C AVPCBASSY
CUP11633Z AVPCB
CN51 CJP20GA147ZW WAFER,20DUAL
CN52 CJP20GA147ZW WAFER,20DUAL
CN54 KJP15GA117ZG CARDCABLE,WAFER
D501 HVDMTZJ3.3BT DIODE,ZENERMTZJ3.3BT
D502 HVD1SS133MT DIODE,1SS133MT
D503 HVD1SS133MT DIODE,1SS133MT
D504 HVD1SS133MT DIODE,1SS133MT
D505 HVDMTZJ4.7BT DIODE,ZENERMTZJ4.7BT
D506 HVD1SS133MT DIODE,1SS133MT
D507 HVD1SS133MT DIODE,1SS133MT
D508 HVDMTZJ4.3CT DIODE,ZENERMTZJ4.3CT
IC51 HVIBU2098F IC,BU2098F
IC52£HVIKA7808A IC,KA7808A
IC53£HVIKA79L08AZT IC,KA79L08A
IC54 BVIBH7862FS IC,BH7862FS
IC55 HVI74VHC04MX IC,74VHC04MX
IC56 HVIPCM1606E IC,PCM1606E
IC57£HVIKA78L05AZT IC,KA78L05A
IC58 HVINJM2068MDTE1 IC,NJM2068MDTE1
IC59 HVINJM2068MDTE1 IC,NJM2068MDTE1
IC60 HVINJM2068MDTE1 IC,NJM2068MDTE1
JK52 CJJ9N003Z JACK(S‑VIDEO+VHS)
JK53 CJJ4S014Z JACK,IN/OUT(R.G.B)
JK54 HJSTOTX179L MODULE,OPTICAL(TX)
JK55 CJJ4N067Z JACK,2P
JK56 CJJ4R041Z JACK,BOARD6P
JK57 CJJ4M044Z JACK,BOARD
L501 HLQ02CR68KT COIL,0.68UH
L502 HLQ02CR39KT COIL,0.39UH
L503 HLQ02CR68KT COIL,0.68UH
L507 HLQ02C1R8KT COIL,1.8UH
L508 HLQ02C1R8KT COIL,1.8UH
L509 HLQ02C1R8KT COIL,1.8UH
L510 HLQ02C1R8KT COIL,1.8UH
Q501£KVTKSD288Y TR,KSD288Y
Q502 HVTKSA916YT TR,KSA916YT
Q503 HVTKRC107MT TR,KRC107MT
Q504 HVTKRA107MT TR,KRA107MT
Q505 HVTKRA107MT TR,KRA107MT
Q509 HVTKTD1302T TR,KTD1302T
Q510 HVTKTD1302T TR,KTD1302T
Q514 HVTKTD1302T TR,KTD1302T
Q515 HVTKTD1302T TR,KTD1302T
Q516 HVTKTD1302T TR,KTD1302T
Q517 HVTKTD1302T TR,KTD1302T
Q521 HVTKTA1268GRT TR,KTA1268GRT
Q526 HVTKRC107MT TR,KRC107MT
Q527 HVTKTA1268GRT TR,KTA1268GRT
Q528 HVTKRC107MT TR,KRC107MT
Q529 HVTKRA107MT TR,KRA107MT
Q530 HVTKTA1268GRT TR,KTA1268GRT
Q531 HVTKTD1302T TR,KTD1302T
Q532 HVTKRA107MT TR,KRA107MT
AV PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
Q533 HVTKTA1268GRT TR,KTA1268GRT
Q534 HVTKTD1302T TR,KTD1302T
Q535 HVTKTA1268GRT TR,KTA1268GRT
Q536 HVTKTD1302T TR,KTD1302T
Q537 HVTKTD1302T TR,KTD1302T
Q538 HVTKRA107MT TR,KRA107MT
FRONT PCB ASSY
REF.NO. PARTSNO. DESCRIPTION
COP11634B FRONTPCBASSY
CUP11634Z FRONTPCB
CN91 KJP15GA117ZG CARDCABLE,WAFER
CN93 KJP05GA19ZM WAFER
D901 CVD52CSBBCEAB2 LED,BLUE
D902 HVD342YCTB7T089 LED,YELLOW
D904 HVD1SS133MT DIODE,1SS133MT
ET91 CMC1A111 PLATE,EARTH
F901 HFLHNV06SC14T F.I.P
IC91 HVIANAM1375DVD IC,MICOM
IC92 HRVKSM603TH2 REMOCONSENSER
PB91 CMD1A496 BRACKET,FIP
PB92 CMD1A496 BRACKET,FIP
Q902 HVTKRC102S TR,CHIPKRC102S
Q903 HVTKRA102S TR,CHIPKRA102S
Q904 HVTKRA102S TR,CHIPKRA102S
Q905 HVTKRC102S TR,CHIPKRC102S
Q908 HVTKRC102S TR,CHIPKRC102S
Q908 HVTKRC107MT TR,KRC107MT
Q909 HVTKRC102S TR,CHIPKRC102S
Q910 HVTKRA102S TR,CHIPKRA102S
Q911 HVTKRC102S TR,CHIPKRC102S
S901 CST1A012ZT SW,TACT
S902 CST1A012ZT SW,TACT
S903 CST1A012ZT SW,TACT
S904 CST1A012ZT SW,TACT
S905 CST1A012ZT SW,TACT
S906 CST1A012ZT SW,TACT
S907 CST1A012ZT SW,TACT
X901 HOX04000E150C CRYSTAL,4MHZ
−6−

4 INCLUDED ACCESSORIES
−7−
INCLUDED ACCESSORIES
REF.NO. PARTSNO. DESCRIPTION REMARKS
CQX1A848Z OWNER'SMANUAL
CARTDV10D REMOCONASSY
HABAAAM1.5V BATTERY
£HJA2A070Z CORD,POWER
CJS4M023Z CORD,PIN(1P)
CJS4N014Z CORD,PIN
CJS8H003Z OPTICALCABLE

86 74 52 31
E
D
C
B
A
DVD Player
DDVV--1100DD
1 st Issue; September 2003

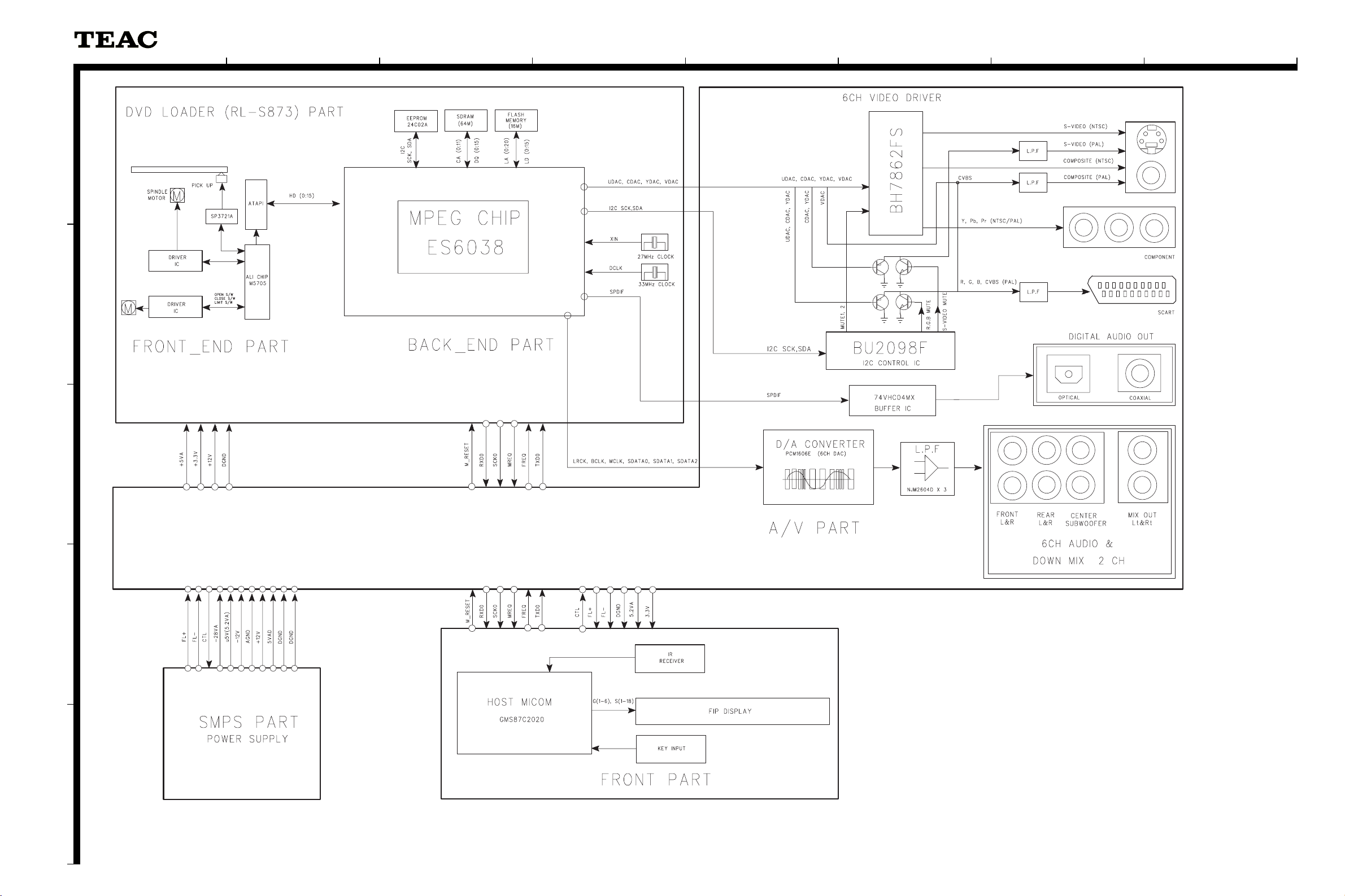

BLOCK DIAGRAM
DV-10D

86 74 52 31
E
D
C
B
A
DVD Player
DDVV--1100DD
1 st Issue; September 2003
WIRING DIAGRAM
DV-10D

86 74 52 31
E
D
C
B
A
SCHEMATIC DIAGRAM
DV-10D
DVD Player
DDVV--1100DD
1 st Issue; September 2003
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
AV PCB (1/2)

86 74 52 31
E
D
C
B
A

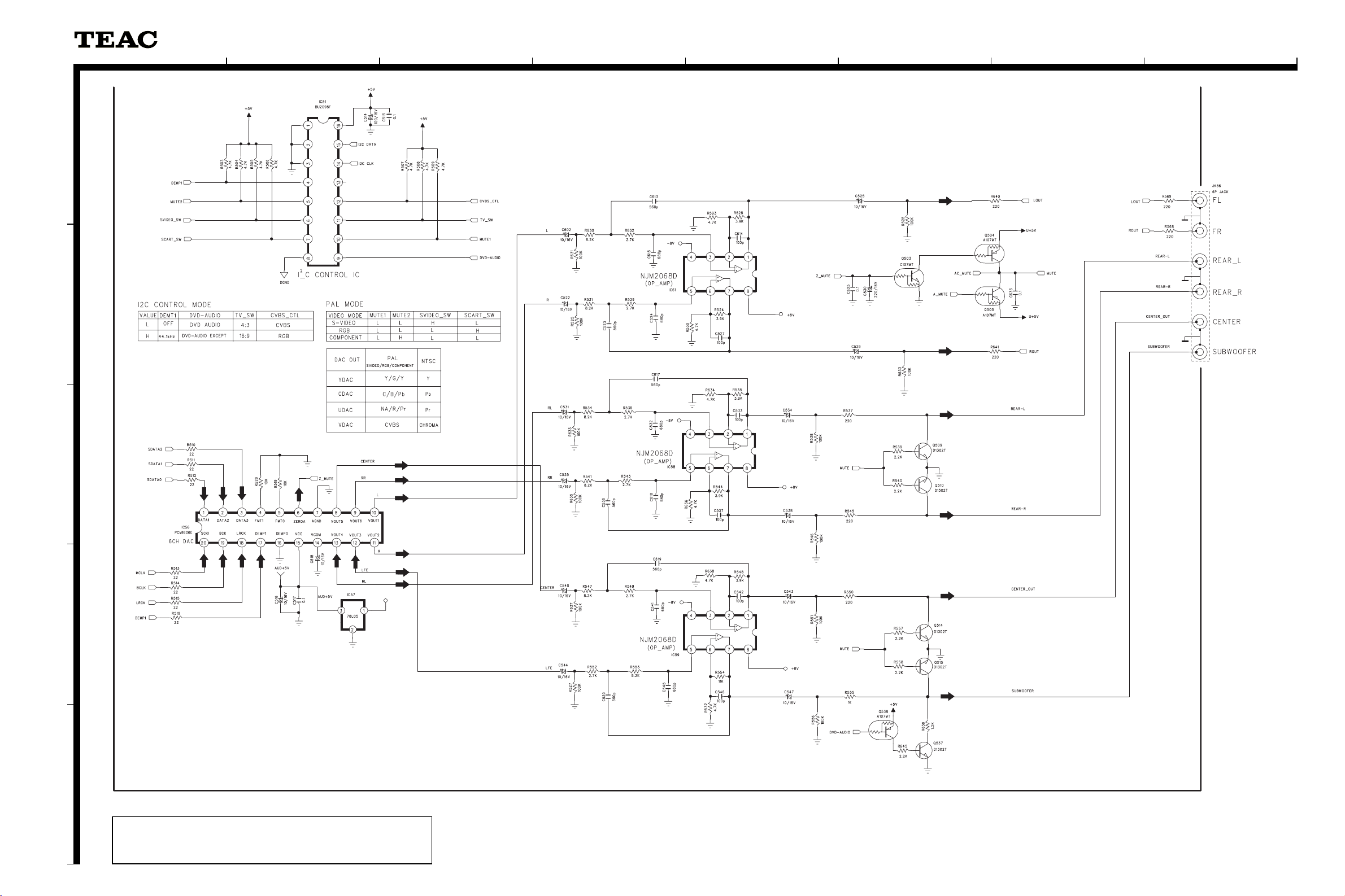

SCHEMATIC DIAGRAM
DV-10D
AV PCB (2/2)
DVD Player
DDVV--1100DD
1 st Issue; September 2003
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.

86 74 52 31
E
D
C
B
A

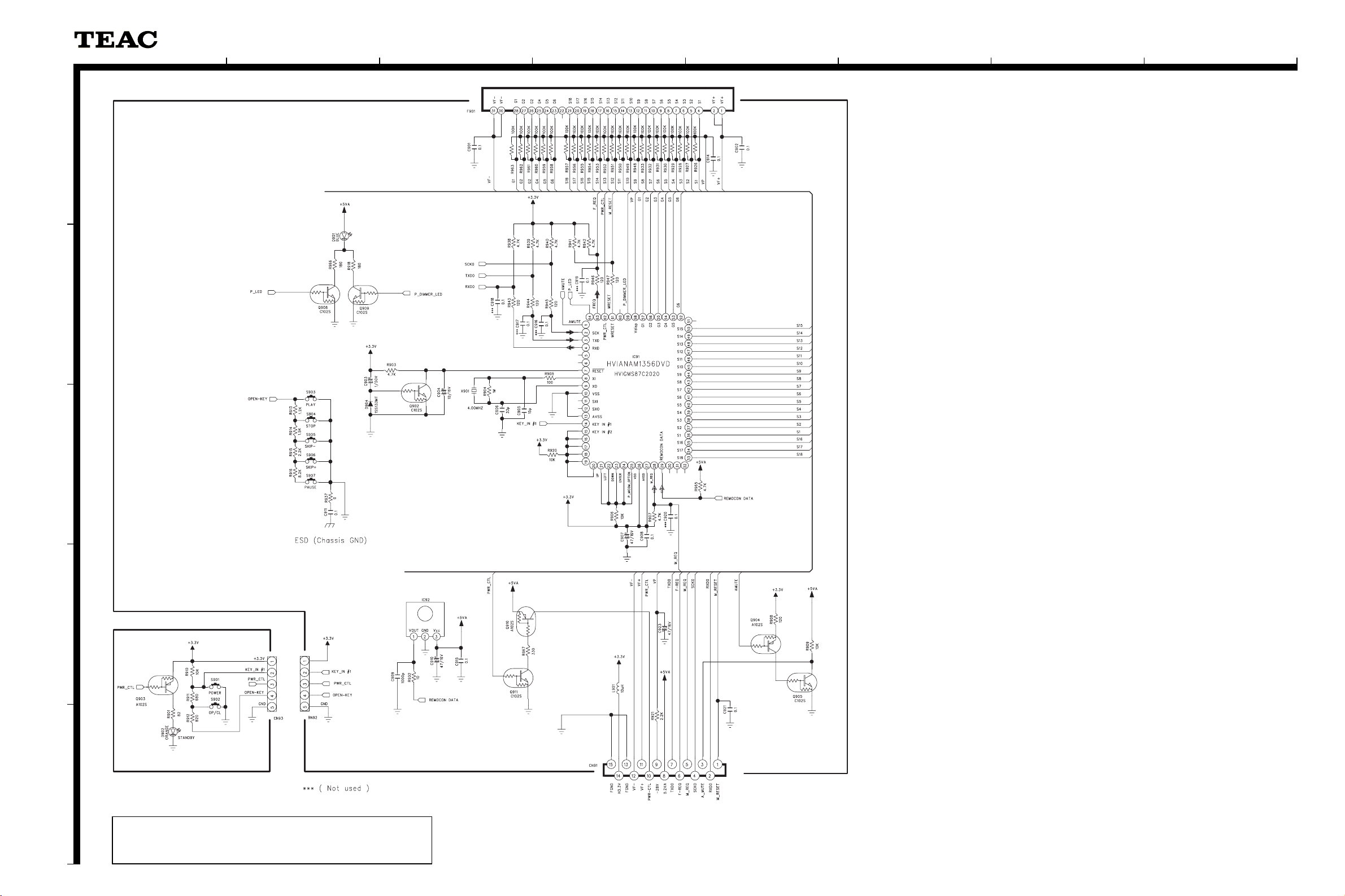

SCHEMATIC DIAGRAM
DV-10D
FRONT PCB
DVD Player
DDVV--1100DD
1 st Issue; September 2003
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
NOTES:
1. Resistor values are in ohms (k=kilo-ohms, M=megohms).
2. Capacitor values are in microfarads (p=picofarads).
3. £Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.

4 52 31
C
B
A

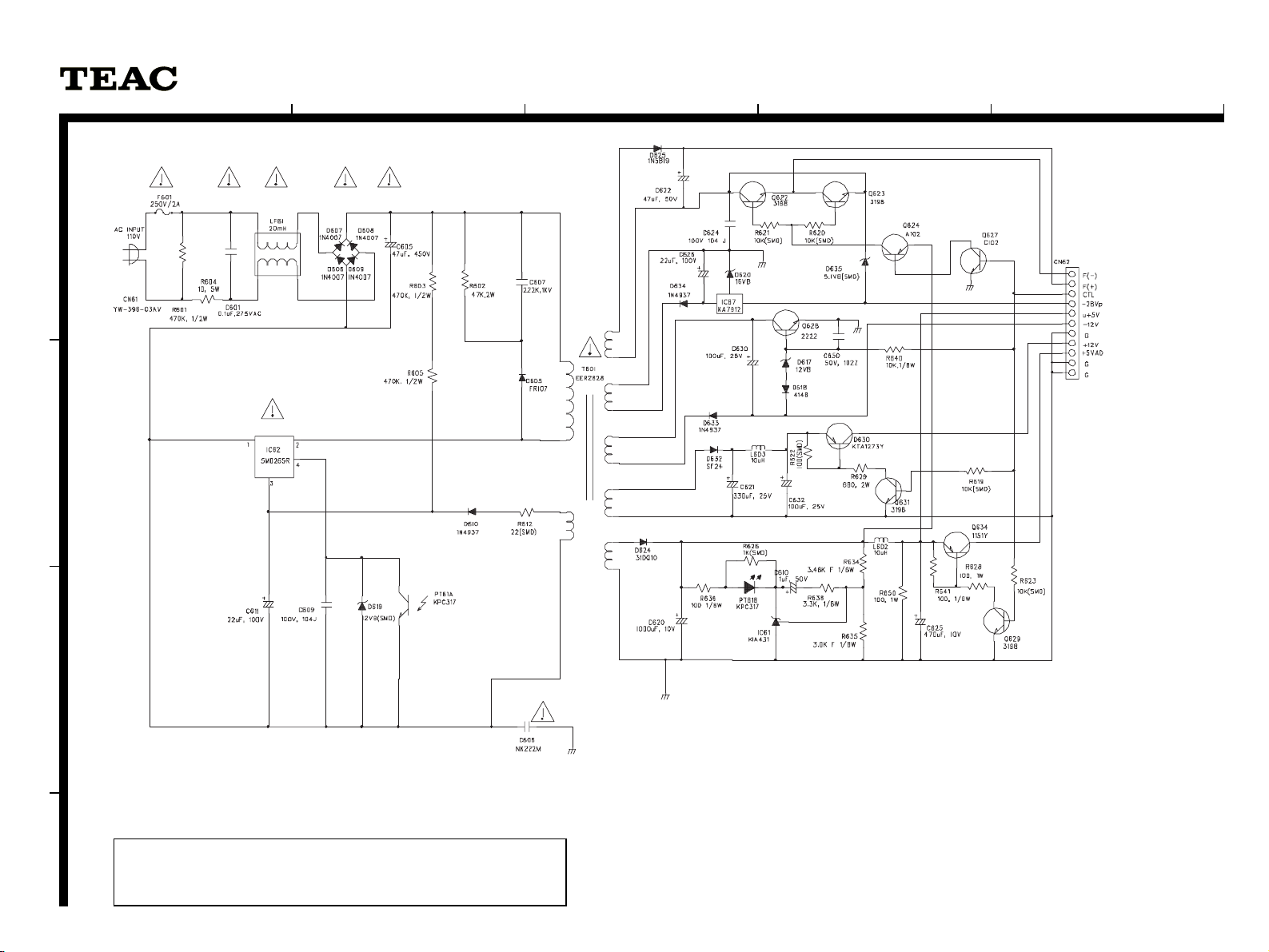

SCHEMATIC DIAGRAM
DV-10D
SMPS PCB
INSTRUCTIONS FOR SERVICE PERSONNEL
BEFORE RETURNING APPLIANCE TO THE CUSTOMER, MAKE LEAKAGE-
CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE SUPPLY CIRCUIT.
1 st Issue; September 2003
DVD Player
DDVV--1100DD
NOTES:
£Parts marked with this sign are safety critical components.
They must always be replaced with identical components-refer
to the appropriate parts list and ensure exact replacement.
