Quick Start Guide
AG-D200
Supplied Accessories
Make sure you have the following accessories:
aIndoor FM antenna
bAM loop antenna
cSpeaker cable labels
dRemote controller and
two batteries (AA/R6)
eSpeaker setup microphone
The AV receiver can automatically perform
speaker and surround settings, so that you
can easily enjoy a surround sound tailored
to your listening environment. Connect the
supplied microphone to the AV receiver and
follow the on-screen instructions.
When performing automatic speaker
setup, connect your TV to the AV receiver
and make the room as quiet as possible.
a
b
c
d
e
3
2
1SpeakerCable
Using the Remote Controller
Batteries (AA/R6)
Approx. 5 m
AV receiver
Remote control sensor
Note
Before connecting the power cord, connect all of your speakers and AV components.
1. Connecting Your Speakers
1 2 9
10
4 5 7 8
36
1
2
Front speakers
3
Center speaker
4
5
Surround speakers
6
Subwoofer
7
8
Surround back speakers
9
10
Front high speakers
Speaker Configuration
5.1-channel:
1
2
3
4
5
6
7.1-channel:
1
2
3
4
5
6
+
7
8
7.1-channel:
1
2
3
4
5
6
+
9
10
Please connect
1
,
2
,
3
,
4
,
5
and
6
for 5.1-channel surround.
12-15mm
Powered
subwoofer
6
Surround
speaker R
5
Surround
speaker L
4
2
Front
speaker R
3
Center speaker
1
Front
speaker L
Surround back or
Front high speaker R
8
10
Surround back or
Front high speaker L
7
9
E n
- 2 -
Red Green White
BlueGray Tan Brown

Connecting Components without HDMI
VIDEO
IN AV OUT
Game
console
TV
The content information is displayed
(lists are displayed) on-screen, and you
can control the contents while looking
at the TV screen.
Portable player
- 3 -
2. Connecting Your Components
Connecting Components with HDMI
HDMI
IN
HDMI
OUT
HDMI
OUT
HDMI
OUT
HDMI
OUT
Please turn on “HDMI Ctrl (RIHD)”
from the setup menu.
Blu-ray Disc/
DVD player
TV
Satellite/cable
set-top box, etc.
VCR or DVD recorder/
digital video recorder
Game
console
The components connected to each terminal (BD/DVD, GAME, etc.) can be selected with the input selector buttons of the same
name on the front panel. Note that these default assignments can be changed. For details, please refer to the instruction manual.
Listening to TV audio (Optional)
HDMI
IN
DIGITAL
OPTICAL
OUT
AUDIO
OUT
L
R
TV
Choose an audio connection that matches
your TV (without Audio Return Channel).
When using a TV that supports Audio Return Channel,
both audio/video signals from the AV receiver and the
audio output from the TV are carried bi-directionally on
a single HDMI cable.
■
- 4 -

3. Turning On & Basic Operations
1 5 2 4
5
1
4
2
1Turn on the AV receiver.
2Select the input source.
3Start playback on the source component.
4Adjust the volume.
5Select a listening mode and enjoy!
- 5 - - 6 -
4. Using the Setup User Interface
The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs,
use the AV receiver’s display when changing settings.
Tip
If the menu doesn’t appear, make sure the appropriate external input is selected on your TV.
Home Menu
The Home menu provides you quick access to frequently used
menus. This menu enables you to change settings and view
the current information.
Opening the Home menu
12
Home
I tnp u AM
A du i o
I n f o
L i i Mod egn nets
FM
TV CD
USB
elec t ]
:S Ern t
[e
Navigating through the menus
Input
You can select the input source.
Audio
You can change various audio settings such as tone
controls, the subwoofer and center channel levels.
Info
You can view various information about the currently
selected input source.
Listening Mode
You can select the listening modes that are grouped
in categories.
Closing the menu
■
■




■
Setup Menu
The Setup menu provides extended setup that includes
settings for advanced users. All the settings are organized in a
user-friendly structure, which covers the whole TV screen area.
Opening the Setup menu
12
Menu
1. HDMI Input
2. Component
3. Digital Audio
4. Sp Config
5. Sp Distance
6. Level Cal
7. Audio Adjust
8. Source Setup
9. Hardware
10. HDMI Setup
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TUNER
TV/CD
Navigating through the menus
Returning to the main menu
Closing the menu
Note
This procedure can also be performed on the AV receiver by
using SETUP, the cursor buttons, and ENTER.
■
■
■
■
•
•

Remote Controller
a
k
l
m
f
d
c
b
j
i
h
g
e
To control the AV receiver, press RECEIVER to select
Receiver mode.
aSets the AV receiver to On or Standby.
bSelects the remote controller modes or the input sources.
cSelects and adjusts settings.
dAccesses the setup menus.
eSelects listening modes.
fAdjusts the display brightness.
gAdjust the bass and treble.
hMutes or unmutes the AV receiver.
iDisplays various information about the currently selected
input source.
jAdjusts the volume.
kReturns to the previous menu.
lAccesses the HOME menu.
mUsed for the Sleep function.
6. Troubleshooting
Can’t turn on the AV receiver.
Make sure that the power cord is properly plugged into the wall outlet.
The AV receiver turns off unexpectedly.
The AV receiver will automatically enter standby mode when Auto Standby is set
and launched.
There’s no sound, or it’s very quiet.
Make sure that the proper digital source is selected.
There’s no picture.
Make sure that all video connecting plugs are pushed in all the way.
If you can't resolve the issue yourself, try resetting the AV receiver before
contacting the dealer from whom you purchased this unit.
To reset the AV receiver to its factory defaults, turn it on and, while holding
down VCR/DVR, press STANDBY/ON. “Clear” will appear on the
AV receiver’s display and the AV receiver will enter standby mode.
Note that resetting the AV receiver will delete your radio presets and
custom settings.

TEAC AUDIO EUROPE [Europe Head Oce] Liegnitzer Straße 6, 82194 Gröbenzell, Germany Tel: [phone]-141
Website: www.teac-audio.eu e-Mail: [email protected]
TEAC AUDIO EUROPE [UK Branch Oce] Unit 19, Building 6 Croxley Green Business Park Hatters Lane Watford Hertfordshire WD18 8YH United Kingdom
e-Mail: [email protected]
MA-1833A
- 7 -

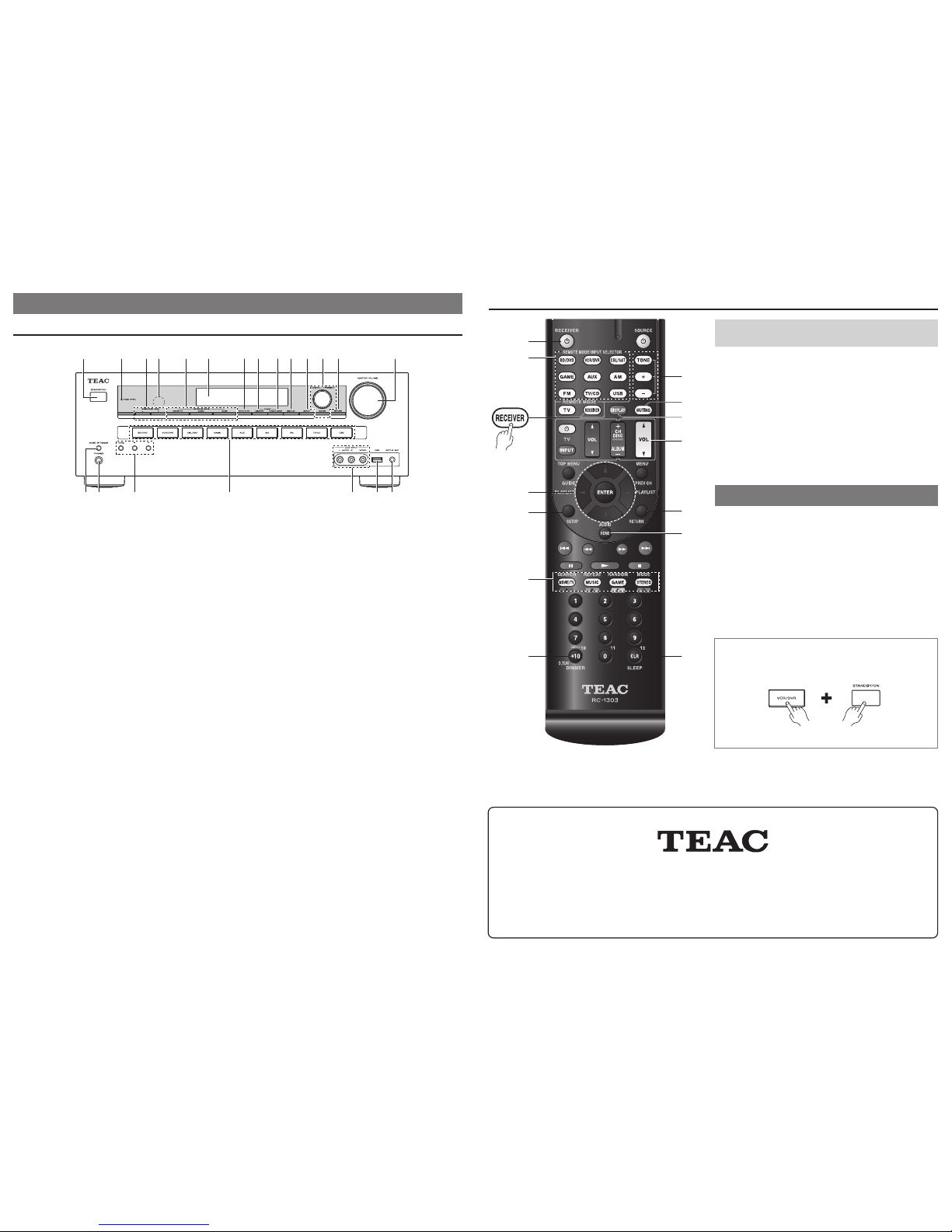

5. Getting to Know the AV receiver
Front Panel
a b cde gf h i j k l m n
r s t u
p qo
Each input selector button (BD/DVD, GAME, etc.) selects the input terminal with the same name on the rear panel.
Note that these default assignments can be changed. For details, please refer to the instruction manual.
aSets the AV receiver to On or Standby.
bLights when the HDMI through function is enabled.
cAdjusts the subwoofer level.
dThe remote control sensor receives signals from the
remote controller.
eSelects listening modes.
fDisplays various information.
gRT/PTY/TP: Used for RDS (Radio Data System)
RDS works only in areas where RDS broadcasts are available.
hStores or deletes radio presets.
iSelects the Auto or Manual tuning mode.
jDisplays various information about the currently selected
input source.
kAccesses the setup menus.
lWhen the AM or FM input source is selected, wTUNING qare
used to tune the tuner, and e PRESET rare used to select
radio presets.
When used with onscreen menus, they work as cursor buttons
to select and set items. ENTER is also used with
onscreen menus.
mReturns to the previous menu.
nAdjusts the volume.
oThe Music Optimizer function enhances the sound quality of
compressed music files.
pConnects a standard pair of stereo headphones.
qAdjusts the tone.
rSelects the input sources.
sConnects a camcorder or similar for audio/video playback.
tConnects a USB storage or portable player for playback of
music files.
uConnects the speaker setup microphone.
