TECHLIGHTING ELEMENT E3-L AE Series User manual

Installation Instructions for 920E3 -LED AE
Round or Square Chicago Plenum Adjustable Housing
with LampEmergency Battery Backup and LED
E3_-L_AE 1.4
1
LED ROUND SQUARE-/

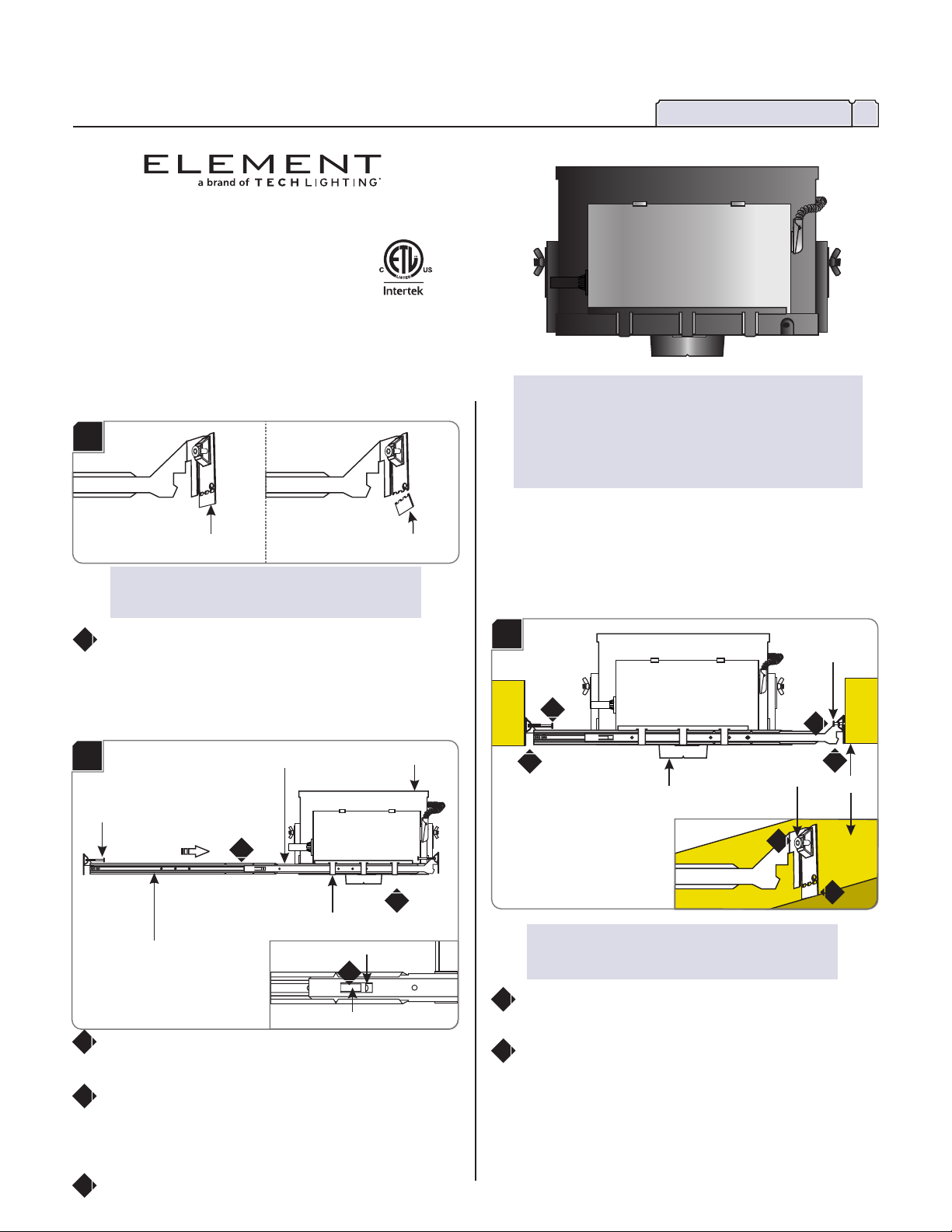

Install the Housing with Adjustable Bars
1A
BREAK OFF
AND DISCARD
¾” or thicker
½” to ¾”
LEAVE TAB
IN PLACE
Keep Tab for ceiling ½”to ¾” thick.
When using adjustable hanger bars with ½”to ¾” thick
ceilings, leave the tab of the hanger bars in place.
Break off Tab for ceiling ¾”or thicker.
When using adjustable hanger bars with ¾”or thicker
ceilings, remove the tab by bending it at the perforation.
1
NOTE: Skip this section if installing the housing
with butterfly brackets.
HOUSING CLASP
HOUSING
1B INNER ADJUSTABLE BAR
OUTER ADJUSTABLE BAR
TAB
STOP POINT
3
3
NAIL
2
2
3
4
Slide the inner adjustable bar completely through the
three housing clasps. Make sure the nail is on top.
Slide and push the outer adjustable bar completely onto
the inner adjustable bar so that the tab clicks into place
behind the stop point.This will prevent the adjustable bars
from coming apart.
Repeat steps 2 & 3 for the other side of the housing.
GP I :ENERAL RODUCT NFORMATION
This product is suitable for indoor locations.
This product can be dimmed with a standard electronic dimmer.
This instruction shows a typical installation.
CAUTION RISK OF FIRE-
This product must be installed in accordance with the
applicable installation code by a person familiar with the
construction and operation of the product and the
hazards involved.
Use minimum 90°c supply conductors.
1C
COLLAR
NAIL
JOIST
NAIL
55
6
6
NOTE: The adjustable bars can be mounted to
joists that are spaced 16" - 24" apart.
Align the bottom of the end plates with the bottom of the
ceiling joists.
Level the adjustable bars and, with a hammer, tap the nails
completely into the joists to secure the adjustable bars in
place.
5
6
5
6

2
PRESS TO
UNLOCK TILT
ADJUSTABLE BAR
NOTCH
1D
HOUSING
ADJUSTABLE BAR
8
COLLAR
NOTCH
#6 SELF TAPPING SCREW
HOUSING
9
9
COLLAR

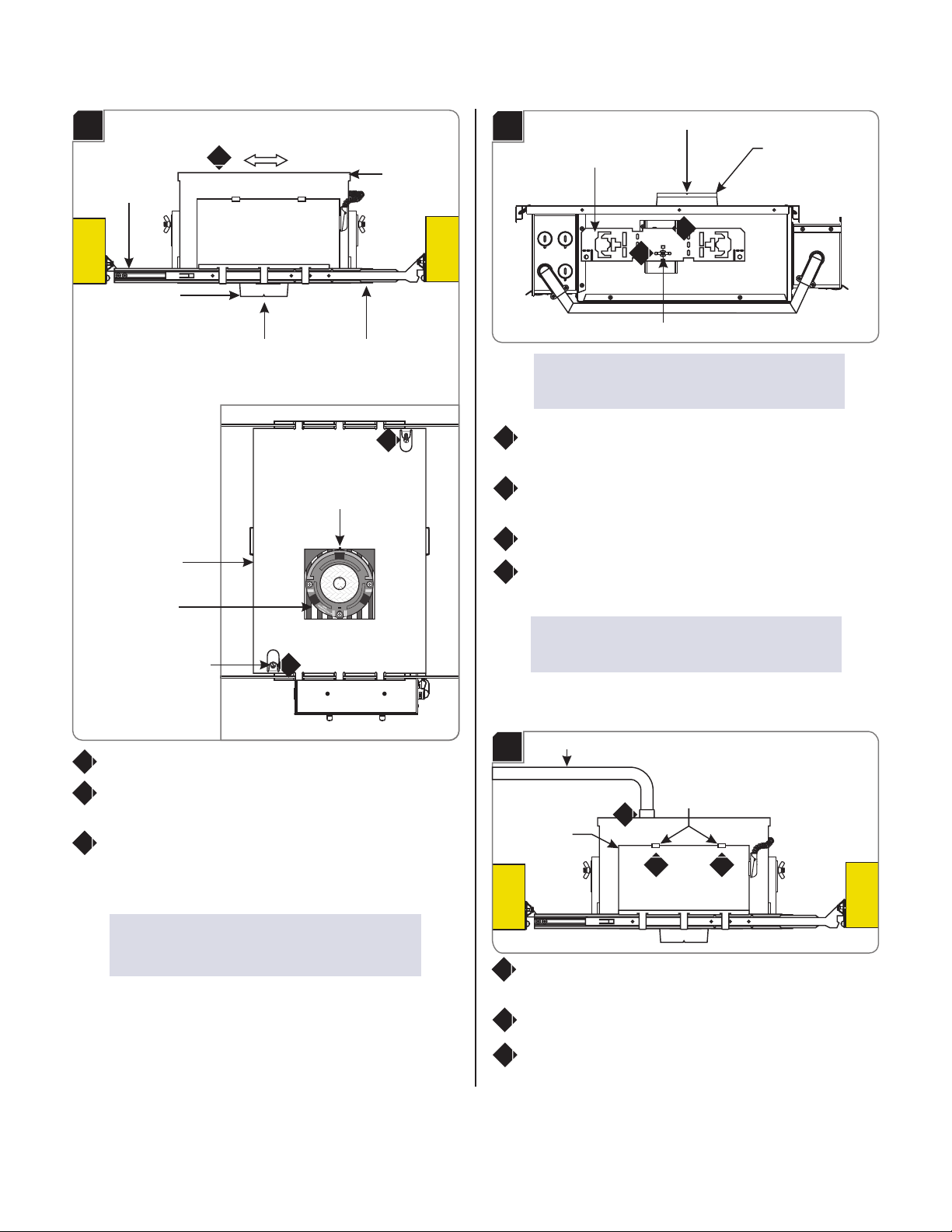

Install the Housing with Butterfly
Brackets
2A
Slightly loosen the wing nut to slide the butterfly bracket
up or down.
After achieving the proper location, tighten the wing nut
to secure the butterfly bracket in place.
Repeat steps 1 and 2 on for the other butterfly bracket.
Utilize the butterfly brackets to install the housing in
accordance with local electrical codes.
1
2
3
4
NOTE: Skip to section 3 if installing the housing
with adjustable bars.
TIP: Notches in collar can be used to align
multiple housings using a laser or string.
BUTTERFLY
BRACKET COLLAR
WING NUT
1
2
NOTCH
Connect Power to the Housing
Push up on the tabs on the electrical box and remove the
electrical box cover.
Install the conduit to the housing electrical box.
Run the power line wires into the housing electrical box.
1
3A
TABS
ELECTRICAL
BOX COVER
1 1
CONDUIT
2
3
2
Carefully cut and remove the zip ties from the housing.
Adjust the collar position (horizontal position) by sliding
the housing on adjustable bars.
When the desired location is achieved, tighten the two #6
self tapping screws to lock the housing onto the adjustable
bars.
7
8
NOTE: Notches in the collar can be used to
align multiple housings using a laser or string.
9

33

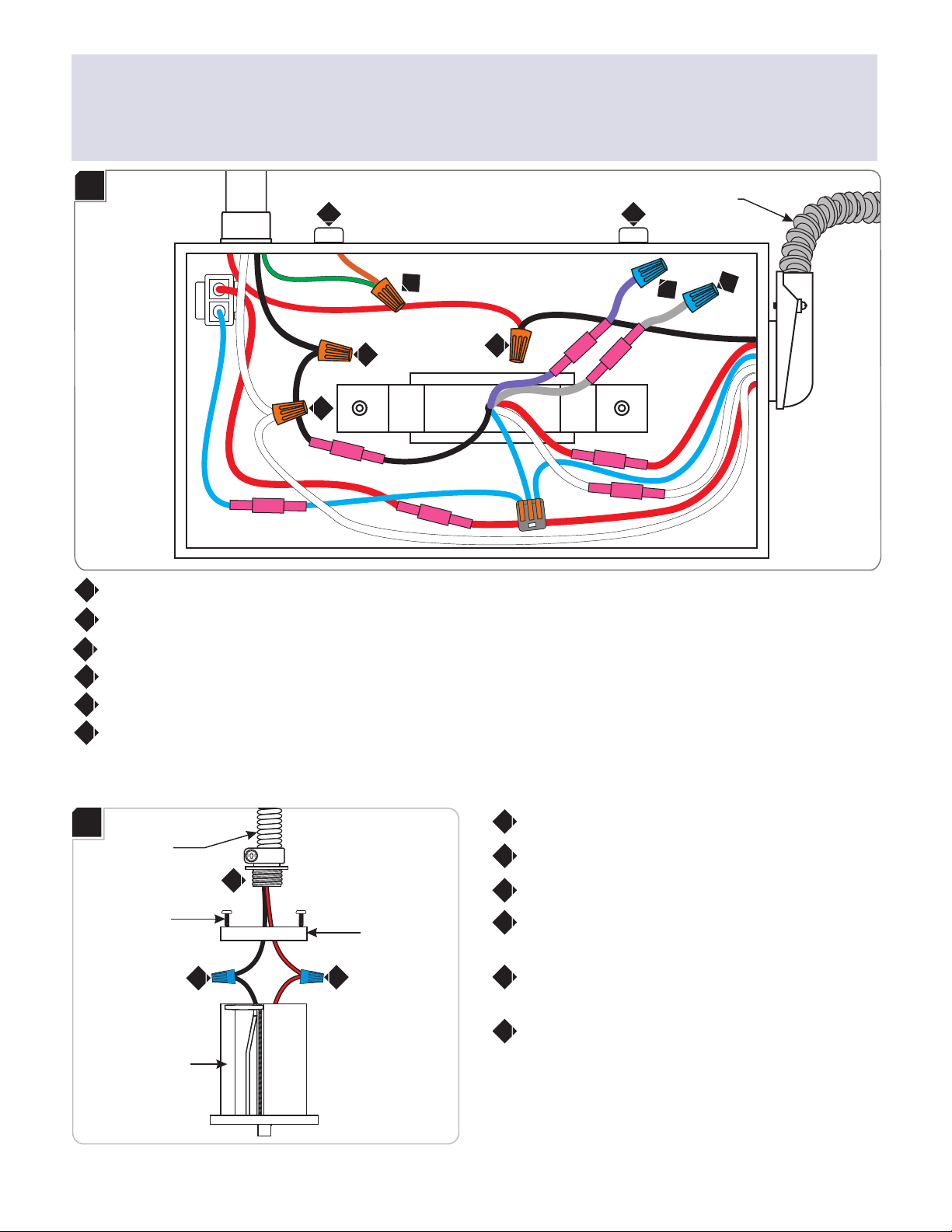

Connect the neutral power line wire to the white wire from the fixture conduit with a wire nut.
Connect the constant hot power line wire to the black wire from the fixture conduit with a wire nut.
Connect the switch hot power line wire to the black transformer wire with a wire nut.
Make sure that housing is grounded in accordance with local electrical codes.
For models with a 0-10V dimming driver, use the purple and gray wires to connect to a compatible dimmer.
Replace the electrical box cover. Make sure that the top edge of the cover snaps under both tabs.
4
6
5
7
3B
FIXTURE
CONDUIT
4
65
7
9 9
8
8
8
9
FLEXIBLE
CONDUIT
#6-32 SCREW
1
2
3
4
4A
5
Unscrew the #6-32 screws to open the test switch port.
Disconnect the wires.
Unscrew the back ring from the flexible conduit.
Replace the back ring onto the port so the end of the
wing screws are properly placed in the two blind holes.
Replace and tighten the #6-32 screws to secure the
back ring onto the test switch port.
Keep the test switch port assembly in a safe place while
the drywall is being installed.
3
22
BACK RING
TEST SWITCH PORT
6
Prepare the Test Switch Port
NOTE: When a fixture is installed in a location that requires servicing from below the ceiling through the fixture aperture, the branch
circuit connections need to be able to be brought out through the aperture.To accomplish this, an NM type cable in conjunction
with snap-in/push-in connectors must be used and a 12” service loop must be left available outside of the fixture housing wiring
compartment to allow additional branch circuit wiring to be pulled through the snap-in/push-in connector and extended out
through the aperture below ceiling level.

4
Install Drywall

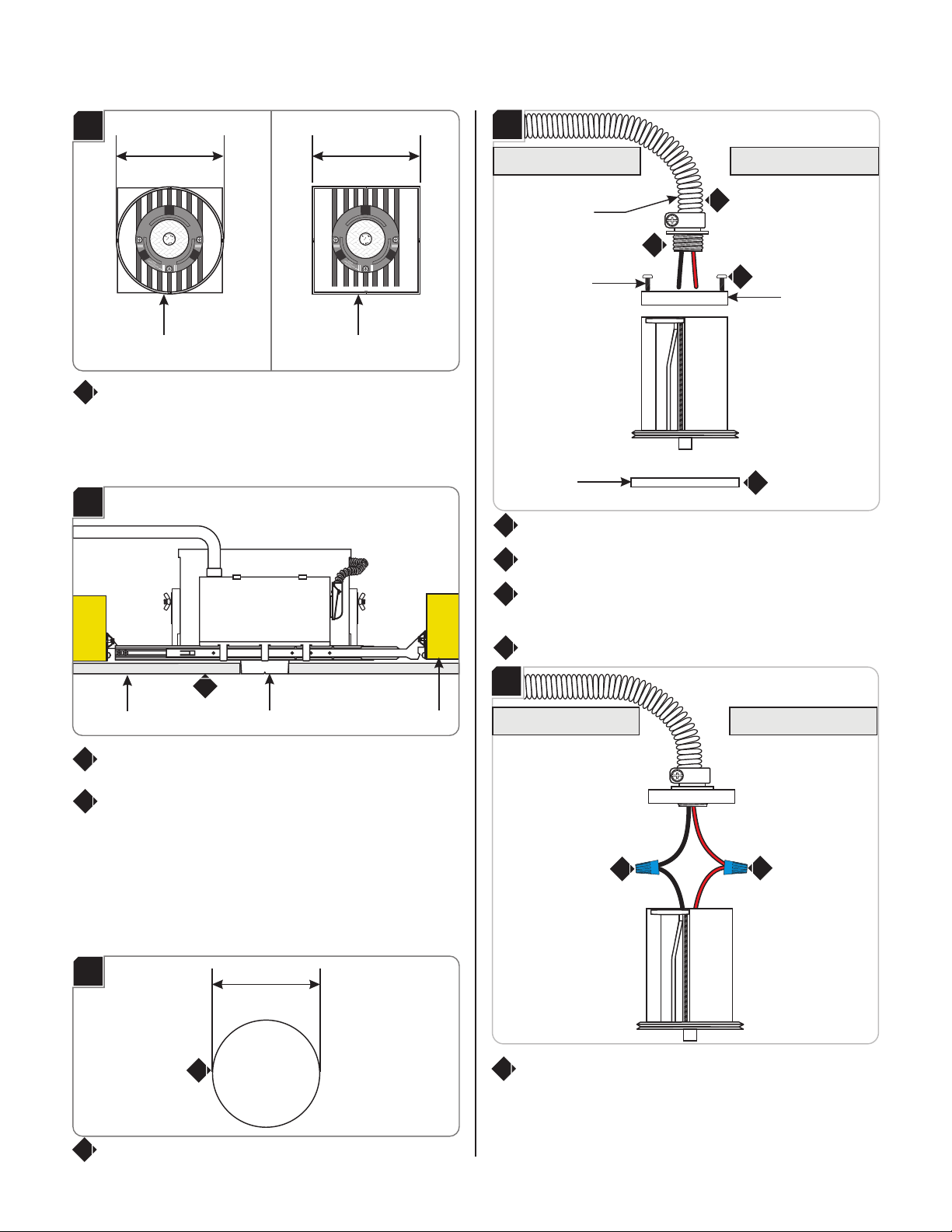

Align the cut out section of drywall with the collar and
install drywall.
Please follow instructions provided with emergency
battery backup to complete installation of the test switch.
5B
2
DRYWALL COLLAR JOIST
2
3
6A
Use a 1-9/16" hole saw to cut out the ceiling or wall
where the test switch will be installed.
1
1
1-9/16"
Install Remote Test Switch
FLEXIBLE
CONDUIT
#6-32 SCREW
BACK RING
CAP
Bring the flexible conduit out of the 1-9/16” hole.
Unscrew the #6-32 screws and remove the back ring.
Screw the back ring (from the face with two holes) to
the flexible conduit.
Unscrew the cap from the test switch port.
5
3
4
2
2
3
4
5
6B
Connect the red and black wires in the test switch port
to the same color wire in the flexible conduit using wire
nuts.
6
66
6C
LENS
ORIENTATION
GUIDES
LENS
ORIENTATION
GUIDES
5A 3-7/8"
ROUND COLLAR SQUARE COLLAR
For round trims, mark a 3-7/8" diameter circle on drywall.
Cut out the marked section.
For square trims, mark a 3-7/8" square on drywall. Cut out
the marked section.
1
3-7/8"

5
#6-32 SCREW
BACK RING

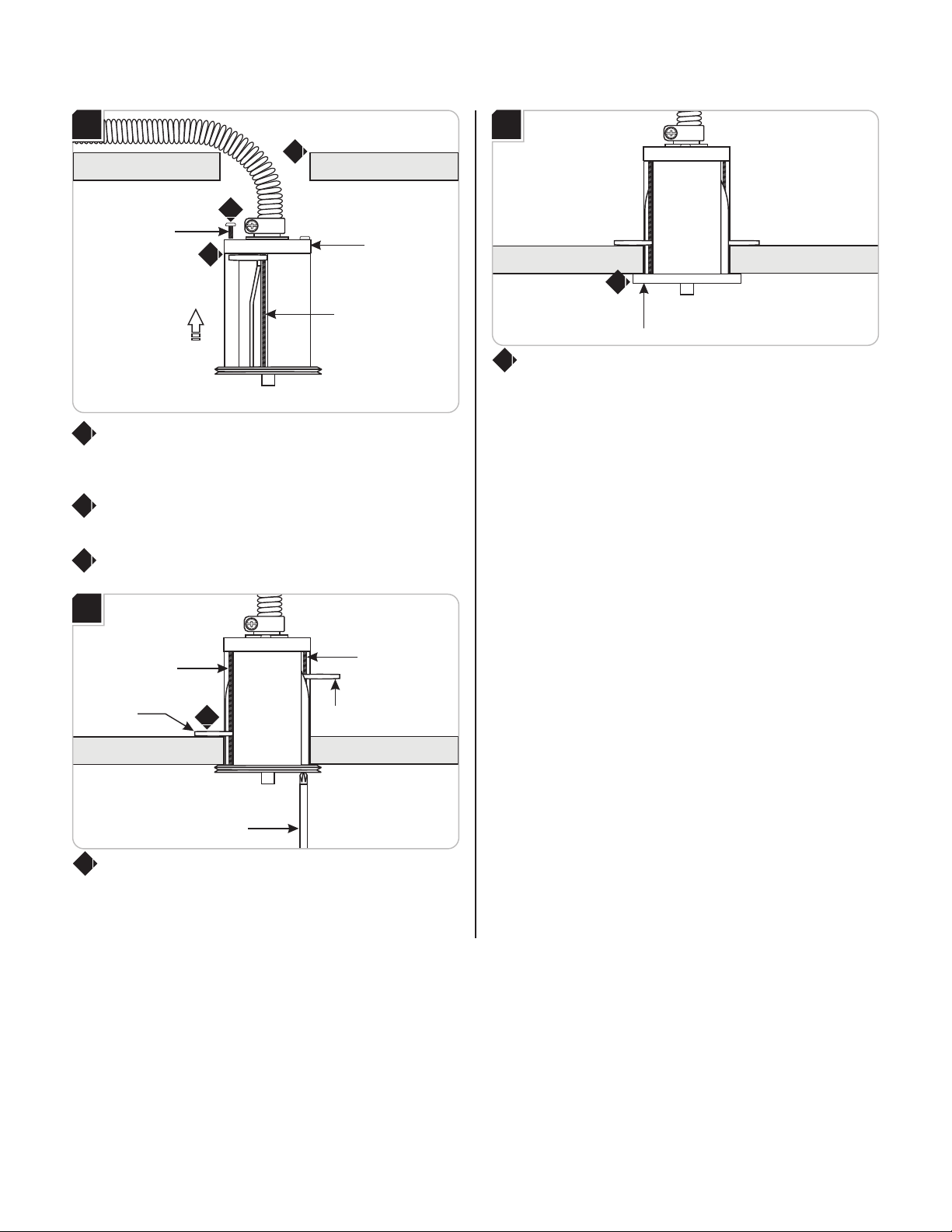

Replace the back ring onto the test switch port so the
end of the wing screws are properly placed in the two
blind holes.
Replace and tighten the #6-32 set screws to secure the
back ring onto the test switch port.
Push the test switch port completely into the hole.
WING SCREW
8
9
8
7
8
9
6D
Replace and tighten the cap.
11
CAP
11
6F
WING
WING SCREW
WING SCREW
PHILLIPS SCREWDRIVER
WING 10
Tighten the two phillips screws (an electric screwdriver
will help) until the wings secure the test switch port into
the hole.
10
6E

PRESS TO
UNLOCK TILT
7A TAB
CUT OUT

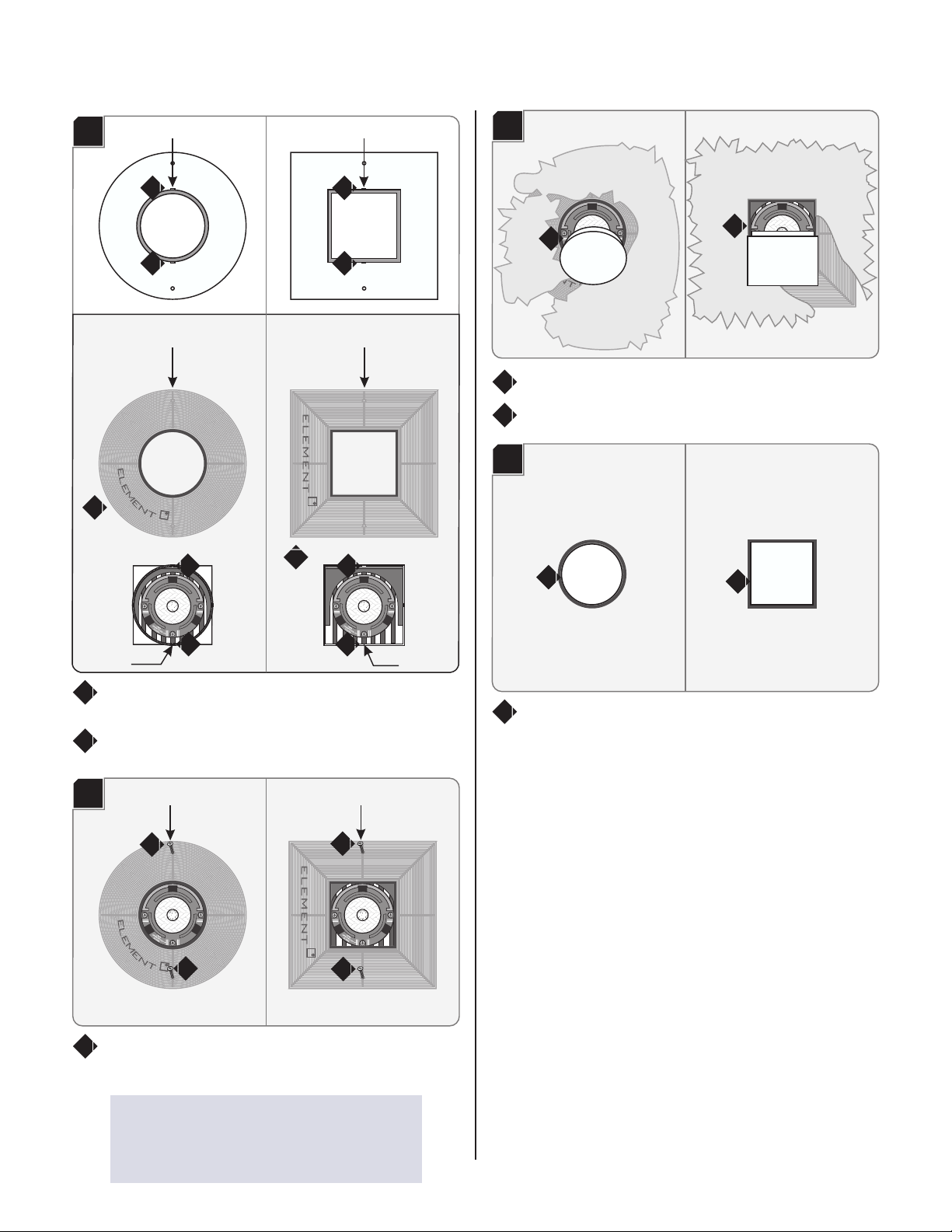

Line up the two tabs in back of the plaster ring with the
two cut out sections of the collar's inside edge.
Push the plaster ring tabs into the cut out sections of the
collar's edge.
1
ROUND PLASTER RING SQUARE PLASTER RING
CUT OUT
PRESS TO
UNLOCK TILT
TAB
2
1
1 1
1
2
2
1
11
1
Install Plaster Ring
(For Flangeless Versions)
7B
LENS LOCK
PRESS TO
UNLOCK TILT
PRESS TO
UNLOCK TILT
LENS LOCK
#8-32 SCREW #8-32 SCREW
Secure the plaster ring in place with the two provided flat
head #8-32 screws. Make sure that the screws penetrate
through the drywall into the housing screw holes.
3
3
3
3
3
NOTE: Do not overtighten the screws!
Overtightening may bend the plaster ring,
causing the plaster surface to come away from
the drywall.
6
LENS LOCK
LENS LOCK
Plug the collar with the provided dust shield.
Properly plaster onto the plaster ring and drywall.
4
7D
Finish around the trim to match drywall.
6
66
5
7C
LENS LOCK
PRESS TO
UNLOCK TILT
LENS LOCK
PRESS TO
UNLOCK TILT
4
4

PRESS TO
UNLOCK TILT

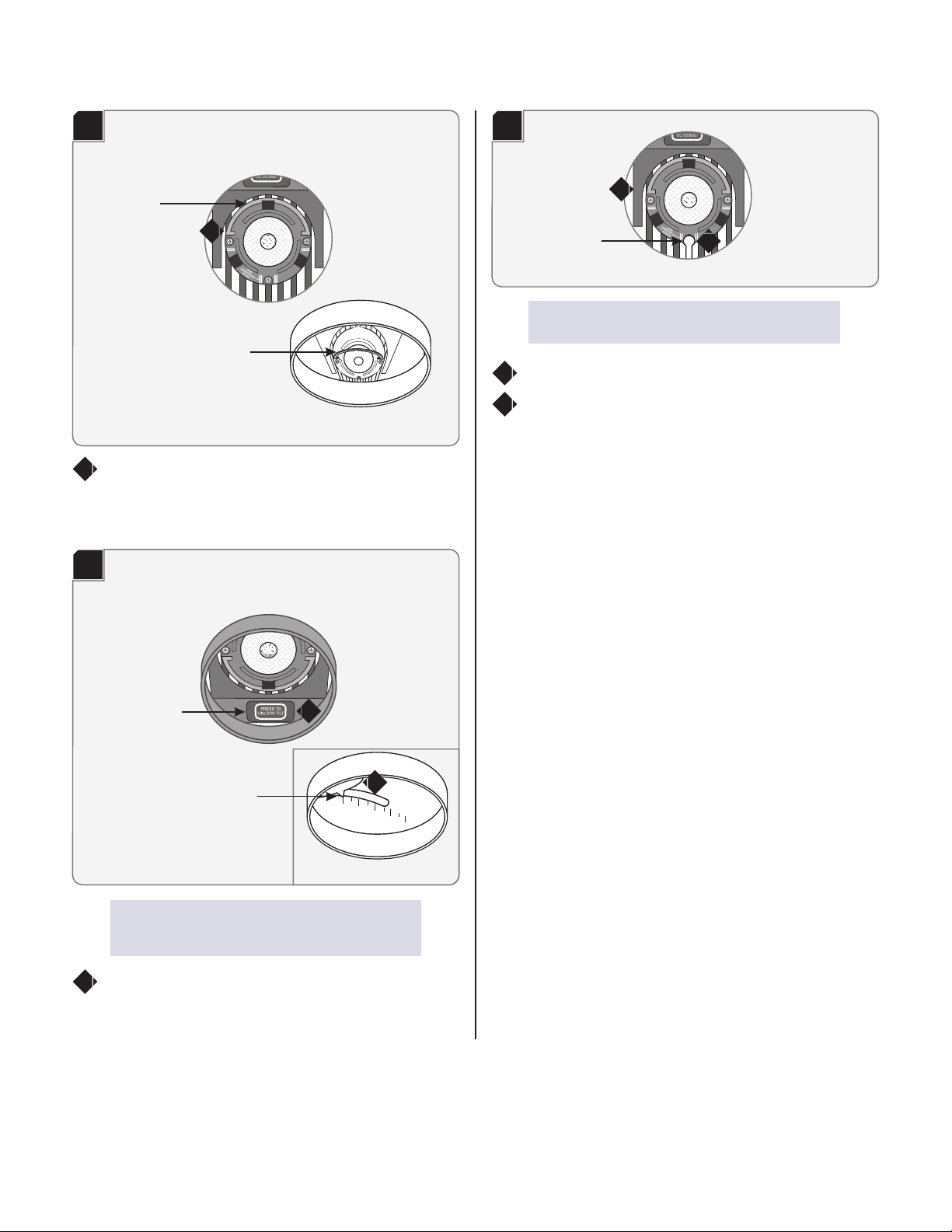

Adjust the Lamp Housing
1To adjust the height, push up the lamp cartridge assembly
to minimize glare and flash on the trim. Pull down the
assembly using the bucket handle for maximum light
output and efficiency .
BUCKET
HANDLE
1
8A
BUCKET
HANDLE
7
LENS LOCK
8B
2To tilt the lamp housing, unlock the tilt adjustment lever by
pressing where indicated using a finger or screwdriver and
position the assembly until the desired angle is reached.
NOTE: Lamp housing can tilt 40° vertically. Lock
intervals are 2.5° apart.
INDICATOR
2
2
0
10
20
30
40
o
o
o
o
o
TILT ADJUSTMENT
LEVER
PRESS TO
UNLOCK TILT
ROTATION LOCK 3
4
NOTE: Lamp housing can rotate 361° horizontally.
3Pull the rotation lock down to unlock the lamp housing.
Rotate the lamp housing horizontally.When the desired
position is achieved push the rotation lock up to lock the
lamp housing in place.
4
8C

8
2
3
Line up the legs of the lens holder with the notches on the
lamp holder and push the lens holder on.
3
33
3
Use the lens orientation guides to align linear spread
lenses vertically or horizontally.
2
Vertical Alignment
Guides
Horizontal Alignment
Guides
2
2

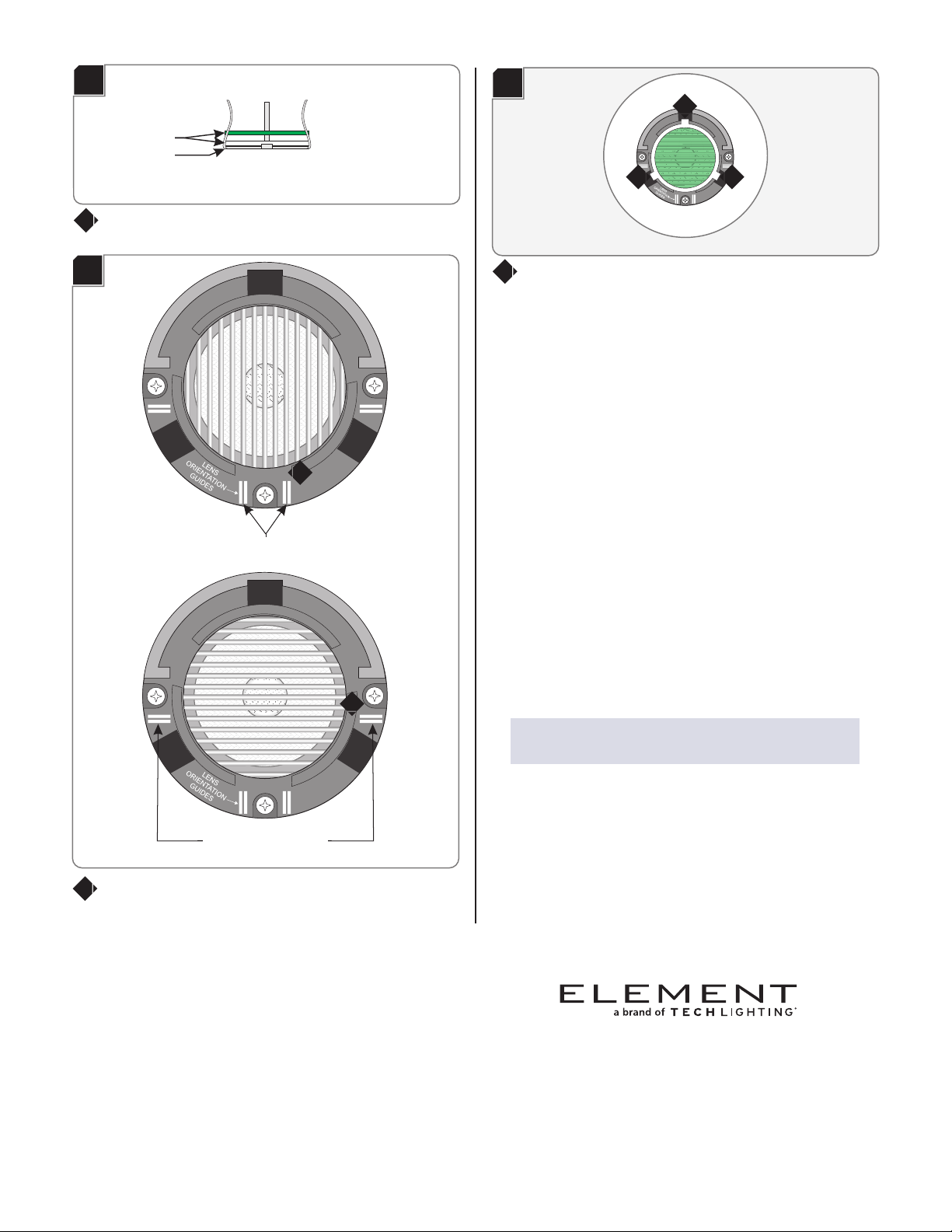

Install the Lenses (Optional)
LENS HOLDER
Place lenses (max. 2, optional) inside the lens holder.
1
LENSES
9A
9B
9C
SAVE THESE INSTRUCTIONS!
7400 Linder Ave.
Skokie, 60077IL
847.410.4400
www.element-lighting.com
© 2019 Tech Lighting, L.L.C. All rights reserved.The "Element" graphic
is a registered trademark of Element. Element reserves the right to
change specifications for product improvements without notification.
