Technaxx®* User Manual
HD Outdoor Camera with LED Lamp TX-106
The Declaration of Conformity for this device is under the Internet link:
www.technaxx.de/ (in bottom bar “Konformitätserklärung”). Before using the
device the first time, read the user manual carefully.
Service phone No. for technical support: 01805 012643 (14 cent/minute from
German fixed-line and 42 cent/minute from mobile networks).
Free Email: supp[email protected]
If you drill a hole in the wall, please make sure that power cables, electrical
cords and/or pipelines are not damaged. When using the supplied mounting
material, we do not take the liability for a professional installation. You are
entirely responsible to ensure that the mounting material is suitable for the
particular masonry, and that the installation is done properly. Also ensure that
the mounting place is strong enough to hold this heavy device. When working
at higher altitudes, there is danger of falling! Therefore, use suitable
safeguards.
Keep this user manual for future reference or product sharing carefully. Do
the same with the original accessories for this product. In case of warranty,
please contact the dealer or the store where you bought this product.
Warranty 2 years
Enjoy your product. Share your experience and opinion on one of the
well-known internet portals.
Features
Multi functional: video recording with sound, photo, light
PIR motion detection of 120° angle up to ~7m (open areas)
PIR trigger time 1–1.5 seconds
Light in high brightness of 150 lumen (2W) up to ~8m distance
(open areas) & luminous time ~20 seconds
Alarm at low battery by LED indicator light
Stand alone device powered by batteries
Wall mounting (360° rotation, 180° up/down)
Many other mounting possibilities e.g. in the garden with the
ground mounting holder
Protection class IP65 (dust & waterproof)

2
Technical specifications
Image sensor
1/3" CMOS 2MP
Video format / Video file
1080p, 25fps / MP4
Photo format / Photo file
1920x1080 Pixel / JPEG
Camera lens
F=2.0, FOV 92° horizontal / 92° vertical
PIR
max. distance ~7m / angle 120° / trigger time
1–1.5 sec.
Light
distance ~8m / power 2W, 150 lumen (20W
incandescent bulb) / Colour: 6000–6500 Kelvin
Storage
MicroSD* card up to 32GB (Class10)
[*not included]
Power supply
4x D-cell alkaline batteries* 1.5V
[*not included, not rechargeable]
Ø duration
battery life
Video mode 20x at night ~2.5 month
Photo mode 20x at night ~3 month
Light mode 20x at night ~2 month
Low battery
4.5-4.8V (LED is blinking in red)
<4.5V (LED is solid red)
Operation temperature
–10°C up to +40°C
Weight / Dimensions
400g / (L) 19.5 x (W) 15.0 (H) 10.5 cm
Package
Contents
HD Outdoor camera with LED lamp TX-106, 1x
Ground mounting holder, 3x Screws with dowels,
User Manual
Note: These parts are needed to operate but are not included.
4x D-Alkaline batteries, 1x MicroSD card (Class10) up to 32GB
(FAT32 formated), MicroSD card reader or other device to
download media from MicroSD card to PC, PC to set time and
date (use “time.txt file”) watch the recorded video and photo
files).
Security and Disposal Hints for Batteries: Hold children off batteries. When
a child swallowed a battery go to a doctors place or bring the child into a
hospital promptly! Look for the right polarity (+) and (–) of batteries! Always
change all batteries. Never use old and new batteries or batteries of different
types together. Never short, open, deform or load up batteries! Risk of injury!
Never throw batteries into fire! Risk of explosion!
Hints for Environment Protection: Packages materials are raw materials
and can be recycled. Do not disposal old devices or batteries into the
domestic waste. Cleaning: Protect the device from contamination and
pollution (use a clean drapery). Avoid using rough, coarse-grained materials
or solvents/aggressive cleaner. Wipe the cleaned device accurately.
Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388
Frankfurt a.M., Germany

3

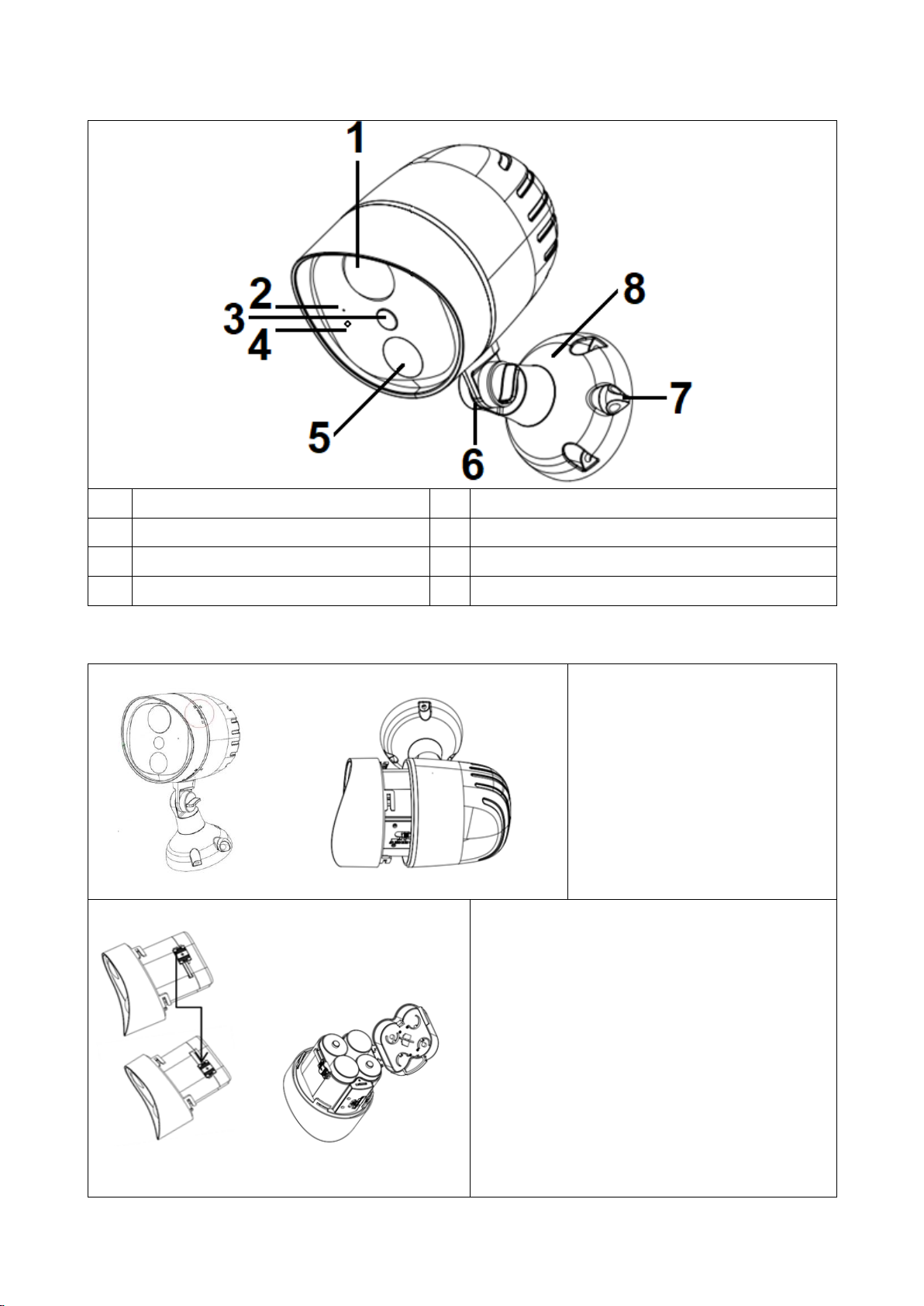

Product overview
1
PIR (motion detection)
5
LED light
2
Microphone
6
Angle adjustment
3
Camera
7
Mounting base thumb
4
Status LED (red / green)
8
Mounting base
How to use the camera
A.1 A.2
Remove the front
cover by rotating
counter-clockwise
picture A.1 and A.2.
B.1 B.2
Open the lock picture B.1.
Insert 4D-Cell batteries 
picture B.2.
Note: Install batteries with
polarity in correct position.

4

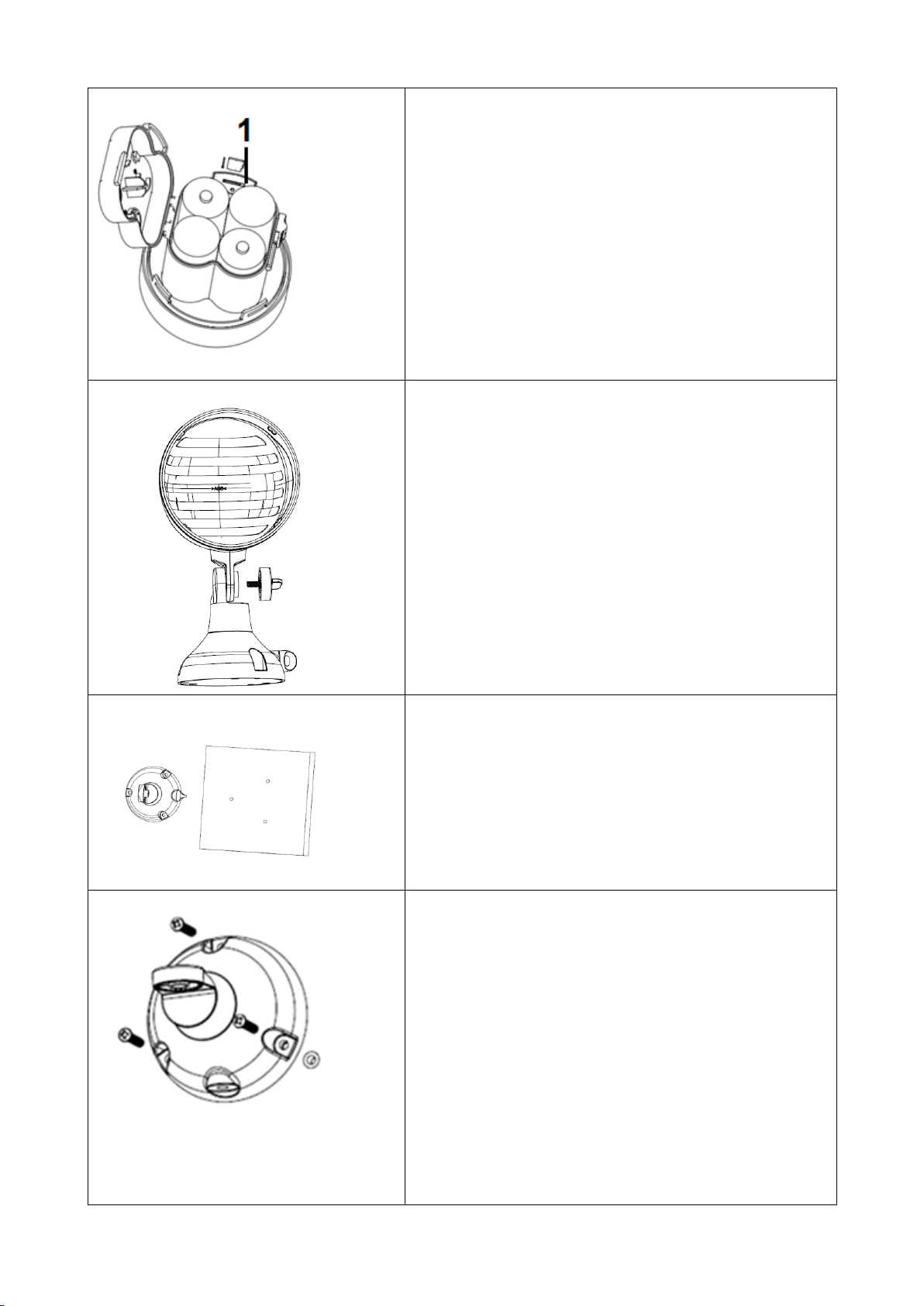

C.
1 = MicroSD card slot
Insert a MicroSD card into the
MicroSD card slot (C.1) close the
battery compartment and then the
lock. slide the switch to your
desired setting (Video / Photo / Light /
Off see chapter Mode Settings)
Correct the time, see chapter “How to
set time and date”.
D.1
By removing the screw 2, you can
remove the head from the mounting
base for angle adjustments.
D.2
Hold the base to the installation
surface and mark the screw holes
with a pencil.
D.3
Drill holes on the marks into the wall
insert the dowels drive screws
through the holes of the mounting
base.
Attention: asure that you use the
correct dowels for your desired
surface the dowels in the package
contents are for normal concrete
walls.

5
E.1
Replace the front cover by turning.
Important: The arrows must match
when closed.
When closed, the camera is
waterproof to IP65.
E.2
Put the head back on the basis
tighten the screw 2
F.1
Loosen the screw 1 (little by little)
turn the device to the right position
(max. 360° around)
tighten the screw 1
F.2
Loosen the screw 2 (little by little)
bend the device to the right
postion (max. 180°)
tighten the screw 2

6
Mode settings
Video Mode
Photo Mode
Only Light Mode
1 = Micro USB port
2 = Mode Switch
Note: Use only new alkaline D-Cell
batteries with 1.5V rating. Do not mix old
and new batteries. Install batteries with
polarity in correct position.
(a) Video Mode
Switch the mode switch to VIDEO. The green status LED flashes as
soon as motion detection (PIR) is triggered. Videos are stored on
the inserted MicroSD card. Stop taking videos after 20 seconds
when there is no more movement. If during 20 seconds there is still
movement the video clip will continue recording. When the MicroSD
card is full, the oldest recording will be deleted and restored with the
newest recording. Light turns on with video in darkness, when
motion detection is triggered.
Note: Night videos drain more power resulting in shorter battery life.

7
(b) Photo Mode
Switch the mode switch to PHOTO. The green status LED flashes
as soon as motion detection (PIR) is triggered. Photos are stored
on the inserted MicroSD card. Stop taking photos after 20 seconds
when there is no more movement. If during 20 seconds there is still
movement the camera will continue taking photos. After trigger
photos are taken every 1-2 seconds. When the MicroSD card is full,
the oldest recording will be deleted and restored with the newest
recording. Light turns on with photo in darkness, when motion is
triggered.
(c) “Light only” Mode
Light shuts off after 20 seconds if there is no more movement. If
during 20 seconds there is still movement the light will continue
shining for 20 seconds. Light goes on only in darkness to conserve
battery life.
(d) OFF mode
The OFF mode is the safe mode when any action must be taken,
e.g. replacing the MicroSD card/the batteries or transporting the
device. No video, photo or light will be turned on in this mode.
Set time & date
1 = Micro USB function
Before setting the time and date, format
the MicroSD card in a Windows PC.
File system: FAT32
Size of the allocation units: 32KB
This formatting prevents videos from
playing fast in playback.

8
1. Move the mode switch to OFF.
Insert the MicroSD card (if not already inserted).
Put 4x D-Alkaline Batteries into the battery compartment. (if not
already inserted).
2. Connect the TX-106 and PC to the Micro USB cable* (*not
included).
3. Once a removable disk appears on the PC, double-click it to
open the folder.
4. Now open the txt folder by double-clicking. Then also open the
time.txt file by double-clicking.
5. In the open time.txt file, update the date and time as follows:
DD-MM-YYYY / HH: MM: SS Save the file before closing it.
6. Eject the removable disk. And then disconnect the USB
connection between TX-106 and PC. Then slide the switch to the
desired mode.
Watch videos
To watch recorded videos on your PC, insert the MicroSD card
directly into the MicroSD card slot of your PC.
In case your PC does not have a MicroSD card slot, either use a
MicroSD adapter card, or connect the device with a Micro USB
cable to your PC.

9
PIR detecting range
Remark: The PIR detection area is split in for different distances
with different detection angles. Moreover, the PIR detecting range is
affected by the environment temperature (25°C is the best
temperature).
Ground Mounting holder
With the ground mounting holder* (*included) you can you use the
device as path light with camera or as path light in your garden.
Battery life
It is depending on the mode you select as a default. Long battery
life is one of the most important requirements. There are several
variables that will determine the battery life (type of batteries,
temperature outside, frequency of activity, etc.) Night video and
photo frequency (light and record) will result in shorter battery life.
Different brands of batteries may also perform better than others, so
please experiment to find what works best for you.
Attention: If RED status LED blinks, insert new batteries. Notice:
Should battery fluid leak from a battery, wipe the battery case with a
soft cloth dry and put in a new batteries.
Distance 1.5m
120° detection angle
Distance 3.5m
90° detection angle
Distance 7m
30° detection angle

10
Middle values for battery life
Video mode 10x / 20x / 30x times at night
(~3 / 6 / 10 minutes)
up to 5 / 2,5 /
1,5 month
Photo mode 10x / 20x / 30x times at night
(~3 / 6 / 10 minutes)
up to 6 / 3 / 1,8
month
Light mode 10x / 20x / 30x times at night
(~3 / 6 / 10 minutes with average brand alkaline)
up to 6 / 2 / 1,2
month
Light mode 10x / 20x / 30x times at night
(~3 / 6 / 10 minutes with top brand alkaline)
up to 8 / 4 / 2,4
month
WARNINGS
(To reduce the risk of fire, electrical shock or product damage/failure)
Do not expose unit with the cover open to rain, moisture, dripping
or splashing. Do not open or close the battery door with wet hand.
Completely wipe off water on unit before opening.Do not
submerge product in water (this unit is designed for normal outdoor
use). Only use batteries as specified in this user manual and
install according to correct polarization. Failure to follow may result
in leaking or exploding batteries, damage to product, fire or
personal injury. Do not handle damaged or leaking batteries.Do
not expose to extreme heat. Do not leave product and/or batteries
exposed in direct sunlight inside a vehicle, or other contained
environment for a long period of time. Only use accessories as
recommended in this manual.
TECHNAXX recommends using 4 pieces of D-Size Alkaline
batteries of very high standard, this product can model to obtain
maximum battery life (do not mix old and new batteries).
Rechargeable batteries are NOT recommended.
