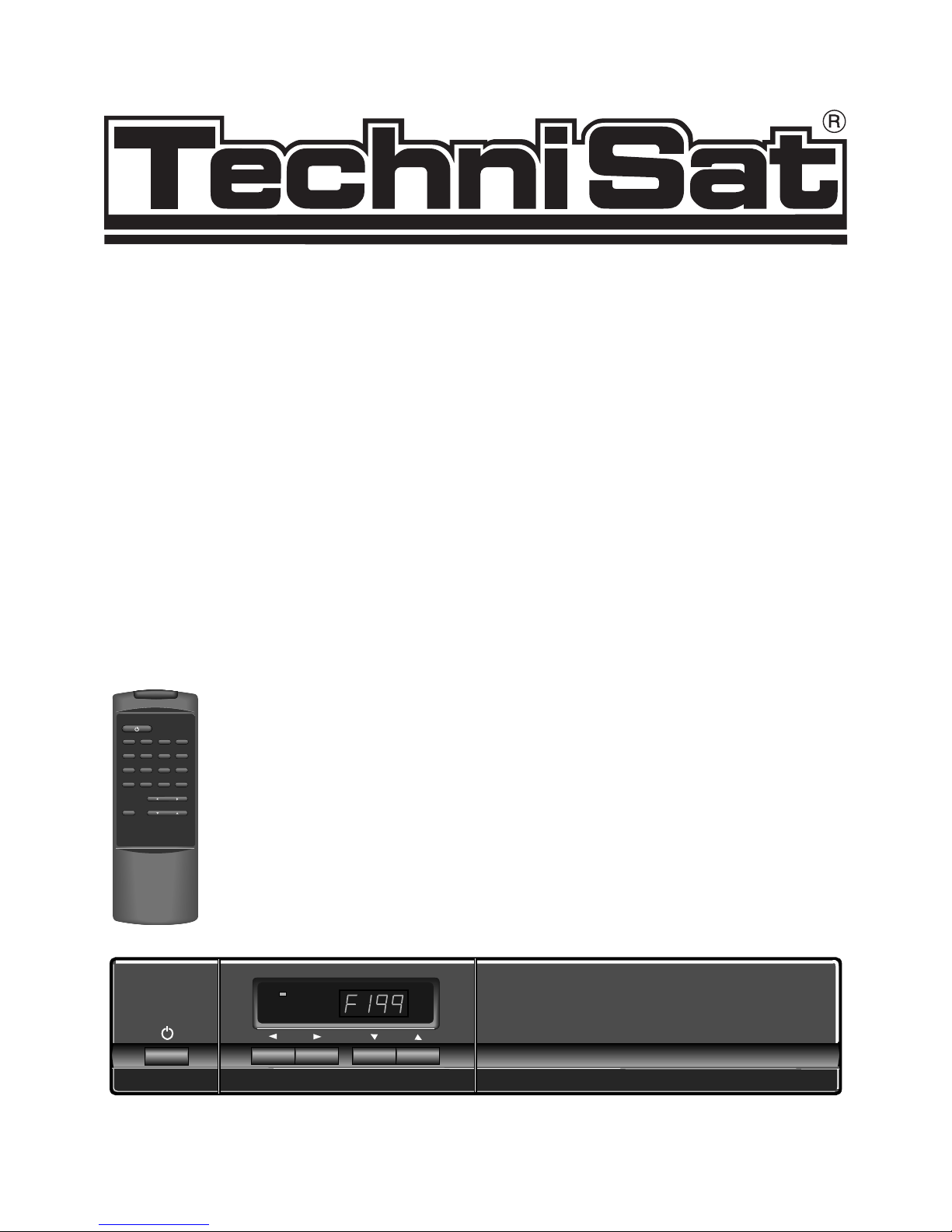

TechniSat ST 6002 S User manual

STAND BY
TechniSat ST 6002 STechniSat ST 6002 S
TechniSat ST 6002 S
123
45 6
789
0
ENTER CNCL
VIDEO
AUDIO
SKEW
MUTE
MENU
TechniSat
ST 6002 S
ST 6002 S
OPERATING INSTRUCTIONS
Satellite Receiver
TechniSat ST 6002 S Stereo
TechniSat®Satellitenfernsehprodukte GmbH,TechnikPark, W-5568 Daun
202/ /93

TechniSat ST 6002 S
2
Contents Seite
2 Diagram : Front Panel, Remote Control Back Panel 3
3 Important Safety Instructions 6
4 Main Features of the ST 6002 S 7
5 Breif Introduction 8
5.1 Installation 8
5.1.1 Connection of the outside unit and television8
5.1.2 Setting up the receiver 9
5.2 Operation 10
6 Installation 11
6.1 Installation of the outside unit 11
6.1.1 General 11

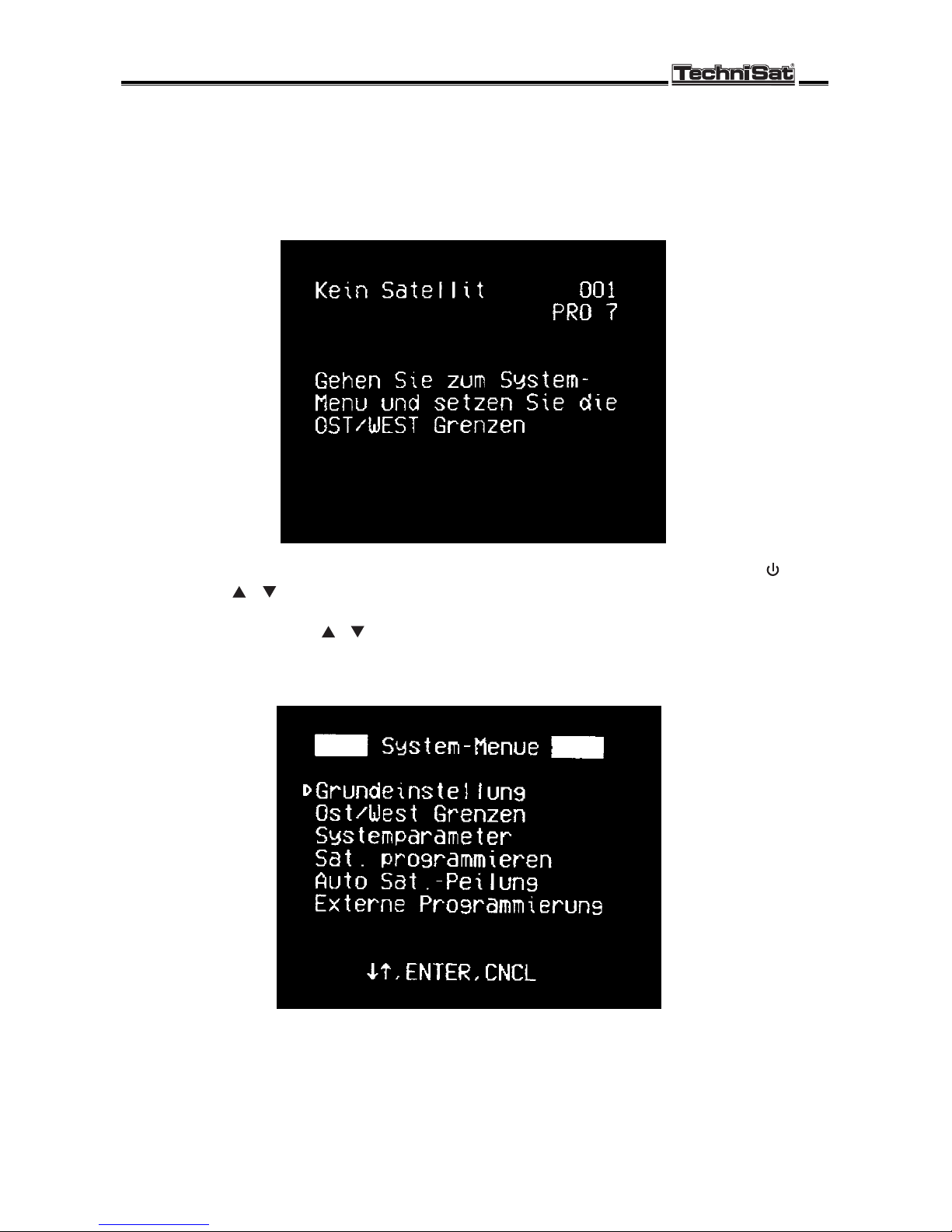

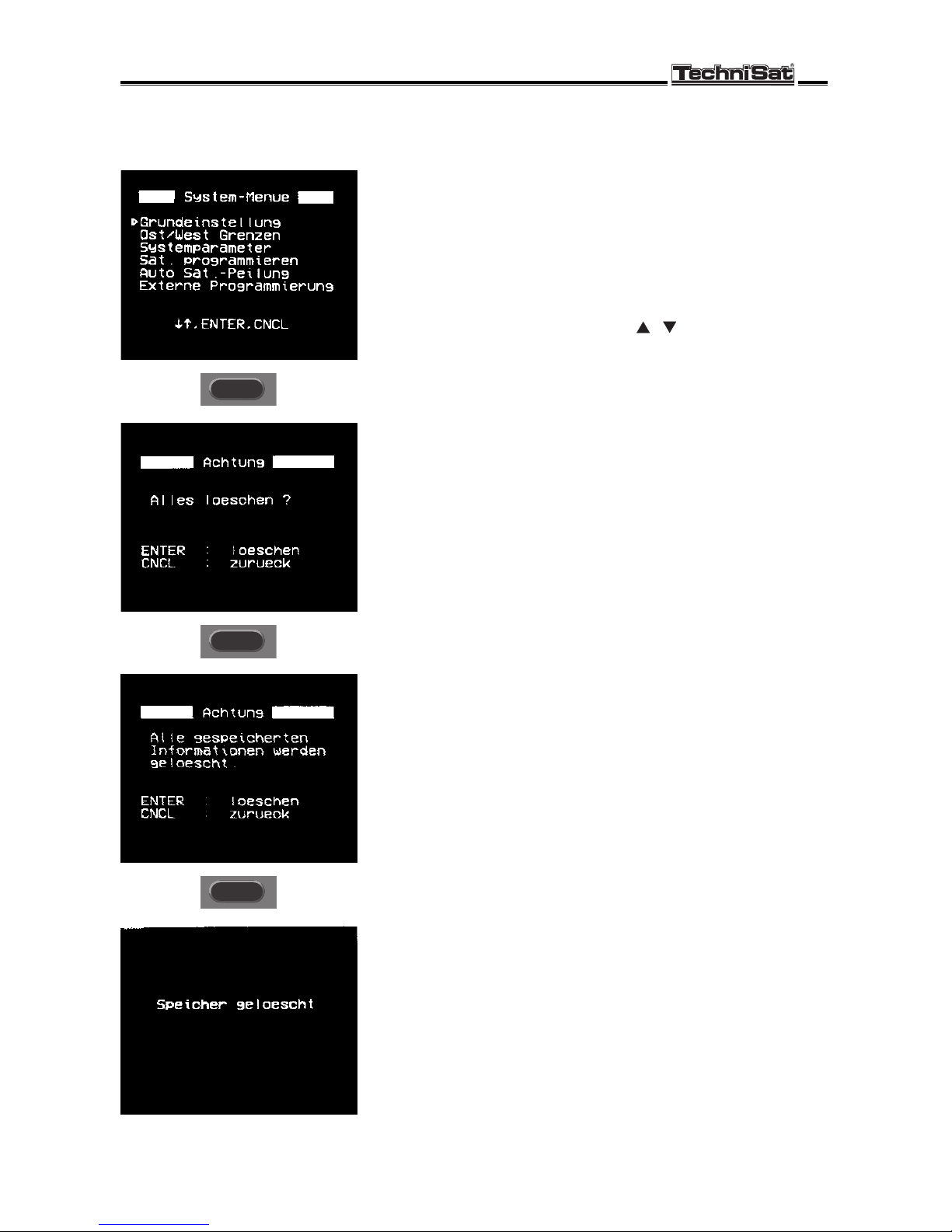

6.1.2 Basic programming / Initial Set-Up 13

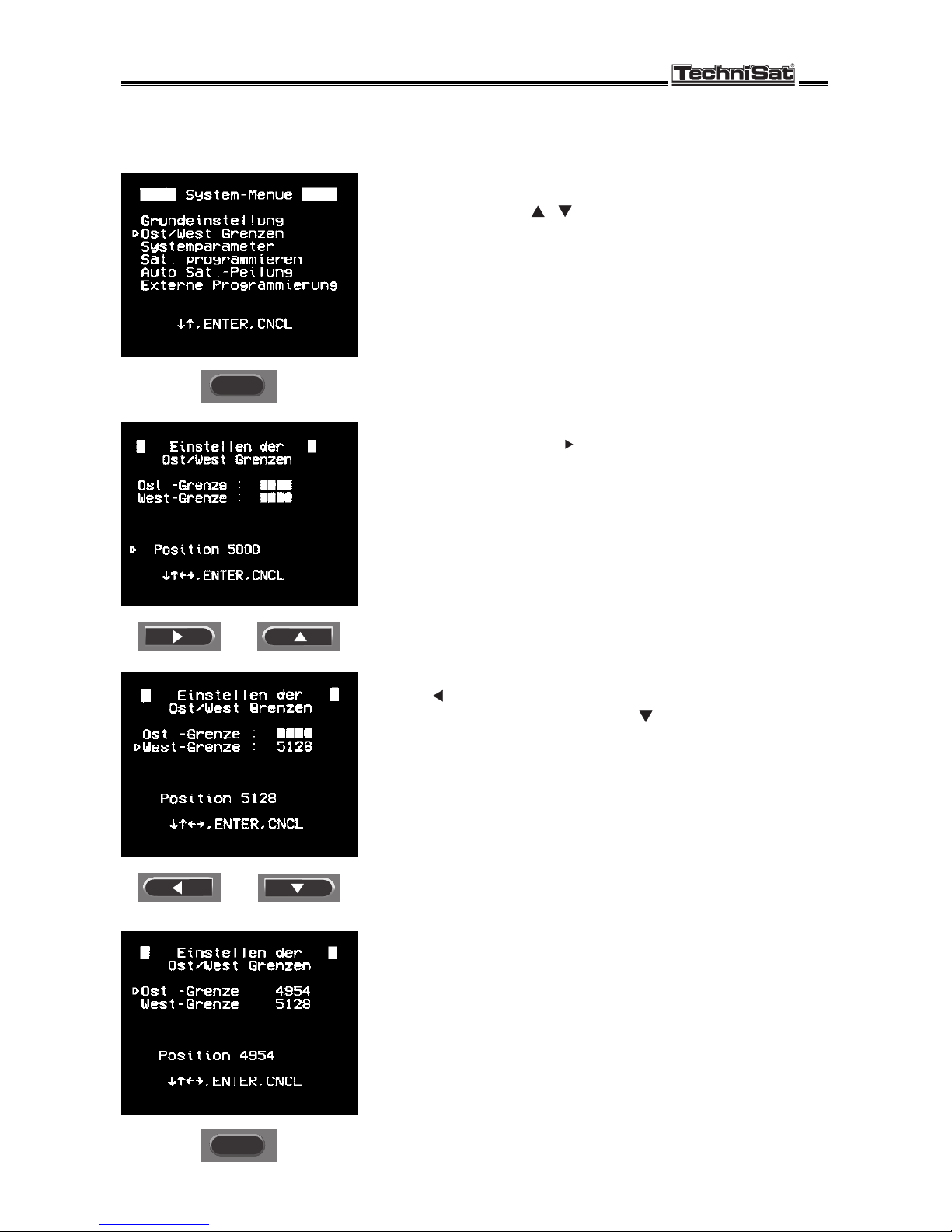

6.1.3 Setting the east / west limits 14
6.1.4 Programming of satellite positions 15

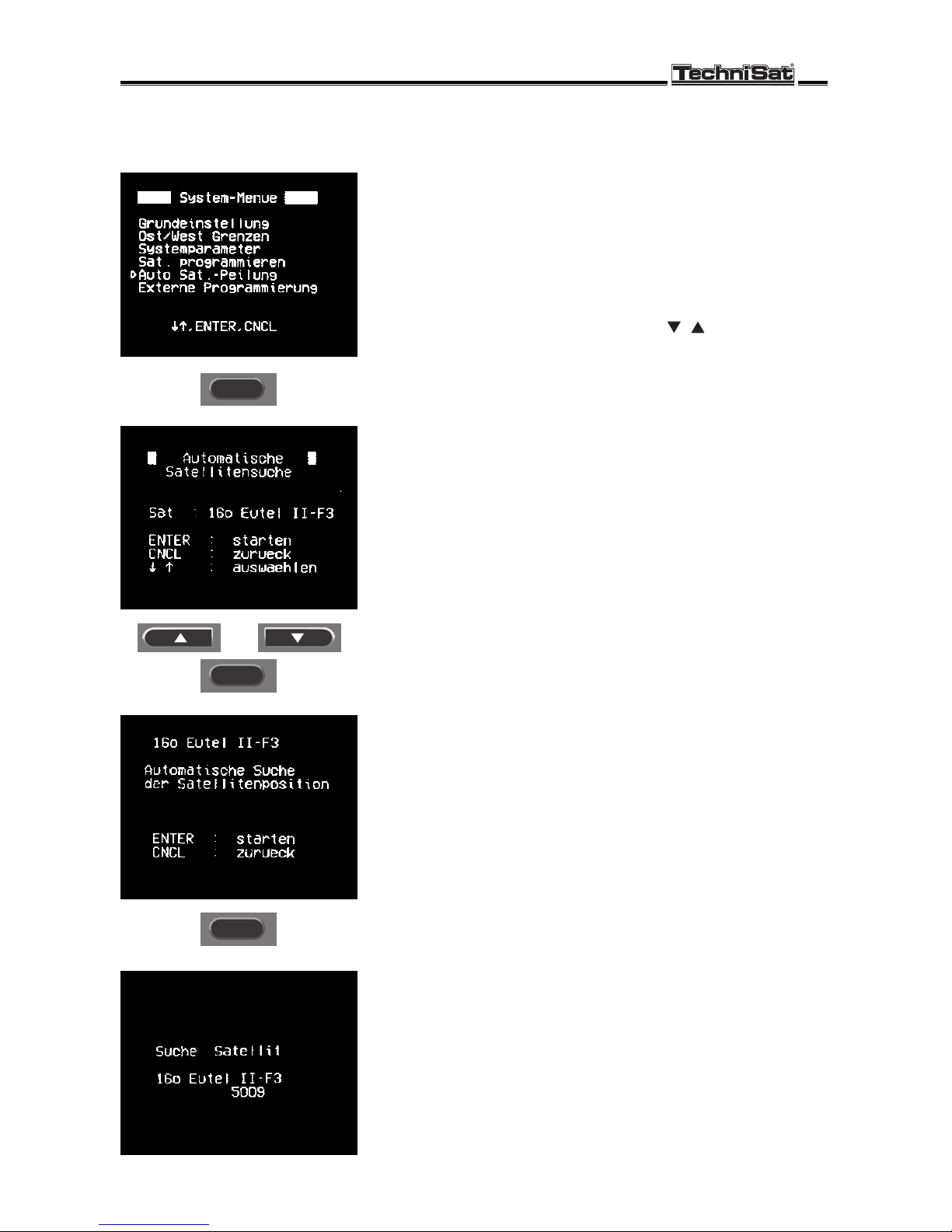

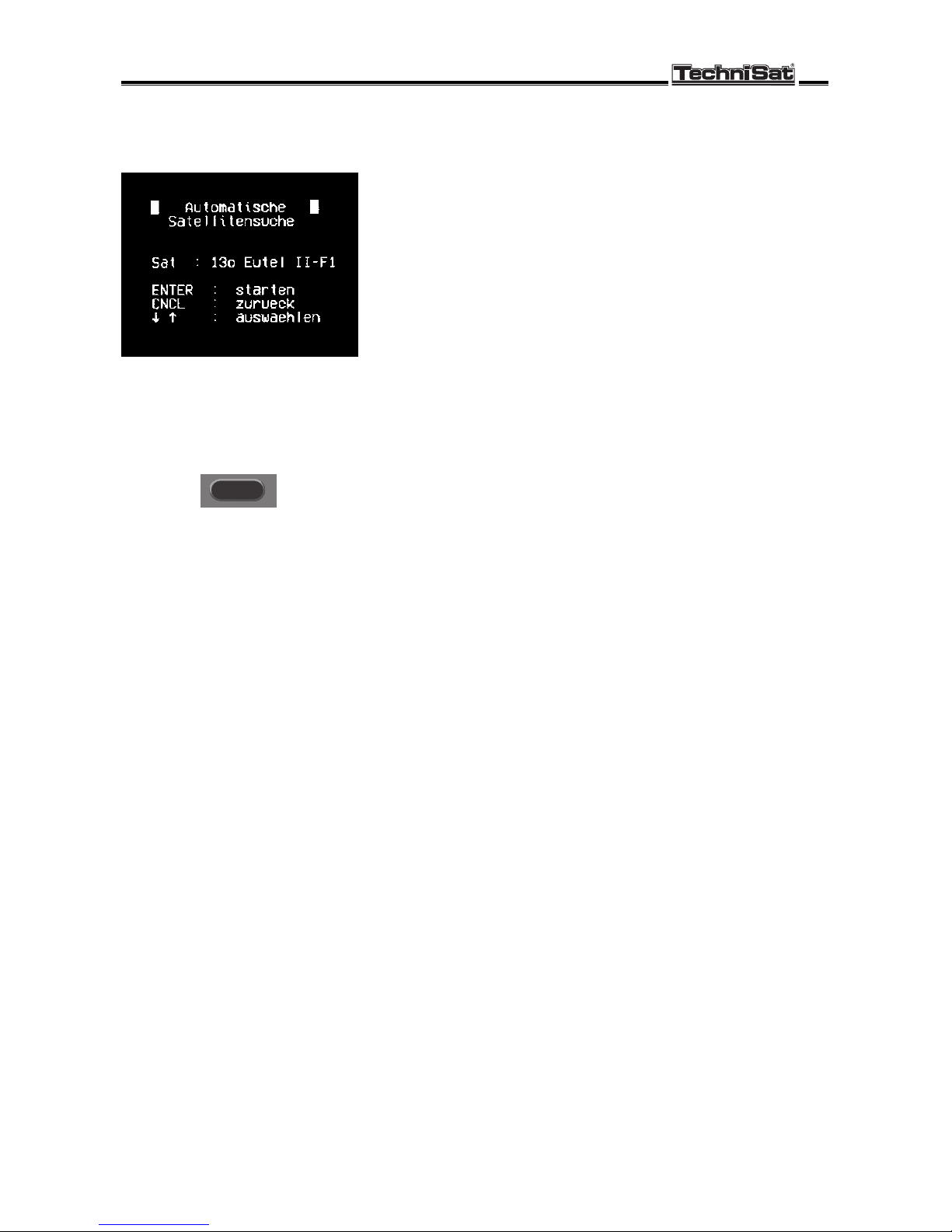

6.1.5 Automatic location of satellites 17
6.1.6 External programming 19

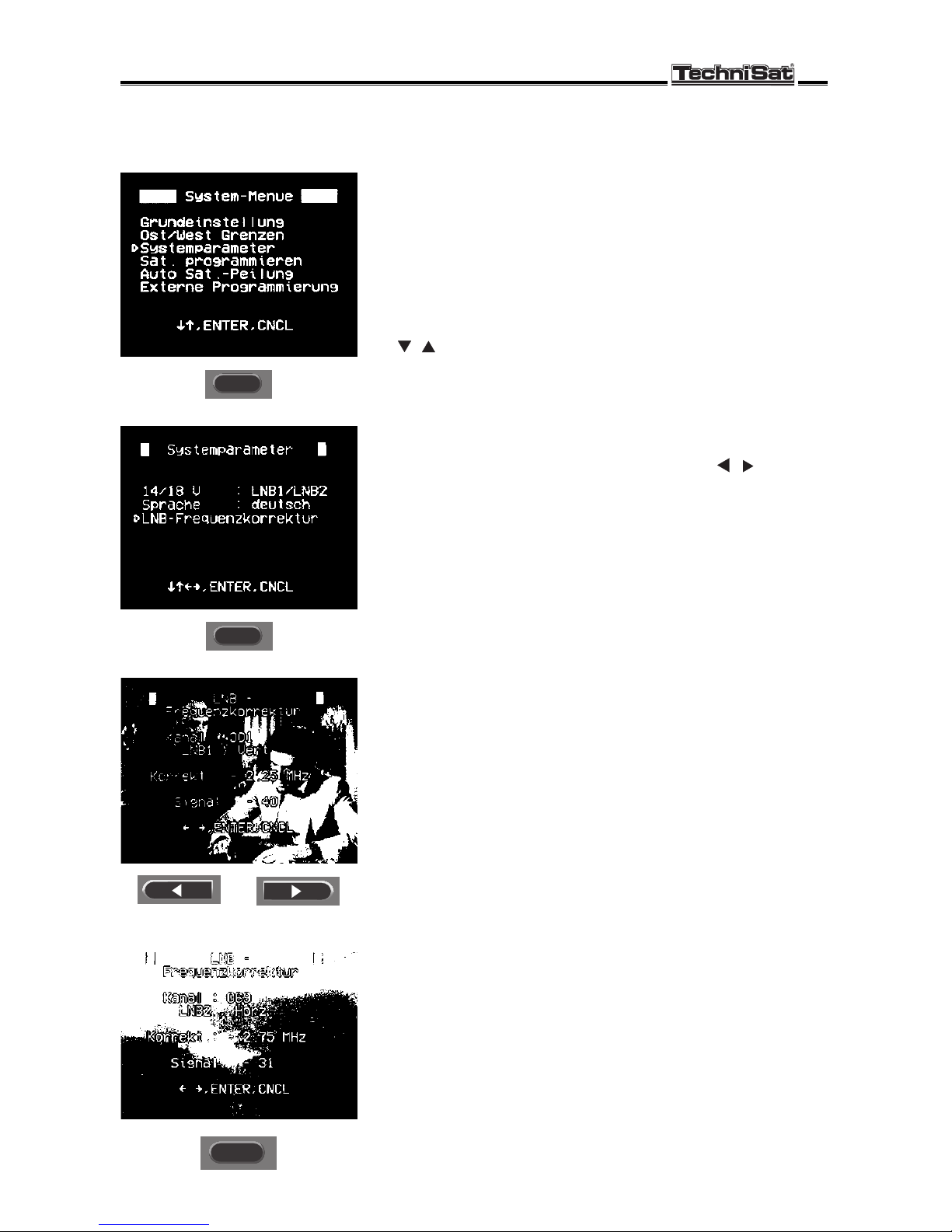

6.1.7 System options 20
6.2 Connecting a video recorder or decoder 22
6.3 Menu overview: System menu 23
7 Operation 24
7.1 General 24
7.2 Direct operation 25
7.3 Menu operation 26
7.3.1 Channel selection 26
7.3.2 Satellite selection 27
7.3.3 Setting the timer 28
7.3.4 Setting the clock 29
7.3.5 Alignment - dish position 30
7.3.6 Parental channel lock 31
8 Programming 31
8.1 General 31
8.2 Changing the channel sequence 32
8.3 Expanding the programme range of a satellite 33
8.4 Programming the channels of a new satellite 34
8.5 Changing the channel name 35
8.6 Changing channel parameters 37
8.6.1 Video-Menu 37
8.6.2 Audio-Menu 38
8.6.3 Skew-Menu 39
8.7 Menu overview: main menu 40
9 Channel Programming 41
10 Technical Specifications 45

STAND BY
123
456
789
0
ENTER CNCL
VIDEO
AUDIO
SKEW
MUTE
MENU
TechniSat
ST 6002 S

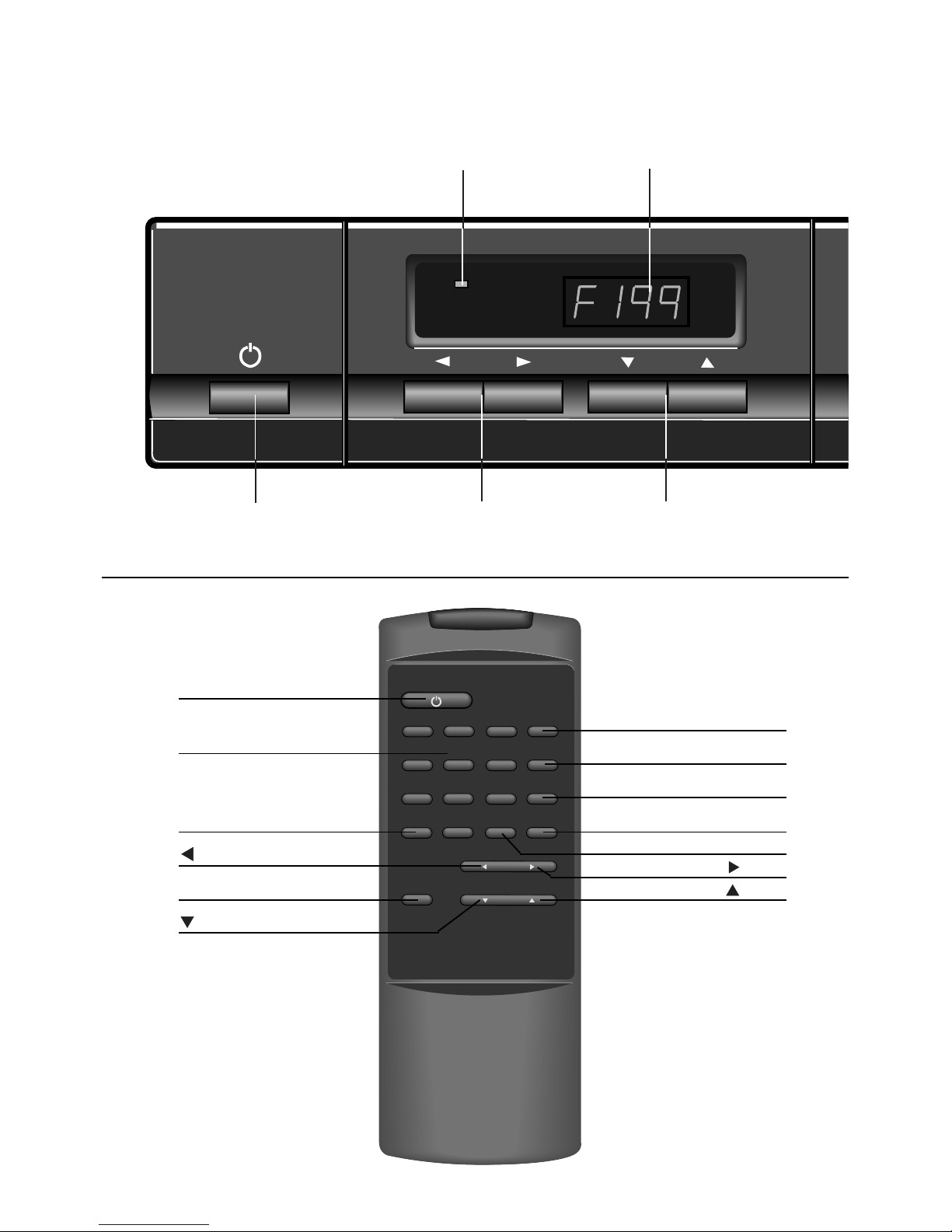

2 Diagram: Front Panel, Remote Control, Back Panel
Standby LED 4-Fig.Display
ON/OFF Power
Switch
Satellite Selection
Buttons
(East /West)
Channel Selection
Buttons
Standby on/off
Key Pad
ENTER-Button
-Button
Main Menu
-Button
Video-Menu
Audio-Menu
Skew-Menu
Mute on/off
CNCL-Button
-Button
-Button

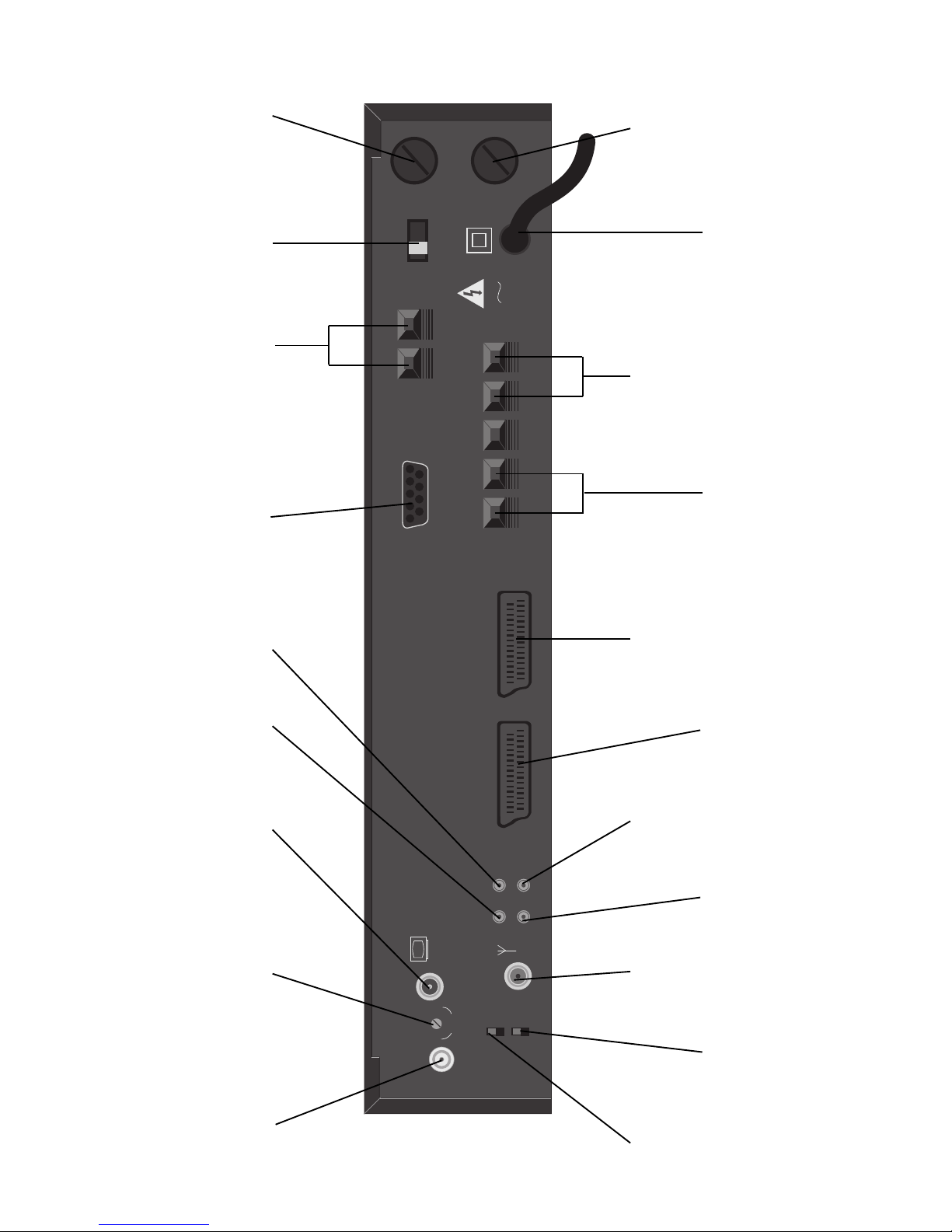

3

RF IN
CH UHF OUT
+
-
LNB PWR OUT
DC 14/18V
400 mA MAX
(
(
I
B/G
TSG
VIDEO ANT IN
B(R)-AUDIO-(L)A
DECODER VIDEO
EURO SCART FOR VCR/DECODER EURO SCART FOR TV GND PULSE +5V M2 M1
50 mA MAX 36V 1,5 A MAX
EXT BUS + FERRIT –
82 ohm, ±45 mA MAX 220V 240V
F1
F2
FUSE
250V T500mA
FUSE
250V T500mA
AC 240V 50 Hz
110 WATTS MAX
LNB-Input UHF Channel
Adjustment Screw UHF Output Audio Output
right left Serial Port RS 232 Polariser
Connection Switch
220V/240V Actuator Fuse
Switch
PAL I/PAL G
Decoder-
Output
Video
Output
Scart Socket
Decoder or
Videorecorder
Scart Socket for
TV
Sensor Cable
Connection
Actuator Power
Cable Connection
Main Lead
Main FuseUHF Input
TSG Switch
4

3. Safety Instructions
In the interest of safety, please read and observe the following instructions before using your
new ST 6002 S.
This sheet and the following pages concerning installation and operation should be retained for future
reference.
Installation:
The procedures described in this manual should be followed carefully.
NOTE: Always connect the LNB before connecting to the mains supply.
Failure to do this may cause damage to the appliance.
Ventilation:
Vents on the top and side panels are provided for necessary ventilation. The appliance should not be
placed in a position where the free passage of air would be severely restricted. In addition, for the same
reasons as above the ST 6002 S should not be placed on a soft base.
Water and moisture:
Ensure that the appliance does not come into contact with any dampness or moisture - RISK OF ELEC-
TRIC SHOCK (and/or damage to the ST 6002 S)!
Heat:
Do not install the ST 6002 S in the immediate proximity of a heat source (radiator, oven etc.).
Care and Use:
Power Source:
Connect the ST 6002 S to a power supply which matches the requirements of the appliance (220 - 240
V/50 Hz).
Safe Connection to the Mains:
The mains leads should be routed so that they are not likely to be walked on or pinched by items pla-
ced against them.
When not in use:
If the ST 6002 S is left unattended or unused for long periods of time be sure to unplug the mains connec-
tor. The memory is still stored and the internal clock is supplied by an inbuilt battery.
Unplug the ST 6002 S from the mains when:
- the mains lead or mains connector is damaged
- the ST 6002 S has been exposed to rain or water
- a solid object or liquid substance has entered the appliance via the air vents
- there is a noticeable change in the performance of the ST 6002 S, not operating as normal
- the ST 6002 S has been dropped or the outer casing has been damaged
NOTE:
Servicing and repairs must only be carried out by trained service staff.
TechniSat ST 6002 S
6

TechniSat ST 6002 S
7
4 Features of the ST 6002 S:
The ST 6002 S has the following features:
– 200 preprogrammed channel places
– OSD (On-Screen-Display)
– Infra-red remote control for all functions
– Timer function for 8 settings
– Integrated dish positioner
– 50 storable satellite positions
– Autofocus
– Panda Wegener compatible noise reduction
– Volume control
– Adjustable video bandwidth
– Switchable modulator PAL G/I
– Free selection and storing of audio and video parameters
– Scart connection for TV or VCR
– Scart connection for decoder or VCR with 4 output signals
– Short-circuit proof LNB-input
– Preprogramming for connection of a triple band LNB (11 GHz, DBS, 12 GHz)
– Input frequency range 950 - 2050 MHz
STAND BY
TechniSat ST 6002 STechniSat ST 6002 S
TechniSat ST 6002 S
123
45 6
789
0
ENTER CNCL
VIDEO
AUDIO
SKEW
MUTE
MENU
TechniSat
ST 6002 S

TechniSat ST 6002 S
5 Brief Introduction
We have condensed the most important steps for the installation and use of the ST 6002 S. More
detailed information can be found in chapters 6 - 10 of this manual.
It is essential that a high quality outside unit with Triple-Band-LNB is used. If another kind of LNB is
used, the procedure is the same, but you will not be able to receive all satellites.
5.1 Installation

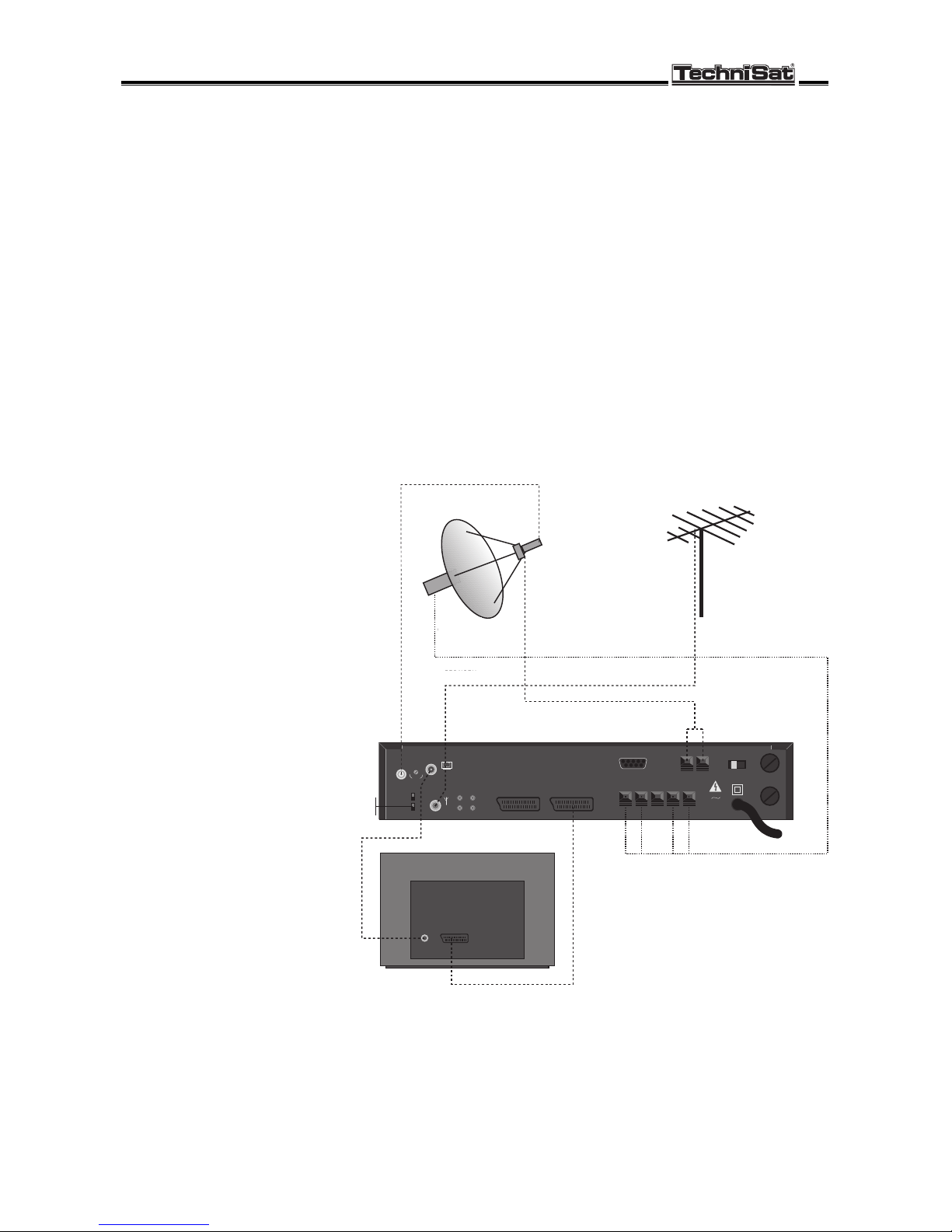

5.1.1 Connection of Outside Unit and TV
Connect your ST 6002 S to
the LNB of the outside unit
using suitable coaxial cable
(eg. TechniSat coaxsat 1750).
Connect the actuator power
cable to the M1/M2 sockets
and the actuator sensor cable
to the "Pulse" and "GND"
sockets.
The polariser should be lin-
ked via the "Ferrite +/-" sockets.
To connect your television to
the ST 6002 S you should use
a euroscart cable. The TV set
should be set correspondingly
to AV.
Alternatively, you can connect
the appliance to your TV at
the UHF/VHF input socket via
UHF antenna cable. If this
connection is made you should
first of all switch to "TSG" on
the back panel of the ST 6002 S and tune your TV set to channel 36, at which point the test signal
(two vertical white stripes) will appear on the screen. Then return the switch to "Video" on the back
panel.
NOTE: The satellite receiver is preset to channel 36. If channel 36 is already occupied by a terrestri-
al channel it is possible to alter the output channel in the range fom 35 - 44. This can be done using
8
RF IN
CH UHF OUT
+
-
LNB PWR OUT
DC 14/18V
400 mA MAX
( (
I
B/G
TSG
VIDEO ANT IN
B(R)-AUDIO-(L)A
DECODER VIDEO
EURO SCART FOR VCR/DECODER EURO SCART FOR TV GND PULSE +5V M2 M1
50 mA MAX 36V 1,5 A MAX
EXT BUS + FERRIT –
82 ohm, ±45 mA MAX 220V 240V
F1
F2
FUSE
250V T500mA
FUSE
250V T500mA
AC 240V 50 Hz
110 WATTS MAX
TESTSIGNAL
VIDEO
POLARIZER
LNB
MOTOR
IMPULS-
GEBER
FERNSEH-
ANTENNE
ANTENNEN-
KABEL
SCARTKABEL
FERNSEH-
ANTENNE
MOTOR
IMPULS-
GEBER
Pulse
Generator
TV Antennae
TV Antennae
Antenna
Cable Sensor
Cable Power
Cable
Scart Cable

TechniSat ST 6002 S
Function Button R TV Picture Display on the receiver
FB
Basic Programming
R no satellite F 001
F
press
simultaneously Basic Programming F 001
ENTER 3 x F System Menu F 001
Setting East/West
Limits ENTER F Position 5000
Note: Make sure Hold down until
the dish is not west limit is F Position 5439
moved too far reached (Example)
around F Position 5409
Hold down & move 30
Impulses back F West limit
ENTER F West limit 5409
Hold down until
east limit is F Position 4821
reached (Example)
Hold down & move F Position 4851
30 Impulses back F East Limit
ENTER F East Limit 4851
CNCL F System-Menu CH 01
Satellite F Sat programming CH 01
Programming Enter F Sat: 19,2o ASTRA CH 01
F Position 4851 CH 01
Hold until the
satellite is F Position 5120 (Eg..) CH 01
received F Position CH 01
F Position 5120 CH 01
ENTER F Position 5125 (Eg.) CH 01
CNCL F System-Menu CH 01
Autolocation ENTER F Sat: 60o Intel 604 CH 01
3 x F Sat: 16o Eutel II-F3 CH 01
ENTER 2 x F Search 16o Eutel
II-F3 CH 05 (Eg.)
F Sat: 13o Eutel II-F1 CH 05 (Eg.)
ENTER 2 x F Search 13o Eutel
II-F1 CH 04 (Eg.)
usw.
9
5.1.2. Installation of the Receiver F Taste auf der Fernbedienung
R Taste am Receiver

TechniSat ST 6002 S
If a satelite cannot be found:
Sat programming CNCL F System-Menu F 113 (Bsp.)
F Sat programming F 113
ENTER F Sat 27,5w Intel 601 CH 01
(Example)
F Position 5204 (Eg.) CH 01
hold
until a satellite F Position 5402 (Eg.) CH 01
is received
F Position CH 01
F Position 5402 (Eg.) CH 01
ENTER F Position 5406 (Eg.) CH 01
2 x F Sat 27,5w Intel 601 CH 01
F Sat 45w PanAmSat CH 01
If all Satellites
have been
programmed CNCL 2 x F “Programme of the F127(Eg.)
last programmed-
Satellite”
001 F “Programm PRO 7 F 001
from ASTRA”
Channel Selection R 19,2o ASTRA 003 F 003 (Eg.)
or F 19,2o ASTRA 003
or 001
or 01 F 19,2o ASTRA 001 F 001
or 1
or MENU F Menu F 005
ENTER F 005 ARD 1 Plus F 005
press F 061 RADIOROPA F 005
ENTER F 19,2o ASTRA 061 F 061
RADIOROPA
Volume F Vol.: ... F 006 (Eg.)
Control F Vol.: ..... F 006 (Eg.)
Mute Mute F Mute F 006 (Eg.)
19,2o ASTRA 007 F 007
Time Display ENTER F 19:15 Nord 3
Set Timer MENU F Menu F 007 (Eg.)
2 x F Set Timer F 007
ENTER F Time 1 aus F 007
ENTER F Channel 007 F 007
005 oder 2 x F Channel 005 F 007
F Month 09/1992 F 007
F Month 10/1992 F 007
F Day 08/Thurs F 007
2 x F Day 10/Sat F 007
F Start 19:01 F 007
2015 oder press F Start 20:15 F 007
F Stop 19:03 F 007
2200 oder press F Stop 22:00 F 007
F Type single F 007
F Type daily F 007
F Date 10. 10, 1992 F 007
F Date 17. 10, 1992 F 007
ENTER F Zeitpunkt 1 ein F 007
CNCL 2 x F “Channel 007” F 007
F F 007
10
5.2. Bedienung

TechniSat ST 6002 S
6. INSTALLATION
6.1. Installation of Outside Unit
6.1.1. General
The following instructions assume that the system
has been installed correctly so that all the satel-
lites can be received.
ATTENTION: The ST 6002 S has been pro-
grammed for use with a Triple-Band-LNB. With
this you can receive all three frequency bands
(11 GHz, DBS and 12 GHz). If you use a Dual-
Band-LNB please pay attention to the changed
input frequencies in the 12 GHz band (prepro-
gramming pages 40 - 44).
Input frequency for Dual-Band-LNB in 12 GHz
band
=
Input frequency for Triple-Band-LNB minus
725 MHz
IMPORTANT: If you press any button whilst the
dish is moving, the movement will stop imme-
diately. Where possible avoid this when pro-
gramming satellites and when using the auto-
matic satellite search. Otherwise, satellites that
have already been saved could be deleted.
The receiver ST 6002 S has many functions.
For ease of use and so that it is not necessary
to use a different button for each function the
receiver uses "On Screen Display" and func-
tion keys. In this way related functions are con-
densed into "Menus". An arrow shows which
function is in use. Underneath each menu the
various keys which may be used are shown.
By using the CNCL key you can leave each
menu without saving the alterations.
11
EXAMPLE-
Cursor
Function Keys
Functions
ENTER CNCL

Switch on the receiver using the mains power switch (on the appliance). The following menu appears
on the TV screen:

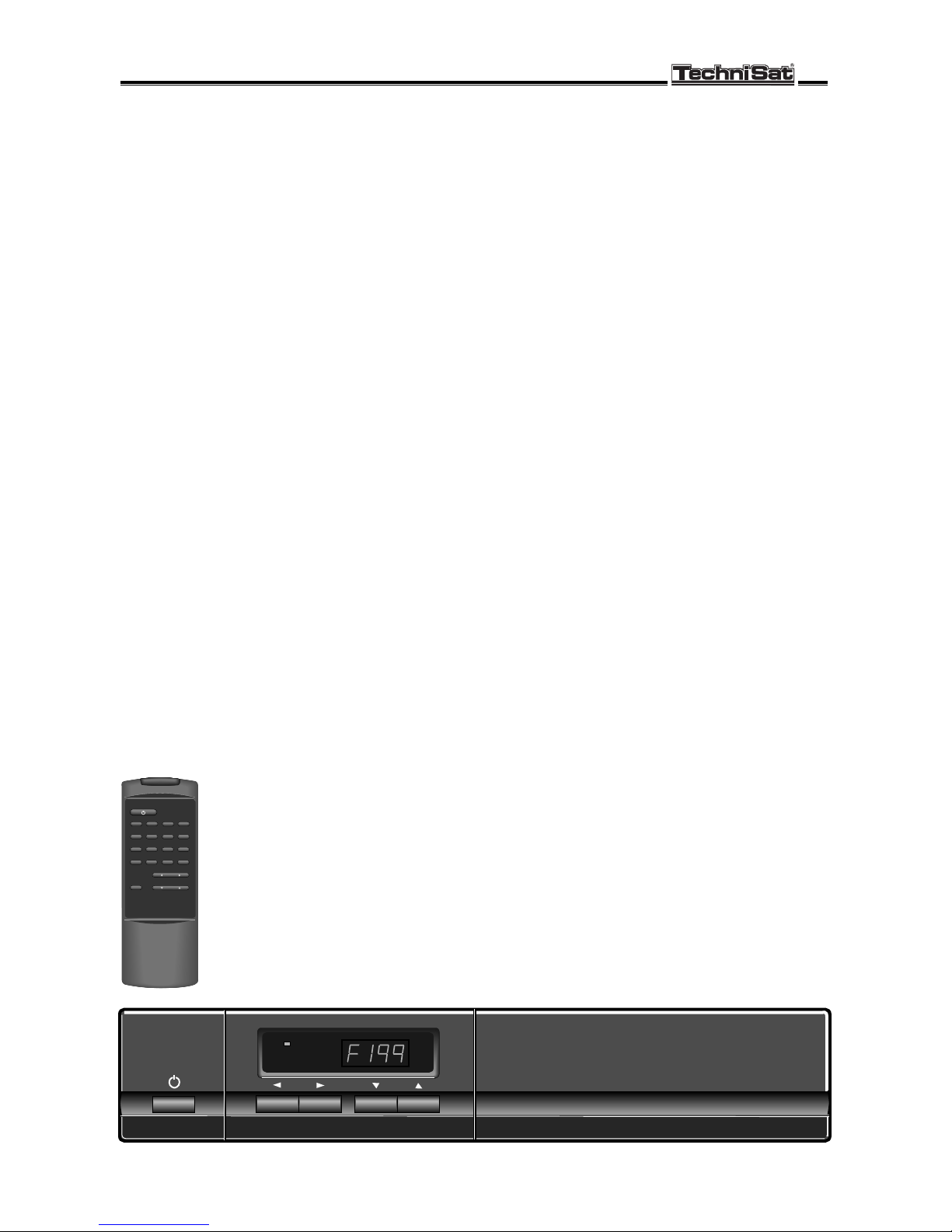

To go to the System Menu switch the receiver into stand-by mode using the remote control unit ( ) . Now
hold down the buttons on the front of the receiver simultaneously for a few seconds. The
System Menu will appear on the screen on a blue background. An arrow appears next to Basic Pro-
gramming. By pressing the buttons on the remote control, this arrow can be moved up and
down.
ATTENTION: If you press the CNCL button when the System Menu is on the screen the receiver is
in the normal operation mode (see chapter 7). To recall the System Menu follow the procedure outli-
ned above.
TechniSat ST 6002 S
12

6.1.2 Basic Programming / Initial Set Up
Initially to program the receiver you have to carry out a Master
Reset. Therefore, move the cursor to the option "Master
Reset" on the System Menu and press ENTER.
After the first press a red warning screen appears. This will
disappear when you press ENTER twice more and your recei-
ver is then set.
ATTENTION: The preprogramming of the receiver is not affec-
ted by the cancellation procedure. This data is in the memory
and cannot be deleted.
After the third press the message "All memory cleared" will
appear and you will immediately return to the System Menu.
This time the arrow is pointing to "Set Dish Limit".
TechniSat ST 6002 S
13
ENTER
ENTER
ENTER

TechniSat ST 6002 S
6.1.3 Setting the East/West Limits
Choose the option "Set Dish Limit" and press ENTER.
Then move the cursor to "Position 5000".
First move the dish west by pressing > on either RCU or on
front panel until the desired west limit is obtained. (Whilst the
dish is being moved the position no's will be displayed on the
screen.)
Move the cursor using to "West Limit" and press ENTER.
This limit is automatically stored.
Now return to "Position" and move the dish to the east by pres-
sing on either RCU or front panel until the desired east limit
is obtained. Move the cursor using to "East Limit" and press
ENTER. Once again this limit is automatically stored.
NOTE: The message "Jack Error" will appear on the scre-
en if the actuator is not connected properly.
Press CNCL to return to System Menu.
14
ENTER
CNCL

TechniSat ST 6002 S
15
ENTER
2x

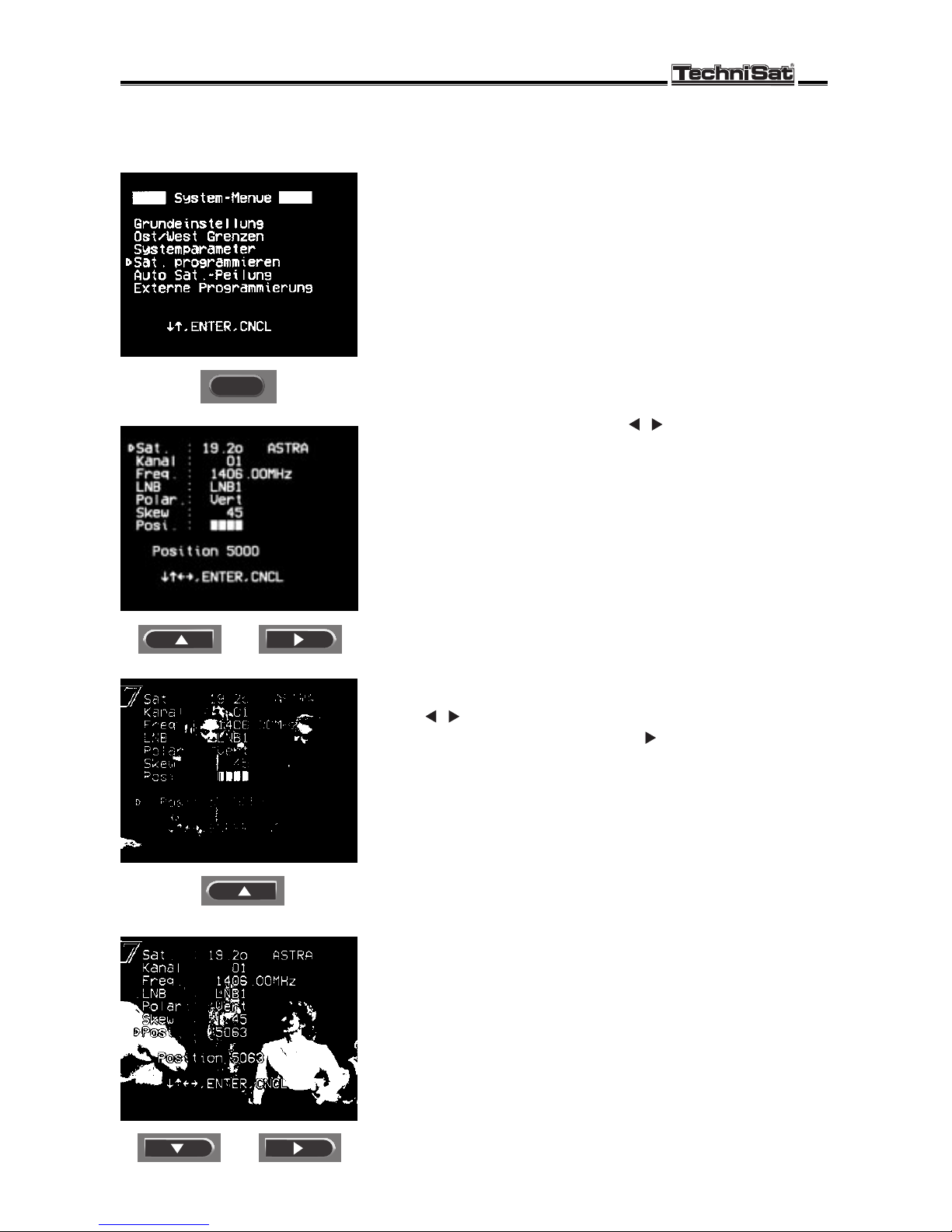

6.1.4 Programming of Satellite Positions
Choose the option "Program Satellite " from the System Menu
and press ENTER to display a table of parameters.
Move cursor to "Sat" and use the keys to select the desi-
red satellite i.e. ASTRA 19.2 E. Then move cursor to "Chan-
nel" and select a known frequency i.e. 1250 MHz Eurosport.
Now move the cursor to "Position" and move the dish using
the buttons until you receive the desired channel. Then
move the cursor to "Pos" and press button on RCU to trans-
fer the position no. By pressing ENTER the receiver will search
for the position of best reception (Autofocus) which is then sto-
red automatically.

TechniSat ST 6002 S
Return the cursor to "Sat" and use the buttons to select
the satellite which you wish to store next. Repeat the same
procedure as described above. All satellites can be stored by
this method.
NOTE: Not all satellite channels are transmitting continuous-
ly. Additionally, it may also be necessary to alter the "Skew"
values depending on the polariser type (refer to later section
on "Changing Channel Parameters").
Programming of Future Satellites
1. If you wish to store a new satellite which is not already pre-
set, you can choose an already stored channel with a frequency
which is nearest to the frequency of a channel on the new
satellite. The polarisation and LNB type must also be taken
into account. After entering the required data, move the cur-
sor to “Position” and move the dish using the keys until
you receive the desired channel.
2. Now move the cursor to “Sat” and select a satellite which
is not already stored (Spare 1-32). The channel selected pre-
viously can no longer be viewed. Move the cursor to “Pos” and
press followed by ENTER on RCU. The satellite is now sto-
red. To store the channels on this satellite it is necessary to
follow the procedures set out in the section on “Channel data".
16
ENTER

Automatic Location of Satellites
1. Choose the option “Auto location” on the System Menu.
The use of this function requires that ASTRA has already been
stored and that a TechniSat actuator is connected to the St
6002 S. Note only satellites with a comparatively strong signal
can be stored by this method.
2. Start with Eutelsat 16 E. Press the buttons until this
satellite appears in the display. Then press ENTER and con-
firm by pressing ENTER again. If the satellite is stored suc-
cessfully the following message is displayed for about 3 seconds:
“Satellite peaked ... dish position stored”
TechniSat ST 6002 S
17
ENTER
ENTER
ENTER

TechniSat ST 6002 S
3. Repeat the same procedure for Eutelsat 13,10 E, and then
for satellites further west of ASTRA. If you do not find a satel-
lite using this method, program it manually as described befo-
re.
4. After you have stored all satellites west of ASTRA, program
those which are further east of ASTRA.
Press CNCL to return to System Menu
18
CNCL

6.1.6. External Programming
It is possible to transfer data between two ST 6002 S or bet-
ween a personal computer and the ST 6002 S. To do this you
require a cable with two RS 232 connectors. If you wish to
exchange data with a personal computer you require in addi-
tion the appropriate software (disc). Prerequisite is that the
computer has a RS 232 serial port. Both the cable and the soft-
ware can be ordered from TechniSat.
Select "Interface ext-link" from the System Menu. (To return to
the System Menu first switch the appliance into stand-by mode
using RCU, and then press the buttons on the front panel
simultaneoulsy for a few seonds.)
Connect both appliances with the appropriate cable as shown
below:
To transfer data from one ST 6002 S to another, select "Master"
on the programmed receiver and "Slave" on the receiver you
wish to programme.
Point the remote control at both receivers and press ENTER
to inititate the data transmission.
Press CNCL to leave this menu.
NOTE: External programming via a computer is described in
a separate software manual.
TechniSat ST 6002 S
19
ENTER
CNCL
TX 2
GND 5
RX 3
TX 2
GND 5
RX 3

TechniSat ST 6002 S
6.1.7 System Options
Move the cursor to the menu option "Change System Options"
and press the ENTER button. Choose the appropriate LNB by
pressing the buttons on the RCU according to the fol-
lowing table:
Vert / Horz: LNB with 14/18 V polarisation switch (V/H-LNB)
LNB1/LNB2: LNB with 14/18 V frequency range switch
(Dual/Triple-Band-LNB)
Fixed 18 V: for other applications
Next you can select the on screen graphic language option,
either English, German or French, once again using the
keys on the RCU.
Press CNCL to return to the System Menu.
20
ENTER

TechniSat ST 6002 S
Frequency shift
It is possible to tune in the receiver to the frequency of the LNB
should it not be supplying the exact IF-frequency:
1. Select a channel which is already stored, and which is trans-
mitting in the 11GHz range. Switch the receiver into stand-by
mode and call up the System Menu by holding down the
buttons on the front panel simultaneously
2. First select the option “Change system options”, then “Glo-
bal shift LNB”. The blue background disappears and you can
view the selected channel.
3. Tune the frequency up or down using the buttons
(AFC +/-15, 0.25MHz steps). Once you have achieved the best
picture quality you can store the frequency shift by pressing
ENTER.
NOTE: This affects all 11GHz channels
4. You can also alter the 12GHz range. First select a 12GHz
channel and proceed as above. Press CNCL to leave System
Menu
21
ENTER
ENTER
CNCL
