TECHWOOD TNV-101 User manual


STEAM MOP
Instruction manual
1

IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and
household or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
2

if they understand the hazards involved.
❑This appliance shall not be used by children.
❑This device is not a toy, do not leave children or people with
disabilities to play with.
❑Cleaning and maintenance must not be made by children.
❑Keep the appliance out of reach of children when it is
energized or cooling down.
❑The appliance shall not be left unattended while it is
connected to the supply mains;
❑The appliance is not to be used if it has been dropped, if
there are visible signs of damage or if it is leaking;
❑The appliance shall be unplugged after use and before
carrying out user maintenance on the appliance.
❑The liquid or steam must not be directed towards equipment
containing electrical components, such as the interior of
ovens.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
❑If the supply cord or appliance is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
3

❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and risk
to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
4

❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.
❑The appliance must be used and rested on a table or flat &
stable surface.
❑The item must not be left unattended when it is connected to
main supply.
❑The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
❑Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
❑This appliance is only intended for household use.
❑Never direct steam towards people, animals or plants, or
equipment containing electrical components such as the
interior of ovens.
❑Caution: Danger of scalding.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
5

The symbol "STEAM" warns the user that steam can
escape from the unit and to take all necessary
precautions. (Risk of burns)
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol "IPx4" means the product is suitable for all
weather conditions and resists to strong water
splashes. From any direction. However, it does not
withstand immersion.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium
• products for protection against flames PBB and
PBDE, the peak concentration is equal to or less than
0.1% of the weight of homogeneous material, and
0.01% for the 6th • cadmium.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
Do not use the steam mop outdoors.
6

7

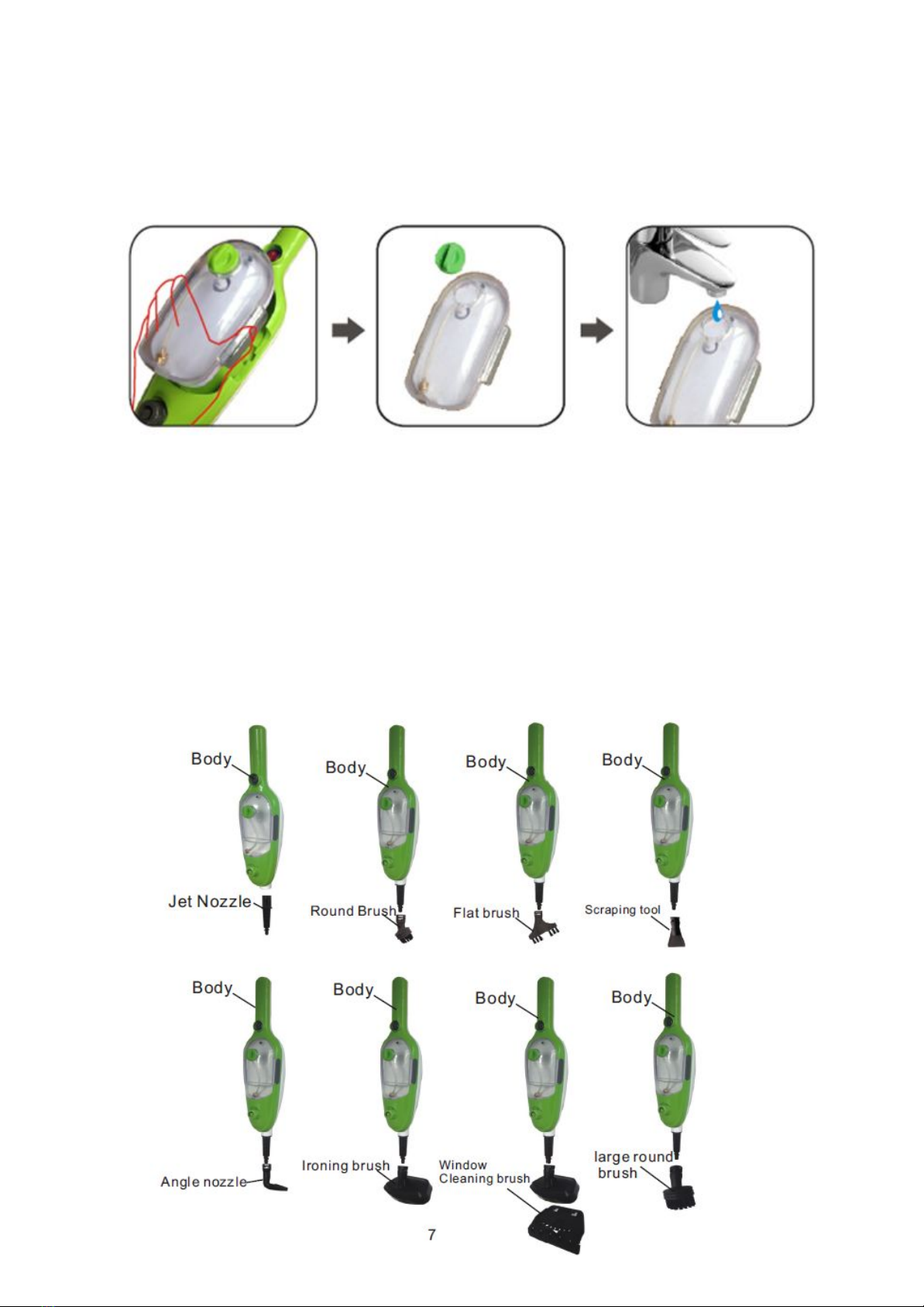

FIRST USE

Before first use, remove the device and all accessories and being careful with
sharp accessories.
Clean the apparatus according to the instructions in "Cleaning and maintenance"
paragraph.
Place the machine on a suitable flat, stable surface.
Ensure that all the parts are correctly assembled before operation.
Do not use the steam mop without the floor cloth in place.
Do not use it without water in the water tank.
Place the appliance on a flat surface when operating to avoid overturning.
Do not insert any objects into openings. Do not use with any opening blocked.
Do not use any detergents in the water tank for cleaning, only use water.
Never direct steam towards people, animals or plants, or equipment containing
electrical components such as the interior of ovens.
TO KNOW
ITS UNIT
8

1. Handle
2. Upper Cord Wrap Hook
3. Metal tube
4. Power Switch
5. Water Tank Cap
6. Water Tank
7. Steam adjustment knob
8. Main Body
9. Mop Head
10. Glider
11. Cloth Sleeve
12. Pilot light
13. Ironing brush
14. Flat brush
15. Angle nozzle
16. Window Cleaning Toll
17. Round Brush
18. Adaptor
19. Small cloth
20. Large round brush
21. Scraping tool
9

ASSEMBLING THE STEAM MOP
Before assembling the steam mop, make sure the power switch is in “OFF”
position
Connect the parts as shown below:
Fit the cloth sleeve over the mop head as shown below:
10
