TECHWOOD TNV-111D User manual

1
STEAM MOP
Instruction manual
Dear consumer, Please read these instructions carefully before use in
order to avoid damage due to incorrect use and to better understand the
functions of this product. Please pay particular attention to the safety
guide.
If you pass the device on to a third party, these Operating Instructions
must also be handed over.
Please keep them for future references.
TNV-111D
TNV-119D
TNV-111D
TNV-119D

2
IMPORTANT SAFEGUARDS
❑Please read these instructions carefully before use.
❑Keep present instructions for future references.
❑Check that your mains voltage corresponds to that stated on
the appliance.
❑Only use the appliance for domestic purposes and household
or similar applications such as:
- staff kitchen areas, in shops, offices and other working
environments;
- By clients in hotels, motels and other residential type
environments;
- Environment type like :
• Farm Houses • Bed and Breakfast.
❑Only use the appliance in the way indicated in these
instructions.
❑Never use this unit near bathtub, shower, wash-hand basins
or other containers with water.
❑Never use this apparatus near water projections.
❑Never use this apparatus with the wet hands.
❑If, unfortunately the apparatus is wet, immediately withdraw
the cord of the socket-outlet.
❑Inform potential users of these instructions.
❑Never leave the appliance unsupervised when in use.
❑The appliance must be used only for its intended purpose. No
responsibility can be taken for any possible damage caused
by incorrect use or improper handling.
❑Children and persons with disabilities are not always aware of
the danger posed by the use of appliances.
❑This appliance can be used by persons with reduced
physical, sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and
if they understand the hazards involved.

3
❑This appliance shall not be used by children.
❑This device is not a toy, do not leave children or people with
disabilities to play with.
❑Cleaning and maintenance must not be made by children.
❑Keep the appliance out of reach of children when it is
energized or cooling down.
❑The appliance shall not be left unattended while it is
connected to the supply mains;
❑The appliance is not to be used if it has been dropped, if
there are visible signs of damage or if it is leaking;
❑The appliance shall be unplugged after use and before
carrying out user maintenance on the appliance.
❑The liquid or steam must not be directed towards equipment
containing electrical components, such as the interior of
ovens.
❑In order to ensure your children‘s safety, please keep all
packaging (plastic bags, boxes, polystyrene etc.) out of their
reach.
❑Caution ! Do not allow small children to play with the foil :
THERE IS A DANGER OF SUFFOCATION !
❑From time to time check the cord for damages. Never use the
appliance if cord or appliance shows any signs of damage.
❑Never immerse the appliance in water or any other liquid for
any reason whatsoever.
❑Never place it into the dishwasher.
❑Never use the appliance near hot surfaces.
❑Do not operate the appliance with a damaged cord or plug, or
after the appliance has been damaged in any manner.
❑If the supply cord or appliance is damaged, it must be
replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
❑Disconnect the power source cable before any operation of
cleaning of maintenance and accessories assembly.

4
❑Never use the appliance outside and always place it in a dry
environment.
❑Never use accessories, which are not recommended by the
producer. They could constitute a danger to the user and
risk to damage the appliance.
❑Never use any other connector than the one provided.
❑Never move the appliance by pulling the cord. Make sure the
cord cannot get caught in any way.
❑Never wind the cord around the appliance and do not bend it
❑Ensure that the power cord does not come into contact with
hot parts of this unit.
❑Make sure the appliance has cooled down before cleaning
and storing it.
❑The temperature of accessible surfaces may be very high
when the appliance is operating. Never touch these parts, of
apparatus, to avoid burning itself.
❑Make sure the appliance never comes into contact with
flammable materials, such as curtains, cloth, etc...& the
power cord and plug do not come in contact with water.
❑Before cleaning, always unplug the appliance from the power
supply and let it cool down.
❑This appliance is not intended to be operated by means of an
external timer or separate remote-control system.
❑Always place the unit on a flat surface. Ensure, also, not to
cover the device and not to put anything on it.
❑Always remove the plug from the wall socket when the
appliance is not in use.
❑When using an extension lead always make sure that the
entire cable is unwound from the reel. Use solely CE
approved extension leads. Input power must be at least 16A,
250V, 3000W.
❑Incorrect operation and improper use can damage the
appliance and cause injury to the user.
❑This device, designed for home use, complies with standards
relating to this type of product.

5
❑The appliance must be used and rested on a table or flat &
stable surface.
❑The item must not be left unattended when it is connected to
main supply.
❑The item is not to be used, if it has been dropped or if there
are visible signs of damage or if it is leaking.
❑Regarding the instructions for cleaning, thanks to refer to the
below paragraph of the manual.
❑This appliance is only intended for household use.
❑Never direct steam towards people, animals or plants, or
equipment containing electrical components such as the
interior of ovens.
❑Caution: Danger of scalding.
(*) Competent qualified person : after sales department of the
producer or importer or any person who is qualified, approved
and competent to perform this kind of repairs.
GENERAL INFORMATION
The symbol "OPEN BOOK" means a recommendation
to read important things contained in the record.
The symbol "BIN" crossed out, abbreviation WEEE
(Waste of Electrical and Electronic Equipment) means
that at the end of life, it should not be discarded with
household waste, but filed to the sorting of the locality.
Waste recovery can help preserve our environment.
The symbol "STEAM" warns the user that steam can
escape from the unit and to take all necessary
precautions. (Risk of burns)
The symbol "CE" is the guarantee of compliance with
harmonized European standards, voluntary, reflecting

6
the essential requirements into technical
specifications. These standards are not mandatory
but are guarantees of compliance with essential
requirements.
The symbol "IPx4" means the product is suitable for all
weather conditions and resists to strong water
splashes. From any direction. However, it does not
withstand immersion.
The symbol "HOT SURFACE" warns the user that the
walls of the unit can become very hot, and to take
precautions as required.
The symbol ROHS (Restriction of use of some
Hazardous Substances) on the Environmental
Protection, certifies that for each of the five hazardous
substances • Lead • Mercury • (hexavalent) chromium
• products for protection against flames PBB and
PBDE, the peak concentration is equal to or less than
0.1% of the weight of homogeneous material, and
0.01% for the 6th • cadmium.
The symbol "TRIMAN" indicates that the consumer is
invited to dispose the product as part of a separate
collection (eg recycling bin, waste, voluntary intake
point).
For more information : http://www.quefairedemesdechets.fr
The symbol " CMIM " is the guarantee of compliance with
optional harmonized Moroccan Standards, which reflect the
essential requirements in terms of technical specifications.
These standards are not mandatory but ensuring
compliance with the essential requirements.

7
Do not use the steam mop outdoors.
FIRST USE
Before first use, remove the device and all accessories and being careful with
sharp accessories.
Clean the apparatus according to the instructions in "Cleaning and maintenance"
paragraph.
Place the machine on a suitable flat, stable surface.
Ensure that all the parts are correctly assembled before operation.
Do not use the steam mop without the floor cloth in place.
Do not use it without water in the water tank.
Place the appliance on a flat surface when operating to avoid overturning.
Do not insert any objects into openings. Do not use with any opening blocked.
Do not use any detergents in the water tank for cleaning, only use water.
Never direct steam towards people, animals or plants, or equipment containing
electrical components such as the interior of ovens.
TO KNOW ITS UNIT
WARNING: DANGER OF SCALDING!
Beware of escaping steam when operating the unit. The steam is hot
and may cause severe burns if it comes in contact with bare skin!

8

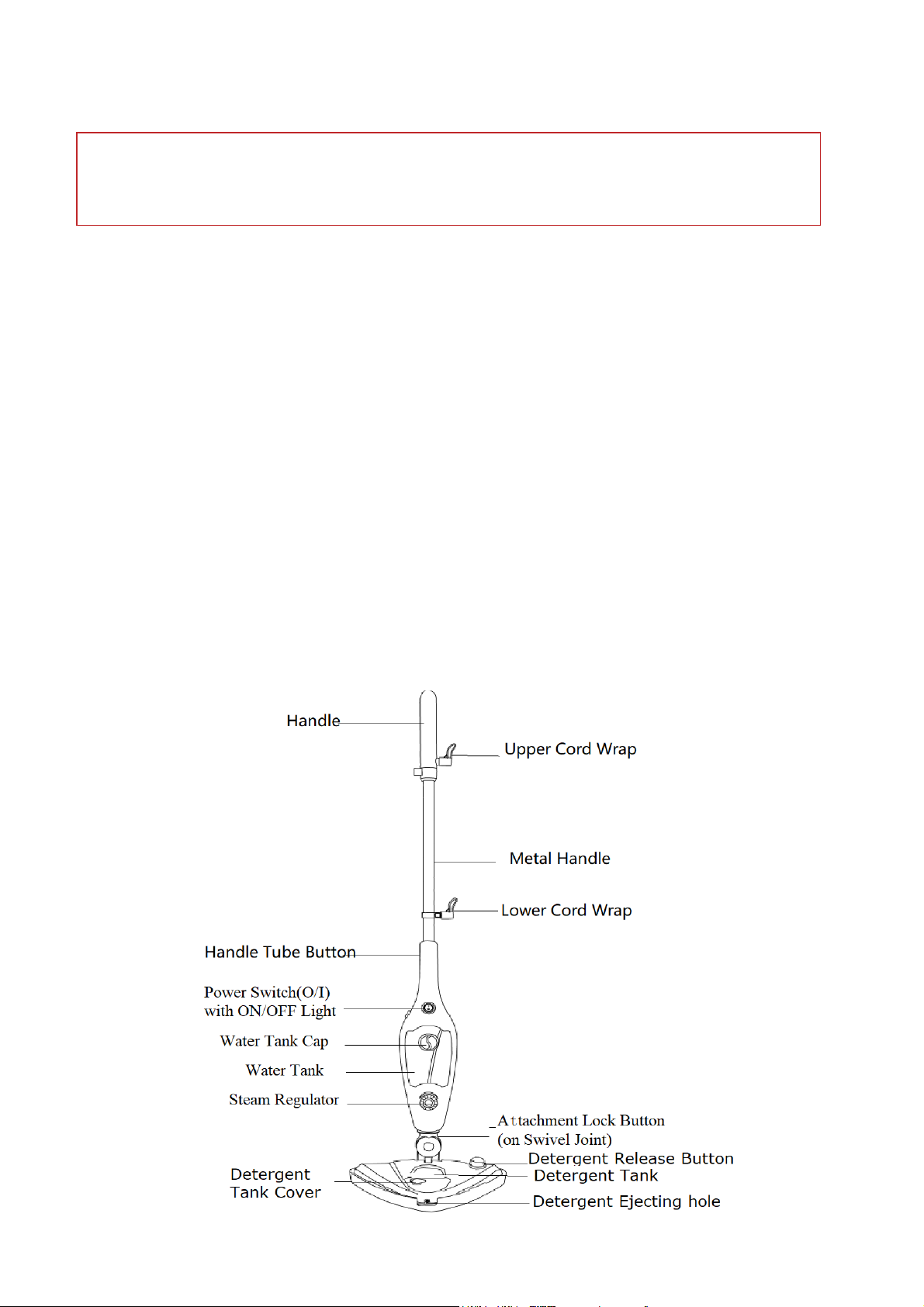

ASSEMBLING THE STEAM MOP
Before assembling the steam mop, make sure the power switch is in “OFF”
position
Connect the parts as shownbelow:
1) Insert the Swivel Joint into designated connection hole in the Main Body.
2) Put the Microfiber Cloth Pad onto the mop head. Fasten the Pad by tightening
the drawstring with the toggle
3) When using on carpet surfaces: Place the Mop Head, with Microfiber Cloth in
place, on top of the carpet glider.
4) When clean grease or oil etc. surface purpose, pls add the detergent into the
Detergent Tank.

9
. TO USE AS A HAND STEAM CLEANER
1.Pr e ss handle t ube bu tt on to r emo v e t he handle f rom main bod y.
2.I n st all t he a cc e ss ory adap t or on the m ain bod y, un t il i t is in t o pla c e .
3.Choose the appropriate accessories (check accessories use list),
according to arrow indicator to align and implant to accessory adaptor, then turn
anticlockwise, until it into place.
NOTE : to remove accessory adaptor, Press salient point on the accessory
adaptor.

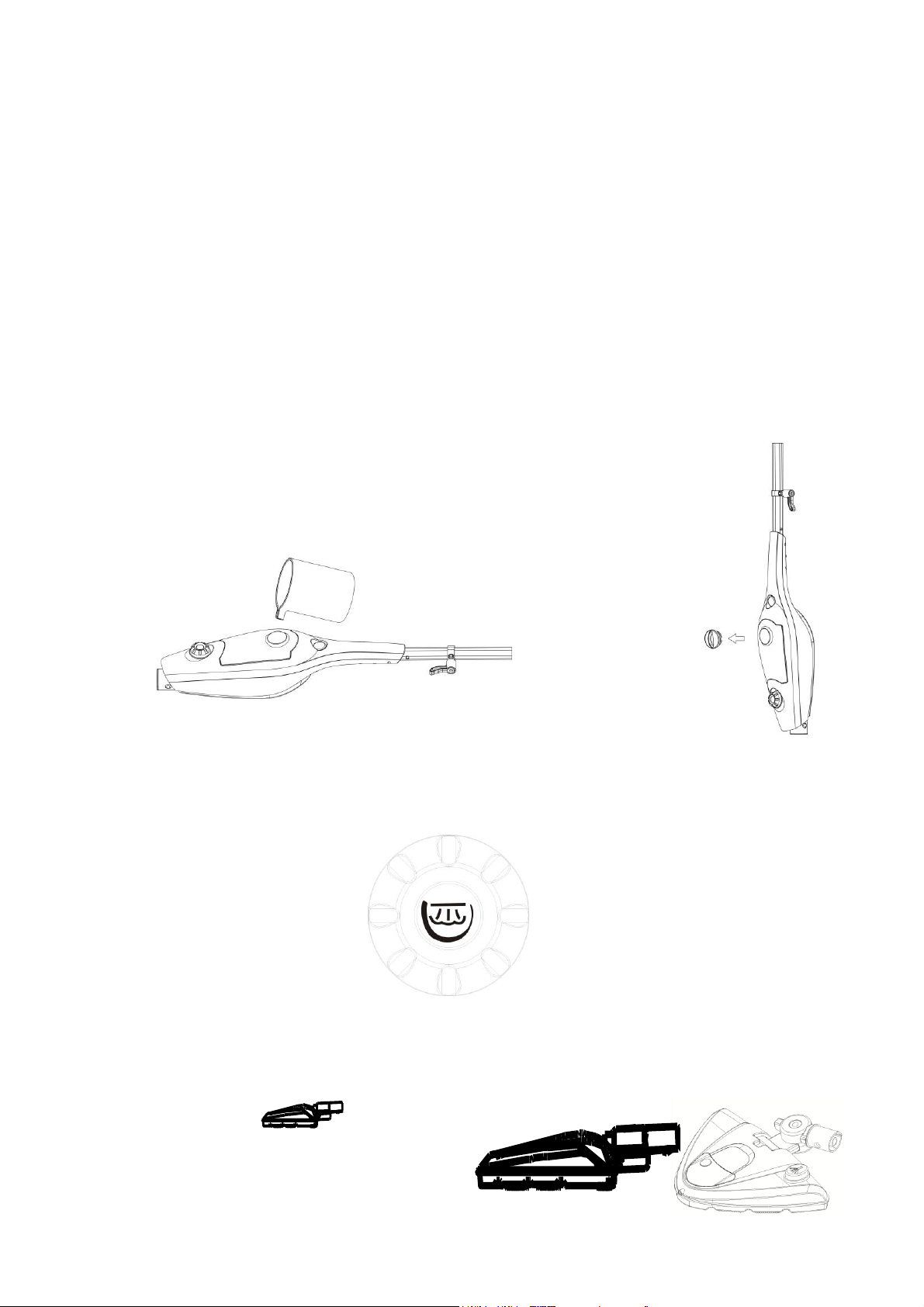

HOW TO USE
1) Fill the Water Tank with water:
a) Open the Water Tank Cap by counterclockwise rotation
b) Use the Measuring Cup to pour the water into Water Tank
(b) (a)
2) Select appropriate Steam Regulator positions:
Steam volume will be bigger when turn Steam Regulator Knob clockwise,
and counterclockwise to reduce. User can adjust steam volume according to
different objects.
NOTICE:steam volume control by PCB,It will takes 3 seconds adaptation
time.When you adjust steam volume .It is normal phenomenon.
When normal cleaning,the steam
head has big rotary angle,can clean
corners and also can clean low space.

10
3) Once the unit has been fully assembled and filled with water, plug in the Power
Cord to a grounded electrical outlet. Power Switch (O/ I) is in the OFF(O) position,
turns the Power Switch (O/ I) to the ON(I) position. Approximately 20 seconds,the
Mop will start emitting steam. Adjust the steam regulator and choose the
approximate steam output amount according to your requirement..
To stop emitting steam, turns the Power Switch (O/ I) to the OFF(O) position.
It is normal that a little water maybe ejected from nozzle before steam starts
4) Slowly pass over the surface to be cleaned.The absorbent mop cloth picks up
the dirt loosened by the steam.Apply steam liberally.Keep a towel handy and wipe
away any excess water that may accumulate.
5) When the steam mop stops emitting steam,simply turn OFF and unplug
the appliance,refill the Water Tank and continue cleaning.
NOTE: It is recommended that another high wattage appliance is not operated on
the same circuit to avoid a circuit overload.
CAUTION: To sanitize an area of your floor, leave the Steam Mop over area for a
minimum of 8 seconds, but no longer than 15 seconds. Leaving the Steam Mop in
a stationary position for a longer period than recommended may cause the build
up of a pale residue. This residue can be removed by using a decalcifying product
or with a few drops of vinegar. (See troubleshooting guide)
WARNING: NEVER run the Steam Mop without water. NEVER direct steam at
any person or animal. Use the Steam Mop on sealed hard floor only.
9) When you finish your cleaning, unplug Power cord from outlet, empty the Water
tank, carefully remove the cloth Pad from the head, wind Power Cord around the
Cord Wrap and store it upright in a dry area or hang by the storage hook.
CAUTION: The Cloth Pad may be very hot.
Not for space heating purpose.
Warning:
1) Don’t use the steam mop without Microfiber Cloth Pad on the mop head
2) Only attach the Carpet Glider to the Mop head when you clean the
Carpet.Carpet Glider is not used for the floors except Carpet.
3) When clean any sealed wooden floors,especially sealed lacquered floor,
use extra caution, pls clean small areas as an experiment in order to avoid
scratching and damage of floors.

11
HAND-HELD STEAMER
The Hand-Held Steamer is an ideal portable cleaner for use on work surfaces,
counter tops, sinks,windows,mirrors,tiles and spot cleaning on floors,carpets and
rugs.Use it with the Angle Nozzle, Brushes attachments to spray away
dirt,grease,mold and more.
HOW TO ASSEMBLE HAND-HELD STEAMER
1) Press handle tube button, remove the handle from main body
2) Press Attachment Lock Button(on the Swivel Joint),remove the mop head
from the main body.
3) Press the Attachment Lock Button on the Accessory Adaptor and install the
Accessory Adaptor at the top of main body , until it into place.
4) Choose the appropriate accessories(check accessories use list),to align and
implant to Accessory Adaptor, then turn clockwise, until it into place..
5) Press the Attachment Lock Button on the Accessory Adaptor to remove the
Accessory Adaptor from the main body.

12
ACCESSORY LIST
CAUTION!
Before cleaning any electrical appliance, check and follow appliance
manufacture's cleaning guidelines.
ACCESSORY
SUGGESTED USE
Carpet Glider
Used on the carpet
Microfiber Cloth
For general cleaning of hard floors
and refreshing carpets.
Measuring Cup
Add water
Accessory Adaptor
1) Clean stove tops, around faucet
edges, grout, microwaves, sinks,
hard to reach areas, etc.
2) Attach the following accessories
to the main body
Window
Squeegee/Garment
Steaming Tool
1) Clean shower glass doors,
mirrors, glass, removing
soap scum and grime.
2) After put the Garment
Steamer Cloth, it can take
wrinkles out of garments,
steaming draperies,
tablecloths, and more.
Small and Medium
Scrub brushes
Clean oven, microwaves, stove tops,
showers, bathtubs, faucet fixtures,
tile, grout, toys, refrigerators, etc.
Angle Nozzle
Clean stove tops, around faucet
edges, grout, microwaves, sinks,
hard to reach areas, etc.
Grout cleaning Tool
Cleaning all grout lines, sanded or
non-sanded.
Scraping Tool
Scraping baked on food, grime, and
grease.
Removing residue or other difficult

13
substances from surfaces, such as
stove tops and ovens
Garment Steamer
Cloth
For use when steaming garments,
draperies, tablecloths,etc.
USING THE STEAM MOP
The easy, environmentally friendly way to clean your floors.
No chemicals
Thoroughly cleans and sanitises floor surfaces without any chemicals.
No elbow grease
Easily removes dirt and grime from hard floors or carpets, leaving them
hygienically clean without the need for hard physical labour.
Tap water only
Designed for use with plain tap water that is converted into steam. (Distilled or
purified water is recommended for use, ONLY in hard water areas.)
Reusable cloths
Comes with two re-usable, highly absorbent microfiber cloths that can be
machine-washed in hot water and tumble dried.
Use on most hard floors
Designed for use on hard surfaces that will withstand high heat, including ceramic
tiles, marble, stone or linoleum floors and on sealed hardwood or parquetry floor
(However, see cautions below).
Use on carpet and rugs
Designed for use with the supplied carpet glider on carpet and rugs that will
withstand high heat.
Do not use the steam mop on unsealed wood floors.
Do not let the steam mop stand on any wood floor for an extended period of
time.
Note : This could cause the wood grain to expand.
Test an isolated area of the surface to be cleaned before proceeding.
Take extra care when using the steam mop on surfaces that have been treated
with wax, as the heat and steam may remove the wax or the sheen.
Take extra care when using the steam mop on vinyl, linoleum or any other heat-
sensitive floors, as too much heat can melt the glue on the floor.
We recommend cleaning a small sample first in an inconspicuous area of the
floor and checking the floor manufacturer's use and care instructions for the
surface to ensure suitability for steam cleaning.

14
Before you start steam cleaning your floors, make sure:
1. The surfaces to be steam cleaned have been swept or vacuumed.
2. The steam mop is fully assembled (see Assembling paragraph).
3. The microfiber cloth sits tightly around the steam head.
(Do not use the mop without the microfiber cloth!)
4. The water tank is filled.
(Do not add cleaning solution, only use tap water, or distilled/purified water.)
USE
•Unroll the power cord completely.
•Check that the tension in force in the country where you are, corresponds to that
indicated on the apparatus.
•Connect the apparatus in a correct socket-outlet, (and connected to the ground if
the unit is Class I), to avoid any danger.
•Disconnect the power source cable before any operation of cleaning of
maintenance and accessories assembly.
•Never modify the appliance in anyway.
Turn on the power switch, power indicator Light, the unit starts heating.
NOTE : It takes approximately 30 seconds for the unit to heat up and the steam to
be ready.
Push the unit along thefloor, Forward and backward.
When the water level in the water tank is low, Turn off the power switch
immediately.
Unplug the unit from the electrical outlet and refill the water tank following the
Instructions.
NOTE : If you use steam mop for a long time, the cloth sleeve may become very
wet or dirty & will need to be replaced.
Turn off the unit & allow to cool before replacing.
NOTE : While replacing cloth sleeve don't touch steam head to avoid scalding.
To sanitize a specific area of your floor, position the steam mop over the area for a
minimum of 8 seconds, but no longer than 15 seconds.
NOTE : The steam temperature will reach approximately 90-110°C. This is
particularly useful for cleaning bathroom, shower, pet sleeping area or around
garbage bins.
WARNING
Never run the steam mop without water.
Never direct steam at any person or animal.

15
AFTER USE
1) Unplug Power Cord from outlet.
2) Allow Mop Pad/Cloths to cool down and carefully remove cleaning cloth from
mop Head, as cleaning cloth could still be hot.
3) Any water remaining in the Water Tank should be emptied prior to appliance
storage. Always empty the Water Tank at the end if each use.
4)Let any water(that may remain as a product of condensation)drain from the
steam opening prior to storing the appliance.
5)Wrap Power Cord around Upper and Lower Cord Wrap.
6)Wipe all surfaces of the steam mop with a soft cloth. Store in a protected,
dry area.
7)Please store the unit in a cool and dry place when not in use. Do not leave it
exposed to sunlight or rain.
8)Upright storage of the steam mop with a wet Mop Pad/Cloth may result in the
formation of white marks on your floor. To remove the white marks.
clean area with vinegar. Make sure to remove the Mop Pad/Cloth before storage.
CLEANING AND MAINTENANCE
Before cleaning, always: switch off the appliance, disconnect the apparatus and
let it cool.
Clean the outside of the apparatus with a sponge or slightly wet linen.
The parts (removable) can be washed in hot water with sponge and soft
detergent.
Never plunge the apparatus in water or all other liquid!
Do not use abrasive cleaners, gritting, or metal brush or another cutting object.
STORAGE
-Ensure the unit is completely cool and dry.
-Do not wrap the cord around the appliance, as this will cause damage.
-Keep the appliance in a cool, dry place and out of reach from children.

16
GUARANTEE
Before being delivered, all our products are subjected to a rigorous control.
This apparatus is guaranteed 24 months starting from the date of purchase by
the consumer.
The documents in proof of guarantee are :
• The invoice and
• The filled and stamped warrantee plate (located on side or bottom of the gift
box). Without these documents in proof, no free replacement, nor no free repair,
can be carried out.
During the warranty period, we deal for free, the defects of the apparatus or the
accessories, rising from a defect of materials or manufacture by repair or,
replacement. The services within the framework of the guarantee do not involve
any extension of the warranty period and does not give right to a new guarantee !
In the event of recourse to the guarantee, bring back the complete apparatus to
your retailer, in its original packing, accompanied by the proofs of purchase.
The breakage of parts out of glass or plastic is, in all the cases, not warranted.
Defects on the accessories or the wearing parts (for example: coals of engines,
hooks, drive belts, remote control of replacement, teeth brushes of replacement,
webs etc) as well as cleaning, maintenance or it replacement of wearing parts
are not guaranteed and are thus to pay !
In the event of foreign intervention, the guarantee becomes null and void.
After flow of the warranty period, repairs can be carried out, against payment, by
a specialized trade or a repair service.
This unit is equipped with an electrical outlet with earth and must be
earthed in an according plug.
Note : In the event of question concerning the earth or electric
connection, please consult a qualified personnel.
In the event of short-circuit, earthing reduces the risk of electric
shock while making possible the current to be evacuated by the wire
of ground.
CAUTION: In order to minimize the risks of electric shock, In the event of
breakdown, not to open the case but to call upon a qualified technician
for repairs.
This device complies with EC directives, it was controlled according to all current
European directives, applicable such as: electromagnetic compatibility (EMC) and
low voltage (LVD).
This device has been designed and manufactured in compliance with the latest
regulations and technical requirements for safety.

17
SPECIFICATIONS
Power supply 220-240V~ 50/60Hz
Power 1300W
Norm Class I; IPX4 Made in PRC
The characteristics can change without prior notice.
Imported by Sotech International
" LE PERIPOLE " N°A-107
33, Avenue du Marechal de Lattre de Tassigny
94120 Fontenay sous-bois - France
