TEFAL DT91 Series User manual

DT91XX
www.tefal.com
EN

2
3
7
1
9* 10* 11*
8
5
4
6
1
12* 13*
* Depending on model

2
3
7
1
9* 10* 11*
8
5
4
6
1
12* 13*
PRODUCT DESCRIPTION
1. Control panel : On/Off and steam
level buttons
2. Heated soleplate
3. Water tank locker
4. Locker switch for continuous steam
5. Steam trigger
6. Standing base
7. Removable water tank
8. Cord exit
9*. Fabric brush
10 *. Steam cover
11*. Crease attachment
12*. Door hook
13*. Travel Pouch
* Depending on model

EN
Important safety instructions
• Please read these instructions carefully before first use.
• This product has been designed for indoor, domestic use
only. Any commercial use, inappropriate use or failure to
comply with the instructions, the manufacturer accepts no
responsibility and the guarantee will not apply.
• Always plug your appliance:
−into a mains socket with voltage between 220 V and 240V.
−into an earthed electrical socket.
Connecting to the wrong voltage may cause irreparable
damage to the appliance and will invalidate your guarantee.
Do not use an extension lead. If you accept liability for
doing so, only use an extension lead which is in good
condition, has a plug with an earth connection and is
suited to the power rating of the appliance.
• Completely unwind the power cord before plugging into an
earthed socket.
• Use appliance for its intended use only.
• To reduce the risk of contact with hot water emitting from
steam vents, check appliance before each use by holding it
away from body and operating steam button.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.
4

• Never pull on the cord to disconnect the appliance from
electrical outlet; instead, grasp plug and pull to disconnect
on the plug to disconnect the appliance.
• Do not allow cord to touch hot surfaces or come into
contact with rough or sharp edges. Let the appliance cool
completely down before putting away. Loop cord loosely
around appliance when storing.
• Always disconnect appliance from the electrical supply
when filling with water or emptying when cleaning, when
removing or refitting accessories and when not in use.
• Care should be taken when using the appliance due to the
emission of steam.
• Do not operate appliance with a damaged cord or if
appliance has been dropped or damaged. To avoid the
risk of electric shock, do not disassemble or attempt to
repair the appliance.Take it to the nearest approved service
centre for examination and repair. Incorrect reassembly or
repair could cause a risk of fire, electrical shock or injury to
persons when the appliance is used.
• Close supervision is necessary for any appliance being
used by or near children.
• Do not leave the appliance unattended while plugged in or
while it is still hot.
• Burns could occur from touching hot metal or plastic parts,
hot water or steam. Use care when you empty a steam
appliance. There may be hot water in the reservoir.
• If an extension cord is absolutely necessary, a cord with
a 16A ampere rating shall be used. A cord rated for less
amperage can result in a risk of fire or electric shock due
to overheating. Care shall be taken to arrange the cord so
that it cannot be pulled or be tripped over.

6
• To protect against a risk of electric shock, do not immerse
the appliance in water or other liquids.
• Do not direct steam at people, animals or clothes while
they are being worn.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their
safety. Children should be supervised to ensure that they
do not play with the appliance.
• The use of accessory attachments other than those
provided by the manufacturer is not recommended and
may result in fire, electric shock or personal injury.
• The appliance must be rested on a stable surface. When
placing the appliance on its base, ensure that the surface
on which the base is placed is stable.
• The appliance must not be used if it has been dropped, if
there are visible signs of damage or if it is leaking.
• Check the electrical power cord for sign and wear or
damage prior to use. If the electrical power cord is
damaged, it must be replaced at an approved service
centre to avoid any danger.
• Do not use other descaling products than the one cited in
the IFU.
Before first use
• When you first use the appliance, some smoke or a harmless odour may be produced or there may be a small discharge of
particles. This will not affect the use of the appliance and will disappear quickly.
What water to use?
• Your appliance has been designed to use untreated tap water.
If your water is very hard, mix 50% tap water and 50% bottled demineralised water.

7
Do not use pure demineralised or pure distilled water, water from clothes dryers, scented or softened water, rain water, filtered,
bottled or boiled water, water from refrigerators, batteries or air conditioners as these may damage the appliance. These types
of water contain organic waste, mineral elements that become concentrated when heated and cause spitting, brown staining,
leaking or premature wear on your appliance. If your water is very hard, mix 50% untreated tap water with 50% distilled water
(available in hardware stores). This water contains organic waste materials or minerals that concentrate under the effect of heat
and cause spitting, brown colouring or premature ageing of your appliance.
SAVE THESE INSTRUCTIONS
Environment protection first !
i Your appliance contains valuable materials which can be recovered or recycled.
 Leave it at a local civic waste collection point.

8
1BEFORE USE
Unlock and remove the water tank.
Remove the water inlet stopper.
Fill the water tank with untreated tap water.
Close the water inlet stopper.

9
View of the finished product and exploded view.
2ASSEMBLY BOARD
GUIDE
Return the water tank to its place on the appliance.
Make sure that the water tank is fully set in place
and locked.

10
“CLICK”

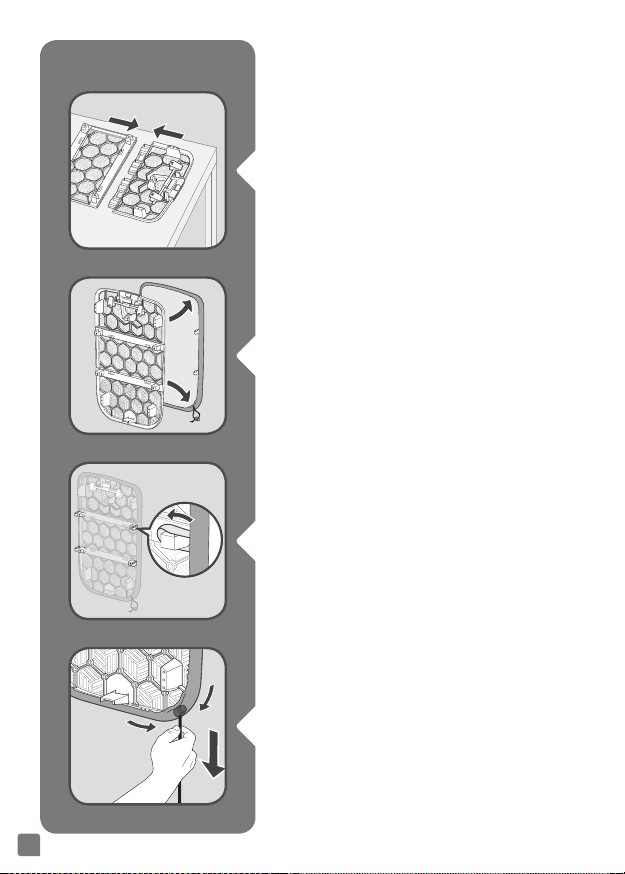

Lay down the three parts on a table and clip them
together.
Insert the cover over the board.
Position the four bands around the four hooks.
Band the cord and slip the stop element.

11

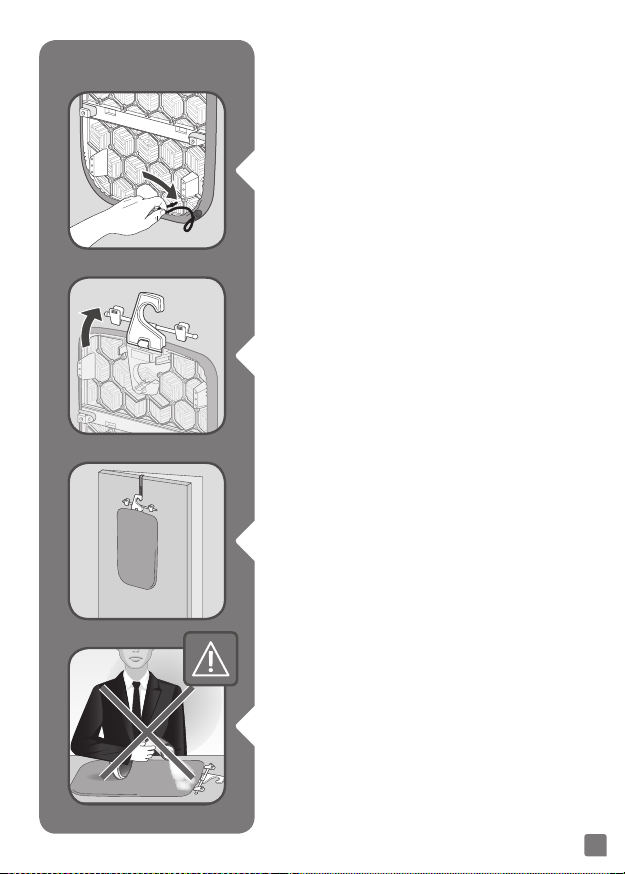

Tuck away the cord in the back of the cover.
Deploy the hook.
Hang the board on the door hook.
Warning: never use the board and the product on a
flat position.

12
3ACCESSORIES /
*
*
* Depending on model
*
*
The door hook allows to hang your garment for
steaming. Do not use the door hook on wooden on
painted doors to avoid damaging the door.
The fabric brush opens the weaves of the fabrics for
better steam penetration.
Before removing or attaching the steam brush,
unplug your appliance and allow it to cool down, for
one hour.
The steam cover filters water impurities and protects
fabrics from water drips.
This accessory must be used for delicate fabrics
which do not support ironing.
Before removing or attaching the steam cover,
unplug your appliance and allow it to cool down for
one hour.
The crease attachment is used to make pant creases
easily or to remove stubborn creases. Put your fabric
in the space between the two accessory parts. Move
the crease attachment in a downwards motion
starting from the top.
Before removing or attaching the accessory, unplug
your appliance and allow it to cool down for one
hour.

13
The lint pad removes hair, lint and animal fur for a
professional finish.
• To use the lint pad, slowly brush the clothing with
the grain or nap of the fabric.
• The pad can be cleaned by brushing it in the
opposite direction. We recommend cleaning the
pad on an old cloth that can be discarded.
*
*
The lint pad is a separate accessory and cannot be attached to the steam head.
You can use the lint pad independently from the steamer.
* Depending on model
The travel pouch is used for transportation. Before
storing your appliance in the travel pouch, unplug
your appliance then empty the water tank and
allow the appliance for approximately 1 hour until
completely cool.

14

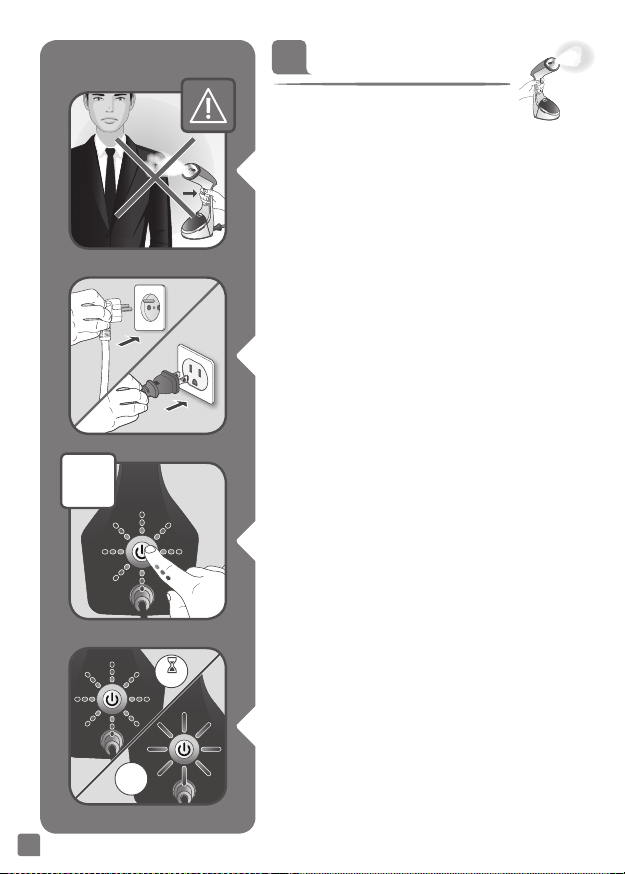

40s
OK
Wait until the light stops flashing (approximately
40 seconds). When the light is steady the appliance
is ready to use.
ON
Warning : Never steam a garment while it is being
worn.
4USE
Plug-in the appliance.
Switch on the appliance.

15
Press the steam button with the steam brush facing
away from you holding it in a vertical position.
For optimal use, move the garment steamer over
your garment from top to bottom.
3 levels of steam: adapt the steam output to your
garment.
For continous steam, lock the steam trigger by
pushing the locker switch down. To release it, push
it up.

16
3 sec.
OFF

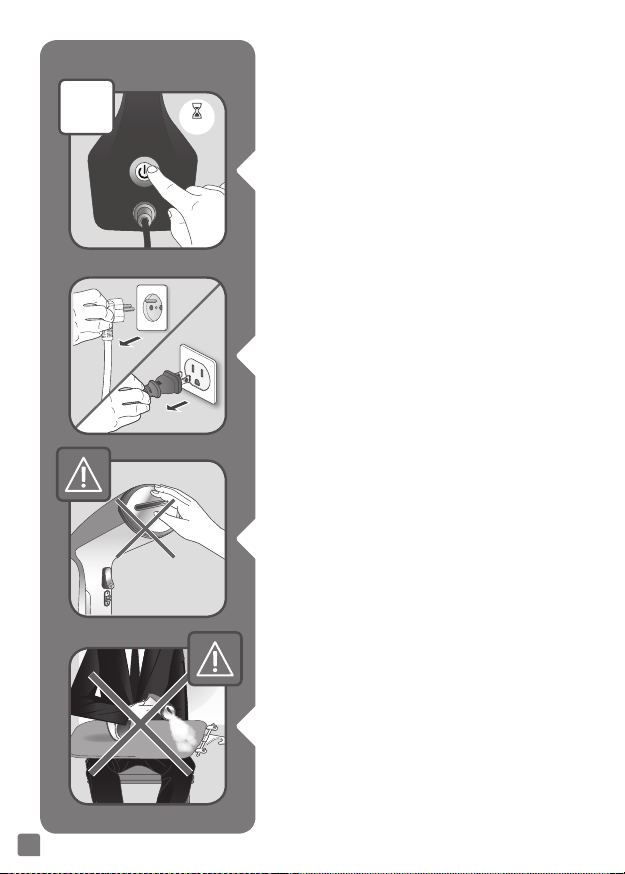

Press and hold the On/Off button for 3 seconds to
switch the appliance off.
Warning: Never steam a garment with the board on
your legs.
Warning: Never touch the soleplate of the appliance.
Unplug the appliance.

17
1) For your safety, the appliance is fitted with a
standby monitoring system, which is activated
automatically after approximately 8 minutes
without use.
2) Only the ‘On-Off ’button flashes slowly to indicate
that the appliance is on standby
3) To reactivate the steambrush :
a. Press the ‘ On-Off ’ button and wait until the
button light stops flashing
b. You can start steaming again.
5STANDBY MODE
Unlock and remove the water tank.
6AFTER USE

18

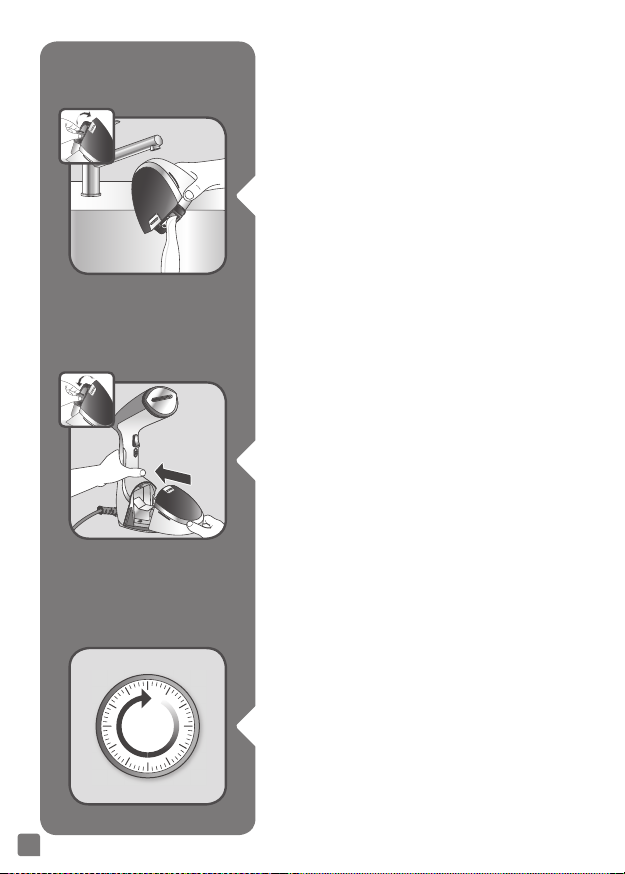

Empty the water tank completely.
1h
Wait for approximately 1 hour for your appliance to
cool completely before storing or using the travel
pouch.
Return the water tank to its place on the appliance.

19
50%
50%
Water
Water
White Vinegar /
Citric Acid
Fill the water tank with 50% untreated tap water and
50% white vinegar or citric acid.
Do not use other descaling products.
Unlock and remove the water tank.
Do this operation in a well ventilated room.
7DESCALING
Remove the water inlet stopper.

20
40s
OK
ON
Return the water tank to its place on the appliance.
Make sure the water tank is fully set in place and
locked.
Plug-in the appliance.
Switch on the appliance.
Wait until the light stops flashing (approximately
40 seconds). When the light is steady the appliance
is ready to use.
