TEFAL IS3380 User manual

EN
FR
TH
MS
ZH
AR
EN
FR
TH
MS
ZH
AR
RU
UK
TR
KO
ES
PT
FA
EN
FR
TH
MS
ZH
AR
1800134165-06 - 31/18
EN
FR
TH
MS
ZH
AR
RU
UK
TR
KO
ES
PT
FA
IS3300
www.tefal.com
1
6
5
3*
8
4
2a*
12
17
14
9
16
7
10
11
19
20
15b
18
15a
13
* * 모델에 따라 다름
* EN Depending on model / FR Selon modèle / TH แตกต่างกันไปในแต่ละรุ่น / MS Mengikut model / ZH 根據型號而定
/ AR
  / FA   
/ RU В зависимости от модели / UK Залежно від моделі / TR modele göre değişir
KO 모델에 따라 다름 / ES Según el modelo / PT Dependendo do modelo

21*
2b*
22*
23*
25*
26*
27*
24*
fig. 1 fig. 2 fig. 3
12
CLICK
fig. 4
CLICK
fig. 8fig. 7
1
2
fig. 6
12
fig. 5
fig. 9
2
11
fig. 10 fig. 11
1 L
fig. 12
* EN Depending on model / FR Selon modèle / TH แตกต่างกันไปในแต่ละรุ่น / MS Mengikut model / ZH 根據型號而定
/ AR   / FA    / RU В зависимости от модели / UK Залежно від моделі / TR modele göre değişir
KO 모델에 따라 다름 / ES Según el modelo / PT Dependendo do modelo

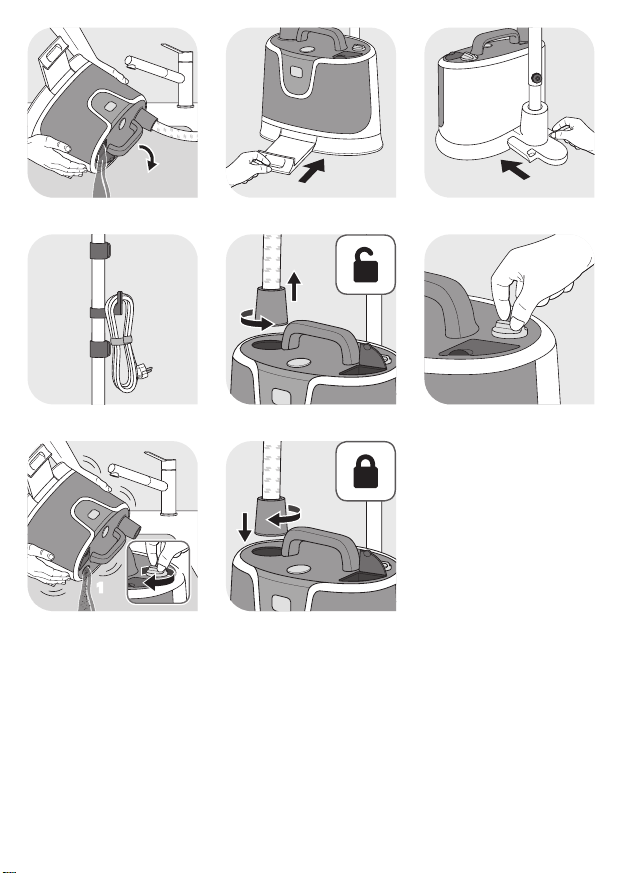

fig. 14 fig. 15
fig. 16 fig. 17 fig. 18
fig. 19 fig. 20 fig. 21
fig. 23 fig. 24
OFF
fig. 22
ON
fig. 13

fig. 26fig. 25 fig. 27
fig. 28
fig. 31
11
2
2
fig. 30
2
1
fig. 29
12
CLICK
fig. 32

3
ENEN
SAFETY INSTRUCTIONS
Please read these instructions carefully before first use
and keep them in a safe place.
• Never leave the appliance unattended whilst connected
to the power supply, even if for a few moments, especially
where children are present.
• Always unplug your appliance: before filling, or rinsing the
water tank, before cleaning it, after each use.
• Care should be taken when using the appliance due to the
emission of steam.
• This appliance is not intended to be used by persons
(including children) with reduced or impaired physical,
sensory or mental capabilities or persons lacking
appropriate knowledge or experience, unless a person
responsible for their safety provides either supervision or
appropriate instructions concerning use of the appliance
prior to its use.
• This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved.
• Children must be supervised to ensure that they do not play
with the appliance.
• Cleaning and user maintenance shall not be made by
children without supervision.
• The appliance must not be used if it has fallen to the
floor, shows evidence of damage, leaks or fails to function
correctly. Never dismantle your appliance. To avoid any
danger, have it inspected in an approved service centre.
IMPORTANT RECOMMENDATIONS

4
• This product has been designed for domestic and indoor use only. Any
commercial use, inappropriate use or failure to comply with the instructions, the
manufacturer accepts no responsibility and the guarantee will not apply.
• This is a floor appliance, never carry it while in use.
• This appliance is designed to function on AC current only. Before using it for the
first time, check that your mains supply voltage matches that indicated on the
appliance data plate.
• Any connection error will invalidate your guarantee.
• Always plug the appliance into a socket outlet with an earth connection.
• Given the diverse standards in effect, if the appliance is used in a country other
than that in which it is purchased, have it checked by an Approved Service Centre.
• Always keep the hose and nozzle elevated above the water tank.
• For your safety, this appliance conforms to the applicable standards and
regulations (Low Voltage, Electromagnetic Compatibility, and Environmental
Directives).
• The surfaces which are marked or close to with this sign are very hot during
the use of the appliance. Do not touch these surfaces before the appliance has
cooled down.
• To reduce the risk of contact with hot water or steam emitting from steam vents,
check the appliance before each use by holding it away from your body and
operating.
• Steam only in an up and down vertical motion. Never use the steam head in a
horizontal position or tilt into a backward position, this may result in hot water
discharge.
• To reduce the risk of electric shock, do not immerse the appliance or the steam
head in water or any other liquids.
• The appliance should always be switched «OFF» before plugging or unplugging
from socket outlet. Never pull the cord to disconnect it from the socket outlet,
instead grasp the plug and pull to disconnect.
• Do not allow the cord to touch hot surfaces. After each use, unplug and let the
appliance cool down completely before storing it away. Loop the cord loosely
around the appliance when storing.
• Never place the appliance or its power cord near, or allow to come into contact
with, sources of heat or sharp edges.
• “Before plugging your appliance, please ensure the full insert and locking of
steam hose (by soft vertical pulling). During use, never unlock and never remove
the steam hose as hot water and steam projection can occur.
• Do not attempt to hang up the unit using the hose.

5
ENEN
• The use of accessory attachments other than those provided by Tefal is not
recommended and may result in fire, electric shock or personal injury.
• Use caution when changing accessories or attachments, as they may contain
hot water from condensation. Ensure that the attachments have cooled down
to avoid contact with hot water.
• Burns could occur from touching hot parts, hot water or steam. Use care when
you empty a steam appliance. There may be hot water in the tank or from the
inside the appliance.
• Do not direct steam at people, animals or steam clothes while they are being
worn.
• Do not cut or attempt to extend the steam hose.
• Do not use an extension lead. If you accept liability for doing so, only use an
extension lead which is in good condition, has a plug with an earth connection
and is suited to the power rating of the appliance.
• Unwind the power cord fully before use and inspect the appliance and power
cord for signs of wear or damage prior to connecting to the power supply.
• Any intervention other than normal cleaning and maintenance by the customer
must be performed by an Approved Service Centre.
• Never drop or insert any object into any opening or hose.
• The glove should be only used with this garment steamer (*depending on model).
The manufacturer accepts no responsibility for any inappropriate use.
• Remove all packaging materials, stickers and accessories from inside and outside
of the appliance.
• Inspect the appliance and power cord for signs of wear or damage prior to
connecting to the power supply.
• Do not use your appliance if it does not operate correctly, if it has been damaged
or if the power cord or plug is damaged. To maintain safety, these parts must be
replaced by an Approved Service Centre.
• Any intervention other than normal cleaning and maintenance by the customer
must be performed by an Approved Service Centre.
• This unit is for indoor use only.
• Unwind the power cord fully before use and inspect the appliance and power
cord for signs of wear or damage prior to connecting to the power supply.
• The glove should only be used with this garment steamer, and not for other
purposes.
ENVIRONMENT PROTECTION FIRST!
iYour appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.
SAVE THESE INSTRUCTIONS

6
DESCRIPTION
1. Steam head
2. Integrated hanger
2a* Integrated collapsible hanger
2b* Integrated hanger
3. Trouser clips
4. Steam head hook
5. Hanger holder
6. Hanger fastening screw
7. Pole locking clips
8. Telescopic pole
9. Steam hose plus hose exit and locker
10. Electrical cord hook
11. Electrical cord
12. Transport handle
13. Water tank filling inlet
14. Variable steam settings
15a. Stability leg
15b. Stability leg
16. Pole fastening screw
17. ON/OFF switch
18. Housing
19. “Anti calc” screwing cap & entry
20. Stability base
21. Press & Steam vertical support*
22. Press & Steam pouch*
23. Press & Steam locking handle*
24. Press & Steam locking hook*
25. Glove*
26. Fabric brush*
27. Lint pad*
BEFORE USE
1 • Garment steamer assembly
Hose assembly
1. Insert and then lock it by turning anti-clockwise (fig. 3)
2. Ensure that the hose is properly locked by gently pulling vertically.
Pole assembly
1. Completely pull out the 2 stability legs from the base. (fig. 1, 2)
2. Unscrew the pole fastening screw on the base of the pole.
3. Hold the pole such that the electrical cord hook is at the back. Check that the 3pole locking
clips are unlocked. (fig. 5). Adjust the pole to its maximum height by sliding it upwards.
Make sure the 4segments of the pole are fully extended then lock the 3pole locking clips.
4. Insert the pole on the base by pressing downwards until the holes of the pole and base are
at the same level, so that you can put the screw back. If the holes are not aligned, check
that the pole is fully extended. (fig.6)
Integrated Hanger assembly
1. Unscrew the hanger fastening screw at the bottom of the hanger.
2. Hold the hanger such that the hanger holder is on the same side as the appliance control
panel.
3. Insert vertically the hanger on the top of the pole. The holes at the bottom of the hanger
and in the pole should be at the same level. (fig. 9)
4. Put the screw back and screw in as far as it will go so that the hanger is firmly fixed to the
pole. (fig. 9)
5. Install the steam head on top of the integrated hanger.
* depending on model

7
ENEN
2 • Filling the water tank
Dear Customer,
Before delivery we undertake a quality control check on garment steamer. This garment
steamer has been checked so a small residue of water may be left in the water tank. This
garment steamer has passed the quality control check.
IMPORTANT: Your product is designed to operate using untreated tap water. If your water is
very hard (check with your local water authority) it is possible to mix untreated tap water with
store-bought distilled water in the following proportions 50% untreated tap water with 50%
distilled water. Heat concentrates the elements contained in water during evaporation. The
types of water listed below may contain organic waste, mineral or chemical elements that can
cause spitting, brown staining or premature wear of the appliance: water from clothes dryers,
scented or softened water, water from refrigerators, batteries, air conditioners, rain water,
boiled, filtered or bottled water. These types of water should not be used. Only use store bought
distilled water as advised above.
• Ensure that the appliance is unplugged. Open the water tank filling inlet, fill it with water and
close it. (fig. 10, 11 & 12)
1 • Setting up
The flexible hose and the end of the steam head can become extremely hot during
use. This is perfectly normal. Be careful and avoid any prolonged contact.
• Only operate the appliance on a floor clear of any materials which may obstruct the base of
the steamer (flat and horizontal surface). Do not obstruct the openings on the lower part of the
appliance. This appliance should not be used on very thick carpets or rugs.
• Undo the tie and completely unwind the electrical cord.
• Plug in to power socket. (fig.13)
• Switch on by pressing the ON/OFF button located on top of the appliance. (fig.14)
• The appliance will begin producing steam after approximately 60 seconds.
2 • Using the appliance
• Hang the garments on the integrated hanger or on separated hanger which may be suspended
on the hanger holder.
• To steam trousers, we recommend that you also use the support with clips*.
• Hold the steam head with the steam vents pointing away from you.
• Start steaming garment lightly following the grain of the garment fabric.
• Start at the top of the garment and gradually move downward.
• Always use the steam head in a vertical position.
Always be careful not to touch the hot steam.
USE
Warning: Never steam a garment while it is being worn.
* depending on model

8
• Always hang the steam head in an upright position on the steam head hook when not in use.
• During use, the hose may make a gurgling noise. This is a normal occurrence due to
condensation. If the appliance begins to gurgle, rest the steam head on its support for a
few moments in order to direct back the condensation into the appliance. Maintain the
steam head vertically extending the hose at the same time.
• During use, some water drips may appear on the telescopic pole. This is also a normal
occurrence due to condensation.
Steam setting*
Your appliance is fitted with 2 steam settings that you can set according to the fabric you are
steaming, from delicate to thick ones.
• Models with 2 settings: set by successively pressing the steam setting button on the
appliance’s control panel.
Be sure the appliance is unplugged and completely cool before attaching accessories.
Before using an accessory, check the manufacturer recommendations.
1 • Press & Steam vertical support*
The Press & Steam system support in the hanger provides a vertical support while
steaming, to help remove “creases” more easily and efficiently.
Tips for better results with your garment steamer
• We recommend checking the garment care label for manufacturer recommendations before
steaming. We also recommend testing the garment and effect on the garment on an
unobtrusive area such as an inner seam.
• Button up the shirt’s collar to prevent them slipping on the hanger during steaming.
• Gently press steamer brush into fabric while making slow passes.
• Avoid direct contact between the steam head and silk or velvet.
• Some garments are smoothed more easily on the reverse side.
• Heavy fabrics may need to be steamed for longer.
• If you have to use the steam head near the floor, raise the hose frequently to a vertical
position in order to avoid condensation. A gurgling noise may be heard if the flexible hose
is pinched.
• If no steam is produced, if a gurgling sound is heard or if water is dripping through the holes
of the steam head, raise the steam hose occasionally to remove condensation inside the hose.
LIGHT COLOR STEAM OUTPUT
Orange Mini
Green Max
ACCESSORIES
* depending on model
