Teka DY-90 User manual

Manual de Instrucciones
Campanas Extractoras DY-70/ 90/ 110
Bedienungsanleitung
Dunstabzugshauben DY-70/ 90/ 110
Instructions Manual
Kitchen Hoods DY-70/ 90/ 110
Manuel d’instructions
Hottes aspirantes DY-70/ 90/ 110
Manual de Instruções
Exaustores DY-70/ 90/ 110
ÏÄÇÃÉÅÓ ˘ÑÇÓÅÙÓ
ÊÁÌÉÍÁÄÁ ÔÏÉ˘Ï DY-70/ 90/ 110
Kullan m K lavuzu
Davlu DY-70/ 90/ 110
Rev. 0206

10
ENG
Dear client:
Congratulations on your choice. We are sure
that this modern, functional and practical
appliance, made with top quality materials,
will fully satisfy your needs.
Please read every section of this
INSTRUCTIONS MANUAL before using your
kitchen hood for the first time, to ensure
maximum performance from the appliance
and to avoid breakdowns, which may be
caused by incorrect use, as well as to allow
any minor problems to be solved.
Store this manual, as it will provide useful
information about your kitchen hood at all
times and will also help other people to use it.
• Please be aware of current local
regulations with reference to domestic
electrical fittings and gas eduction.
• Verify that the tension and frequency of the
network match those indicated on the label
located inside the kitchen hood.
• In case the net cable of your cooker hood
does not have a connection plug, the
appliance must be connected to the
network using a break switch with a
universal cut off and minimum contact
separation of 3 mm. THE NET CABLE
MUST NOT BE SUBSTITUTED, EXCEPT
BY AN AUTHORIZED TECHNICAL
SERVICE.
• Once the kitchen hood has been installed,
ensure that the mains cable to the network
is not in contact with any live metal edges.
• Avoid connecting the appliance to
conductors used as exits for fumes
produced by a non-electric energy source,
e.g.: boilers, chimneys, etc.
• If the extractor fan is going to be used
simultaneously with equipment powered by
a non-electric energy source, e.g.: gas
cookers, then the room must have
sufficient ventilation.
• Excessive fat accumulation in the kitchen
hood and metal filters is a fire risk and may
also cause dripping, therefore the inside of
the kitchen hood and the metal filters must
be cleaned at least once a month.
• The lower part of the kitchen hood must be
fitted at least 50 cm. over electric hobs and
65 cm. over gas or mixed hobs. FOLLOW
THE HOBS´ MANUFACTURER'S
MINIMUM RECOMMENDATIONS.
• Never leave gas hobs lit if not covered by a
container. The fat accumulated in the filters
may drip or catch fire when the
temperature increases.
• Avoid cooking under the kitchen hood if the
metal filters are not fitted, e.g.: while they
are being cleaned in the dishwasher.
• You must not produce flames under the
kitchen hood.
• Disconnect the appliance before any
interior manipulation, e.g. during cleaning
or maintenance.
• We recommend the use of gloves and to
be extremely careful when cleaning the
kitchen hood's interior.
• Your kitchen hood is designed for domestic
use and only for extraction and purification
of fumes produced during food
preparation. It will be your responsibility if it
is used for other purposes, which may be
dangerous. The manufacturer cannot
accept responsibility for damage caused
by improper use of the appliance.
• For repairs please contact the nearest
TEKA Technical Assistance Service, and
always use genuine spare parts. Repairs
or modifications carried out by unqualified
personnel can cause malfunctions or may
damage the appliance, putting your safety
in danger.
• This appliance is marked according to the
European directive 2002/96/EC on “Waste
Electrical and Electronic Equipment”
(WEEE). This guideline is the frame of a
European-wide validity of return and
recycling on Waste Electrical and
Electronic Equipment, .
• When the cooker hood is run at the same
time as other than electrical appliance or
equipment with different energy source,
the air extraction (underpressure) must no
be higher than 4Pa (4 x 10-5 bar).
• The appliance is not intended for use by
young children or infirm persons without
supervision. Young children should be
supervised to ensure they do not play with
the appliance.
Safety Instructions

ENG
Index
Page
Description of the appliance 11
Instructions for use 11
Cleaning and maintenance 12
Problem solving 12
Sizes and specifications 12
Accessories supplied 13
Installation 13
Active charcoal filters 13
AElectronic programmer control box
with buttons to control speed, light and
power in use indicators DISPLAY.
BMetal filters.
CLamps - 20 W (G-4).
D, E Vertically adjustable tubecovers.
Switch on the extractor fan a few minutes before
you start to cook in order to ensure that a steady air
flow has been established before fumes appear.
Allow the extractor fan to run for several minutes
after you have finished cooking (between 3 to 5
minutes) in order to expel all the grease from the
outlet duct. This prevents the return of grease,
smoke and smells.
Proceed as follows:
1) Turn the kitchen hood on and choose the
required speed.
2) Press "timer". The "Program DISPLAY" will
flash.
3) Select the required time by pressing the
increase and decrease speed selectors.
There is a variation of 5 in 5 minutes.
(Min.= 5 min.; Max.= 45 min.).
4) Once the required time has been selected,
press "timer" again to memorise the
program.
5) The kitchen hood will turn itself off once the
programed time has finished.
The intensive speed "H" can only be selected
manually and will change to speed 2 after
approximately 10 minutes.
Clean the filters when the saturation indicator
lights up. (See page 12, Filter cleaning
section).
Once you have cleaned the filters, and with
the hood turned off, press the “Filter
Saturation RESET” button for 3 seconds and
the indicator will switch itself off.
Instructions for use

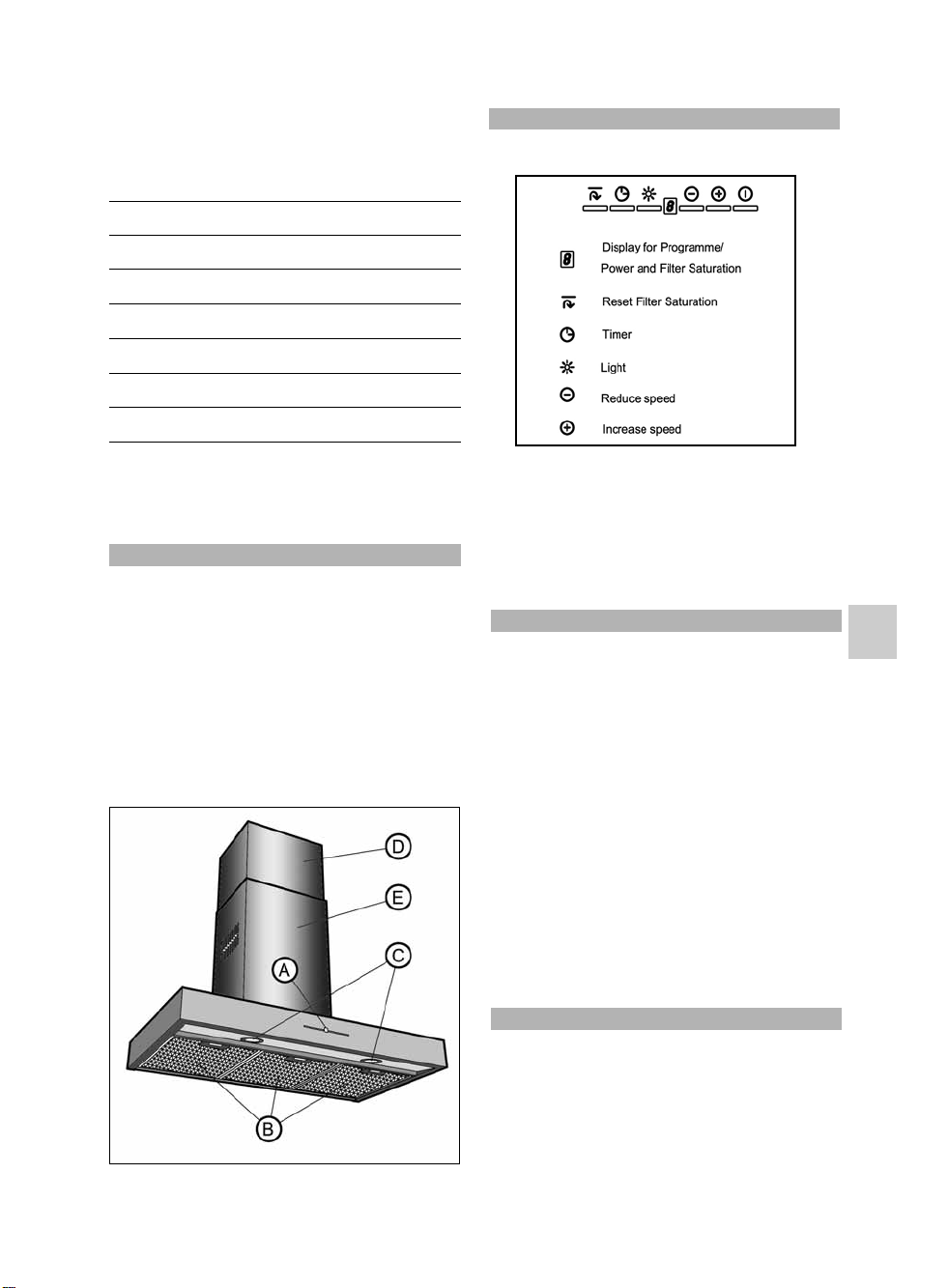

Description of the appliance
You may control the kitchen hood by operating the
controls as shown in the diagram.
Programming timer
Filter saturation indicators “F”
11

12
ENG
TEKA INDUSTRIAL S.A. reserves the right to make changes and corrections to its products as
it deems necessary, without altering their basic characteristics.
During cleaning and maintenance work,
make sure the safety instructions set out
on page 10 are complied with.
• If your kitchen hood is made from stainless
steel, use proprietary cleaners mentioned
in the product instructions.
• Never use metallic scourers, nor abrasive
or corrosive products.
• Dry the kitchen hood using a cloth that
does not produce fibres.
• The use of vapour cleaners is not
recommended.
To remove the filters from their fittings, press
lightly on the locks and then pull them off.
The metal filters can be cleaned by soaking
them in hot water with neutral detergent until
the fat dissolves and then rinsing them under
the tap or using special anti-grease products.
They can also be washed in a dishwasher. In
this case, it is advisable to stack them
vertically to avoid food residues to stick to
them.
Cleaning in a dishwasher may damage the
metallic surface (blackening it), although this
will not affect its fat retention capacity.
Once clean, leave them to dry off and then fit
them onto the kitchen hood.
Proceed as follows:
• Unscrew the lamp cap trimming cover.
• Change the broken/ burnt out lamp.
Maximum lamp power is 20 W (G-4).
• Screw in the lamp cap trimming cover.
Cleaning the metal filters
Cleaning the hood body
Cleaning and maintenance
_________________________________________________________

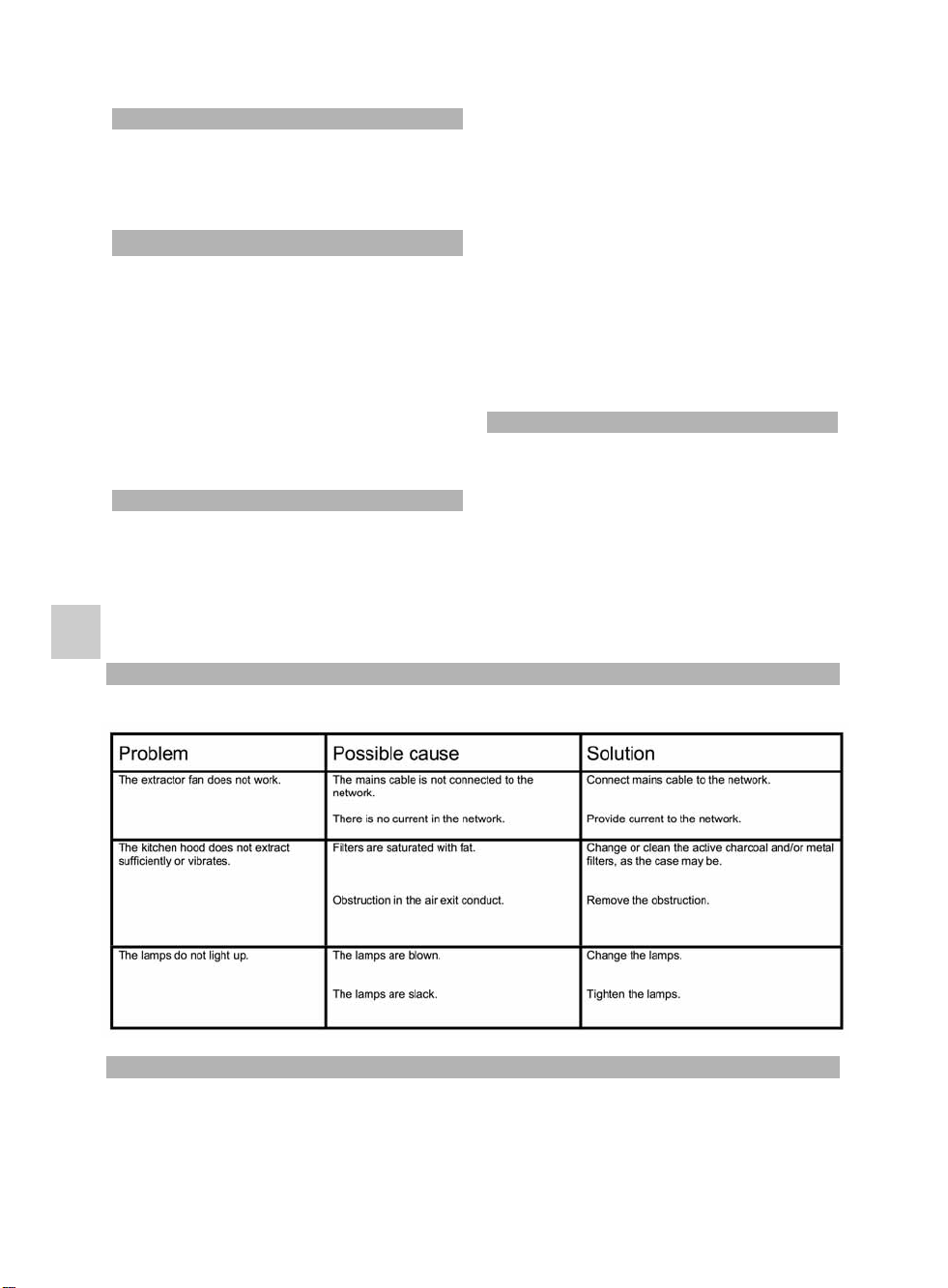

Problem solving
Proceed with the following checks before calling the Technical Service:
Changing light bulbs

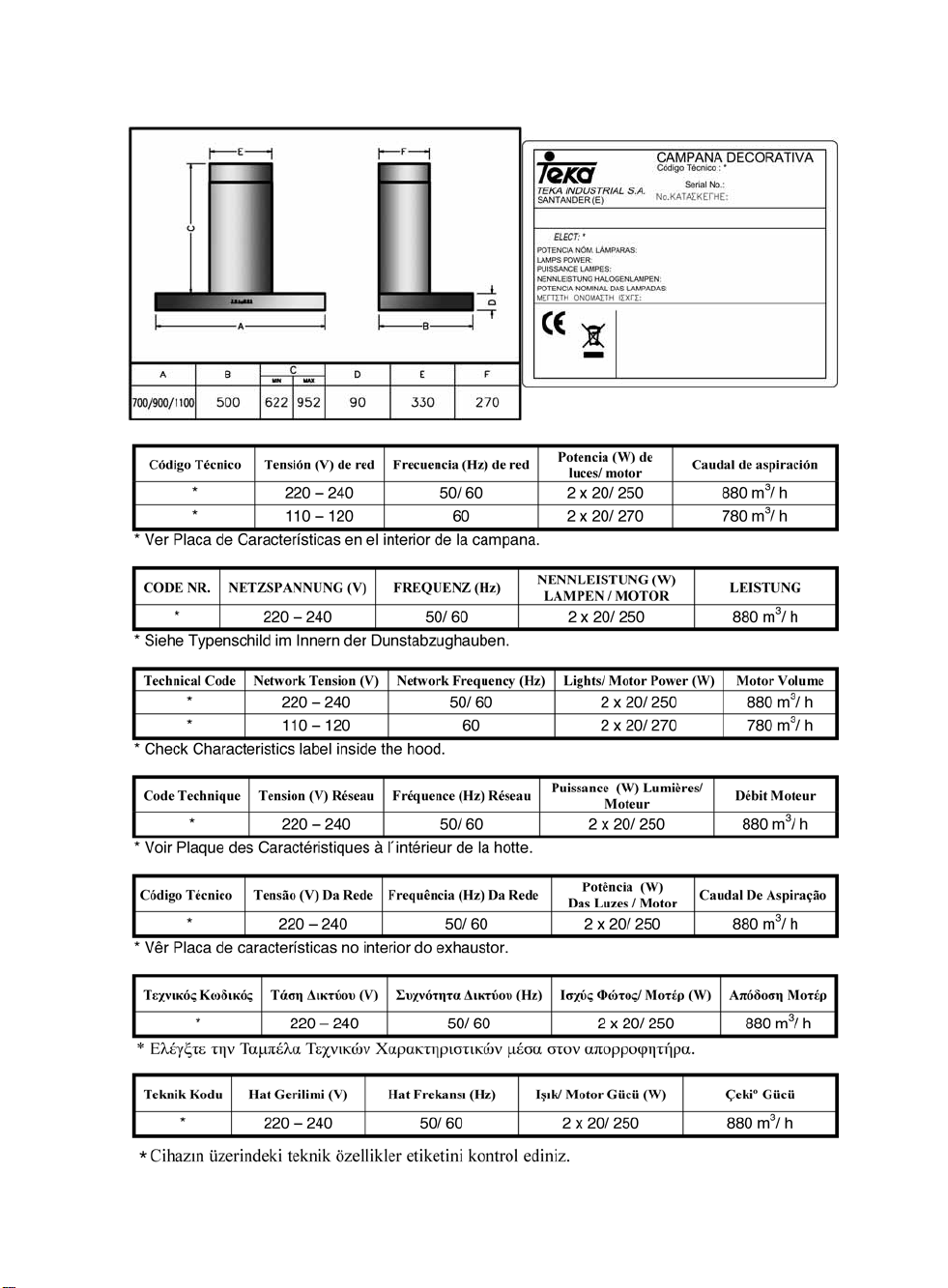

Sizes and specifications
See page 30.

1 150/ 120 mm reduction.
2 Support for tubecover.
2 Wall support.
6 Wall plugs (Ø8 x 40).
6 Long bolts (Ø5 x 45).
4 Wall plugs (Ø6 x 30).
4 Long bolts (Ø4 x 30).
2 Ø6,4 x Ø18, washers.
2 Ø6,4 x Ø12, washers.
2 Screws (Ø3,9 x 13).
4 Screws (Ø4 x 12).
2 Clips.

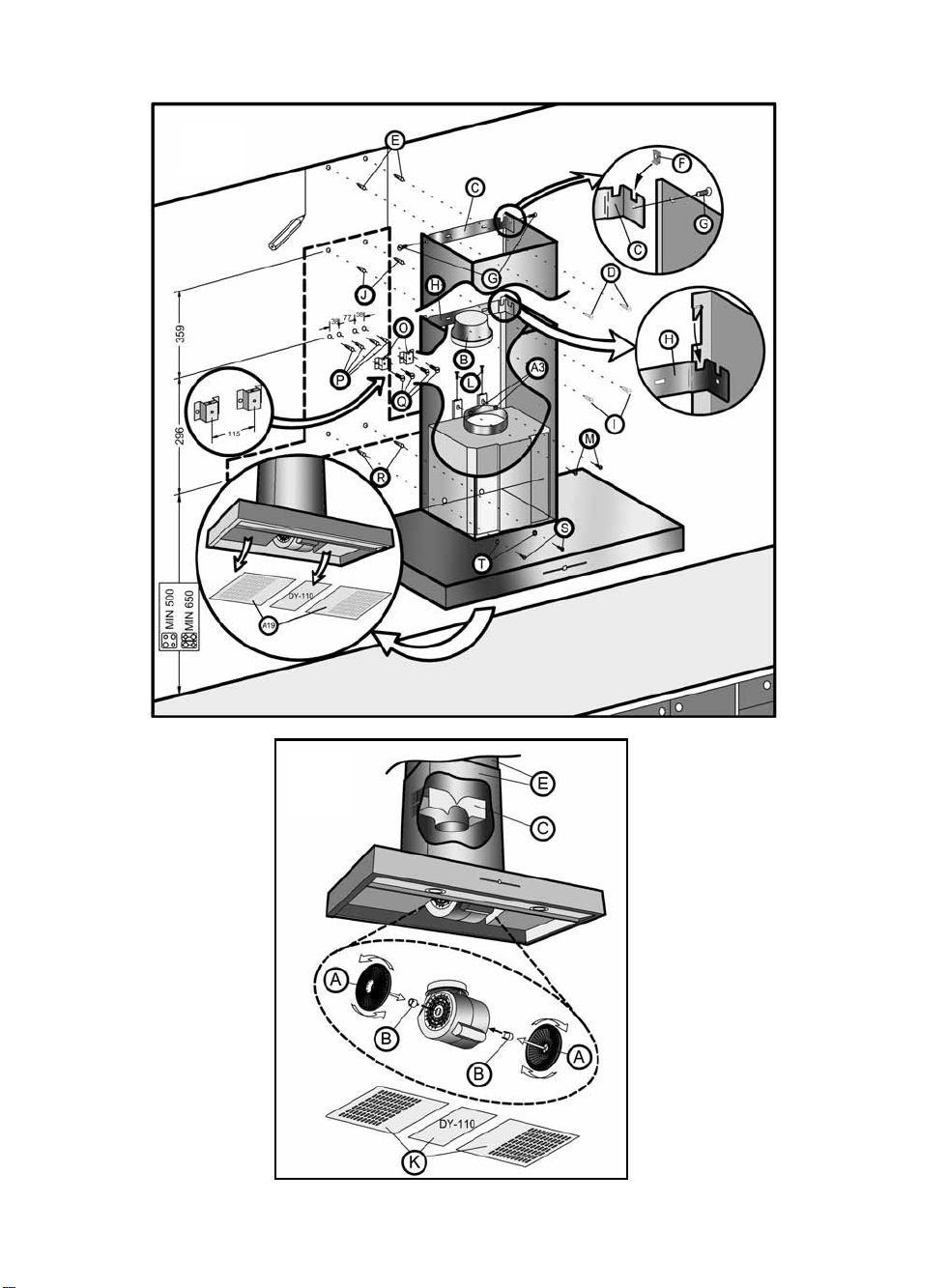

Fig. 1 (Page 31)
On installing the kitchen hood make sure
that the Safety Instructions set out on page
10 are complied with.
To obtain optimum performance, the external
conduct must not be more than FOUR
METRES long, have no more than two 90°
angles and its diameter must be at least Ø120.
1) Trace and drill the points for fitting the wall
plugs onto the wall (P) (Ø8 x 40) and (J) (Ø6 x
30).
2) Attach the Supports (O) to the wall using the
long bolts (Q) (Ø5 x 45) and the support (H)
with the long bolts (I) (Ø4 x 30), as in figure 1.
3) Hang the kitchen hood onto the mounted
supports (O). Straighten the appliance by
tightening the long bolts (L) (M4 x 12).
4) Remove the metal filters. Loosen the screws
(without unscrewing them) of the EASYCLEAN
panels (A19), move the panels aside carefully
and take them off.
5) Trace the location of the wall plugs (R) (Ø8
x 40), through the inside of the kitchen hood.
6) Take the kitchen hood off.
7) Drill into the wall and fit the wall plugs (R)
(Ø8 x 40).
8) Hang the kitchen hood; tighten the screws
(M) (M4 x 12) with the washers (A3) (Ø6,4 x
Ø12) and the long bolts (S) (Ø5 x 45) with the
washers (T) (Ø6,4 x Ø18).
9) Mount the EASYCLEAN panel again (A19).
Fit the metal filters.
10) Mount the tubecovers, attaching the lower
one to the support (H) as per the detail in figure
1. Lift the upper tubecover up to the desired
height and mark its shape on the wall. Remove
the tubecovers.
11) Fit the clips (F) to the support (C).
12) Centre the support (C) around the shape
marked; trace and drill the fixing points for the
wall plugs (E) (Ø6 x 30). Attach the support (C)
with the long bolts (D) (Ø4 x 30).
13) Fit the part (B) if the inner tube (not
supplied) is Ø120.
14) Attach the inner tube with a clamp (not
supplied) to (B) or on to the motor's air outlet
vent as the case may be.
15) Once the inner tube is fitted, fit the lower
tubecover around the extractor fan outlet and
attach the upper tubecover with the screws (G)
(Ø3,9 x 13).
When exterior gas extraction is not possible,
then the kitchen hood may be set to purify the
air by recycling it through active charcoal
filters.
The active charcoal filters have an active life of
between three to six months, depending on
the individual conditions of use. These filters
cannot be washed nor regenerated. They must
be replaced once their useful life comes to an
end.
Fig. 2 (Page 31)
1) Remove the metal filters. Loosen the screws
(without unscrewing them) of the EASYCLEAN
panels (K), move the panels aside carefully
and take them off.
2) Put the filters into the lateral draught section
of the motor making the holes in the filters
match up (A) with the pivots (B) of the motor
carcass. Turn as indicated in the diagram.
3) Mount the EASYCLEAN panel again (K). Fit
the metal filters.
4) Remove the tubecovers (E). Fit the diffuser
(C) on to the motor's air outlet vent. Fit the
tubecovers back on (E).
Active charcoal filters (Optional)
Installation
Accesories supplied
13
ENG

30

31
2
1

Mod. 4.786 - Gráficas Alhambra
TEKA GROUP
COUNTRY CITY COMPANY CC PHONE FAX
Austria Wien KÜPPERSBUSCH GES.M.B.H. 43 1 - 86680-0 1 - 86680-72
Belgium Zellik B.V.B.A. KÜPPERSBUSCH S.P.R.L. 32 2466-8740 2466-7687
Chile Santiago de Chile TEKA CHILE S.A. 56 2-273.19.45 2-273.10.88
China Shanghai TEKA CHINA LTD. 86 21 - 6236 - 2375 21 - 6236 - 2379
Czech Republic Brno TEKA-CZ, S.R.O. 42 05-4921 - 0478 05 - 4921 - 0479
France Saint Ouen l’Aumône TEKA FRANCE SAS 33 0820 07 27 47 01 34 30 15 96
Greece Athens TEKA HELLAS A.E. 30 210-9760283 210-9712725
Hungary Budapest TEKA HUNGARY KFT. 36 1-354-21-10 1-354-21-15
Indonesia Jakarta P.T. TEKA BUANA 62 21 - 39052 - 74 21 - 39052 - 79
Malaysia Kuala Lumpur TEKA KÜCHENTECHNIK
(MALAYSIA) SDN. BHD. 60 3 - 762.01.600 3 - 762.01.626
Mexico Mexico D.F. TEKA MEXICANA S.A. DE C.V. 52 555 - 762.04.90 555 - 762.05.17
Poland Pruszków TEKA POLSKA SP. ZO.O. 48 22 - 738.32.80 22 - 738.32.89
Portugal Ilhavo TEKA PORTUGUESA LTDA. 351 234 - 32.95.00 234 - 32.54.57
Russia Moscow TEKA RUS LLC 7 095-737-4689 095-737-4690
Singapore Singapore TEKA SINGAPORE PTE LTD. 65 6-73-42415 6-73-46881
Thailand Bangkok TEKA (THAILAND) CO. LTD. 66 2 - 5164954 2 - 9021484
The Netherlands Zoetermeer TEKA B.V. 31 79-345.15.89 79-345.15.84
Turkey Istanbul TEKA TEKNIK MUTFAK A.S. 90 212 - 274.61.04 212 - 274.56.86
U. K. Abingdon TEKA PRODUCTS (UK) LTD. 44 1235 - 86.19.16 1235 - 83.51.07
U.S.A. Tampa TEKA USA, INC. 1 800-419-9344 813-228-8604
Venezuela Caracas TEKAANDINA, S.A. 58 212 - 291.28.21 212 - 291.28.25
Teka Industrial, S.A.
Cajo, 17
39011 Santander (Spain)
Tel.: 34 - 942 - 35 50 50
Fax: 34 - 942 - 34 76 94
http://www.teka.net
Teka Küchentechnik GmbH
Sechsheldener Str. 122
35708 Haiger (Germany)
Tel.: 49 - 2771 - 8141-0
Fax: 49 - 2771 - 8141-10
http://www.teka.net
