TekTone CM800 Manual

CM800/CM900
EmergencyCallSignalingSystem
Operation, Installation and Service Manual
APPLICATION: The CM800/CM900 Emergency Call Signaling System is designed for
elderly housing, retirement facilities or wherever an Emergency Call System is required. The
Emergency Call System provides audible and visual indication of all calls originating in the
system.TheCM800/CM900Annunciatorcontains lampsfor call indication,as well asa tone-
off switch and audible tone signaling devices.
IL514
SECTION D
Rev. 12 - 01/2009
Website:
www.tektone.NET
Email:
[email protected]
For Technical Assistance:
1-800-332-6608
Technical Assistance Email:
[email protected]
277 Industrial Park Road
Franklin, NC 28734
[phone]
[phone]
Fax [phone]

ii• IL514CM800/CM900Emergency CallSystemManual Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
Operation, Installation and Service Manual
Copyright © 2001–2009 TekTone®Sound & Signal Mfg., Inc., All rights reserved.
No part of this publication may be copied without the express written permission of TekTone®Sound & Signal Mfg., Inc. The content
of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a
commitment by TekTone®Sound & Signal Mfg., Inc. TekTone®Sound & Signal Mfg., Inc. assumes no responsibility or liability for
any errors or inaccuracies that may appear in this documentation.
TekTone, the TekTone logo, Tek-Call, Tek-Care, Tek-Check-In, Tek-Com, Tek-Digicare, Tek-Door, Tek-Entry III, Tek-Guard,
Tek-Micro, Tek-Micro II, Tek-MMARS II, TekNIOS, TekNIOS II, Tek-Paging, Tek-Phone, Tek-Safe, Tek-Select II, Tek-Sentry,
Tek-Sound, Tek-Status, Tek-Trio and Tek-View are either registered trademarks or trademarks of TekTone®Sound & Signal Mfg.,
Inc. in the United States and/or other countries. All other trademarks are the property of their respective owners.
TekTone®Sound & Signal Mfg., Inc., 277 Industrial Park Road, Franklin, North Carolina 28734, USA.

IL514CM800/CM900 Emergency CallSystem Manual • iii
Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
System Operating Instructions........................................................ 1
CM800, CM900 Annunciators............................................................1
SF117 series, SF118 series Emergency Call Stations .........................1
SF154 Emergency Call Station ...........................................................1
IR019, IR019B Remote Annunciator Tone Speakers ........................2
LI381 Corridor Light...........................................................................2
LI382 Corridor Light...........................................................................2
LI118B, LI123B Corridor Lights ........................................................2
BE005, BE007 Corridor Bells .............................................................2
System Installation ......................................................................... 3
Installation Procedure..........................................................................3
Equipment Locations...........................................................................3
Wiring Installation ...............................................................................3
Housing Installation .............................................................................4
Wire Checkout ..................................................................................4
Connections Checkout ........................................................................4
Illustrations
Figure 1—Master Panel Housing Chart and Wall Cut-Out Details ......5
Figure 2—Ring and Back Box for SF117 series, SF118 series
and SF154 Emergency Call Stations.........................5
Figure 3—Ring and Back Box for IR019 & IR019B
Tone Speakers, and LI118B, LI123B,
LI381 & LI382 Corridor Lights ................................5
Figure 4—Emergency Call Hook-Up Diagram with SF117/2 series,
SF118 series & SF154 Emergency Switches,
and LI381 & LI118B Corridor Lights ......................6
Figure 5—Emergency Call Hook-Up Diagram with
SF117/4 series Continuous Duty Door Release,
LI381 Corridor Light, LI123B Corridor
Light with Buzzer, and BE005 Corridor Bell ............7
Figure 6—Emergency Call Hook-Up Diagram with
SF117/2 series Continuous Duty Door Release,
LI381 Corridor Light, Smoke Detector,
and BE007 Corridor Bell...........................................8

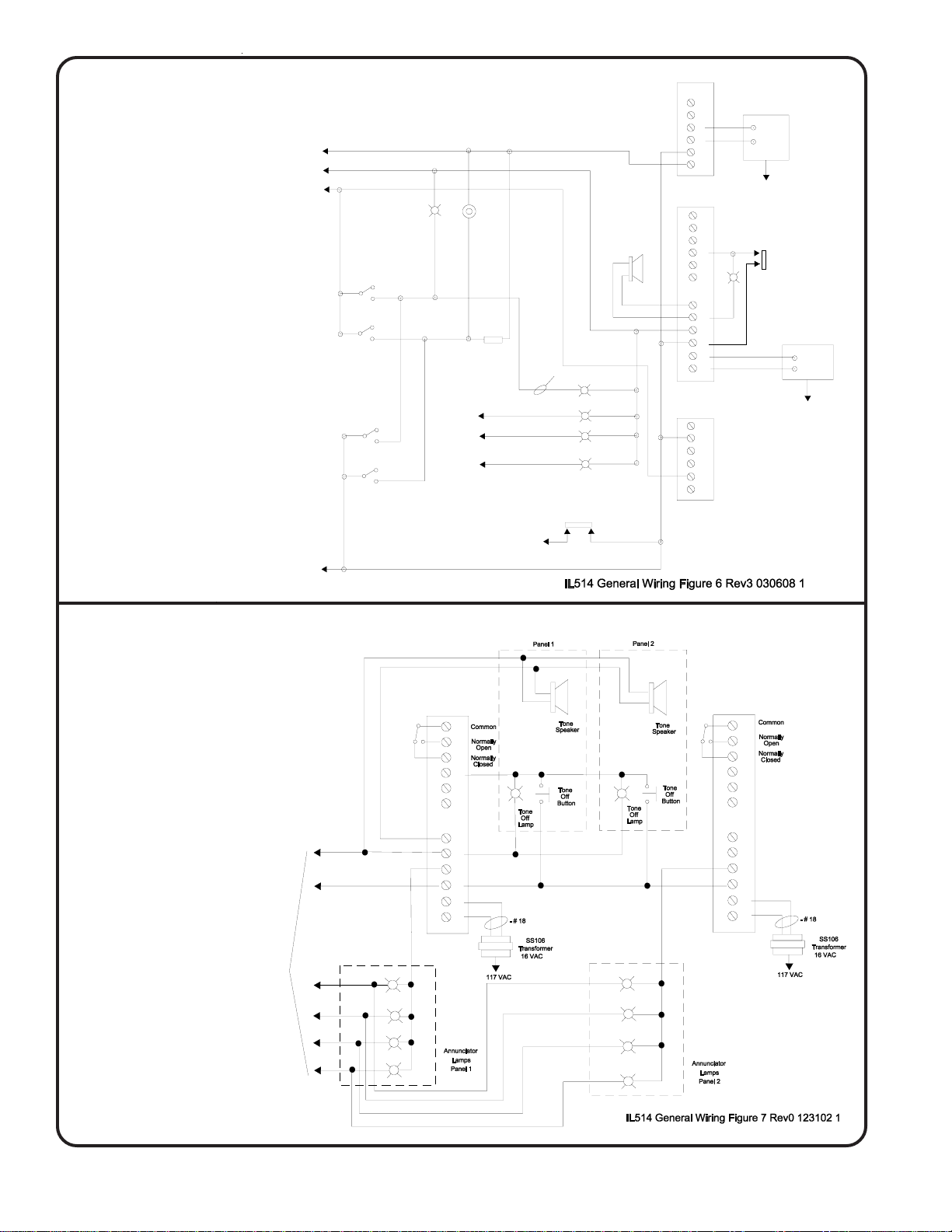

Figure 7—Connection Diagram for Parallel CM800 Panels ................8
Table of Contents ————————————————————

IL514CM800/CM900 Emergency CallSystem Manual •1
Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
System Operating Instructions ——————————————
System operators must read the following operating instructions concerning system
equipment and terms used in conjunction with the equipment.
CM800, CM900 Annunciators
Answer Emergency Calls:
Emergency calls are indicated by simultaneous operation of the following signals:
• Steady illumination of the associated station selector lamp, which is marked to
indicate call origin.
• Rapidly pulsating audible tone. The audible call signal may be canceled by pressing
the tone-off button. The tone-off light will illuminate to indicate that tone is silenced.
Thetone-offbuttonmaybepressedatanytimetoverifyoperationofthetone-offlamp.
Call signals may only be canceled at the point of origin, and all calls must be answered in
person.
Test Station Annunciator Lamp (if so equipped):
One lamp test button is provided on each panel of annunciator lamps. Press the lamp
test button—all annunciator lamps on that panel should be illuminated.
Improper Operation:
If the CM800 or CM900 Annunciator fails to operate as described, contact qualified
maintenance personnel. If a malfunction occurs during a call-in, causing a lack of
indication of call origin on the master station, first determine the origin of the call by
observing which corridor light is illuminated, and then inform qualified personnel.
SF117 series, SF118 series Emergency Call Stations
Place an Emergency Call:
Pullthe call cord andwait for anAttendant. (Note:TheSF118series station has a red call-
placed light that illuminates when the cord is pulled.)
Reset the Station:
Push the slide switch up.
Improper Operation:
If the station does not operate as described, contact qualified personnel. There are no
user serviceable parts on SF117 series and SF118 series Emergency Call Stations.
SF154 Emergency Call Station
Place an Emergency Call:
Press the switch in so that the red area of the switch is visible, and wait for an Attendant.
Reset the Station:
Press the switch out so that the red area of the switch is not visible.
Improper Operation:
If the station does not operate as described, contact qualified personnel. There are no
user serviceable parts on the SF154 Emergency Call Station.

2• IL514 CM800/CM900Emergency Call SystemManual Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
IR019, IR019B Remote Annunciator Tone Speakers
Emergency Calls:
Emergency calls are indicated by a rapidly pulsating audible tone. The audible tone
signal can be silenced by pressing the tone-off switch. (The IR019 is not equipped with
a tone-off light.) The IR019 and IR019B tone mimics the annunciator tone—either
steady or pulsing.
Improper Operation:
If the speaker does not operate as described, contact qualified personnel. There are no
user serviceable parts on the IR019 and IR019B Remote Annunciator Tone Speakers.
LI381 Corridor Light
Emergency Calls:
Emergency calls are indicated by steady illumination of the corridor light associated
with the calling station.
Improper Operation:
If the corridor light does not operate as described, contact qualified service personnel.
There are no user serviceable parts on the LI381 Corridor Light, other than bulbs.
LI382 Corridor Light
Emergency Calls:
Emergency calls are indicated by steady illumination of the corridor light associated
with the calling station. The second light can be used for other call types initiated from
the same zone.
Improper Operation:
If the corridor light does not operate as described, contact qualified service personnel.
There are no user serviceable parts on the LI382 Corridor Light, other than bulbs.
LI118B, LI123B Corridor Lights
Emergency Calls:
Emergency calls are indicated by steady illumination of the corridor light and a steady
buzzer.
Improper Operation:
If the corridor light does not operate as described, contact qualified service personnel.
There are no user serviceable parts on the LI118 and LI123B Corridor Lights, other
than bulbs.
BE005, BE007 Corridor Bells
Emergency Calls:
Emergency calls are indicated by a steady ringing of the corridor bells.
Improper Operation:
If the corridor bell does not operate as described, contact qualified service personnel.
There are no user serviceable parts on the BE005 and BE007 Corridor Bells.
System Operating Instructions

IL514CM800/CM900 Emergency CallSystem Manual •3
Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
Installation Procedure
• Read the following instructions concerning system equipment, and determine
installation methods before proceeding.
• Determine equipment locations.
• Install wiring.
• Install housings.
• Check wires.
• Connect equipment.
• Check connections.
• Applypower.
• Check system operation.
Equipment Locations
CM800, CM900 Annunciator:
Locate CM800 and CM900 Annunciators within easy reach of operating personnel.
Permitted operating temperature of 10°C–30°C must not be exceeded.
SF117 series, SF118 series, SF154 Emergency Call Stations:
Locate emergency stations where convenient for operation. Avoid areas where direct
contact with water may occur. The SF117 series and SF118 series include a 6' long pull
cord, permitting installation high enough to provide easy operation by the staff and by
seated or prone patients. The SF154 is operated by means of a push button located on
the station.
IR019, IR019B Remote Annunciator Tone Speakers:
Locate annunciator tone speakers as needed and where convenient for operation.
Location must provide for unobstructed visibility of the tone-off indicator (IR019B).
LI381, LI382, LI118B, LI123B Corridor Lights:
Locate corridor lights in the corridor above or beside the door of the associated rooms.
Location must provide unobstructed visibility of the corridor light in both directions.
PK2019 Control Unit:
The PK2019 may be surface mounted adjacent to the SS106, if necessary. If remotely
located, cable run from PK2019 to CM800/CM900 must not exceed 100'.
PK601A Power Supply:
Surface mount the PK601A adjacent to the SS106 and PK2019.
PK612A DC Flasher:
Surface mount the PK612A adjacent to the SS106 and PK2019.
BE005/BE007 Corridor Bells:
Locate BE005 and BE007 Corridor Bells in corridor above door height. Location in
corridor will be determined by the number of bells required on each floor.
SS106 Transformer:
Locate SS106 in an accessible area near a source of 117 VAC. Observe local codes.
Wiring Installation
Runwiring conduitfrom corridor lightto corridorlight andterminate atthe CM800 orCM900
annunciator panel. Select conduit size according to the application, as shown in wiring
diagrams in this booklet. Observe local codes.
System Installation ——————————————————––

4• IL514 CM800/CM900Emergency Call SystemManual Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
PK2019 Options:
• For 30-second delay before tone, connect terminal A to terminal N.
• Forsteadytone,connectterminalWtoterminalN.Iftheannunciatorlampisflashing,
the tone will be intermittent despite terminal W connection.
Housing Installation
CM800, CM900 Annunciators:
Flush Wall Mount—Provide a wall cutout as shown in Figure 1. Fit the back box and
frame assembly into the prepared opening. Fasten the assembly in place. Note:The back
box must beTekTone®OH200 Series.
Surface Wall Mount—Fasten the back box and frame assembly to the wall through the
holes provided in back of the box, using suitable fasteners. Note: Back box must be
TekTone®OH300Series.
SF117 series, SF118 series, SF154 Emergency Call Stations:
Install single gang ring (or single gang ring and double gang box) as shown in Figure 2
for each emergency call station in system. Minimum dimensions of back box must not
be less than 4"×4"×1.5". Minimum opening on ring must not be less than 1.75"×2.75".
Minimum clearance from live parts of the station to dead metal parts must not be less
than 0.5".
IR019, IR019B Remote Annunciator Tone Speakers:
Install double gang ring (or double gang ring and double gang box) as shown in Figure 3
for each tone speaker station. Minimum dimensions of back box must not be less than
4"×4"×1.5".
LI118B, LI123B Corridor Lights:
Install double gang ring (or double gang ring and double gang box) as shown in Figure 3
for each tone speaker station. Minimum dimensions of back box must not be less than
4"×4"×1.75".
LI381, LI382 Corridor Lights:
Install double gang ring (or double gang ring and double gang box) as shown in Figure 3
for each corridor light. Minimum dimensions of back box must not be less than
4"×4"×1.5". Minimum opening on ring must not be less than 2.75"×2.75". Minimum
clearance from live parts of the station to dead metal parts must not be less than 0.5".
BE005, BE007 Corridor Bells:
Install a standard 4" Bell Box.
Wire Checkout
Use an ohmmeter or other continuity checking device to test wires for shorts or grounds.
If shorts or grounds are encountered, find and correct the problems before continuing.
Make sure the minimum number of conductors that are needed for all of the equipment
being used in the system are available.
Connections Checkout
Re-check all connections to equipment. If all wires and connections are satisfactory, connect
theprimary coil ofthe SS106Transformertoa source of117VAC60 Hz (30VAmax.).
System Installation

IL514CM800/CM900 Emergency CallSystem Manual •5
Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
Figure 1—Master Panel Housing Chart and Wall Cut-Out Details
Housing Wall Opening
Flush Surface Width (B) Height
OH202 OH302 8.5" 16.25"
OH203 OH303 12.5" 16.25"
OH204 OH304 16.5" 16.25"
OH205 OH305 20.5" 16.25"
Figure 2—Ring and Back Box for
SF117 series, SF118 series and SF154
Emergency Call Stations
Installring with panel mounting holesattop and bottom, as shown.
Figure 3—Ring and Back Box for
IR019 & IR019B Tone Speakers, and
LI118B, LI123B, LI381 & LI382 Corridor Lights
Installring with panel mounting holesattop and bottom, as shown.
16"
B
3.75"
Finished Wall
4" min.
16.25"
B
Inmasonrywalls,install0.5"×4"wood
fillersat topandbottomofopeningfor
housingattachment.
B
Finished Floor
66"
16.25"

6• IL514 CM800/CM900Emergency Call SystemManual Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
Notes: 1. Use16VACconnectionson SS106Transformer. 2. Wiring may be #22 except where shown otherwise. 3. PK2019 Annunciator Control Unit may be mounted outside of
annunciatorenclosure.
4. Switches are shown in the OFF position. 5. PK612Aandassociated wiring isoptional and needs onlyto be
installed if a flash common is needed.
Wiring Diagram for IR019, IR019B and PK2019
(Disregardwiringfortone-offlampifwiringIR019.)
Figure 4—Emergency Call Hook-Up Diagram with SF117/2 series, SF118 series &
SF154 Emergency Switches, and LI381 & LI118B Corridor Lights
IL514 General Wiring Figure 4 Rev1 051106 1
TONE
SPEAKER
R1
R2 R3 B
A
W S
P
D N
T1 T2
PK2019
Speaker
45 Ohm
Tone-Off
Lamp
Tone-Off
Button
IR019B
P
COMMON
COMMON
N
E
COMMON
LI381
DOME
LAMP LI381
DOME
LAMP
SF118/2B Call Placed
SF118/2B
Emergency Switch
LI118B
DOME
LAMP
w/ BUZZER
ANNUNCIATOR
LAMPS
TEST
BUTTON
#18 (optional, see Note 5)
FACTORY CONNECTED NOTE: PM110/4N
Modules only!
PK2019
COMMON
R1
NORMALLY OPEN RELAY
OUTPUTS
R2
NORMALLY CLOSEDR3
B A
WTONE-
OFF
LAMP
TONE-
OFF
BUTTON #18
S
P
D
N
T1
T2
16 VAC
SS106
TRANSFORMER
(See Note 1)
117 VAC
PK612A
(optional, see Note 5)
C
G W E
SF117/2(B,C)
or SF154
Emergency Switch
LI381
DOME
LAMP
SF117/2(B,C)
or SF154
Emergency Switch
SF117/2(B,C)
or SF154
Emergency Switch
SF117/2(B,C)
or SF154
Emergency Switch
Light
LI381
DOME
LAMP
SF118/4B Call Placed
SF118/4B
Emergency Switch
Light
Door Release
PK601A
T1
T2
D
F
SS106
TRANSFORMER
24VAC 117VAC
#18
#18

IL514CM800/CM900 Emergency CallSystem Manual •7
Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
Figure 5—Emergency Call Hook-Up Diagram with SF117/4 series Continuous Duty Door Release,
LI381 Corridor Light, LI123B Corridor Light with Buzzer, and BE005 Corridor Bell
Notes:
1. Use24VACconnectionson SS106 transformer. Tocalculate cur-
rentrequirements,add currents of all devices onatthesametime.
Currentrequirementsare as follows:
CorridorLamp with buzzer– .16amps
CorridorBell– .2 amps
Doorrelease– .3 amps
Annunciatorlamp– .04 amps
2. Wiringmust be #18 gaugeexcept where shown otherwise.
3. BE005 connects to emergency switch on the same floor only.
4. Door release (if used) must be 24 VDC continuous duty type.
5. Switch current capacity is 3 amps.
6. Power supply maximum current is 1 amp.
7. SeeFigure 4 for additionalwiringdetails.
8. Switches shown in the OFF position.
9. RectifierRUFO®Model 1005 is not availablefromTekTone®.
R1
R2
R3
B
A
W
S
P
D
N
T1
T2
#22
TO ADDITIONAL
EMERGENCY
SWITCHES
LI123B
LAMP
w/ BUZZER
DOOR RELEASE DOOR RELEASE
SF117/4(B,C)
EMERGENCY
SWITCH EMERGENCY
SWITCH
LI381
DOME
LAMP
+- +-
RECTIFIER
(See NOTE 9) RECTIFIER
(See NOTE 9)
BE005
CORRIDOR
BELL
24 VAC SS106
TRANSFORMER
(See NOTE 1)
TONE
SPEAKER
16 VAC
117 VAC
SS106
TRANSFORMER
ANNUNCIATOR LAMPS
TONE
OFF
BUTTON
TONE
OFF
LAMP
TEST BUTTON
FACTORY CONNECTED
NOTE: PM110/4N MODULES ONLY
117 VAC
PK2019
SF117/4(B,C)

8• IL514 CM800/CM900Emergency Call SystemManual Copyright © TekTone Sound & Signal Mfg., Inc. All Rights Reserved.
Notes:
1. Use 24 VAC connections on SS106
transformer. To calculate current re-
quirements,addcurrentsofalldevices
on at the same time. Current require-
ments are as follows:
CorridorLamp with buzzer– .16amps
CorridorBell– .2 amps
Doorrelease– .3 amps
Annunciatorlamp– .04 amps
2. Wiring must be #18 gauge except
whereshownotherwise.
3. BE007connectsto emergency switch
on the same floor only.
4. Doorrelease(ifused)mustbe24VDC
continuous duty type.
5. Switch current capacity is 3 amps.
6. Power supply maximum current is
1 amp.
7. SeeFigure4 for morewiring details.
8. Switches shown in the OFF position.
9. Do not use same transformer for
PK2019and PK601A.
Figure 6—Emergency Call Hook-Up Diagram with SF117/2 series
Continuous Duty Door Release, LI381 Corridor Light,
Smoke Detector, and BE007 Corridor Bell
Figure 7—Connection Diagram for
ParallelCM800Panels
Notes:
1. Use 16 VAC connections on SS106
Transformer.
2. Wiring may be #22 except where
shownotherwise.
3. PK2019AnnunciatorControlUnitmay
be mounted outside of annunciator
enclosure.
R1
R2
R3
B
A
W
S
P
D
N
T1
T2
PK2019
TO STATIONS
R1
R2
R3
B
A
W
S
P
D
N
T1
T2
PK2019
CONNECTION DIAGRAM FOR PARALLEL CM800 PANELS
C
G
W
E
#22
BE007
CORRIDOR
BELL
DOOR RELEASE
SF117/2(B,C)
EMERGENCY
SWITCH
TO ADDITIONAL
EMERGENCY
SWITCHES
SMOKE
DETECTOR
FACTORY
CONNECTED
ANNUNCIATOR
LAMPS
TONE
SPEAKER
TEST BUTTON
TONE-
OFF
LAMP TONE-
OFF
BUTTON
117 VAC
16 VAC SS106
TRANSFORMER
(SEE NOTE)
SS106
TRANSFORMER
16 VAC
117 VAC
PK612A
NOTE: PM110/4N
MODULES ONLY
T1
T2
D
F
PK2019
R1
R2
R3
B
A
W
S
P
D
N
T1
T2
PK601A
