P7700 Series
TriMode™ Probes
ZZZ
User Manual
*P071342102*
071-3421-02

P7700 Series
TriMode™ Probes
ZZZ
User Manual
xx
www.tek.com
071-3421-02

Copyright © Tektronix. All rights reserved. Licensed software products are owned by Tektronix or its subsidiaries or suppliers, and are protected by
national copyright laws and international treaty provisions.
Tektronix products are covered by U.S. and foreign patents, issued and pending. Information in this publication supersedes that in all previously
published material. Specifications and price change privileges reserved.
TEKTRONIX and TEK are registered trademarks of Tektronix, Inc.
TriMode and TekFlex are both trademarks of Tektronix, Inc.
Contacting Tektronix
Tektronix, Inc.
14150 SW Karl Braun Drive
P.O. Box 5 0 0
Beaverton, OR 97077
USA
For product information, sales, service, and technical support:
In North America, call 1-800-833-9200.
Worldwide, visit www.tek.com to find contacts in your area.

Warranty
Tektronix warrants that this product will be free from defects in materials and workmanship for a period of one (1) year from the date of shipment. If
any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts
and labor, or will provide a replacement in exchange for the defective product. Parts, modules and replacement products used by Tektronix for
warranty work may be new or reconditioned to like new performance. All replaced parts, modules and products become the property of Tektronix.
In order to obtain service under this warranty, Customer must notify Tektronix of the defect before the expiration of the warranty period and make
suitable arrangements for the performance of service. Customer shall be responsible for packaging and shipping the defective product to the service
center designated by Tektronix, with shipping charges prepaid. Tektronix shall pay for the return of the product to Customer if the shipment is to a
location within the country in which the Tektronix service center is located. Customer shall be responsible for paying all shipping charges, duties,
taxes, and any other charges for products returned to any other locations.
This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. Tektronix
shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than Tektronix
representatives to install, repair or service the product; b) to repair damage resulting from improper use or connection to incompatible equipment; c) to
repair any damage or malfunction caused by the use of non-Tektronix supplies; or d) to service a product that has been modified or integrated with
other products when the effect of such modification or integration increases the time or difficulty of servicing the product.
THIS WARRANTY IS GIVEN BY TEKTRONIX WITH RESPECT TO THE PRODUCT IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR
IMPLIED. TEKTRONIX AND ITS VENDORS DISCLAIM ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE. TEKTRONIX' RESPONSIBILITY TO REPAIR OR REPLACE DEFECTIVE PRODUCTS IS THE SOLE AND EXCLUSIVE REMEDY
PROVIDED TO THE CUSTOMER FOR BREACH OF THIS WARRANTY. TEKTRONIX AND ITS VENDORS WILL NOT BE LIABLE FOR ANY
INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES IRRESPECTIVE OF WHETHER TEKTRONIX OR THE VENDOR HAS
ADVANCE NOTICE OF THE POSSIBILITY OF SUCH DAMAGES.
[W2 – 15AUG04]

Table of Contents
Table of Contents
Important safety information................................................................................................................ iii
General safety summary.. ............................................................................................................ iii
Terms in this manual .. ................................................................................................................ iv
Symbols and terms on the product.................................................................................................... v
Compliance information .................................................................................................................... vi
Environmental considerations ........................................................................................................ vi
Preface..................................................................................................................................... vii
Probe models ........................................................................................................................ vii
Documentation....................................................................................................................... vii
Key features ................................................................................................................................ 1
Operating considerations................................................................................................................... 2
Installation .................................................................................................................................. 4
Overview .............................................................................................................................. 4
Connect to the host instrument ....................................................................................................... 5
Connect P7700 accessories to the TekFlex connector . ............................................................................. 7
Probe comp box controls and indicators ............................................................................................. 8
Functional check and calibration.......................................................................................................... 11
Functional check..................................................................................................................... 11
TriMode probe DC calibration .......................................................................................................18
P7700 Series TriMode Probes User Manual i

Table of Contents
Basic operation ............................................................................................................................ 24
Probe setup screen.................................................................................................................. 28
Improving measurement accuracy .................................................................................................. 36
Connecting to a circuit board .. ...................................................................................................... 45
Probe handling best practices............................................................................................................. 64
S-parameter information................................................................................................................... 66
Accessories and options .................................................................................................................. 67
Standard accessories. ............................................................................................................... 67
Optional accessories................................................................................................................. 70
Maintenance............................................................................................................................... 74
Host instrument firmware............................................................................................................ 74
Browser tip replacement............................................................................................................. 75
Error conditions ...................................................................................................................... 76
Handling the probe................................................................................................................... 79
Cleaning the probe................................................................................................................... 80
Returning the probe for servicing.................................................................................................... 81
Index
ii P7700 Series TriMode Probes User Manual

Important safety information
Important safety information
This manual contains information and warnings that must be followed by the user for safe operation and to keep the product
in a safe condition.
General safety summary
Use the product only as specified. Review the following safety precautions to avoid injury and prevent damage to this product or
any products connected to it. Carefully read all instructions. Retain these instructions for future reference.
This product is not intended for detection of hazardous voltages.
Observe all terminal ratings. To avoid fire or shock hazard, observe all ratings and markings on the product. Consult the
product manual for further ratings information before making connections to the product.
Do not apply a potential to any terminal, including the common terminal, that exceeds the maximum rating of that terminal.
Do not operate without covers. Do not operate this product with covers or panels removed, or with the case open. Hazardous
voltage exposure is possible.
Avoid exposed circuitry. Do not touch exposed connections and components when power is present.
Do not operate in wet/damp conditions. Be aware that condensation may occur if a unit is moved from a cold to a warm
environment.
Do not operate in an explosive atmosphere.
Keep product surfaces clean and dry. Remove the input signals before you clean the product.
P7700 Series TriMode Probes User Manual iii

Important safety information
Probes and test leads
Remove all probes, test leads and accessories that are not in use.
Inspect the probe and accessories. Before each use, inspect probe and accessories for damage (cuts, tears, or defects in the
probe body, accessories, or cable jacket). Do not use if damaged.
Useonspecified replacement parts.
Termsinthismanual
These terms may appear in this manual:
WARNING. Warning statements identify conditions or practices that could result in injury or loss of life.
CAUTION. Caution statements identify conditions or practices that could result in damage to this product or other property.
iv P7700 Series TriMode Probes User Manual

Important safety information
Symbols and terms on the product
These terms may appear on the product:
DANGER indicates an injury hazard immediately accessible as you read the marking.
WARNING indicates an injury hazard not immediately accessible as you read the marking.
CAUTION indicates a hazard to property including the product.
When this symbol is marked on the product, be sure to consult the manual to find out the nature of the potential
hazards and any actions which have to be taken to avoid them. (This symbol may also be used to refer the
user to ratings in the manual.)
The following symbol(s) may appear on the product:
P7700 Series TriMode Probes User Manual v

Compliance information
Compliance information
This section lists the environmental standards with which the instrument complies.
Environmental considerations
This section provides information about the environmental impact of the product.
Product end-of-life handling
Observe the following guidelines when recycling an instrument or component:
Equipment recycling. Production of this equipment required the extraction and use of natural resources. The equipment may
contain substances that could be harmful to the environment or human health if improperly handled at the product’s end of life. To
avoid release of such substances into the environment and to reduce the use of natural resources, we encourage you to recycle this
product in an appropriate system that will ensure that most of the materials are reused or recycled appropriately.
This symbol indicates that this product complies with the applicable European Union requirements according to
Directives 2012/19/EU and 2006/66/EC on waste electrical and electronic equipment (WEEE) and batteries. For
information about recycling options, check the Tektronix Web site (www.tek.com/productrecycling).
vi P7700 Series TriMode Probes User Manual

Preface
Preface
This manual describes the installation and operation of the P7700 Series TriMode Probes. Basic probe operations and concepts
are presented in this manual. All documents listed below are accessible from the Tektronix Web site (www.tek.com/manuals).
Probe models
These P7700 Series TriMode Probe family includes these models:
P7708 8 GHz
P7713 13 GHz
P7716 16 GHz
P7720 20 GHz
Documentation
To read about Use these documents
Installation and Operation (overviews) Read this manual for information about how to set up and use your probe.
In-Depth Operation Use the technical reference manual and this manual.
Specifications Use the technical reference manual.
Reordering accessories Use the Accessories and Options section or refer to the insert in your
accessory kit when reordering accessories.
P7700 Series TriMode Probes User Manual vii

Preface
viii P7700 Series TriMode Probes User Manual

Key features
Key features
The P7700 Series TriMode Probes allow you to take differential, single-ended, and common mode measurements with one probe
connection. Key features include:
Low loading for low power circuits
Thin solder-in tips that can fitintotight
spaces on a device under test
Flexible solder-in tips and main probe cable
Lightweight probe cable and head
TekFlex™ connector technology that
makes the probe easy to connect to
accessories
Optional 2.92 mm adapter for connecting
to 50 ΩRF test points
Browser accessory with adjustable tips and
headlight
Full AC calibration of the probe and
accessory tips with unique S-parameters
Solder-in tips operate at extended
temperature range
P7700 Series TriMode Probes User Manual 1

Operating considerations
Operating considerations
Table 1: P7700 Series TriMode probes
Characteristic Description Specification
TekFlex solder-in
tips
P77BRWSR P77C292MM adapter
Input Voltage Dynamic range 2.5 Vpp (single-
ended)
5.0 Vpp (differential
input)
6.0 Vpp (single-
ended)
12.0 Vpp (differential
input)
1.2 Vpp (single-
ended)
2.0 Vpp (differential
input)
Operating voltage
window
±5.25 V ±10.0 V ±4.0 V
Offset voltage range -4 V to +4 V -10 V to +10 V -4 V to +4 V
Maximum non-
destructive input
voltage
-15 V to +15 V (tip attached or detached) -5Vto+5V
Probe compensation box: 0 °C to 45 °C (32 °F to 113 °F)Operating
Probe cable, solder tips, and P77292MM adapter: -35 °C to 85 °C (-31 °F to
185 °F); Minimum Airflow required 46°C to 85°C (114.8 °F to 185 °F)
Probe compensation box: -20 °C to 60 °Cg (-4 °F to 140 °F)
Temperature
Non-operating
Probe cable, solder tips, and P77292MM adapter: -35 °C to 85 °C (-31 °F to
185 °F)
2P7700 Series TriMode Probes User Manual

Operating considerations
Characteristic Description Specification
TekFlex solder-in
tips
P77BRWSR P77C292MM adapter
Operating Probe Compensation Box, Cable, Tips, and SMA adapter: 20% to 80%
Relative Humidity (%RH) at up to 45°C non-condensing
Humidity
Non-operating Probe Compensation Box, Cable, Tips, and P77292MM adapter: 10% to 90%
(Relative Humidity), non-condensing
Altitude Non-operating Probe Compensation Box, Cable, Tips, and SMA adapter: 12,000 meters
(39,370 feet)
Pollution Degree 2, Indoor use only
CAUTION. To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
a static-approved workstation when you handle the probe.
P7700 Series TriMode Probes User Manual 3

Installation
Installation
Before you connect the probe to your instrument, read the Overview below to understand the sequence of events necessary to
properly install the probe and adapters.
CAUTION. To avoid ESD damage to the probe, always use an antistatic wrist strap (provided with your probe), and work at
a static-approved workstation when you handle the probe.
Overview
1. Connect the probe to the host instrument.
If it is the first time the probe has been connected to the oscilloscope, the oscilloscope will download the S-parameters stored in
the probe. Once the oscilloscope has stored the S-parameters for the probe, it doesn’t matter which channel the probe is
plugged into. The stored S-parameters will be available for any channel the probe is moved to.
2. Connect the probe tip to the TekFlex connector on the probe.
When a tip is inserted into the probe for the first time, the oscilloscope will download the S-parameter data stored in the tip.
3. The probe performs a self test, and then one Input Mode LED remains on.
4. Open the Calibration menu (found in the Vertical menu).
5. Perform the DC probe calibration procedure using the DC probe cal fixture that ships standard with each probe. (See page 18,
TriMode probe DC calibration.)
6. Use the Probe Setup screen to set the probe parameters as described in the Basic Operation section.
4P7700 Series TriMode Probes User Manual

Installation
Connect to the host instrument
NOTE. Your TekConnect instrument may
require a firmware upgrade to support full
functionality of the P7700 Series probes.
Before you connect the probe, check the
version requirements. (See page 74, Host
instrument firmware.)

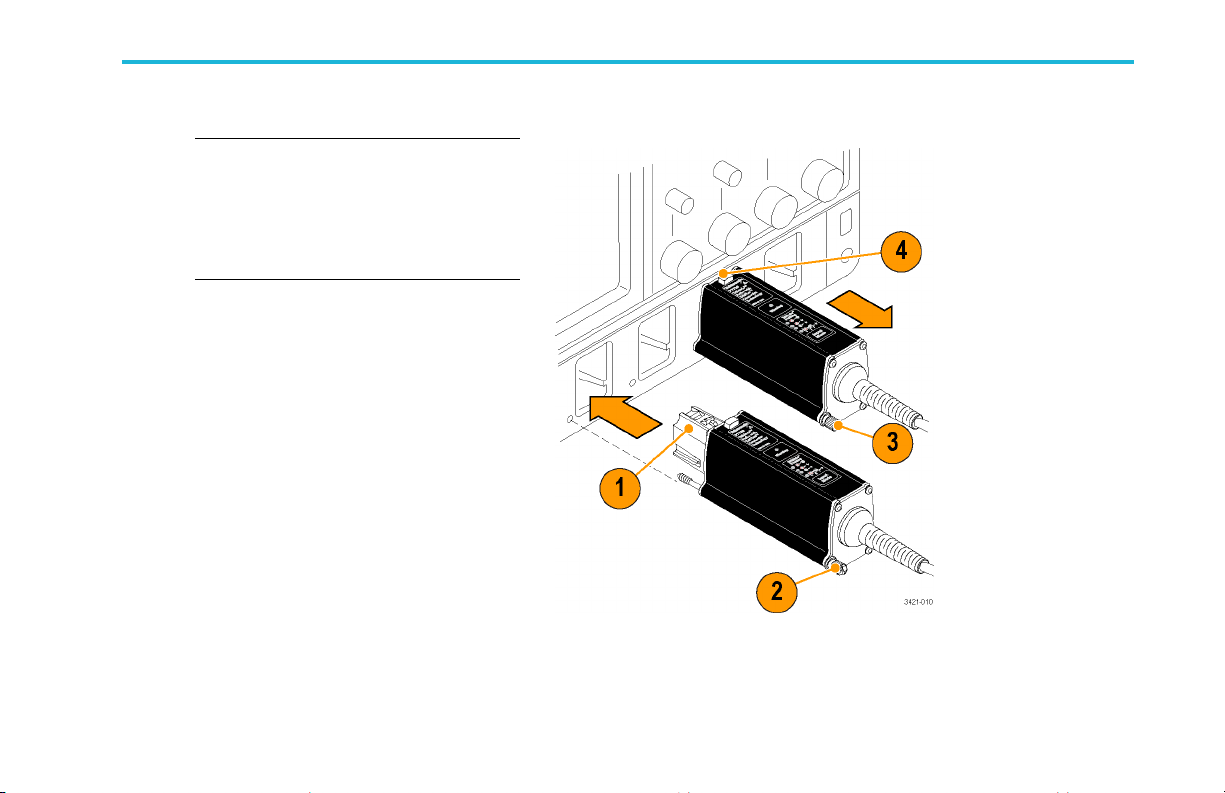

1. Slide the probe into the TekConnect
receptacle. The probe clicks into place
when fully engaged.
2. Optional. Turn the thumbscrew clockwise
(finger-tight only) to secure the probe to
the instrument.
Disconnect
3. To disconnect, turn the thumbscrew
counter-clockwise.
4. Press the latch release button and pull the
probe away from the instrument.
P7700 Series TriMode Probes User Manual 5

Installation
Probe and probe tip power-on

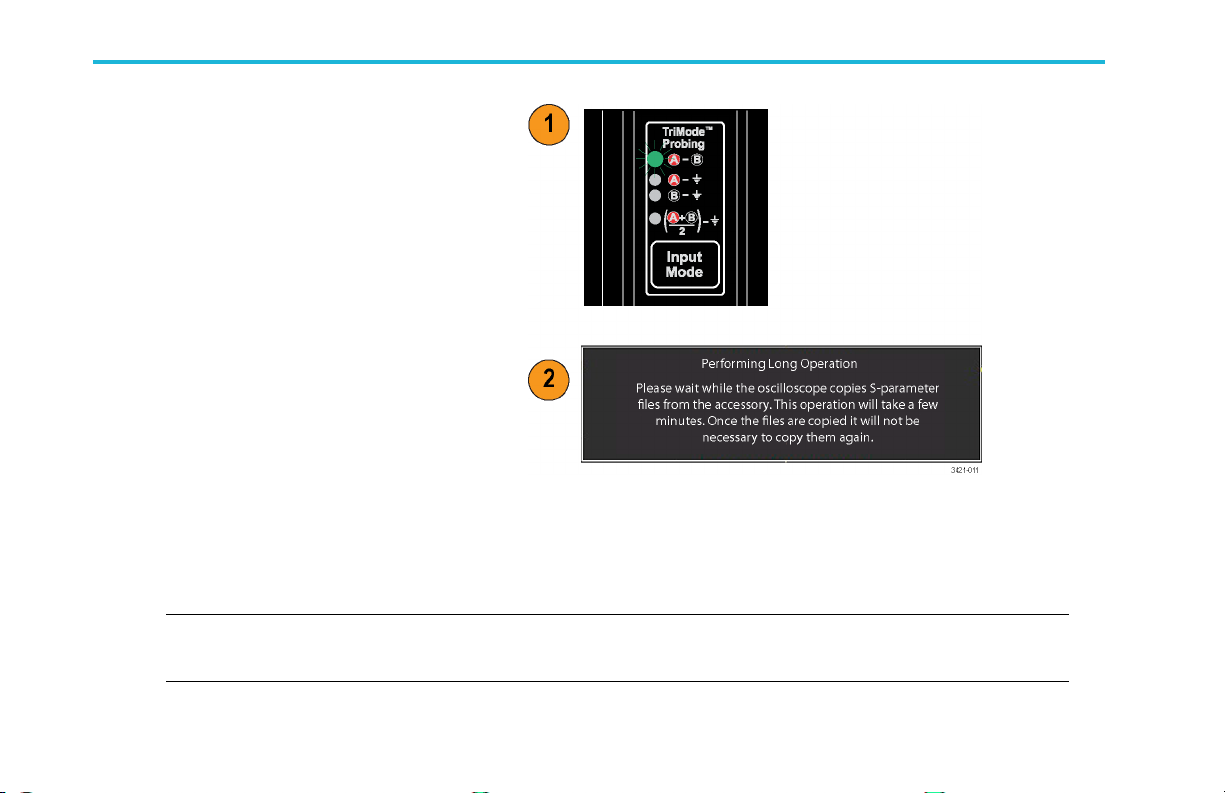

After the connection to the oscilloscope is
made:
1. The probe briefly turns on all LEDs during
a self-test, and then the A – B Input Mode
LED remains on. If a probe tip is attached,
an LED on the tip also turns on when
properly attached to the probe.
2. The probe transfers data from the probe
and tip to the host instrument, and a
message displays on the instrument as the
transfer occurs.
The data transfer takes a few minutes,
and is only done when the host instrument
discovers a new probe or new probe
tip. The data transfer only occurs on
instruments that are fully compatible with
the probe.
3. After the data transfer is done, the probe is ready for a functional check and calibration. (See page 11, Functional check.)
NOTE. If the probe’s warning light remains on, the power-on self-test likely failed.
(See page 76, Error conditions.)
6P7700 Series TriMode Probes User Manual
