Teldat Regesta-PRO ER B User manual

Regesta-PRO ER B Router
Installation Manual
Copyright© Teldat DM641-I Version 1.1 /2016 Teldat S.A.
Teldat S.A. Manual
Regesta-PRO ER B Router 1

Legal Notice
Warranty
This publication is subject to change.
Teldat S.A. offers no warranty whatsoever for information contained in this manual.
Teldat S.A. is not liable for any direct, indirect, collateral, consequential or any other damage connected to the deliv-
ery, supply or use of this manual.
Manual Teldat S.A.
2 Regesta-PRO ER B Router

Table of Contents
I RelatedDocuments................................. 1
Chapter1 AboutThisGuide.................................. 2
1.1 SupportedDevices................................... 2
1.2 Who should read this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 When should I read this manual? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.4 Whatisinthismanual?................................. 2
1.5 Whatisnotinthismanual? ............................... 2
1.6 How is the information organized? . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.7 TechnicalSupport ................................... 2
Chapter2 Regesta-PROERB ................................ 3
2.1 Characteristics..................................... 3
2.1.1 PowerSupply..................................... 3
2.1.2 Monitoringhardware .................................. 3
Chapter 3 Components and Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3.1 Components...................................... 4
3.1.1 FrontPanel...................................... 4
3.1.2 RearPanel ...................................... 6
3.1.3 UndersidePanel.................................... 6
3.1.4 UpperPanel...................................... 7
3.2 Assembly....................................... 7
3.2.1 Installing a DIN rail mount accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2.2 InstallingtheProtector.................................. 8
3.3 PowerSource..................................... 9
3.3.1 Connecting the Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.4 RSTButton..................................... 11
3.4.1 Restartingthedevice................................. 11
3.4.2 DefaultConfiguration................................. 11
3.5 DataConnections................................... 12
3.5.1 EthernetSwitch ................................... 12
3.5.2 Connecting the WWAN Antenna (RF connectors) . . . . . . . . . . . . . . . . . . . . . 12
3.5.3 Connecting to the serial ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Chapter 4 Installing the SIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Teldat S.A. Table of Contents
Regesta-PRO ER B Router i

4.1 IdentifyingtheSIMtrays................................ 15
4.2 Procedure to install the SIM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Appendix A Technical Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
A.1 Troubleshooting................................... 17
A.2 Updatingthesoftware................................. 17
A.3 Connectingtotherouter................................ 18
A.3.1 Connecting through the local console (CONF connector). . . . . . . . . . . . . . . . . . 18
A.3.2 Connection through an IP terminal (LAN 1...6 connectors) . . . . . . . . . . . . . . . . . 18
A.4 Connectors ..................................... 19
A.4.1 LANConnector.................................... 19
A.4.2 DSLConnector.................................... 19
A.4.3 RFConnectors.................................... 20
A.4.4 ConfigurationConnector................................ 20
A.4.5 RS-232 Serial Port Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
A.4.6 RS-485 Serial Port Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
A.5 TechnicalSpecifications................................ 21
A.5.1 LANInterface .................................... 21
A.5.2 DSLInterface .................................... 21
A.5.3 WirelessWANInterface................................ 21
A.5.4 ConfigurationInterface ................................ 22
A.5.5 RS-232SerialInterface................................ 22
A.5.6 RS-485SerialInterface................................ 22
A.5.7 PowerSupply.................................... 22
A.5.8 DimensionsandWeight................................ 22
A.5.9 Environmental Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
AppendixB Safetyinformation ................................ 23
B.1 Recycling and the Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
B.2 Translated Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Table of Contents Teldat S.A.
ii Regesta-PRO ER B Router

I Related Documents
Teldat Dm748-I Software Updating
Teldat Dm781-I Cellular Interface.
Teldat S.A. Related Documents
Regesta-PRO ER B Router 1

Chapter 1 About This Guide
This Regesta-PRO ER B router family installation manual contains information on how to correctly install the router in
an appropriate operating environment.
1.1 Supported Devices
Information provided in this installation guide only applies to the Regesta-PRO ER B router family.
1.2 Who should read this manual?
This manual should be read by installers who need to install, configure, maintain and monitor the router.
1.3 When should I read this manual?
Read this guide as soon as you are ready to familiarize yourself with the device and its components.
This manual will help you understand your new device in greater depth.
1.4 What is in this manual?
This installation guide contains the following information:
• A description of the general characteristics available in the Regesta-PRO ER B router family.
• Technical Specifications.
• Power supply requirements.
• Description of the router LEDs and connectors.
• Troubleshooting.
1.5 What is not in this manual?
This manual does not contain information on the device software or on its configuration. For information on how to
configure the device, please see the different protocol manuals at http://www.teldat.com.
1.6 How is the information organized?
Each chapter focuses on a specific part of the router hardware and its components. All descriptive and technical spe-
cifications, or information on a component, can be found in the relevant chapter.
1.7 Technical Support
Teldat S.A. offers a technical support service. Device software can be upgraded for maintenance and new features.
Contact information:
Web: http://www.teldat.com
Tel.: [phone]
Fax: [phone]
Email: suppor[email protected]
1 About This Guide Teldat S.A.
2 Regesta-PRO ER B Router

Chapter 2 Regesta-PRO ER B
2.1 Characteristics
The Regesta-PRO ER B family is a range of IP routers particularly suited to hostile and extreme environments.
Thanks to their ruggedized mechanics and special characteristics, which allow them to tolerate extreme temperat-
ures, these routers are especially suitable for: industrial environments, industrial telecontrol, distribution installations
for electricity, gas, water, etc.
Thanks to its modular design, this device can quickly adapt to the latest WWAN technologies. The Regesta-PRO ER
B is compatible with wireless technologies such as GPRS, EDGE, UMTS, HSDPA, HSUPA, HSPA+, LTE, CDMA
2000 1xRTT, CDMA Ev-Do. The basic license makes connections through GPRS/EDGE technology possible. Addi-
tional licenses provide support for technologies with a wider bandwidth. Depending on the model, the device may in-
clude 0, 1 or 2 WWAN modules. In addition, said device can accommodate 2 SIM cards. These can be active when
two modules are incorporated, or one can play an active role while the other is used as backup in configurations with
a single module.
As for LAN networks, this device incorporates a 6 port 10/100BaseT LAN Ethernet Switch. The basic license enables
the first 2 ports. By upgrading said basic license, you can enable all 6 ports.
The RS-232 console port can be configured as a DCE asynchronous serial communications port, with a maximum
speed of 38400 bps without control signals. The device can incorporate two additional asynchronous serial ports with
a maximum speed of 115200, with DCE RS-232 technology or with RS-485 2-4 wires/RS-422. Serial port connectors
are DB9.
The device incorporates a transparent protector, which prevents connectors from being touched while the device is
running.

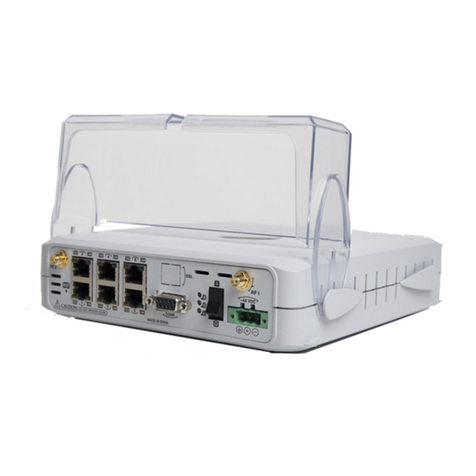

Fig. 1: Regesta-PRO ER B with transparent protector
2.1.1 Power Supply
For further information on Regesta-PRO ER B power sources, please see Power Source on page 9.
2.1.2 Monitoring hardware
The Regesta-PRO ER B hardware is monitored through LEDs on the front panel. Said LEDs provide visual informa-
tion on what is happening in the router. These indicate the status of the hardware components, if there is connection
or not, data flow, etc.
For further information on the LEDs panel, please see section Front Panel on page 4.
Teldat S.A. 2 Regesta-PRO ER B
Regesta-PRO ER B Router 3

Chapter 3 Components and Power Supply
The following chapter provides information on the Regesta-PRO ER B chassis and its components. This information
includes:
• Components.
• Assembly instructions.
• Power supply.
• RST button.
• Data connection.
• Inserting the SIM card.
3.1 Components
3.1.1 Front Panel
The following figure shows the front panel.
Fig. 2: Front panel
Front panel elements are as follows:
Elements table for the front panel
Item Description
A RF2. WWAN antenna connector.
B RST. Reset button. For further information on how the reset button functions,
please see section RST Button on page 11 further on in this chapter.
C 6-port Fast Ethernet Switch.
D DSL. Not available.
E CONF. DB9 connector, providing access to the device local console for configura-
tion and monitoring purposes. (This connector can also be used as an RS-232
asynchronous DCE serial port).
F I/O. ON/OFF power switch, position I for ON and position O to switch it OFF.
G RF1. WWAN antenna connector.
H POWER. Power connection. For more information on the power connection,
please see section Connecting the Power Supply on page 9.
In addition to connectors, the front panel also contains a set of LEDs, which provide information on the state of the
3 Components and Power Supply Teldat S.A.
4 Regesta-PRO ER B Router

router.
The LEDs are organized on the router front panel (see the following figure):
Fig. 3: Front panel LEDs
While the device is in startup mode, LED Llights up in green. Once start up is complete, the LEDs indicate the fol-
lowing:
Front panel LEDs table
LED Associated interface Status Description
SCellular interface corresponding to
the active SIM.
Green
Amber
SK1 operating SIM. This processes
traffic through the carrier for the SIM
installed in this tray.
SK2 operating SIM. This processes
traffic through the carrier for the SIM
installed in this tray.
CCellular interface corresponding to
the active SIM.
Red
Amber
Green
Cellular interface is not available, not
installed or not registered.
The device has registered in the net-
work and is establishing the PPP pro-
tocol.
The device is registered, PPP is es-
tablished and it can send IP traffic
through the PPP interface.
- Steady: data is not being trans-
ferred.
- Blinking: data is being transferred.
LCellular interface corresponding to
the active SIM.
Green
Yellow
Red
Off
Coverage level above -90dBm.
Coverage level between -90dBm and
-100dBm.
Coverage level below -100dBm.
Cellular interface is not active.
100 Associated to each Ethernet switch
connector (LAN1…LAN6).
Amber ON -> Connection at 100Mbps.
OFF -> Connection at 10Mbps.
LNK Associated to each Ethernet switch Green ON -> Ethernet connection (link) es-
Teldat S.A. 3 Components and Power Supply
Regesta-PRO ER B Router 5

connector (LAN1…LAN6). tablished:
- Steady: data is not being trans-
ferred.
- Blinking: data is being transferred.
3.1.2 Rear Panel
The following figure shows the rear panel:
Fig. 4: Rear panel
Rear panel elements are as follows:
Rear panel elements table
Item Description
A COM1, COM2. DCE RS-232 serial ports or RS-485 2-4 wires/RS-422.
3.1.3 Underside Panel
The following figure shows the underside panel:
Fig. 5: Underside panel
Underside panel elements are as follows:
Underside panel elements table
3 Components and Power Supply Teldat S.A.
6 Regesta-PRO ER B Router

Item Description
A Slots for the accessories to attach the device to the DIN rail mount. For further in-
formation on this accessory, please see section Installing a DIN rail mount ac-
cessory on page 7.
B Platform the product information sticker is attached to. This sticker contains in-
formation on the device model, MAC, serial number, etc.
3.1.4 Upper Panel
The following figure shows the aspect of the upper panel:
Fig. 6: Upper panel
Upper casing elements are as follows:
Upper casing elements table
Items Description
A, B, C, D Screws allowing you to disassemble the router upper casing.
3.2 Assembly
3.2.1 Installing a DIN rail mount accessory
The device packaging includes a DIN rail mount kit the device can be connected to (allowing for several positions).
The kit contains 2 screws to adjust the rail mount to the underside of the device. There are a set of holes on the un-
derside allowing you to place the DIN rail mount in two distinct positions:
Teldat S.A. 3 Components and Power Supply
Regesta-PRO ER B Router 7

Fig. 7: DIN rail mount: Position 1
Fig. 8: DIN rail mount: Position 2
3.2.2 Installing the Protector
The transparent protector prevents the device connectors from being manipulated while it is operating. The transpar-
ent protector is not on the device when packed for shipping, it is a separate piece.
The following figure shows you how to attach the protector to the device:
3 Components and Power Supply Teldat S.A.
8 Regesta-PRO ER B Router

Fig. 9: Attaching the transparent protector
3.3 Power Source
The Regesta-PRO ER B can be powered through DC voltage. Nominal power voltage is 48 V DC.
Note
Before connecting the router, please read the following instructions carefully.
Workplace. Main characteristics
• The device should not be placed amongst papers, magazines or other elements that could hinder natural air circu-
lation.
• Knocks and/or strong vibrations should be avoided during transport, operation and storage.
Warning
Electric current in power cables, telephone lines and communication cables is dangerous. To prevent
electric shocks, before installing, handling or opening the equipment covers, connect and disconnect
the cables following the steps set forth in To Connect on page 11 andTo Disconnect on page 11.
3.3.1 Connecting the Power Supply
To connect the power supply to the router, please follow the steps set forth in To Connect on page 11.
Warning
To avoid electric shocks, residual current circulation and other unwanted effects, also affecting commu-
nications, the following is recommended:
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should, at the same time, be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply
or it is independent from the rest (such as lighting, etc.); it is highly recommended that all data devices
should be connected to the same power source. This will avoid operating and premature aging prob-
lems of drivers and other components.
Teldat S.A. 3 Components and Power Supply
Regesta-PRO ER B Router 9

3.3.1.1 To Connect
• Make sure the power supply cable is not connected to the device.
• Connect all data cables.
• Connect the power supply cable to the device.
• Connect the power supply cable to the electricity supply.
Fig. 10: Connecting the power supply to the device
3 Components and Power Supply Teldat S.A.
10 Regesta-PRO ER B Router

• Place the on/off switch in position 1.
• Lower the transparent protector.
3.3.1.2 To Disconnect
• Raise the transparent protector.
• Place the on/off switch to the 0 position.
• Disconnect the power supply cable from the device.
• Disconnect the data cables.
Fig. 11: Power supply connector
The connector has 3 terminals: 2 for DC powering, and another, labeled protection ground, which connects the
device to the ground point where the rest of the devices are connected. Although this indicates a positive terminal/
line and another negative/neutral, the device can be connected to the power with reverse polarity.
To connect power to the device, please carry out the steps set out in To Connect on page 11: check the power
switch is in the OFF position (0) and the power source is NOT connected to the electricity network; find the power
supply connector (located on the front panel) and insert the power cable connector.
3.4 RST Button
The Regesta-PRO ER B has (on the front panel) a button that can be accessed from the outside and is labeled RST.
This button has two functions:
• To initiate a restart.
• To restart the device with the default configuration. The default configuration has IP 192.168.1.1 assigned to all
switch ports.
The external button is physically protected, so it cannot be accidentally pushed. You need a sharp-edged object to
activate it.
3.4.1 Restarting the device
Follow the steps below to restart the device:
(1) Press the RST button. Device restart is indicated by the 3 LEDs on the front panel lighting up in amber.
(2) Stop pressing the RST button as soon as the 3 LEDs on the front panel are lit up.
(3) The device will begin the restart with LEDs S and C off and LED L in green.
3.4.2 Default Configuration
Follow these steps to install the default configuration:
(1) Press the RST button. Device restart is indicated by the 3 LEDs on the front panel lighting up in amber.
(2) Keep pressing the RST button. The S LED will blink green while you are still pressing the RST button. This state
implies the device configuration has changed to the default configuration.
(3) Stop pressing the RST button to allow the device to restart.
(4) The device will begin the restart with LEDs S and C off and LED L in green.
Teldat S.A. 3 Components and Power Supply
Regesta-PRO ER B Router 11

(5) As the device now has the default configuration, access it through IP, bearing in mind the default address for
the equipment is 192.168.1.1, and is accessible from any switch port.
3.5 Data Connections
The Regesta-PRO ER B has the following data connectors:
3.5.1 Ethernet Switch
The Regesta-PRO ER B incorporates a 6 port Switch, 10/100 BaseT with automatic MDI/MDIX to connect to the
LAN. This has a 100 LED to indicate connection at 100 Mbps and a LNK LED indicating the physical connection.
The first two ports (port 1 and 2) are enabled through a basic license. You can enable the rest of the ports through
additional licenses.
Fig. 12: LAN switch ports (6)
3.5.2 Connecting the WWAN Antenna (RF connectors)
The Regesta-PRO ER B has two connectors for RF antennas. To assemble and disassemble the antennas, simply
screw/unscrew them into/from the connectors labeled as RF1/RF2 (located on the front panel of the device).
When a device has 2 WWAN modules, each connector is connected to each of the WWAN modules (MAIN internal
connectors for both modules). Whenever a device has just one WWAN module, the RF1 connector is connected to
the module MAIN connector and the RF2 connector to the AUX connector in the same module. This configuration
means you can use diverse techniques to improve the quality of the radio connection (valid for HSDPA, HSUPA,
HSPA+ and LTE technologies).
Installing an antenna in the Regesta-PRO ER B is necessary to improve the quality of the signal received and trans-
mitted by the WWAN module (GPRS, UMTS, HSDPA, HSUPA, etc.).
Fig. 13: WWAN antenna connectors
Caution
To achieve high-quality performance, the router must always have WWAN antennas installed.
WWAN interfaces with access to the 2G network (GPRS/EDGE) are operative in all devices in this
range. To access the 3G network (UMTS/HSDPA/HSUPA) or HSPA+) the device must have additional
licenses incorporated.
3 Components and Power Supply Teldat S.A.
12 Regesta-PRO ER B Router

Teldat has a series of accessories (dipole antennas, indoor antennas, roof mount antennas, extension cables, etc.),
which allow you to install the Regesta-PRO ER B in different locations.
3.5.2.1 Positioning the Antenna
Antenna orientation, its location with respect to other wireless devices and radiation devices, such as communication
devices, personal computers, etc., can significantly influence device performance.
Antennas transmit and receive radio signals. Performance is also affected by environmental factors such as the dis-
tance between the device and the base station, physical obstacles and other interferences due to radio frequencies
(RF).
For optimum coverage, carry out the following:
• Whenever possible, place the antenna where there are no physical obstacles. Obstacles between the antenna and
the base station degrade the wireless signal. Place the antenna above ground level facing the nearest base sta-
tion.
• Density of materials also affects antennas. Place them away from any type of wall, metal screens, mirrors, etc.
• Do not place the antenna near columns, which may throw shadows and reduce the coverage area.
• Keep the antenna away from metal pipes such as canals, air-conditioning, etc.
• Please bear in mind that other wireless devices such as telephones, microwaves, etc., can temporarily interfere
with the quality of the wireless signal.
• We do not recommend installing the antennas near, or between, racks containing communication devices, com-
puters, etc. Use an extension cable and place the antenna outside.
The following recommendations are applicable to all wireless devices:
• Do not touch or move the antenna while the device is transmitting or receiving.
• •Do not touch any equipment containing devices that radiate, where the antenna is very close to or touching any
exposed part of the body (particularly the face and eyes), when it is transmitting.
• Do not install the device in areas where the atmosphere is potentially explosive.
• Wireless devices can cause interference in other devices. Do not use the device in areas where medical equip-
ment is installed.
• To ensure you are complying with the R&TTE 1999/5/EC norm, the device must be at least 15 cm away from a hu-
man body when operating.
3.5.3 Connecting to the serial ports
The Regesta-PRO ER B can have one or various female DB9 connectors, depending on the model.
3.5.3.1 Console connector as serial port (CONF connector)
It’s possible to convert the console port into an RS-232 asynchronous DCE serial port. This port has the following
characteristics:
• DCE port.
• RS-232 norm.
• Maximum speed of 38400 bps.
• Only the following signals are available: RxD (pin 2), TxD (pin 3) and GND (5).
• DB-9 connector.
Teldat S.A. 3 Components and Power Supply
Regesta-PRO ER B Router 13

Fig. 14: Console connector as serial port
To use this as the router configuration port, please see section Connecting to the router on page 18.
3.5.3.2 Asynchronous serial ports
Some models are equipped with 2 additional serial ports. These serial ports can be RS-232 or RS-485/RS-422. They
have the following characteristics:
RS-232:
(a) DCE port.
(b) Maximum speed of 115200 bps.
(c) All control signals are available.
(d) DB-9 connector.
RS-485/RS-422:
(a) 2/4 wires configurable through software.
(b) Bus termination configurable through software.
(c) Maximum speed of 115200 bps.
(d) DB-9 connector.
Fig. 15: RS-232 asynchronous serial connectors
3 Components and Power Supply Teldat S.A.
14 Regesta-PRO ER B Router

Chapter 4 Installing the SIM card
The Regesta-PRO ER B has Wireless WAN interfaces that, in order to operate, may require at least one SIM card to
be inserted into the device. There are certain services (CDMA) provided by several carriers in some countries, which
do not require SIM cards.
The Regesta-PRO ER B has two SIM trays. Both trays are located inside the device casing and are labeled SK1 and
SK2.
In installations where only one SIM card is required, we recommend it is installed in the main SK1 tray.
Warning
Never install SIM cards when the device is switched on.
Always disconnect the device from the main power supply before installing SIM cards.
Always disconnect the device before removing the casing to access the trays.
When inserting SIM cards, please protect yourself against electrostatic discharges (ESD).
Do not touch SIM cards connectors.
To access the SIM tray, you need to open the upper casing of the device. To do this, unscrew the four screws loc-
ated on the upper cover of the device.
Fig. 16: Screws on the upper casing
4.1 Identifying the SIM trays
Once you have removed the upper casing, you will be able to see the different elements illustrated below.
The Regesta-PRO ER B incorporates 2 SIM cards, which allow you to execute some special configurations. One ex-
ample is installing two SIMs and using one as backup to the other. To carry out this type of configuration, you must
assign a tray to each SIM (since they require different configuration parameters).
The SIM trays are identified as SK1 and SK2 i.e. socket 1 and socket 2.
Teldat S.A. 4 Installing the SIM card
Regesta-PRO ER B Router 15

Fig. 17: Location of the SK1 and SK2 SIM trays
4.2 Procedure to install the SIM
To insert a SIM card in a tray, locate the retaining lip (metal fastening with OPEN and LOCK on it) to open the tray
and place the SIM card on it. Then:
(1) Push the fastening in the direction indicated by the arrow with the word OPEN.
(2) Open the upper part of the tray.
(3) Fully insert the SIM card using the guide.
(4) Return the tray to its original position.
(5) While pressing on the tray, push the lip in the direction indicated by the word LOCK until it is firmly in place.
Fig. 18: Inserting the SIM in the internal tray
4 Installing the SIM card Teldat S.A.
16 Regesta-PRO ER B Router
