ST-109R
Integrating Sound Level Meter
User’s Manual
HB2ST109R00
1

บริษัท คอมคิวบ์ จํากัด โทรศัพท์: 02-539-3611 อีเมล์: [email protected]
Contents
1 Introduction ....................................................... 1
2 Accessories ....................................................... 1
3 Safety Precaution .............................................. 1
4 Instrument Description ...................................... 2
5 Operation .......................................................... 3
5.1 Backlight Button ......................................... 4
5.2 Start/Pause Measuring ............................... 4
5.3 Data Hold: .................................................. 4
5.4 Single Record/ Datalogger Reading ........... 4
5.5 Product Setup ............................................ 5
5.6 Integrating Time Setup ............................... 5
5.7 Auto Power Off ........................................... 5
5.8 Analog/Communication Output Interface .... 6
5.9 Record Data Delete/Back-up ...................... 6
5.10 94dB Calibrate ........................................... 7
5.11 Microphone Connection Inter-face .............. 7
5.12 Microphone Extension Test ........................ 8
5.13 Sensitivity Correction .................................. 9
6 Software Installation ........................................ 10
7 General Specifications .................................... 11
8 Electrical specification ..................................... 12
9 Maintenance or Repair .................................... 14
10 Battery Replacement ....................................... 14
11 Product Disposal ............................................. 14

บริษัท คอมคิวบ์ จํากัด โทรศัพท์: 02-539-3611 อีเมล์: [email protected]

ST-
109R
บริษัท คอมคิวบ์ จํากัด
1
1 Introduction
This Integrating Sound Level Meter (ISLM) is
IEC61672-2002 Class 1 compliant.
2 Accessories
1 Meter
1 User’s Manual
1 AC to DC adaptor
1 Windscreen ball
1 Installation disk
1 USB cable (Mini B type)
1 AC adapter (9~12V/500mA)
4 1.5V AA-LR6-AM3 alkaline battery
3 Safety Precaution
Caution! Please refer to this manual.
Improper use may damage the meter ad
its components.
Complies with European Directive.
 Do not operate in environments with flammable
gas or humid environments.
 Operating altitude: up to 2000M.
 Operating environment: Indoor use; Pollution
degree 2.
 Clean with soft cloth when dirty, such as glasses
cloth. Do not clean with chemicals and other
solvents.
 EMC: EN61326-1:CISPR 11:Group 1, Class B
 Class B – Equipment for use in all establishments
other than domestic.
 Group1 – RF energy generated is needed for
internal functioning.

ST-
109R
บริษัท คอมคิวบ์ จํากัด
2
4 Instrument Description
1. Microphone
2. Power Button
3. Backlight Button
4. Start or Pause Test
Button
5. Frequency Weighting
Select Button
6. Time Weighting Select
Button
7. Set Button
8. Test function select
button
9. Record dada / Reading
Record dada button
10. Data Hold/ up arrow
button.
11. Clock switch/left
arrow button
12. OK button
13. Clock switch/right
arrow button
14. Shift switch/end
measurement/down
arrow button
15. MICRO SD card slot
16. Analog/RS232
professional output
17. USB
18. DC voltage input
(6V~12V)

ST-
109R
บริษัท คอมคิวบ์ จํากัด
3
5 Operation
1. Press button to power on or off your
product.
2. Press button to selection measurement
mode.
 Sound pressure level (SPL)
 Equivalent Energy Sound Level (Leq)
 Sound exposure level (SEL)
 Peak sound pressure (PeakMAX)
3. Press button to switch time weight.
4. Press button to switch frequency weight.
5. Press button to switch shift, end integrating
measurement during integrating.
6. Press button to start integrating measuring
(SPL exclusive) and revoke auto off function.
7. Display measurement readings on LCD.
＊ Peak sound pressure (PeakMAX) does not
support time and frequency weighting.
CAUTION
Please mount windscreen to
microphone as shown in figure below to
reduce wind noise when ambient wind
speed is greater than 10m/sec.

ST-
109R
บริษัท คอมคิวบ์ จํากัด
4
5.1 Backlight Button
In standby mode，Press button to turn on
backlight, press button again to turn it off
immediately.
＊Backlight will turn off in 15 seconds automatically.
5.2 Start/Pause Measuring
Press button to start integrating
Leq/SEL/PeakMAX and MAX/MIN lock-up function
with the maximum and minimum values displayed at
the lower row of LCD and measurement interval
upper row of LCD. Press button to pause
measurement and button to abort
measurement.
＊The longest time that the SPL mode, SEL, and
peak sound pressure mode can last is 99 hours,
59 minutes and 59 seconds.
5.3 Data Hold:
Press button to the on/off data HOLD. If the
integrating is started, this function is invalid.
5.4 Single Record/ Datalogger Reading
Each press the button once to display REC
message, increment record count by 1 and log one
measurement record.
Press and hold button for 1 second to enter
record reading mode, press / button to reading
records, press / button to toggle switch time
display between hh:mm:ss and yyyy/mm/dd, press
and hold button for 1 second to exit reading
function.

ST-
109R
บริษัท คอมคิวบ์ จํากัด
5
5.5 Product Setup
Press button to enter set-up mode of this product for
the following:
Press the button to cycle through the following options:
Clock → Auto record → Auto power off → Communication
interface → Delete one record → Delete all record → Copy
SD card → 94dB calibrate → Back to measurement mode
Select settings
/ Select place settings
/ Select value up/down
Enter data delete/copy
Enter setup and exit setup page
＊Please get your SD card installed before enabling SD
card copy function. Please refer to section 5.9 for details.
5.6 Integrating Time Setup
In Leg mode the record and integrating time settings are
the same:
Press button to enter Integrating time selection page,
the LCD display REC with the following options for
selection:
10 seconds → 1 minute → 5 minute → 10 minute → 30
minute → 1 hour → 8 hour → 16 hour → 1 day → Custom.
Press / button to point cursors, / button to
change values, with the maximum settings at 23 hours, 59
minutes and 59 seconds.
Enter setup and exit setup page.
5.7 Auto Power Off
The longest auto power off time is 99 minutes; set this to
zero to disable the auto off function.
The auto power off will be disabled accordingly in the USB
connection mode.

ST-
109R
บริษัท คอมคิวบ์ จํากัด
6
5.8 Analog/Communication Output
Interface
This product features to computer communication
inter-face: USB and RS-232.
The RS-232 (TTL) and analog output inter-face shares.
You may select USB or RS232 inter-face in the set-up
mode. The default value is USB.
AC signal output: MAX: 5VP-P/130dB, output impedance
around 600Ω
DC signal output: 10mV/10dB, output impedance around
100Ω
5.9 Record Data Delete/Back-up
You may define the file name with a desktop program: file
extension is "*.IAR", file name may contain up to 8
characters including capital letter A~F and number 0~9.
The auto backup function copies data from this product to
micro SD card and delete them afterwards.
Please connect to external power source for micro SD card
write-in operation to prevent it from failed due to power
outage.
You may manually delete records in the mode of a single
record or all records.
The single record delete function erases the latest one first
and move to the earlies one.
See section 5.5 for the functions of individual buttons.
＊ID of this product is "FFFFFFFF" by default.
＊This product supports a micro SD card in the
FAT16/FAT32 format.
＊The maximum space supported in SD/SDHC mode is
32GB.

ST-
109R
บริษัท คอมคิวบ์ จํากัด
7
5.10 94dB Calibrate
Input 94dB@1KHZ signal.
Last calibration records are displayed at the lower
right corner of LCD.
Current measurement value is displayed at the
lower left corner of LCD.
Time weight value is Fast by default.
Calibration range: 91dB~97dB.
Press button to the selection frequency
weight.
Press button to select shift.
Press button to select full calibration.
Press button to select next setup mode.
Press button to save calibration value and exit
set-up mode.
5.11 Microphone Connection Inter-face
Pin 1: signal input
Pin 2: ground
Pin 3: power supply
Pin 4: X

ST-
109R
บริษัท คอมคิวบ์ จํากัด
8
5.12 Microphone Extension Test
To avoid measurement deviation due to the
reflection effect and invalid operations you may
measure integrating sound levels by extending the
microphone with an extension cord.
 Press button to power off this product.
 Turn the pre-amplifier and microphone
counterclockwise to remove them from the body
as shown in figure below:
 Connect extension cord to the pre-amplifier and
microphone as shown in the figure below:

ST-
109R
บริษัท คอมคิวบ์ จํากัด
9
5.13 Sensitivity Correction
Frequency Deviation pressure
20-400 0
500 0
630 0
800 0
1000 0.2
1250 0.3
1600 0.4
2000 0.5
2500 0.6
3150 0.7
4000 0.9
5000 1.5
6300 2.3
8000 3.5
10000 5
12500 6.5
16000 8.7
20000 10.3
* Microphone specification: ST-109

ST-
109R
บริษัท คอมคิวบ์ จํากัด
10

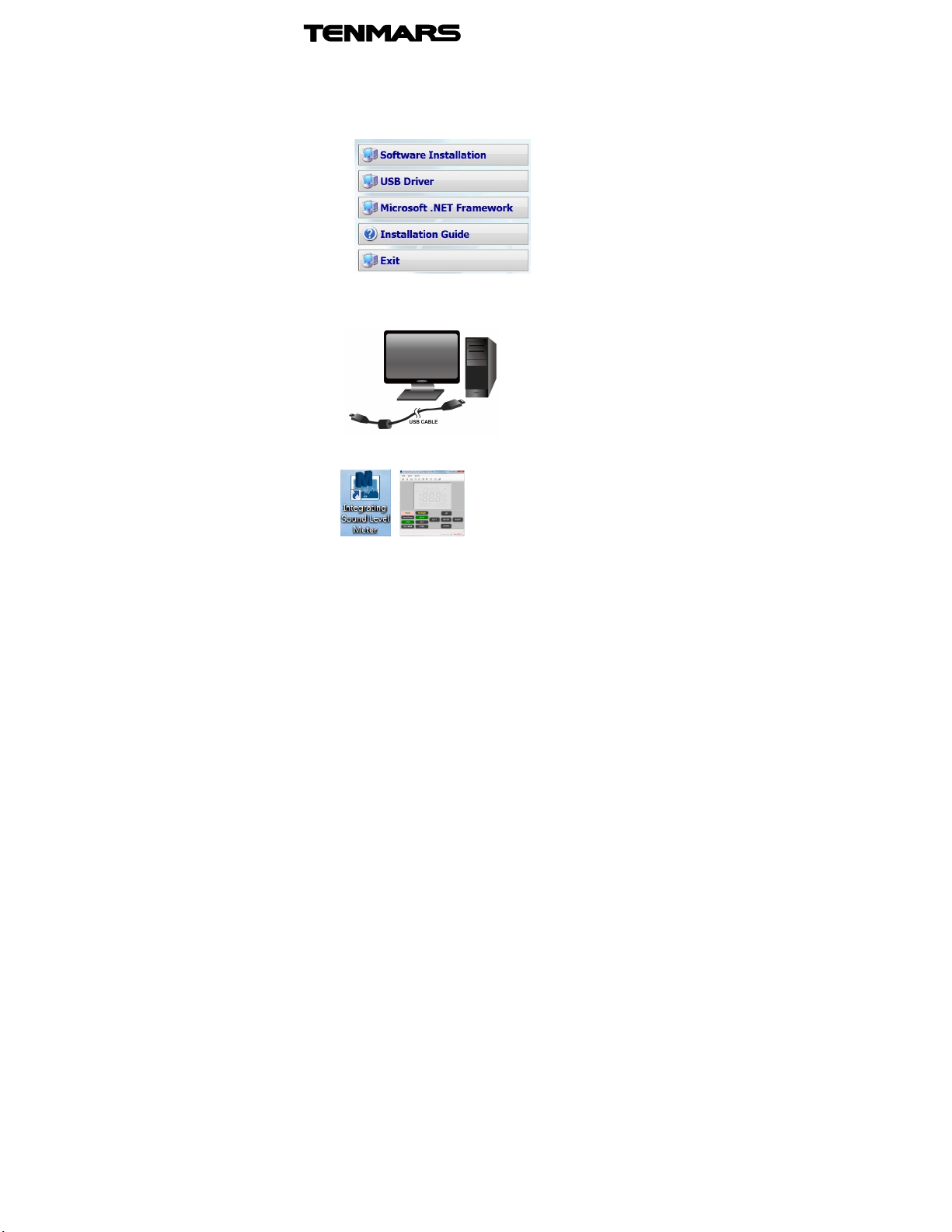

6 Software Installation
Operating system support: Windows XP/Windows7
/Windows 8.1/Windows 10
 Insert the DVD ROM included with this product in the
DVD drive of the computer connected to this product,
click to execute the Installer program.
 Remove the DVD once the desktop program is installed
successfully.
 Connect this product to a computer with included USB
cable.
 To execute desktop program: double click the Integrating
Sound Level Meter program icon to start it.
 See Software Installation Guide for details on software
operation.

ST-
109R
บริษัท คอมคิวบ์ จํากัด
11
7 General Specifications
 Readings display: two rows with maximum
value at 1999.
 Lower power detection, backlight function, data
lock function (HOLD)
 Auto power On/Off function
 Overload display: "OVER" or "UNDER"
 Storage interval: 1 second~ 24 hours; up to
35,000 records.
 Battery: 1.5V*4(LR6 – AA – AM3 – MN 1500)
 Battery life: Approximately 30 hours
 Power consumption at standby mode: 10uW
 Power consumption at operation mode:
250mW
 Operation temperature and humidity: 5℃~40℃
with relative humidity up to 80%
 Storage temperature and humidity: -10℃~60℃
with relative humidity up to 70%
 Weight: Approximately 500 grams
 Dimensions: 285(L)x90(W)x39(H) mm

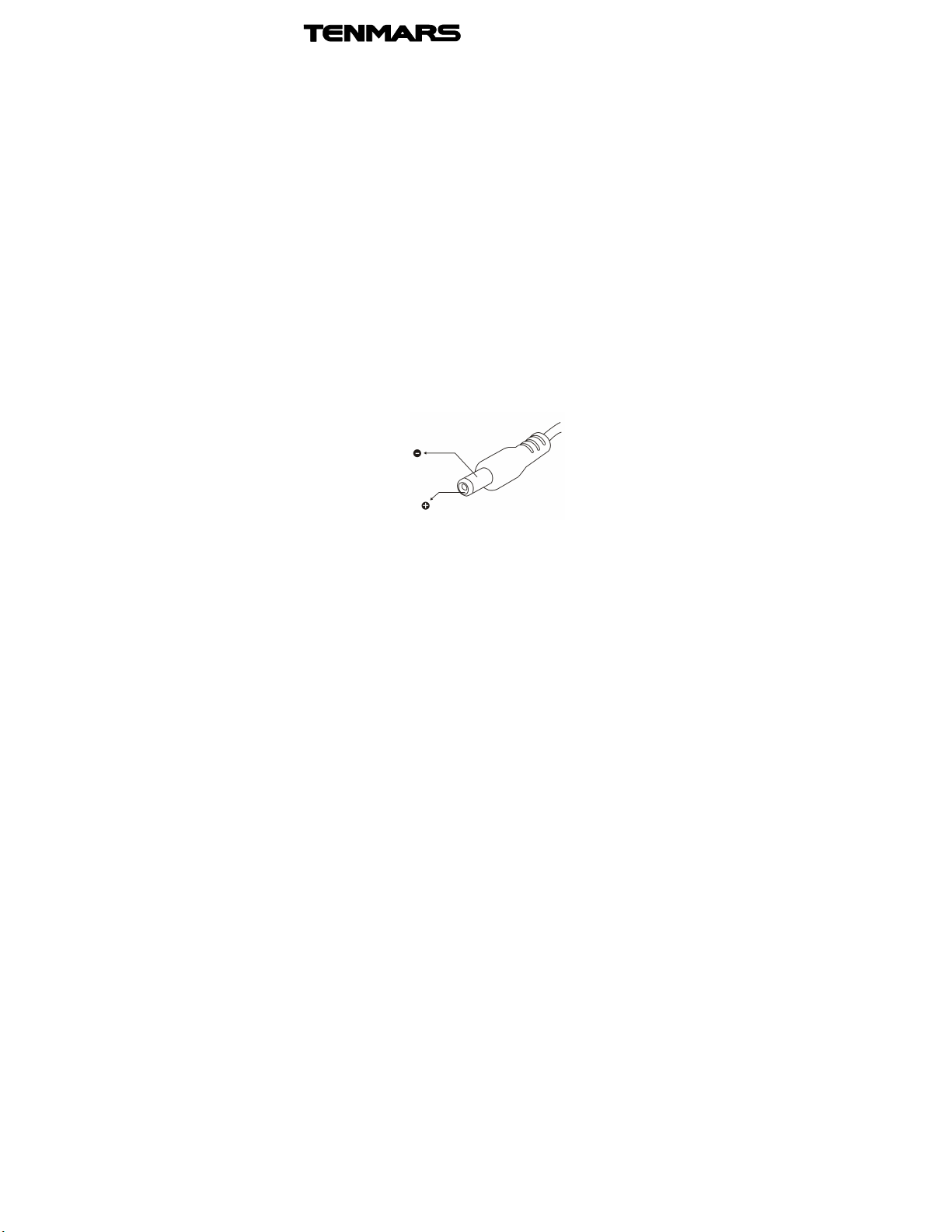

 Adapter specification:
Convert external AC 100~240V power to DC
9V/0.5A
Specification: Voltage at DC9V/0.5A
Plug: O.D.: 5.5mm; I.D.: 2.1mm

ST-
109R
บริษัท คอมคิวบ์ จํากัด
12
8 Electrical specification
Display
Refresh Rate
One time per second
Major
Applicable
Standards
IEC 61672：2002 Class1
IEC60651:1979 TYPE 1
IEC60804:2000 TYPE 1
Microphone High sensitivity, 1/2” pre-polarized
capacitor microphone 50 mV/Pa
Measurement
Items Lxyp,Lxmax,Lxmin,Lxeq,LAE,Lcpeak
Measurement
Range
30dB ~ 130dB (A)
35dB ~ 130dB (C)
40dB ~ 130dB (Z)
Dynamic
range 60 dB
Measurement
shift 30dB ~ 90dB (L)
50dB ~ 110dB (M)
70dB ~ 130dB (H)
Integrate
Time Setup Manual, 10s, 1m, 5m, 10m , 30m, 1h,
8h, 16h, 24h

ST-
109R
บริษัท คอมคิวบ์ จํากัด
13
Micro SD
Card
The max support capacity of micro SD
card is 32GB； 37,000 data about
story
space 300KB
Peak value
measurement
range
70~133 dBC
Time
Weighting Fast, Slow, Impulse, Peak
Frequency
Weighting A/C/Z
Frequency
Range 20Hz~16KHz
DC Output 10mV/1dB
AC Output 1Vrms(±10%)/130dB each range
Starting Time
＜10 Second
Thermal
noise ≦28dBA

ST-
109R
บริษัท คอมคิวบ์ จํากัด
14
9 Maintenance or Repair
1. When the When symbol is displayed on
the LCD, it means that there is insufficient power;
please change the battery immediately in order to
ensure its accuracy.
2. Do not place the meter in locations that have high
temperature, humidity or that are exposed to
direct sunlight.
3. Remember to turn off the power after usage;
remove the battery if not used for a long period of
time in order to prevent battery leakage and
causing damages to internal components.
10 Battery Replacement
1. Turn off the power.
2. Open the battery cover at the back of the meter,
remove the batteries.
3. Insert four batteries in the correct
positive-negative polarity.
4. Put the battery cover back in place.
11 Product Disposal
Note: This symbol indicates that the
meter and its accessories must be
separated and processed properly.

บริษัท คอมคิวบ์ จํากัด โทรศัพท์: 02-539-3611 อีเมล์: [email protected]

บริษัท คอมคิวบ์ จํากัด โทรศัพท์: 02-539-3611 อีเมล์: [email protected]

บริษัท คอมคิวบ์ จํากัด โทรศัพท์: 02-539-3611 อีเมล์: [email protected]
TENMARS ELECTRONICS CO., LTD.
6F, NO.586 Ruiguang Rd, Neihu Dist.
Taipei City, Taiwan
E-mail: [e-mail]
http://www.tenmars.com
