Tenmars TM-188 User manual

TENMARS ~
Professional Electrical and
Environment Te st & Measureme nt
Instruments:
Battery Capacity/ Impedance Tester, TACHO
Meter ,LED lightmeter, Temperature & Humidity
meter ,Infrared Thermometer, Sound level
meter ,Lightmeter, EMF meter, UV Light meter,
RF meter, Hot wire Anemometer, CO meter
Anemometer, Lan cable tester, CO2 meter,
Solar power meter, Radiation meter,
Clamp meter, Multimeter, Phase Rotation test,
Digital Insulation tester
Our products of high quality are selling
well all over the world
TENMARS ELECTRONICS CO., LT D
6F, 586, RUI GUANG ROAD, NEIHU,
TAIPEI 114, TAIWAN.
E-mail : [email protected]
http : //www.tenmars.com
TENMARS
HEAT STRESS WBGT
METER
TM-188 / TM-1880
User's
Manual
CE
HB2TM1880000
TENMARS ELECTRONICS CO., LTD

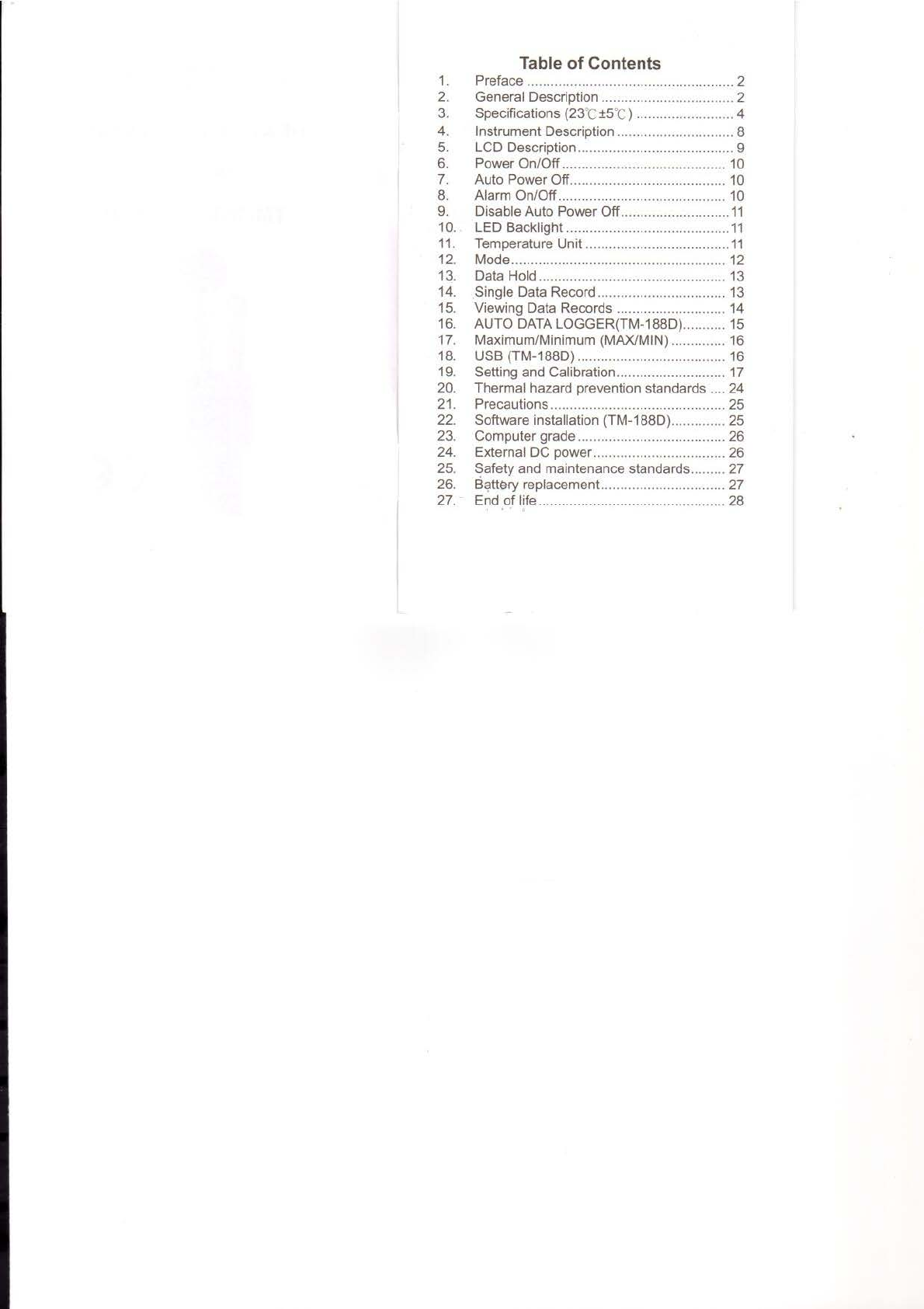

Table of Contents
1. Preface .................................................... 2
2. General Description .................................. 2
3 Specifications (23t ±5° C) .........................4
4. Instrument Description.............................. 8
5. LCD Description........................................9
6. Power On/Off............................ .. .. .. ........ 10
7. Auto Power Off........................................ 10
8. Alarm On/Off........................................... 1O
9. DisableAuto Power Off............................ 11
10. LEDBacklight .......................................... 11
11. Temperature Un it ..................................... 11
12. Mode....................................................... 12
13. Data Hold................................................ 13
14. Single Data Record................................. 13
15. Viewing Data Records ............................ 14
16. AUTO DATA LOGGER(TM-188D)........... 15
17. Maximum/Minimum (MAX/MIN) .............. 16
18. USB (TM-188D) ...................................... 16
19. Setting and Calibration............................ 17
20. Thermal hazard prevention standards .... 24
21 . Precautions.............................................25
22. Software installation (TM-188D) .. ............ 25
23. Computer grade...................................... 26
24. External DC power..................................26
25. Safety and maintenance standards......... 27
26. Battery replacement................................ 27
27. End of life ................................................28
. '

TENMARS
TM-188/TM-188O
1. Pr eface
Thank you for purchasing our product.
Please, read the operating instructions in
details before you use this HEAT STRESS
WBGT meter, so you will operate the meter
correctly. This meter can be operated in
industry and home.
WARNING
Non-compliance warning and/or
operating instructions may damage the
instrument or its parts or injuring the
operator.
2. Gene ra l Description
■ Quick-response capacitance sensor.
Accurate measurement for wet bulb globe
temperature(WBGT), black globe
temperature(TG),humidity(%RH), air
temperature(TA),wet bulb( WET )and dew
point(DEW).
■ Max/Min and data hold.
■ Lowbattery indication "~ •-
■ LCD display with LED backlight.
■ Single data record (TM-188 is ab le to record
50 data). 2
TENMARS
TM-188/TM-188O
■ Viewing data records.
■ Switch the temperature unit to 'C or "F.
■ Brass black ball in 50mm diameter.
■ WBGT alarm setting.
■ Auto poweroff with disable function.
■ Interface: USB PC serial interface.(TM-188D)
■ Data logging capacity :12000 records.(TM-188D)
■ Sampling interval: Max 24 hours; Min 1 Second.
(TM-188D)
■ In order to measure the WBGT index, you
should refer to the following regulations:
ISO7243 : Hot environments. Estimation of the
heat stress on working man.
ISO7726 : Ergonomics of the thermal
environment-instruments for
measuring physical quantities.
3

TENMARS
TM-188!TM-188D
TENMARS
TM-188!TM-188D
3. Specifications (23 °C ts ·c)
Wet bulb globe temp er ature ( WBGT )
Black olobe temperature (TG)
Unit Range Resolution Accuracy
@15~40°C
Accuracy
Unit Range Resolution
@15-
·c
0~80.0 0.1 ±0.6
OF
32. 0-176.0 0.1 ±1.1
4o •c
indoor
& oc 0~59.0 0.1 ±1.0
Outdoor
without
.F
32. 0-
0.1 ±1.8
sunlioht 138.0
Relati ve Humidity (%RH)
Measurement Range 1
%-99%
Accuracy ±3.0%RH(20~80%)
±5.0¾RH(<20%,>80%)
Resolution 0.1%
Outdoor ·c 0~56.0 0.1 ±1.5
With
32.0-
sunlight
OF
132.0
0.1 ±2.7
Dew point temperature (DEW)
Unit Ranqe Resolution
·c
-35.3-48.9 0.1
*indoor & outdoorwithout sunlight:
'F -31.5-120.1 0.1
WBGT= (0.7xWET)+(0.3xTG)
The value is calculated from the RH and Air
Outdoor with sunlight:
WBGT=(0.7xWET)+(0.2xTG)+(0.1xTA) temperature.
Air temperature (TA)
Wet bulb temperature ( WET )
Unit Ranoe Resolution
Unit Range Resolution Accuracy
c@15~40°C
·c
-21.6-50.0
0.1
°F
-6.9-122.0 0.1
·c
0~50.0 0.1 ±0.8
The value is calculated from the RH and air
°F
32.0-122.0 0.1 ±1.5 temperature.
4 5

TENMARS
TM-188/TM-188D
■ Dimension : 300 x 70 x 50mm (L x W x H) .
■ Weight : 220g. (Without batteries).
■ Sampling Rate : one times per second.
■ Power supply: 006P 9V,orAC100~240V DC
9V/ 0.5A(9mm).
■ Battery life : 200hours.
■ Operating Temperature & Humidity:
0°C to +50°C, <95%RH. (Non-condensing)
■ Storage temperature & humidity :
-10°C to +50°C, <70% RH. (Non-condensing)
■ Data output :USB PC serial
interface(TM-1880)
■ LCD:
52mm(W)x36mm(L) monochrome LCD and
backlight.
■ Standard accessories:
006P 9V battery x1 .
User's manual x 1.
Carrying x1.
USS cable(TM-188D) x1.
AC100~240V to DC9V/0.5A(9mm)x1(TM-188D)
Install CD disk(TM-188D) x1.
6
TENMARS
TM-188/TM-1 BBD
■ EMC : This testwas designed in accordance
with EMC Standards in force and its
compatibility has been tested in accordance
with EN61326-1(2006).
7

TENMARS
TM-188/TM-188D
4. Instrument Description
1. UP/MAX/MIN
2. MODE/SET
3. Power/Auto power off
4. UNIT/HOLD
5. LCD
6. Temp & hum idity
sensor
7. Black globe sensor
8. BacklighUMEM
8
9. SEUAlarm
10. Down/REC
11. Battery holder
12. Battery cover
13. 5 pin mini USB
socket.
14. DC powerjack
TENMARS
TM-188/TM-188D
5. LCD Description
-- ~ -- ~ -- ~- Q~~~,J, ___
:A 7; rm W0 SGT T -rrTG wei- i oew :
: HILO OLD MAXMl use :
BBBB
: a,
oc :
;~
I T °F~'
@+1N • • • %RH~
f;:ET ml ?ll B·BB :
; ~- Ei¼r -i· ____________ j
1. Alarm symbol 13. Relative Humidity
2. HOLD symbol 14. Secondary displ ay
3. WBGT 15. Read & memory
4. MAX symbol 16. Time symbol
5. Air temperature 17. Date symbol
6. Black globe temp 18. Record symbol
7. Min symbol 19. Setsymbol
8. Wet bulb temp 20. Indoor symbol
9. USB symbol 21. Outdoor symbol
10. Dew point temp 22. Low battery symbol
11. Primary display 23. Auto power off symbol
12. Temperature unit
9

TENMARS
TM-188/T M- 1880

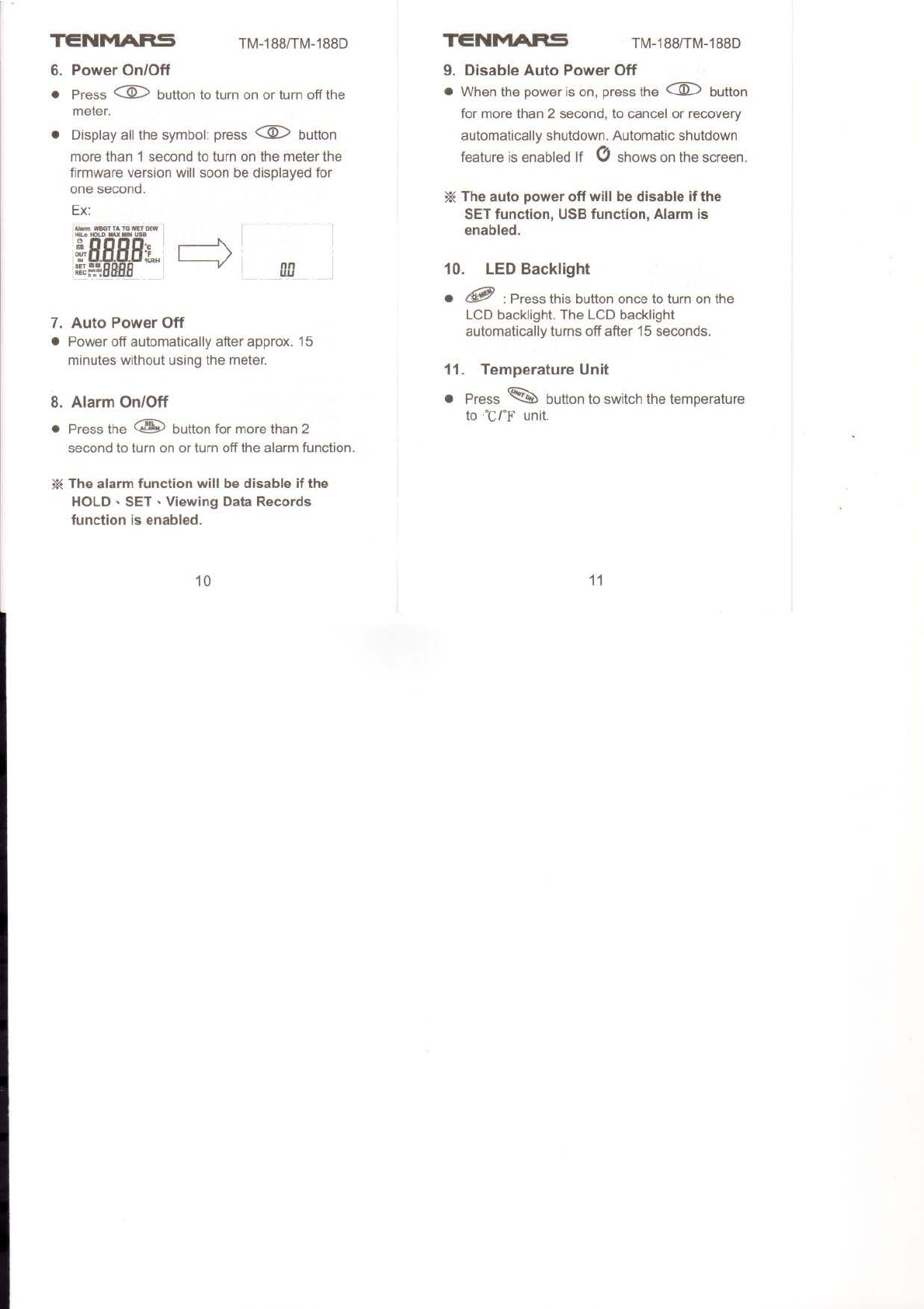

6. Power On/Off
• Press ~ button to turn on or turn offthe
meter.
• Display all the symbol: press Cm:> button
more than 1 second to turn on the me ter the
firmware version will soon be displayed for
one second.
Ex:
7. Auto Power Off
• Power off automatically a ft er approx. 15
minutes without using the meter.
8. Alarm On/Off
• Press the @ button for more than 2
second to turn on or turn offthe alarm function.
*The alarm function will be disable if the
HOLD , SET , Viewing Data Records
function is ena bled .
10
TENMARS
TM-188 /T M-188D
9. Disable Auto Power Off
• When the poweris on, press the Cm:> button
for more than 2 second, to cancel or recovery
automatically shutdown.Automatic shutdown
feature is enabled If 0 shows on the screen.
*The auto power off will be disable if the
SET function, USB function, Alarm is
enabled.
10. LED Backlight
• ~ : Press this button once to turn on the
LCD backlight. The LCD backlight
automaticallytu ms off a ft er 15 secon ds .
11. Temperature Unit
• Press ~ button to switch the temperat ure
to 'Cl°F uni t.
11

TENMARS
TM-188/TM-188D

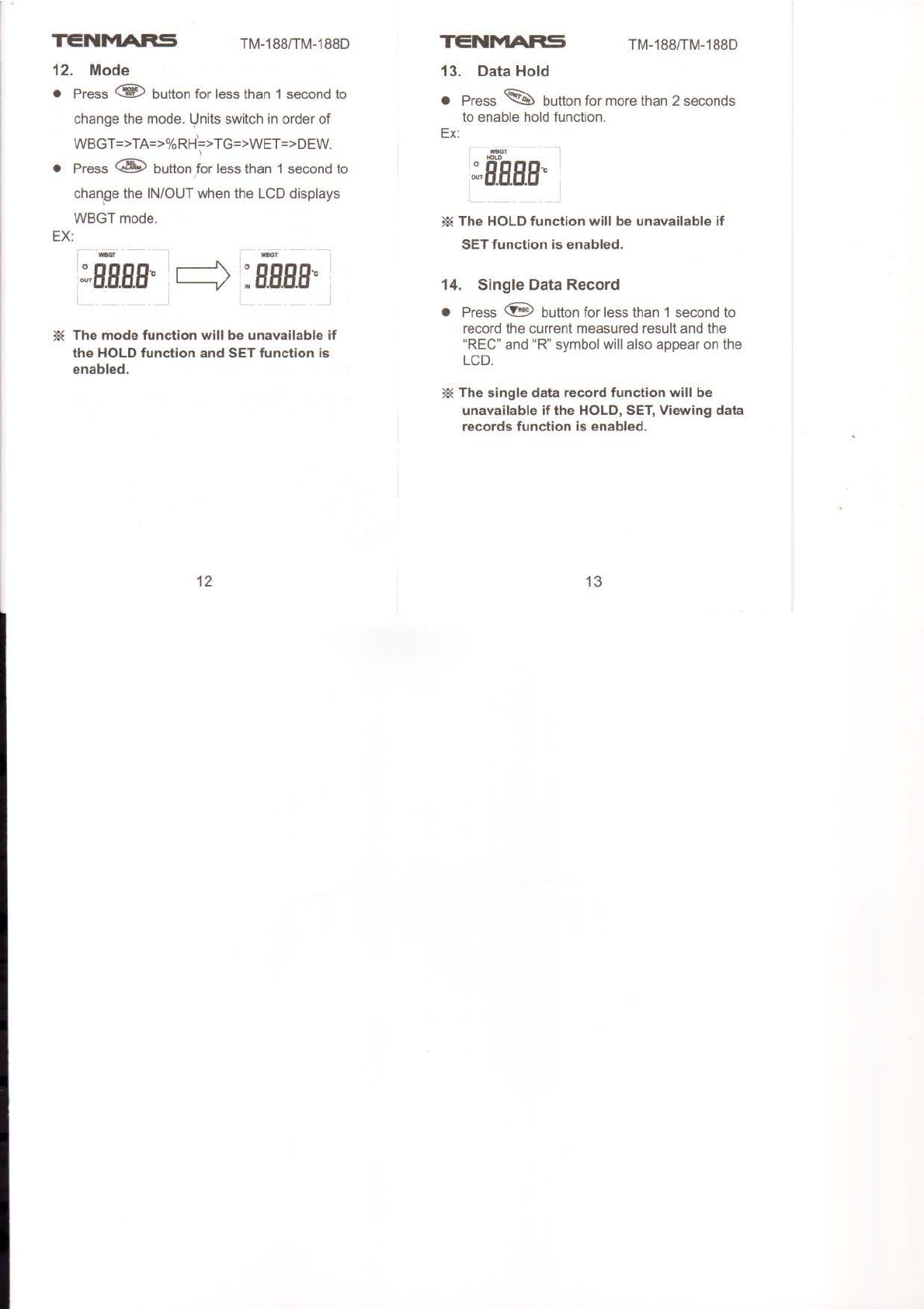

12. Mode
• Press ® button for less than 1 second to
change the mode . l)nits switch in order of
WBGT=> TA=>¾RH'=> TG=>WET=>DEW.
I
• Press ® button for less than 1 second to
chan~e the IN /OUT when the LCD displays
WBGTmode .
EX :
_,. wear
: aaaa ·· c=; : BHHB· ·
* The mode function will be unavailable if
the HOLD function and SET function is
enabled.
12
TENMARS
TM- 1 88/TM -188D
13. Data Hold
• Press ~ button for more than 2 seconds
to enable ho ld function.
Ex :
* The HOLD function will be unavailable if
SET function is enabled.
14. Single Data Record
• Press @ button for l ess than 1 second to
record the current measured result and the
" REC " and "R" symbol will also appear on the
LCD .
*The single data record function will be
unavailable if the HOLD, SET, Viewing data
records function is enabled.
13

TENMARS
TM-1BBrrM-188O
15. Viewing Data Records
• Press ~ buttonfor more than 2 seconds to
turn on or off the viewing data records.
• Press @ or @ button to view the
number of records.
• Press ® button to change the mode.
(IN/OUTWBGT ·TA· % RH •TG ·WET· DEW)
• Press @ button to view the date of
recorded data.
(Select the year, month, date, hours, mined,
second)(TM-188O).
• Press ~ button to switch the temperature
unit.
• Press c'? button for more than 2 seconds to
exit the viewing data records mode.
14
TENMARS
Ex: TM-188
:aaaa-·
..,• DI
TM-188rrM-188D
TM-188O
:aaaa··
- ~- 8888
*The viewing data records mode will be
unavailable if the HOLD, SET function is
enabled.
16. AUTO DATA LOGGER(TM-188D)
• Press ® button for more than 2 seconds to
turn on Auto Data loggermode, and the "REC",
"R" symbol will also appear on the LCD. If you
want to disableAuto Data logger mode, press
@ button again for more than 2 seconds,
and the "REC", "R" symbol will also disappear
on the LCD.
• It is well temporarily turn off if the single data
record function and the HOLD function
enabled.
*The auto data logger mode will be unavailable
if the HOLD, SET function is enabled.
15

TENMARS
TM-188/TM-188D

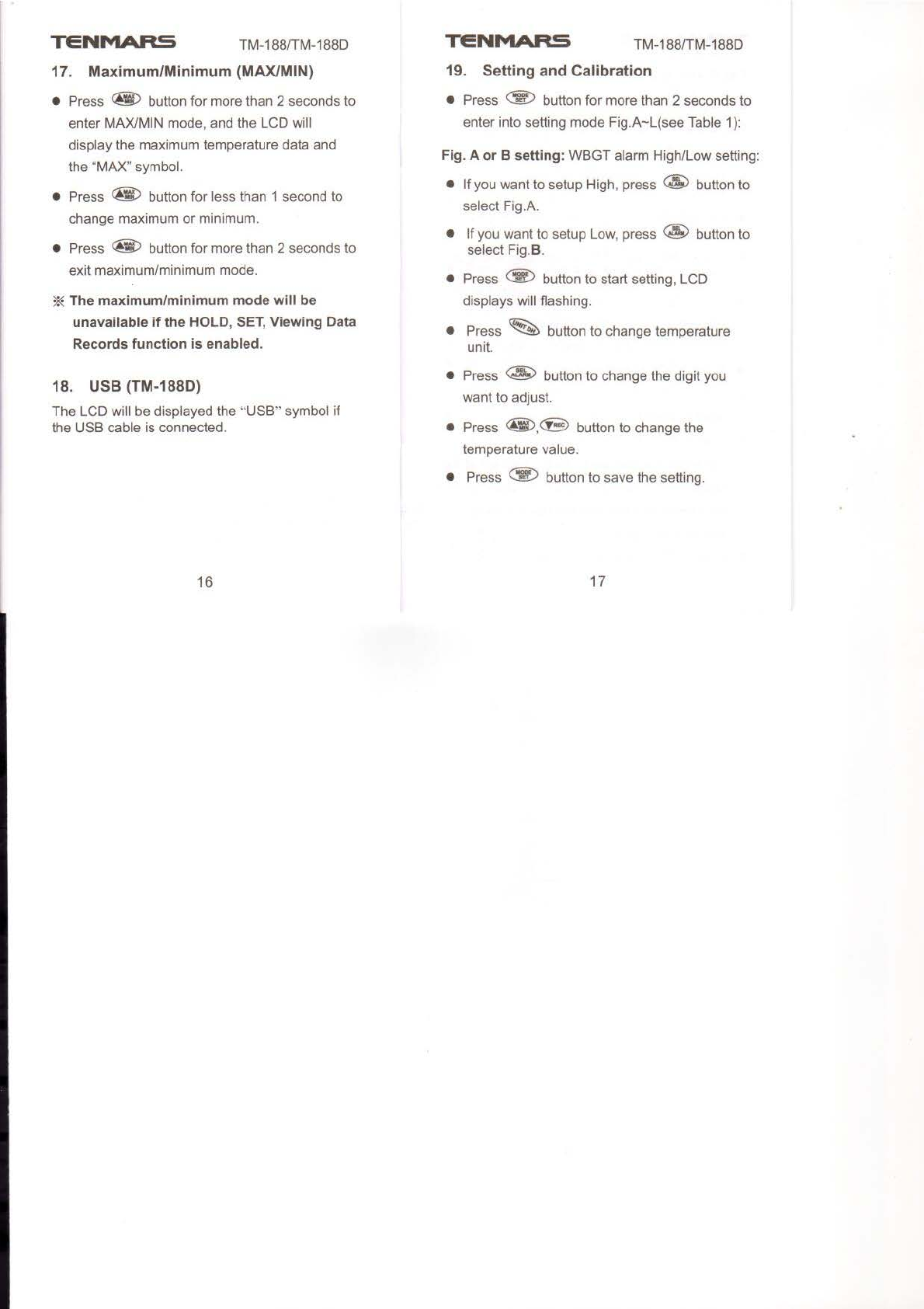

17. Maximum/Minimum (MAX/MIN)
• Press @ button for more than 2 seconds to
enter MAX/MIN mode, and the LCD will
display the maximum temperature data and
the "MAX"symbol.
• Pr ess @ butt on for less than 1 second to
chang e maxi m um or minimum.
• Press @ button for mo re than 2 seconds to
exit ma ximum/minimum mode.
*The maximum/minimum mode will be
unavailable ifthe HOLD, SET, Viewing Data
Records function is enabled.
18. USB (TM-188D)
The LCD will be displayed the " USB " symbol if
the USB cable is connected.
16
TENMARS
TM-188/TM-1 88D
19. Setting and Calibration
• Press ® button for more than 2 seco n ds to
enter intosetting mode Fig. A-L(see Table 1 ):
Fig. A or B setting: WBGT alarm High/Lowsetting:
• If you want to setup High, press @ button to
select Fig.A.
• If you want to setup Low, press @ button to
select Fig.B.
• Press ® button to start se tting, LCD
displays will flas hing.
• Press ~ button to change temperature
unit.
• Press ~ button to chan ge the digityou
want to ad just.
• Press @ ,® button to change the
temperature value.
• Press ® button to save the setting.
17

TENMARS TM-188/TM-188D
Fig. C se tt ing year (TM-1880):
• z setting.
Fig. D se tt ing month, date (TM-188D):
• Press @ button to selectthe Fig. D.
• Press @ button to start setting , LCD
displays will flashing.
• Press ® button to select the digit you
want to adjust.
• Press ®:> and @ button to increase or
decrease the month and data.
• Press @ button to save setting.
Fig. E se tting hour, minute (TM-188D):
• Press @ button to select the Fig. E.
• Press ® button to start setting.
• Press ® button to select the digit you
want to adjust.
• Press ®:>,® button to increase or
decrease the hour and minute, the hour of the
maximum value is24 and the minimum is 00,
the minute of the maximum value is 59 and
the minimum is 00.
• Press @ button to save setting.
18
TENMARS
TM-188/TM-188D
Fig. F setting second (TM-188D):
• Press @ button to select the Fig.F.
• Press @ button to start setting, LCD
displays will flashing.
• Press ® button to select the digit you
want to adjust.
• Press @ ,@ button to increase or
decrease the second, the second of the
maximum value is 59 and the minimum is 00.
• Press @ button to save setting.
Fig. G setting sampling interval in hours and
minutes (TM-188D):
• Press @ button to select the Fig.G.
• Press ® button to start setting, LCD
displays will flashing.
• Press @ button to select the digit you
want to adjust.
• Press @ ,® button to increase or
decrease the hourand minute, the hour of the
maximum value is 24 and the minimum is 00,
the minute of the maximum value is 59 and
the minimum is 00.
19

TENMARS
TM-188rfM-188D
• Press ® button to save setting.

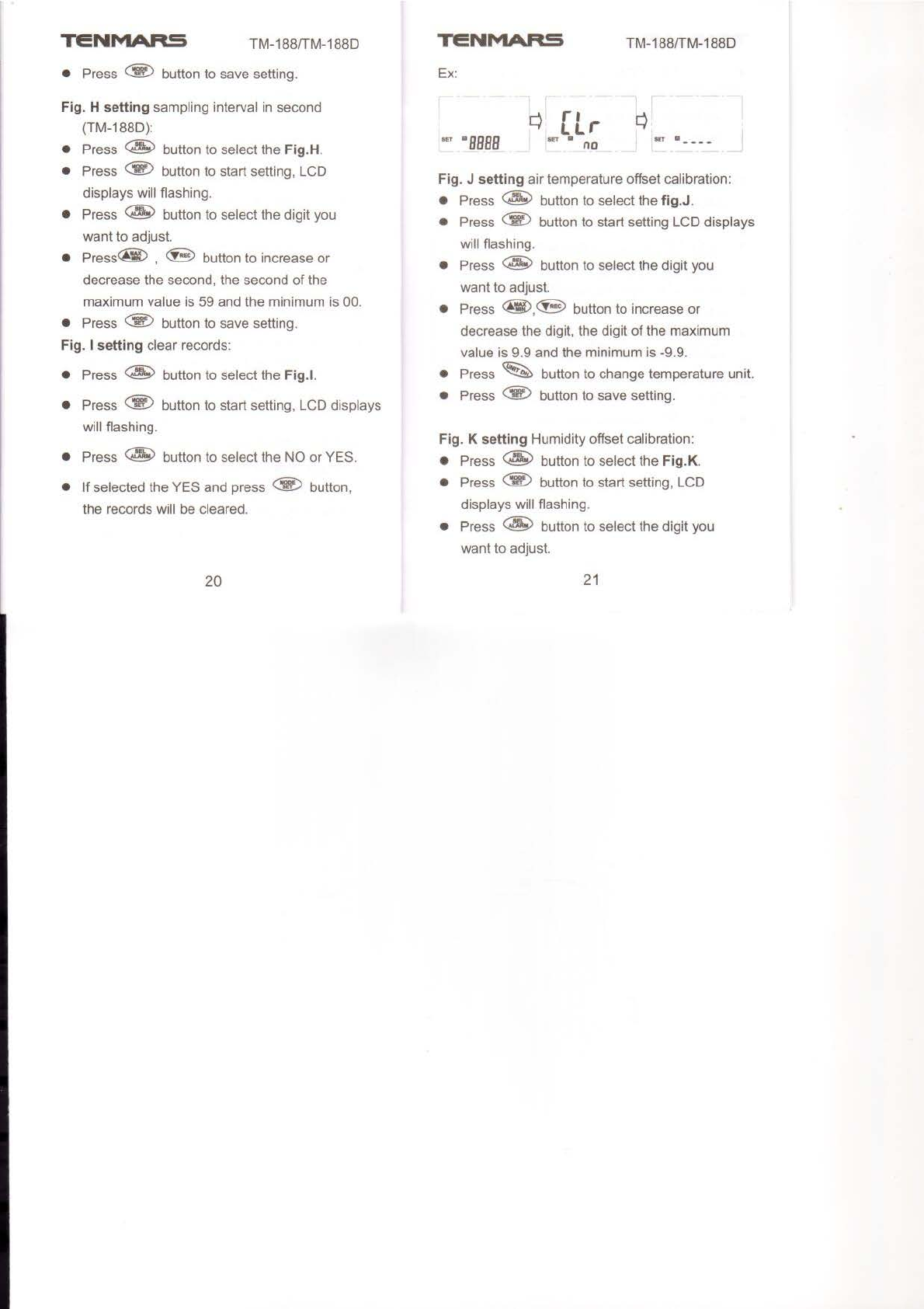

Fig. H setting sampling interval in second
(TM-188D):
• Press @ button to select the Fig.H.
• Press ® button to start setting, LCD
displays will flashing.
• Press @ button to select the digit you
want to adjust.
• Press@ , @ button to increase or
decrease the second, the second of the
maximum value is 59 and the minimum is00.
• Press ® button to save setting.
Fig. I setting clear records:
• Press @ button to select the Fig.I.
• Press ® button to start setting, LCD displays
will flashing.
• Press @ button to select the NO or YES.
• If selected the YES and press ® button,
the records will be cleared.
20
TENMARS
TM-188rfM-188D
Ex:
m ·aa aa
c:i [Lr
"" • no q
.. , .
Fig. J setting air temperature offset calibration:
• Press @ button to select the fig.J.
• Press ® button to start setting LCD displays
will flashing.
• Press @ button to select the digityou
want to adjust.
• Press @ ,@ button to increase or
decrease the digit, the digit of the maximum
value is 9.9 and the minimum is-9.9.
• Press ~ button to change temperature unit.
• Press ® button to save setting.
Fig. K setti ng Humidity offset calibration:
• Press @ button to select the Fig.K.
• Press ® button to start setting, LCD
displays will flashing.
• Press ® button to select the digit you
want to adjust.
21

TENMARS
TM-188/TM-188D
• Press @, ~ button to increase or
decrease the digit, the digit of the maximum
value is 9.9 and the minimum is -9.9.
• Press ® button to save setting.

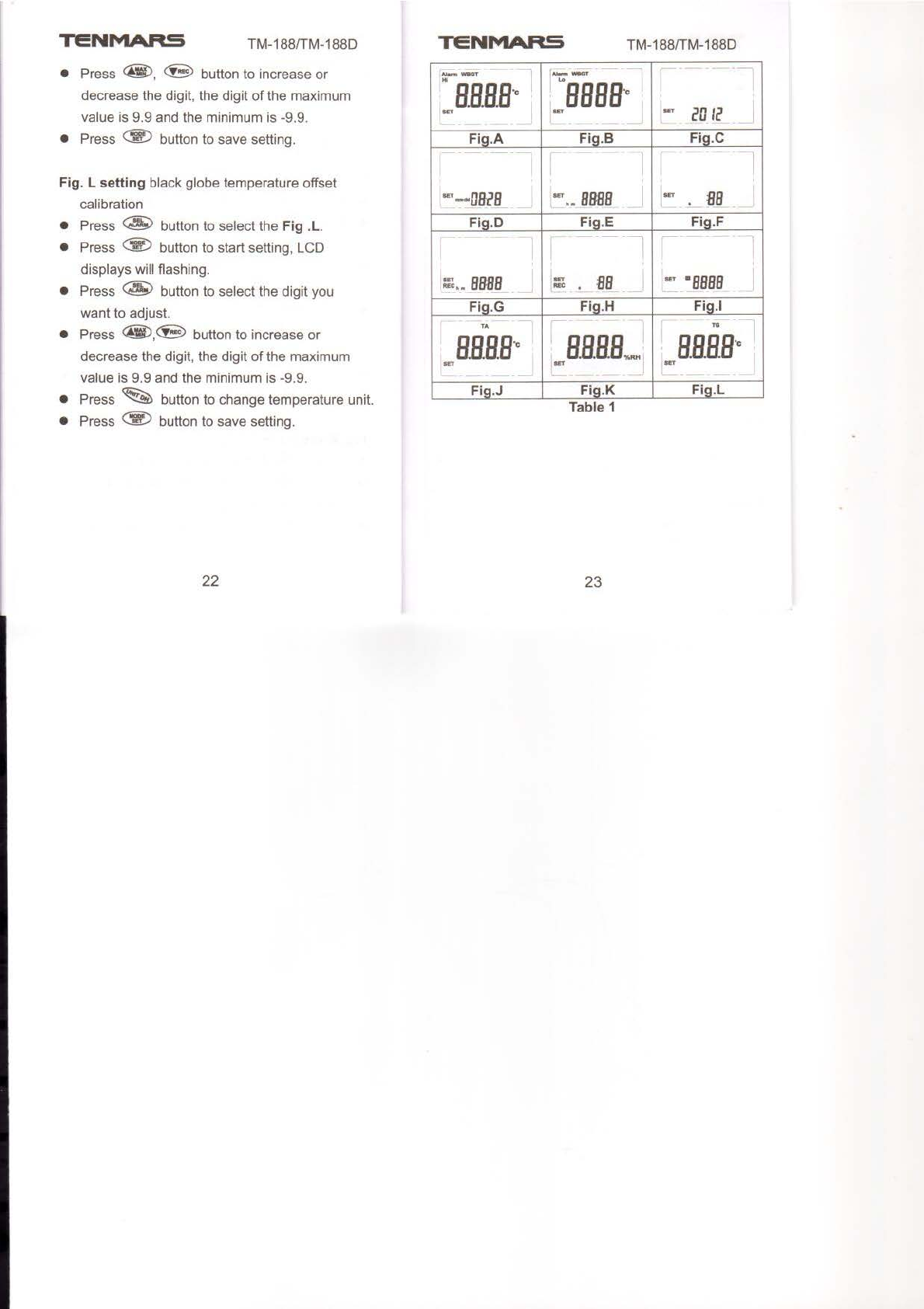

Fig. L setting black globe temperature offset
calibration
• Press @ button to select the Fig . L.
• Press ® button to start setting, LCD
displays wi ll flashing.
• Press @ button to select the digit you
want to adjust.
• Press @.~ button to increase or
decrease the digit, the digit of the maximum
value is 9.9 and the minimum is -9.9.
• Press ~ button to change temperature unit.
• Press ® button to save setting.
22
TENMARS
TM- 188/TM-188D
r~ aaaa ·o
-
--
..
B.B.B.B ·c
20 12
an
ur
..,,
Fig.A Fig.B Fig.C
1
'"'-- Dllt'B
- .. 8888
I-
-'-- P JL
Fi g. D Fig.E Fig.F
~--,
:: .. 8888
....
...,
BB
Kr
· 8B88
-
Fig.G Fig.H Fig.I
TA
TG
BBB .a~
BB.B.B MH
B.B.B.B ·c
.. SET
HT
Fig.J Fig.K Fig.L
Table 1
23

TENMARS
TM-188fTM-188D
20. Thermal hazard prevention standards
• Screening Criteria for Heat Stress Exposure
(WBGT values in° C)
Acclimatized Not acclimatized
Wor1<(%) 100% 75% 50% 25% 100% 75% 50%
Rest(%\
0%
25% 50% 75% 0% 25% 50%
liaht 295 30.5 31 .5 32.5 27 .5 29.0 30.0
Moderate
27 .5 280 29.5 31 0 25 .0 26.5 28 .0
Heavv 26.0 27.5 28.5 30.0
22 .5 24.5 26.5
Very 27.5
295
. 25.0
Heavv
• Example of activities within Metabolic Rate
C
atei ones
Cateaories Examoles Activities
Resting Sittina auietlv
Sittina with moderate arm movements
Sitting with moderate arm and leg
movements
25%
75%
31 .0
29.0
28.0
26 5
Standing with lightwork atmachine or bench
ight while usina mostlyarms
Usinq a table saw
Standing with lightor moderate work at
machine or bench and some walkina about
Scrubbing in a standing oosition
Wa lking about with moderate lifting or
Moderate pushina
Walking on level at6 Km/hr while carrying 3
Kg weight load
Caroenter sawina bv hand
Shovelina drvsand
Heavy Heavy assembly work on a non-continuous
basis
Intermittentheavy lifting with pushing or
puling (e.g., pick-and-shovel work
1/ery heavy Shovelina wet sand
24
TENMARS
TM-188fTM-188D
According to the American Conference of
Governmental Industrial
Hygienists.[ACGIH)(2005)
21. Precautions
• Keep the meter away from electromagnetic
interference (EMI) which may cause erratic
readings.
• The measured values will be inaccurate if you
touch the black ball during the test.
• If the shape of black ball is being impacted to
deformation, this will lead to inaccurate
measured values.
22. Software installation (TM-188O)
Please refer to the TM-188D installation CD
execution.
25

TENMARS
TM-188/TM-188D
23. Computergrade
• CPU : Pentium ill 1000MHz.
• RAM : SDRAM 256MB.
• Hard disk : 200MB.
• OS : Windows 2000 , Windows XP .
• Display : 800x600 256 color.
24. External DC power
External AC to DC adapter : Voltage 9 Voe (8~14
VoeMax)/500mW.
Socket: Pin positive, Ground casing negative.
External diameter 5.5mm internal diameter
2.1mm.
0
26
T ENMARS
TM-188/TM-188D
25. Safety and maintenance standards
• Do notput this device in direct sunlight or
where it is hot and/ordamp.
• Operating altitude: below 2,000m.
26. Battery replacement
If the LCD displays "~"symbol, please
re lace the batte immediate! .
Turn off the power and unplug all cables, remove
the battery and replace into the newbattery.
Please use the correct specification of the battery
and correctly installed in the battery holder.
27

TENMARS
27. End of life
TM-188/TM-188D
If not using the meter, please remove the
battery to avoid possible dama e.
-Caution: This symbol indicates that
equipment and its accessories shall
be subject to a separate collection
and correct disposal.
28
