Tennant T3 User manual

T3
English EN
Operator Manual
9010337
Rev. 00 (12-2012)
Automatic Scrubber
*9010337*
North America
Orbital
Hygenic Fully Cleanable Tanks
R
Model Part No:
9009981 Conventional Scrubber
9009980 ec-H2O Scrubber
To view, print or download
the latest manual, visit:
www.tennantco.com/manuals

OPERATION
2Tennant T3 Orbital (12--2012)
INTRODUCTION
This manual is furnished with each new model.
It provides necessary operation and maintenance
instructions.
Read this manual completely and
understand the machine before
operating or servicing it.
This machine will provide excellent service. However,
the best results will be obtained at minimum costs if:
SThe machine is operated with reasonable care.
SThe machine is maintained regularly - per the
machine maintenance instructions provided.
SThe machine is maintained with manufacturer
supplied or equivalent parts.
Parts and supplies may be ordered online, by phone,
byfaxorbymail.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials,
old machine components, and fluids in
an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
INTENDED USE
This walk behind orbital scrubber is intended for
commercial use, for example in hotels, schools,
hospitals, factories, shops, offices, and rental
businesses. It is designed to scrub floors in an indoor
environment and is not constructed for any other use.
Use only recommended pads and commercially
available floor cleaners intended for machine
application. Do not use flammable liquids with this
machine. This machine is not intended for cleaning
carpets or sanding wood floors.
TENNANT Company
PO Box 1452
Minneapolis, MN 55440
Phone: [phone] or (763) 513--2850
www.tennantco.com
Specifications and parts are subject to change without notice.
Original Instructions Copyright E2012 TENNANT COMPANY, Printed in
U.S.A. All rights reserved.
MACHINE DATA
Please fill out at time of installation
for future reference.
Model No. --
Serial No. --
Machine Options --
Sales Rep. --
Sales Rep. phone no. --
Customer Number --
Installation Date --

OPERATION
Tennant T3 Orbital (12--2012) 3
TABLE OF CONTENTS
SAFETY PRECAUTIONS 4....................
SAFETY LABELS 5...........................
MACHINE COMPONENTS 6...................
CONTROL PANEL SYMBOLS 7...............
MACHINE INSTALLATION 7...................
UNCRATING MACHINE 7..................
INSTALLING BATTERIES 7................
HOW THE MACHINE WORKS 8...............
PAD INFORMATION 9........................
MACHINE SETUP 9..........................
ATTACHING SQUEEGEE ASSEMBLY 9.....
INSTALLING BACKER PAD AND WORK PAD 10
FILLING SOLUTION TANK 10...............
MACHINE OPERATION 11.....................
PRE--OPERATION CHECKS 11..............
OPERATING THE MACHINE 11.............
WHILE OPERATING MACHINE 12...........
BATTERY METER 13.......................
CIRCUIT BREAKER / FUSES 14.............
HOUR METER 14..........................
DRAINING TANKS 14..........................
DRAINING RECOVERY TANK 14............
DRAINING SOLUTION TANK 15.............
CHARGING BATTERIES 16....................
BATTERY CHARGER SPECIFICATIONS: 16..
USING THE ON--BOARD BATTERY
CHARGER 16.............................
ON--BOARD BATTERY CHARGER FAULT
CODES 18................................
MACHINE MAINTENANCE 19..................
DAILY MAINTENANCE 19...................
MONTHLY MAINTENANCE 21...............
MOTOR MAINTENANCE 21.................
ec--H2O MODULE FLUSH PROCEDURE 21...
SQUEEGEE BLADE REPLACEMENT 22......
SQUEEGEE BLADE ADJUSTMENT 23.......
BATTERY MAINTENANCE 23...............
TRANSPORTING MACHINE 24.................
STORING MACHINE 24........................
FREEZE PROTECTION 24..................
TROUBLESHOOTING 26.......................
BATTERY METER LED FAULT CODES 28.......
SPECIFICATIONS 29..........................
MACHINE DIMENSIONS 30....................

OPERATION
4Tennant T3 Orbital (12--2012)
IMPORTANT SAFETY INSTRUCTIONS -- SAVE THESE INSTRUCTIONS
The following warning alert symbol and the “FOR
SAFETY” heading are used throughout this manual as
indicated in their description:
WARNING: To warn of hazards or unsafe
practices which could result in severe personal
injury or death.
FOR SAFETY: To identify actions which must be
followed for safe operation of equipment.
The following safety precautions signal
potentially dangerous conditions to the operator
or equipment. All operators must read,
understand and practice them.
WARNING: Fire Or Explosion Hazard:
-- Never Use Flammable Liquids Or Operate
Machine in Or Near Flammable Liquids,
Vapors Or Combustible Dusts.
This machine is not equipped with explosion
proof motors. The electric motors will spark upon
start up and during operation which could cause a
flash fire or explosion if machine is used in an
area where flammable vapors/liquids or
combustible dusts are present.
-- Do Not Pick Up Flammable Materials Or
Reactive Metals.
-- Batteries Emit Hydrogen Gas. Keep Sparks
And Open Flame Away. Keep Battery
Compartment Open When Charging.
WARNING: Electrical Hazard
-- Disconnect Battery Cables and Charger Plug
Before Servicing Machine.
-- Do Not Charge Batteries with Damaged Power
Supply Cord. Do Not Modify Plug.
If the charger supply cord is damaged or broken,
it must be replaced by the manufacturer or its
service agent or a similarly qualified person in
order to avoid a hazard.
FOR SAFETY:
1. Do not operate machine:
-- With flammable liquids or near flammable
vapors as an explosion or flash fire may
occur.
-- Unless trained and authorized.
-- Unless operator manual is read and
understood.
-- If not in proper operating condition.
-- Unless mentally and physically capable of
following machine instructions.
-- In areas that are too dark to safely see the
controls or operate the machine.
2. Before starting machine:
-- Check machine for fluid leaks.
-- Make sure all safety devices are in place
and operate properly.
3. When using machine:
-- Use only as described in this manual.
-- Go slow on inclines and slippery surfaces.
-- Wear non--slip shoes.
-- Reduce speed when turning.
-- Report machine damage or faulty
operation immediately.
-- Never allow children to play on or around.
-- Do not operate on inclines that exceed 5%.
-- Follow mixing, handling and disposal
instructions on chemical containers.
-- Follow safety guidelines concerning wet
floors.
4. Before leaving or servicing machine:
-- Stop on level surface.
-- Turn off machine.
-- Remove key.
5. When servicing machine:
-- Avoid moving parts. Do not wear loose
clothing, jewelry and secure long hair.
-- Disconnect battery connections before
working on machine.
-- Wear protective gloves and eye protection
when handling batteries or battery cables.
-- Avoid contact with battery acid.
-- Wear protective gloves and eye protection
when handling white vinegar.
-- Do not power spray or hose off machine.
Electrical malfunction may occur.

OPERATION
Tennant T3 Orbital (12--2012) 5
-- All work must be done with sufficient
visibility and lighting.
-- Wear personal protection equipment as
needed and where recommended in this
manual.
-- Wear a dust mask, protective glasses and
gloves in dusty environments.
-- Keep work area well ventilated.
-- Use manufacturer supplied or approved
replacement parts.
-- All repairs must be performed by a
qualified service person.
-- Do not modify the machine from its
original design.
6. When loading/unloading machine onto/off
truck or trailer:
-- Drain tanks before loading.
-- Use a ramp that can support the machine
weight and person loading it. Do not
exceed a 15% ramp incline at a ramp
lengthof12ft(3.7m).
-- Turn machine off.
-- Put scrub head in the lowered position.
-- Block machine wheels.
-- Use tie--down straps to secure machine.
-- Set parking brake, if equipped.
SAFETY LABELS
The safety labels appear on the machine in the locations indicated. Replace labels if they are missing or become
damaged or illegible.
BATTERY CHARGE LABEL --
Located near battery compartment.
WARNING: Fire Or Explosion
Hazard. Batteries Emit Hydrogen
Gas. Keep Sparks And Open Flame
Away. Keep Battery Compartment
Open When Charging.
WARNING LABEL -- Located on recovery tank cover.

OPERATION
6Tennant T3 Orbital (12--2012)
MACHINE COMPONENTS
28 29
27
21
26
23
22
30
31
1
23
4
5
6
8
7
14
18
15
17
20
11
12
16
13
10
19
25
9
24
31 32
1. Control Handle
2. Control Handle Start Bail
3. Speed Control Knob
4. Battery Meter
5. ec--H2O system indicator light (ec--H2O Model)
6. ec--H2O system on/off switch (ec--H2O Model)
7. Main Power Key Switch
8. Hour Meter
9. Squeegee Storage Bracket
10. Pad Driver Motor Circuit Breaker Button
11. Hose Fill-Port
12. Vacuum Hose
13. Recovery Tank Drain Hose
14. Squeegee Lift Lever
15. Heavy Down Pressure Lever
16. Solution Tank Level/Drain Hose
17. Solution Tank Clean-Out Port
18. Scrub Head Lift Pedal
19. Solution Flow Control Knob
20. Squeegee Assembly
21. Batteries
22. Recovery Tank Support Stand
23. On--board Battery Charger
24. Bucket Fill Port/Clean--out Port
25. ec--H2O System Module (ec--H2O Model)
26. Solution Tank
27. Recovery Tank
28. Recovery Tank Cover
29. Cup Holder
30. Scrub Head
31. Wall Rollers
32. Backer Pad/Work Pad

OPERATION
Tennant T3 Orbital (12--2012) 7
CONTROL PANEL SYMBOLS
Main Power
I/O Key Switch
Solution Flow
Control
Slow Speed Pad Motor Circuit
Breaker
Fast Speed
5% Maximum
Machine Climb
Bail Direction Heavy Scrub Pad
Down Pressure
ec--H2O System I/O Switch
(ec--H2O Model)
MACHINE INSTALLATION
UNCRATING MACHINE
1. Carefully check the shipping crate for signs of
damage. Report damages at once to carrier.
2. Check the contents list. Contact distributor for
missing items.
Contents:
S2--12 V Batteries -- Optional
S2--Foam Battery Spacers (#630375)
SBattery Tray (#1012994)
S15 in / 38 cm Battery Cable (#130364)
S4--Battery Cable Rubber Boots
SSqueegee Assembly (#9001178)
3. To uncrate your machine, remove the shipping
hardware and straps that secure the machine to
the pallet. With assistance, carefully lift the
machine off the pallet.
ATTENTION: Do not roll machine off pallet unless
a ramp is used, machine damage may occur.
ATTENTION: To prevent possible machine
damage, install batteries after removing machine
from shipping pallet.
INSTALLING BATTERIES
WARNING: Fire Or Explosion Hazard.
Batteries Emit Hydrogen Gas. Keep Sparks And
Open Flame Away. Keep Battery Hood Open When
Charging.
FOR SAFETY: When servicing machine, wear
protective gloves and eye protection when
handling batteries and battery cables. Avoid
contact with battery acid.

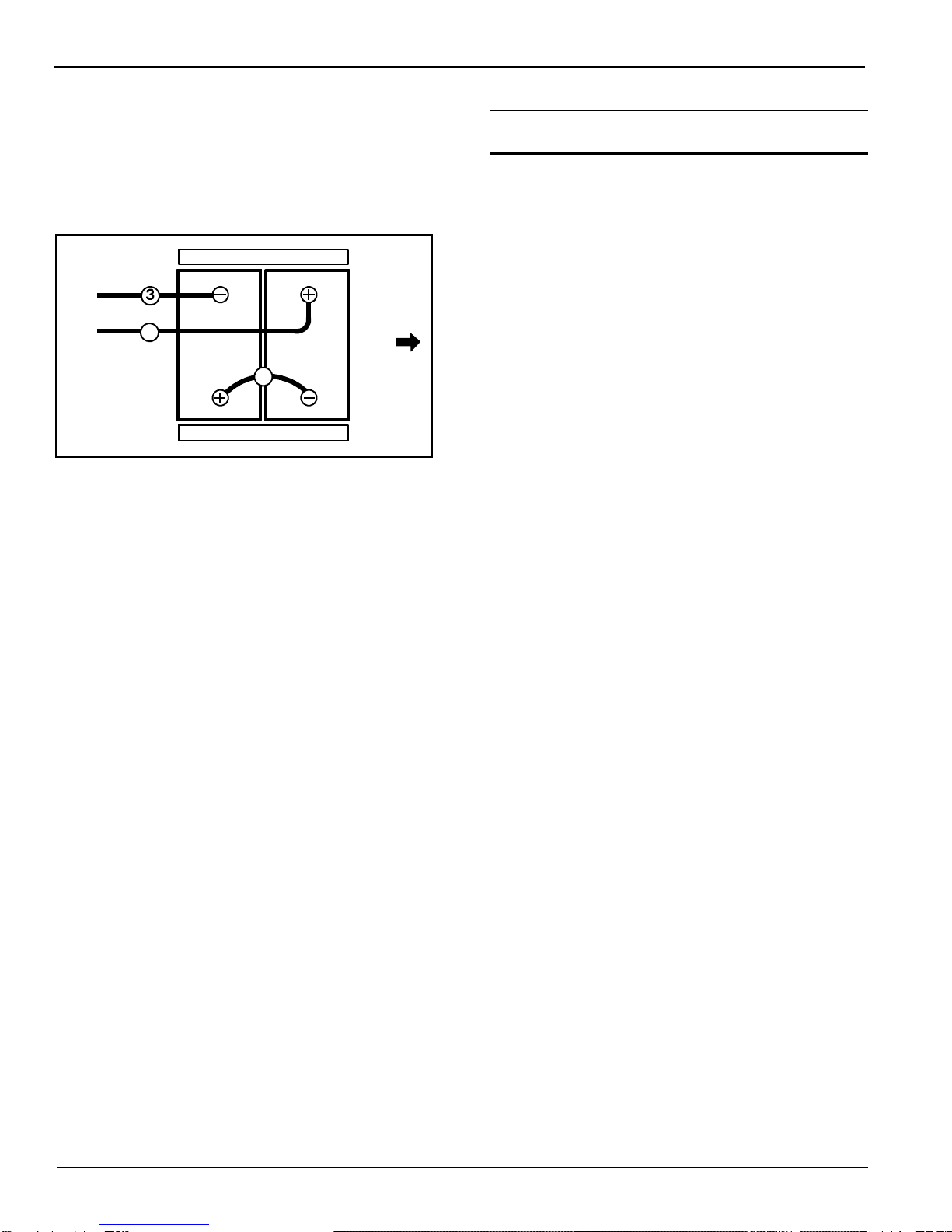

Battery Specifications:
Two 12 volt deep cycle lead acid batteries.
155 AH battery -- 20 in / 50cm
Maximum battery dimensions: 6.85 in / 174 mm W x
15 in / 380 mm L x 11.18 in / 284 mm H.
1. Park the machine on a level surface and remove
the key.
2. Lift the recovery tank to access the battery
compartment (Figure 1).
FIG. 1

OPERATION
8Tennant T3 Orbital (12--2012)
3. Carefully install the batteries into the battery
compartment tray and arrange the battery posts
as shown (Figure 2). Insert the two foam spacers
along side the batteries as shown.
ATTENTION: Do not drop the batteries into the
compartment, battery and machine housing
damage may result.
Machine Front
1
Foam Spacer
BLACK
RED
2
Foam Spacer
FIG. 2
4. Using the supplied battery post boots, connect the
cables to the battery posts in numerical order as
labeled (Figure 2), RED TO POSITIVE (+) &
BLACK TO NEGATIVE (--).
IMPORTANT: Make sure that the charger is
properly set for your battery type before charging
(See USING THE ON--BOARD CHARGER).
HOW THE MACHINE WORKS
Conventional Scrubbing:
Water and detergent from the solution tank flow to the
floor through a manually controlled solution valve. The
pad uses the detergent and water solution to scrub the
floor clean. As the machine moves forward, the
squeegee wipes the dirty solution from the floor into
the recovery tank.
ec- H2O Scrubbing (ec- H2O Model):
(ec--H2O--electrically converted water)
Normal water passes through a module where it is
oxygenated and charged with an electric current. The
electrically converted water changes into a blended
acidic and alkaline solution forming a neutral pH
cleaner. The converted water attacks the dirt, breaks it
into smaller particles, and pulls it off the floor surface
allowing the machine to easily scrub away the
suspended soil. The converted water then returns to
normal water in the recovery tank.

OPERATION
Tennant T3 Orbital (12--2012) 9
PAD INFORMATION
BACKER PAD (With Retaining Strips)
For best cleaning performance and to avoid damaging
the pad driver plate or floor surface, always use
backer pad (p/n 9010674) with work pads (Figure 3).
Backer pad
Work pad
Scrub head
Pad driver plate
FIG. 3
WORK PADS
For best results, use the correct work pad type for the
cleaning application. The following are recommended
work pads.
Polishing Pad (White) -- Used to maintain highly
polished or burnished floors (p/n 1205512, 10 pack).
Buffing Pad (Red) -- Used for light duty scrubbing
without removing floor finish (p/n 1205513, 10 pack).
Scrubbing Pad (Blue) -- Used for medium to
heavy--duty scrubbing. Removes dirt, spills, and scuffs
(p/n 1205514, 10 pack).
Surface Preparation Pad (Maroon) -- Used for very
aggressive chemical free removal of floor finish to
prepare the floor for re--coating
(p/n 1205515, 10 pack).
MACHINE SETUP
ATTACHING SQUEEGEE ASSEMBLY
1. Park the machine on a level surface and remove
the key.
2. Lift the squeegee lift lever to the upward position
(Figure 4).
FIG. 4
3. Mount the squeegee assembly to the squeegee
pivot bracket as shown (Figure 5). Make sure the
knobs are completely seated into the slots before
securing knobs.
FIG. 5
4. Connect the vacuum hose to the squeegee
assembly. Loop the hose as shown using the hose
clip provided (Figure 6).
FIG. 6
5. Check the squeegee blades for proper adjustment
(See SQUEEGEE BLADE ADJUSTMENT).

OPERATION
10 Tennant T3 Orbital (12--2012)
INSTALLING BACKER PAD AND WORK PAD
NOTE: Refer to the PAD INFORMATION section in
this manual or consult your authorized distributor for
pad recommendations.
1. Park the machine on a level surface and remove
the key.
2. Step down on the scrub head lift pedal to raise the
scrub head off the floor (Figure 7).
FIG. 7
3. Align the backer pad with the four edges of the
scrub head and install the backer pad onto the
bottom of the scrub head (Figure 8).
FIG. 8
4. Align and install the work pad onto the backer pad
(Figure 9).
FIG. 9
FILLING SOLUTION TANK
The machine is equipped with a hose fill--port at the
rear of the machine, and a bucket fill--port located
under the recovery tank (Figure 10). Before accessing
the bucket fill--port make sure that the recovery tank is
empty.
Fillthesolutiontanktothe“40LMAX”levelonthe
solution tank sight gauge. When using the bucket
fill--port, stop filling when the level reaches the bottom
edge of the fill--port (Figure 10).
FOR ec- H2O SCRUBBING: Use cool clean water
only (less than 70F/21C). Do not add any
conventional floor cleaning detergents, system failure
may result.
FOR CONVENTIONAL SCRUBBING: Fill the tank
with water, 140F/60C maximum. Pour a
recommended cleaning detergent into the solution
tank according to mixing instructions on the bottle.
Fill to bottom edge
FIG. 10
NOTE: When filling the solution tank with a bucket,
make sure that the bucket is clean. Do not use the
same bucket for filling and draining the machine.
ATTENTION: For Conventional Scrubbing, only
use recommended cleaning detergents. Machine
damage due to improper detergent usage will void
the manufacturer’s warranty.
WARNING: Fire or Explosion Hazard.
Never Use Flammable Liquids.
FOR SAFETY: When using machine, follow mixing
and handling instructions on chemical containers.

OPERATION
Tennant T3 Orbital (12--2012) 11
MACHINE OPERATION
FOR SAFETY: Do not operate machine, unless
operator manual is read and understood.
WARNING: Fire Or Explosion Hazard. Never
Operate Machine In Or Near Flammable Liquids,
Vapors Or Combustible Dusts.
PRE--OPERATION CHECKS
-Sweep and dust-mop the floor.
-Check the battery meter charge level (See
BATTERY METER).
-Check the pad for wear.
-Check the squeegee blades for wear and proper
adjustment.
-Make sure the recovery tank is empty and the
float shut--off screen is installed and clean.
-For ec- H2O Scrubbing: Make sure the solution
tank is filled with cool clean water only.
-For ec- H2O Scrubbing: Ensure that all
conventional cleaning agents are drained and
rinsed from solution tank.
OPERATING THE MACHINE
1. Turn the main power key switch to the on ( I )
position (Figure 11).
FIG. 11
2. ec- H2O model: Press the ec--H2O system switch
to the on ( I ) position (Figure 12).
NOTE: The ec--H2O system indicator light will not turn
on until the machine starts scrubbing.
IMPORTANT: NEVER turn the ec--H2O system switch
on when conventional scrubbing. Conventional
cleaning detergents/restorers may cause failure to the
ec--H2O solution system. Drain, rinse and refill
solution tank with cool clean water before operating
the ec--H2O system.
FIG. 12
3. Lower the squeegee assembly to floor by lowering
the squeegee lift lever (Figure 13). The vacuum
motor will automatically turn on.
FIG. 13

OPERATION
12 Tennant T3 Orbital (12--2012)

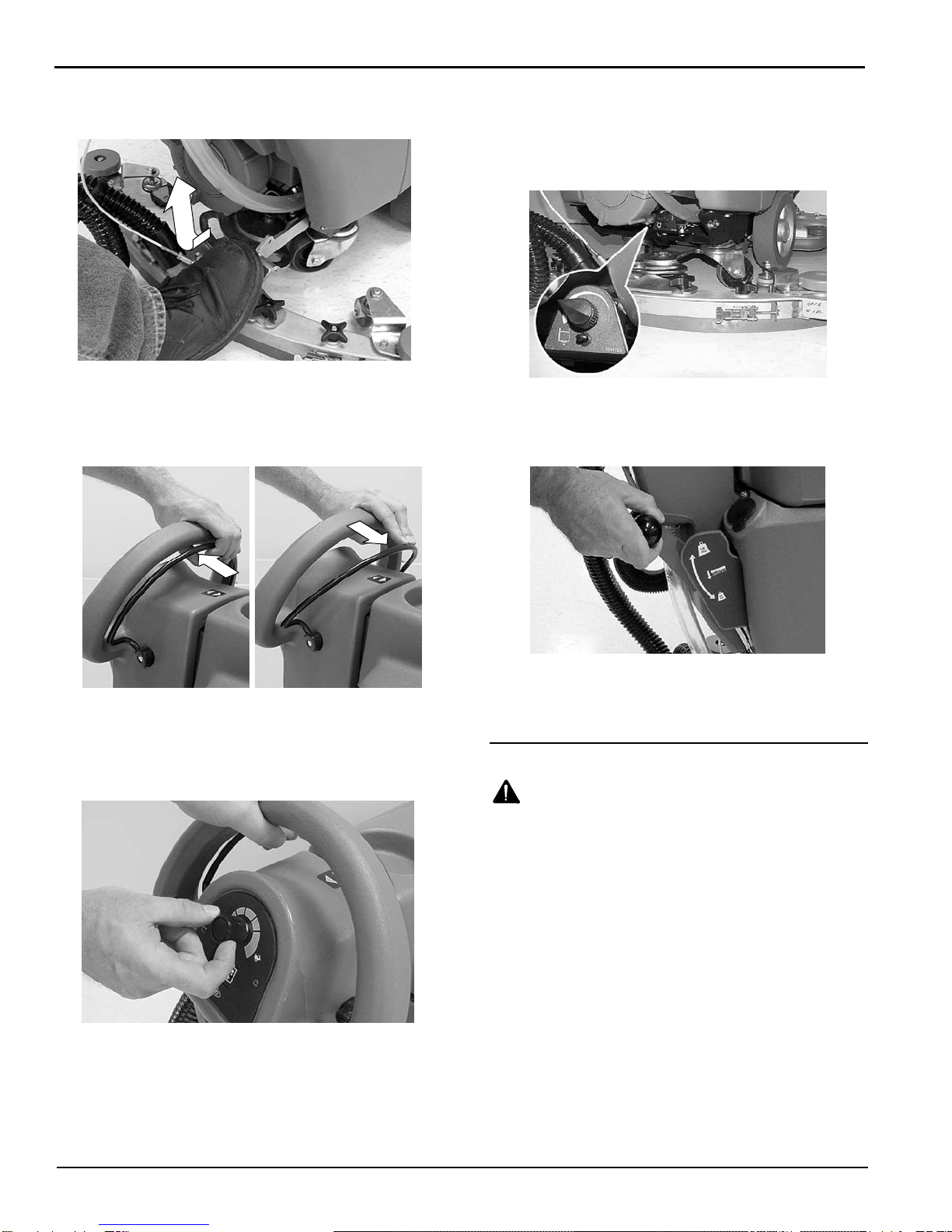

4. Lower the scrub head to the floor by stepping on
the scrub head lift pedal as shown (Figure 14).
FIG. 14
5. Pull the control handle bail backwards to start
scrubbing. The machine will propel forward. Push
the control handle bail forward to move the
machine in reverse (Figure 15).
Reverse
Forward
FIG. 15
6. Adjust the speed control knob to a desired
scrubbing speed (Figure 16).
NOTE: 45--60 meters (150--200 ft) per minute is the
recommended scrubbing speed.
FIG. 16
7. For conventional scrubbing, turn the solution flow
control knob to a desired flow rate (Figure 17).
NOTE: For the ec--H2O models, the solution flow rate
is fixed and requires no adjustment. The ec--H2O
module has optional flow rate settings. If solution flow
adjustments are required, contact an Authorized
Service Representative.
FIG. 17
8. When more pad pressure is needed for heavily
soiled areas simply lift the down pressure lever
(Figure 18).
FIG. 18
9. To stop scrubbing, release the control handle bail,
raise the scrub head and the squeegee.
WHILE OPERATING MACHINE
WARNING: Fire Or Explosion Hazard. Do Not
Pick Up Flammable Materials Or Reactive Metals.
1. Overlap each scrubbing path by 5 cm (2 in).
2. Keep the machine moving to prevent damage to
floor finish.
3. Wipe the squeegee blades with a cloth if blades
leave streaks. Pre-sweep the area to prevent
streaking.
4. Do not operate the machine on inclines that
exceed 5%.
FOR SAFETY: When using machine, go slow on
inclines and slippery surfaces. Wear non--slip
shoes.
5. Pour a recommended foam control solution into
the recovery tank if excessive foam appears.
ATTENTION: Do not allow foam to enter the float
shut-off screen, vacuum motor damage will result.
Foam will not activate the float shut-off screen.

OPERATION
Tennant T3 Orbital (12--2012) 13
6. Use the double scrubbing method for heavily
soiled areas. First scrub the area with the
squeegee up, let solution set for 3--5 minutes, then
scrub the area a second time with the squeegee
down.
7. When leaving the machine unattended, park the
machine on a level surface and remove the key.
8. ec- H2O Model: If an alarm sounds and the
ec--H2O system indicator light begins to blink red,
the ec--H2O module must be flushed to resume
ec--H2O operation (See ec--H2O MODULE
FLUSH PROCEDURE) (Figure 19).
NOTE: When the alarm sounds and the light blinks
red, the machine will bypass the ec--H2O system. To
continue scrubbing, turn the ec--H2O switch off and
change over to conventional scrubbing.
ATTENTION: (ec- H2O model) Do not allow
solution tank to run dry. ec- H2O module failure
may result if operated without water for an
extended period.
FIG. 19
ec- H2O SYSTEM
INDICATOR LIGHT CODE CONDITION
Solid green Normal operation
Blinking red Flush ec--H2O module
Solid red Contact Service Center
7. Use caution when working near the tile cove
(Figure 20) and floor mounted fixtures such as
pedestal sinks and other breakable items. Keep
the metal scrub head edge away to avoid possible
damage to the cove and other breakable items.
Tile Cove
FIG. 20
9. When transporting or storing machine, remove the
squeegee assembly and hang it on the storage
bracket (Figure 21).
FIG. 21
10. Perform the Daily Maintenance procedures after
scrubbing (See MACHINE MAINTENANCE).

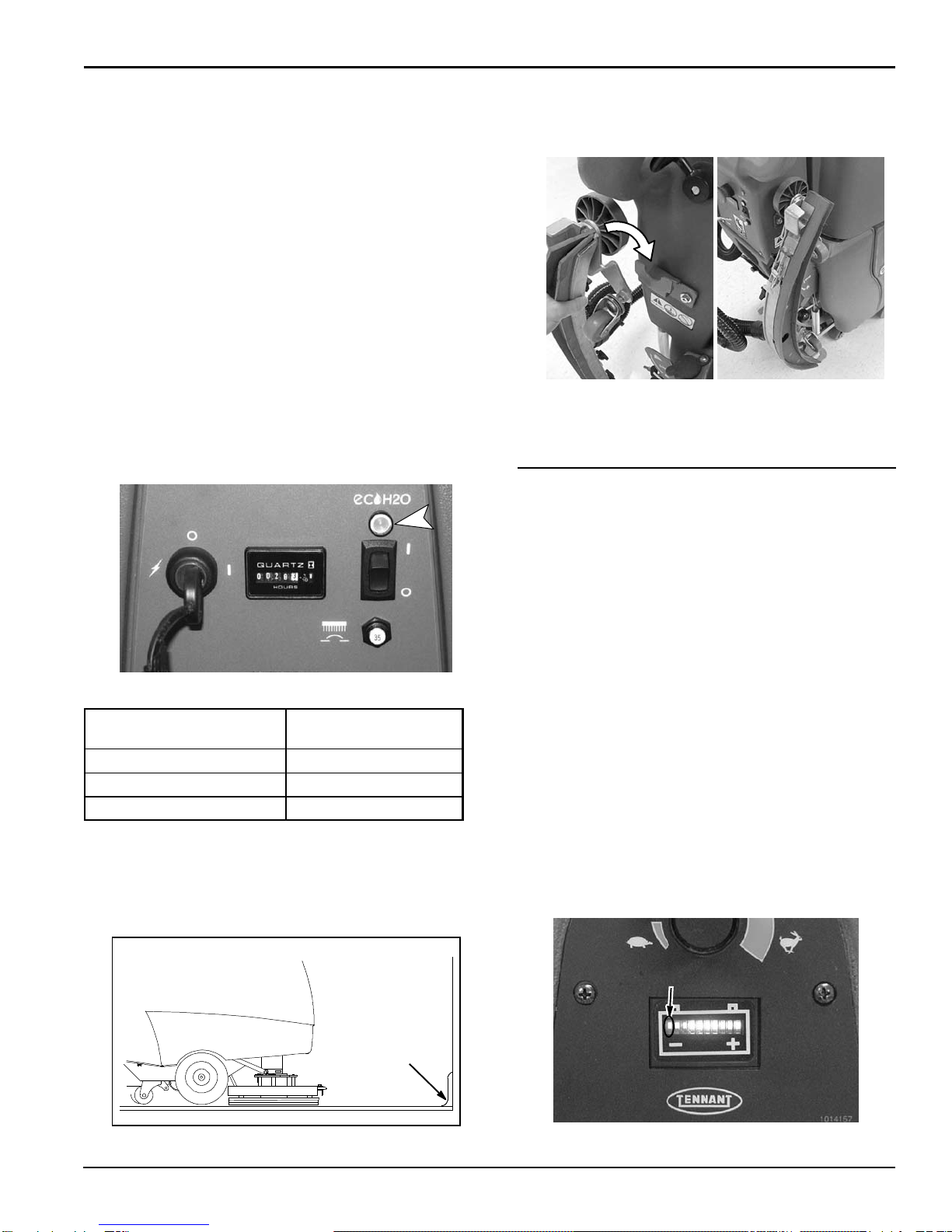

BATTERY METER
The battery meter displays the charge level of the
batteries. When the batteries are fully charged, all
indicator lights are lit. As the batteries discharge, the
indicator lights will begin to go out from right to left.
To prolong the life of the batteries, do not allow the
indicator lights to go beyond the discharge level as
described below.
NOTE: To prolong the life of the batteries ONLY
recharge the batteries when the machine is used for a
total of 30 minutes or more.
When the discharge level reaches the last red light
(Figure 22), stop scrubbing and recharge the batteries.
If the last red light begins to flash, the scrubbing
function will shut off automatically. This protects the
batteries from total discharge. Drive the machine to
the charging area and recharge the batteries
immediately.
NOTE: The battery meter also displays machine fault
codes. If a fault is detected, the LED bars will flash
specific fault codes (See BATTERY METER LED
FAULT CODES).
Stop scrubbing and recharge
batteries
FIG. 22

OPERATION
14 Tennant T3 Orbital (12--2012)
CIRCUIT BREAKER / FUSES

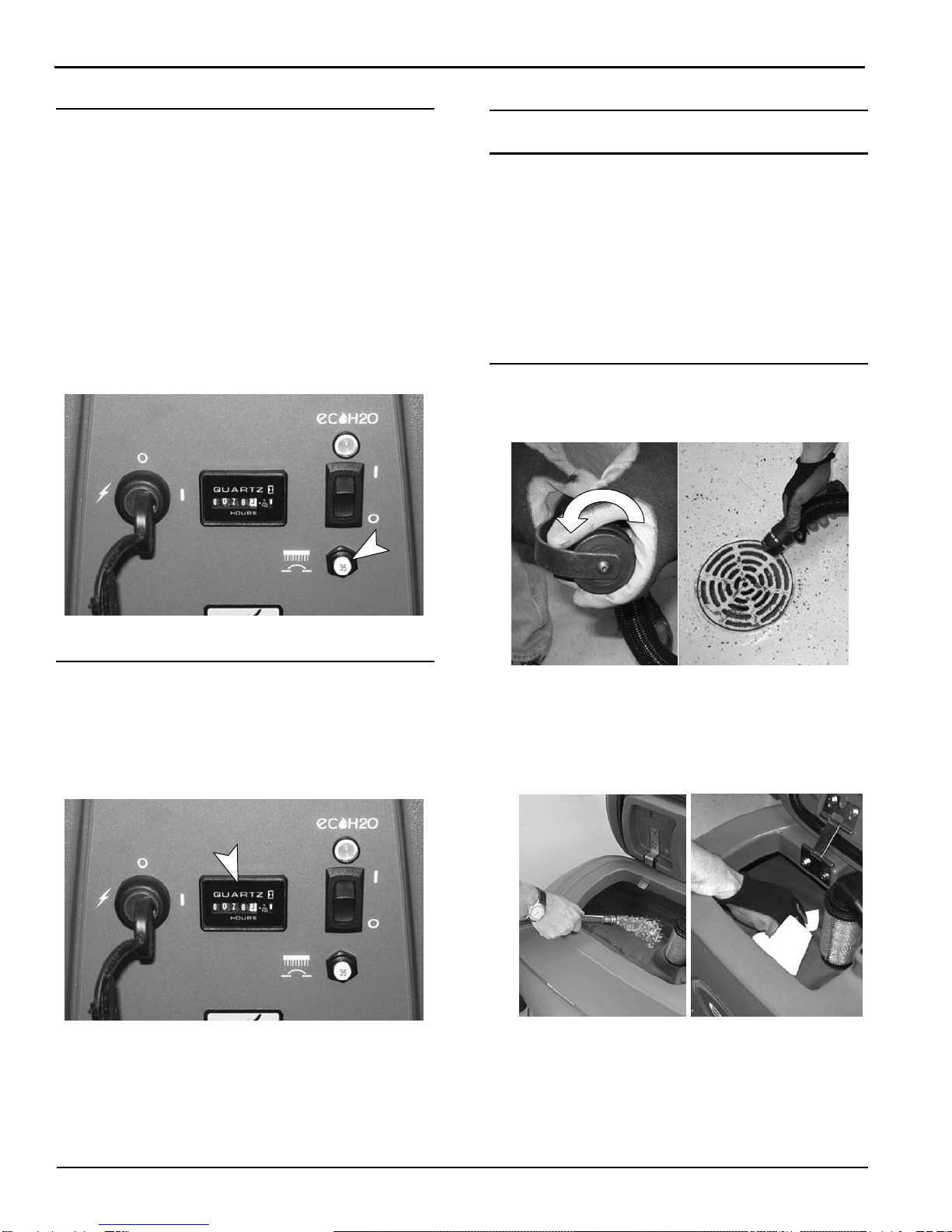

The machine is equipped with a resettable circuit
breaker to protect the pad motor from damage. The
circuit breaker button is located on the control panel
(Figure 23). If the circuit breaker should trip, determine
the cause, allow the motor to cool, and then manually
reset the circuit breaker button.
The machine is also equipped with two fuses located
inside the control console: 30A Main fuse and a 25A
vacuum motor fuse. When replacing a fuse never
substitute a higher Amp rated fuse than specified.
Contact an Authorized Service Center for
machine repairs.
FIG. 23
HOUR METER
The hour meter records the number of total hours the
motor has been powered on. Use the hour meter to
determine when to perform recommended
maintenance procedures and to record service history
(Figure 24).
FIG. 24
DRAINING TANKS
The recovery tank should be drained and cleaned out
after every use. The solution tank should be cleaned
out periodically to remove any corrosion.
Transport the machine to a draining site, turn the key
off and follow the draining instructions below:
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off machine
and remove key.
DRAINING RECOVERY TANK

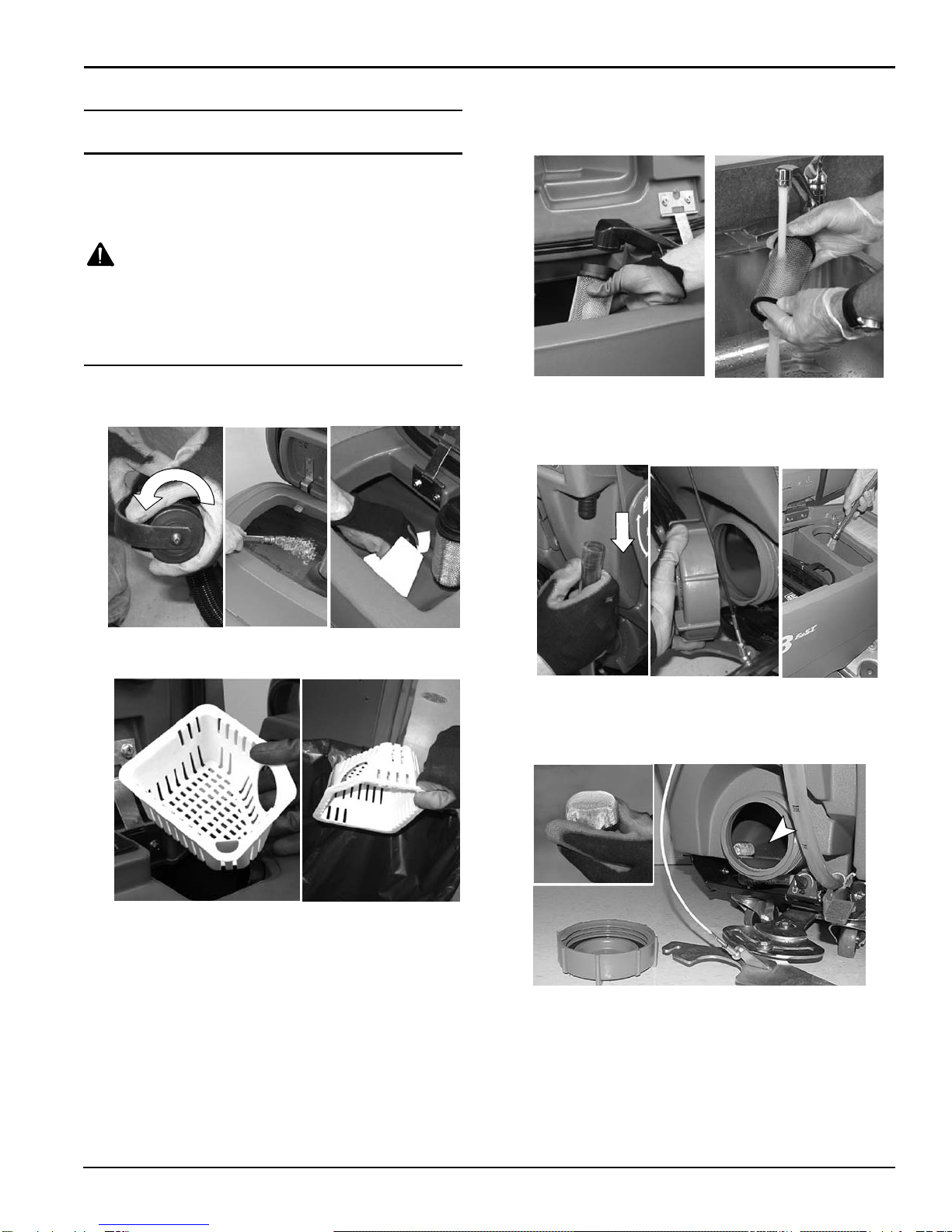

1. While holding the drain hose upward, remove the
cap and lower hose to drain (Figure 25).
FIG. 25
NOTE: When using a bucket to drain the machine, do
not use the same bucket to fill the solution tank.
2. Open the recovery tank cover and rinse out the
tank. Use a rag to remove any excess dirt
(Figure 26).
FIG. 26

OPERATION
Tennant T3 Orbital (12--2012) 15

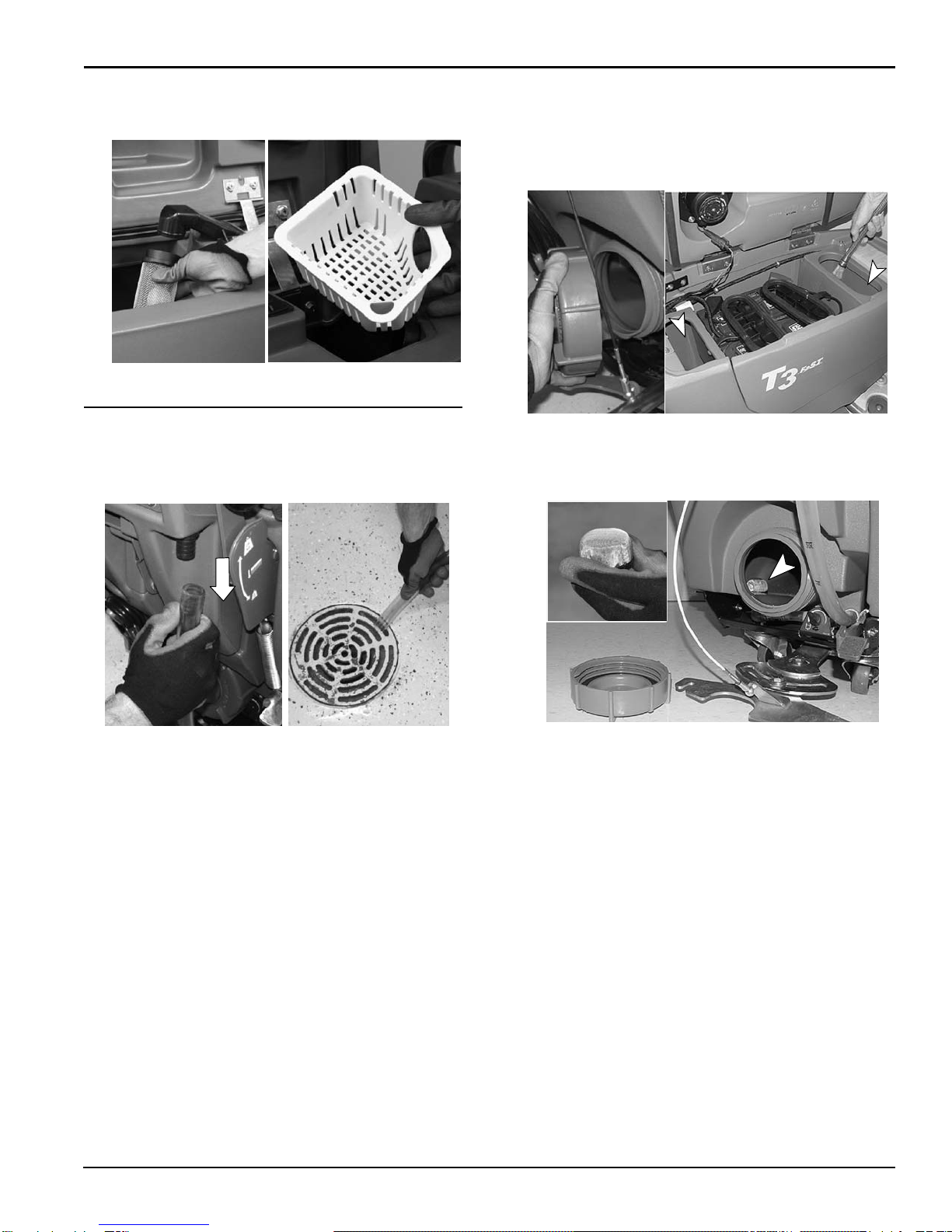

3. Clean the float shut-off screen and debris tray
located in the recovery tank (Figure 27).
FIG. 27
DRAINING SOLUTION TANK
1. To drain any remaining water from the solution
tank, pull the solution tank level hose off the hose
fitting as shown (Figure 28).
FIG. 28
2. To rinse out the solution tank, remove the
clean--out cap at the rear of the machine and
spray water, 60C (140F) maximum, directly into
the two fill--ports located under the recovery tank
(Figure 29).
FIG. 29
3. Remove and clean the solution tank filter
(Figure 30). Turn the filter counter--clockwise to
remove.
FIG. 30
4. After rinsing out the tank, securely replace the
solution tank filter, clean--out cap, fill--port covers
and hose.

OPERATION
16 Tennant T3 Orbital (12--2012)
CHARGING BATTERIES
ATTENTION: To prolong the life of the batteries
only recharge the batteries if the machine was
used for a total of 30 minutes or more. Do not
leave batteries discharged for lengthy periods.
WARNING: Fire Or Explosion Hazard.
Batteries Emit Hydrogen Gas. Keep Sparks and
Open Flame Away. Keep Battery Compartment
Propped Open When Charging.
FOR SAFETY: When servicing batteries, wear
protective gloves and eye protection when
handling batteries and battery cables. Avoid
contact with battery acid.
The following charging instructions are intended for
battery chargers supplied with the machine. Only use
a battery charger with the following specifications to
prevent battery damage.
BATTERY CHARGER SPECIFICATIONS:
SCHARGER TYPE:
-- FOR SEALED (Gel) BATTERIES
-- FOR WET (Lead Acid) BATTERIES
SOUTPUT VOLTAGE - 24 VOLTS
SOUTPUT CURRENT - 11 AMPS
SAUTOMATIC SHUTOFF CIRCUIT
SFOR DEEP CYCLE BATTERY CHARGING
USING THE ON--BOARD BATTERY CHARGER
IMPORTANT: Make sure the on--board battery
charger profile is properly set for your battery
type before charging. Failure to properly set will
result in battery damage.
To determine your battery type, see battery label.
Contact your battery supplier if not specified.
To verify the setting of the charger profile:
Connect the charger cord into an electrical receptacle,
open the battery compartment and view the on--board
battery charger LED display.
If the LED labeled “GEL” is on, the charger is set for
Gel (sealed) batteries. If the LED is off, the charger is
set for Wet/lead acid (flooded) batteries (Figure 31).
GEL LED
FIG. 31
To change the charger profile:
1. Remove the knob that holds the battery charger
mounting panel in position and remove panel to
access battery charger (Figure 32).
FIG. 32
2. Unplug the charger cord. Remove the “Charger
Profile Selection” panel and position the switch
towards the proper setting: “GEL” or “Flooded”
(Figure 33).
Charger Profile Switch
FIG. 33

OPERATION
Tennant T3 Orbital (12--2012) 17
To charge batteries:
1. Transport the machine to a well--ventilated area
for charging.
2. Park the machine on a level surface and turn the
key off.
3. If charging wet (lead acid) batteries check the fluid
level before charging (See BATTERY
MAINTENANCE on page 24).
4. Connect the charger cord into a properly grounded
electrical receptacle (Figure 34).
NOTE: The machine will not operate once the battery
charger is connected.
FIG. 34
5. The charger will start automatically within a few
seconds. The LEDs will display the charging state
as described in the following table (Figure 35).
CHARGING STATE LED DISPLAY
Charging State 50% LED 75% LED 100% LED
0--50% charged Blinking Off Off
50--75% charged On Blinking Off
75--100% charged On On Blinking
100% charged On On On
Abnormal Cycle * Off Off Blinking
Fault detected * Blinking Blinking Blinking
* See the On--board Battery Charger Fault Codes table. When a
fault occurs, the charger will also sound an alarm.
FIG. 35
6. Prop up the recovery tank for ventilation when
charging (Figure 36).
FIG. 36
7. Once the batteries are fully charged, the charger
will stop suppling power, but will continue to
monitor the battery voltage. The charger will
restart if the batteries self--discharge.
NOTE: The charger may take up to 30 seconds to turn
off once the charger cord is disconnected. During this
time, the machine will not power up.
The charger cord must also be disconnected for 30
seconds before the charger can be restarted.

OPERATION
18 Tennant T3 Orbital (12--2012)
ON--BOARD BATTERY CHARGER FAULT CODES
LED FAULT CODE FAULT SOLUTION
3 LEDs flash once
repeatedly
Loose charger cable connection. Check charger cable connection.
Loose or damaged battery cable. Check battery cable connections.
Defective Battery. Replace battery.
3 LEDs flash twice
repeatedly
Input voltage is out of range. Try using a different wall outlet.
3 LEDs flash three
times repeatedly
Safety thermostat exceeded maximum internal
temperature.
Open battery compartment to promote air
circulation or move machine to a cooler
climate.
3 LEDs flash four
times repeatedly
Output current exceeds a limit. Disconnect charger cord, wait 30 seconds,
then plug back in. If fault continues replace
charger or Contact Service Center.
100% LED flashes
while the 50% and
75% LED’s are off.
Abnormal cycle. Safety timer exceeded the 18
hour charging time.
Battery maintenance required or replace
battery.

MAINTENANCE
Tennant T3 Orbital (12--2012) 19
MACHINE MAINTENANCE
To keep the machine in good working condition, simply
follow the daily, monthly and quarterly maintenance
procedures.
WARNING: Electrical Hazard. Disconnect
Battery Cables Before Servicing Machine.
FOR SAFETY: When servicing machine, wear
personal protection equipment as needed and
where recommended in this manual.
DAILY MAINTENANCE (After Every Use)
1. Drain and clean out the recovery tank (Figure 37).
FIG. 37
2. Remove the debris tray and empty (Figure 38)
FIG. 38
3. Remove and clean the float shut--off screen
located in the recovery tank (Figure 39).
FIG. 39
4. Drain the solution tank and rinse out the inside
with hot water, 60C (140F) maximum
temperature, as needed (Figure 40)
FIG. 40
5. Remove and clean the solution tank filter
(Figure 41). Turn the filter counter--clockwise to
remove.
FIG. 41

MAINTENANCE
20 Tennant T3 Orbital (12--2012)
6. Turn the work pad over or replace when worn
(Figure 42).
FIG. 42
7. Wipe the squeegee blades clean. When machine
is not in use, raise the squeegee assembly off the
floor or hang it on the storage bracket (Figure 43).
FIG. 43
8. Check the condition of the squeegee blade wiping
edge (Figure 44). Rotate blade if worn.
(See SQUEEGEE BLADE REPLACEMENT)
FIG. 44
9. Clean the machine with an all purpose cleaner and
damp cloth (Figure 45).
FOR SAFETY: When cleaning machine, do not
power spray or hose off machine. Electrical
malfunction may occur.
FIG. 45
12. Recharge the batteries after a total of 30 minutes
of use or more (Figure 46). (See CHARGING
BATTERIES).
FIG. 46
