Tennant T17 Series Training manual

IB 9012969 (07- 2016) 1
INSTRUCTION BULLETIN
No. 9012969
Machine: T17
Published: 07- 2016
Rev. 01
NOTE: DO NOT DISCARD the Parts List from the Instruction Bulletin. Place the
Parts List in the appropriate place in the machine manual for future
reference. Retaining the Parts List will make it easier to reorder
individual parts and will save the cost of ordering an entire kit.
NOTE: Numbers in parenthesis ( ) are reference numbers for parts listed in Bill of Materials.
Installation instructions for kit number 9020057 / 9020206 (T17 machines NA serial numbers
000000- 010999 / EU serial numbers 0000- 0330) / 9014962 / 9014963 (T17 machines NA serial
numbers 011000- / EU serial numbers 0400- )
SYNOPSIS:
This kit contains the parts needed to install a sweeping side brush or dual sweeping side brush kit
onto T17 scrubbers.
Please follow step-by-step instructions.
Machine must be factory equipped with side brush harness kit (PREP KIT, SIDE BRUSH
HARNESS [T17] - 9020047) to install the sweeping side brush(es).
SPECIAL TOOLS / CONSIDERATIONS: NONE
(Estimated time to complete: 2.5 hours - single sweeping side brush / 3.5 hours - dual sweeping side
brushes)
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, used machine components
such as batteries and fluids in an environmentally safe way according
to local waste disposal regulations.
Always remember to recycle.
PREPARATION:
1. Completely empty both the solution tank and
the recovery tank.
FOR SAFETY: Before leaving or servicing
machine, stop on level surface, turn off
machine, set parking brake, and remove key.
2. Disconnect the battery cable from the
machine.
WARNING: Always disconnect battery
cables from machine before working on
electrical components.
3. Place chocks behind both rear tires.
4. Jack up the front end of the machine. Place
jack stands under the front end of the
machine, and lower the machine onto the jack
stands.
FOR SAFETY: When servicing machine: block
machine tires before jacking machine up, jack
machine up at designated locations only.
(support machine with jack stands), use hoist
or jack that will support the weight of the
machine.
NOTE:Refer to MACHINE JACKING in the
MAINTENANCE section of Operators Manual for
additional information pertaining to safely jacking
up the machine.

IB 9012969 (07- 2016)2
INSTALLATION:
Right side sweeping side
brush mounting location
Left side sweeping side
brush mounting location
FRONT
Right side sweeping
side brush mounting
location
Left side sweeping
side brushmounting
location
T17 machines NA serial numbers
(000000- 010999) / EU serialnumbers
(0000- 0330)
T17 machines NA serial numbers
(011000- ) / EU serial numbers
(0400- ) / M17 All machines
FIG. 1 - Sweeping Side Brush Mounting Locations

IB 9012969 (07- 2016) 3
1. Remove any parts and components from the
machine necessary to install the sweeping
side brush assembly onto the machine.
2. Cut the cable ties securing the side sweep
harness connector ends for the right and / or
left sweeping side brush so the connectors
can be connected to the sweeping side brush
actuator(s) and side brush drive motor(s).
3. Use three M8 SEMS hex screws to install the
right sweeping side brush assembly onto the
frameofthemachine.(Fig.1/Fig.2)
4. Connect the side sweep harness to the right
sweeping side brush drive motor and actuator.
(Fig.2/Fig.11)
5. Use three M8 SEMS hex screws to install the
left sweeping side brush assembly onto the
frameofthemachine.(Fig.1/Fig.4)
6. Connect the side sweep harness to the left
sweeping side brush brush drive motor and
actuator. (Fig. 4 / Fig. 11)
7. Reassemble all parts removed to install the
sweeping side brush(es) back onto the
machine.
8. Use four M8 SEMS hex screws to install a
side brush cover(s) onto the right sweeping
side brush assembly and / or left sweeping
side brush assembly. (Fig. 3 / Fig. 5)
9. Install a brush onto the right sweeping side
brush assembly and / or left sweeping side
brush assembly. Use a cotter pin to secure
the brush(es) onto the sweeping side brush
assembly(ies). (Fig. 3 / Fig. 5)
10. Raise the machine slightly off the jack stands,
remove the jack stands from under the
machine, and lower the machine to the floor.

IB 9012969 (07- 2016)4
1
2
2
2
3
4
5
6
7
8
9
10
11
11
12
13
7
7
7
14
15
16
17
7
9
18
7
13
19
20
21
9
23
24
25
26
27
28
29
30 31
7
79
32
33
33
13
12
15 7
17
9
34
35
22
FRONT
M8 SEMS
hex screws

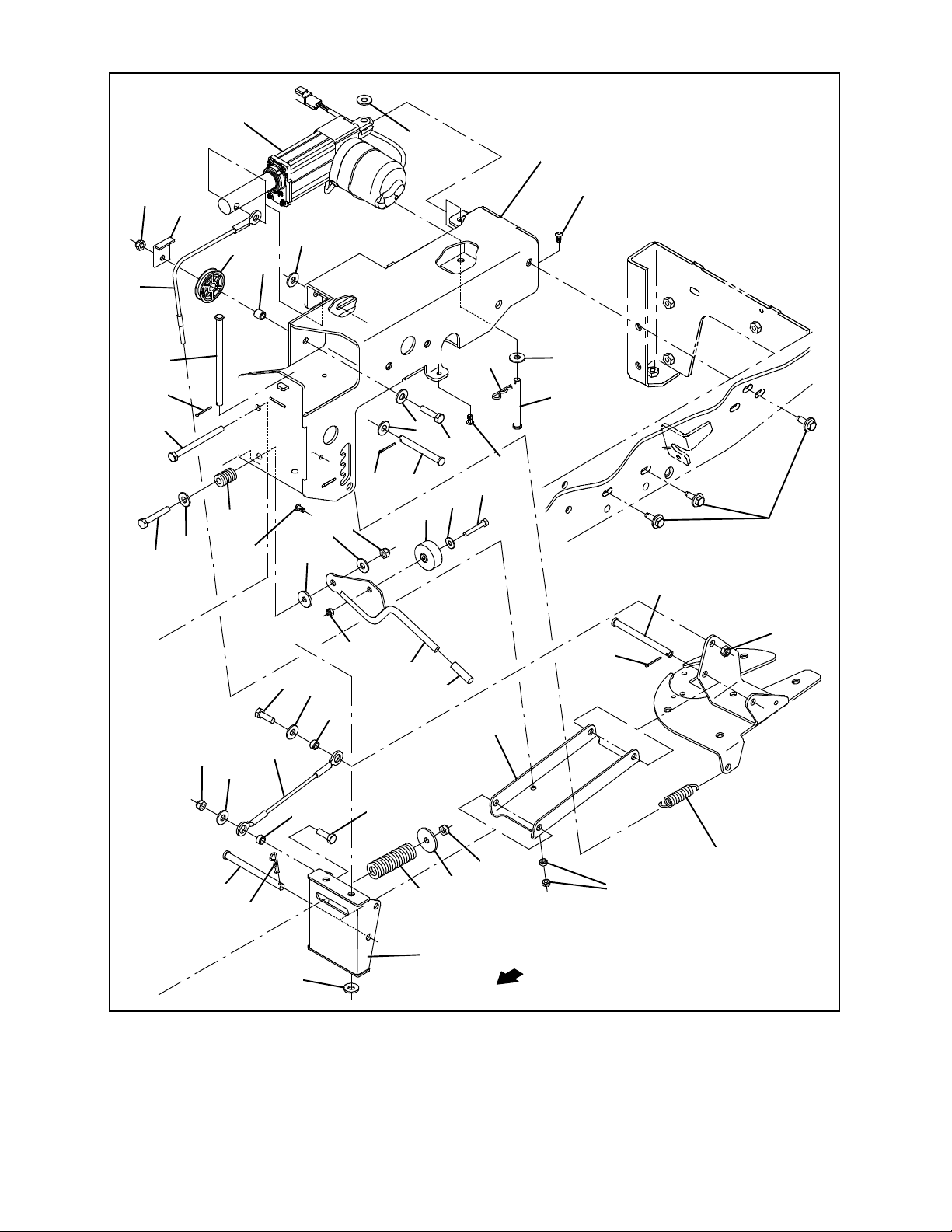

FIG. 2 - Sweeping Side Brush Lift Group, Right Side

IB 9012969 (07- 2016) 5
Ref.
Tennant
Part No. Description Qty.
11207330 Housing Wldt, SBA, RH (Kits 9020057 / 9020206 Only) 1
1 1225432 Housing Wldt, SBA, RH (Kits 9014962 / 9014963 Only) 1
2 1071085 Clip, Tie, 0.25d, Plstc 3
3 369781 Pulley, Cable, 1.5d Nyl 1
4 222460 Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] 1
554400 Bracket, Angle, Keeper, Cable 1
6 1205013 Cable, SS, .09d 10.35l .38eye/M6- 1.0 1
7 01685 Washer, Flat, 0.38b 0.88d .08, SS 10
8 09023 Screw, Hex, M8 X 1.25 X 35, Fl, SS 1
9 08713 Nut, Hex, Lock, M8 X 1.25, Nl, SS 5
10 1201500 Actuator, 36vdc, 2.75strk, 450lb 1
11 57598 Pin, Clevis, 0.37d X 3.25l 2
12 44906 Pin, Cotter, Hair, 0.38d .093 Wir 2
13 08179 Pin, Cotter, .094 X 1.00 3
14 1204919 Bracket Wldt, Pivot, SBA (Kits 9020057 / 9020206 Only) 1
14 1225425 Bracket Wldt, Pivot, SBA (Kits 9014962 / 9014963 Only) 1
15 09010 Screw, Hex, M8 X 1.25 X 25, SS 2
16 1204774 Cable, Ss, .09d 7.87l .50eye/.50eye 1
17 222516 Sleeve, P/M, 0.32b 0.50d 0.3l [430ss] 2
18 49924 Pin, Clevis, 0.37d X 6.12l 1
19 1209244 Spring, Compr, .98od 2.5l 1
20 386299 Screw, Hex, M8 X 1.25 X 100, SS 1
21 379829 Washer, Flat, 0.34b 1.50d .12, Stl, Pl 1
22 1037346 Screw, Hex, M8 X 1.25 X 25, 9.8, SEMS 3
23 1205016 Lever Wldt, Adj, SBA 1
24 33930 Screw, Hex, M6 X 1.00 X 40, SS 1
25 01684 Washer, Flat, 0.27b 0.69d .05, SS 1
26 01847 Wheel, 01.6d 0.72w 0.21b 1
27 08712 Nut, Hex, Lock, M6 X 1.00, Nl, SS 1
28 1208858 Cover, Handle 1
29 81672 Spring, Cmpr, 0.37id X Flat Wir, 1.0l 1
30 49694 Screw, Hex, M8 X 1.25 X 50, SS 1
31 1017218 Washer, Flat, 0.32b 1.00d .12, SS 1
32 1204396 Bracket, Arm, SBA 1
33 59672 Pin, Clevis, 0.37d X 4.50l 2
34 15047 Spring, Extn, 0.62od 0.08wir 03.0l 1
35 07785 Nut, Hex, Std, M6 X 1.00, SS 2

IB 9012969 (07- 2016)6
1
2
3
4
5
6
7
8
9
10
11
FRONT

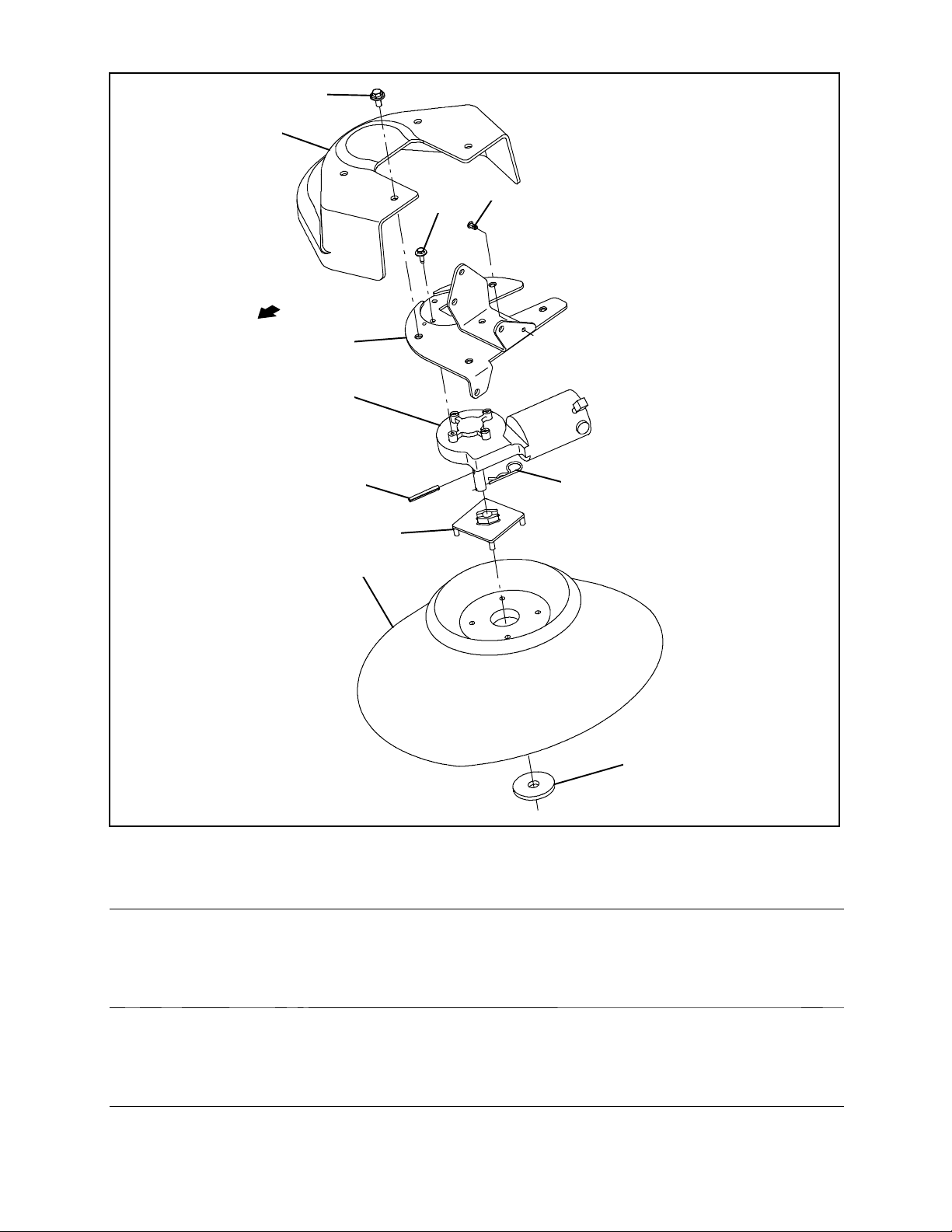

FIG. 3 - Sweeping Side Brush Drive Motor Group, Right Side
Ref.
Tennant
Part No. Description Qty.
11212824 Motor, Ele, 36vdc 0.08hp 0068rpm Gear RH 1
2 1207139 Bracket Wldt, Mtg, Motor, SBA 1
3 11398 Pin, Roll, .250d X 2.00l, .250/.256 1
4 1040467 Screw, Hex, M6 X 1.00 X 20, 9.8, SEMS 4
5 1207412 Cover, Sidebrush, Sweeping 1
61020341 Screw, Hex, M8 X 1.25 X 20, SS, SEMS 4
7 1017441 Plate, Adapter, Brush 1
8 87419 Brush, Disk, Swp, 19.0d, Pyp 1
9 1017802 Washer, Flat, 0.66b 2.50d .19, SS 1
10 02942 Pin, Hair, Cotter, 0.62d .120 Wir 1
11 1071085 Clip, Tie, 0.25d, Plstc 1

IB 9012969 (07- 2016) 7
1
2
2
2
3
4
5
6
7
8
9
10
11
11
12
13
7
7
77
14
15
16
17
17
79
9
7
15
18
13
19
20
21 9
23
24
25
26
27
28
29
30
7
31
7
9
32
33
33
13
12
7
34
35
22
FRONT
(Qty. 3)
M8 SEMS
hex screws

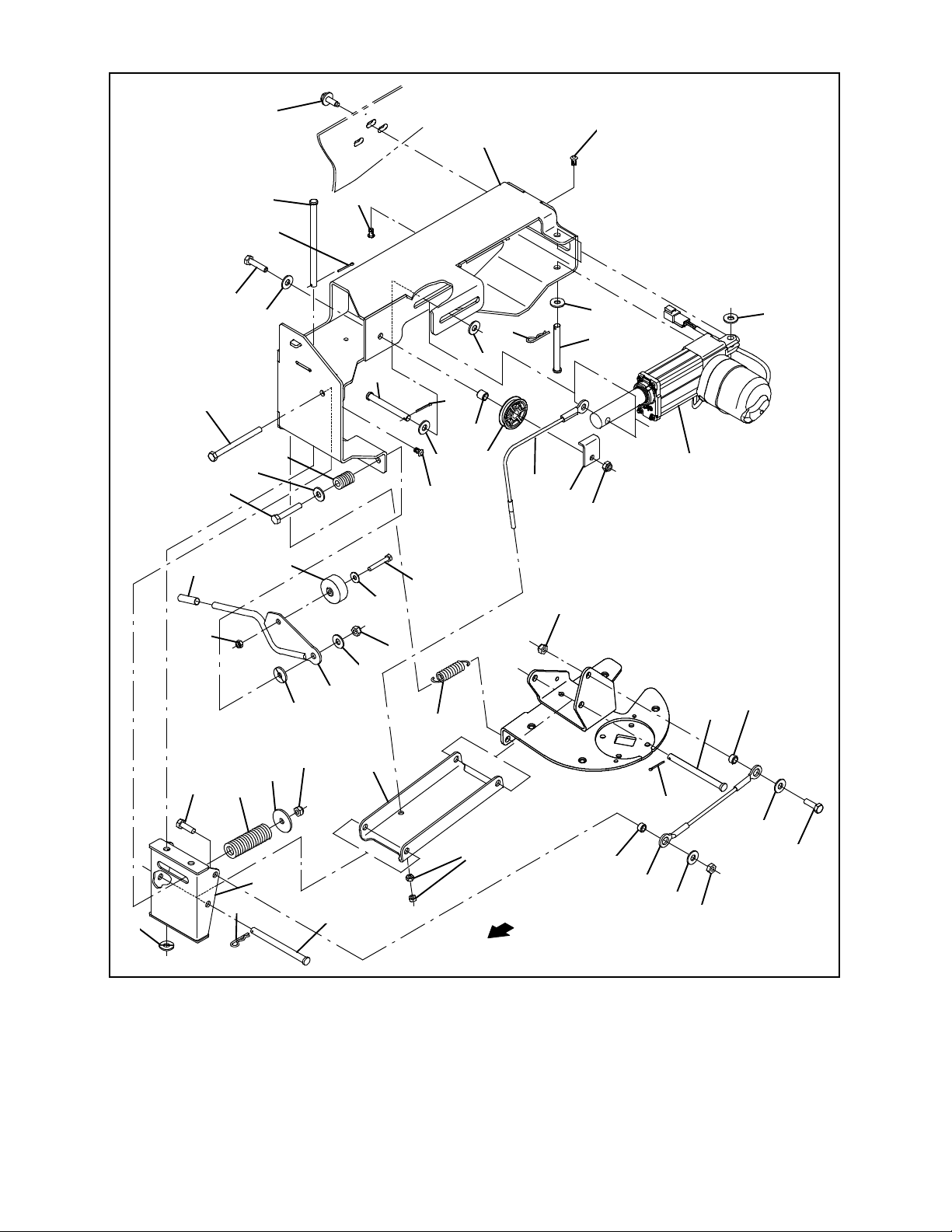

FIG. 4 - Sweeping Side Brush Lift Group, Left Side

IB 9012969 (07- 2016)8
Ref.
Tennant
Part No. Description Qty.
11207554 Housing Wldt, SBA, LH (Kits 9020057 / 9020206 Only) 1
1 1225423 Housing Wldt, SBA, LH (Kits 9014962 / 9014963 Only) 1
2 1071085 Clip, Tie, 0.25d, Plstc 3
3 369781 Pulley, Cable, 1.5d Nyl 1
4 222460 Sleeve, P/M, 0.32b 0.50d 0.5l [430ss] 1
554400 Bracket, Angle, Keeper, Cable 1
6 1205013 Cable, SS, .09d 10.35l .38eye/M6- 1.0 1
7 01685 Washer, Flat, 0.38b 0.88d .08, SS 10
8 09023 Screw, Hex, M8 X 1.25 X 35, Fl, SS 1
9 08713 Nut, Hex, Lock, M8 X 1.25, Nl, SS 5
10 1201500 Actuator, 36vdc, 2.75strk, 450lb 1
11 57598 Pin, Clevis, 0.37d X 3.25l 2
12 44906 Pin, Cotter, Hair, 0.38d .093 Wir 2
13 08179 Pin, Cotter, .094 X 1.00 3
14 1204919 Bracket Wldt, Pivot, SBA (Kits 9020057 / 9020206 Only) 1
14 1225425 Bracket Wldt, Pivot, SBA (Kits 9014962 / 9014963 Only) 1
15 09010 Screw, Hex, M8 X 1.25 X 25, SS 2
16 1204774 Cable, Ss, .09d 7.87l .50eye/.50eye 1
17 222516 Sleeve, P/M, 0.32b 0.50d 0.3l [430ss] 2
18 49924 Pin, Clevis, 0.37d X 6.12l 1
19 1209244 Spring, Compr, .98od 2.5l 1
20 386299 Screw, Hex, M8 X 1.25 X 100, SS 1
21 379829 Washer, Flat, 0.34b 1.50d .12, Stl, Pl 1
22 1037346 Screw, Hex, M8 X 1.25 X 25, 9.8, SEMS 3
23 1205016 Lever Wldt, Adj, SBA 1
24 33930 Screw, Hex, M6 X 1.00 X 40, SS 1
25 01684 Washer, Flat, 0.27b 0.69d .05, SS 1
26 01847 Wheel, 01.6d 0.72w 0.21b 1
27 08712 Nut, Hex, Lock, M6 X 1.00, Nl, SS 1
28 1208858 Cover, Handle 1
29 81672 Spring, Cmpr, 0.37id X Flat Wir, 1.0l 1
30 49694 Screw, Hex, M8 X 1.25 X 50, SS 1
31 1017218 Washer, Flat, 0.32b 1.00d .12, SS 1
32 1204396 Bracket, Arm, SBA 1
33 59672 Pin, Clevis, 0.37d X 4.50l 2
34 15047 Spring, Extn, 0.62od 0.08wir 03.0l 1
35 07785 Nut, Hex, Std, M6 X 1.00, SS 2

IB 9012969 (07- 2016) 9
1
2
3
4
5
6
7
8
9
10
11
FRONT
FIG. 5 - Sweeping Side Brush Drive Motor Group, Left Side
Ref. Part No. Description Qty.
11212823 Motor, Ele, 36vdc 0.08hp 0068rpm Gear LH 1
2 1207559 Mount Wldt, Motor, SBA 1
3 11398 Pin, Roll, .250d X 2.00l, .250/.256 1
4 1040467 Screw, Hex, M6 X 1.00 X 20, 9.8, SEMS 4
5 1207412 Cover, Sidebrush, Sweeping 1
61020341 Screw, Hex, M8 X 1.25 X 20, SS, SEMS 4
7 1017441 Plate, Adapter, Brush 1
8 87419 Brush, Disk, Swp, 19.0d, Pyp 1
9 1017802 Washer, Flat, 0.66b 2.50d .19, SS 1
10 02942 Pin, Hair, Cotter, 0.62d .120 Wir 1
11 1071085 Clip, Tie, 0.25d, Plstc 1

IB 9012969 (07- 2016)10
FRONT
6
Right
console
panel
Front
shroud
Do Not break wire or cable connections when
removing right console panel from front shroud or
electricalenclosurecoverfromelectricalenclosure
FRONT
1
2(Qty.2)
3(Qty.2)
4
5
Electrical
enclosure cover
Electrical
enclosure
Install into
circuit breaker
location 3
M6 SEMS
hex screws
Pan screws
(Qty. 5)
(Qty. 4)
FIG. 6 - Sweeping Side Brush Electrical Group
Ref. Part No. Description Qty.
19020229 Circuit Board Kit, H20, Afmkt [T17] 1
2 06926 Screw, Pan, Phl, M4 X 0.70 X 10, 4.8 2
3 1202860 Washer, Flat, 0.17b 0.31d .03, Nyl 2
4 1210399 Stand- Off, Circuit Board [0.25”] 4
5 383723 Circuit Breaker, 20.0a, Resettable 1
6397889 Switch, Rocker, Dpst, On / None / On 1

IB 9012969 (07- 2016) 11
11. Remove the pan screws holding the control
panel to the front shroud and set the
hardware aside. (Fig. 6)
12. Carefully pull the control panel from the front
shroud. Do not break any wire connections
when pulling the panel from the shroud.
(Fig. 6)
13. Remove the hole plug from the control panel.
Discard the hole plug. (Fig. 6)
14. Orient the switch (14) so the text on the
switch is to the right side of the machine (like
the other switches) and insert the switch into
the control panel.(Fig. 6 / Fig. 7)
FIG. 7
15. Connect the side sweep harness to the rocker
switch (12). (Fig. 6 / Fig. 11)
16. Reinstall the control panel onto the front
shroud. (Fig. 6)
17. Remove both SEMS M6 hex screws securing
the electrical enclosure cover to the electrical
enclosure. Set the SEMS M6 hex screws
aside. (Fig. 6)
NOTE:To avoid damaging electronic
components, a static ground strap must be worn
at all times while handling / installing the circuit
board (1) onto the machine. Attach the other end
of the static ground strap to the machine chassis.
18. Carefully remove the electrical enclosure
cover from the electrical enclosure and
position the electrical enclosure cover out of
the way. Do Not break or damage wires / wire
connections when removing the electrical
enclosure cover from the electrical enclosure.
(Fig. 8)
FIG. 8
19. Install the four standoffs onto the electrical
enclosure. (Fig. 6)
20. Install the circuit board onto the four standoffs
installed into the electrical enclosure in the
previous step. (Fig. 6)
21. Use two M4 pan screws and two nylon flat
washers to secure the circuit board onto the
electrical enclosure. Do Not over tighten the
M4 pan screws. Over tightening the M4 pan
screws could damage circuit board. (Fig. 6)
22. Connect the side sweep harness to the circuit
board (12). (Fig. 9 / Fig. 11)
FIG. 9
23. Connect the side sweep harness ground lead
to the machine ground located inside the
electrical enclosure. (Fig. 11)

IB 9012969 (07- 2016)12

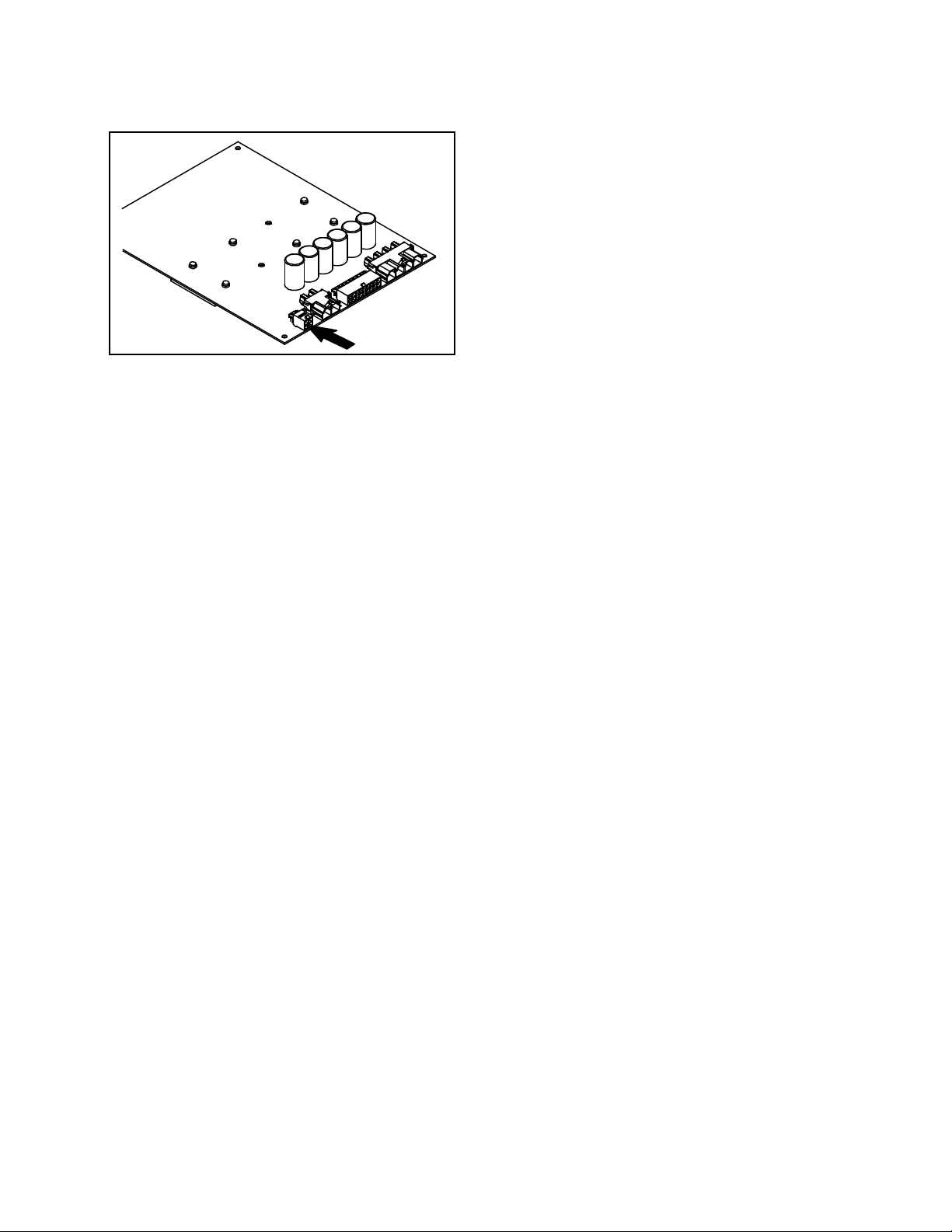

24. Connect the main wire harness CAN BUS
lead to the circuit board (12). (Fig. 10 /
Fig. 12)
FIG. 10
25. Reinstall the electrical enclosure cover onto
the electrical enclosure. (Fig. 6)
26. Reconnect the battery cable to the machine.
27. Start the machine, place machine into
configuration mode, and reconfigure the
machine for the sweeping side brush(es).
Refer to the T17 Service Manual for
instructions / information for accessing
configuration mode and reconfiguring the
machine.
28. Start and test the machine. Drive the machine
and operate the sweeping side brush(es) to
ensure the brush(es) function(s) properly.

IB 9012969 (07- 2016) 13
FIG. 11 - Sweeping Side Brush Wire Harness Group - Must Be Factory Installed

IB 9012969 (07- 2016)14

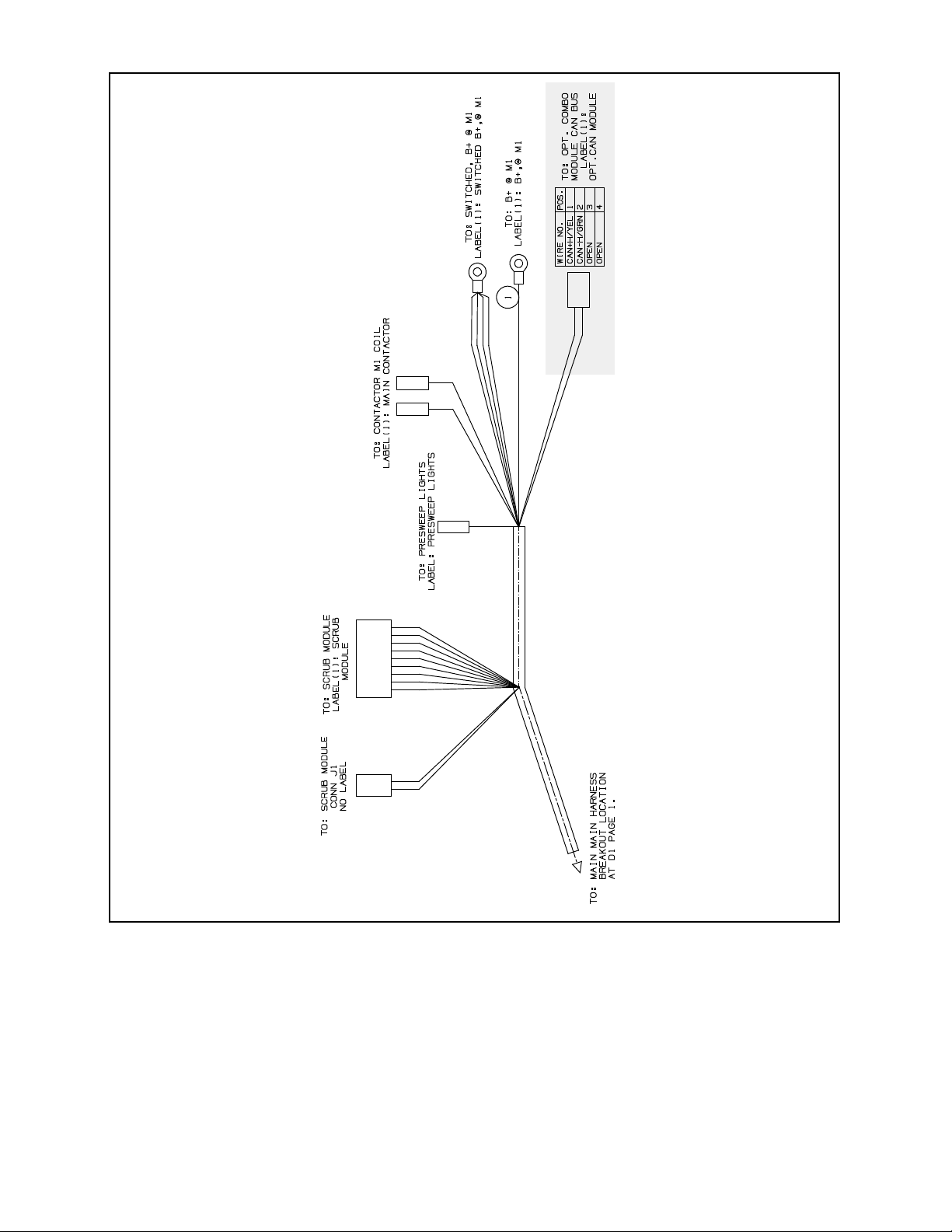

FIG. 12 - Machine Main Wire Harness CAN BUS Lead

IB 9012969 (07- 2016) 15

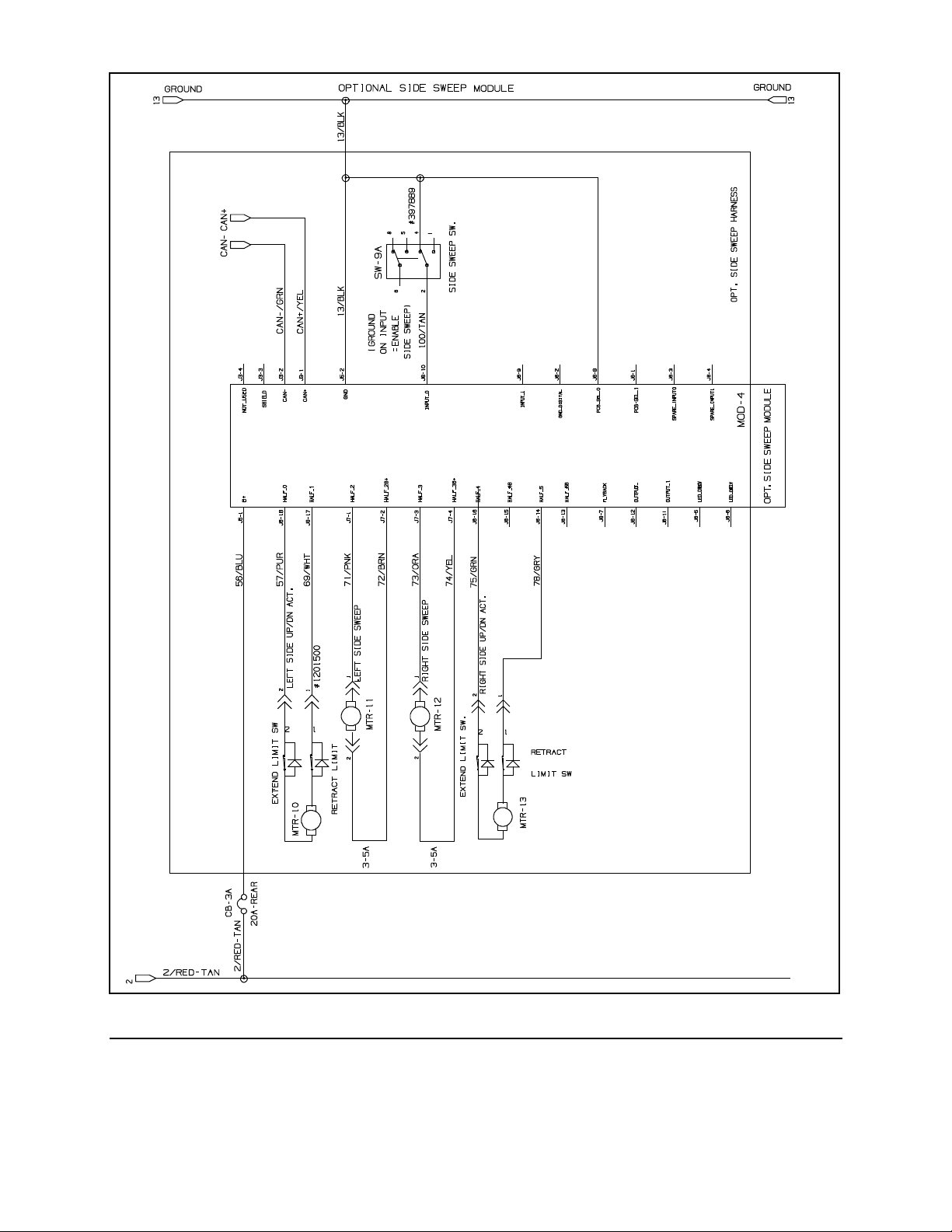

FIG. 13 - Schematic
TENNANT COMPANY
P. O. Box 1452
Minneapolis, MN 55440-1452
