Assemble your TENWAYS e-bike
1. Unwrap your TENWAYS e-bike 06
2. Install the rear mudguard and kickstand 08
3. Install the handlebar 10
4. Remove the front wheel from the bundle 11
5. Pre-install the quick release 12
6. Install the front wheel 13
7. Install the front mudguard 16
8. Install the battery 17
9. Install the pedals 18
10. Adjust the height of the saddle cushion 19
11. Install the reflectors 20
Display operations
1. Main interface 22
2. Button Definitions 25
3. Function Operations 26
4. User Settings 28
5. Data Clean 31
6. Error Information 32
3
Index

Bike usage
1. How to connect your e-bike to
the TENWAYS App 34
2. Before your first ride 35
3. Routine maintenance 36
4. Frame code 39
Important reminders
1. Warranty 42
2. FAQ 43
3. Warnings 44
4

5
Assemble
your
TENWAYS
e-bike.

6
Take your bike, tool box, and battery pack out of the box.
Remove and recycle all wrapping materials.
1. Unwrap your TENWAYS e-bike
Bike
Battery pack Tool box

7

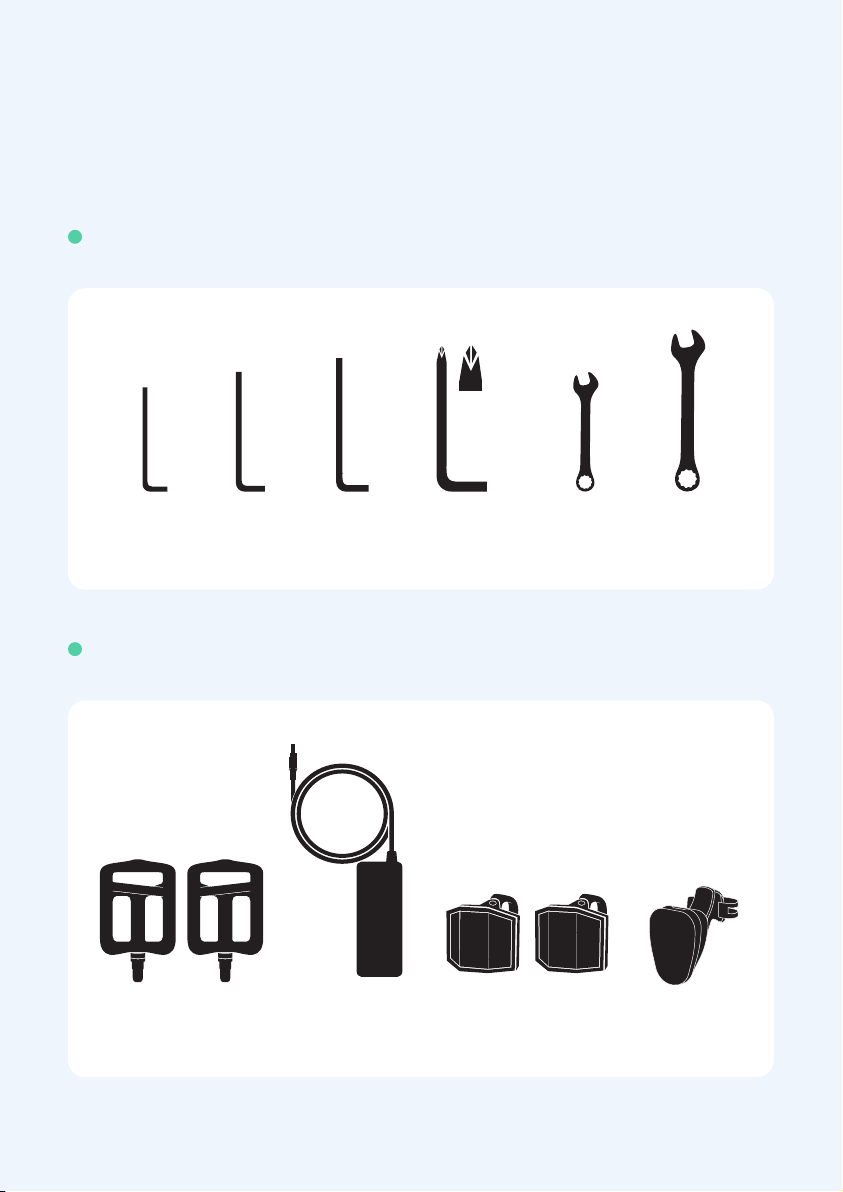

ToolBox checklist
Here is a list of items you can find in the toolbox:
3 mm
Hex Key
4 mm
Hex Key
5 mm
Hex Key
Phillips Head
Screwdriver
10 mm
Wrench
15 mm
Wrench
Front & Rear
reflectors
Charger
LR
Bicycle Pedals
Accessories
Tools
Rear light

8
Fix the kickstand to the frame with the 5mm Hex Key; the torque should be 9Nm-12Nm.
Adjust the length of the kickstand with the 4mm Hex Key (it is recommended to adjust
the length of the kickstand to the maximum); the torque should be 5Nm-7Nm.
Use a 4 mm Hex Key to fix the rear mudguard
supports to both sides of the seat stay.
2. Install the rear mudguard and
kickstand
4 mm Hex Key
4 mm Hex Key
5 mm Hex Key

9
Use the kickstand to support your e-bike during the next installation steps.

Hold the front fork firmly and turn the stem so it faces
forward, and then remove the front attachment with a
4mm Hex Key.
Put the handlebar into the stem slot, adjust the
handlebar so that its center and the slot's center are
aligned, and then use the 4 mm Hex Key to tighten the
screws in a diagonal pattern as shown in the picture
below.
3. Install the handlebar
4 mm Hex Key
10

11

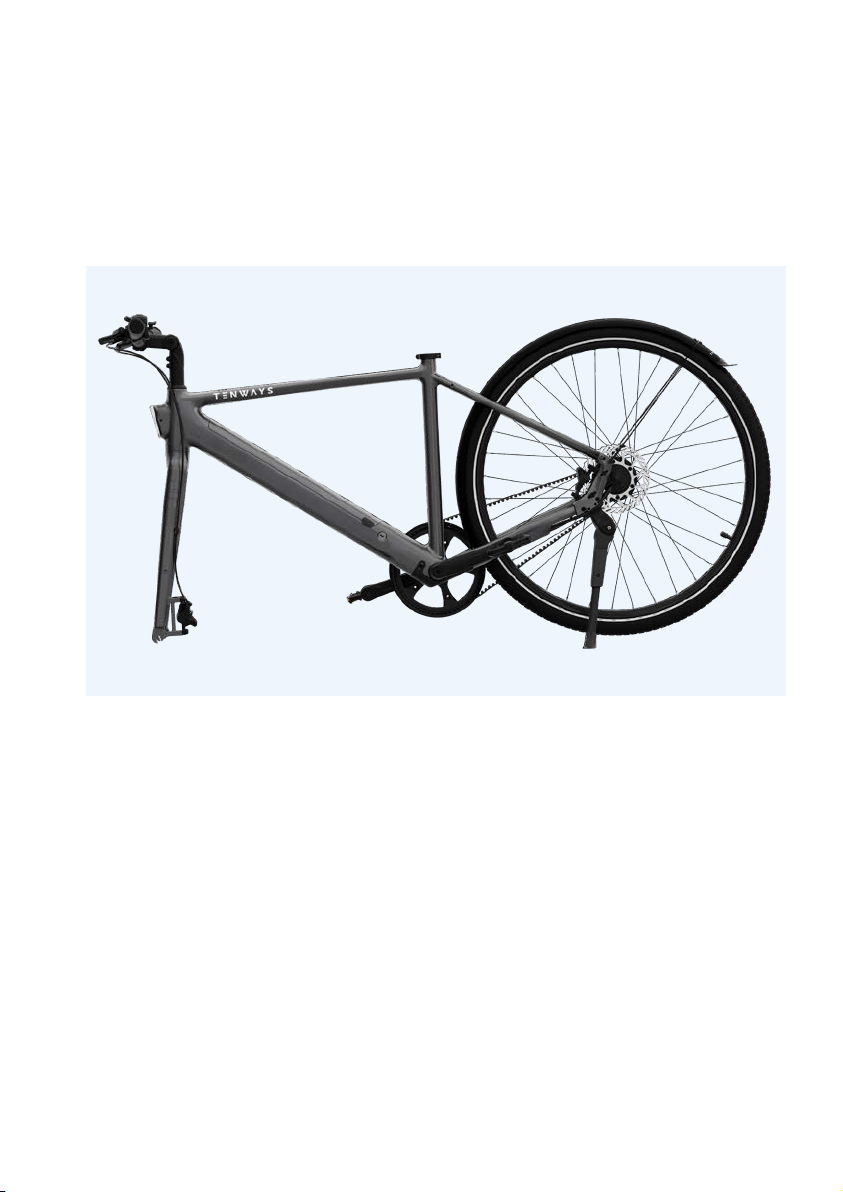

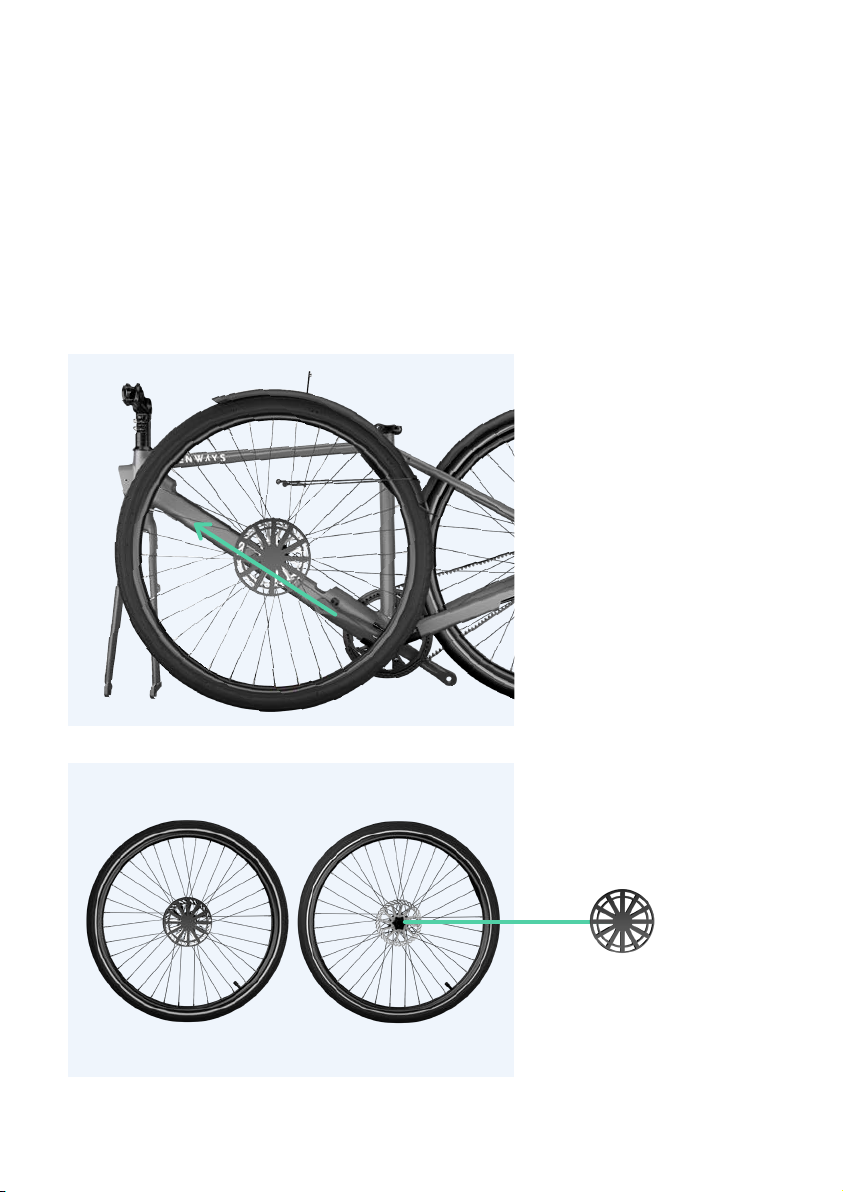

Remove the front wheel from the bundle and then
detach the plastic protective covers on both sides of the
wheel.
Important note
Hold your e-bike with
the kickstand down
to facilitate the next
installation steps.
4. Remove the front wheel
Attention:
You must remove the front wheel in the direction of
the spokes to avoid scratching them.

Loosen the nut and remove the quick release lever.
Remove all wrapping material from the quick release.
5. Pre-install the quick release
Attention
When installing
the quick release
spring, you should
ensure that the
orientation is the
same as when it
was removed.
Install the quick release on the front wheel in the
direction shown in the figure, and then tighten the nut.
12

13
Step 1
Set the quick release lever to the open position, and
then remove the protective sheets from the brake
clamps.

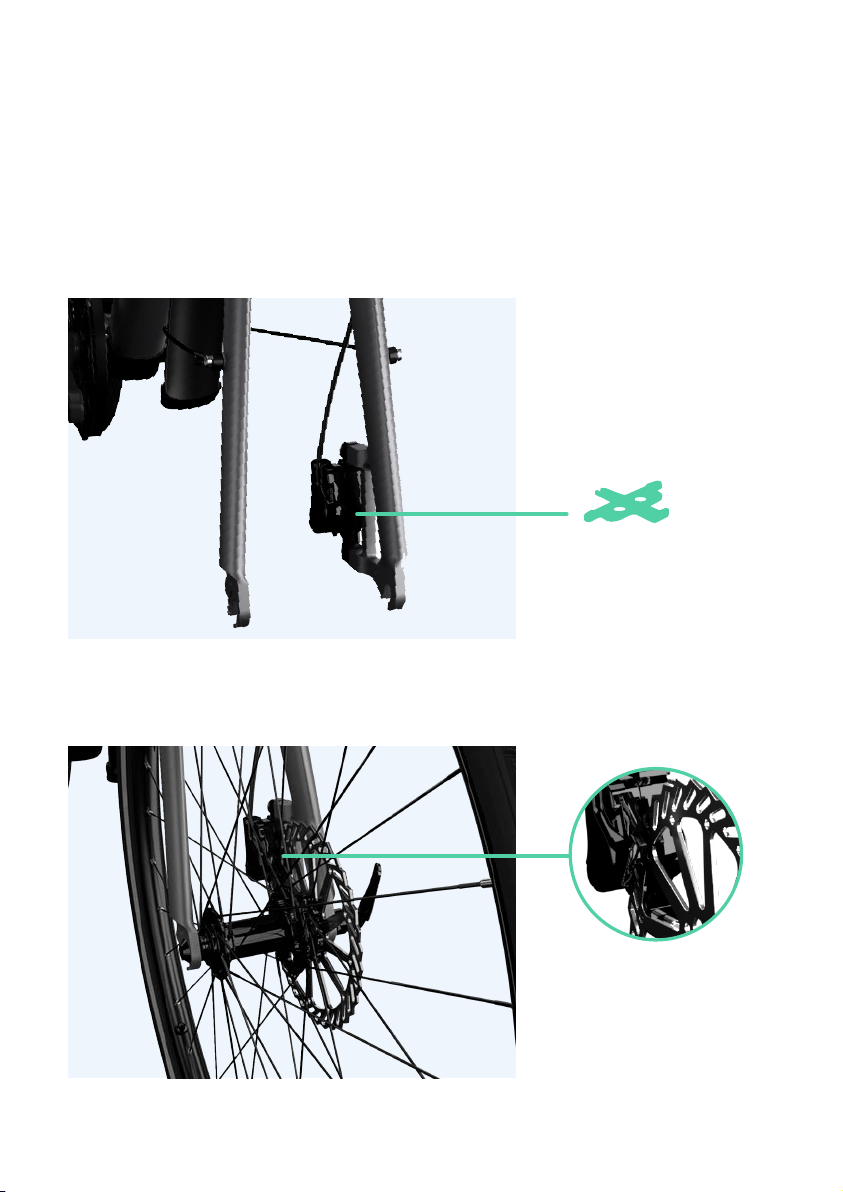

Install the front wheel; make sure that the brake disc is
in the middle of the brake clamps.
6. Install the front wheel
protective sheets

Step 2
Tighten the quick release nut, and then turn it to the
closed position as shown in the figure.
Step 3

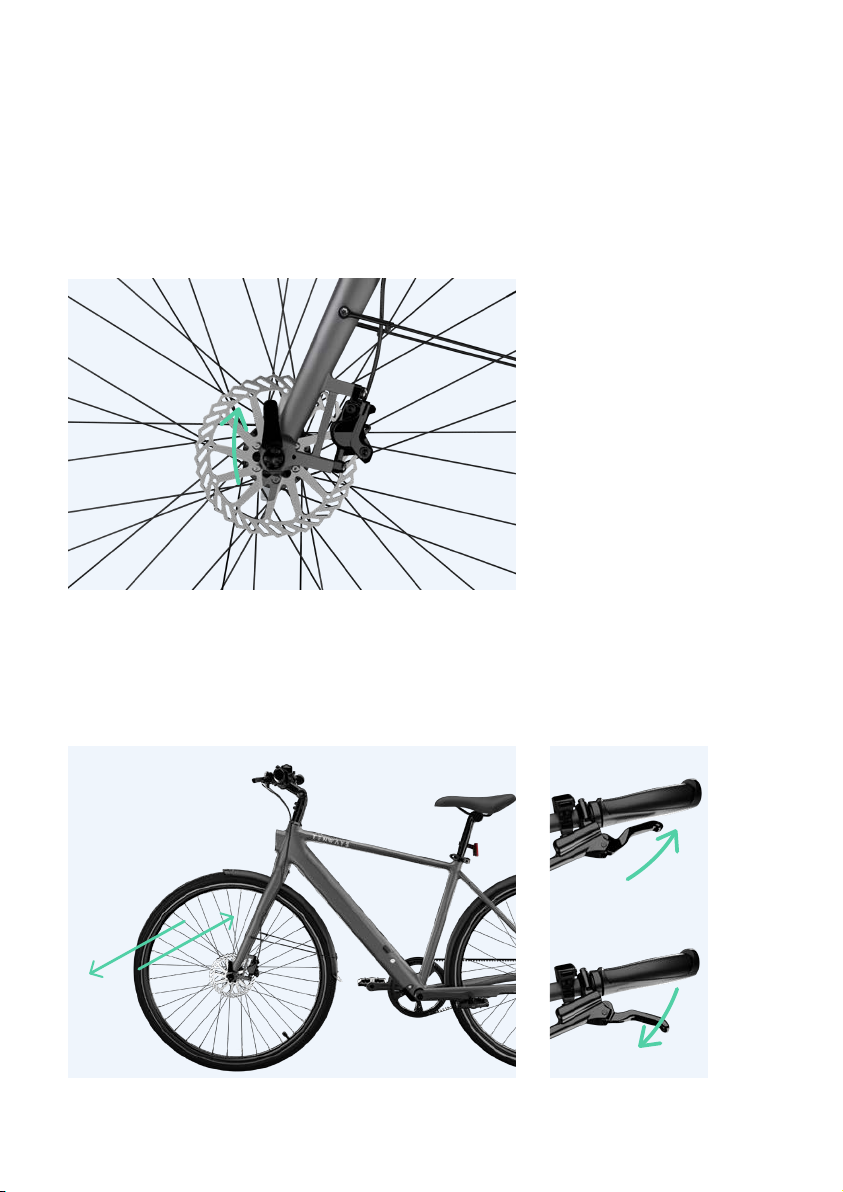

Press the brake and push the bike back and forth to
check if the front wheel wobbles. If so, please repeat
step 2 until you feel enough resistance when closing
the quick release lever.
14

15
Step 4
Turn the front wheel by hand and check if there are any signs of scraping.
Step 5
If yes, please follow the steps below to make adjustments:
1. Use the 5 mm Hex Key to slightly loosen the mounting screws of the brake clamps to
make sure that they can move slightly.
2. Press the front brake 3 to 5 times.
3. Hold the front brake and tighten the mounting screws of the brake clamps.
4. Turn the front wheel by hand and listen for the sound of friction.
5. If there is friction, loosen the mounting screws of the brake clamps.
6. Manually adjust the position of the brake clamps to center the disc, and then re-
tighten the screws.
Attention
As the above steps are very important, please kindly follow them carefully.
5 mm Hex Key
Note
The protective sheet
on the brakes should
be kept for future use.

4 mm Hex Key
3 mm Hex Key
7. Install the front mudguard
Use a phillips screwdriver to pre-lock the
mudguard lugs to the front fork.
Use a 4 mm Hex Key to fix the mudguard
supports to both sides of the front fork.
Adjust the lengths of the left and right mudguard
supports to the appropriate positions, use a 3 mm Hex
Key to lock the supports, and then tighten the pre-lock
screws of the mudguard lugs.
Phillips Head Screwdriver
16

17
8. Install the battery

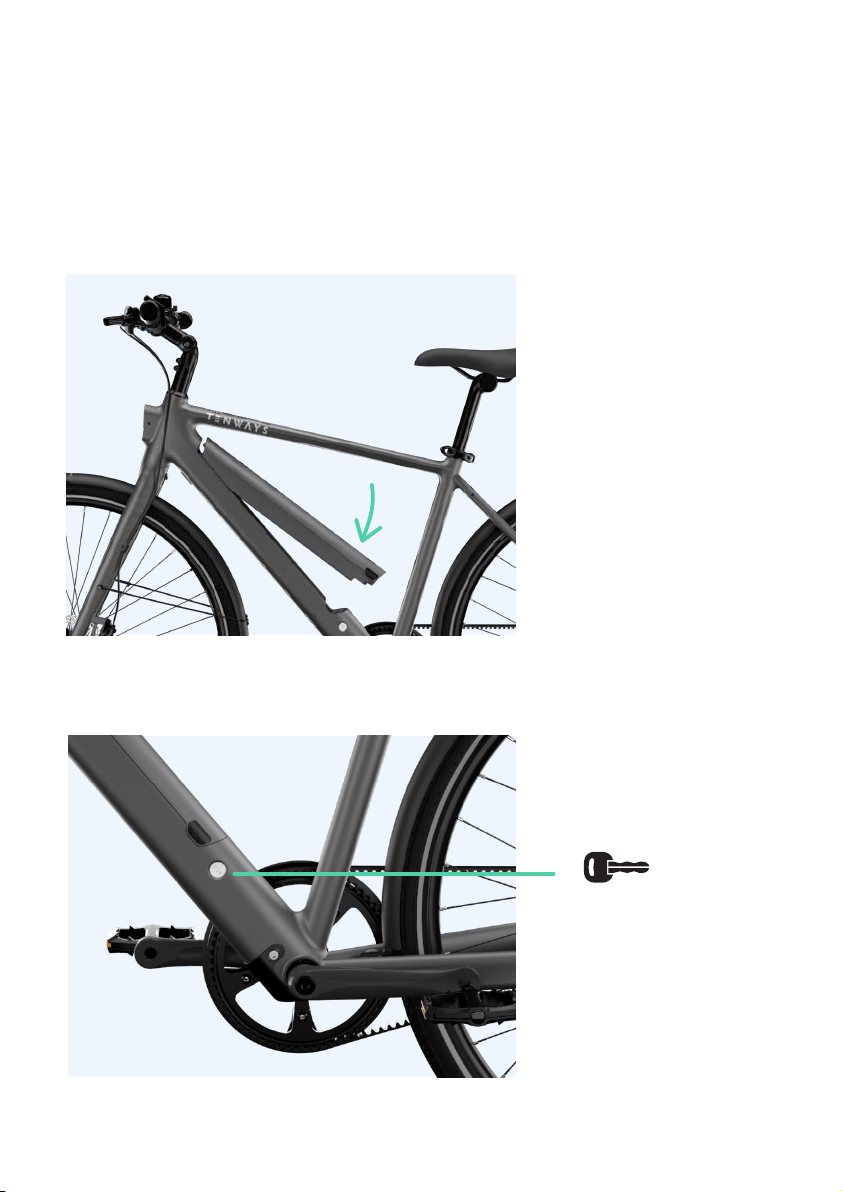

Tilt and clip the upper end of the battery into place slot,
and then press the lower end. You will hear a click when
the battery is firmly seated.
Battery keys

9. Install the pedals
Distinguish between the left and right pedals. The
right and left pedals are marked by an R and an L
respectively. The right pedal is used for the side with the
crankset, while the left one is used for the other side.
Tighten the right pedal clockwise and the left pedal
counterclockwise. Please stop tightening the pedals
if you feel a lot of resistance. If this happens, align and
reinstall the pedals.
15 mm Wrench
Attention
Do not force the installation if you feel a lot of resistance.
Right pedal
Tighten the right pedal
clockwise.
Left pedal
Tighten the left pedal
counterclockwise.
LR
Bicycle Pedals
R L
18

19
10. Adjust the height of the saddle
cushion
Open the seat post clamp, adjust the saddle cushion to
a suitable height, and then lock the clamp.
Attention
The height of the seat
post should not exceed
the marked safety line.
