ASSEMBLE YOUR TENWAYS E-BIKE
INDEX
BIKE USAGE
IMPORTANT REMINDERS
DISPLAY OPERATIONS
Toolbox checklist
Bicycle structure and components
Assembly steps
Display size
Buttons
Operation methods
User menu
Connect to the TENWAYS app
Before your first ride
Routine maintenance
Frame code
Warranty
FAQ
Warnings
01
03
07
23
24
25
30
40
40
43
48
50
51
52

1
2
3

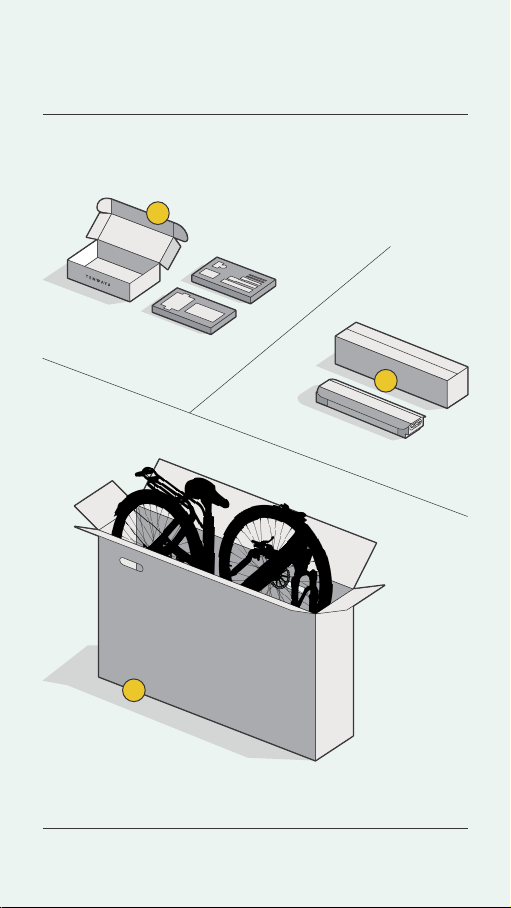

Battery Box
Tool Box
Bike box
001 Toolbox checklist

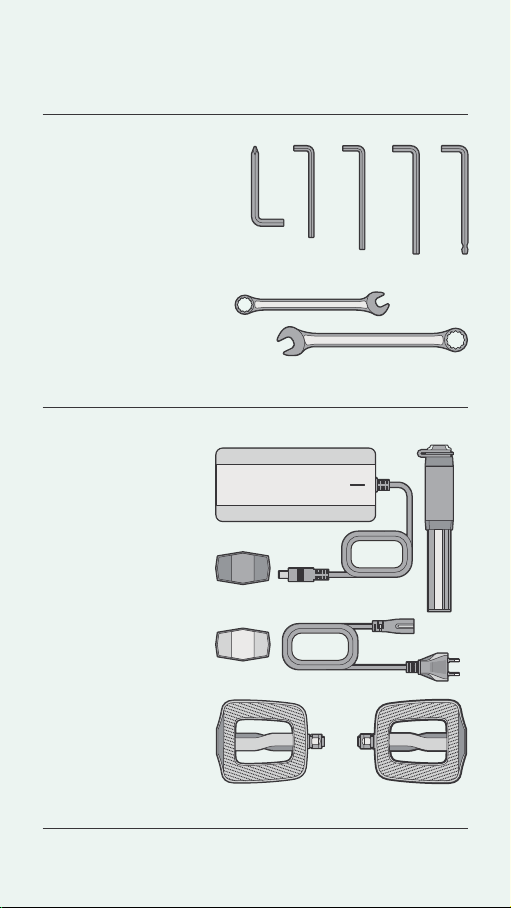

TOOLBOX CHECKLIST

Bicycle Pedals L Bicycle Pedals R
No.3 Hex Key No.5 Hex Key
No.10 Wrench
No.15 Wrench
No.4 Hex Key
No.6 Hex Key Phillips Head Screwdriver
Rear Reflectors
Front Reflectors
Portable Air Pump
Accessories
Charger and adapter
Bicycle Pedal L
Bicycle Pedal R
Portable Air Pump
Front & Rear Reflectors
Tools
No.3 Hex Key
No.4 Hex Key
No.5 Hex Key
No.6 Hex Key
No.10 Wrench
No.15 Wrench
Phillips Head Screwdriver
002 Toolbox checklist
TOOLBOX CHECKLIST

Saddle Handlebar Grip
Seat Post
Headlight
Rear Carrier
Front fork
Battery
Front Mudguard
Rear Light
Brake Disc
Mudguard
Spokes
Pedals
Mudguard support Rim
Internal Gear Hub
Chain
Tire
Crank
Brake Clamps
Front Hub
Mid-drive Motor
Stem
Seat Post Clamp
Brake Lever
Brake Clamps
BICYCLE STRUCTURE AND COMPONENTS
003 Bicycle structure and components

Front Fork
Battery
Front Mudguard
Front Brake Disc
Pedals
Tire
Headlight
Grip
Display
Brake Lever
Stem
Front Attachment
004 Bicycle structure and components
BICYCLE STRUCTURE AND COMPONENTS

ASSEMBLE
YOUR
TENWAYS
E-BIKE
01.
INSTALL THE HANDLEBAR
DETACH THE FRONT WHEEL
02.
INSTALL THE KICKSTAND
03.
005 Assemble your TENWAYS e-bike

INSTALL THE REFLECTORS
10.
ADJUST THE HEIGHT OF THE SADDLE
09.
PRE-INSTALL THE QUICK RELEASE
04.
INSTALL THE FRONT WHEEL
05.
INSTALL THE BATTERY
07.
INSTALL THE PEDALS
08.
INSTALL THE FRONT MUDGUARD
06.
005 Assemble your TENWAYS e-bike

1 2
Tools needed: No.4 Hex Key
01
Hold down the front fork with
one hand and turn the stem to
the front, then remove its front
attachment with No.4 Hex Key.
No.4 Hex Key
007 Assemble your TENWAYS e-bike
01.
INSTALL THE HANDLEBAR

1
2
4
3
02

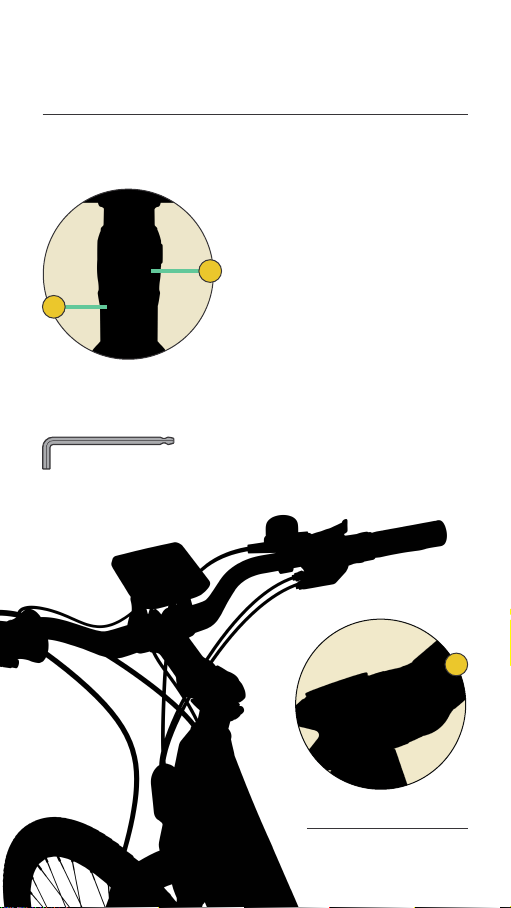

Put the handlebar into the
stem handlebar slot, then
align their centers.
Use the No.4 Hex Key to
tighten the screws in diagonal
order (with 5–6 Nm torque).
Tools needed: No.4 Hex Key
No.4 Hex Key
01.
INSTALL THE HANDLEBAR
008 Assemble your TENWAYS e-bike

3
03
Adjust the direction of the
headset, and use the No.5 Hex
Key to tighten the screws at the
stem and front fork (with 5–6
Nm torque).
04
The height of the handlebar can
be adjusted by with the No.6
Hex Key.
Please remember to tighten
back the bolt after adjustment
(with 20-25 Nm torque).
Tools needed: No.5 Hex Key
and No.6 Hex Key
No.6 Hex Key
2
1
01.
INSTALL THE HANDLEBAR
009

Removable
Plastic Covers

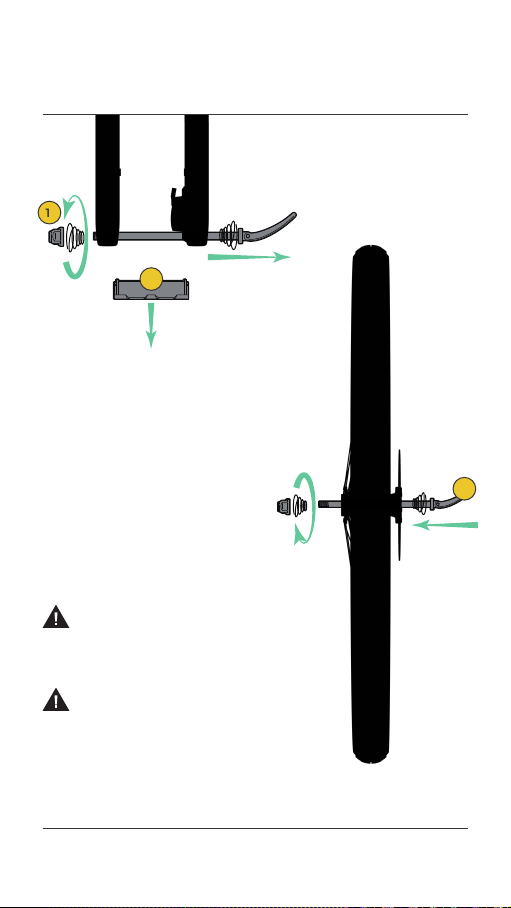

Remove the front wheel and the plastic protective covers
on both sides of the wheel.
Attention:You must remove the front wheel in the
direction of the spokes to avoid scratching them.
02.
DETACH THE FRONT WHEEL
010 Assemble your TENWAYS e-bike

2
1
No.4 Hex Key
01

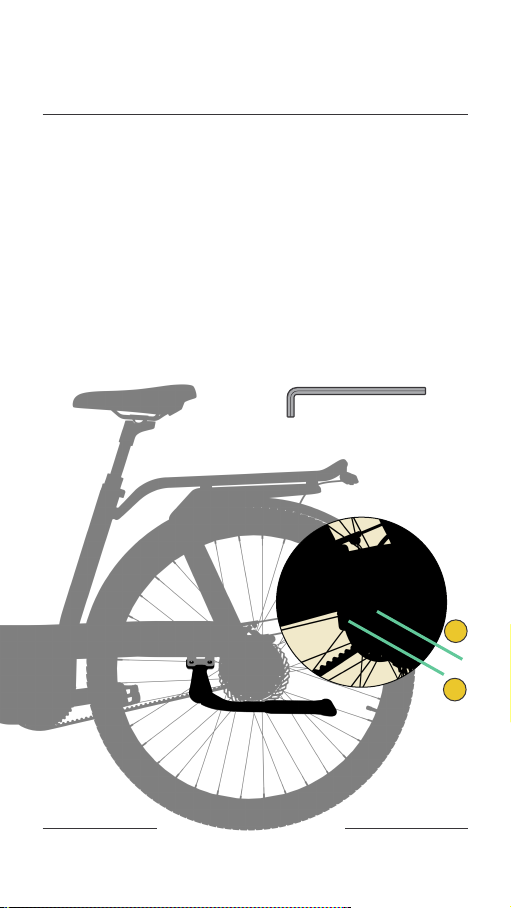

Use the No.5 Hex Key to fix the kickstand on the frame
(torque: 9 -12 Nm)
Tools needed:
No.4 and No.5 Hex Keys
02
Use the No.4 Hex Key to adjust the kickstand length - we
recommend adjusting the length to the longest setting
(torque: 5 - 7 Nm)
03
Position your e-bike with the kickstand to facilitate the next
installation steps.
03.
INSTALL THE KICKSTAND
011 Assemble your TENWAYS e-bike

3
1
2
01
Loosen the nut and remove the
quick release lever.
02
Remove all wrapping material
from the quick release.
03
Install the quick release on the
front wheel in the direction
shown in the figure, and then
tighten the nut.
Note: There is no need for you to
fully tighten the nut at this time.
Note:
When installing the quick
release spring, ensure that the
direction is the same as when it
was removed.
012 Assemble your TENWAYS e-bike
04.
PRE-INSTALL THE QUICK RELEASE

2
01
Set the quick release lever to the
open position and remove the
protective sheets from the brake
clamps. Guide the front fork to the
front wheel.
Make sure that the front wheel is
centered, and the brake disc is in the
middle of the brake clamps.
1
05.
INSTALL THE FRONT WHEEL
013 Assemble your TENWAYS e-bike

02
Tighten the quick release nut,
and then turn the quick release
lever to the closed position as
shown in the figure.
03
Push the bike back and forth and
press the brake to check if the
front wheel wobbles. If so, please
repeat step 2 until you feel enough
resistance when closing the quick
release lever.
04
Turn the front wheel by hand
and check if there are any signs
of scraping.
05.
INSTALL THE FRONT WHEEL
014 Assemble your TENWAYS e-bike

▪Use the No.5 Hex Key to slightly loosen the mounting screws of
the brake clamps so that they can move slightly.
▪Press the front brake 3 to 5 times.
▪Hold the front brake lever and tighten the mounting screws of
the brake clamps.
05
If scraping occurs, follow the steps below to make adjustments:
▪Turn the front wheel by hand and check for the sound of friction.
▪If you hear friction, loosen the mounting screws of the brake
clamps.
No.5 Hex Key
05.
INSTALL THE FRONT WHEEL
015 Assemble your TENWAYS e-bike

▪Use the No.5 Hex Key to slightly loosen the mounting screws of
the brake clamps so that they can move slightly.
▪Press the front brake 3 to 5 times.
▪Hold the front brake lever and tighten the mounting screws of
the brake clamps.
No.5 Hex Key
▪Turn the front wheel by hand and check for the sound of friction.
▪If you hear friction, loosen the mounting screws of the brake
clamps.
Note: This step is very important. Please follow the instructions
carefully. (Keep the protective sheets from the brakes for future
use.)
01
Adjust the distance between the mudguard and the tire, then
use the No.5 Hex Key to fix the mudguard lug to the front fork.
The torque should be 8-10 Nm.
Tools needed: No.4 and
No.5 Hex Keys
05.
BAUEN SIE DAS VORDERRAD EIN
06.
INSTALL THE FRONT MUDGUARD
016 Assemble your TENWAYS e-bike

02
Use the No.4 Hex Key to fix themudguard
supports. The torque should be 3-4 Nm.
Tools needed: No.4 and
No.5 Hex Keys
Side View
No.4 Hex Key
Front View
06.
INSTALL THE FRONT MUDGUARD
017 Assemble your TENWAYS e-bike
