1 MXC1347B
RATED CAPACITY MANUAL
MODEL MAC 25
16.6t REAR AXLE WEIGHT
BOOK PART NUMBER MXC1347B

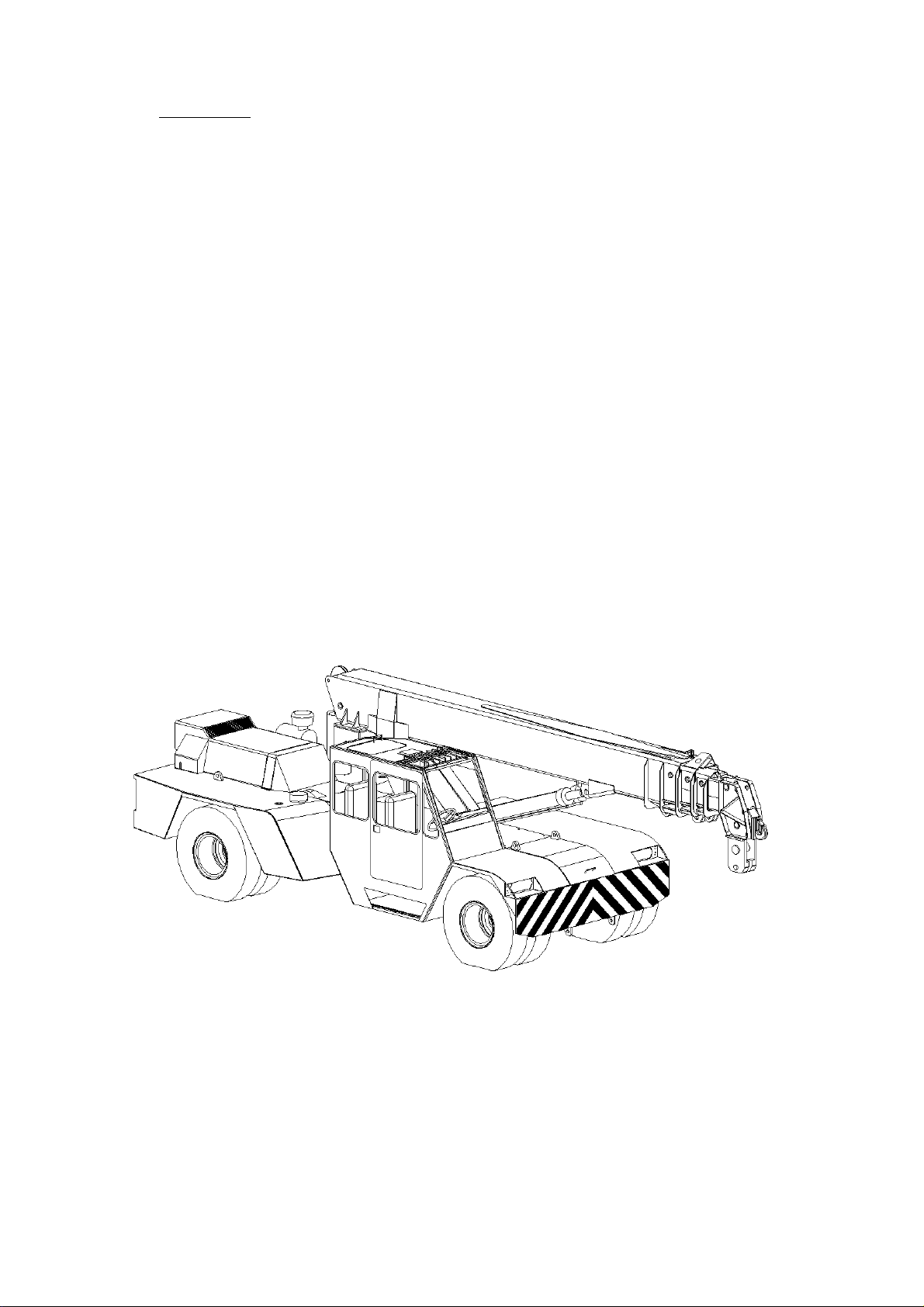

HYDRAULIC ALL TERRAIN PICK &
CARRY CRANE
25 TONNE MAXIMUM RATED CAPACITY
Do not operate this crane unless you have read and
understood the information in this book.

MXC1347B
RATED CAPACITY MANUAL
MAC 25 (STANDARD 1500kg COUNTERWEIGHT + EXTRA
2160kg COUNTERWEIGHT)
ALL PAGES LISTED MUST BE INCLUDED IN THIS BOOK.
SECTION 1 - WARNINGS.......................................................................................3
DEFINITIONS ..................................................................................................................................... 4
OPERATION ON SIDE SLOPES ....................................................................................................... 8
SIDE SLOPE DERATION CHART..................................................................................................... 9
SECTION 2 - OPERATIONS.................................................................................11

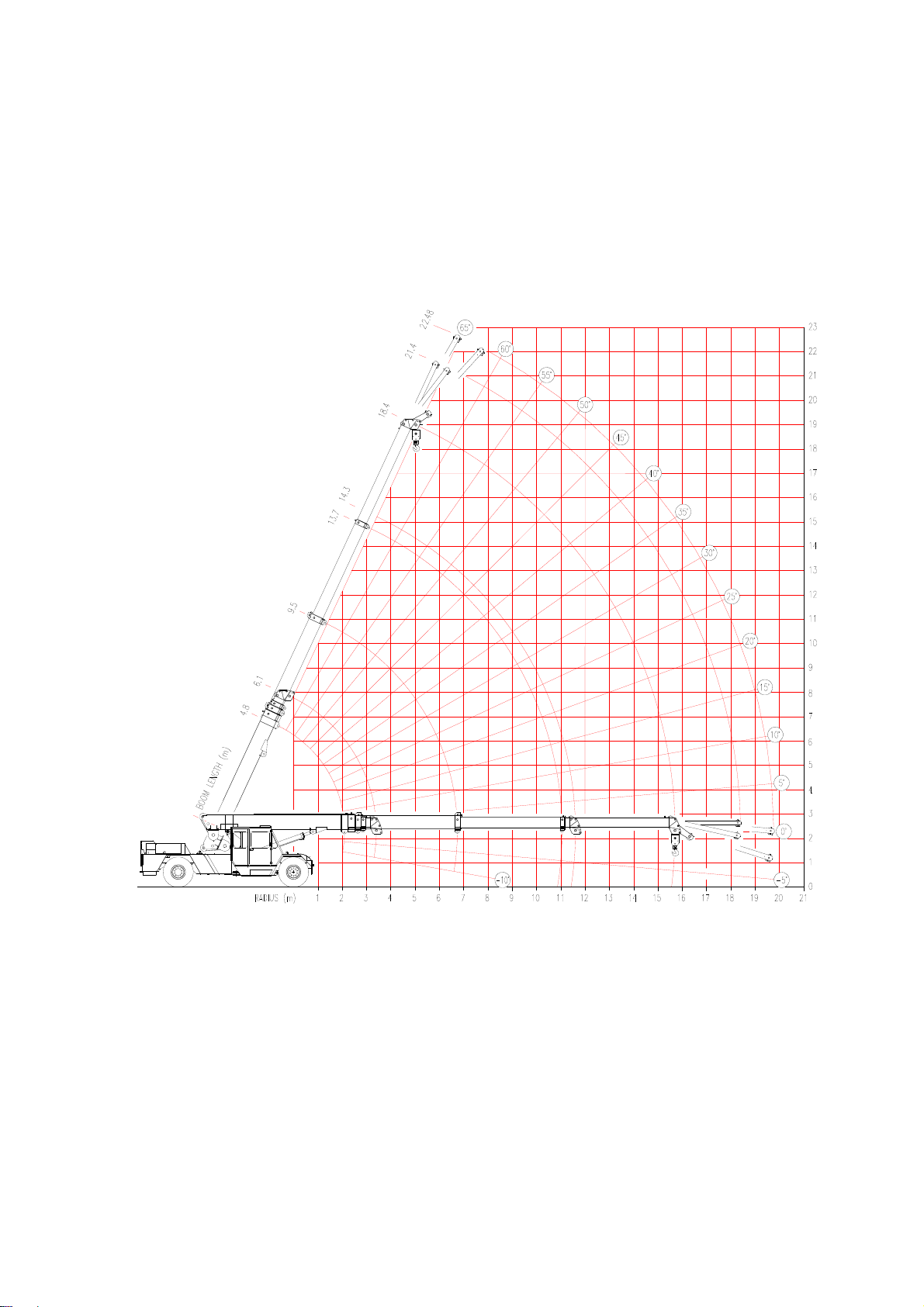

RANGE DIAGRAM........................................................................................................................... 11
WORKING AREA DIAGRAM........................................................................................................... 11
DETACHABLE COUNTERWEIGHT................................................................................................ 12
ATTACHMENT MASSES................................................................................................................. 12
HOOK BLOCK RATED CAPACITY................................................................................................. 12
ROPE SPECIFICATIONS................................................................................................................. 13
TYRE SPECIFICATIONS ................................................................................................................. 13
TYRE INFLATION ............................................................................................................................ 13

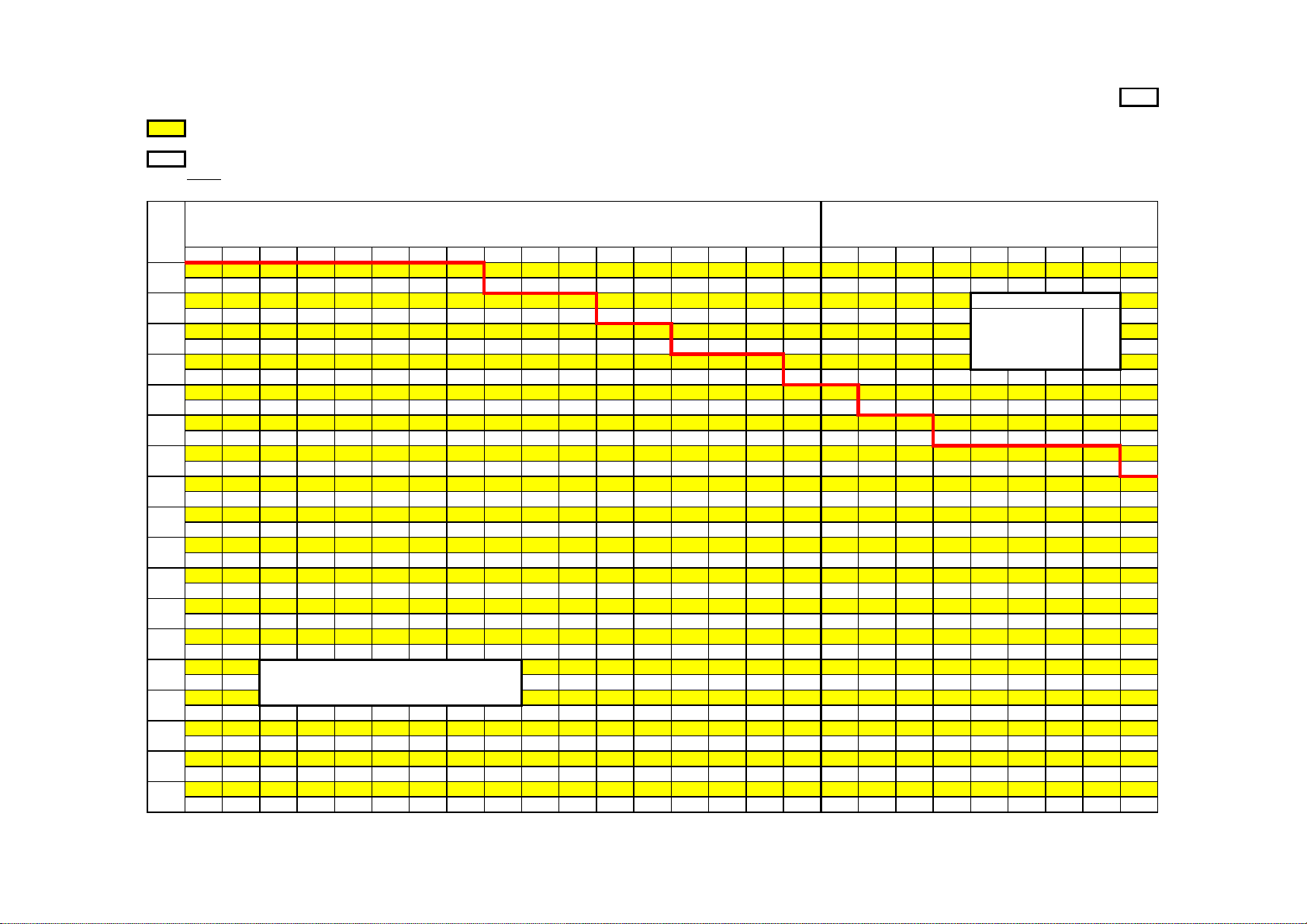

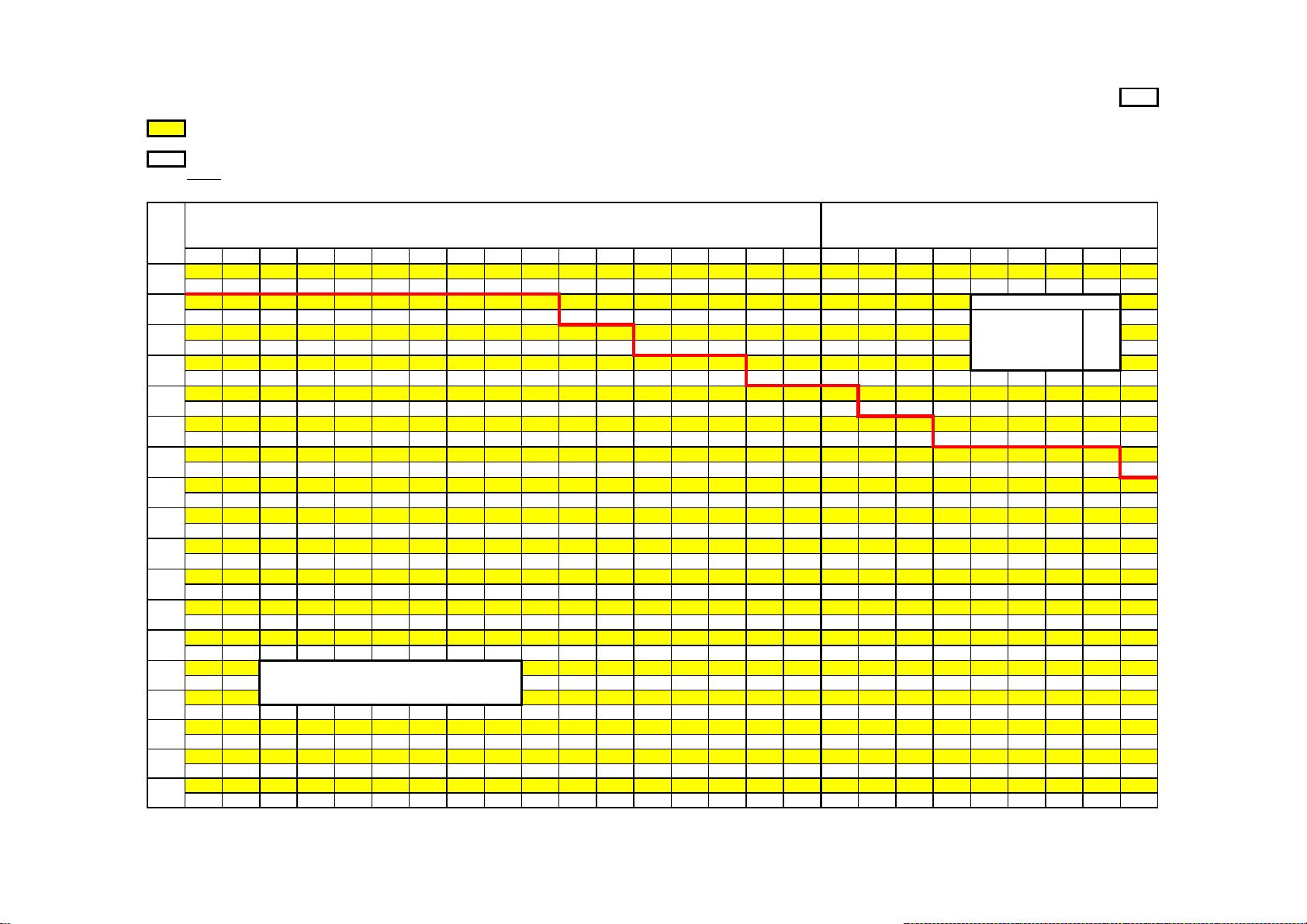

SECTION 3 – LIFTING CAPACITY.......................................................................14
RANGE DIAGRAM........................................................................................................................... 14
LOAD MOMENT INDICATOR DUTIES............................................................................................ 15
1500 kg COUNTERWEIGHT ON FRONT.................................................................................... 15
1500 kg COUNTERWEIGHT ON REAR...................................................................................... 15
1500+2160 kg COUNTERWEIGHT ON REAR............................................................................ 15
2 MXC1347B

SECTION 1 - WARNINGS
IMPROPER CRANE USE, CARE OR OPERATION CAN
CAUSE INJURY, DEATH OR PROPERTY DAMAGE.
DO NOT OPERATE THIS MACHINE UNLESS YOU HAVE
READ AND UNDERSTAND THE OPERATOR’S MANUAL
AND CRANE RATED CAPACITY MANUAL.
COPIES OF OPERATOR’S MANUALS AND CRANE RATED CAPACITY MANUAL
MAY BE OBTAINED FROM:
WRITTEN AUTHORISATION IS REQUIRED FROM TEREX LIFTING AUSTRALIA PTY
LTD PRIOR TO THE USE OF ANY ATTACHMENT NOT SPECIFIED IN THE MANUAL.
3 MXC1347B

DEFINITIONS
Articulation – The crane pivots in the middle to allow steering and slewing of the
load. Working Areas for the purpose of determining Rated Capacity are less than
10Articulation, and greater than 10Articulation, in either direction, from straight
ahead. Up to 40Articulation is possible in either direction. See Working Area
diagram
Deration – A decrease in the Rated Capacity due to external influences,
expressed as a percentage.
Freely Suspended Load – Load hanging free with no direct external force applied
except by the winch rope.
Load Radius – Horizontal distance from the centre of the front wheels forwards to
the centre of the winch rope or tackle with load applied. “Radius” on Rated
Capacity charts refers to the Load Radius in metres.
Loaded Boom Angle – This is given to assist in setting up the crane only. It gives
only an approximation of the Load Radius for a specified boom length. No
allowance is made for boom or tyre deflection. “Boom Angle” on Rated Capacity
charts refers to the Loaded Boom Angle in degrees.
Load Moment Indicator (LMI) - A system which indicates, visually and audibly, to
the operator when the Rated Capacity is approached and reached.
Rated Capacity (RC) – The total Freely Suspended Load, including the mass of
material and load handling equipment, that the machine can safely lift under ideal
conditions at a given boom length and Load Radius.
Side Load – Any external force applied either to the boom or load in a horizontal
direction.
Work Areas – Area measured in an arc about the centre pivot as shown on the
Working Area diagram. The “Articulation (green/amber)” icon on the LMI indicates
which zone the crane is in. Green indicates less than 10Articulation. Amber
indicates greater than 10Articulation.
4 MXC1347B

SPECIAL PRECAUTIONS FOR ARTICULATED CRANES
THERE IS A POTENTIAL FOR CRUSHING BETWEEN FRONT AND REAR
CHASSIS WHEN THE MACHINE ARTICULATES. NEVER STAND IN THE
PIVOT AREA WHEN THE ENGINE IS RUNNING OR EMERGENCY STEERING
PUMP IS OPERATING. ALWAYS REMOVE THE KEY FROM THE IGNITION
BEFORE WORKING IN THE PIVOT AREA.
DO NOT LEAVE IGNITION KEY SWITCHED ON WITH ENGINE STOPPED AND
PARK BRAKE OFF, AS EMERGENCY HYDRAULIC STEERING PUMP WILL
ACTIVATE.
GENERAL
1. This machine has been designed to meet the requirements of AS1418.1 &
1418.5 and has been tested in accordance with these standards for pick and
carry operation on tyres.
2. Rated Capacities shown are for this machine as originally manufactured by
Terex Lifting Australia Pty Ltd. The Rated Capacities only apply when all
the instructions in this book are rigidly followed. Modifications to this
machine or use of equipment other than that specified can result in a
reduction in Rated Capacity.
3. If improperly operated or maintained, this machine can be hazardous.
Operation and maintenance of this machine must be in compliance with the
information documented in the operators, service and parts manuals
furnished. If these manuals are missing, obtain replacements through
Terex Lifting Australia Pty Ltd or their agents.
4. This machine is classified C3.
SET-UP
1. Reduced crane Rated Capacities for the particular job shall be established,
by the operator, with due allowance for adverse operating conditions.
These conditions include the supporting surface, pendulum action of the
load, jerking or sudden stops of the load and other factors affecting stability,
two machine lifts, electrical wires, adverse weather, wind, hazardous
surroundings, experience of personnel, etc.
2. Rated Capacity is based on Freely Suspended Loads with the machine on a
firm, level (max. 1% slope / 0.6) and uniform surface. Lifting, or travelling
with a load, on soft or uneven ground can be hazardous and will reduce the
Rated Capacity of the crane. Refer to the “OPERATION ON SIDE
SLOPES” in this manual. No attempt shall be made to drag the load along
the ground in any direction.
3. Wind forces on the boom, resulting from winds up to 10 m/s (36 km/h), are
incorporated in the Rated Capacity. Any additional Side Loading due to wind
forces on the load will reduce the Rated Capacity, and must be considered.
5 MXC1347B

4. Rated Capacities above the red line are based on the machine’s hydraulic
or structural competence and not on machine stability. Rated Capacities
below the red line are based on machine stability.
5. Rated Capacities include the mass of hooks, blocks, slings and auxiliary
lifting devices. Their mass must be subtracted, from the listed Rated
Capacity, to determine the equivalent net load.
6. Loaded Boom Angles at specified boom lengths give only an approximation
of the Load Radius. The Boom Angle before loading should be greater to
account for boom deflection increasing the Load Radius as the load is lifted.
OPERATION
1. Read and understand all warnings and instructional notes.
2. Do not tip the machine to determine allowable lifting capacities.
3. Loads may be lifted from the main boom head on the winch, the rhino hook,
the fixed lug, or either of the two sliding lugs on the boom. A flyjib is also
available to extend the maximum boom length and a manbasket can be
pinned to the head of the boom. Always use the correct Rated Capacity
chart for the lifting point in use and ensure the LMI is set to the correct duty.
Written authorisation from Terex Lifting Australia Pty Ltd is required prior to
the use of any attachment not specified in the manual.
4. Lifting from more than one lifting point simultaneously is neither intended nor
approved.
5. Handling of personnel from the boom is neither intended nor approved,
except in a Terex Lifting Australia supplied manbasket, correctly installed on
the head of the boom, or other approved arrangement.
6. When either the boom length or Load Radius or both are between values
listed, the smallest load shown at either the next larger Load Radius or
boom length shall be used, or the interpolated value shown on the LMI may
be used.
7. Side Loading of the machine and load swing out may cause structural failure
or machine tip-over. Side Loads may be generated by: lifting when not
level; sudden acceleration or deceleration in Articulating with a load;
dragging a load; pushing a load; wind forces on load and boom structure
and unstable ground.
8. It is safe to attempt to telescope any load within the limits of the Rated
Capacity Manual. The maximum load that may be telescoped is limited by
hydraulic pressure, Loaded Boom Angle and powered boom sections
lubrication.
6 MXC1347B

9. The winch rope is fully compensated for boom extension. The only
exception is when the third extension is being used. Refer to the operator’s
manual for information on the use of the third extension.
10.Do not allow the winch rope to unwind fully. Always ensure a minimum of
2 wraps of rope remain on the winch drum. Note the areas on the range
diagram where the fall block cannot reach the ground on 6 parts of rope.
11.Rated Capacity depends on tyre rating, tyre condition and tyre inflation
pressure. All tyres must be in good condition and must be inflated to the
recommended pressure before attempting a lift.
12.Pick & carry operation is permitted through the full Articulation range,
however, Rated Capacity is reduced above 10Articulation. Use the
reduced capacities in the rated capacity chart if entering this Articulation
zone during the operation.
13.The maximum speed for pick & carry operation is 0.4m/s (1.44km/h). The
transfer case shall be set to low range.
14.Operation of this crane in excess of the Rated Capacity and disregard of the
instructions is hazardous.
7 MXC1347B

OPERATION ON SIDE SLOPES
Mobile Cranes are primarily designed to be used on firm, flat, level ground (to
within 1% gradient), according to AS 1418.5, any deviation from this requires that
the Rated Capacity shall be reduced accordingly. As per AS 2550.5 – negotiation
of slopes by mobile cranes travelling with Freely Suspended Loads should be
avoided. The following precautions should be taken when operating on side slopes
of up to 5(8.75% gradient) – REMEMBER surface depressions and potholes will
create the same effect as a side slope.
Ensure the tyres are correctly INFLATED as per the rated capacity manual.
Ensure the ground condition is FIRM enough to support the axle loads.
REDUCE the Rated Capacity of the crane by the percentage value for the crane as
shown in figure 1 for operating on side slopes up to 5(8.75% gradient) -
REMEMBER the crane’s load moment indicator will NOT automatically derate the
Rated Capacity.
Use the crane’s side slope inclinometer as a guide only, it is most accurate when
the crane’s Articulation is straight ahead without suspending a load. All Articulated
chassis cranes will show some degree of side tilt, when Articulated with a load –
this should not be confused with the ground’s side slope.
Use the MINIMUM boom length and Loaded Boom Angle practical to keep the
boom tip as close to the ground as possible.
Keep the load as CLOSE to the ground as possible.
Use the MINIMUM Articulation angle practical - REMEMBER the crane will side tilt
and hence the hook will move towards the direction of Articulation whilst steering.
Keep the load on the UPHILL side of the crane where possible, especially when
Articulated – REMEMBER the working Load Radius will increase if the load is
suspended in the downhill position.
Load swing greatly reduces stability – REMEMBER to tagline loads to prevent
pendulum motion of the load. Travel and crane motions should be applied gently
to minimise this effect.
Sudden acceleration or deceleration of suspended load can also reduce stability –
REMEMBER to travel gently to reduce load swing.
8 MXC1347B

SIDE SLOPE DERATION CHART
Siid
Figure 1: Percentage Deration Chart for MAC 25 at 5Side Slope
NOTE
1. Percentage deration chart is based on 66.6% stability as per AS 1418.5 with
the crane on a firm side slope of 5(8.75% Gradient).
2. The percentage deration is dependent upon the location of the lifting point
on the boom.
3. The percentage deration should be applied to the Rated Capacity as read
off the Rated Capacity chart for the applicable boom length, Loaded Boom
Angle, Load Radius, Articulation Angle and Counterweight Position. See
over page for an example.
9 MXC1347B

10 MXC1347B
Example (For MAC 25 Crane, Rated Capacity manual MXC1347B): See
Percentage Deration Chart for
Lifting condition:-
Boom Length: 15.0 m
Loaded Boom Angle: 45
Load Radius: 8.0 m
Articulation Angle: Greater than 10
Counterweight: Fitted on rear of crane
RC (Level ground): 3700 kg (From Load Chart MXC1268A, for
above lifting conditions)
Percentage Deration: 40 % (From Figure 1: Percentage Deration
Chart)
RC (5Slide Slope) = RC (as per Rated Capacity chart) – Percentage Deration
x RC (as per Rated Capacity chart) / 100 %
= 3700 kg – 40% x 3700 kg / 100%
= 2220 kg

SECTION 2 - OPERATIONS
RANGE DIAGRAM
WORKING AREA DIAGRAM
11 MXC1347B

DETACHABLE COUNTERWEIGHT
WEIGHT: 1500kg
TO BE FRONT MOUNTED FOR ROAD TRAVEL
PART NO: PLMXF2034
EXTRA COUNTERWEIGHT: 2160kg
NOT TO BE FITTED FOR ROAD TRAVEL
PART NO: PLMXF2019
ATTACHMENT MASSES
FOUR/SIX PART FALL BLOCK PLMXA3018 180 kg
FOUR/SIX PART FALL BLOCK PLMXA3033 230 kg
25 T HOOK PP2087500 20 kg
9 T HOOK PP2190200 10 kg
SINGLE PART HOOK BLOCK PL16M2090 30 kg
RHINO HOOK PLMXF3015 25 kg
12 METRIC TONNE SPREADER BAR PL16A3035 94 kg
15 METRIC TONNE SPREADER BAR PL15A8023 107 kg
NOTE: THESE MASSES APPLY ONLY TO TEREX LIFTING AUSTRALIA PTY
LTD SUPPLIED EQUIPMENT.
HOOK BLOCK RATED CAPACITY
Number of Parts of
Rope Permissible HOOK BLOCK RC (kg)
1 4 200
2 8 400
4 16 800
6 25 000
12 MXC1347B

13 MXC1347B
ROPE SPECIFICATIONS
WIRE ROPE:
14mm
35W x 7 NR 2070 MPa
MINIMUM BREAKING FORCE 165 kN
MACHINE SPLICE & THIMBLE EYE ONE END ONLY
LENGTH - 110m
RETRACT ROPE:
11mm
6 x 25 WRC G2070
MINIMUM BREAKING FORCE 82.4kN
EXTENSION CHAIN:
BL1066 LEAF CHAIN
MINIMUM BREAKING FORCE 40 000 KGF
TYRE SPECIFICATIONS
Type Condition Speed Load Rating
Pick & Carry
<1.44 km/h 10500 kg per tyre at
830 kPa (120 psi)
(dual fitment)
14.00 x 20
Dual Tyres
Highway
80 km/h 3050 kg per tyre at
620 kPa (90 psi)
(dual fitment)
TYRE INFLATION
Inflation Pressure
Type Position Pick & Carry Highway Travel
Front 830 kPa (120 psi)
(Max RC 25 tonne) 830 kPa (120 psi)
14.00 x 20
Dual Tyres
Rear 620 kPa (90 psi) 620 kPa (90 psi)

SECTION 3 – LIFTING CAPACITY
RANGE DIAGRAM
CONDITIONS:
FRONT SPRING LOCKOUTS TO BE ENGAGED FOR ALL LIFTING AND PICK
AND CARRY OPERATIONS.
14 MXC1347B

15 MXC1347B
LOAD MOMENT INDICATOR DUTIES
1500 kg COUNTERWEIGHT ON FRONT
DUTY DESCRIPTION
101 FALL BLOCK
102 RHINO HOOK
103 OFFSET HEAD – BOTTOM POSITION
104 OFFSET HEAD – TOP POSITION
105 3M FLYJIB –TOP POSITION - 0º OFFSET
106 3M FLYJIB –TOP POSITION – 12.5º OFFSET
107 4M FLYJIB – TOP POSITION - 5º OFFSET
108 4M FLYJIB – BOTTOM POSITION – 17.5º OFFSET
109 MAN BASKET
110 BUTT LUG
111 LUG 1 – BOOM 1
112 LUG 2 – BOOM 2
1500 kg COUNTERWEIGHT ON REAR
DUTY DESCRIPTION
201 FALL BLOCK
202 RHINO HOOK
203 OFFSET HEAD – BOTTOM POSITION
204 OFFSET HEAD – TOP POSITION
205 3M FLYJIB –TOP POSITION - 0º OFFSET
206 3M FLYJIB –TOP POSITION – 12.5º OFFSET
207 4M FLYJIB – TOP POSITION - 5º OFFSET
208 4M FLYJIB – BOTTOM POSITION – 17.5º OFFSET
209 MAN BASKET
210 BUTT LUG
211 LUG 1 – BOOM 1
212 LUG 2 – BOOM 2
1500+2160 kg COUNTERWEIGHT ON REAR
DUTY DESCRIPTION
301 FALL BLOCK
302 RHINO HOOK
303 OFFSET HEAD – BOTTOM POSITION
304 OFFSET HEAD – TOP POSITION
305 3M FLYJIB –TOP POSITION - 0º OFFSET
306 3M FLYJIB –TOP POSITION – 12.5º OFFSET
307 4M FLYJIB – TOP POSITION - 5º OFFSET
308 4M FLYJIB – BOTTOM POSITION – 17.5º OFFSET
309 MAN BASKET
310 BUTT LUG
311 LUG 1 – BOOM 1
312 LUG 2 – BOOM 2

MAC-25 FALL BLOCK LOAD CHART - 10 DEG. ART
.
LMI DUT
Y
101
COUNTERWEIGHT ON FRONT OF CRANE - SPRING LOCKOUTS ENGAGED S.W.L. ARE BASED ON 66.7% STABILITY & STRENGTH
S.W.L IN KILOGRAMS FOR SLEW ANGLES OF 10 DEGREES OR LESS EITHER - S.W.L. ABOVE BOLD RED LINE ARE STRUCTURAL
SIDE OF STRAIGHT AHEAD (INDICATED BY GREEN LED ON DASH). S.W.L. ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.) WITH TYRES INFLATED AS PER NOTES
NOTE : VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE. LIFT & CARRY - THE S.W.L. SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 M/SEC (1.44 KM/HR)
Radius BOOM PIVOT TO HEAD SHEAVES - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.12 6.50 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.32 14.50 15.00 15.50 16.00 16.50 17.00 17.50 18.00 18.42
1.4 23900 23850 23750 23800 23800 23750 23750 23750
48 51 54 57 59 61 63 65
2.0 19950 19900 19850 19800 19750 19750 19700 19650 19650 19600 19300 WINCH S.W.L.
40 44 48 51 54 57 59 61 62 64 65 SINGLE PART 4200
2.5 15700 15650 15600 15600 15550 15500 15500 15450 15450 15400 15400 15350 14600 TWO PARTS 8400
32 37 42 46 50 52 55 57 59 61 62 63 65 FOUR PARTS 16800
3.0 12800 12800 12800 12750 12700 12700 12650 12650 12600 12600 12600 12550 12550 12550 12500 12250 SIX PARTS 25000
21 29 35 41 45 48 51 53 55 57 59 61 62 63 64 65
3.5 11050 10750 10750 10750 10700 10700 10650 10650 10600 10600 10600 10550 10550 10550 10500 10500 10500 10500
(3.4) 17 28 34 39 43 47 49 52 54 56 58 59 61 62 63 65 65
4.0 9750 9200 9200 9200 9150 9150 9150 9100 9100 9100 9050 9050 9050 9050 9000 9000 9000 9050 9100
(3.8) 17 27 33 38 42 45 48 51 53 55 56 58 59 61 62 63 64 65
5.0 8450 7400 7050 7050 7050 7000 7000 7000 6950 6950 6950 6950 6950 6900 6900 6900 6950 7000 7050 7100 7100 7150 7200
(4.3) (4.8) 16 25 31 36 40 43 46 48 50 52 54 56 58 58 59 61 62 63 63 64 65
6.0 6550 5850 5600 5600 5600 5600 5550 5550 5550 5550 5550 5500 5500 5500 5550 5600 5650 5700 5700 5750 5750 5800
(5.3) (5.8) 15 24 30 34 38 41 44 46 48 50 53 53 55 56 57 58 60 61 61 62
7.0 5250 4750 4550 4550 4550 4550 4550 4550 4550 4500 4500 4500 4550 4600 4650 4650 4700 4750 4750 4800
(6.3) (6.8) 14 23 28 33 36 39 42 44 48 48 50 52 53 54 56 57 58 59
8.0 4300 3900 3800 3800 3800 3800 3750 3750 3750 3750 3800 3850 3900 3900 3950 4000 4000 4050
(7.3) (7.8) 14 22 27 31 35 38 42 43 45 47 48 50 51 53 54 55
9.0 3600 3300 3200 3200 3200 3200 3150 3200 3250 3250 3300 3350 3350 3400 3400 3450
(8.3) (8.8) 13 21 26 30 35 36 39 41 43 45 47 48 50 51
10 3000 2800 2700 2700 2700 2700 2750 2800 2850 2850 2900 2900 2950 2950
(9.3) (9.8) 12 20 28 29 32 35 38 40 42 44 45 47
11 2550 2350 2300 2350 2350 2400 2450 2450 2500 2550 2550 2600
(10.3) (10.8) 17 19 24 28 31 34 37 39 41 42
12 NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER 2100 2050 2050 2100 2100 2150 2200 2200 2250 2250
LOAD HANDLING DEVICES SHALL BE ADDED (11.6) (11.8) 12 19 23 27 30 33 36 37
13 TO THE WEIGHT OF THE LOAD 1950 1850 1850 1850 1900 1950 1950 2000
(12.3) (12.8) 11 18 23 27 30 32
14 1750 1650 1650 1700 1700 1750
(13.3) (13.8) 11 18 22 25
15 1600 1500 1500 1550
(14.3) (14.8) 11 16
15.71 1450 1400
(15.3) (15.7)
16/66 MXC1347BCOUNTERWEIGHT - FRONT MAC 25 FALL BLOCK - 10 DEG

MAC-25 FALL BLOCK LOAD CHART - 40 DEG. ART
.
LMI DUT
Y
101
COUNTERWEIGHT ON FRONT OF CRANE - SPRING LOCKOUTS ENGAGED S.W.L. ARE BASED ON 66.7% STABILITY & STRENGTH
S.W.L IN KILOGRAMS FOR SLEW ANGLES OF GREATER THAN 10 DEGREES UP TO 40 - S.W.L. ABOVE BOLD RED LINE ARE STRUCTURAL
DEGREES EITHER SIDE OF STRAIGHT AHEAD (INDICATED BY RED LED ON DASH). S.W.L. ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.) WITH TYRES INFLATED AS PER NOTES
NOTE : VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE. LIFT & CARRY - THE S.W.L. SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 M/SEC (1.44 KM/HR)
Radius BOOM PIVOT TO HEAD SHEAVES - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.12 6.50 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.32 14.50 15.00 15.50 16.00 16.50 17.00 17.50 18.00 18.42
1.4 23750 22450 20950 19200 17750 16600 15600 14750
48 51 54 57 59 61 63 65
2.0 17850 17850 17800 16850 15950 15150 14500 13750 13000 12350 11750 WINCH S.W.L.
40 44 48 51 54 57 59 61 62 64 65 SINGLE PART 4200
2.5 14000 14000 13950 13900 13900 13400 12800 12300 11800 11400 10950 10500 10050 TWO PARTS 8400
32 37 42 46 50 52 55 57 59 61 62 63 65 FOUR PARTS 16800
3.0 11450 11400 11400 11350 11350 11300 11300 10950 10550 10150 9800 9500 9200 8950 8600 8300 SIX PARTS 25000
21 29 35 41 45 48 51 53 55 57 59 61 62 63 64 65
3.5 9800 9550 9550 9550 9500 9500 9450 9450 9450 9150 8850 8550 8300 8050 7850 7650 7300 7250
(3.4) 17 28 34 39 43 47 49 52 54 56 58 59 61 62 63 65 65
4.0 8650 8150 8150 8150 8150 8100 8100 8050 8050 8000 7750 7550 7350 7150 6950 6650 6650 6500 6400
(3.8) 17 27 33 38 42 45 48 51 53 55 56 58 59 61 62 63 64 65
5.0 7450 6500 6200 6200 6200 6200 6150 6150 6150 6150 6100 6100 6000 5800 5600 5550 5500 5400 5350 5300 5200 5150 5100
(4.3) (4.8) 16 25 31 36 40 43 46 48 50 52 54 56 58 58 59 61 62 63 63 64 65
6.0 5750 5100 4900 4900 4900 4900 4850 4850 4850 4850 4850 4850 4750 4750 4700 4650 4600 4550 4500 4450 4400 4350
(5.3) (5.8) 15 24 30 34 38 41 44 46 48 50 53 53 55 56 57 58 60 61 61 62
7.0 4600 4100 3950 3950 3950 3950 3950 3950 3950 3950 3900 3950 3950 4000 4000 3950 3900 3850 3850 3800
(6.3) (6.8) 14 23 28 33 36 39 42 44 48 48 50 52 53 54 56 57 58 59
8.0 3700 3400 3250 3250 3250 3250 3250 3250 3250 3250 3300 3350 3350 3400 3450 3400 3350 3350
(7.3) (7.8) 14 22 27 31 35 38 42 43 45 47 48 50 51 53 54 55
9.0 3100 2800 2700 2700 2700 2700 2700 2700 2750 2800 2850 2850 2900 2950 2950 2950
(8.3) (8.8) 13 21 26 30 35 36 39 41 43 45 47 48 50 51
10 2550 2350 2300 2300 2300 2300 2350 2400 2400 2450 2450 2500 2550 2550
(9.3) (9.8) 12 20 28 29 32 35 38 40 42 44 45 47
11 2150 2000 1950 1950 2000 2050 2050 2100 2100 2150 2200 2200
(10.3) (10.8) 17 19 24 28 31 34 37 39 41 42
12 NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER 1750 1700 1700 1750 1750 1800 1850 1850 1900 1900
LOAD HANDLING DEVICES SHALL BE ADDED (11.6) (11.8) 12 19 23 27 30 33 36 37
13 TO THE WEIGHT OF THE LOAD 1600 1500 1500 1550 1600 1600 1650 1650
(12.3) (12.8) 11 18 23 27 30 32
14 1450 1350 1350 1400 1400 1450
(13.3) (13.8) 11 18 22 25
15 1300 1250 1250 1250
(14.3) (14.8) 11 16
15.71 1150 1100
(15.3) (15.7)
17/66 MXC1347BCOUNTERWEIGHT - FRONT MAC 25 FALL BLOCK - 40 DEG

MAC-25 RHINO HOOK LOAD CHART - 10 DE
G
LMI DUT
Y
102
COUNTERWEIGHT ON FRONT OF CRANE - SPRING LOCKOUTS ENGAGED S.W.L. ARE BASED ON 66.7% STABILITY & STRENGTH
S.W.L IN KILOGRAMS FOR SLEW ANGLES OF 10 DEGREES OR LESS EITHER - S.W.L. ABOVE BOLD RED LINE ARE STRUCTURAL
SIDE OF STRAIGHT AHEAD (INDICATED BY GREEN LED ON DASH). S.W.L. ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.) WITH TYRES INFLATED AS PER NOTES
NOTE : VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE. LIFT & CARRY - THE S.W.L. SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 M/SEC (1.44 KM/HR)
Radius BOOM PIVOT TO HOOK CENTRE - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.45 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.00 14.65 15.00 15.50 16.00 16.50 17.00 17.50 18.00 18.50 18.75
1.4 15000 15000 15000 15000 15000 15000 15000
52 55 58 60 62 64 65
2.0 15000 15000 15000 15000 15000 15000 15000 15000 15000 15000
44 49 52 55 57 59 61 63 64 65
2.5 15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 15000 14200
37 43 47 50 53 56 58 59 61 63 64 65
3.0 13000 12950 12900 12900 12850 12800 12800 12750 12750 12700 12700 12700 12650 12300
29 36 41 45 49 52 54 56 58 60 61 62 64 65
3.5 10900 10900 10900 10850 10800 10800 10750 10750 10700 10700 10700 10650 10650 10650 10600 10600
17 29 35 40 44 47 50 52 55 56 58 60 61 62 63 64
4.0 10050 9350 9350 9300 9300 9250 9250 9250 9200 9200 9150 9150 9150 9150 9100 9100 9100 9100 9150
(3.7) 18 28 34 39 43 46 49 51 53 55 57 58 60 61 62 63 64 65
5.0 8550 7500 7150 7150 7150 7100 7100 7100 7050 7050 7050 7000 7000 7000 7000 7000 7000 7050 7100 7100 7150 7200 7200
(4.3) (4.8) 17 26 32 37 40 44 46 49 51 53 54 56 57 59 60 61 62 63 64 65 65
6.0 6650 5900 5700 5700 5650 5650 5650 5650 5600 5600 5600 5600 5600 5550 5600 5650 5650 5700 5750 5750 5800 5850 5850
(5.3) (5.8) 16 24 30 35 38 42 44 47 49 51 52 54 55 57 58 59 60 61 62 63 63
7.0 5300 4800 4650 4650 4600 4600 4600 4600 4600 4600 4550 4550 4600 4650 4650 4700 4750 4750 4800 4800 4800
(6.3) (6.8) 15 23 29 33 37 40 42 45 47 49 50 52 53 55 56 57 58 59 60
8.0 4350 3950 3850 3850 3850 3850 3850 3800 3800 3800 3850 3850 3900 3950 3950 4000 4000 4050 4050
(7.3) (7.8) 14 22 28 32 35 38 41 44 45 47 49 50 52 53 54 55 56
9.0 3650 3350 3250 3250 3250 3250 3200 3200 3250 3300 3300 3350 3350 3400 3450 3450 3450
(8.3) (8.8) 13 21 27 31 34 38 39 42 44 46 47 49 50 51 52
10 3050 2800 2750 2750 2750 2750 2750 2800 2850 2850 2900 2950 2950 3000 3000
(9.3) (9.8) 13 20 26 31 33 36 38 40 42 44 46 47 48
11 2600 2400 2350 2350 2400 2400 2450 2500 2500 2550 2550 2600 2600
(10.3) (10.8) 12 21 25 29 32 35 37 39 41 43 44
12 2250 2000 2050 2100 2100 2150 2200 2200 2250 2250 2250
(11.3) (11.9) 12 19 24 28 31 34 36 38 39
13 1950 1850 1850 1850 1900 1950 1950 2000 2000
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER (12.3) (12.8) 12 18 23 27 30 33 34
14 LOAD HANDLING DEVICES SHALL BE ADDED 1750 1650 1650 1700 1700 1750 1750
TO THE WEIGHT OF THE LOAD (13.3) (13.8) 11 18 23 26 28
15 1600 1500 1500 1550 1550
(14.3) (14.8) 11 17 20
16 1450 1400 1350
(15.3) (15.8) (16.)
18/66 MXC1347BCOUNTERWEIGHT - FRONT MAC 25 RHINO HOOK - 10 DEG

MAC-25 RHINO HOOK LOAD CHART - 40 DE
G
LMI DUT
Y
102
COUNTERWEIGHT ON FRONT OF CRANE - SPRING LOCKOUTS ENGAGED S.W.L. ARE BASED ON 66.7% STABILITY & STRENGTH
S.W.L IN KILOGRAMS FOR SLEW ANGLES OF GREATER THAN 10 DEGREES UP TO 40 - S.W.L. ABOVE BOLD RED LINE ARE STRUCTURAL
DEGREES EITHER SIDE OF STRAIGHT AHEAD (INDICATED BY RED LED ON DASH). S.W.L. ARE BASED ON FIRM LEVEL GROUND (1% SLOPE (0.6 DEG) AS PER AS1418.5)
BOOM ANGLE - UNDEFLECTED (REF.) WITH TYRES INFLATED AS PER NOTES
NOTE : VALUES IN BRACKETS ( ) ARE ACTUAL RADIUS AT ZERO DEG. BOOM ANGLE. LIFT & CARRY - THE S.W.L. SHALL BE CARRIED WITH THE MINIMUM BOOM LENGTH & AS
CLOSE TO THE GROUND AS POSSIBLE AT SPEEDS NOT IN EXCESS OF 0.4 M/SEC (1.44 KM/HR)
Radius BOOM PIVOT TO HOOK CENTRE - THIRD BOOM RETRACTED THIRD BOOM EXTENDING
in (metres) (metres)
Metres 6.45 7.00 7.50 8.00 8.50 9.00 9.50 10.00 10.50 11.00 11.50 12.00 12.50 13.00 13.50 14.00 14.65 15.00 15.50 16.00 16.50 17.00 17.50 18.00 18.50 18.75
1.4 15000 15000 15000 15000 15000 15000 14850
52 55 58 60 62 64 65
2.0 15000 15000 15000 15000 15000 14650 13850 13100 12400 11850
44 49 52 55 57 59 61 63 64 65
2.5 14200 14150 14100 14050 13550 12950 12400 11950 11500 11050 10550 10100
37 43 47 50 53 56 58 59 61 63 64 65
3.0 11600 11550 11550 11500 11450 11450 11100 10650 10250 9900 9600 9300 9050 8700
29 36 41 45 49 52 54 56 58 60 61 62 64 65
3.5 9750 9700 9700 9650 9650 9600 9600 9550 9250 8950 8650 8400 8150 7950 7700 7500
17 29 35 40 44 47 50 52 55 56 58 60 61 62 63 64
4.0 8950 8300 8300 8300 8250 8250 8200 8200 8150 8100 7850 7650 7400 7200 7000 6850 6650 6550 6450
(3.7) 18 28 34 39 43 46 49 51 53 55 57 58 60 61 62 63 64 65
5.0 7600 6650 6300 6300 6300 6300 6250 6250 6250 6200 6200 6200 6050 5900 5750 5550 5500 5450 5350 5300 5250 5150 5100
(4.3) (4.8) 17 26 32 37 40 44 46 49 51 53 54 56 57 59 60 61 62 63 64 65 65
6.0 5850 5200 5000 5000 5000 4950 4950 4950 4950 4900 4900 4900 4900 4750 4700 4650 4600 4550 4500 4450 4400 4350 4350
(5.3) (5.8) 16 24 30 35 38 42 44 47 49 51 52 54 55 57 58 59 60 61 62 63 63
7.0 4650 4200 4050 4050 4050 4000 4000 4000 4000 4000 4000 3950 4000 4050 4000 3950 3900 3900 3850 3800 3800
(6.3) (6.8) 15 23 29 33 37 40 42 45 47 49 50 52 53 55 56 57 58 59 60
8.0 3800 3450 3350 3350 3300 3300 3300 3300 3300 3300 3300 3350 3400 3400 3450 3400 3400 3350 3350
(7.3) (7.8) 14 22 28 32 35 38 41 44 45 47 49 50 52 53 54 55 56
9.0 3150 2850 2750 2750 2750 2750 2750 2750 2800 2800 2850 2900 2900 2950 2950 3000 2950
(8.3) (8.8) 13 21 27 31 34 38 39 42 44 46 47 49 50 51 52
10 2600 2400 2350 2350 2350 2300 2350 2400 2400 2450 2500 2500 2550 2550 2550
(9.3) (9.8) 13 20 26 31 33 36 38 40 42 44 46 47 48
11 2200 2000 1950 1950 2000 2050 2050 2100 2150 2150 2200 2200 2200
(10.3) (10.8) 12 21 25 29 32 35 37 39 41 43 44
12 1850 1650 1700 1750 1750 1800 1850 1850 1900 1900 1950
(11.3) (11.9) 12 19 24 28 31 34 36 38 39
13 1600 1500 1500 1550 1600 1600 1650 1650 1700
NOTE : WEIGHT OF HOOKS, BLOCKS & OTHER (12.3) (12.8) 12 18 23 27 30 33 34
14 LOAD HANDLING DEVICES SHALL BE ADDED 1450 1350 1350 1400 1400 1450 1450
TO THE WEIGHT OF THE LOAD (13.3) (13.8) 11 18 23 26 28
15 1300 1250 1250 1250 1250
(14.3) (14.8) 11 17 20
16 1150 1100 1100
(15.3) (15.8) (16.)
19/66 MXC1347BCOUNTERWEIGHT - FRONT MAC 25 RHINO HOOK - 40 DEG
